◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11161 - FSR(SOUTH AFRICA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#55528) — 83 parça

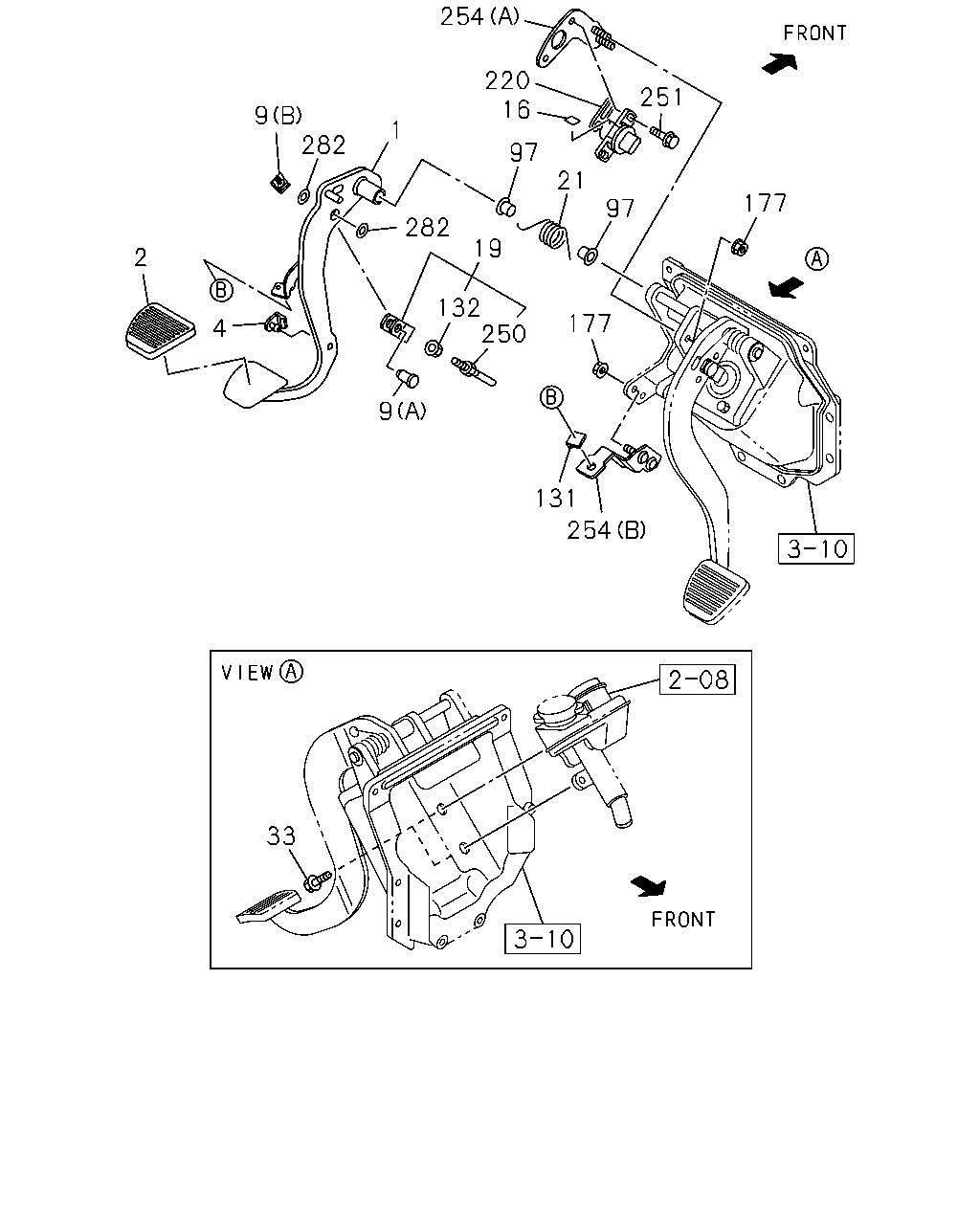

çizim 162705
254 220 16 251 9 282 1 97 21 177 97 282 19 2 132 250 177 4 9 131 254 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU
H.S.A SYSTEM<6EP> 		8-98021-375-1 01 1 1001-1105 ● ●
1 PEDAL; CLU
H.S.A SYSTEM<6EP> 		8-98021-375-1 01 1 1106-1109 ●
1 PEDAL; CLU
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-375-1 01 1 1106-1109 ●
1 PEDAL; CLU
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-375-1 01 1 1110- ● ●
1 PEDAL; CLU
EXC. H.S.A SYSTEM<6EP> 		8-97613-941-1 01 1 1001-1105 ● ●
1 PEDAL; CLU
EXC. H.S.A SYSTEM<6EP> 		8-97613-941-1 01 1 1106-1109 ●
1 PEDAL; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-97613-941-1 01 1 1106-1109 ●
1 PEDAL; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-97613-941-1 01 1 1110- ● ●
2 COVER; CLU PEDAL 8-98056-865-0 01 1 1001-1105 ● ●
2 COVER; CLU PEDAL 8-98056-865-0 01 1 1106-1109 ●
2 COVER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98056-865-0 01 1 1106-1109 ●
2 COVER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98056-865-0 01 1 1110- ● ●
4 STOPPER; CLU PEDAL 8-98079-251-0 01 1 1001-1105 ● ●
4 STOPPER; CLU PEDAL 8-98079-251-0 01 1 1106-1109 ●
4 STOPPER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98079-251-0 01 1 1106-1109 ●
4 STOPPER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98079-251-0 01 1 1110- ● ●
9 PIN; CLU PEDAL
(A) 		8-97387-230-0 01 1 1001-1007 ● ●
9 PIN; CLU PEDAL
(A) 		8-98147-657-0 01 1 1008-1105 ● ●
9 PIN; CLU PEDAL
(A) 		8-98147-657-0 01 1 1106-1109 ●
9 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98147-657-0 01 1 1106-1109 ●
9 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98147-657-0 01 1 1110- ● ●
9 PIN; CLU PEDAL
(B) 		8-98007-161-0 01 1 1001-1105 ● ●
9 PIN; CLU PEDAL
(B) 		8-98007-161-0 01 1 1106-1109 ●
9 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98007-161-0 01 1 1106-1109 ●
9 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98007-161-0 01 1 1110- ● ●
16 SEAL; CLU PEDAL
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 30X30 		8-98142-344-0 01 1 1204- ● ●
19 ROD ASM; PUSH,CLU 8-98021-406-1 01 1 1001-1105 ● ●
19 ROD ASM; PUSH,CLU 8-98021-406-1 01 1 1106-1109 ●
19 ROD ASM; PUSH,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-406-1 01 1 1106-1109 ●
19 ROD ASM; PUSH,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-406-1 01 1 1110- ● ●
21 SPRING; RETURN,CLU PEDAL 8-98021-560-0 01 1 1001-1105 ● ●
21 SPRING; RETURN,CLU PEDAL 8-98021-560-0 01 1 1106-1109 ●
21 SPRING; RETURN,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-560-0 01 1 1106-1109 ●
21 SPRING; RETURN,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-560-0 01 1 1110- ● ●
33 BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE 		0-28051-220-0 02 1 1001-1105 ● ●
33 BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE 		0-28051-220-0 02 1 1106-1109 ●
33 BOLT; CLU M/CYL TO BRKT
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12X20 FLANGE 		0-28051-220-0 02 1 1106-1109 ●
33 BOLT; CLU M/CYL TO BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12X20 FLANGE 		0-28051-220-0 02 1 1110- ●
33 BOLT; CLU M/CYL TO BRKT
MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12X20 FLANGE 		0-28051-220-0 02 1 1110- ●
97 BUSHING; CLU PEDAL SHAFT
SOU 		8-94238-596-0 02 1 1001-1105 ● ●
97 BUSHING; CLU PEDAL SHAFT
SOU 		8-94238-596-0 02 1 1106-1109 ●
97 BUSHING; CLU PEDAL SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		8-94238-596-0 02 1 1106-1109 ●
97 BUSHING; CLU PEDAL SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		8-94238-596-0 02 1 1110- ● ●
131 STOPPER; CLU SW
SOU 		8-97302-305-0 01 1 1001-1105 ● ●
131 STOPPER; CLU SW
SOU 		8-97302-305-0 01 1 1106-1109 ●
131 STOPPER; CLU SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		8-97302-305-0 01 1 1106-1109 ●
131 STOPPER; CLU SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU 		8-97302-305-0 01 1 1110- ● ●
132 NUT; LK,PUSH ROD
M8 FLANGE SOU 		0-91180-108-0 01 1 1001-1105 ● ●
132 NUT; LK,PUSH ROD
M8 FLANGE SOU 		0-91180-108-0 01 1 1106-1109 ●
132 NUT; LK,PUSH ROD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE SOU 		0-91180-108-0 01 1 1106-1109 ●
132 NUT; LK,PUSH ROD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE SOU 		0-91180-108-0 01 1 1110- ● ●
177 NUT; BRKT
H.S.A SYSTEM<6EP> M8 FLANGE SOU 		0-91180-108-0 04 1 1001-1105 ● ●
177 NUT; BRKT
H.S.A SYSTEM<6EP> M8 FLANGE SOU 		0-91180-108-0 04 1 1106-1109 ●
177 NUT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE SOU 		0-91180-108-0 04 1 1106-1109 ●
177 NUT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE SOU 		0-91180-108-0 04 1 1110- ● ●
177 NUT; BRKT
EXC. H.S.A SYSTEM<6EP> M8 FLANGE SOU 		0-91180-108-0 02 1 1001-1105 ● ●
177 NUT; BRKT
EXC. H.S.A SYSTEM<6EP> M8 FLANGE SOU 		0-91180-108-0 02 1 1106-1109 ●
177 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> M8 FLANGE SOU 		0-91180-108-0 02 1 1106-1109 ●
177 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> M8 FLANGE SOU 		0-91180-108-0 02 1 1110- ● ●
220 SENSOR; CLUTCH
H.S.A SYSTEM<6EP> 		1-80250-014-0 01 1 1001-1105 ● ●
220 SENSOR; CLUTCH
H.S.A SYSTEM<6EP> 		1-80250-014-0 01 1 1106-1109 ●
220 SENSOR; CLUTCH
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-80250-014-0 01 1 1106-1109 ●
220 SENSOR; CLUTCH
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-80250-014-0 01 1 1110- ● ●
250 ROD; PUSH,CLU 8-97615-589-0 01 1 1001-1105 ● ●
250 ROD; PUSH,CLU 8-97615-589-0 01 1 1106-1109 ●
250 ROD; PUSH,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97615-589-0 01 1 1106-1109 ●
250 ROD; PUSH,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97615-589-0 01 1 1110- ● ●
251 BOLT; SENSOR
H.S.A SYSTEM<6EP> M6X16 SOU 		0-52000-616-0 02 1 1001-1105 ● ●
251 BOLT; SENSOR
H.S.A SYSTEM<6EP> M6X16 SOU 		0-52000-616-0 02 1 1106-1109 ●
251 BOLT; SENSOR
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 SOU 		0-52000-616-0 02 1 1106-1109 ●
251 BOLT; SENSOR
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 SOU 		0-52000-616-0 02 1 1110- ● ●
254 BRACKET; CLU SENSOR
(B) 		8-98021-377-1 01 1 1001-1105 ● ●
254 BRACKET; CLU SENSOR
(B) 		8-98021-377-1 01 1 1106-1109 ●
254 BRACKET; CLU SENSOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98021-377-1 01 1 1106-1109 ●
254 BRACKET; CLU SENSOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98021-377-1 01 1 1110- ● ●
254 BRACKET; CLU SENSOR
H.S.A SYSTEM<6EP> (A) 		8-98021-376-1 01 1 1001-1105 ● ●
254 BRACKET; CLU SENSOR
H.S.A SYSTEM<6EP> (A) 		8-98021-376-1 01 1 1106-1109 ●
254 BRACKET; CLU SENSOR
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98021-376-1 01 1 1106-1109 ●
254 BRACKET; CLU SENSOR
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98021-376-1 01 1 1110- ● ●
282 SPACER; CLU PEDAL 8-98070-329-0 02 1 1001-1105 ● ●
282 SPACER; CLU PEDAL 8-98070-329-0 02 1 1106-1109 ●
282 SPACER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98070-329-0 02 1 1106-1109 ●
282 SPACER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98070-329-0 02 1 1110- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
