1-56 — EXHAUST BRAKE SYSTEM (#55526) — 91 parça

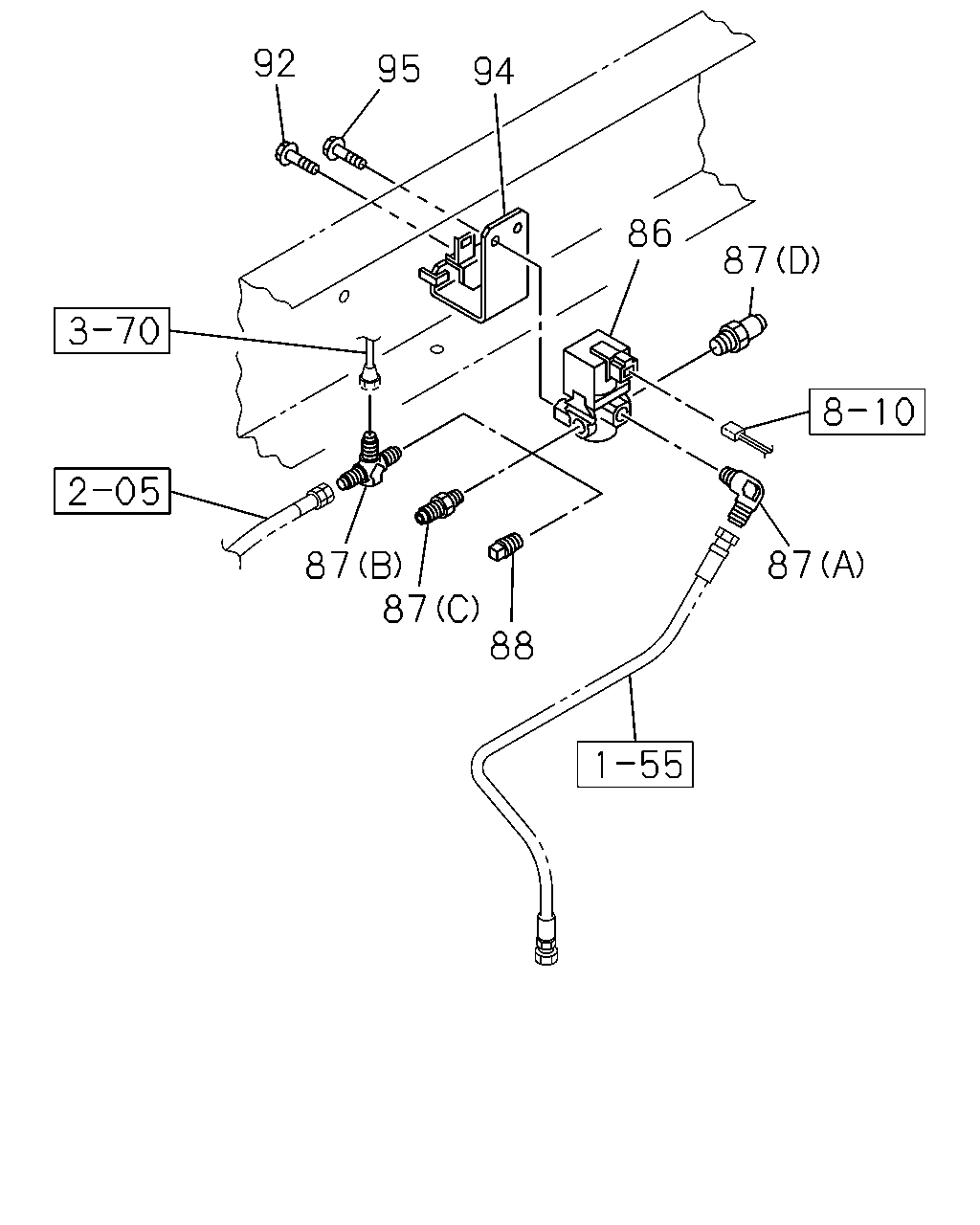

92 95 94 86 87 87 87 87 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
86	VALVE; MAG,EXH BRK SOU	1-82563-871-2	01	1	1001-1011	●
86	VALVE; MAG,EXH BRK SOU	1-82563-871-2	01	1	1012-	●	●
87	CONNECTOR PTO CONTROL<SV6> (B) M12 & PT1/4 3WAY SOU	1-09656-586-1	01	1	1012-		●
87	CONNECTOR EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) M12 & PT1/4 3WAY SOU	1-09656-586-1	01	1	1012-		●
87	CONNECTOR RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (E) M12 & PT1/4 ELBOW SOU	1-48629-258-0	01	1	1012-1503		●
87	CONNECTOR RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (E) M12 & PT1/4 ELBOW SOU	8-98299-777-0	01	1	1504-		●
87	CONNECTOR (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1012-1107	●
87	CONNECTOR RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1012-1107		●
87	CONNECTOR FSR SGL CAB(FC*M) (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1108-1109	●
87	CONNECTOR FSR DBL CAB(FC*W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1108-1109	●
87	CONNECTOR RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1108-1109		●
87	CONNECTOR FSR SGL CAB(FC*M) RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1110-	●
87	CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1110-	●
87	CONNECTOR RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1110-		●
87	CONNECTOR (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1001-1011	●
87	CONNECTOR PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	02	1	1012-1107		●
87	CONNECTOR EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	02	1	1012-1107		●
87	CONNECTOR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	02	1	1108-1109	●
87	CONNECTOR PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	02	1	1108-1109		●
87	CONNECTOR EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	02	1	1108-1109		●
87	CONNECTOR FSR SGL CAB(FC*M) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	02	1	1110-	●
87	CONNECTOR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	02	1	1110-	●
87	CONNECTOR FSR SGL CAB(FC*M) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	02	1	1110-	●
87	CONNECTOR PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	02	1	1110-		●
87	CONNECTOR EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	02	1	1110-		●
87	CONNECTOR (D) DIN8 R1/4 STRAIGHT SOU	1-09660-963-0	01	1	1001-1011	●
87	CONNECTOR (D) DIN8 R1/4 STRAIGHT SOU	1-09660-963-0	01	1	1012-	●	●
87	CONNECTOR FSR SGL CAB(FC*M) PTO CONTROL<SV6> (B) M12X2 & PT1/4 3WAY SOU	1-09656-230-1	01	1	1001-1107	●
87	CONNECTOR FSR DBL CAB(FC*W) (B) M12X2 & PT1/4 3WAY SOU	1-09656-230-1	01	1	1001-1107	●
87	CONNECTOR FSR SGL CAB(FC*M) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) M12X2 & PT1/4 3WAY SOU	1-09656-230-1	01	1	1001-1107	●
87	CONNECTOR FSR SGL CAB(FC*M) PTO CONTROL<SV6> (B) M12X2 & PT1/4 3WAY SOU	1-09656-230-1	01	1	1108-1109	●
87	CONNECTOR FSR DBL CAB(FC*W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12X2 & PT1/4 3WAY SOU	1-09656-230-1	01	1	1108-1109	●
87	CONNECTOR FSR SGL CAB(FC*M) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) M12X2 & PT1/4 3WAY SOU	1-09656-230-1	01	1	1108-1109	●
87	CONNECTOR FSR SGL CAB(FC*M) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12X2 & PT1/4 3WAY SOU	1-09656-230-1	01	1	1110-	●
87	CONNECTOR FSR DBL CAB(FC*W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12X2 & PT1/4 3WAY SOU	1-09656-230-1	01	1	1110-	●
87	CONNECTOR FSR SGL CAB(FC*M) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12X2 & PT1/4 3WAY SOU	1-09656-230-1	01	1	1110-	●
87	CONNECTOR FSR SGL CAB(FC*M) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	01	1	1001-1109	●
87	CONNECTOR FSR SGL CAB(FC*M) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	01	1	1110-	●
88	PLUG FSR SGL CAB(FC*M) RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	1110-	●
92	BOLT; MAG VLV M10X30 FLANGE SOU	0-28651-030-0	02	1	1012-		●
92	BOLT; MAG VLV M10X25 FLANGE SOU	0-28651-025-0	01	1	1001-1008	●
92	BOLT; MAG VLV M10X30 FLANGE SOU	0-28651-030-0	01	1	1009-	●
94	BRACKET; MAG VLV,EXH BRAKE SOU	8-98078-098-0	01	1	1012-		●
94	BRACKET; MAG VLV,EXH BRAKE SOU	8-98123-165-0	01	1	1001-	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE M8X20 FLANGE	0-28650-820-0	02	1	1001-1011	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE M8X20 FLANGE	0-28650-820-0	02	1	1012-	●	●

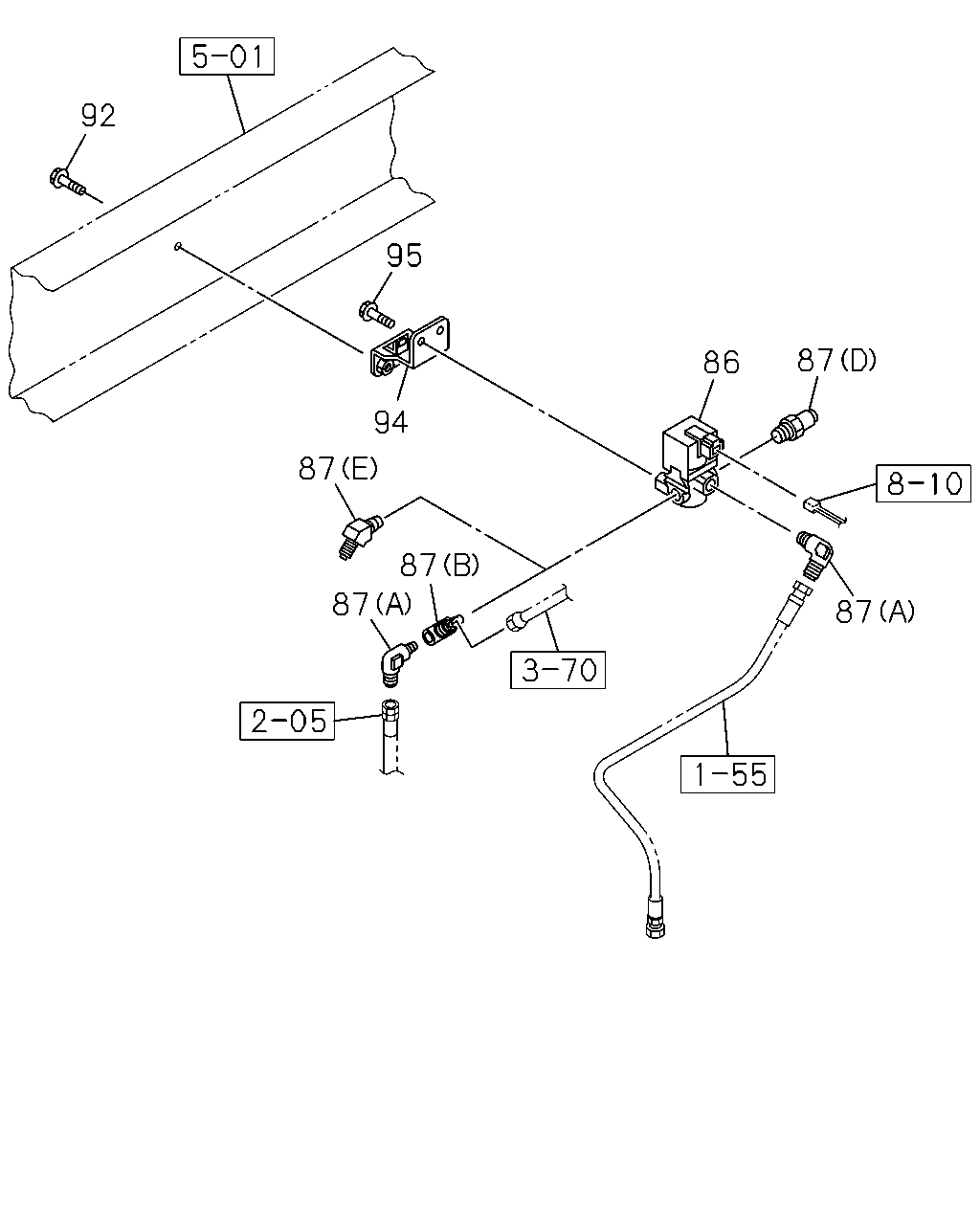

92 95 87 86 94 87 87 87 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
86	VALVE; MAG,EXH BRK SOU	1-82563-871-2	01	1	1001-1011	●
86	VALVE; MAG,EXH BRK SOU	1-82563-871-2	01	1	1012-	●	●
87	CONNECTOR PTO CONTROL<SV6> (B) M12 & PT1/4 3WAY SOU	1-09656-586-1	01	1	1012-		●
87	CONNECTOR EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) M12 & PT1/4 3WAY SOU	1-09656-586-1	01	1	1012-		●
87	CONNECTOR RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (E) M12 & PT1/4 ELBOW SOU	1-48629-258-0	01	1	1012-1503		●
87	CONNECTOR RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (E) M12 & PT1/4 ELBOW SOU	8-98299-777-0	01	1	1504-		●
87	CONNECTOR (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1012-1107	●
87	CONNECTOR RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1012-1107		●
87	CONNECTOR FSR SGL CAB(FC*M) (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1108-1109	●
87	CONNECTOR FSR DBL CAB(FC*W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1108-1109	●
87	CONNECTOR RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1108-1109		●
87	CONNECTOR FSR SGL CAB(FC*M) RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1110-	●
87	CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1110-	●
87	CONNECTOR RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1110-		●
87	CONNECTOR (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1001-1011	●
87	CONNECTOR PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	02	1	1012-1107		●
87	CONNECTOR EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	02	1	1012-1107		●
87	CONNECTOR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	02	1	1108-1109	●
87	CONNECTOR PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	02	1	1108-1109		●
87	CONNECTOR EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	02	1	1108-1109		●
87	CONNECTOR FSR SGL CAB(FC*M) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	02	1	1110-	●
87	CONNECTOR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	02	1	1110-	●
87	CONNECTOR FSR SGL CAB(FC*M) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	02	1	1110-	●
87	CONNECTOR PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	02	1	1110-		●
87	CONNECTOR EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	02	1	1110-		●
87	CONNECTOR (D) DIN8 R1/4 STRAIGHT SOU	1-09660-963-0	01	1	1001-1011	●
87	CONNECTOR (D) DIN8 R1/4 STRAIGHT SOU	1-09660-963-0	01	1	1012-	●	●
87	CONNECTOR FSR SGL CAB(FC*M) PTO CONTROL<SV6> (B) M12X2 & PT1/4 3WAY SOU	1-09656-230-1	01	1	1001-1107	●
87	CONNECTOR FSR DBL CAB(FC*W) (B) M12X2 & PT1/4 3WAY SOU	1-09656-230-1	01	1	1001-1107	●
87	CONNECTOR FSR SGL CAB(FC*M) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) M12X2 & PT1/4 3WAY SOU	1-09656-230-1	01	1	1001-1107	●
87	CONNECTOR FSR SGL CAB(FC*M) PTO CONTROL<SV6> (B) M12X2 & PT1/4 3WAY SOU	1-09656-230-1	01	1	1108-1109	●
87	CONNECTOR FSR DBL CAB(FC*W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12X2 & PT1/4 3WAY SOU	1-09656-230-1	01	1	1108-1109	●
87	CONNECTOR FSR SGL CAB(FC*M) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) M12X2 & PT1/4 3WAY SOU	1-09656-230-1	01	1	1108-1109	●
87	CONNECTOR FSR SGL CAB(FC*M) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12X2 & PT1/4 3WAY SOU	1-09656-230-1	01	1	1110-	●
87	CONNECTOR FSR DBL CAB(FC*W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12X2 & PT1/4 3WAY SOU	1-09656-230-1	01	1	1110-	●
87	CONNECTOR FSR SGL CAB(FC*M) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12X2 & PT1/4 3WAY SOU	1-09656-230-1	01	1	1110-	●
87	CONNECTOR FSR SGL CAB(FC*M) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	01	1	1001-1109	●
87	CONNECTOR FSR SGL CAB(FC*M) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	01	1	1110-	●
92	BOLT; MAG VLV M10X30 FLANGE SOU	0-28651-030-0	02	1	1012-		●
92	BOLT; MAG VLV M10X25 FLANGE SOU	0-28651-025-0	01	1	1001-1008	●
92	BOLT; MAG VLV M10X30 FLANGE SOU	0-28651-030-0	01	1	1009-	●
94	BRACKET; MAG VLV,EXH BRAKE SOU	8-98078-098-0	01	1	1012-		●
94	BRACKET; MAG VLV,EXH BRAKE SOU	8-98123-165-0	01	1	1001-	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE M8X20 FLANGE	0-28650-820-0	02	1	1001-1011	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE M8X20 FLANGE	0-28650-820-0	02	1	1012-	●	●
