Isuzu WW
▶
TRUCKS
▶
FSR
▶
11161 - FSR(SOUTH AFRICA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

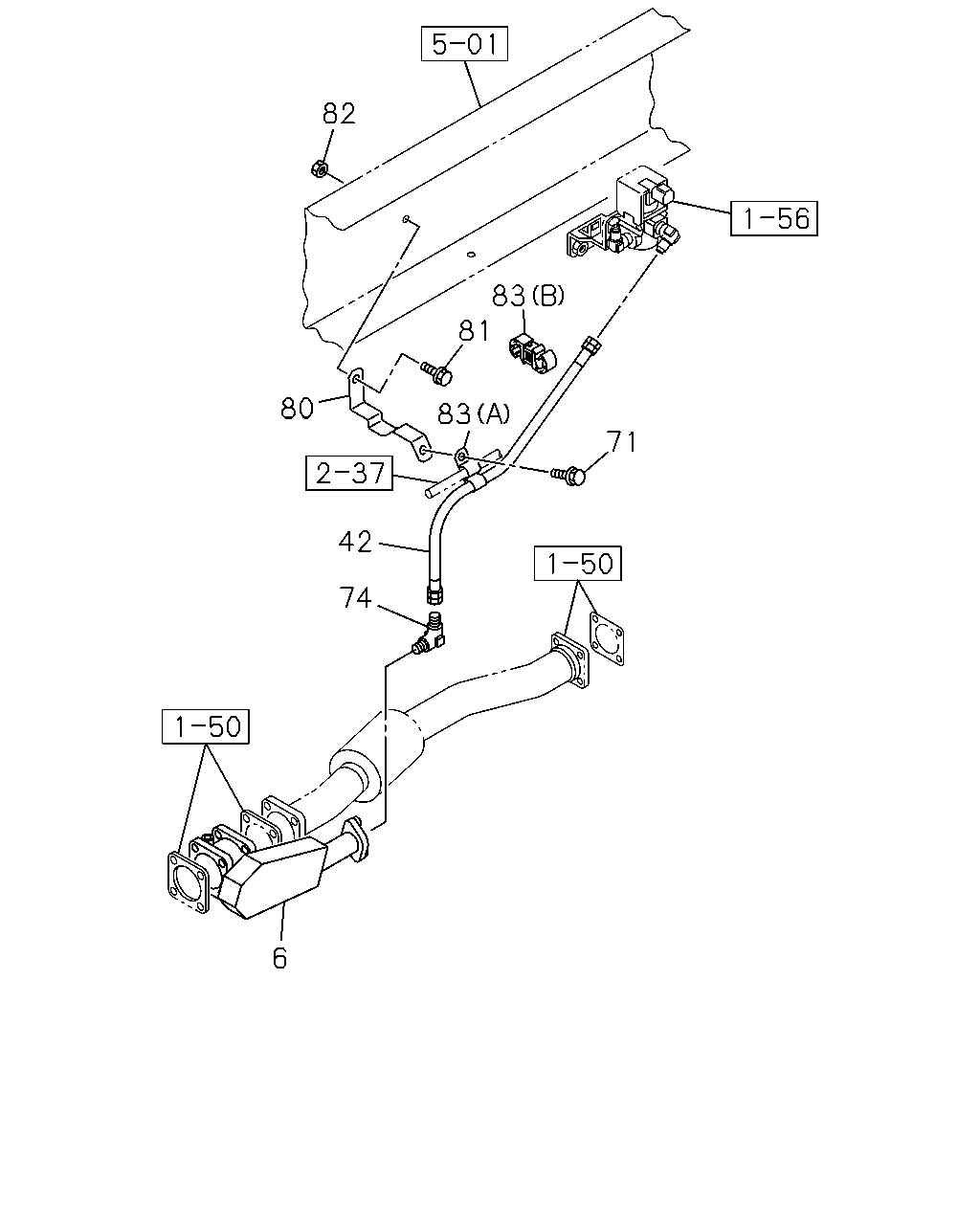

1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER
▶
1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER
(#55525) — 44 parça
Tümü
A - 4HK1-TCS ENG
B - 6HK1-TCN ENG
◀
[155A] 6HK1 (22 parça)
[155A] 4HK1 (22 parça)
▶
82
81
80
83
71
42
74
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
VALVE; EXH BRAKE
8-98054-172-6
01
1
1102-
●
6
VALVE; EXH BRAKE
8-98054-173-6
01
1
1001-1302
●
6
VALVE; EXH BRAKE
8-98233-801-0
01
1
1303-
●
42
HOSE; FLEX,EXH BRK
MZX6P M/T(RSW),MZW6P M/T(RSZ) L=600
1-09363-639-0
01
1
1012-
●
42
HOSE; FLEX,EXH BRK
MLD6W M/T(Y2C) L=660
1-09363-971-0
01
1
1012-
●
42
HOSE; FLEX,EXH BRK
L=520
1-09363-957-0
01
1
1001-
●
71
BOLT; CLIP
M8X25 FLANGE SOU
0-28650-825-0
01
1
1001-1011
●
71
BOLT; CLIP
M8X25 FLANGE SOU
0-28650-825-0
01
1
1012-
●
●
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW SOU
1-09650-430-0
01
1
1001-1011
●
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW SOU
1-09650-430-0
01
1
1012-
●
●
80
BRACKET; FLEX HOSE
8-98078-153-0
01
1
1001-1011
●
80
BRACKET; FLEX HOSE
8-98078-153-0
01
1
1012-
●
80
BRACKET; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ)
8-98078-153-0
01
1
1012-
●
81
BOLT; HOSE BRKT
M10X25 FLANGE
0-28051-025-0
01
1
1001-1011
●
81
BOLT; HOSE BRKT
M10X25 FLANGE
0-28051-025-0
01
1
1012-
●
●
82
NUT; HOSE BRKT
M10 FLANGE SOU
0-91180-210-0
01
1
1001-1011
●
82
NUT; HOSE BRKT
M10 FLANGE SOU
0-91180-210-0
01
1
1012-
●
●
83
CLIP; FLEX HOSE
(B) ID=10 & 10
1-09709-277-1
01
1
1012-
●
83
CLIP; FLEX HOSE
MLD6W M/T(Y2C) (A) ID=11 L=50
0-95235-085-0
01
1
1012-
●
83
CLIP; FLEX HOSE
(A) ID=11X2 L=16
1-09700-820-0
01
1
1001-1011
●
83
CLIP; FLEX HOSE
(A) ID=11X2 L=16
1-09700-820-0
01
1
1012-
●
83
CLIP; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) ID=11X2 L=16
1-09700-820-0
01
1
1012-
●
82
83
81
80
83
71
42
74
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
VALVE; EXH BRAKE
8-98054-172-6
01
1
1102-
●
6
VALVE; EXH BRAKE
8-98054-173-6
01
1
1001-1302
●
6
VALVE; EXH BRAKE
8-98233-801-0
01
1
1303-
●
42
HOSE; FLEX,EXH BRK
MZX6P M/T(RSW),MZW6P M/T(RSZ) L=600
1-09363-639-0
01
1
1012-
●
42
HOSE; FLEX,EXH BRK
MLD6W M/T(Y2C) L=660
1-09363-971-0
01
1
1012-
●
42
HOSE; FLEX,EXH BRK
L=520
1-09363-957-0
01
1
1001-
●
71
BOLT; CLIP
M8X25 FLANGE SOU
0-28650-825-0
01
1
1001-1011
●
71
BOLT; CLIP
M8X25 FLANGE SOU
0-28650-825-0
01
1
1012-
●
●
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW SOU
1-09650-430-0
01
1
1001-1011
●
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW SOU
1-09650-430-0
01
1
1012-
●
●
80
BRACKET; FLEX HOSE
8-98078-153-0
01
1
1001-1011
●
80
BRACKET; FLEX HOSE
8-98078-153-0
01
1
1012-
●
80
BRACKET; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ)
8-98078-153-0
01
1
1012-
●
81
BOLT; HOSE BRKT
M10X25 FLANGE
0-28051-025-0
01
1
1001-1011
●
81
BOLT; HOSE BRKT
M10X25 FLANGE
0-28051-025-0
01
1
1012-
●
●
82
NUT; HOSE BRKT
M10 FLANGE SOU
0-91180-210-0
01
1
1001-1011
●
82
NUT; HOSE BRKT
M10 FLANGE SOU
0-91180-210-0
01
1
1012-
●
●
83
CLIP; FLEX HOSE
(B) ID=10 & 10
1-09709-277-1
01
1
1012-
●
83
CLIP; FLEX HOSE
MLD6W M/T(Y2C) (A) ID=11 L=50
0-95235-085-0
01
1
1012-
●
83
CLIP; FLEX HOSE
(A) ID=11X2 L=16
1-09700-820-0
01
1
1001-1011
●
83
CLIP; FLEX HOSE
(A) ID=11X2 L=16
1-09700-820-0
01
1
1012-
●
83
CLIP; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) ID=11X2 L=16
1-09700-820-0
01
1
1012-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
