Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#55524) — 274 parça

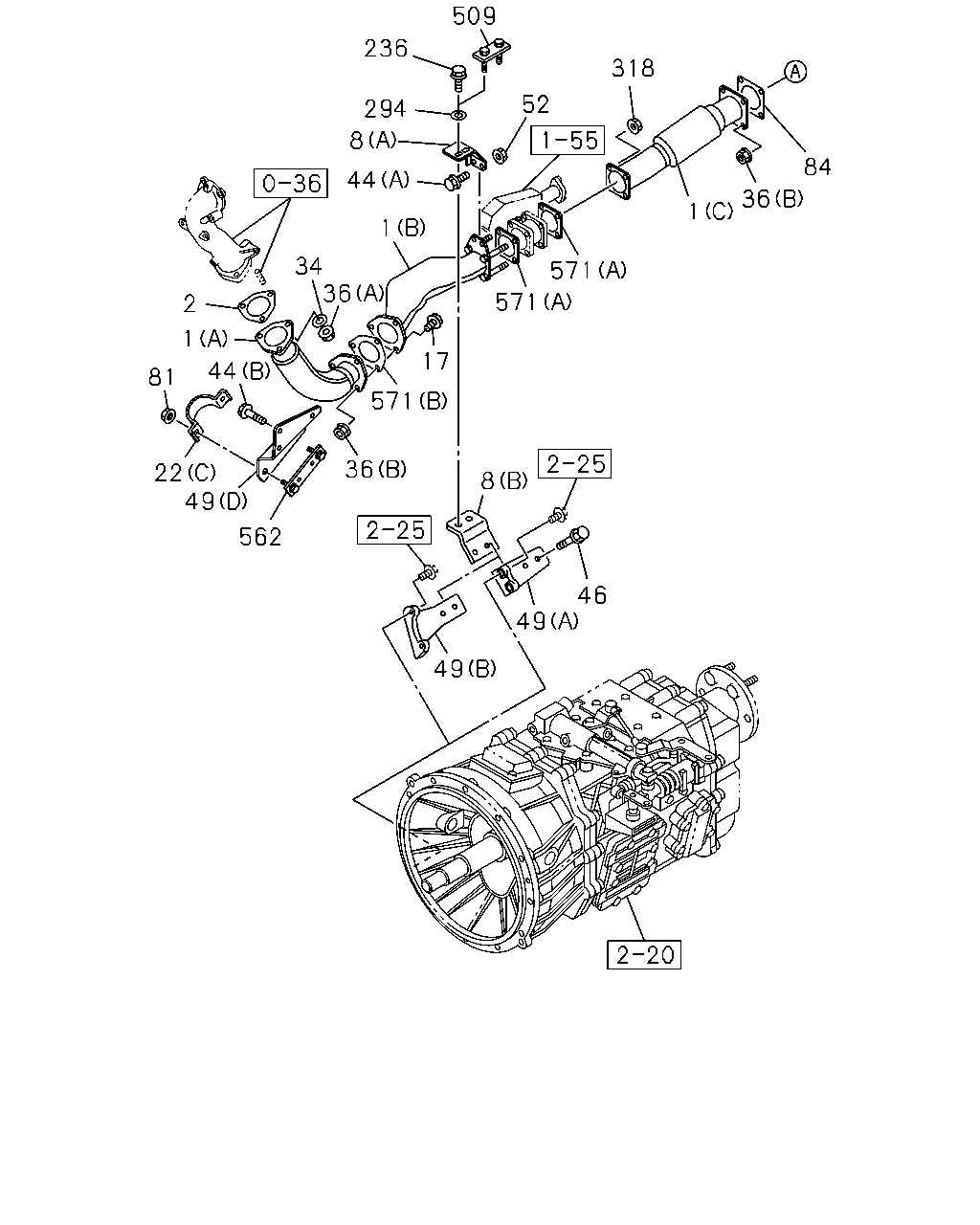

236 509 294 44 8 34 2 81 1 571 17 36 562 49 22 44 36 1 49 49 8 46 571 571 1 36 84 318 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH 4HK1-TCS ENG(RJS) (C)	8-98082-498-0	01	1	1012-	●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (D)	8-98096-347-0	01	1	1012-	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98090-385-0	01	1	1001-1011		●
1	PIPE; EXH 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98090-385-0	01	1	1012-	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98090-385-0	01	1	1012-		●
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98073-006-3	01	1	1001-1011	●
1	PIPE; EXH 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A)	8-98073-006-3	01	1	1012-	●
1	PIPE; EXH (B)	8-98073-007-0	01	1	1001-1011	●	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (B)	8-98073-007-0	01	1	1012-1309	●	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (B)	8-98245-501-0	01	1	1310-	●	●
1	PIPE; EXH (C)	8-98097-032-0	01	1	1001-1011	●	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (C)	8-98097-032-0	01	1	1012-	●	●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS)	8-97381-455-0	01	1	1012-	●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). ID=81	8-98043-481-0	01	1	1001-1011	●	●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L). ID=81	8-98043-481-0	01	1	1012-	●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). ID=81	8-98043-481-0	01	1	1012-		●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (A)	8-98113-013-0	01	1	1001-1301	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (A)	8-98113-013-0	01	1	1302-1304	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (B)	8-98233-345-0	01	1	1305-1310	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (B)	8-98259-873-0	01	1	1311-	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (B)	8-98114-390-0	01	1	1001-1301	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (B)	8-98114-390-0	01	1	1302-1304	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (A)	8-98233-348-0	01	1	1305-	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-98122-677-0	01	1	1001-1304	●	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-98233-626-0	01	1	1305-1310	●	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-98259-870-0	01	1	1311-	●	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (A)	8-98122-679-1	01	1	1001-1304	●	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (A)	8-98233-627-0	01	1	1305-1404	●	●
8	BRACKET; EXH PIPE 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (A)	8-98275-817-0	01	1	1405-	●	●
17	BOLT; EXH PIPE M12X35 FLANGE	0-28051-235-0	04	1	1204-	●	●
17	BOLT; EXH PIPE M10X35 FLANGE SOU	0-28651-035-0	02	1	1001-1011	●	●
17	BOLT; EXH PIPE M10X35 FLANGE SOU	0-28651-035-0	02	1	1012-	●	●
17	BOLT; EXH PIPE M12X35 FLANGE	0-28051-235-0	03	1	1001-1011	●	●
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) M12X35 FLANGE	0-28051-235-0	03	1	1012-	●
17	BOLT; EXH PIPE M12X35 FLANGE	0-28051-235-0	03	1	1012-		●
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C)	8-97615-334-0	01	1	1305-	●
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	1012-1309	●
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-	●
22	CLAMP; EXH PIPE (A) ID=80-84 SOU	1-22133-233-0	02	1	1001-	●	●
22	CLAMP; EXH PIPE (A) ID=80-84 SOU	1-22133-233-0	02	1	1001-	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	1001-1011	●	●
34	WASHER; EXH PIPE 6HK1-TCN ENG(82L) ID=13 OD=24 DISH	1-09500-030-0	03	1	1012-	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	1012-		●
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10 FLANGE SOU	8-97096-192-1	03	1	1012-	●
36	NUT; EXH PIPE (C) M10 FLANGE SOU	0-91180-210-0	02	1	1001-1011	●	●
36	NUT; EXH PIPE (C) M10 FLANGE SOU	0-91180-210-0	02	1	1012-	●	●
36	NUT; EXH PIPE (B) M12 FLANGE SOU	0-91180-212-0	07	1	1001-1011	●	●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (B) M12 FLANGE SOU	0-91180-212-0	07	1	1012-	●
36	NUT; EXH PIPE (B) M12 FLANGE SOU	0-91180-212-0	07	1	1012-		●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1001-1011	●	●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1012-	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1012-		●
44	BOLT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M10X20 FLANGE	0-28751-020-0	03	1	1305-	●
44	BOLT; BRKT (A) M10X35 FLANGE SOU	0-28651-035-0	02	1	1001-1011	●	●
44	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X35 FLANGE SOU	0-28651-035-0	02	1	1012-	●
44	BOLT; BRKT (A) M10X35 FLANGE SOU	0-28651-035-0	02	1	1012-		●
46	BOLT; BRKT,EXH PIPE 6HK1-TCN ENG(82L) M10X30 FLANGE	0-28051-030-0	02	1	1001-	●
46	BOLT; BRKT,EXH PIPE M10X30 FLANGE	0-28051-030-0	02	1	1001-		●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D)	8-97629-970-0	01	1	1305-	●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98122-673-0	01	1	1107-1109		●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98122-673-0	01	1	1110-	●	●
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG(RJS) (C)	8-98042-786-0	01	1	1012-1301	●
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG(RJS) (C)	8-98234-530-0	01	1	1302-	●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (A)	8-98113-008-0	01	1	1001-	●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-98122-671-0	01	1	1001-1106	●	●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-98122-671-0	01	1	1107-1109	●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98122-671-0	01	1	1107-1109		●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98122-671-0	01	1	1110-	●	●
52	NUT; BRKT 4HK1-TCS ENG(RJS) M12 FLANGE SOU	0-91180-212-0	04	1	1012-	●
52	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1001-1011	●	●
52	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE SOU	0-91180-210-0	02	1	1012-	●
52	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1012-		●
81	NUT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M10 FLANGE SOU	0-91180-110-0	02	1	1305-	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	03	1	1001-1007	●	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1008-	●	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1001-1007	●	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1001-1007	●	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1008-1304	●	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1008-1304	●	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1008-1304	●	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1305-1305	●	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1305-1305	●	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1305-1305	●	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE SOU	0-91180-210-0	02	1	1305-1305	●
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10 FLANGE SOU	0-91180-210-0	02	1	1305-1305		●
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1306-	●	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1306-	●	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1306-	●	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE SOU	0-91180-210-0	02	1	1306-	●	●
84	GASKET; EXH PIPE	8-98096-305-0	01	1	1001-1011	●	●
84	GASKET; EXH PIPE 6HK1-TCN ENG(82L)	8-98096-305-0	01	1	1012-	●	●
236	BOLT; PIPE CLAMP TO BRKT 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28051-030-0	02	1	1012-	●
236	BOLT; PIPE CLAMP TO BRKT M10X35 FLANGE	0-28051-035-0	02	1	1001-1011	●	●
236	BOLT; PIPE CLAMP TO BRKT 6HK1-TCN ENG(82L) M10X35 FLANGE	0-28051-035-0	02	1	1012-1301	●
236	BOLT; PIPE CLAMP TO BRKT M10X35 FLANGE	0-28051-035-0	02	1	1012-1301		●
236	BOLT; PIPE CLAMP TO BRKT 6HK1-TCN ENG(82L) M10X35 FLANGE	0-28051-035-0	02	1	1302-1304	●	●
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE ID=10.5	8-98073-091-0	02	1	1001-1011	●	●
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE 6HK1-TCN ENG(82L) ID=10.5	8-98073-091-0	02	1	1012-	●
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE ID=10.5	8-98073-091-0	02	1	1012-		●
318	NUT; EXH PIPE,FRT 4HK1-TCS ENG(RJS) M8 W/LK WASHER	8-97581-234-0	04	1	1012-	●
318	NUT; EXH PIPE,FRT M10 FLANGE SOU	0-91180-210-0	04	1	1001-1011	●	●
318	NUT; EXH PIPE,FRT 6HK1-TCN ENG(82L) M10 FLANGE SOU	0-91180-210-0	04	1	1012-	●
318	NUT; EXH PIPE,FRT M10 FLANGE SOU	0-91180-210-0	04	1	1012-		●
509	STUD; BRKT 6HK1-TCN ENG(82L)	8-98233-625-0	01	1	1305-1311	●	●
509	STUD; BRKT 6HK1-TCN ENG(82L)	8-98259-983-0	01	1	1312-	●	●
562	PLATE; STUD,BOLT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T>	8-97615-333-1	01	1	1305-	●
571	GASKET 4HK1-TCS ENG(RJS) (C) ID=64	8-97373-108-0	02	1	1012-	●
571	GASKET (A) ID=85.8	1-22116-043-0	02	1	1001-1011	●	●
571	GASKET 6HK1-TCN ENG(82L) (A) ID=85.8	1-22116-043-0	02	1	1012-	●
571	GASKET (A) ID=85.8	1-22116-043-0	02	1	1012-		●
571	GASKET (B) ID=81	8-98043-481-0	01	1	1001-1011	●	●
571	GASKET 6HK1-TCN ENG(82L) (B) ID=81	8-98043-481-0	01	1	1012-	●
571	GASKET (B) ID=81	8-98043-481-0	01	1	1012-		●

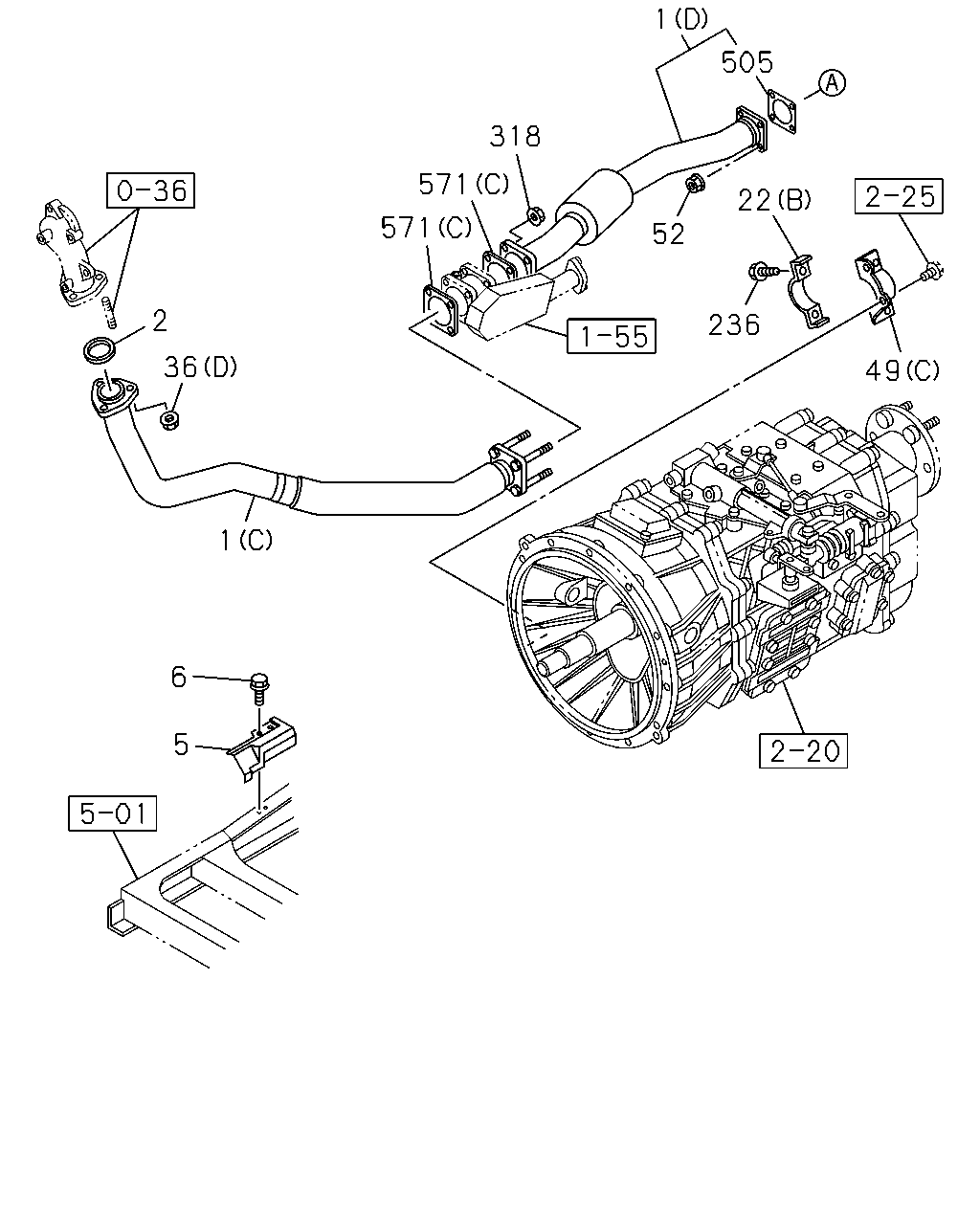

1 505 318 571 22 571 52 2 236 36 49 1 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH 4HK1-TCS ENG(RJS) (C)	8-98082-498-0	01	1	1012-	●
1	PIPE; EXH 4HK1-TCS ENG(RJS) (D)	8-98096-347-0	01	1	1012-	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98090-385-0	01	1	1001-1011		●
1	PIPE; EXH 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98090-385-0	01	1	1012-	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98090-385-0	01	1	1012-		●
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98073-006-3	01	1	1001-1011	●
1	PIPE; EXH 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A)	8-98073-006-3	01	1	1012-	●
1	PIPE; EXH (B)	8-98073-007-0	01	1	1001-1011	●	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (B)	8-98073-007-0	01	1	1012-1309	●	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (B)	8-98245-501-0	01	1	1310-	●	●
1	PIPE; EXH (C)	8-98097-032-0	01	1	1001-1011	●	●
1	PIPE; EXH 6HK1-TCN ENG(82L) (C)	8-98097-032-0	01	1	1012-	●	●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS)	8-97381-455-0	01	1	1012-	●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). ID=81	8-98043-481-0	01	1	1001-1011	●	●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L). ID=81	8-98043-481-0	01	1	1012-	●
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). ID=81	8-98043-481-0	01	1	1012-		●
5	PROTECTOR; HEAT 4HK1-TCS ENG(RJS)	8-98089-287-1	01	1	1012-	●
6	BOLT; HEAT PROTECTOR 4HK1-TCS ENG(RJS) M8X25 FLANGE SOU	0-28650-825-0	02	1	1012-	●
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C)	8-97615-334-0	01	1	1305-	●
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	1012-1309	●
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-	●
22	CLAMP; EXH PIPE (A) ID=80-84 SOU	1-22133-233-0	02	1	1001-	●	●
22	CLAMP; EXH PIPE (A) ID=80-84 SOU	1-22133-233-0	02	1	1001-	●	●
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10 FLANGE SOU	8-97096-192-1	03	1	1012-	●
36	NUT; EXH PIPE (C) M10 FLANGE SOU	0-91180-210-0	02	1	1001-1011	●	●
36	NUT; EXH PIPE (C) M10 FLANGE SOU	0-91180-210-0	02	1	1012-	●	●
36	NUT; EXH PIPE (B) M12 FLANGE SOU	0-91180-212-0	07	1	1001-1011	●	●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (B) M12 FLANGE SOU	0-91180-212-0	07	1	1012-	●
36	NUT; EXH PIPE (B) M12 FLANGE SOU	0-91180-212-0	07	1	1012-		●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1001-1011	●	●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1012-	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1012-		●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D)	8-97629-970-0	01	1	1305-	●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98122-673-0	01	1	1107-1109		●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98122-673-0	01	1	1110-	●	●
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG(RJS) (C)	8-98042-786-0	01	1	1012-1301	●
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG(RJS) (C)	8-98234-530-0	01	1	1302-	●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (A)	8-98113-008-0	01	1	1001-	●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-98122-671-0	01	1	1001-1106	●	●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-98122-671-0	01	1	1107-1109	●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98122-671-0	01	1	1107-1109		●
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98122-671-0	01	1	1110-	●	●
52	NUT; BRKT 4HK1-TCS ENG(RJS) M12 FLANGE SOU	0-91180-212-0	04	1	1012-	●
52	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1001-1011	●	●
52	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE SOU	0-91180-210-0	02	1	1012-	●
52	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1012-		●
236	BOLT; PIPE CLAMP TO BRKT 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28051-030-0	02	1	1012-	●
236	BOLT; PIPE CLAMP TO BRKT M10X35 FLANGE	0-28051-035-0	02	1	1001-1011	●	●
236	BOLT; PIPE CLAMP TO BRKT 6HK1-TCN ENG(82L) M10X35 FLANGE	0-28051-035-0	02	1	1012-1301	●
236	BOLT; PIPE CLAMP TO BRKT M10X35 FLANGE	0-28051-035-0	02	1	1012-1301		●
236	BOLT; PIPE CLAMP TO BRKT 6HK1-TCN ENG(82L) M10X35 FLANGE	0-28051-035-0	02	1	1302-1304	●	●
318	NUT; EXH PIPE,FRT 4HK1-TCS ENG(RJS) M8 W/LK WASHER	8-97581-234-0	04	1	1012-	●
318	NUT; EXH PIPE,FRT M10 FLANGE SOU	0-91180-210-0	04	1	1001-1011	●	●
318	NUT; EXH PIPE,FRT 6HK1-TCN ENG(82L) M10 FLANGE SOU	0-91180-210-0	04	1	1012-	●
318	NUT; EXH PIPE,FRT M10 FLANGE SOU	0-91180-210-0	04	1	1012-		●
505	GASKET; CONV TO EXH PIPE 4HK1-TCS ENG(RJS)	8-98096-305-0	01	1	1012-	●
571	GASKET 4HK1-TCS ENG(RJS) (C) ID=64	8-97373-108-0	02	1	1012-	●
571	GASKET (A) ID=85.8	1-22116-043-0	02	1	1001-1011	●	●
571	GASKET 6HK1-TCN ENG(82L) (A) ID=85.8	1-22116-043-0	02	1	1012-	●
571	GASKET (A) ID=85.8	1-22116-043-0	02	1	1012-		●
571	GASKET (B) ID=81	8-98043-481-0	01	1	1001-1011	●	●
571	GASKET 6HK1-TCN ENG(82L) (B) ID=81	8-98043-481-0	01	1	1012-	●
571	GASKET (B) ID=81	8-98043-481-0	01	1	1012-		●

81 62 75 56 75 60 94 22 22 70 81 107 105 81 121 226 56 62 118 226 107 60 70 105 22 126 22 94 70 121 226 62 56 226 107 81 36 60 81 17 12 506

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L)	8-98090-389-2	01	1	1001-1011		●
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS)	8-98090-389-2	01	1	1012-1109	●
12	SILENCER ASM; EXH	8-98090-389-2	01	1	1012-1109		●
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	8-98090-389-2	01	1	1110-	●
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>	8-98090-389-2	01	1	1110-	●
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L)	8-98090-389-2	01	1	1110-		●
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L)	8-98101-274-1	01	1	1001-1109	●
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2>	8-98101-274-1	01	1	1110-	●
17	BOLT; EXH PIPE M12X35 FLANGE	0-28051-235-0	04	1	1204-	●	●
17	BOLT; EXH PIPE M10X35 FLANGE SOU	0-28651-035-0	02	1	1001-1011	●	●
17	BOLT; EXH PIPE M10X35 FLANGE SOU	0-28651-035-0	02	1	1012-	●	●
17	BOLT; EXH PIPE M12X35 FLANGE	0-28051-235-0	03	1	1001-1011	●	●
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) M12X35 FLANGE	0-28051-235-0	03	1	1012-	●
17	BOLT; EXH PIPE M12X35 FLANGE	0-28051-235-0	03	1	1012-		●
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C)	8-97615-334-0	01	1	1305-	●
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	1012-1309	●
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-	●
22	CLAMP; EXH PIPE (A) ID=80-84 SOU	1-22133-233-0	02	1	1001-	●	●
22	CLAMP; EXH PIPE (A) ID=80-84 SOU	1-22133-233-0	02	1	1001-	●	●
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10 FLANGE SOU	8-97096-192-1	03	1	1012-	●
36	NUT; EXH PIPE (C) M10 FLANGE SOU	0-91180-210-0	02	1	1001-1011	●	●
36	NUT; EXH PIPE (C) M10 FLANGE SOU	0-91180-210-0	02	1	1012-	●	●
36	NUT; EXH PIPE (B) M12 FLANGE SOU	0-91180-212-0	07	1	1001-1011	●	●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (B) M12 FLANGE SOU	0-91180-212-0	07	1	1012-	●
36	NUT; EXH PIPE (B) M12 FLANGE SOU	0-91180-212-0	07	1	1012-		●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1001-1011	●	●
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1012-	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1012-		●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (A)	8-98074-824-1	01	1	1012-	●
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	8-98086-352-0	01	1	1012-	●
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-584-0	01	1	1001-1007	●	●
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-584-0	01	1	1008-1309	●	●
56	BRACKET; CLAMP,EXH PIPE (B)	8-98245-522-0	01	1	1310-	●	●
56	BRACKET; CLAMP,EXH PIPE (C)	8-98073-291-0	01	1	1001-1011	●	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (C)	8-98073-291-0	01	1	1012-	●	●
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-829-1	01	1	1001-1011	●	●
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (A)	8-98074-829-1	01	1	1012-	●	●
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (C)	8-98090-167-0	01	1	1012-	●
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	1001-	●	●
60	BRACKET; FRAME TO BRKT (B)	8-98059-753-1	01	1	1001-1309	●	●
60	BRACKET; FRAME TO BRKT (B)	8-98245-530-0	01	1	1310-	●	●
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	1001-1007	●	●
60	BRACKET; FRAME TO BRKT (C)	8-98070-640-0	01	1	1008-1011	●	●
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (C)	8-98070-640-0	01	1	1012-1309	●	●
60	BRACKET; FRAME TO BRKT (C)	8-98245-521-0	01	1	1310-	●	●
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A) L=39 SOU	8-98060-852-0	01	1	1012-	●
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A) L=39 SOU	8-98060-852-0	01	1	1012-	●
62	TUBE; DIST,BRKT (A) L=39 SOU	8-98060-852-0	02	1	1001-1011	●	●
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) (A) L=39 SOU	8-98060-852-0	02	1	1012-	●	●
62	TUBE; DIST,BRKT (B) L=22 SOU	9-22159-024-0	01	1	1001-1007	●	●
62	TUBE; DIST,BRKT (B) L=22 SOU	9-22159-024-0	01	1	1008-	●	●
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE SOU	0-28051-070-0	01	1	1012-	●
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE SOU	0-28051-070-0	01	1	1012-	●
70	BOLT; BRKT (B) M10X50 FLANGE SOU	0-28051-050-0	01	1	1001-1007	●	●
70	BOLT; BRKT (B) M10X50 FLANGE SOU	0-28051-050-0	01	1	1008-	●	●
70	BOLT; BRKT (A) M10X70 FLANGE SOU	0-28051-070-0	02	1	1001-1011	●	●
70	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X70 FLANGE SOU	0-28051-070-0	02	1	1012-	●	●
75	RUBBER; SUPPORT,BRKT OD=40 SOU	1-22159-193-0	02	1	1001-1007	●	●
75	RUBBER; SUPPORT,BRKT OD=40 SOU	1-22159-193-0	02	1	1008-	●	●
81	NUT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M10 FLANGE SOU	0-91180-110-0	02	1	1305-	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	03	1	1001-1007	●	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1008-	●	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1001-1007	●	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1001-1007	●	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1008-1304	●	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1008-1304	●	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1008-1304	●	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1305-1305	●	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1305-1305	●	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1305-1305	●	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE SOU	0-91180-210-0	02	1	1305-1305	●
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10 FLANGE SOU	0-91180-210-0	02	1	1305-1305		●
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1306-	●	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1306-	●	●
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1306-	●	●
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE SOU	0-91180-210-0	02	1	1306-	●	●
94	BOLT; CLAMP M10X40 FLANGE SOU	0-28651-040-0	02	1	1001-	●	●
94	BOLT; CLAMP M10X40 FLANGE SOU	0-28651-040-0	02	1	1001-	●	●
105	NUT; CLAMP M10 FLANGE SOU	0-91180-210-0	02	1	1001-	●	●
105	NUT; CLAMP M10 FLANGE SOU	0-91180-210-0	02	1	1001-	●	●
107	BOLT; BRKT M10X35 FLANGE SOU	0-28651-035-0	02	1	1001-1011	●	●
107	BOLT; BRKT M10X35 FLANGE SOU	0-28651-035-0	02	1	1012-	●	●
107	BOLT; BRKT M10X35 FLANGE SOU	0-28651-035-0	04	1	1001-	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1001-	●	●
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) ID=11 OD=54	1-09503-154-2	01	1	1012-	●
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) ID=11 OD=54	1-09503-154-2	01	1	1012-	●
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	1001-1011	●	●
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) ID=11 OD=54	1-09503-154-2	02	1	1012-	●	●
126	PIPE; EXH,RR	8-98073-427-0	01	1	1001-	●	●
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (B)	8-94457-277-1	01	1	1012-	●
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (B)	8-94457-277-1	01	1	1012-	●
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (A)	8-94457-278-1	01	1	1012-	●
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (A)	8-94457-278-1	01	1	1012-	●
226	RUBBER; CUSHION (B)	8-94457-277-1	02	1	1001-1011	●	●
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) (B)	8-94457-277-1	02	1	1012-	●	●
226	RUBBER; CUSHION (A)	8-94457-278-1	02	1	1001-1011	●	●
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) (A)	8-94457-278-1	02	1	1012-	●	●
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	1001-1203	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
