Sayfa 1-41 - Isuzu EPC

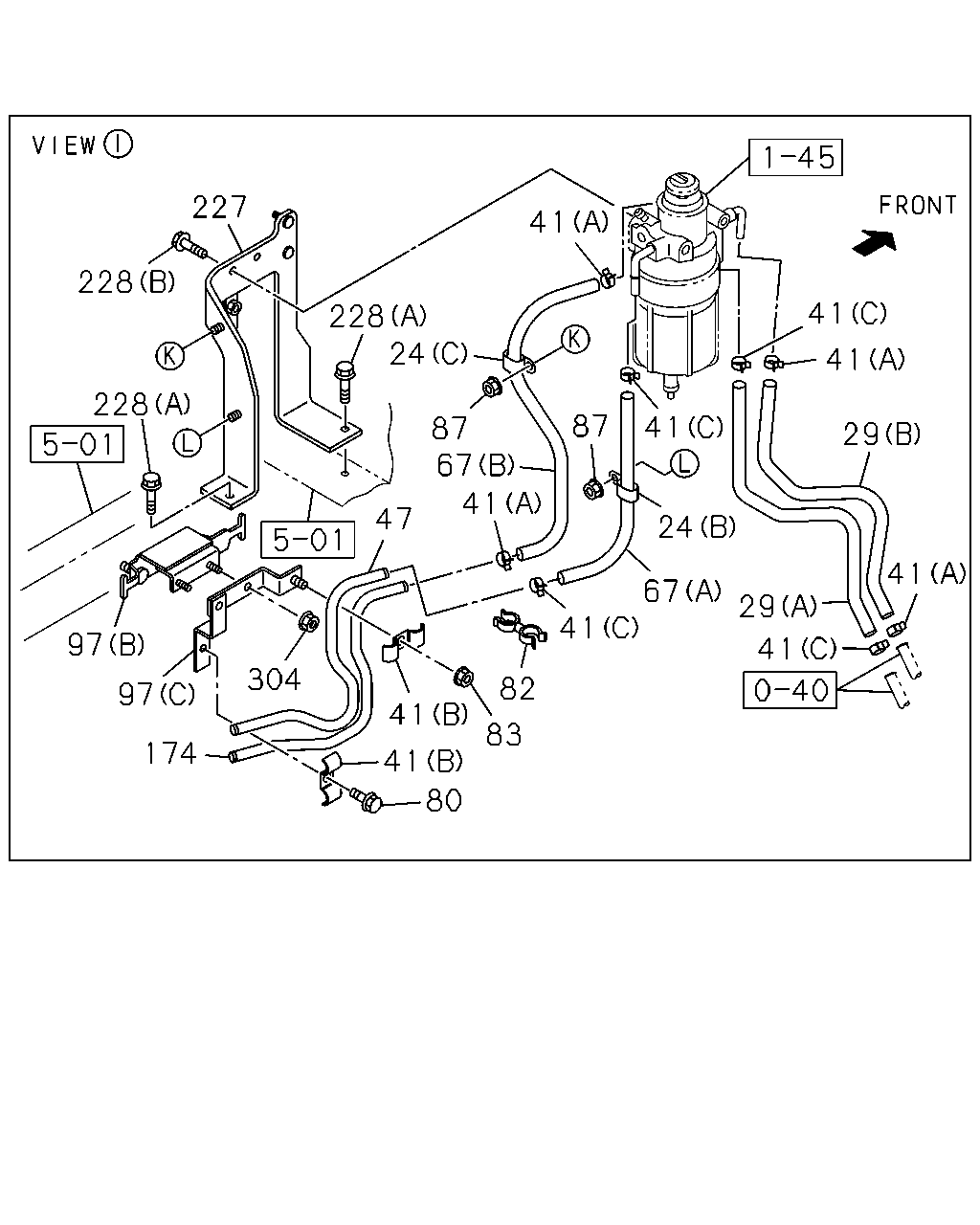

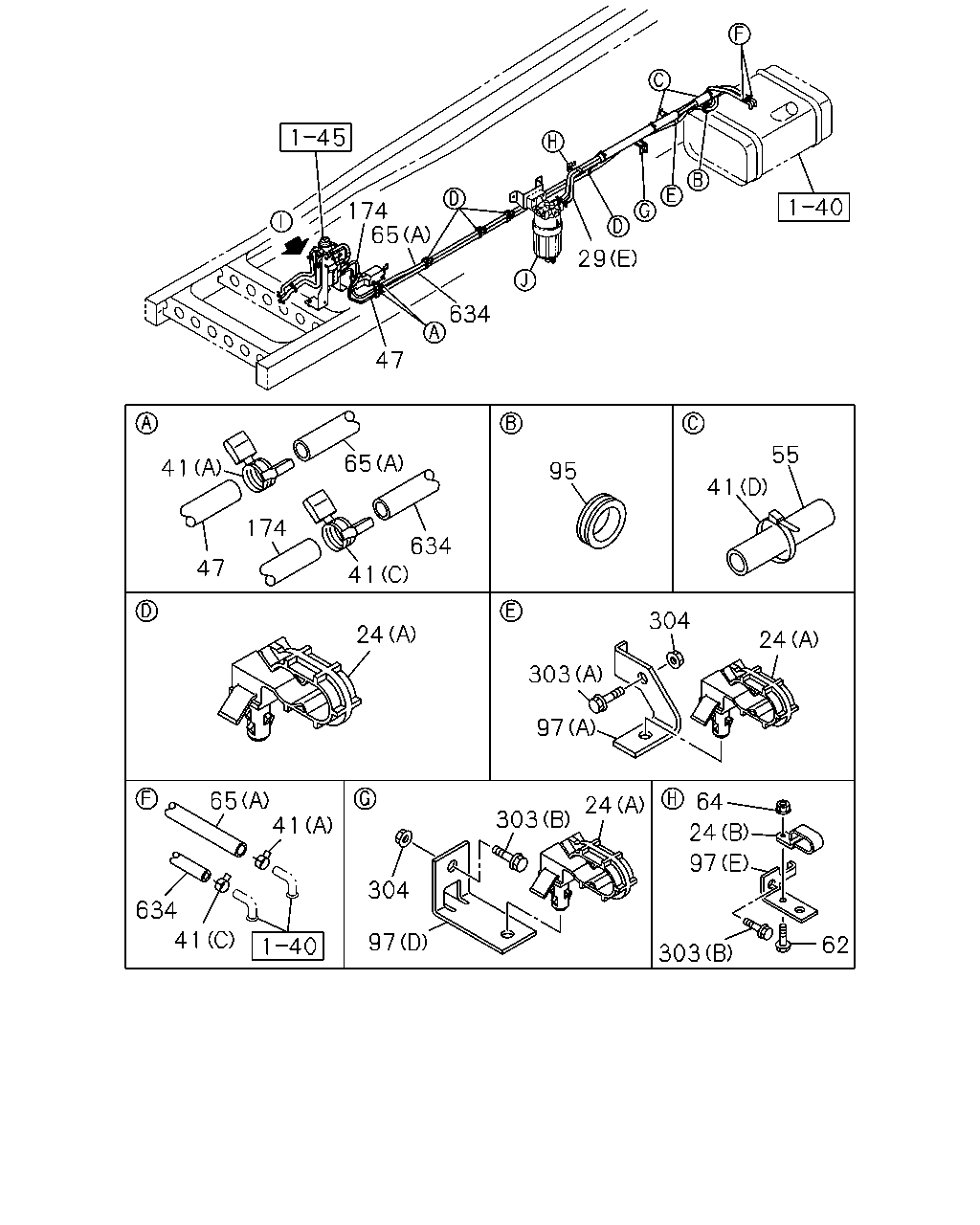

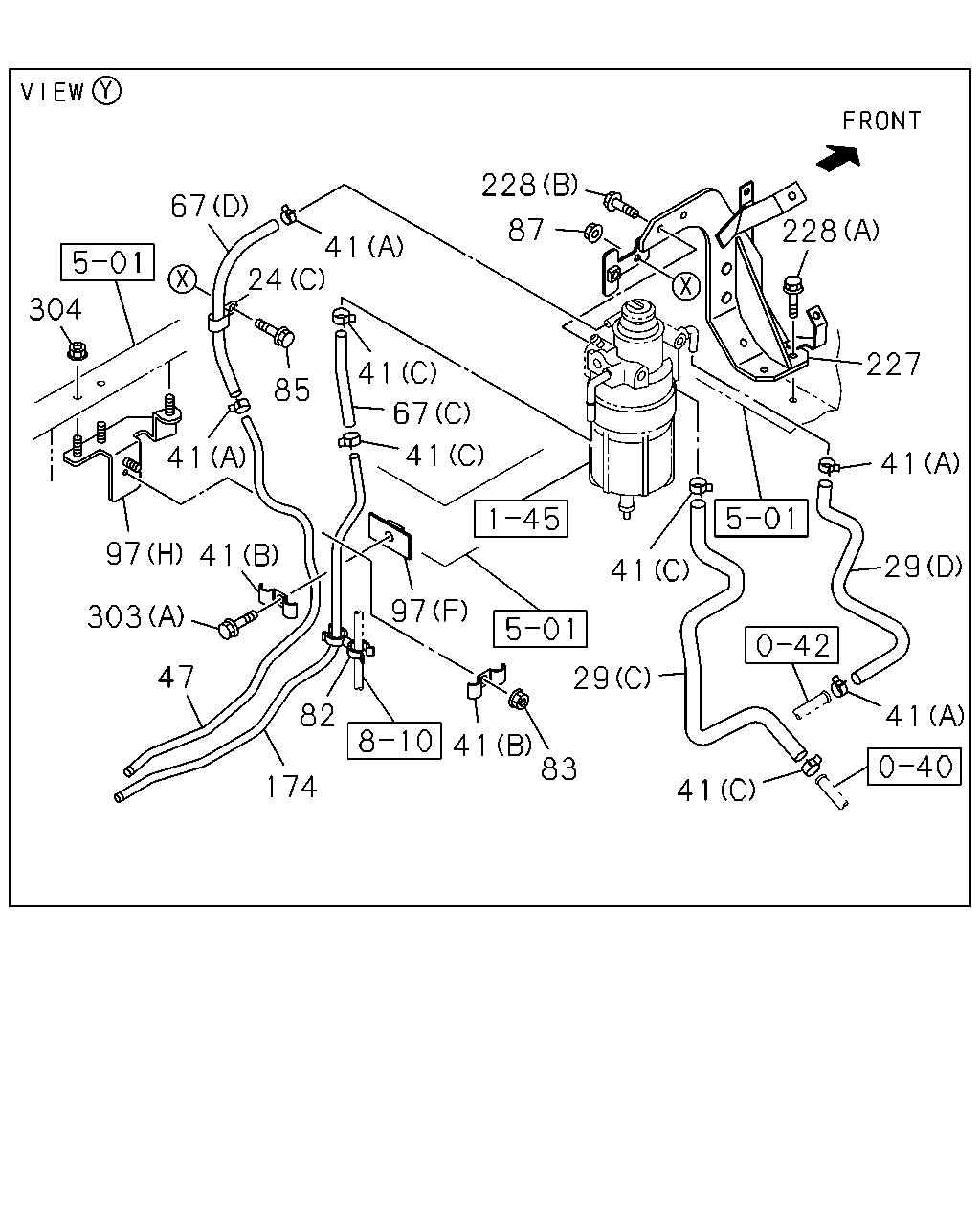

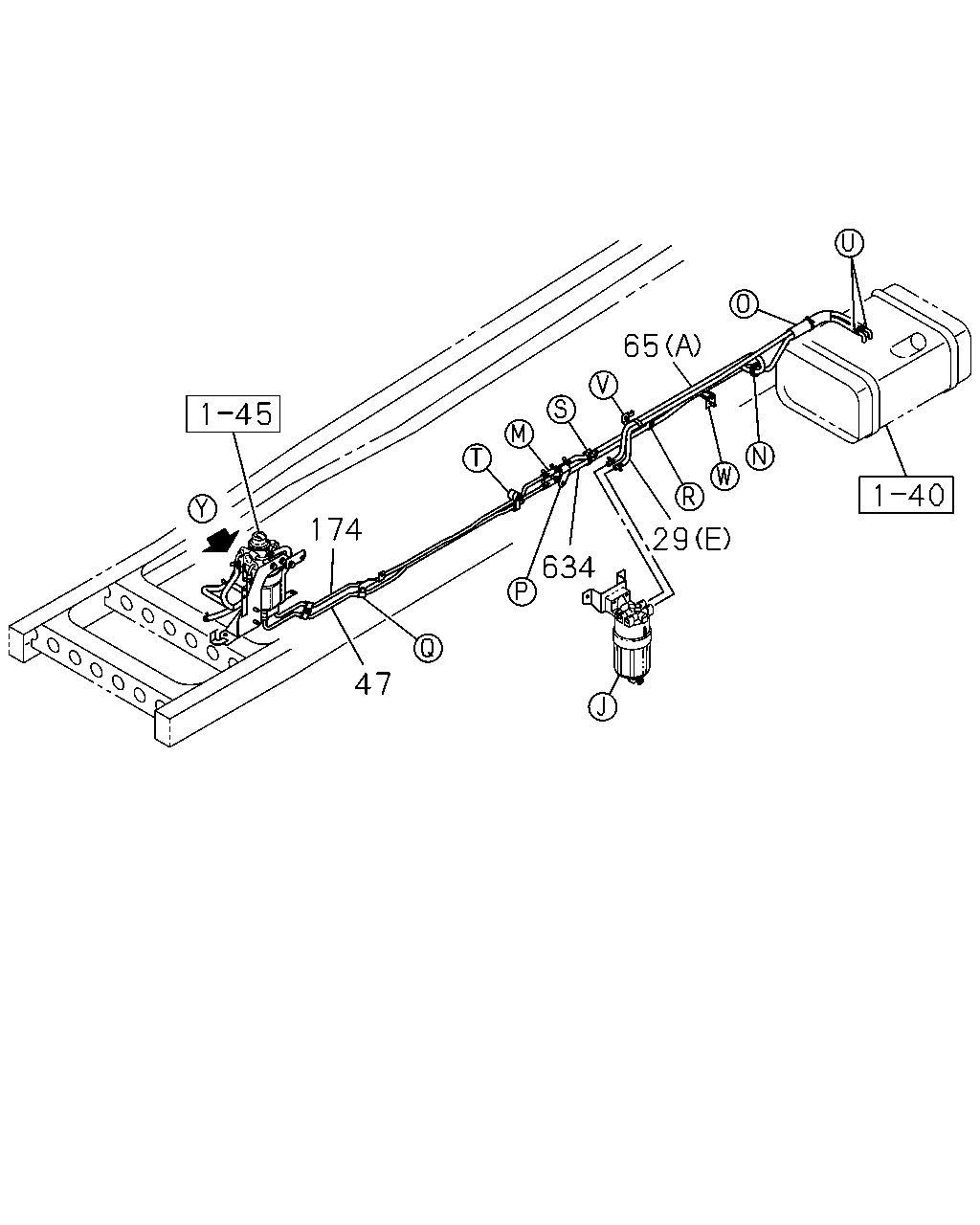

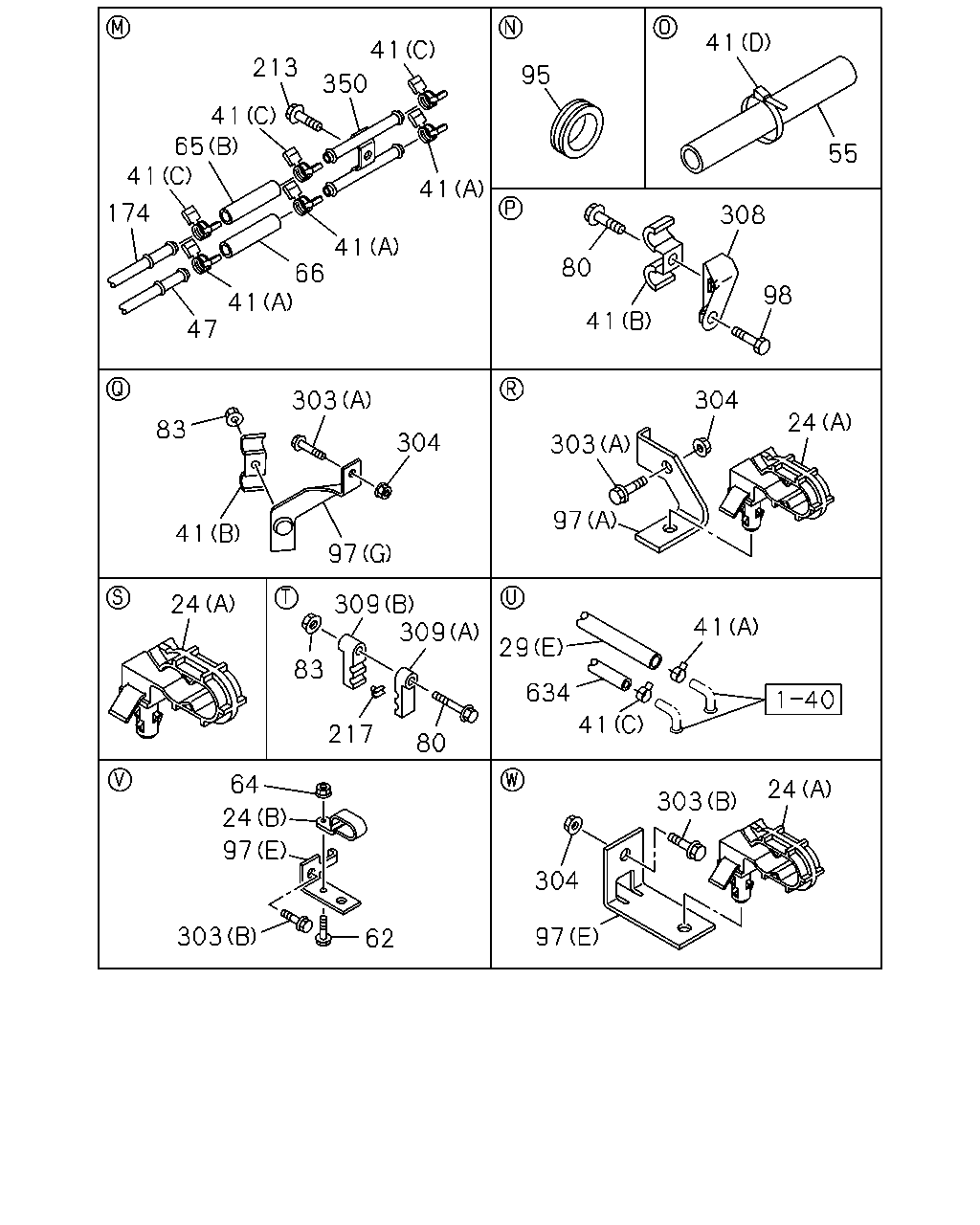

1-41 — FUEL PIPING; CHASSIS (#55522) — 729 parça

228 227 228 97 97 174 304 47 41 67 87 24 228 41 87 41 24 67 41 82 83 41 41 80 29 41 41 29 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) ID=14.5 & 14.5	1-09701-246-1	07	1	1012-	●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	1001-	●
24	CLIP; FUEL HOSE WHEEL BASE 5100MM(51W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1001-1011	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1001-1011		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1012-	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1012-		●
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1001-	●	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1001-1011	●	●
24	CLIP; FUEL HOSE WHEEL BASE 5100MM(51W) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1001-1011	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1001-1011		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1012-	●
24	CLIP; FUEL HOSE WHEEL BASE 5100MM(51W) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1012-	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1012-		●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1012-		●
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	1001-1005	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	1006-1109	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	1110-	●
29	HOSE; FUEL WHEEL BASE 5100MM(51W) (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1001-	●
29	HOSE; FUEL (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1001-		●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98078-194-3	01	1	1012-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (D)	8-98078-195-1	01	1	1012-	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1001-1011	●	●
29	HOSE; FUEL 6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1012-	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1012-		●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1001-1011	●	●
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1012-	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	1012-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (D) L=140 SOU	5-09707-031-1	02	1	1001-1003		●
41	CLIP; FUEL PIPE,FUEL TANK (D) L=250 SOU	5-09707-030-1	03	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1001-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	1001-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	04	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	1001-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	06	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 5100MM(51W) (D) L=140 SOU	5-09707-031-1	03	1	1001-1003	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 5100MM(51W) (D) L=140 SOU	5-09707-031-1	03	1	1001-1003	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (D) L=140 SOU	5-09707-031-1	03	1	1001-1003		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 5100MM(51W) (D) L=140 SOU	5-09707-031-1	03	1	1004-1109	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (D) L=140 SOU	5-09707-031-1	03	1	1004-1109		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (D) L=140 SOU	5-09707-031-1	03	1	1110-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (D) L=140 SOU	5-09707-031-1	03	1	1110-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16 SOU	8-94238-568-0	02	1	1001-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1001-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1012-		●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	1012-	●
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	1001-1011	●	●
47	PIPE; FUEL,RETURN 6HK1-TCN ENG(82L) L=413	8-98078-210-0	01	1	1012-	●
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	1012-		●
67	HOSE; FUEL,DELIVERY (A) L=280 SERVICED BY L=3000	0-01260-300-0	01	1	1001-	●	●
67	HOSE; FUEL,DELIVERY (B) L=440 SERVICED BY L=3000	0-01558-300-0	01	1	1001-	●	●
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (C) L=140 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (D) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8X50 FLANGE	0-28050-850-0	01	1	1012-	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1001-	●	●
82	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) ID=13 & 16.5	8-94169-028-0	01	1	1001-1005	●
82	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) ID=13 & 16.5	8-94169-028-0	01	1	1006-1011	●	●
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	1012-	●	●
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE SOU	0-91180-108-0	04	1	1012-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE SOU	0-91180-108-0	01	1	1001-1011	●	●
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) M8 FLANGE SOU	0-91180-108-0	01	1	1012-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE SOU	0-91180-108-0	01	1	1012-		●
87	NUT; CLIP,FUEL HOSE 4HK1-TCS ENG(RJS) M8 FLANGE SOU	0-91180-108-0	01	1	1012-	●
87	NUT; CLIP,FUEL HOSE M8 FLANGE SOU	0-91180-108-0	02	1	1001-1005	●	●
87	NUT; CLIP,FUEL HOSE 6HK1-TCN ENG(82L) M8 FLANGE SOU	0-91180-108-0	02	1	1006-	●
87	NUT; CLIP,FUEL HOSE M8 FLANGE SOU	0-91180-108-0	02	1	1006-		●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1007-1011	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (D)	8-98109-768-0	01	1	1012-	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (F) L=50	1-47475-299-2	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (G)	8-98078-201-0	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (H)	8-98083-537-0	01	1	1012-	●
97	BRACKET; CLIP (B)	8-98077-895-1	01	1	1001-1011	●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (B)	8-98077-895-1	01	1	1012-	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1001-1005	●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (A)	8-98083-349-0	01	1	1001-1005	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	1001-1005		●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (A)	8-98083-349-0	01	1	1006-1011	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	1006-1011		●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (A)	8-98083-349-0	01	1	1012-	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	1012-		●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (E)	8-98100-216-1	01	1	1001-	●
97	BRACKET; CLIP (E)	8-98100-216-1	01	1	1001-		●
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	1001-1011	●	●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (C)	8-98077-896-0	01	1	1012-	●
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	1012-		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98109-768-0	02	1	1001-1011		●
97	BRACKET; CLIP (D)	8-98109-768-0	02	1	1012-		●
97	BRACKET; CLIP (E)	8-98105-216-1	01	1	1001-		●
174	PIPE; FUEL,FEED,FRT 4HK1-TCS ENG(RJS) L=1322	8-98100-140-0	01	1	1012-	●
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	1001-1011	●	●
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG(82L)	8-98078-209-0	01	1	1012-	●
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	1012-		●
227	BRACKET; FUEL SEDIMENTER 4HK1-TCS ENG(RJS)	8-98130-667-0	01	1	1012-	●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	1001-1011	●	●
227	BRACKET; FUEL SEDIMENTER 6HK1-TCN ENG(82L)	8-98044-366-3	01	1	1012-	●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	1012-		●
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE SOU	0-28051-050-0	02	1	1001-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE SOU	0-28050-825-0	02	1	1001-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1001-	●	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	04	1	1001-1009	●	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1010-	●	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1010-	●	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1010-		●
304	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1001-	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M8 FLANGE SOU	0-91180-108-0	01	1	1001-1005	●
304	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1001-1005		●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M8 FLANGE SOU	0-91180-108-0	01	1	1006-1011	●
304	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1006-1011		●
304	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE SOU	0-91180-108-0	01	1	1012-	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M8 FLANGE SOU	0-91180-108-0	01	1	1012-	●
304	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1012-		●
304	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1001-	●	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1001-1005	●	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M10 FLANGE SOU	0-91180-210-0	01	1	1001-1005	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M10 FLANGE SOU	0-91180-210-0	01	1	1006-1006	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1006-1006		●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1007-1011	●	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M10 FLANGE SOU	0-91180-210-0	01	1	1007-1011	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M10 FLANGE SOU	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) M10 FLANGE SOU	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE SOU	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1012-		●
304	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE SOU	0-91180-210-0	02	1	1001-1009		●

174 47 634 65 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	1001-1005	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	1006-1109	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	1110-	●
29	HOSE; FUEL WHEEL BASE 5100MM(51W) (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1001-	●
29	HOSE; FUEL (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1001-		●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98078-194-3	01	1	1012-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (D)	8-98078-195-1	01	1	1012-	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1001-1011	●	●
29	HOSE; FUEL 6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1012-	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1012-		●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1001-1011	●	●
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1012-	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1012-		●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	1012-	●
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	1001-1011	●	●
47	PIPE; FUEL,RETURN 6HK1-TCN ENG(82L) L=413	8-98078-210-0	01	1	1012-	●
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	1012-		●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) (B) L=60 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (A) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1012-1109	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (A) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1110-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) L=2900 SERVICED BY L=3000	0-01260-300-0	01	1	1012-1109	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (A) L=2900 SERVICED BY L=3000	0-01260-300-0	01	1	1110-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	1001-1109	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	1110-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5100MM(51W) (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	1001-1011	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	1001-1011		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	1012-		●
174	PIPE; FUEL,FEED,FRT 4HK1-TCS ENG(RJS) L=1322	8-98100-140-0	01	1	1012-	●
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	1001-1011	●	●
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG(82L)	8-98078-209-0	01	1	1012-	●
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	1012-		●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) L=2400 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1001-	●
634	HOSE; RUBBER RETURN WHEEL BASE 5100MM(51W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	1001-1011	●
634	HOSE; RUBBER RETURN L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	1001-1011		●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
634	HOSE; RUBBER RETURN L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	1012-		●

174 65 47 634 29 55 41 95 634 41 65 174 47 41 304 303 97 24 24 65 41 634 41 304 97 303 24 64 24 97 303 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) ID=14.5 & 14.5	1-09701-246-1	07	1	1012-	●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	1001-	●
24	CLIP; FUEL HOSE WHEEL BASE 5100MM(51W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1001-1011	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1001-1011		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1012-	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1012-		●
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1001-	●	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1001-1011	●	●
24	CLIP; FUEL HOSE WHEEL BASE 5100MM(51W) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1001-1011	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1001-1011		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1012-	●
24	CLIP; FUEL HOSE WHEEL BASE 5100MM(51W) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1012-	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1012-		●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1012-		●
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	1001-1005	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	1006-1109	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	1110-	●
29	HOSE; FUEL WHEEL BASE 5100MM(51W) (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1001-	●
29	HOSE; FUEL (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1001-		●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98078-194-3	01	1	1012-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (D)	8-98078-195-1	01	1	1012-	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1001-1011	●	●
29	HOSE; FUEL 6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1012-	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1012-		●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1001-1011	●	●
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1012-	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	1012-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (D) L=140 SOU	5-09707-031-1	02	1	1001-1003		●
41	CLIP; FUEL PIPE,FUEL TANK (D) L=250 SOU	5-09707-030-1	03	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1001-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	1001-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	04	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	1001-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	06	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 5100MM(51W) (D) L=140 SOU	5-09707-031-1	03	1	1001-1003	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 5100MM(51W) (D) L=140 SOU	5-09707-031-1	03	1	1001-1003	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (D) L=140 SOU	5-09707-031-1	03	1	1001-1003		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 5100MM(51W) (D) L=140 SOU	5-09707-031-1	03	1	1004-1109	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (D) L=140 SOU	5-09707-031-1	03	1	1004-1109		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (D) L=140 SOU	5-09707-031-1	03	1	1110-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (D) L=140 SOU	5-09707-031-1	03	1	1110-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16 SOU	8-94238-568-0	02	1	1001-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1001-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1012-		●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	1012-	●
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	1001-1011	●	●
47	PIPE; FUEL,RETURN 6HK1-TCN ENG(82L) L=413	8-98078-210-0	01	1	1012-	●
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	1012-		●
55	COVER; PIPE,FUEL TANK ID=27 L=500	8-98119-327-0	01	1	1001-1003	●	●
55	COVER; PIPE,FUEL TANK L=800	1-09361-018-0	01	1	1004-	●	●
62	BOLT; CLIP FIX WHEEL BASE 5100MM(51W) M8X20 FLANGE	0-28650-820-0	01	1	1001-	●
62	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	01	1	1001-		●
64	NUT; CLIP WHEEL BASE 5100MM(51W) M8 FLANGE SOU	0-91180-108-0	01	1	1001-	●
64	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1001-		●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) (B) L=60 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (A) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1012-1109	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (A) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1110-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) L=2900 SERVICED BY L=3000	0-01260-300-0	01	1	1012-1109	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (A) L=2900 SERVICED BY L=3000	0-01260-300-0	01	1	1110-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	1001-1109	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	1110-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5100MM(51W) (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	1001-1011	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	1001-1011		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	1012-		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	1001-	●	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1007-1011	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (D)	8-98109-768-0	01	1	1012-	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (F) L=50	1-47475-299-2	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (G)	8-98078-201-0	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (H)	8-98083-537-0	01	1	1012-	●
97	BRACKET; CLIP (B)	8-98077-895-1	01	1	1001-1011	●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (B)	8-98077-895-1	01	1	1012-	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1001-1005	●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (A)	8-98083-349-0	01	1	1001-1005	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	1001-1005		●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (A)	8-98083-349-0	01	1	1006-1011	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	1006-1011		●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (A)	8-98083-349-0	01	1	1012-	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	1012-		●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (E)	8-98100-216-1	01	1	1001-	●
97	BRACKET; CLIP (E)	8-98100-216-1	01	1	1001-		●
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	1001-1011	●	●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (C)	8-98077-896-0	01	1	1012-	●
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	1012-		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98109-768-0	02	1	1001-1011		●
97	BRACKET; CLIP (D)	8-98109-768-0	02	1	1012-		●
97	BRACKET; CLIP (E)	8-98105-216-1	01	1	1001-		●
174	PIPE; FUEL,FEED,FRT 4HK1-TCS ENG(RJS) L=1322	8-98100-140-0	01	1	1012-	●
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	1001-1011	●	●
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG(82L)	8-98078-209-0	01	1	1012-	●
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	1012-		●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1001-1005	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1001-1005		●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1006-1011	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1006-1011		●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M8X30 FLANGE	0-28650-830-0	01	1	1012-	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1012-	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1012-		●
303	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1001-1005	●	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1001-1005	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1006-1006	●
303	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1006-1006		●
303	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1007-1011	●	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1007-1011	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1012-		●
303	BOLT; BRKT (C) M10X35 FLANGE SOU	0-28651-035-0	02	1	1001-	●	●
303	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M10X30 FLANGE SOU	0-28651-030-0	02	1	1001-1011		●
303	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	02	1	1012-		●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	04	1	1001-1009	●	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1010-	●	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1010-	●	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1010-		●
304	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1001-	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M8 FLANGE SOU	0-91180-108-0	01	1	1001-1005	●
304	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1001-1005		●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M8 FLANGE SOU	0-91180-108-0	01	1	1006-1011	●
304	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1006-1011		●
304	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE SOU	0-91180-108-0	01	1	1012-	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M8 FLANGE SOU	0-91180-108-0	01	1	1012-	●
304	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1012-		●
304	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1001-	●	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1001-1005	●	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M10 FLANGE SOU	0-91180-210-0	01	1	1001-1005	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M10 FLANGE SOU	0-91180-210-0	01	1	1006-1006	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1006-1006		●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1007-1011	●	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M10 FLANGE SOU	0-91180-210-0	01	1	1007-1011	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M10 FLANGE SOU	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) M10 FLANGE SOU	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE SOU	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1012-		●
304	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE SOU	0-91180-210-0	02	1	1001-1009		●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) L=2400 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1001-	●
634	HOSE; RUBBER RETURN WHEEL BASE 5100MM(51W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	1001-1011	●
634	HOSE; RUBBER RETURN L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	1001-1011		●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
634	HOSE; RUBBER RETURN L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	1012-		●

67 24 85 41 97 303 304 41 67 41 97 82 47 174 83 41 29 41 41 29 41 227 228 89 228 41 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) ID=14.5 & 14.5	1-09701-246-1	07	1	1012-	●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	1001-	●
24	CLIP; FUEL HOSE WHEEL BASE 5100MM(51W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1001-1011	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1001-1011		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1012-	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1012-		●
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1001-	●	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1001-1011	●	●
24	CLIP; FUEL HOSE WHEEL BASE 5100MM(51W) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1001-1011	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1001-1011		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1012-	●
24	CLIP; FUEL HOSE WHEEL BASE 5100MM(51W) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1012-	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1012-		●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1012-		●
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	1001-1005	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	1006-1109	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	1110-	●
29	HOSE; FUEL WHEEL BASE 5100MM(51W) (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1001-	●
29	HOSE; FUEL (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1001-		●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98078-194-3	01	1	1012-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (D)	8-98078-195-1	01	1	1012-	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1001-1011	●	●
29	HOSE; FUEL 6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1012-	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1012-		●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1001-1011	●	●
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1012-	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	1012-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (D) L=140 SOU	5-09707-031-1	02	1	1001-1003		●
41	CLIP; FUEL PIPE,FUEL TANK (D) L=250 SOU	5-09707-030-1	03	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1001-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	1001-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	04	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	1001-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	06	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 5100MM(51W) (D) L=140 SOU	5-09707-031-1	03	1	1001-1003	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 5100MM(51W) (D) L=140 SOU	5-09707-031-1	03	1	1001-1003	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (D) L=140 SOU	5-09707-031-1	03	1	1001-1003		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 5100MM(51W) (D) L=140 SOU	5-09707-031-1	03	1	1004-1109	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (D) L=140 SOU	5-09707-031-1	03	1	1004-1109		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (D) L=140 SOU	5-09707-031-1	03	1	1110-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (D) L=140 SOU	5-09707-031-1	03	1	1110-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16 SOU	8-94238-568-0	02	1	1001-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1001-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1012-		●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	1012-	●
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	1001-1011	●	●
47	PIPE; FUEL,RETURN 6HK1-TCN ENG(82L) L=413	8-98078-210-0	01	1	1012-	●
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	1012-		●
67	HOSE; FUEL,DELIVERY (A) L=280 SERVICED BY L=3000	0-01260-300-0	01	1	1001-	●	●
67	HOSE; FUEL,DELIVERY (B) L=440 SERVICED BY L=3000	0-01558-300-0	01	1	1001-	●	●
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (C) L=140 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (D) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
82	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) ID=13 & 16.5	8-94169-028-0	01	1	1001-1005	●
82	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) ID=13 & 16.5	8-94169-028-0	01	1	1006-1011	●	●
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	1012-	●	●
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE SOU	0-91180-108-0	04	1	1012-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE SOU	0-91180-108-0	01	1	1001-1011	●	●
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) M8 FLANGE SOU	0-91180-108-0	01	1	1012-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE SOU	0-91180-108-0	01	1	1012-		●
85	BOLT; CLIP,FUEL HOSE 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1007-1011	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (D)	8-98109-768-0	01	1	1012-	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (F) L=50	1-47475-299-2	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (G)	8-98078-201-0	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (H)	8-98083-537-0	01	1	1012-	●
97	BRACKET; CLIP (B)	8-98077-895-1	01	1	1001-1011	●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (B)	8-98077-895-1	01	1	1012-	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1001-1005	●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (A)	8-98083-349-0	01	1	1001-1005	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	1001-1005		●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (A)	8-98083-349-0	01	1	1006-1011	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	1006-1011		●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (A)	8-98083-349-0	01	1	1012-	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	1012-		●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (E)	8-98100-216-1	01	1	1001-	●
97	BRACKET; CLIP (E)	8-98100-216-1	01	1	1001-		●
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	1001-1011	●	●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (C)	8-98077-896-0	01	1	1012-	●
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	1012-		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98109-768-0	02	1	1001-1011		●
97	BRACKET; CLIP (D)	8-98109-768-0	02	1	1012-		●
97	BRACKET; CLIP (E)	8-98105-216-1	01	1	1001-		●
174	PIPE; FUEL,FEED,FRT 4HK1-TCS ENG(RJS) L=1322	8-98100-140-0	01	1	1012-	●
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	1001-1011	●	●
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG(82L)	8-98078-209-0	01	1	1012-	●
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	1012-		●
227	BRACKET; FUEL SEDIMENTER 4HK1-TCS ENG(RJS)	8-98130-667-0	01	1	1012-	●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	1001-1011	●	●
227	BRACKET; FUEL SEDIMENTER 6HK1-TCN ENG(82L)	8-98044-366-3	01	1	1012-	●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	1012-		●
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE SOU	0-28051-050-0	02	1	1001-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE SOU	0-28050-825-0	02	1	1001-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1001-	●	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1001-1005	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1001-1005		●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1006-1011	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1006-1011		●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M8X30 FLANGE	0-28650-830-0	01	1	1012-	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1012-	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1012-		●
303	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1001-1005	●	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1001-1005	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1006-1006	●
303	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1006-1006		●
303	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1007-1011	●	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1007-1011	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1012-		●
303	BOLT; BRKT (C) M10X35 FLANGE SOU	0-28651-035-0	02	1	1001-	●	●
303	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M10X30 FLANGE SOU	0-28651-030-0	02	1	1001-1011		●
303	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	02	1	1012-		●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	04	1	1001-1009	●	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1010-	●	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1010-	●	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1010-		●
304	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1001-	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M8 FLANGE SOU	0-91180-108-0	01	1	1001-1005	●
304	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1001-1005		●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M8 FLANGE SOU	0-91180-108-0	01	1	1006-1011	●
304	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1006-1011		●
304	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE SOU	0-91180-108-0	01	1	1012-	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M8 FLANGE SOU	0-91180-108-0	01	1	1012-	●
304	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1012-		●
304	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1001-	●	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1001-1005	●	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M10 FLANGE SOU	0-91180-210-0	01	1	1001-1005	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M10 FLANGE SOU	0-91180-210-0	01	1	1006-1006	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1006-1006		●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1007-1011	●	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M10 FLANGE SOU	0-91180-210-0	01	1	1007-1011	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M10 FLANGE SOU	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) M10 FLANGE SOU	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE SOU	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1012-		●
304	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE SOU	0-91180-210-0	02	1	1001-1009		●

304 418 304 303 345 345 228 279 39 41 29 39 41 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	1001-1005	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	1006-1109	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	1110-	●
29	HOSE; FUEL WHEEL BASE 5100MM(51W) (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1001-	●
29	HOSE; FUEL (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1001-		●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98078-194-3	01	1	1012-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (D)	8-98078-195-1	01	1	1012-	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1001-1011	●	●
29	HOSE; FUEL 6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1012-	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1012-		●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1001-1011	●	●
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1012-	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1012-		●
39	PIPE; FUEL NPTF3/8-18 OD=10	8-98122-953-0	02	1	1001-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	1012-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (D) L=140 SOU	5-09707-031-1	02	1	1001-1003		●
41	CLIP; FUEL PIPE,FUEL TANK (D) L=250 SOU	5-09707-030-1	03	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1001-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	1001-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	04	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	1001-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	06	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 5100MM(51W) (D) L=140 SOU	5-09707-031-1	03	1	1001-1003	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 5100MM(51W) (D) L=140 SOU	5-09707-031-1	03	1	1001-1003	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (D) L=140 SOU	5-09707-031-1	03	1	1001-1003		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 5100MM(51W) (D) L=140 SOU	5-09707-031-1	03	1	1004-1109	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (D) L=140 SOU	5-09707-031-1	03	1	1004-1109		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (D) L=140 SOU	5-09707-031-1	03	1	1110-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (D) L=140 SOU	5-09707-031-1	03	1	1110-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16 SOU	8-94238-568-0	02	1	1001-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1001-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1012-		●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) (B) L=60 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (A) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1012-1109	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (A) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1110-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) L=2900 SERVICED BY L=3000	0-01260-300-0	01	1	1012-1109	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (A) L=2900 SERVICED BY L=3000	0-01260-300-0	01	1	1110-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	1001-1109	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	1110-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5100MM(51W) (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	1001-1011	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	1001-1011		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	1012-		●
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE SOU	0-28051-050-0	02	1	1001-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE SOU	0-28050-825-0	02	1	1001-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1001-	●	●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1001-	●	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1001-1005	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1001-1005		●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1006-1011	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1006-1011		●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M8X30 FLANGE	0-28650-830-0	01	1	1012-	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1012-	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1012-		●
303	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1001-1005	●	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1001-1005	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1006-1006	●
303	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1006-1006		●
303	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1007-1011	●	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1007-1011	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1012-		●
303	BOLT; BRKT (C) M10X35 FLANGE SOU	0-28651-035-0	02	1	1001-	●	●
303	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M10X30 FLANGE SOU	0-28651-030-0	02	1	1001-1011		●
303	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	02	1	1012-		●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	04	1	1001-1009	●	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1010-	●	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1010-	●	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1010-		●
304	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1001-	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M8 FLANGE SOU	0-91180-108-0	01	1	1001-1005	●
304	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1001-1005		●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M8 FLANGE SOU	0-91180-108-0	01	1	1006-1011	●
304	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1006-1011		●
304	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE SOU	0-91180-108-0	01	1	1012-	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M8 FLANGE SOU	0-91180-108-0	01	1	1012-	●
304	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1012-		●
304	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1001-	●	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1001-1005	●	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M10 FLANGE SOU	0-91180-210-0	01	1	1001-1005	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M10 FLANGE SOU	0-91180-210-0	01	1	1006-1006	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1006-1006		●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1007-1011	●	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M10 FLANGE SOU	0-91180-210-0	01	1	1007-1011	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M10 FLANGE SOU	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) M10 FLANGE SOU	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE SOU	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1012-		●
304	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE SOU	0-91180-210-0	02	1	1001-1009		●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1001-	●	●
418	BRACKET; PRE FUEL FILTER	8-98114-787-0	01	1	1001-	●	●

41 350 213 41 65 41 174 41 47 66 41 41 303 97 304 41 83 309 309 80 217 83 24 64 24 97 303 62 97 304 303 24 41 41 634 29 97 303 304 98 24 41 80 308 55 41 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) ID=14.5 & 14.5	1-09701-246-1	07	1	1012-	●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	1001-	●
24	CLIP; FUEL HOSE WHEEL BASE 5100MM(51W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1001-1011	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1001-1011		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1012-	●
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1012-		●
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1001-	●	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1001-1011	●	●
24	CLIP; FUEL HOSE WHEEL BASE 5100MM(51W) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1001-1011	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1001-1011		●
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1012-	●
24	CLIP; FUEL HOSE WHEEL BASE 5100MM(51W) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1012-	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1012-		●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1012-		●
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	1001-1005	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	1006-1109	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	1110-	●
29	HOSE; FUEL WHEEL BASE 5100MM(51W) (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1001-	●
29	HOSE; FUEL (E) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1001-		●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98078-194-3	01	1	1012-	●
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (D)	8-98078-195-1	01	1	1012-	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1001-1011	●	●
29	HOSE; FUEL 6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1012-	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	1012-		●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1001-1011	●	●
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1012-	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	1012-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (D) L=140 SOU	5-09707-031-1	02	1	1001-1003		●
41	CLIP; FUEL PIPE,FUEL TANK (D) L=250 SOU	5-09707-030-1	03	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1001-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	1001-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	04	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	1012-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	1001-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	06	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 5100MM(51W) (D) L=140 SOU	5-09707-031-1	03	1	1001-1003	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 5100MM(51W) (D) L=140 SOU	5-09707-031-1	03	1	1001-1003	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (D) L=140 SOU	5-09707-031-1	03	1	1001-1003		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 5100MM(51W) (D) L=140 SOU	5-09707-031-1	03	1	1004-1109	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (D) L=140 SOU	5-09707-031-1	03	1	1004-1109		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (D) L=140 SOU	5-09707-031-1	03	1	1110-	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (D) L=140 SOU	5-09707-031-1	03	1	1110-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16 SOU	8-94238-568-0	02	1	1001-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1001-1011	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1012-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1012-		●
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	1012-	●
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	1001-1011	●	●
47	PIPE; FUEL,RETURN 6HK1-TCN ENG(82L) L=413	8-98078-210-0	01	1	1012-	●
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	1012-		●
55	COVER; PIPE,FUEL TANK ID=27 L=500	8-98119-327-0	01	1	1001-1003	●	●
55	COVER; PIPE,FUEL TANK L=800	1-09361-018-0	01	1	1004-	●	●
62	BOLT; CLIP FIX WHEEL BASE 5100MM(51W) M8X20 FLANGE	0-28650-820-0	01	1	1001-	●
62	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	01	1	1001-		●
64	NUT; CLIP WHEEL BASE 5100MM(51W) M8 FLANGE SOU	0-91180-108-0	01	1	1001-	●
64	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1001-		●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) (B) L=60 SERVICED BY L=3000	0-01260-300-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (A) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1012-1109	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (A) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1110-	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (A) L=2900 SERVICED BY L=3000	0-01260-300-0	01	1	1012-1109	●
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> (A) L=2900 SERVICED BY L=3000	0-01260-300-0	01	1	1110-	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	1001-1109	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	1110-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5100MM(51W) (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	1001-1011	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	1001-1011		●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	1012-	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	1012-		●
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) L=60 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8X50 FLANGE	0-28050-850-0	01	1	1012-	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1001-	●	●
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE SOU	0-91180-108-0	04	1	1012-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE SOU	0-91180-108-0	01	1	1001-1011	●	●
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) M8 FLANGE SOU	0-91180-108-0	01	1	1012-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE SOU	0-91180-108-0	01	1	1012-		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	1001-	●	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1007-1011	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (D)	8-98109-768-0	01	1	1012-	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (F) L=50	1-47475-299-2	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (G)	8-98078-201-0	01	1	1012-	●
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (H)	8-98083-537-0	01	1	1012-	●
97	BRACKET; CLIP (B)	8-98077-895-1	01	1	1001-1011	●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (B)	8-98077-895-1	01	1	1012-	●
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	1001-1005	●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (A)	8-98083-349-0	01	1	1001-1005	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	1001-1005		●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (A)	8-98083-349-0	01	1	1006-1011	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	1006-1011		●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (A)	8-98083-349-0	01	1	1012-	●
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	1012-		●
97	BRACKET; CLIP WHEEL BASE 5100MM(51W) (E)	8-98100-216-1	01	1	1001-	●
97	BRACKET; CLIP (E)	8-98100-216-1	01	1	1001-		●
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	1001-1011	●	●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (C)	8-98077-896-0	01	1	1012-	●
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	1012-		●
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98109-768-0	02	1	1001-1011		●
97	BRACKET; CLIP (D)	8-98109-768-0	02	1	1012-		●
97	BRACKET; CLIP (E)	8-98105-216-1	01	1	1001-		●
98	BOLT; BRKT,FUEL PIPE 4HK1-TCS ENG(RJS) M10X30 FLANGE SOU	0-28651-030-0	01	1	1012-	●
174	PIPE; FUEL,FEED,FRT 4HK1-TCS ENG(RJS) L=1322	8-98100-140-0	01	1	1012-	●
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	1001-1011	●	●
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG(82L)	8-98078-209-0	01	1	1012-	●
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	1012-		●
213	BOLT; FUEL PIPE FIX 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
217	COLLAR; FUEL PIPE FIX 4HK1-TCS ENG(RJS) ID=8 SOU	1-47459-011-0	01	1	1012-	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1001-1005	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1001-1005		●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1006-1011	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1006-1011		●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M8X30 FLANGE	0-28650-830-0	01	1	1012-	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1012-	●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1012-		●
303	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1001-1005	●	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1001-1005	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1006-1006	●
303	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1006-1006		●
303	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1007-1011	●	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1007-1011	●
303	BOLT; BRKT WHEEL BASE 5100MM(51W) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1012-	●
303	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1012-		●
303	BOLT; BRKT (C) M10X35 FLANGE SOU	0-28651-035-0	02	1	1001-	●	●
303	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M10X30 FLANGE SOU	0-28651-030-0	02	1	1001-1011		●
303	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	02	1	1012-		●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	04	1	1001-1009	●	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1010-	●	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1010-	●	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1010-		●
304	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1001-	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M8 FLANGE SOU	0-91180-108-0	01	1	1001-1005	●
304	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1001-1005		●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M8 FLANGE SOU	0-91180-108-0	01	1	1006-1011	●
304	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1006-1011		●
304	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE SOU	0-91180-108-0	01	1	1012-	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M8 FLANGE SOU	0-91180-108-0	01	1	1012-	●
304	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1012-		●
304	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1001-	●	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1001-1005	●	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M10 FLANGE SOU	0-91180-210-0	01	1	1001-1005	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M10 FLANGE SOU	0-91180-210-0	01	1	1006-1006	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1006-1006		●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1007-1011	●	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M10 FLANGE SOU	0-91180-210-0	01	1	1007-1011	●
304	NUT; BRKT WHEEL BASE 5100MM(51W) M10 FLANGE SOU	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) M10 FLANGE SOU	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE SOU	0-91180-210-0	01	1	1012-	●
304	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1012-		●
304	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE SOU	0-91180-210-0	02	1	1001-1009		●
308	BRACKET; FUEL PIPE 4HK1-TCS ENG(RJS)	8-98117-691-0	01	1	1012-	●
309	CLIP; PIPE 4HK1-TCS ENG(RJS) (A) ID=10 & 10 SOU	1-09709-241-0	01	1	1012-	●
309	CLIP; PIPE 4HK1-TCS ENG(RJS) (B) ID=10 & 10 SOU	1-09709-243-0	01	1	1012-	●
350	PIPE; FUEL,DEL & RET 4HK1-TCS ENG(RJS)	8-98084-131-0	01	1	1012-	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) L=2400 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1001-	●
634	HOSE; RUBBER RETURN WHEEL BASE 5100MM(51W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	1001-1011	●
634	HOSE; RUBBER RETURN L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	1001-1011		●
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	1012-	●
634	HOSE; RUBBER RETURN L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	1012-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
