◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11161 - FSR(SOUTH AFRICA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#55519) — 425 parça

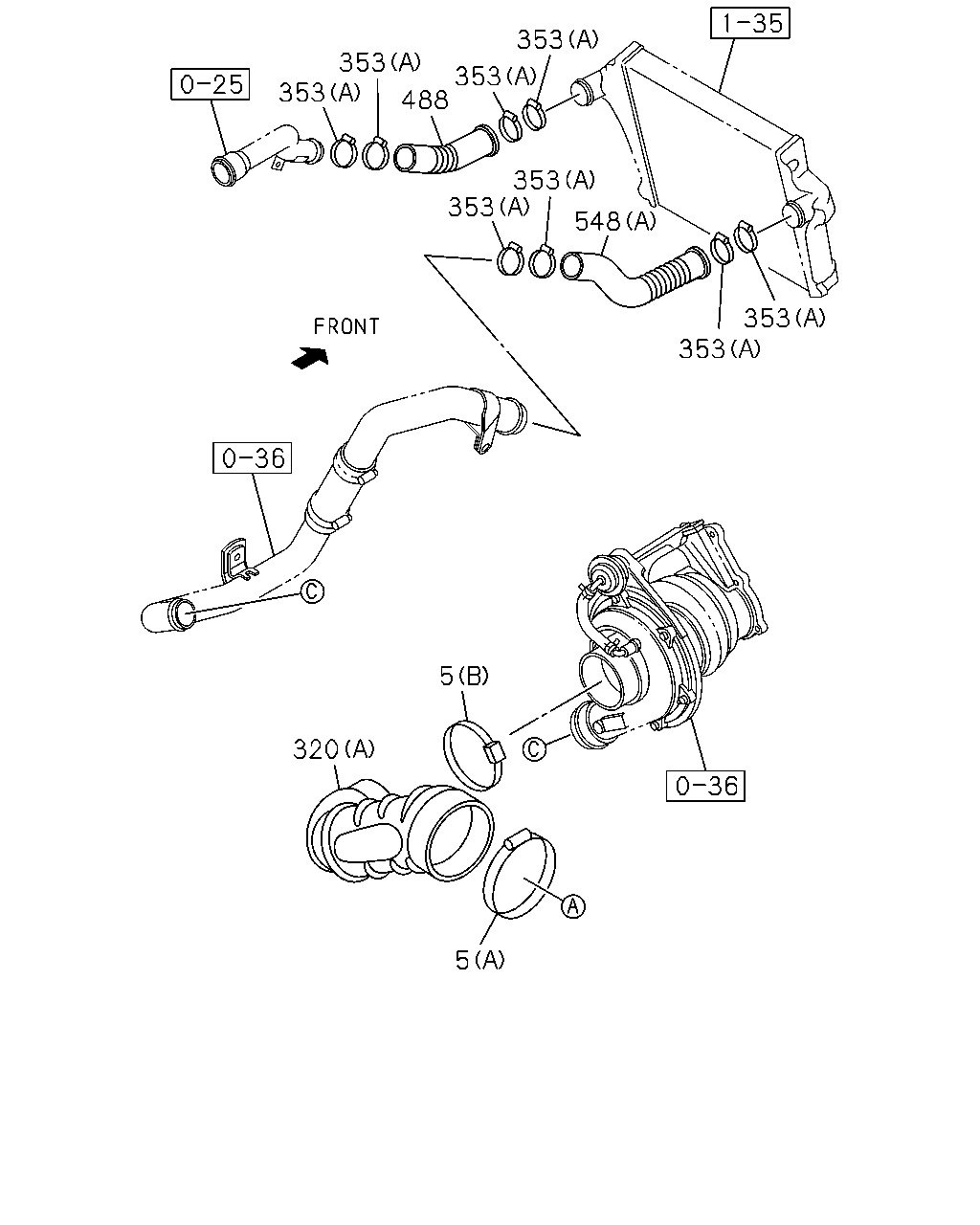

çizim 162691
353 353 488 353 353 353 353 548 353 353 5 320 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 CLIP; AIR DUCT
FSR SGL CAB(FC**M*) (A) ID=110-130 		8-98133-359-0 01 1 1001-1011 ●
5 CLIP; AIR DUCT
FSR SGL CAB(FC**M*) (A) ID=110-130 		8-98133-359-0 01 1 1012- ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1012- ●
5 CLIP; AIR DUCT
FSR SGL CAB(FC**M*) EURO2 SPECIFICATION<NT2> (B) ID=90-110 		8-98133-365-0 01 1 1001-1005 ●
5 CLIP; AIR DUCT
FSR SGL CAB(FC**M*) (B) ID=90-110 		8-98133-365-0 01 1 1006- ●
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> (E) ID=114 		8-15178-030-0 01 1 1001- ●
5 CLIP; AIR DUCT
FSR DBL CAB(FC**W*) (A) ID=110-130 		8-98133-359-0 03 1 1001- ●
5 CLIP; AIR DUCT
FSR DBL CAB(FC**W*) (C) ID=100-120 		8-98133-366-0 01 1 1001-1011 ●
5 CLIP; AIR DUCT
FSR DBL CAB(FC**W*) (C) ID=100-120 		8-98133-366-0 01 1 1012- ●
320 HOSE; CONN,ACL
FSR SGL CAB(FC**M*) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (D) 		8-98172-359-0 01 1 1110- ●
320 HOSE; CONN,ACL
FSR SGL CAB(FC**M*) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (D) 		8-98077-619-1 01 1 1110- ●
320 HOSE; CONN,ACL
(C) 		8-98078-983-1 01 1 1012- ●
320 HOSE; CONN,ACL
FSR SGL CAB(FC**M*) EURO2 SPECIFICATION<NT2> (A) 		8-98072-934-0 01 1 1001-1005 ●
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> (A) 		8-98072-934-0 01 1 1006-1109 ●
320 HOSE; CONN,ACL
FSR SGL CAB(FC**M*) EURO2 SPECIFICATION<NT2> (A) 		8-98072-934-0 01 1 1110- ●
320 HOSE; CONN,ACL
FSR DBL CAB(FC**W*) (B) 		8-98092-944-1 01 1 1001- ●
353 CLIP; RUBBER HOSE
(B) ID=60-65 		8-98096-418-0 02 1 1012- ●
353 CLIP; RUBBER HOSE
(A) ID=55-75 		8-98133-349-0 02 1 1012- ●
353 CLIP; RUBBER HOSE
(A) ID=55-75 		8-98133-349-0 08 1 1001- ●
488 HOSE; RUBBER,PIPE 8-98010-723-0 01 1 1012- ●
488 HOSE; RUBBER,PIPE 8-98017-224-1 01 1 1001- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EXC. EURO2 SPECIFICATION<NT2> (B) 		8-98061-809-1 01 1 1110- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EXC. EURO2 SPECIFICATION<NT2> (C) 		8-98061-810-0 01 1 1110- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-98181-973-1 01 1 1102- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98061-809-1 01 1 1012-1101 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98181-971-1 01 1 1102- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(C) 		8-98061-810-0 01 1 1012-1101 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(C) 		8-98181-972-1 01 1 1102- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98017-223-2 01 1 1001-1101 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
FSR DBL CAB(FC**W*) (A) 		8-98017-223-2 01 1 1102-1109 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
FSR SGL CAB(FC**M*) EXC. EURO2 SPECIFICATION<NT2> (A) 		8-98017-223-2 01 1 1110- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
FSR DBL CAB(FC**W*) (A) 		8-98017-223-2 01 1 1110- ●

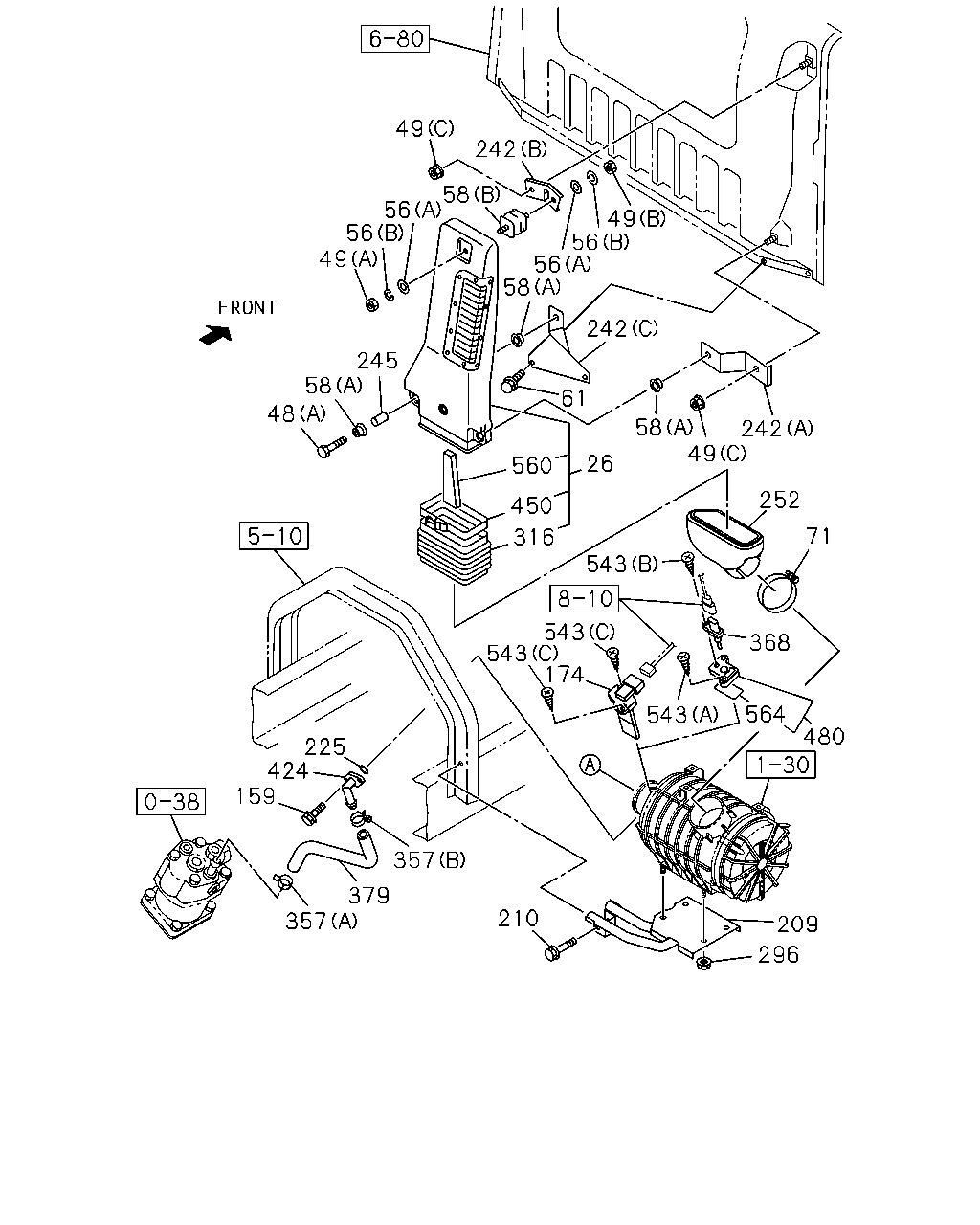

çizim 162706
49 242 58 56 56 49 245 58 48 49 56 56 58 242 61 560 450 316 26 58 242 49 252 71 368 480 564 543 209 296 210 357 379 357 159 424 225 174 543 543 543
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1001-1011 ●
26 DUCT; AIR INT 8-98010-361-2 01 1 1012- ● ●
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1001-1011 ●
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1012- ● ●
48 BOLT; AIR DUCT
FSR DBL CAB(FC**W*) (B) M10X25 FLANGE SOU 		0-28651-025-0 04 1 1001- ●
49 NUT; AIR DUCT
(B) M8 FLANGE SOU 		1-09984-122-0 01 1 1001-1011 ●
49 NUT; AIR DUCT
(B) M8 FLANGE SOU 		1-09984-122-0 01 1 1012- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1001-1011 ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1012- ● ●
49 NUT; AIR DUCT
FSR SGL CAB(FC**M*) (C) M8 FLANGE SOU 		8-94279-517-0 02 1 1001-1011 ●
49 NUT; AIR DUCT
FSR SGL CAB(FC**M*) (C) M8 FLANGE SOU 		8-94279-517-0 02 1 1012- ●
49 NUT; AIR DUCT
(C) M8 FLANGE SOU 		8-94279-517-0 02 1 1012- ●
49 NUT; AIR DUCT
FSR DBL CAB(FC**W*) (C) M8 FLANGE SOU 		8-94279-517-0 01 1 1001- ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 SOU 		1-09985-177-0 02 1 1001-1011 ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 SOU 		1-09985-177-0 02 1 1012- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1001-1011 ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1012- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1001-1011 ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1012- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1001-1011 ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1012- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1001-1011 ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1012- ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1001-1011 ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1012- ● ●
159 BOLT; AIR PIPE
FSR SGL CAB(FC**M*) M6X16 FLANGE SOU 		0-28050-616-0 02 1 1001- ●
174 SENSOR; AIR FLOW CONT
FSR DBL CAB(FC**W*) 		8-97601-967-0 01 1 1001-1109 ●
174 SENSOR; AIR FLOW CONT
EURO3 SPECIFICATION<NT3> 		8-97601-967-0 01 1 1110- ●
209 BRACKET; ACL
FSR SGL CAB(FC**M*) 		8-98099-677-0 01 1 1001-1011 ●
209 BRACKET; ACL
FSR SGL CAB(FC**M*) 		8-98099-677-0 01 1 1012- ●
209 BRACKET; ACL 8-98099-677-0 01 1 1012- ●
209 BRACKET; ACL
FSR DBL CAB(FC**W*) 		8-98089-455-1 01 1 1001- ●
210 BOLT; ACL BRKT
FSR SGL CAB(FC**M*) M10X25 FLANGE SOU 		0-28651-025-0 03 1 1001-1011 ●
210 BOLT; ACL BRKT
FSR SGL CAB(FC**M*) M10X25 FLANGE SOU 		0-28651-025-0 03 1 1012- ●
210 BOLT; ACL BRKT
M10X25 FLANGE SOU 		0-28651-025-0 03 1 1012- ●
210 BOLT; ACL BRKT
FSR DBL CAB(FC**W*) M10X25 FLANGE SOU 		0-28651-025-0 04 1 1001- ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1001-1101 ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1102- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1001-1011 ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1012- ● ●
242 BRACKET; AIR DUCT
FSR SGL CAB(FC**M*) (C) 		8-98019-302-1 01 1 1001-1011 ●
242 BRACKET; AIR DUCT
FSR SGL CAB(FC**M*) (C) 		8-98019-302-1 01 1 1012- ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1012- ●
242 BRACKET; AIR DUCT
FSR SGL CAB(FC**M*) (A) 		8-98019-303-1 01 1 1001-1011 ●
242 BRACKET; AIR DUCT
FSR SGL CAB(FC**M*) (A) 		8-98019-303-1 01 1 1012- ●
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 1012- ●
242 BRACKET; AIR DUCT
FSR DBL CAB(FC**W*) (D) 		8-98050-679-1 01 1 1001- ●
242 BRACKET; AIR DUCT
FSR DBL CAB(FC**W*) (E) 		8-98089-456-1 01 1 1001- ●
242 BRACKET; AIR DUCT
FSR DBL CAB(FC**W*) (F) 		8-98092-771-0 01 1 1001- ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1001-1011 ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1012- ● ●
252 DUCT; AIR INT
VIN MODEL YEAR 2011<VZB> 		8-98010-640-1 01 1 1012- ●
252 DUCT; AIR INT 8-98095-779-0 01 1 1012-1012 ●
252 DUCT; AIR INT
EXC. VIN MODEL YEAR 2011<VZB> 		8-98095-779-0 01 1 1012- ●
252 DUCT; AIR INT
FSR SGL CAB(FC**M*) 		8-98019-843-0 01 1 1001-1005 ●
252 DUCT; AIR INT
FSR SGL CAB(FC**M*) 		8-98019-843-0 01 1 1006- ●
252 DUCT; AIR INT
FSR DBL CAB(FC**W*) 		8-98050-681-0 01 1 1001- ●
296 NUT; ACL
M8 FLANGE SOU 		0-91180-108-0 04 1 1001-1011 ●
296 NUT; ACL
M8 FLANGE SOU 		0-91180-108-0 04 1 1012- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1001-1011 ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1012- ● ●
357 CLIP; RUBBER HOSE
(E) ID=24 		8-98025-921-0 02 1 1102- ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 02 1 1012- ●
357 CLIP; RUBBER HOSE
(D) ID=75-95 		8-98133-357-0 01 1 1012- ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1001- ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1001- ●
368 SENSOR; TEMP
FSR SGL CAB(FC**M*) 		8-98065-377-0 01 1 1001-1011 ●
368 SENSOR; TEMP
EURO2 SPECIFICATION<NT2> 		8-98065-377-0 01 1 1012- ● ●
379 HOSE; RUBBER 8-98075-713-1 01 1 1102- ●
379 HOSE; RUBBER
FSR SGL CAB(FC**M*) 		8-98063-172-0 01 1 1001- ●
379 HOSE; RUBBER
FSR DBL CAB(FC**W*) 		8-98073-021-0 01 1 1001- ●
424 PIPE; AIR,INL
FSR SGL CAB(FC**M*) 		8-98081-834-0 01 1 1001- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1001-1011 ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1012- ● ●
480 ADAPTER
FSR SGL CAB(FC**M*) 		8-98086-417-0 01 1 1001-1011 ●
480 ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98086-417-0 01 1 1012- ● ●
543 SCREW; SENSOR
FSR DBL CAB(FC**W*) (C) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1001-1109 ●
543 SCREW; SENSOR
EURO3 SPECIFICATION<NT3> (C) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1110- ●
543 SCREW; SENSOR
FSR SGL CAB(FC**M*) (B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1001-1011 ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1012- ● ●
543 SCREW; SENSOR
FSR SGL CAB(FC**M*) (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1001-1011 ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1012-1101 ● ●
543 SCREW; SENSOR
FSR SGL CAB(FC**M*) (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1102-1109 ● ●
543 SCREW; SENSOR
FSR SGL CAB(FC**M*) (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1102-1109 ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1110- ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1110- ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1110- ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1001- ●
564 GASKET; ADAPTER
FSR SGL CAB(FC**M*) 		8-98071-416-0 01 1 1001-1011 ●
564 GASKET; ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98071-416-0 01 1 1012- ● ●

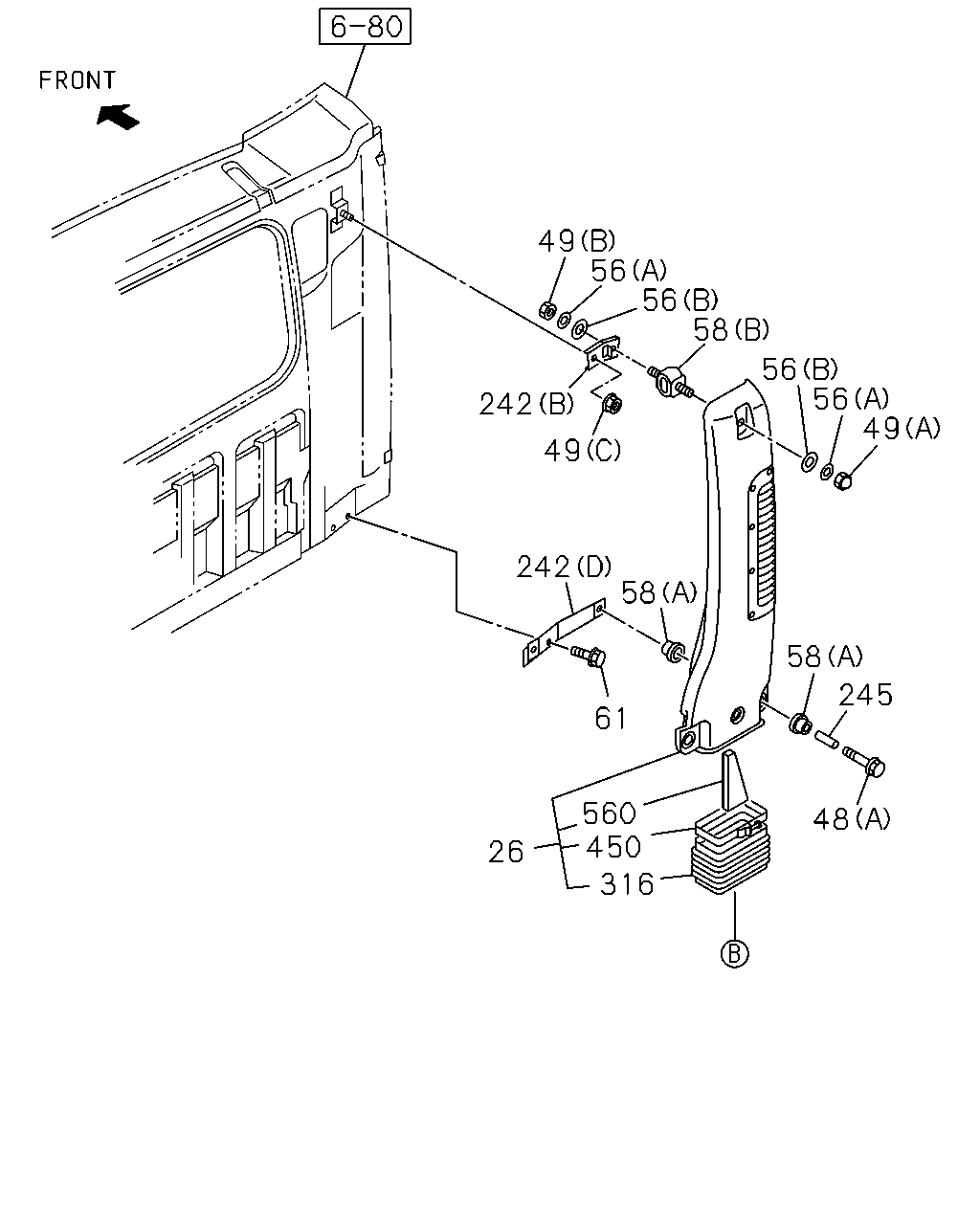

çizim 162711
49 56 56 58 56 56 49 242 49 242 58 58 245 48 316 450 560 26 61
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1001-1011 ●
26 DUCT; AIR INT 8-98010-361-2 01 1 1012- ● ●
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1001-1011 ●
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1012- ● ●
48 BOLT; AIR DUCT
FSR DBL CAB(FC**W*) (B) M10X25 FLANGE SOU 		0-28651-025-0 04 1 1001- ●
49 NUT; AIR DUCT
(B) M8 FLANGE SOU 		1-09984-122-0 01 1 1001-1011 ●
49 NUT; AIR DUCT
(B) M8 FLANGE SOU 		1-09984-122-0 01 1 1012- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1001-1011 ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1012- ● ●
49 NUT; AIR DUCT
FSR SGL CAB(FC**M*) (C) M8 FLANGE SOU 		8-94279-517-0 02 1 1001-1011 ●
49 NUT; AIR DUCT
FSR SGL CAB(FC**M*) (C) M8 FLANGE SOU 		8-94279-517-0 02 1 1012- ●
49 NUT; AIR DUCT
(C) M8 FLANGE SOU 		8-94279-517-0 02 1 1012- ●
49 NUT; AIR DUCT
FSR DBL CAB(FC**W*) (C) M8 FLANGE SOU 		8-94279-517-0 01 1 1001- ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 SOU 		1-09985-177-0 02 1 1001-1011 ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 SOU 		1-09985-177-0 02 1 1012- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1001-1011 ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1012- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1001-1011 ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1012- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1001-1011 ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1012- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1001-1011 ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1012- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1001-1011 ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1012- ● ●
242 BRACKET; AIR DUCT
FSR SGL CAB(FC**M*) (C) 		8-98019-302-1 01 1 1001-1011 ●
242 BRACKET; AIR DUCT
FSR SGL CAB(FC**M*) (C) 		8-98019-302-1 01 1 1012- ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1012- ●
242 BRACKET; AIR DUCT
FSR SGL CAB(FC**M*) (A) 		8-98019-303-1 01 1 1001-1011 ●
242 BRACKET; AIR DUCT
FSR SGL CAB(FC**M*) (A) 		8-98019-303-1 01 1 1012- ●
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 1012- ●
242 BRACKET; AIR DUCT
FSR DBL CAB(FC**W*) (D) 		8-98050-679-1 01 1 1001- ●
242 BRACKET; AIR DUCT
FSR DBL CAB(FC**W*) (E) 		8-98089-456-1 01 1 1001- ●
242 BRACKET; AIR DUCT
FSR DBL CAB(FC**W*) (F) 		8-98092-771-0 01 1 1001- ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1001-1011 ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1012- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1001-1011 ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1012- ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1001-1011 ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1012- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1001- ●

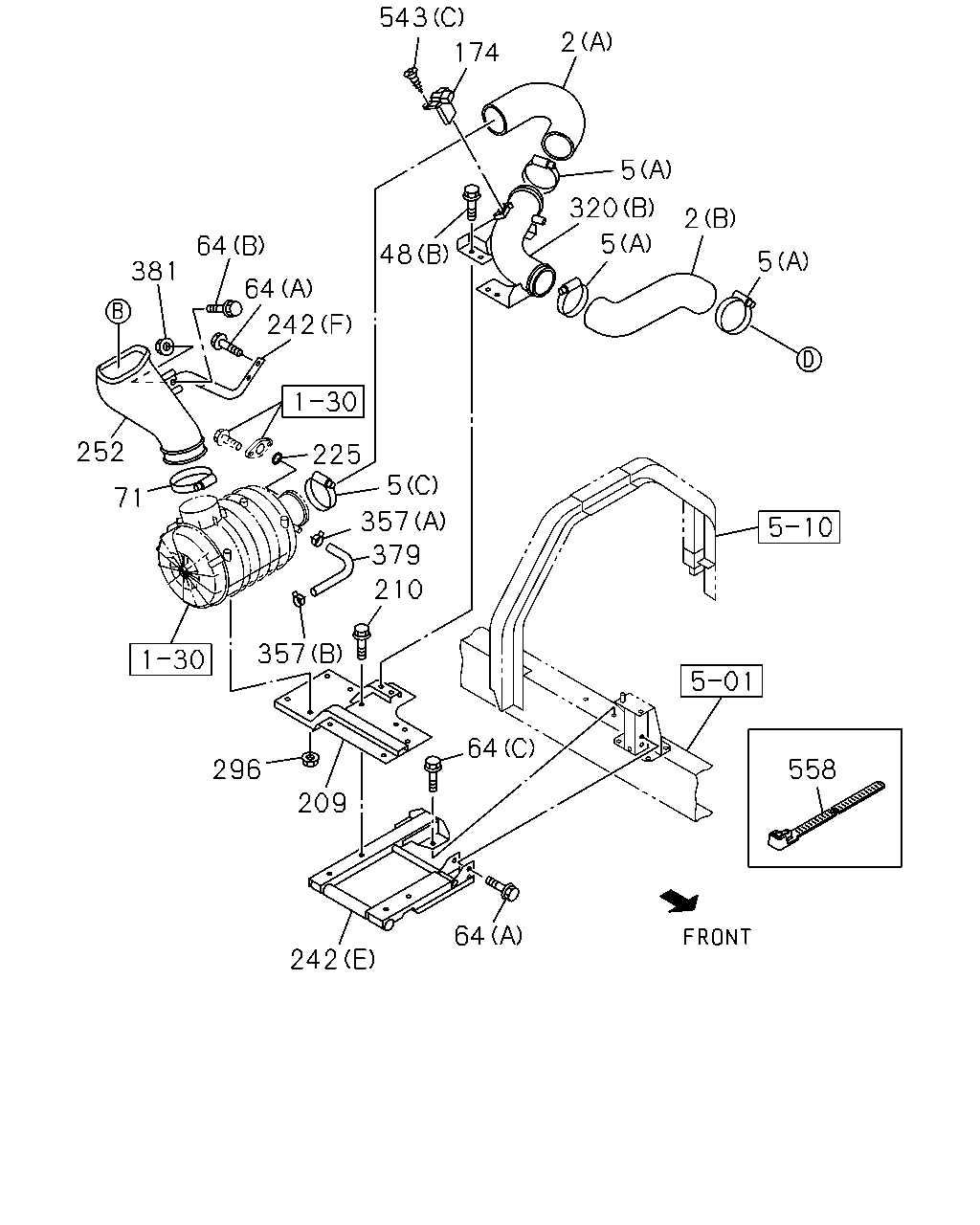

çizim 162736
543 174 2 5 320 5 2 5 558 64 64 242 209 296 357 210 379 357 5 225 48 242 64 64 381 252 71
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOSE; ACL
FSR DBL CAB(FC**W*) (A) 		8-98050-682-0 01 1 1001- ●
2 HOSE; ACL
FSR DBL CAB(FC**W*) (B) 		8-98065-313-0 01 1 1001- ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 CLIP; AIR DUCT
FSR SGL CAB(FC**M*) (A) ID=110-130 		8-98133-359-0 01 1 1001-1011 ●
5 CLIP; AIR DUCT
FSR SGL CAB(FC**M*) (A) ID=110-130 		8-98133-359-0 01 1 1012- ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1012- ●
5 CLIP; AIR DUCT
FSR SGL CAB(FC**M*) EURO2 SPECIFICATION<NT2> (B) ID=90-110 		8-98133-365-0 01 1 1001-1005 ●
5 CLIP; AIR DUCT
FSR SGL CAB(FC**M*) (B) ID=90-110 		8-98133-365-0 01 1 1006- ●
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> (E) ID=114 		8-15178-030-0 01 1 1001- ●
5 CLIP; AIR DUCT
FSR DBL CAB(FC**W*) (A) ID=110-130 		8-98133-359-0 03 1 1001- ●
5 CLIP; AIR DUCT
FSR DBL CAB(FC**W*) (C) ID=100-120 		8-98133-366-0 01 1 1001-1011 ●
5 CLIP; AIR DUCT
FSR DBL CAB(FC**W*) (C) ID=100-120 		8-98133-366-0 01 1 1012- ●
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1001-1011 ●
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1012- ● ●
48 BOLT; AIR DUCT
FSR DBL CAB(FC**W*) (B) M10X25 FLANGE SOU 		0-28651-025-0 04 1 1001- ●
64 BOLT; BRKT,AIR DUCT
FSR DBL CAB(FC**W*) (A) M10X25 FLANGE SOU 		0-28651-025-0 02 1 1001- ●
64 BOLT; BRKT,AIR DUCT
FSR DBL CAB(FC**W*) (A) M10X25 FLANGE SOU 		0-28651-025-0 03 1 1001- ●
64 BOLT; BRKT,AIR DUCT
FSR DBL CAB(FC**W*) (C) M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001- ●
64 BOLT; BRKT,AIR DUCT
FSR DBL CAB(FC**W*) (B) M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 1001- ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1001-1011 ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1012- ● ●
174 SENSOR; AIR FLOW CONT
FSR DBL CAB(FC**W*) 		8-97601-967-0 01 1 1001-1109 ●
174 SENSOR; AIR FLOW CONT
EURO3 SPECIFICATION<NT3> 		8-97601-967-0 01 1 1110- ●
209 BRACKET; ACL
FSR SGL CAB(FC**M*) 		8-98099-677-0 01 1 1001-1011 ●
209 BRACKET; ACL
FSR SGL CAB(FC**M*) 		8-98099-677-0 01 1 1012- ●
209 BRACKET; ACL 8-98099-677-0 01 1 1012- ●
209 BRACKET; ACL
FSR DBL CAB(FC**W*) 		8-98089-455-1 01 1 1001- ●
210 BOLT; ACL BRKT
FSR SGL CAB(FC**M*) M10X25 FLANGE SOU 		0-28651-025-0 03 1 1001-1011 ●
210 BOLT; ACL BRKT
FSR SGL CAB(FC**M*) M10X25 FLANGE SOU 		0-28651-025-0 03 1 1012- ●
210 BOLT; ACL BRKT
M10X25 FLANGE SOU 		0-28651-025-0 03 1 1012- ●
210 BOLT; ACL BRKT
FSR DBL CAB(FC**W*) M10X25 FLANGE SOU 		0-28651-025-0 04 1 1001- ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1001-1101 ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1102- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1001-1011 ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1012- ● ●
242 BRACKET; AIR DUCT
FSR SGL CAB(FC**M*) (C) 		8-98019-302-1 01 1 1001-1011 ●
242 BRACKET; AIR DUCT
FSR SGL CAB(FC**M*) (C) 		8-98019-302-1 01 1 1012- ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1012- ●
242 BRACKET; AIR DUCT
FSR SGL CAB(FC**M*) (A) 		8-98019-303-1 01 1 1001-1011 ●
242 BRACKET; AIR DUCT
FSR SGL CAB(FC**M*) (A) 		8-98019-303-1 01 1 1012- ●
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 1012- ●
242 BRACKET; AIR DUCT
FSR DBL CAB(FC**W*) (D) 		8-98050-679-1 01 1 1001- ●
242 BRACKET; AIR DUCT
FSR DBL CAB(FC**W*) (E) 		8-98089-456-1 01 1 1001- ●
242 BRACKET; AIR DUCT
FSR DBL CAB(FC**W*) (F) 		8-98092-771-0 01 1 1001- ●
252 DUCT; AIR INT
VIN MODEL YEAR 2011<VZB> 		8-98010-640-1 01 1 1012- ●
252 DUCT; AIR INT 8-98095-779-0 01 1 1012-1012 ●
252 DUCT; AIR INT
EXC. VIN MODEL YEAR 2011<VZB> 		8-98095-779-0 01 1 1012- ●
252 DUCT; AIR INT
FSR SGL CAB(FC**M*) 		8-98019-843-0 01 1 1001-1005 ●
252 DUCT; AIR INT
FSR SGL CAB(FC**M*) 		8-98019-843-0 01 1 1006- ●
252 DUCT; AIR INT
FSR DBL CAB(FC**W*) 		8-98050-681-0 01 1 1001- ●
296 NUT; ACL
M8 FLANGE SOU 		0-91180-108-0 04 1 1001-1011 ●
296 NUT; ACL
M8 FLANGE SOU 		0-91180-108-0 04 1 1012- ● ●
320 HOSE; CONN,ACL
FSR SGL CAB(FC**M*) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (D) 		8-98172-359-0 01 1 1110- ●
320 HOSE; CONN,ACL
FSR SGL CAB(FC**M*) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (D) 		8-98077-619-1 01 1 1110- ●
320 HOSE; CONN,ACL
(C) 		8-98078-983-1 01 1 1012- ●
320 HOSE; CONN,ACL
FSR SGL CAB(FC**M*) EURO2 SPECIFICATION<NT2> (A) 		8-98072-934-0 01 1 1001-1005 ●
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> (A) 		8-98072-934-0 01 1 1006-1109 ●
320 HOSE; CONN,ACL
FSR SGL CAB(FC**M*) EURO2 SPECIFICATION<NT2> (A) 		8-98072-934-0 01 1 1110- ●
320 HOSE; CONN,ACL
FSR DBL CAB(FC**W*) (B) 		8-98092-944-1 01 1 1001- ●
357 CLIP; RUBBER HOSE
(E) ID=24 		8-98025-921-0 02 1 1102- ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 02 1 1012- ●
357 CLIP; RUBBER HOSE
(D) ID=75-95 		8-98133-357-0 01 1 1012- ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1001- ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1001- ●
379 HOSE; RUBBER 8-98075-713-1 01 1 1102- ●
379 HOSE; RUBBER
FSR SGL CAB(FC**M*) 		8-98063-172-0 01 1 1001- ●
379 HOSE; RUBBER
FSR DBL CAB(FC**W*) 		8-98073-021-0 01 1 1001- ●
381 NUT; BRKT,AIR DUCT
FSR DBL CAB(FC**W*) M8 FLANGE SOU 		0-91180-108-0 01 1 1001- ●
543 SCREW; SENSOR
FSR DBL CAB(FC**W*) (C) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1001-1109 ●
543 SCREW; SENSOR
EURO3 SPECIFICATION<NT3> (C) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1110- ●
543 SCREW; SENSOR
FSR SGL CAB(FC**M*) (B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1001-1011 ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1012- ● ●
543 SCREW; SENSOR
FSR SGL CAB(FC**M*) (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1001-1011 ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1012-1101 ● ●
543 SCREW; SENSOR
FSR SGL CAB(FC**M*) (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1102-1109 ● ●
543 SCREW; SENSOR
FSR SGL CAB(FC**M*) (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1102-1109 ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1110- ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1110- ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1110- ●
558 CLIP; AIR FLOW SENSOR
FSR DBL CAB(FC**W*) L=600 		1-09707-107-1 01 1 1001- ●

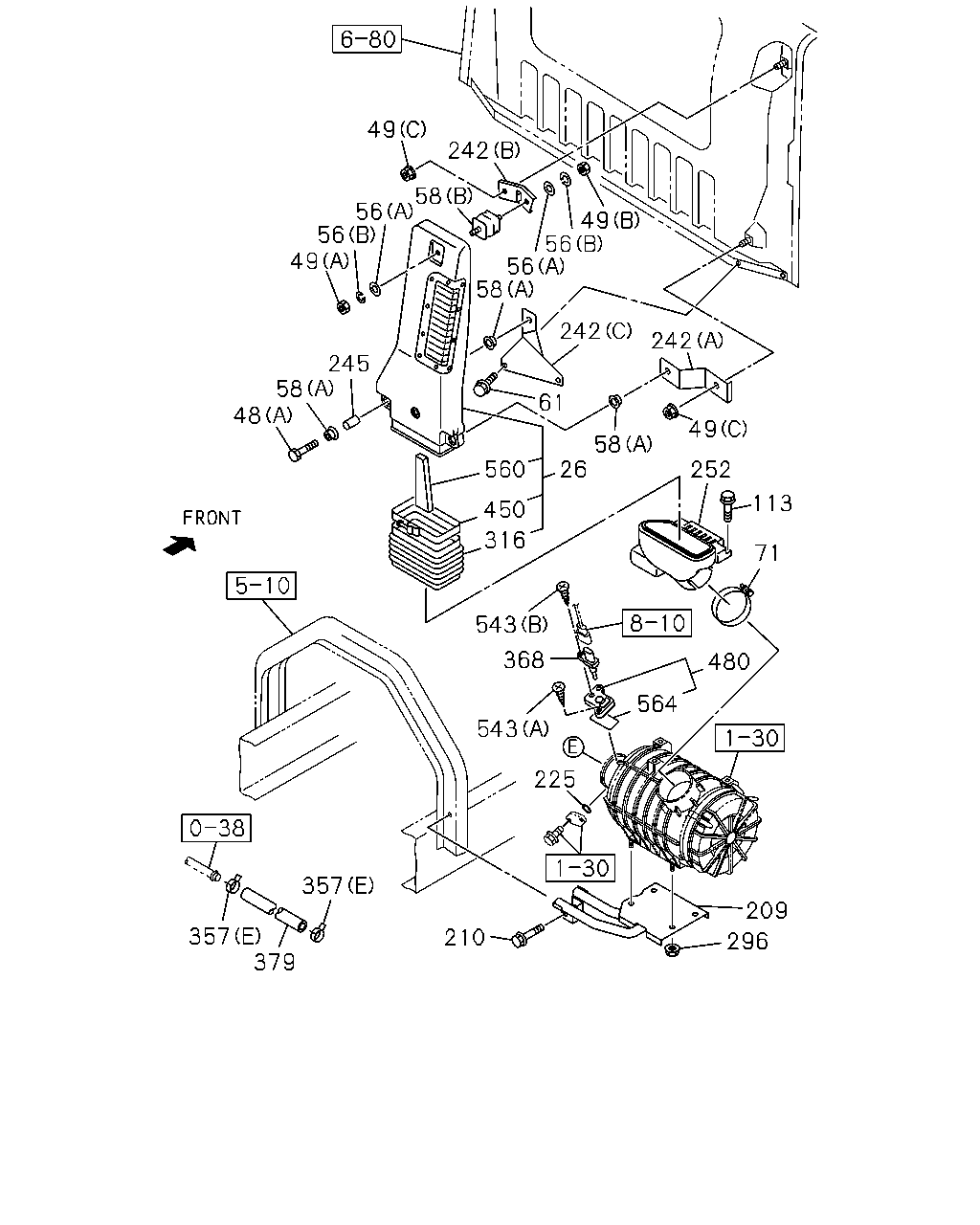

çizim 162767
49 242 58 56 56 49 245 58 48 49 56 56 58 242 242 49 252 113 71 480 564 209 296 210 225 543 368 543 316 450 560 26 58 61 357 357 379
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1001-1011 ●
26 DUCT; AIR INT 8-98010-361-2 01 1 1012- ● ●
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1001-1011 ●
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1012- ● ●
48 BOLT; AIR DUCT
FSR DBL CAB(FC**W*) (B) M10X25 FLANGE SOU 		0-28651-025-0 04 1 1001- ●
49 NUT; AIR DUCT
(B) M8 FLANGE SOU 		1-09984-122-0 01 1 1001-1011 ●
49 NUT; AIR DUCT
(B) M8 FLANGE SOU 		1-09984-122-0 01 1 1012- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1001-1011 ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1012- ● ●
49 NUT; AIR DUCT
FSR SGL CAB(FC**M*) (C) M8 FLANGE SOU 		8-94279-517-0 02 1 1001-1011 ●
49 NUT; AIR DUCT
FSR SGL CAB(FC**M*) (C) M8 FLANGE SOU 		8-94279-517-0 02 1 1012- ●
49 NUT; AIR DUCT
(C) M8 FLANGE SOU 		8-94279-517-0 02 1 1012- ●
49 NUT; AIR DUCT
FSR DBL CAB(FC**W*) (C) M8 FLANGE SOU 		8-94279-517-0 01 1 1001- ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 SOU 		1-09985-177-0 02 1 1001-1011 ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 SOU 		1-09985-177-0 02 1 1012- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1001-1011 ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1012- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1001-1011 ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1012- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1001-1011 ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1012- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1001-1011 ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1012- ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1001-1011 ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1012- ● ●
113 BOLT; RESONATOR
M6X16 W/PL WASHER 		8-98094-071-0 03 1 1012-1012 ●
113 BOLT; RESONATOR
EXC. VIN MODEL YEAR 2011<VZB> M6X16 W/PL WASHER 		8-98094-071-0 03 1 1012- ●
209 BRACKET; ACL
FSR SGL CAB(FC**M*) 		8-98099-677-0 01 1 1001-1011 ●
209 BRACKET; ACL
FSR SGL CAB(FC**M*) 		8-98099-677-0 01 1 1012- ●
209 BRACKET; ACL 8-98099-677-0 01 1 1012- ●
209 BRACKET; ACL
FSR DBL CAB(FC**W*) 		8-98089-455-1 01 1 1001- ●
210 BOLT; ACL BRKT
FSR SGL CAB(FC**M*) M10X25 FLANGE SOU 		0-28651-025-0 03 1 1001-1011 ●
210 BOLT; ACL BRKT
FSR SGL CAB(FC**M*) M10X25 FLANGE SOU 		0-28651-025-0 03 1 1012- ●
210 BOLT; ACL BRKT
M10X25 FLANGE SOU 		0-28651-025-0 03 1 1012- ●
210 BOLT; ACL BRKT
FSR DBL CAB(FC**W*) M10X25 FLANGE SOU 		0-28651-025-0 04 1 1001- ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1001-1101 ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1102- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1001-1011 ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1012- ● ●
242 BRACKET; AIR DUCT
FSR SGL CAB(FC**M*) (C) 		8-98019-302-1 01 1 1001-1011 ●
242 BRACKET; AIR DUCT
FSR SGL CAB(FC**M*) (C) 		8-98019-302-1 01 1 1012- ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1012- ●
242 BRACKET; AIR DUCT
FSR SGL CAB(FC**M*) (A) 		8-98019-303-1 01 1 1001-1011 ●
242 BRACKET; AIR DUCT
FSR SGL CAB(FC**M*) (A) 		8-98019-303-1 01 1 1012- ●
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 1012- ●
242 BRACKET; AIR DUCT
FSR DBL CAB(FC**W*) (D) 		8-98050-679-1 01 1 1001- ●
242 BRACKET; AIR DUCT
FSR DBL CAB(FC**W*) (E) 		8-98089-456-1 01 1 1001- ●
242 BRACKET; AIR DUCT
FSR DBL CAB(FC**W*) (F) 		8-98092-771-0 01 1 1001- ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1001-1011 ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1012- ● ●
252 DUCT; AIR INT
VIN MODEL YEAR 2011<VZB> 		8-98010-640-1 01 1 1012- ●
252 DUCT; AIR INT 8-98095-779-0 01 1 1012-1012 ●
252 DUCT; AIR INT
EXC. VIN MODEL YEAR 2011<VZB> 		8-98095-779-0 01 1 1012- ●
252 DUCT; AIR INT
FSR SGL CAB(FC**M*) 		8-98019-843-0 01 1 1001-1005 ●
252 DUCT; AIR INT
FSR SGL CAB(FC**M*) 		8-98019-843-0 01 1 1006- ●
252 DUCT; AIR INT
FSR DBL CAB(FC**W*) 		8-98050-681-0 01 1 1001- ●
296 NUT; ACL
M8 FLANGE SOU 		0-91180-108-0 04 1 1001-1011 ●
296 NUT; ACL
M8 FLANGE SOU 		0-91180-108-0 04 1 1012- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1001-1011 ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1012- ● ●
357 CLIP; RUBBER HOSE
(E) ID=24 		8-98025-921-0 02 1 1102- ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 02 1 1012- ●
357 CLIP; RUBBER HOSE
(D) ID=75-95 		8-98133-357-0 01 1 1012- ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1001- ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1001- ●
368 SENSOR; TEMP
FSR SGL CAB(FC**M*) 		8-98065-377-0 01 1 1001-1011 ●
368 SENSOR; TEMP
EURO2 SPECIFICATION<NT2> 		8-98065-377-0 01 1 1012- ● ●
379 HOSE; RUBBER 8-98075-713-1 01 1 1102- ●
379 HOSE; RUBBER
FSR SGL CAB(FC**M*) 		8-98063-172-0 01 1 1001- ●
379 HOSE; RUBBER
FSR DBL CAB(FC**W*) 		8-98073-021-0 01 1 1001- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1001-1011 ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1012- ● ●
480 ADAPTER
FSR SGL CAB(FC**M*) 		8-98086-417-0 01 1 1001-1011 ●
480 ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98086-417-0 01 1 1012- ● ●
543 SCREW; SENSOR
FSR DBL CAB(FC**W*) (C) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1001-1109 ●
543 SCREW; SENSOR
EURO3 SPECIFICATION<NT3> (C) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1110- ●
543 SCREW; SENSOR
FSR SGL CAB(FC**M*) (B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1001-1011 ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1012- ● ●
543 SCREW; SENSOR
FSR SGL CAB(FC**M*) (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1001-1011 ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1012-1101 ● ●
543 SCREW; SENSOR
FSR SGL CAB(FC**M*) (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1102-1109 ● ●
543 SCREW; SENSOR
FSR SGL CAB(FC**M*) (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1102-1109 ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1110- ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1110- ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1110- ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1001- ●
564 GASKET; ADAPTER
FSR SGL CAB(FC**M*) 		8-98071-416-0 01 1 1001-1011 ●
564 GASKET; ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98071-416-0 01 1 1012- ● ●

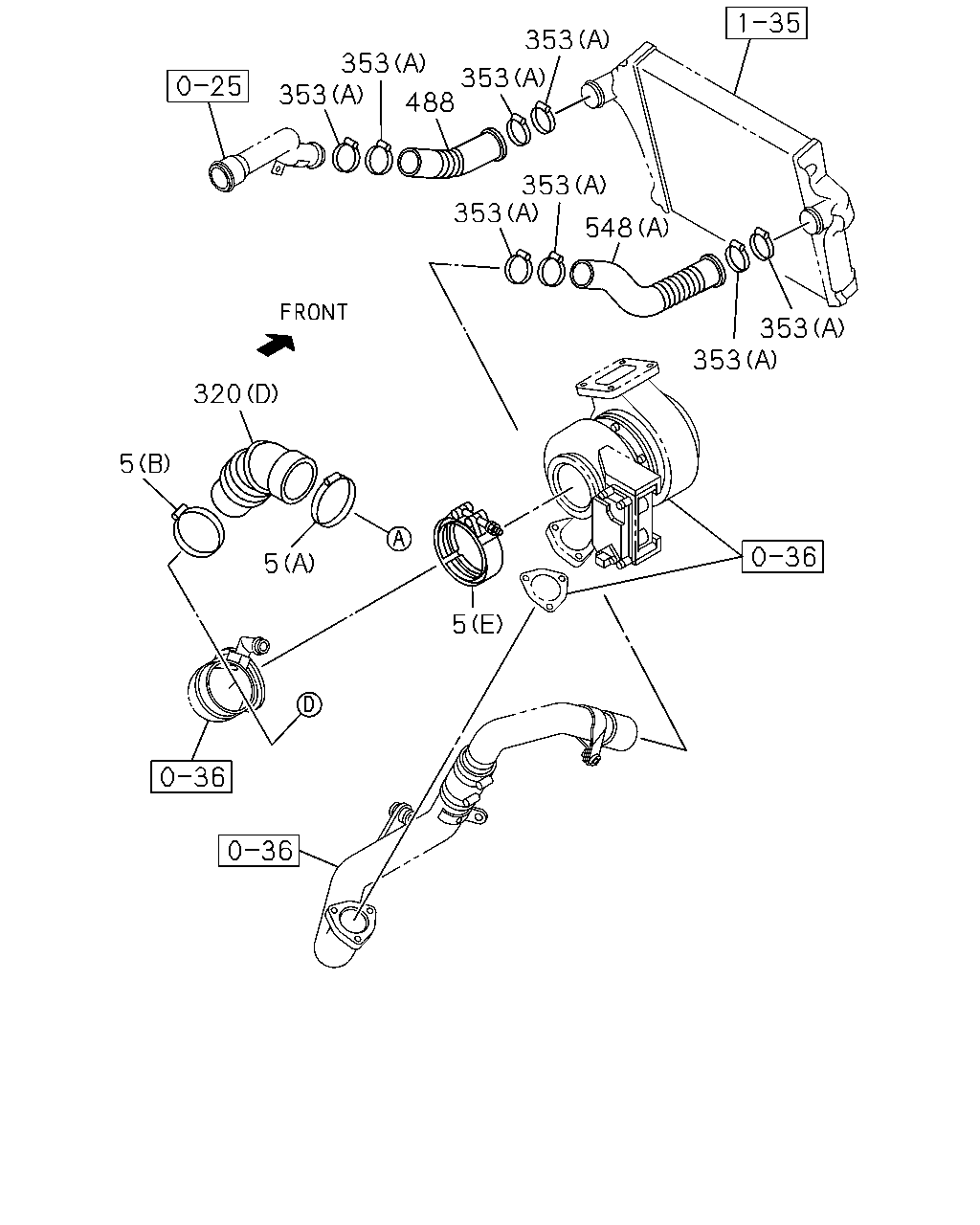

çizim 162797
353 353 488 353 353 353 353 548 353 353 5 5 5 320
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 CLIP; AIR DUCT
FSR SGL CAB(FC**M*) (A) ID=110-130 		8-98133-359-0 01 1 1001-1011 ●
5 CLIP; AIR DUCT
FSR SGL CAB(FC**M*) (A) ID=110-130 		8-98133-359-0 01 1 1012- ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1012- ●
5 CLIP; AIR DUCT
FSR SGL CAB(FC**M*) EURO2 SPECIFICATION<NT2> (B) ID=90-110 		8-98133-365-0 01 1 1001-1005 ●
5 CLIP; AIR DUCT
FSR SGL CAB(FC**M*) (B) ID=90-110 		8-98133-365-0 01 1 1006- ●
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> (E) ID=114 		8-15178-030-0 01 1 1001- ●
5 CLIP; AIR DUCT
FSR DBL CAB(FC**W*) (A) ID=110-130 		8-98133-359-0 03 1 1001- ●
5 CLIP; AIR DUCT
FSR DBL CAB(FC**W*) (C) ID=100-120 		8-98133-366-0 01 1 1001-1011 ●
5 CLIP; AIR DUCT
FSR DBL CAB(FC**W*) (C) ID=100-120 		8-98133-366-0 01 1 1012- ●
320 HOSE; CONN,ACL
FSR SGL CAB(FC**M*) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (D) 		8-98172-359-0 01 1 1110- ●
320 HOSE; CONN,ACL
FSR SGL CAB(FC**M*) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (D) 		8-98077-619-1 01 1 1110- ●
320 HOSE; CONN,ACL
(C) 		8-98078-983-1 01 1 1012- ●
320 HOSE; CONN,ACL
FSR SGL CAB(FC**M*) EURO2 SPECIFICATION<NT2> (A) 		8-98072-934-0 01 1 1001-1005 ●
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> (A) 		8-98072-934-0 01 1 1006-1109 ●
320 HOSE; CONN,ACL
FSR SGL CAB(FC**M*) EURO2 SPECIFICATION<NT2> (A) 		8-98072-934-0 01 1 1110- ●
320 HOSE; CONN,ACL
FSR DBL CAB(FC**W*) (B) 		8-98092-944-1 01 1 1001- ●
353 CLIP; RUBBER HOSE
(B) ID=60-65 		8-98096-418-0 02 1 1012- ●
353 CLIP; RUBBER HOSE
(A) ID=55-75 		8-98133-349-0 02 1 1012- ●
353 CLIP; RUBBER HOSE
(A) ID=55-75 		8-98133-349-0 08 1 1001- ●
488 HOSE; RUBBER,PIPE 8-98010-723-0 01 1 1012- ●
488 HOSE; RUBBER,PIPE 8-98017-224-1 01 1 1001- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EXC. EURO2 SPECIFICATION<NT2> (B) 		8-98061-809-1 01 1 1110- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EXC. EURO2 SPECIFICATION<NT2> (C) 		8-98061-810-0 01 1 1110- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-98181-973-1 01 1 1102- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98061-809-1 01 1 1012-1101 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98181-971-1 01 1 1102- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(C) 		8-98061-810-0 01 1 1012-1101 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(C) 		8-98181-972-1 01 1 1102- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98017-223-2 01 1 1001-1101 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
FSR DBL CAB(FC**W*) (A) 		8-98017-223-2 01 1 1102-1109 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
FSR SGL CAB(FC**M*) EXC. EURO2 SPECIFICATION<NT2> (A) 		8-98017-223-2 01 1 1110- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
FSR DBL CAB(FC**W*) (A) 		8-98017-223-2 01 1 1110- ●

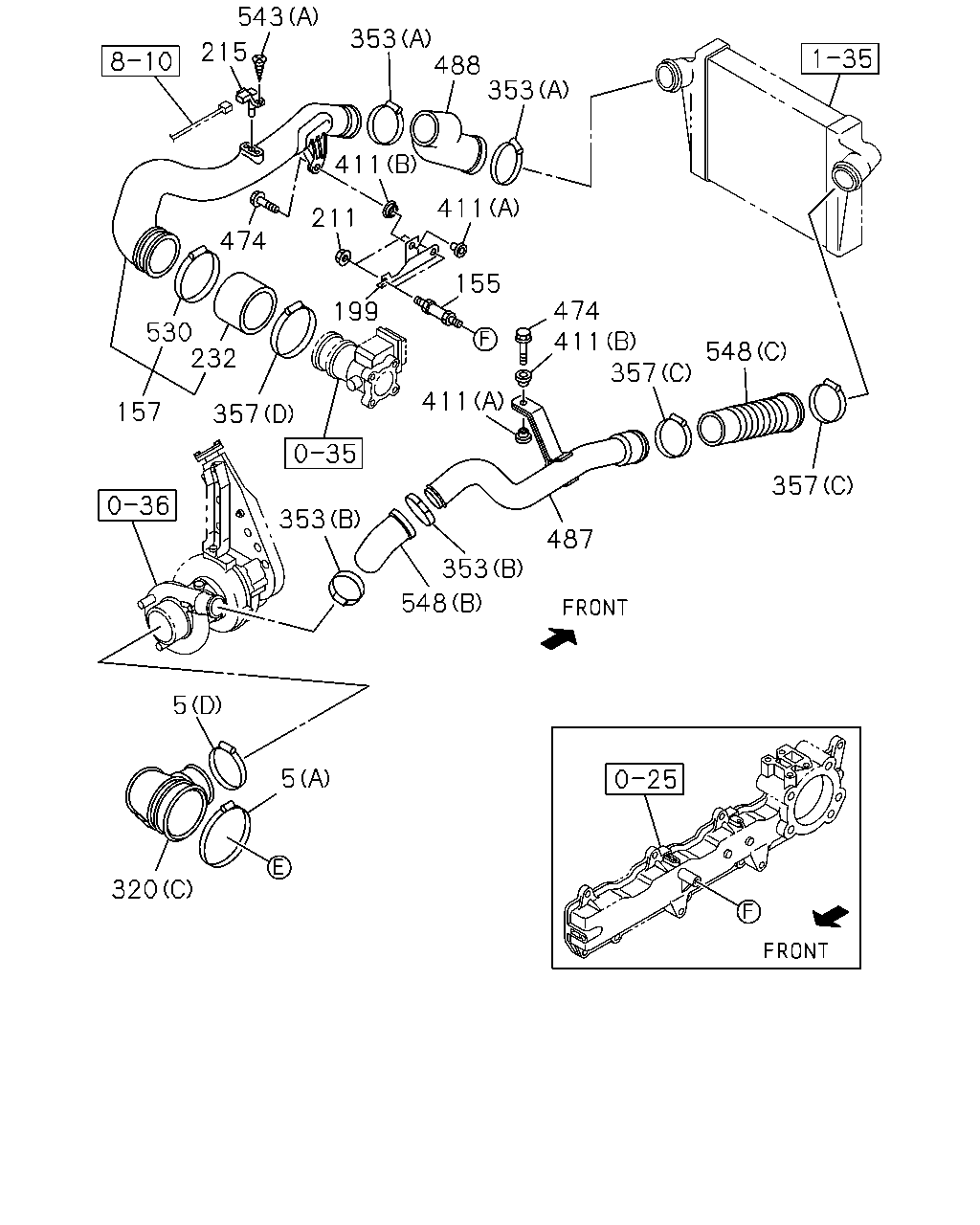

çizim 321212
215 543 353 488 353 411 411 211 474 530 232 357 157 353 5 5 320 548 353 487 411 155 199 474 411 357 548 357
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 CLIP; AIR DUCT
FSR SGL CAB(FC**M*) (A) ID=110-130 		8-98133-359-0 01 1 1001-1011 ●
5 CLIP; AIR DUCT
FSR SGL CAB(FC**M*) (A) ID=110-130 		8-98133-359-0 01 1 1012- ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1012- ●
5 CLIP; AIR DUCT
FSR SGL CAB(FC**M*) EURO2 SPECIFICATION<NT2> (B) ID=90-110 		8-98133-365-0 01 1 1001-1005 ●
5 CLIP; AIR DUCT
FSR SGL CAB(FC**M*) (B) ID=90-110 		8-98133-365-0 01 1 1006- ●
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> (E) ID=114 		8-15178-030-0 01 1 1001- ●
5 CLIP; AIR DUCT
FSR DBL CAB(FC**W*) (A) ID=110-130 		8-98133-359-0 03 1 1001- ●
5 CLIP; AIR DUCT
FSR DBL CAB(FC**W*) (C) ID=100-120 		8-98133-366-0 01 1 1001-1011 ●
5 CLIP; AIR DUCT
FSR DBL CAB(FC**W*) (C) ID=100-120 		8-98133-366-0 01 1 1012- ●
155 BOLT; BRKT
M10X17,M10X30 L=105 		8-97233-428-0 02 1 1012- ●
157 PIPE; AIR 8-98010-719-3 01 1 1012- ●
199 BRACKET; PIPE 8-97385-293-1 01 1 1012- ●
211 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 02 1 1012- ●
215 SENSOR; MAP 8-98009-418-0 01 1 1102- ●
232 HOSE; CONN 8-98067-929-0 01 1 1012- ●
320 HOSE; CONN,ACL
FSR SGL CAB(FC**M*) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (D) 		8-98172-359-0 01 1 1110- ●
320 HOSE; CONN,ACL
FSR SGL CAB(FC**M*) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (D) 		8-98077-619-1 01 1 1110- ●
320 HOSE; CONN,ACL
(C) 		8-98078-983-1 01 1 1012- ●
320 HOSE; CONN,ACL
FSR SGL CAB(FC**M*) EURO2 SPECIFICATION<NT2> (A) 		8-98072-934-0 01 1 1001-1005 ●
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> (A) 		8-98072-934-0 01 1 1006-1109 ●
320 HOSE; CONN,ACL
FSR SGL CAB(FC**M*) EURO2 SPECIFICATION<NT2> (A) 		8-98072-934-0 01 1 1110- ●
320 HOSE; CONN,ACL
FSR DBL CAB(FC**W*) (B) 		8-98092-944-1 01 1 1001- ●
353 CLIP; RUBBER HOSE
(B) ID=60-65 		8-98096-418-0 02 1 1012- ●
353 CLIP; RUBBER HOSE
(A) ID=55-75 		8-98133-349-0 02 1 1012- ●
353 CLIP; RUBBER HOSE
(A) ID=55-75 		8-98133-349-0 08 1 1001- ●
357 CLIP; RUBBER HOSE
(E) ID=24 		8-98025-921-0 02 1 1102- ●
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 02 1 1012- ●
357 CLIP; RUBBER HOSE
(D) ID=75-95 		8-98133-357-0 01 1 1012- ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1001- ●
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 1001- ●
411 RUBBER; CUSHION
(A) OD=32 		8-94395-766-0 02 1 1012- ●
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 1012- ●
474 BOLT; PIPE
M8X40 FLANGE SOU 		0-28650-840-0 02 1 1012- ●
487 PIPE; TURBO TO CHARGE AIR COOLER 8-98073-592-0 01 1 1012- ●
488 HOSE; RUBBER,PIPE 8-98010-723-0 01 1 1012- ●
488 HOSE; RUBBER,PIPE 8-98017-224-1 01 1 1001- ●
530 CLAMP; AIR DUCT
ID=75-95 		8-98133-357-0 01 1 1012- ●
543 SCREW; SENSOR
FSR DBL CAB(FC**W*) (C) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1001-1109 ●
543 SCREW; SENSOR
EURO3 SPECIFICATION<NT3> (C) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1110- ●
543 SCREW; SENSOR
FSR SGL CAB(FC**M*) (B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1001-1011 ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1012- ● ●
543 SCREW; SENSOR
FSR SGL CAB(FC**M*) (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1001-1011 ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1012-1101 ● ●
543 SCREW; SENSOR
FSR SGL CAB(FC**M*) (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1102-1109 ● ●
543 SCREW; SENSOR
FSR SGL CAB(FC**M*) (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1102-1109 ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1110- ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1110- ●
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1110- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EXC. EURO2 SPECIFICATION<NT2> (B) 		8-98061-809-1 01 1 1110- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EXC. EURO2 SPECIFICATION<NT2> (C) 		8-98061-810-0 01 1 1110- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-98181-973-1 01 1 1102- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98061-809-1 01 1 1012-1101 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98181-971-1 01 1 1102- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(C) 		8-98061-810-0 01 1 1012-1101 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(C) 		8-98181-972-1 01 1 1102- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98017-223-2 01 1 1001-1101 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
FSR DBL CAB(FC**W*) (A) 		8-98017-223-2 01 1 1102-1109 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
FSR SGL CAB(FC**M*) EXC. EURO2 SPECIFICATION<NT2> (A) 		8-98017-223-2 01 1 1110- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
FSR DBL CAB(FC**W*) (A) 		8-98017-223-2 01 1 1110- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
