Sayfa 1-11 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11161 - FSR(SOUTH AFRICA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11 - RADIATOR HOSE AND SUB TANK ▶

1-11 — RADIATOR HOSE AND SUB TANK (#55517) — 80 parça

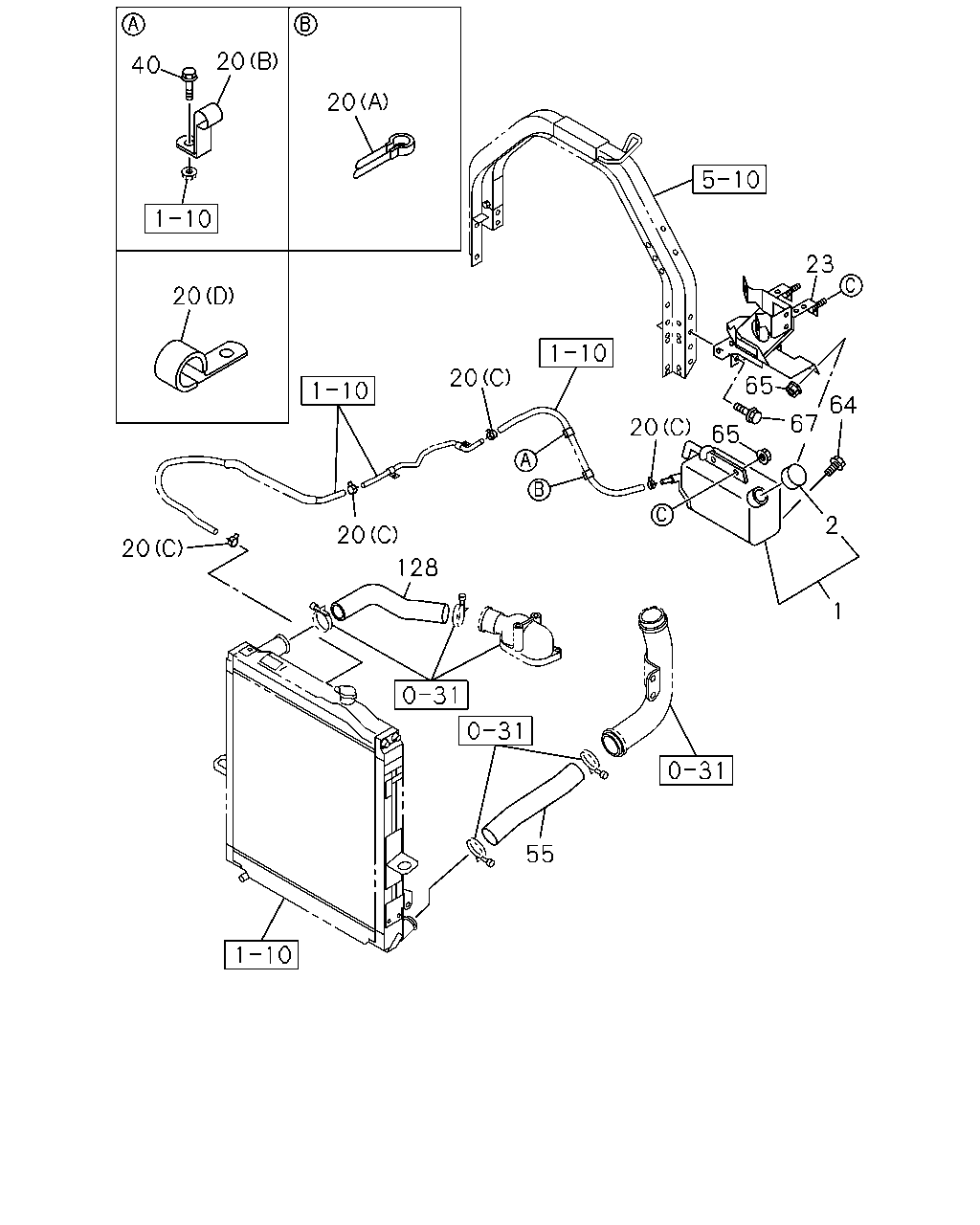

20 40 20 23 20 20 65 64 67 20 65 2 20 20 128 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	CAP; SURGE TANK	8-97217-796-0	01	1	1001-1009	●
2	CAP; SURGE TANK	8-98178-074-0	01	1	1010-1011	●
2	CAP; SURGE TANK	8-98178-074-0	01	1	1012-	●	●
20	CLIP; HOSE,RAD (D) ID=13 L=20	0-95235-235-0	01	1	1012-		●
20	CLIP; HOSE,RAD (D) ID=13 L=20	0-95235-235-0	02	1	1012-		●
20	CLIP; HOSE,RAD (E) ID=11.5 & 14.5	8-94314-293-0	01	1	1012-		●
20	CLIP; HOSE,RAD (B) ID=11.5	8-97375-638-0	02	1	1012-		●
20	CLIP; HOSE,RAD (F) ID=12	8-98029-256-0	03	1	1012-		●
20	CLIP; HOSE,RAD (G) ID=14 L=44	9-09917-427-0	01	1	1012-		●
20	CLIP; HOSE,RAD (C) ID=11.5	8-97375-638-0	04	1	1001-	●
20	CLIP; HOSE,RAD FSR SGL CAB(FC*M) (B) ID=13 H=40 L=25	1-09700-620-0	01	1	1001-	●
20	CLIP; HOSE,RAD FSR SGL CAB(FC*M) (A) ID=20 L=50 SOU	9-09917-430-0	01	1	1001-1011	●
20	CLIP; HOSE,RAD FSR SGL CAB(FC*M) (A) ID=20 L=50 SOU	9-09917-430-0	01	1	1012-	●	●
20	CLIP; HOSE,RAD FSR SGL CAB(FC*M) (A) ID=20 L=50 SOU	9-09917-430-0	01	1	1012-		●
20	CLIP; HOSE,RAD FSR DBL CAB(FC*W) (D) ID=13 L=50	0-95235-286-0	02	1	1001-	●
23	BRACKET; RESERVE TANK FSR SGL CAB(FC*M)	8-98013-534-4	01	1	1001-1011	●
23	BRACKET; RESERVE TANK FSR SGL CAB(FC*M)	8-98013-534-4	01	1	1012-	●
23	BRACKET; RESERVE TANK	8-98013-534-4	01	1	1012-		●
23	BRACKET; RESERVE TANK FSR DBL CAB(FC*W)	8-98058-220-2	01	1	1001-	●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	1012-		●
40	BOLT; CLIP FSR SGL CAB(FC*M) M8X20 FLANGE	0-28650-820-0	01	1	1001-	●
40	BOLT; CLIP FSR DBL CAB(FC*W) M8X20 FLANGE	0-28650-820-0	02	1	1001-	●
55	HOSE; WATER,RAD OUTLET	8-98010-573-2	01	1	1012-		●
55	HOSE; WATER,RAD OUTLET	8-98010-577-1	01	1	1001-	●
64	BOLT; BRKT,SUB TANK FSR SGL CAB(FC*M) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1001-1011	●
64	BOLT; BRKT,SUB TANK FSR SGL CAB(FC*M) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1012-	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1012-		●
64	BOLT; BRKT,SUB TANK FSR DBL CAB(FC*W) M8X25 W/LK&PL WASHER	1-09030-093-0	03	1	1001-	●
65	NUT; BRKT,SUB TANK FSR SGL CAB(FC*M) M8 FLANGE SOU	0-91180-108-0	03	1	1001-1011	●
65	NUT; BRKT,SUB TANK FSR SGL CAB(FC*M) M8 FLANGE SOU	0-91180-108-0	03	1	1012-	●
65	NUT; BRKT,SUB TANK M8 FLANGE SOU	0-91180-108-0	03	1	1012-		●
65	NUT; BRKT,SUB TANK FSR DBL CAB(FC*W) M8 FLANGE SOU	0-91180-108-0	01	1	1001-	●
67	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	03	1	1001-1011	●
67	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	03	1	1012-	●	●
128	HOSE; WATER,RAD INL	8-98010-572-1	01	1	1012-		●
128	HOSE; WATER,RAD INL	8-98010-576-2	01	1	1001-	●

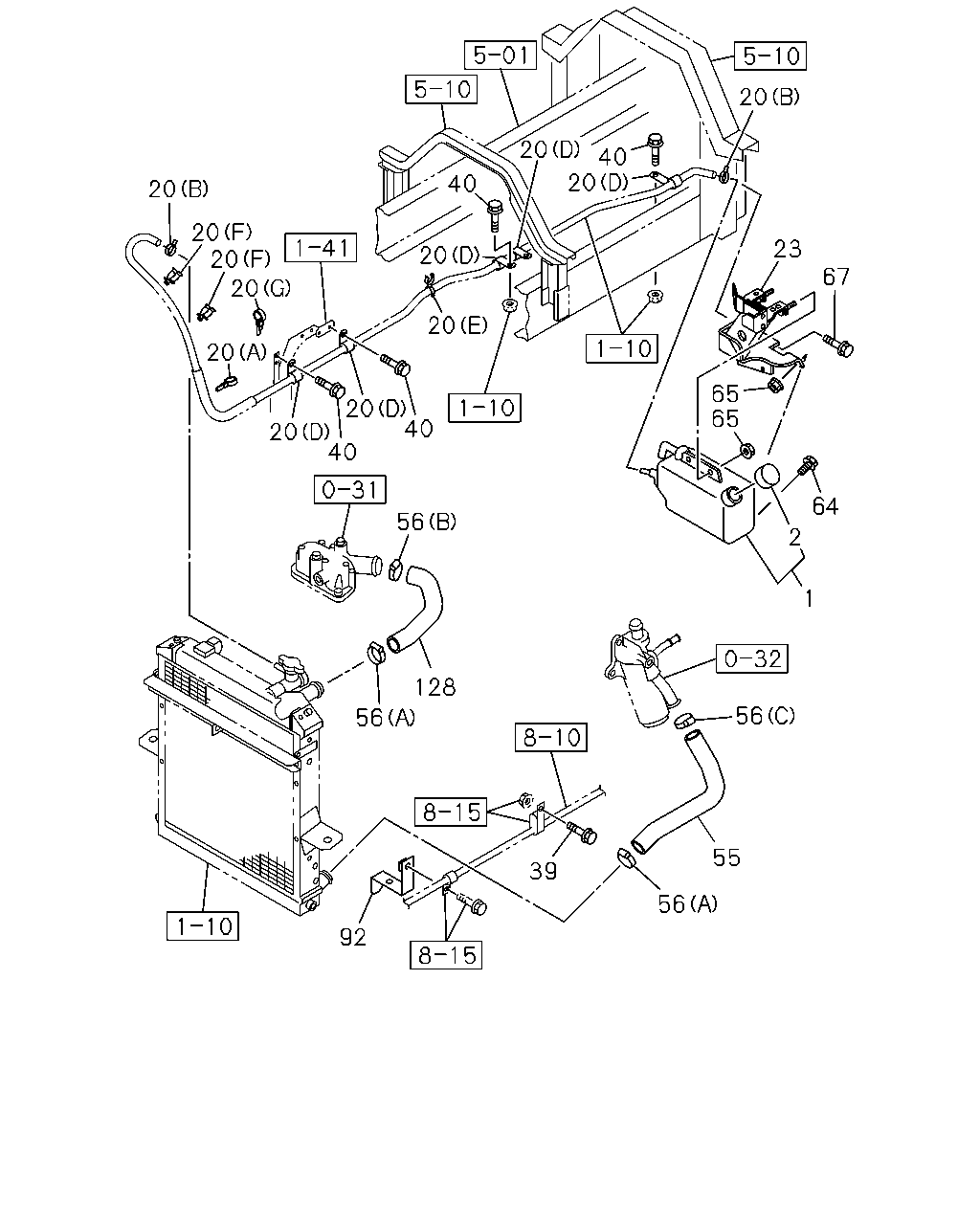

20 20 40 20 40 20 20 20 20 20 23 67 20 20 65 65 20 40 20 40 64 56 2 1 128 56 56 55 39 56 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; SURGE,RAD	8-98010-309-2	01	1	1001-1009	●
1	TANK; SURGE,RAD	8-98171-757-0	01	1	1010-1011	●
1	TANK; SURGE,RAD	8-98171-757-0	01	1	1012-	●	●
2	CAP; SURGE TANK	8-97217-796-0	01	1	1001-1009	●
2	CAP; SURGE TANK	8-98178-074-0	01	1	1010-1011	●
2	CAP; SURGE TANK	8-98178-074-0	01	1	1012-	●	●
20	CLIP; HOSE,RAD (D) ID=13 L=20	0-95235-235-0	01	1	1012-		●
20	CLIP; HOSE,RAD (D) ID=13 L=20	0-95235-235-0	02	1	1012-		●
20	CLIP; HOSE,RAD (E) ID=11.5 & 14.5	8-94314-293-0	01	1	1012-		●
20	CLIP; HOSE,RAD (B) ID=11.5	8-97375-638-0	02	1	1012-		●
20	CLIP; HOSE,RAD (F) ID=12	8-98029-256-0	03	1	1012-		●
20	CLIP; HOSE,RAD (G) ID=14 L=44	9-09917-427-0	01	1	1012-		●
20	CLIP; HOSE,RAD (C) ID=11.5	8-97375-638-0	04	1	1001-	●
20	CLIP; HOSE,RAD FSR SGL CAB(FC*M) (B) ID=13 H=40 L=25	1-09700-620-0	01	1	1001-	●
20	CLIP; HOSE,RAD FSR SGL CAB(FC*M) (A) ID=20 L=50 SOU	9-09917-430-0	01	1	1001-1011	●
20	CLIP; HOSE,RAD FSR SGL CAB(FC*M) (A) ID=20 L=50 SOU	9-09917-430-0	01	1	1012-	●	●
20	CLIP; HOSE,RAD FSR SGL CAB(FC*M) (A) ID=20 L=50 SOU	9-09917-430-0	01	1	1012-		●
20	CLIP; HOSE,RAD FSR DBL CAB(FC*W) (D) ID=13 L=50	0-95235-286-0	02	1	1001-	●
23	BRACKET; RESERVE TANK FSR SGL CAB(FC*M)	8-98013-534-4	01	1	1001-1011	●
23	BRACKET; RESERVE TANK FSR SGL CAB(FC*M)	8-98013-534-4	01	1	1012-	●
23	BRACKET; RESERVE TANK	8-98013-534-4	01	1	1012-		●
23	BRACKET; RESERVE TANK FSR DBL CAB(FC*W)	8-98058-220-2	01	1	1001-	●
39	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	01	1	1102-		●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	1012-		●
40	BOLT; CLIP FSR SGL CAB(FC*M) M8X20 FLANGE	0-28650-820-0	01	1	1001-	●
40	BOLT; CLIP FSR DBL CAB(FC*W) M8X20 FLANGE	0-28650-820-0	02	1	1001-	●
55	HOSE; WATER,RAD OUTLET	8-98010-573-2	01	1	1012-		●
55	HOSE; WATER,RAD OUTLET	8-98010-577-1	01	1	1001-	●
56	CLIP; WATER HOSE,RAD (B) ID=52 SOU	1-09704-057-0	01	1	1012-		●
56	CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	02	1	1012-		●
56	CLIP; WATER HOSE,RAD (C) ID=62	8-98133-957-0	01	1	1012-		●
64	BOLT; BRKT,SUB TANK FSR SGL CAB(FC*M) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1001-1011	●
64	BOLT; BRKT,SUB TANK FSR SGL CAB(FC*M) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1012-	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1012-		●
64	BOLT; BRKT,SUB TANK FSR DBL CAB(FC*W) M8X25 W/LK&PL WASHER	1-09030-093-0	03	1	1001-	●
65	NUT; BRKT,SUB TANK FSR SGL CAB(FC*M) M8 FLANGE SOU	0-91180-108-0	03	1	1001-1011	●
65	NUT; BRKT,SUB TANK FSR SGL CAB(FC*M) M8 FLANGE SOU	0-91180-108-0	03	1	1012-	●
65	NUT; BRKT,SUB TANK M8 FLANGE SOU	0-91180-108-0	03	1	1012-		●
65	NUT; BRKT,SUB TANK FSR DBL CAB(FC*W) M8 FLANGE SOU	0-91180-108-0	01	1	1001-	●
67	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	03	1	1001-1011	●
67	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	03	1	1012-	●	●
92	BRACKET; CLIP,RUBBER HOSE	8-98055-051-0	01	1	1102-		●
128	HOSE; WATER,RAD INL	8-98010-572-1	01	1	1012-		●
128	HOSE; WATER,RAD INL	8-98010-576-2	01	1	1001-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
