◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11161 - FSR(SOUTH AFRICA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#55516) — 245 parça

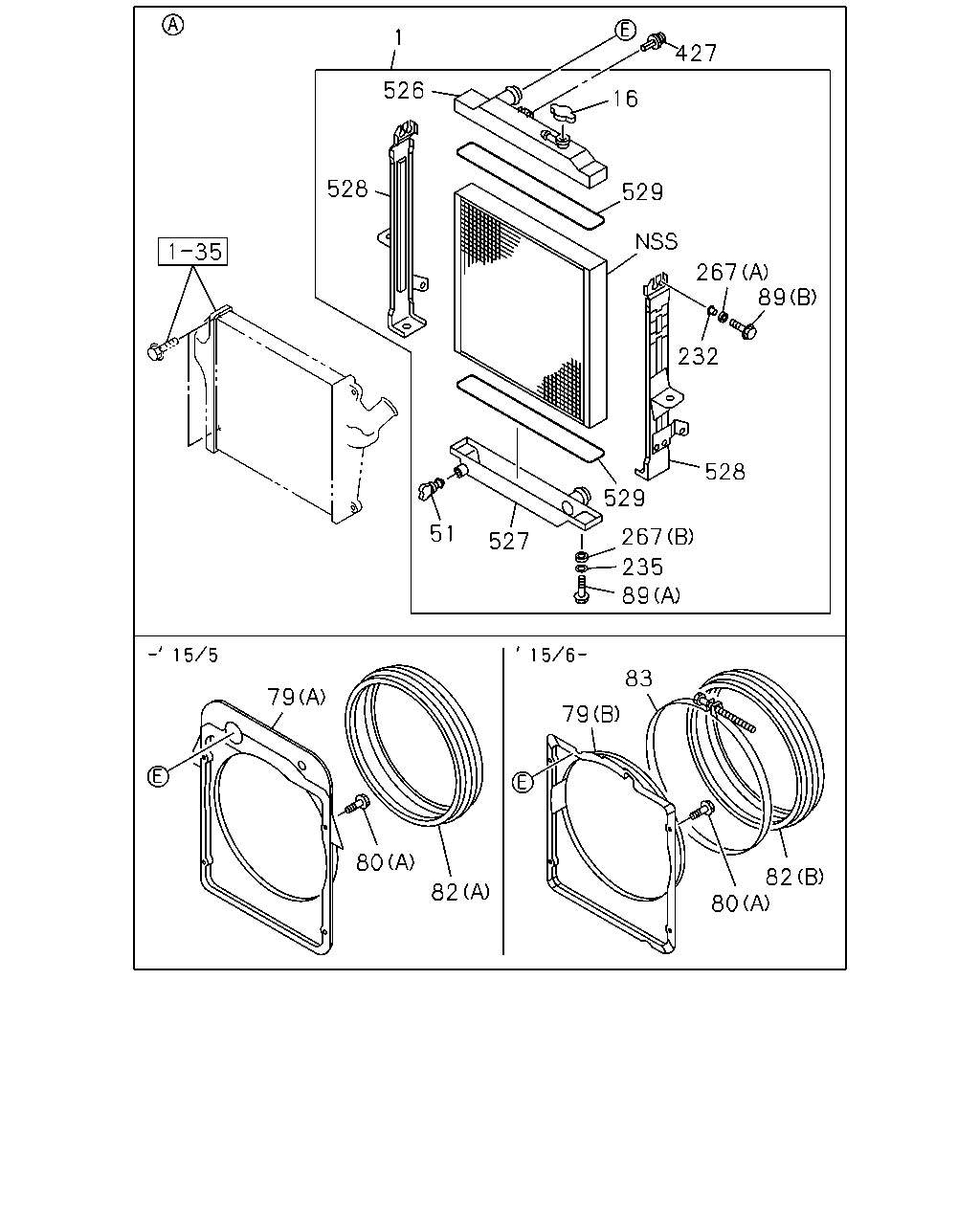

çizim 162451
1 526 528 51 527 427 16 529 267 89 232 528 529 267 235 89 83 82 80 82 80 79 79
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-322-0 01 1 1110- ●
1 RADIATOR ASM
FSR DBL CAB(FC**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98043-040-1 01 1 1106-1109 ●
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98043-040-1 01 1 1110-1505 ●
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98299-726-0 01 1 1506- ●
1 RADIATOR ASM 8-98139-320-0 01 1 1012-1109 ●
1 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-320-0 01 1 1110- ●
1 RADIATOR ASM 8-98043-027-1 01 1 1001-1105 ●
1 RADIATOR ASM
FSR SGL CAB(FC**M*) 		8-98043-027-1 01 1 1106-1109 ●
1 RADIATOR ASM
FSR DBL CAB(FC**W*) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98043-027-1 01 1 1106-1109 ●
1 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98043-027-1 01 1 1110-1505 ●
1 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98299-725-0 01 1 1506- ●
16 CAP; RAD
SOU 		8-97239-187-0 01 1 1012-1105 ●
16 CAP; RAD
FSR DBL CAB(FC**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) SOU 		8-97239-187-0 01 1 1106-1109 ●
16 CAP; RAD
SOU 		8-97239-187-0 01 1 1106-1109 ●
16 CAP; RAD
TRANSMISSION CONTROL-SMOOTHER(8GF) SOU 		8-97239-187-0 01 1 1110- ●
16 CAP; RAD
SOU 		8-97239-187-0 01 1 1110- ●
16 CAP; RAD 8-98096-226-0 01 1 1001-1105 ●
16 CAP; RAD
FSR SGL CAB(FC**M*) 		8-98096-226-0 01 1 1106-1109 ●
16 CAP; RAD
FSR DBL CAB(FC**W*) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98096-226-0 01 1 1106-1109 ●
16 CAP; RAD
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98096-226-0 01 1 1110- ●
51 PLUG; DRAIN
W/GASKET SOU 		8-97171-437-0 01 1 1001-1011 ●
51 PLUG; DRAIN
W/GASKET SOU 		8-97171-437-0 01 1 1012- ● ●
79 GUIDE; FAN,RAD
(C) 		8-98010-297-0 01 1 1012- ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 1001-1505 ●
79 GUIDE; FAN,RAD
(B) 		8-98286-937-0 01 1 1506- ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1012- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1001-1101 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1102- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1001-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ●
82 COVER; FAN,RAD
(C) 		8-98006-478-0 01 1 1012- ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1001-1505 ●
82 COVER; FAN,RAD
(B) 		8-98293-253-0 01 1 1506- ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 1506- ●
89 BOLT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1012- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 02 1 1012- ●
89 BOLT
(A) M6X12 FLANGE SOU 		0-28050-612-0 02 1 1001- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1001- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 1012- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1001- ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 1001- ●
267 RUBBER; CUSHION
(C) 		1-21467-023-0 02 1 1012- ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 1001- ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1001- ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1001-1011 ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1012-1505 ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1506- ●
526 TANK; UPR,RADIATOR CORE 8-98010-271-2 01 1 1012- ●
526 TANK; UPR,RADIATOR CORE 8-98004-202-2 01 1 1001- ●
527 TANK; LWR,RADIATOR CORE 8-98032-433-1 01 1 1012-1109 ●
527 TANK; LWR,RADIATOR CORE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98032-433-1 01 1 1110- ●
527 TANK; LWR,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-279-0 01 1 1110- ●
527 TANK; LWR,RADIATOR CORE
FSR DBL CAB(FC**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-365-0 01 1 1106-1109 ●
527 TANK; LWR,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-365-0 01 1 1110- ●
527 TANK; LWR,RADIATOR CORE 8-98004-203-0 01 1 1001-1105 ●
527 TANK; LWR,RADIATOR CORE
FSR SGL CAB(FC**M*) 		8-98004-203-0 01 1 1106-1109 ●
527 TANK; LWR,RADIATOR CORE
FSR DBL CAB(FC**W*) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-203-0 01 1 1106-1109 ●
527 TANK; LWR,RADIATOR CORE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-203-0 01 1 1110- ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-290-1 01 1 1012- ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-291-1 01 1 1012- ●
528 PLATE; SIDE,RADIATOR CORE 8-98043-029-1 01 1 1001- ●
528 PLATE; SIDE,RADIATOR CORE 8-98035-117-3 01 1 1001- ●
529 GASKET; CORE,RADIATOR 8-98032-435-0 02 1 1012- ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 1001- ●

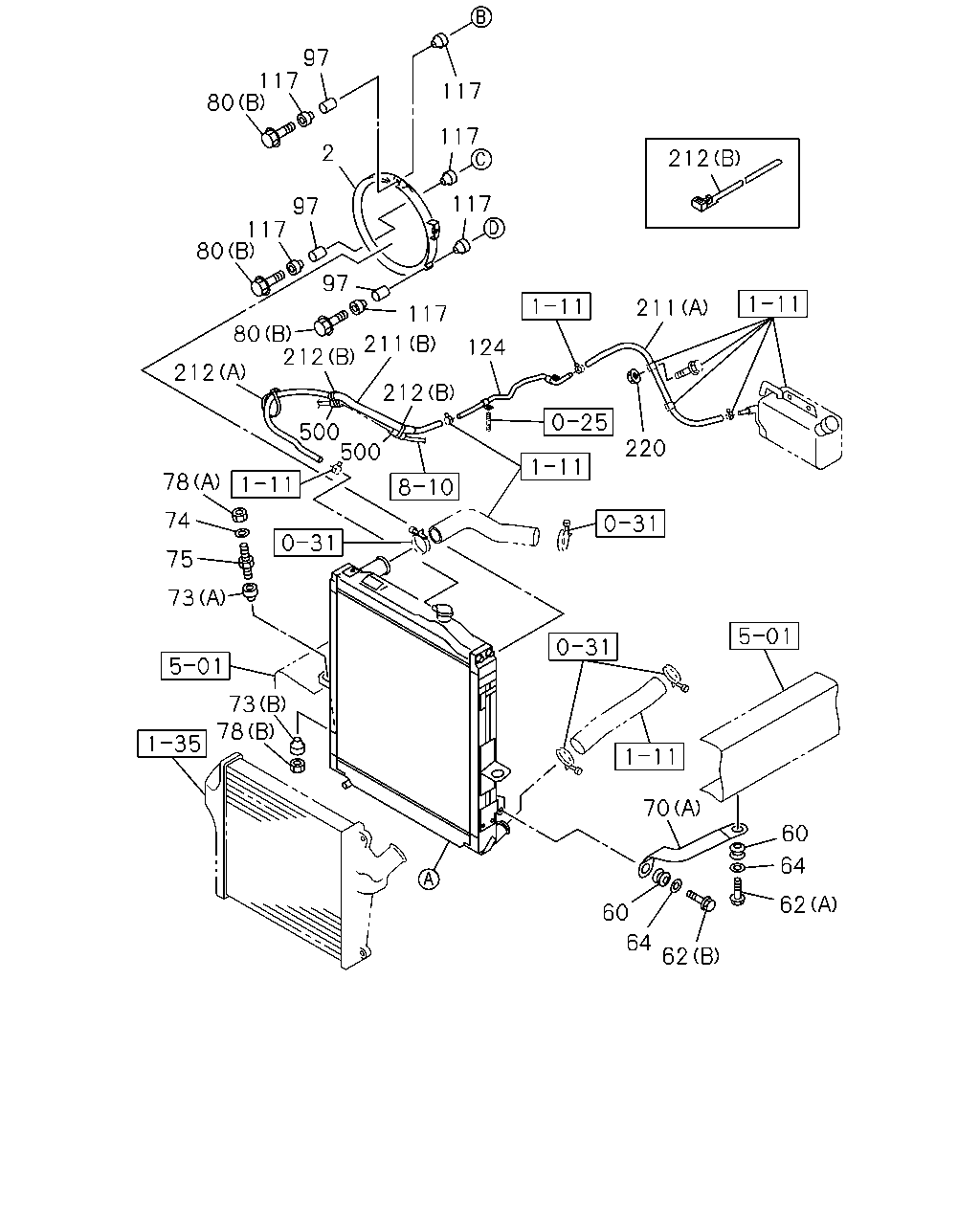

çizim 162687
97 117 80 117 117 2 212 117 97 117 80 97 211 117 80 211 212 124 212 212 500 500 220 78 74 75 73 73 78 70 60 64 62 60 64 62
BalonParca AdiParca NoAdetTipApplied Date A B
2 GUIDE; FAN 8-97350-995-0 01 1 1102- ●
2 GUIDE; FAN 8-94393-779-1 01 1 1001- ●
60 GROMMET 1-09332-117-0 04 1 1001- ●
62 BOLT; STAY
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1012- ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 1001- ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1001- ●
64 WASHER; STAY TO RAD
ID=10.5 SOU 		0-91610-510-0 02 1 1012- ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 1001- ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1012- ●
70 STAY; RAD
(C) 		8-98018-941-0 01 1 1012- ●
70 STAY; RAD
FSR SGL CAB(FC**M*) (A) 		8-98078-897-0 01 1 1001- ●
70 STAY; RAD
FSR SGL CAB(FC**M*) (A) 		8-98078-896-0 01 1 1001- ●
70 STAY; RAD
FSR DBL CAB(FC**W*) (A) 		8-98078-905-0 01 1 1001- ●
70 STAY; RAD
FSR DBL CAB(FC**W*) (A) 		8-98078-903-0 01 1 1001- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1001-1011 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1012- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1001-1011 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1012- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1001-1011 ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1012- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1001-1011 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1012- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-1011 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1012- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE SOU 		0-91180-212-0 02 1 1001-1011 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE SOU 		0-91180-212-0 02 1 1012- ● ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1012- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1001-1101 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1102- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1001-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 1001- ●
117 RUBBER; MTG,FAN GUIDE 1-09337-027-0 06 1 1102- ●
117 RUBBER; MTG,FAN GUIDE
OD=32 		8-94395-766-0 06 1 1001- ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 1001- ●
211 HOSE; RAD TO PIPE
(C) 		8-98171-358-0 01 1 1012- ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 1001- ●
211 HOSE; RAD TO PIPE
FSR SGL CAB(FC**M*) (A) L=560 		8-98119-375-0 01 1 1001- ●
211 HOSE; RAD TO PIPE
FSR DBL CAB(FC**W*) (A) L=1140 		8-98119-760-0 01 1 1001- ●
212 CLIP; HOSE
FSR DBL CAB(FC**W*) (B) L=140 SOU 		5-09707-031-1 02 1 1001-1109 ●
212 CLIP; HOSE
FSR SGL CAB(FC**M*) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) L=140 SOU 		5-09707-031-1 02 1 1110- ●
212 CLIP; HOSE
FSR DBL CAB(FC**W*) (B) L=140 SOU 		5-09707-031-1 02 1 1110- ●
212 CLIP; HOSE
FSR SGL CAB(FC**M*) (A) L=250 SOU 		5-09707-030-1 02 1 1001-1109 ●
212 CLIP; HOSE
FSR SGL CAB(FC**M*) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) L=250 SOU 		5-09707-030-1 02 1 1110- ●
212 CLIP; HOSE
FSR SGL CAB(FC**M*) (B) L=140 SOU 		5-09707-031-1 01 1 1001-1109 ●
212 CLIP; HOSE
FSR SGL CAB(FC**M*) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) L=140 SOU 		5-09707-031-1 01 1 1110- ●
212 CLIP; HOSE
FSR DBL CAB(FC**W*) (A) L=250 SOU 		5-09707-030-1 01 1 1001-1109 ●
212 CLIP; HOSE
FSR DBL CAB(FC**W*) (A) L=250 SOU 		5-09707-030-1 01 1 1001-1109 ●
212 CLIP; HOSE
FSR SGL CAB(FC**M*) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=250 SOU 		5-09707-030-1 01 1 1110- ●
212 CLIP; HOSE
FSR DBL CAB(FC**W*) (A) L=250 SOU 		5-09707-030-1 01 1 1110- ●
212 CLIP; HOSE
FSR DBL CAB(FC**W*) (A) L=250 SOU 		5-09707-030-1 01 1 1110- ●
220 NUT; CLIP
FSR SGL CAB(FC**M*) M8 FLANGE SOU 		0-91180-108-0 01 1 1001-1011 ●
220 NUT; CLIP
FSR SGL CAB(FC**M*) M8 FLANGE SOU 		0-91180-108-0 01 1 1012- ● ●
220 NUT; CLIP
FSR DBL CAB(FC**W*) M8 FLANGE SOU 		0-91180-108-0 02 1 1001- ●
500 SLEEVE; RUBBER
FSR DBL CAB(FC**W*) ID=17 OD=21 L=40 		1-09337-012-0 02 1 1001-1109 ●
500 SLEEVE; RUBBER
FSR SGL CAB(FC**M*) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> ID=17 OD=21 L=40 		1-09337-012-0 02 1 1110- ●
500 SLEEVE; RUBBER
FSR DBL CAB(FC**W*) ID=17 OD=21 L=40 		1-09337-012-0 02 1 1110- ●

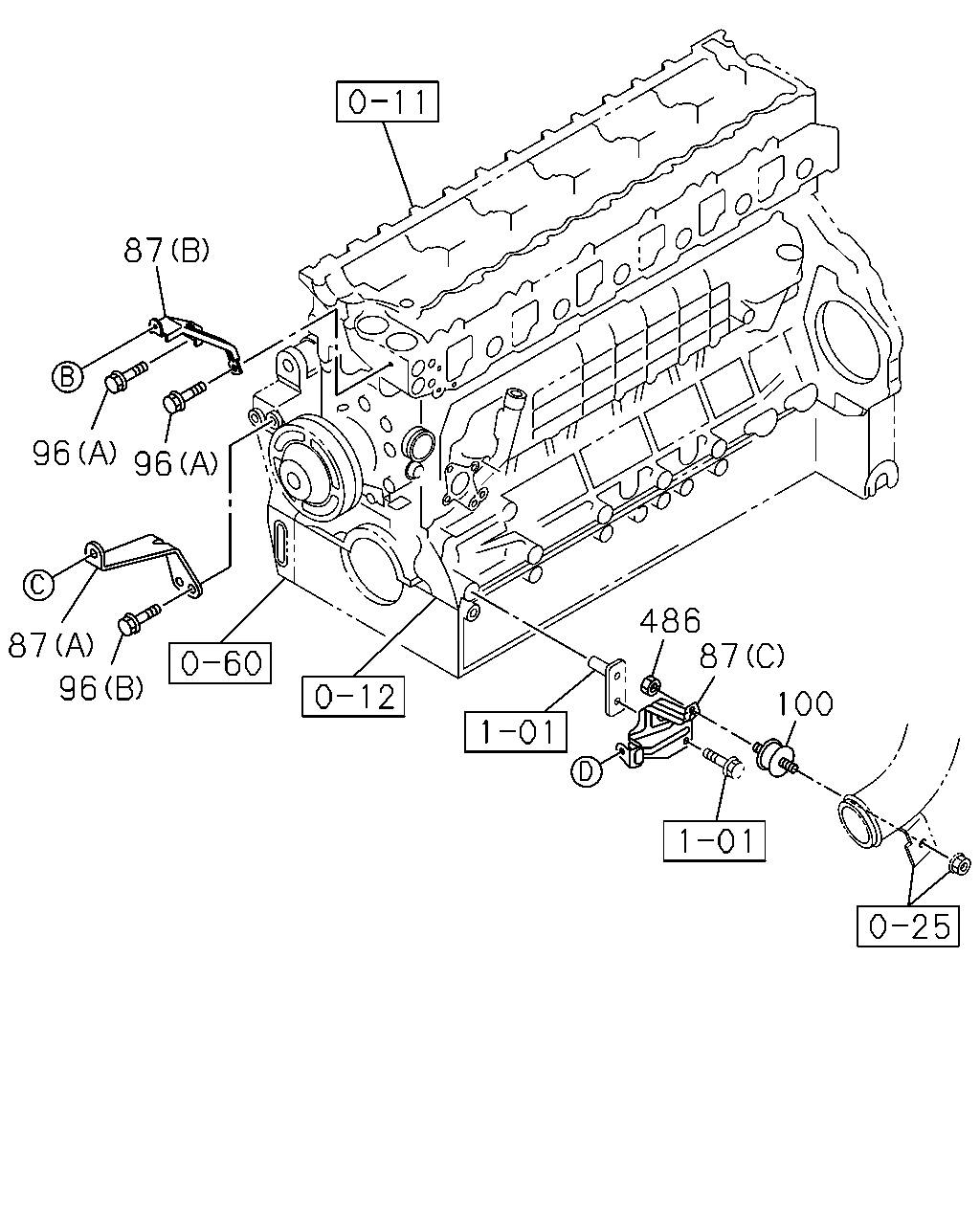

çizim 162750
87 96 96 486 87 87 96 100
BalonParca AdiParca NoAdetTipApplied Date A B
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 1001- ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 1001- ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 1001- ●
96 BOLT; STAY FIX
(C) M10X75 FLANGE 		8-94399-669-1 02 1 1110- ●
96 BOLT; STAY FIX
(C) M10X20 FLANGE 		0-28151-020-0 02 1 1102- ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE SOU 		0-28050-816-0 02 1 1001- ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 1001- ●
100 RUBBER; MTG 8-98148-109-0 01 1 1001- ●
486 NUT; MTG RUBBER
M8 FLANGE SOU 		0-91180-108-0 01 1 1001- ●

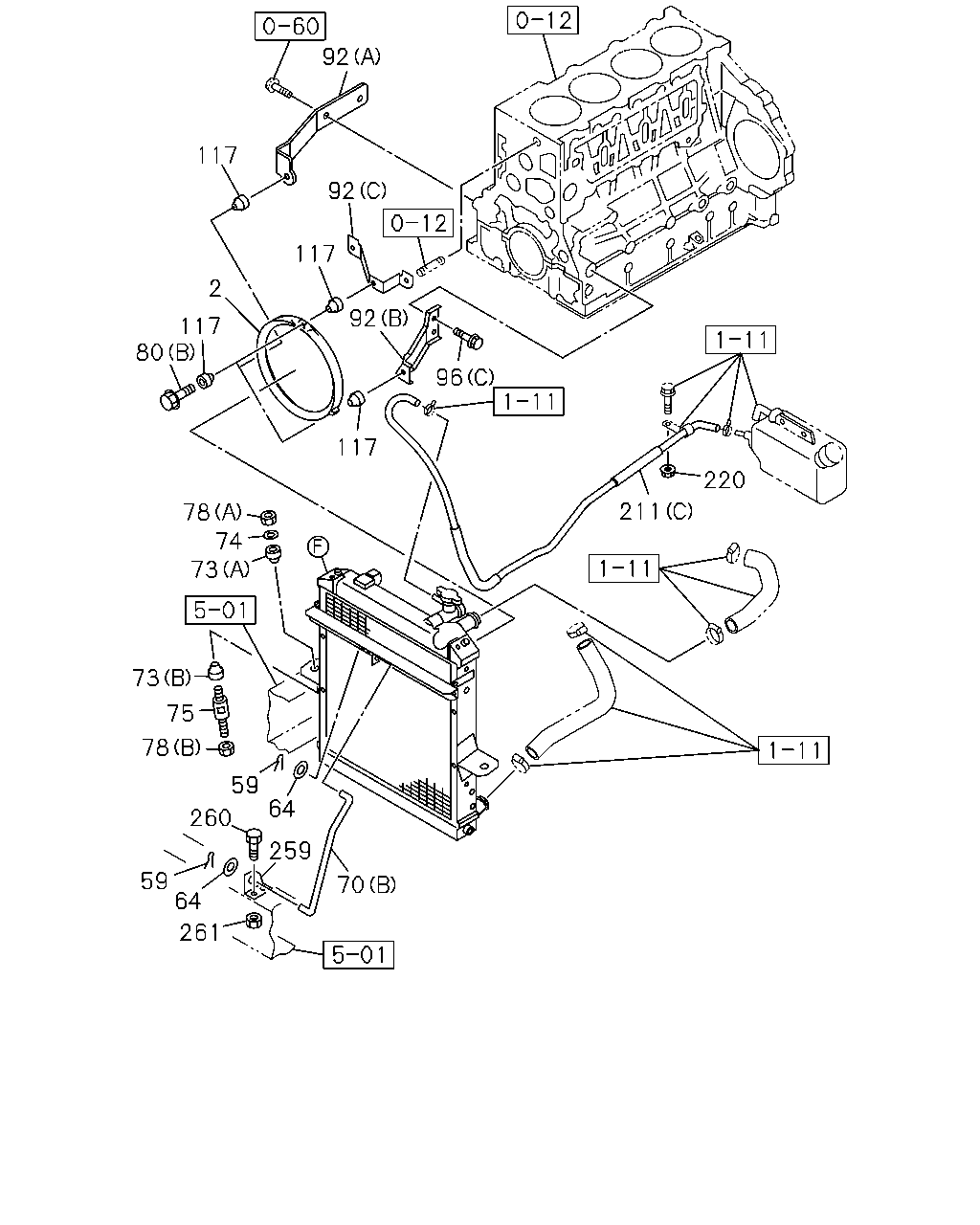

çizim 162783
220 211 96 117 78 73 73 75 78 59 64 260 70 259 59 64 261 74 80 117 2 117 92 92 117 92
BalonParca AdiParca NoAdetTipApplied Date A B
2 GUIDE; FAN 8-97350-995-0 01 1 1102- ●
2 GUIDE; FAN 8-94393-779-1 01 1 1001- ●
59 PIN; SNAP,STAY
L=32.6 		8-97359-052-0 02 1 1012- ●
64 WASHER; STAY TO RAD
ID=10.5 SOU 		0-91610-510-0 02 1 1012- ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 1001- ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1012- ●
70 STAY; RAD
(C) 		8-98018-941-0 01 1 1012- ●
70 STAY; RAD
FSR SGL CAB(FC**M*) (A) 		8-98078-897-0 01 1 1001- ●
70 STAY; RAD
FSR SGL CAB(FC**M*) (A) 		8-98078-896-0 01 1 1001- ●
70 STAY; RAD
FSR DBL CAB(FC**W*) (A) 		8-98078-905-0 01 1 1001- ●
70 STAY; RAD
FSR DBL CAB(FC**W*) (A) 		8-98078-903-0 01 1 1001- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1001-1011 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1012- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1001-1011 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1012- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1001-1011 ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1012- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1001-1011 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1012- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-1011 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1012- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE SOU 		0-91180-212-0 02 1 1001-1011 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE SOU 		0-91180-212-0 02 1 1012- ● ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1012- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1001-1101 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1102- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1001-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ●
92 BRACKET; FAN GUIDE
(A) 		8-97350-997-0 01 1 1102- ●
92 BRACKET; FAN GUIDE
(B) 		8-97386-233-0 01 1 1102- ●
92 BRACKET; FAN GUIDE
(C) 		8-97382-827-2 01 1 1012- ●
96 BOLT; STAY FIX
(C) M10X75 FLANGE 		8-94399-669-1 02 1 1110- ●
96 BOLT; STAY FIX
(C) M10X20 FLANGE 		0-28151-020-0 02 1 1102- ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE SOU 		0-28050-816-0 02 1 1001- ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 1001- ●
117 RUBBER; MTG,FAN GUIDE 1-09337-027-0 06 1 1102- ●
117 RUBBER; MTG,FAN GUIDE
OD=32 		8-94395-766-0 06 1 1001- ●
211 HOSE; RAD TO PIPE
(C) 		8-98171-358-0 01 1 1012- ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 1001- ●
211 HOSE; RAD TO PIPE
FSR SGL CAB(FC**M*) (A) L=560 		8-98119-375-0 01 1 1001- ●
211 HOSE; RAD TO PIPE
FSR DBL CAB(FC**W*) (A) L=1140 		8-98119-760-0 01 1 1001- ●
220 NUT; CLIP
FSR SGL CAB(FC**M*) M8 FLANGE SOU 		0-91180-108-0 01 1 1001-1011 ●
220 NUT; CLIP
FSR SGL CAB(FC**M*) M8 FLANGE SOU 		0-91180-108-0 01 1 1012- ● ●
220 NUT; CLIP
FSR DBL CAB(FC**W*) M8 FLANGE SOU 		0-91180-108-0 02 1 1001- ●
259 BRACKET; RAD STAY 8-98063-603-0 01 1 1012- ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1012- ●
261 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 1012- ●

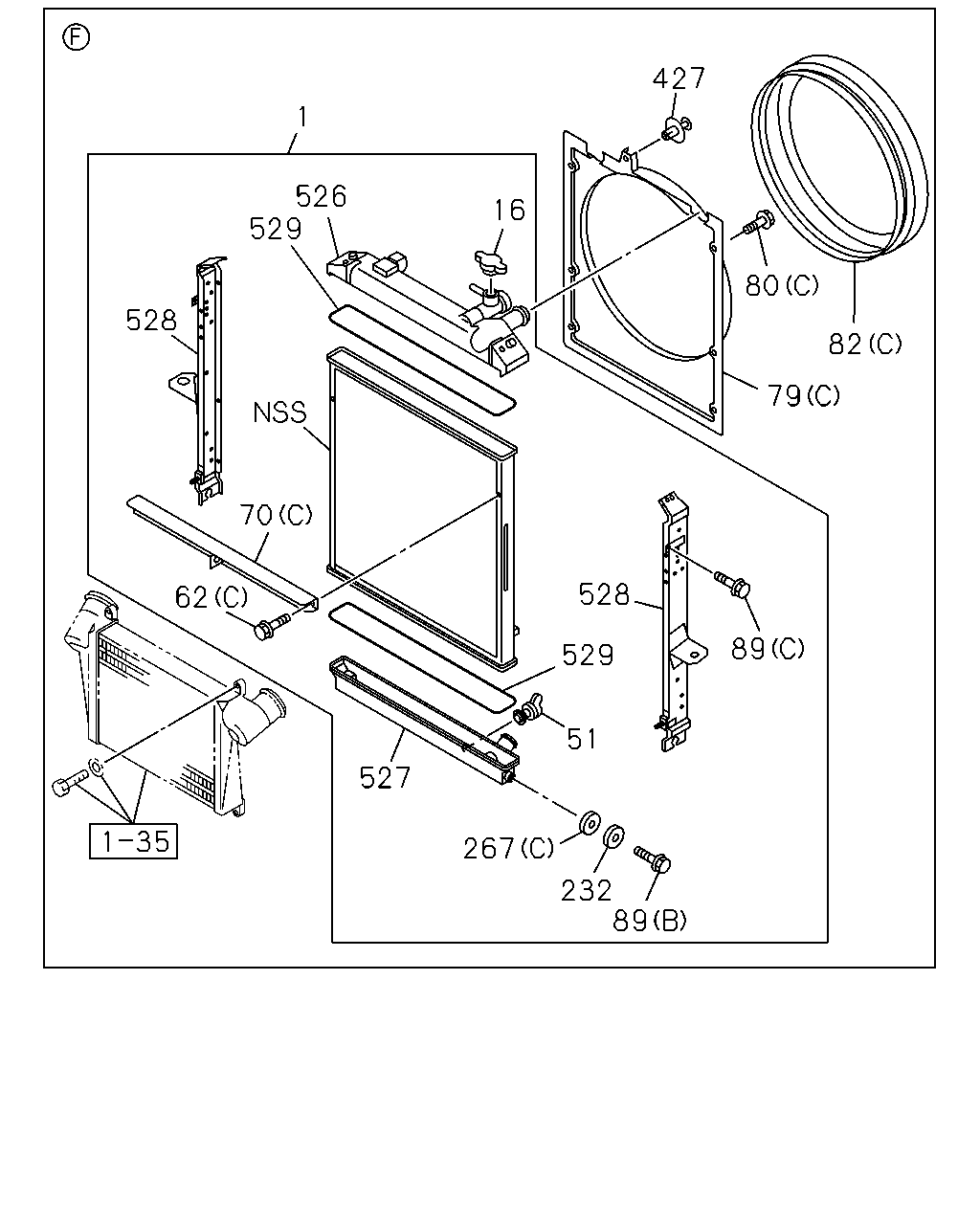

çizim 162789
82 80 79 89 528 529 51 267 232 89 527 62 70 528 529 526 1 16 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-322-0 01 1 1110- ●
1 RADIATOR ASM
FSR DBL CAB(FC**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98043-040-1 01 1 1106-1109 ●
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98043-040-1 01 1 1110-1505 ●
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98299-726-0 01 1 1506- ●
1 RADIATOR ASM 8-98139-320-0 01 1 1012-1109 ●
1 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-320-0 01 1 1110- ●
1 RADIATOR ASM 8-98043-027-1 01 1 1001-1105 ●
1 RADIATOR ASM
FSR SGL CAB(FC**M*) 		8-98043-027-1 01 1 1106-1109 ●
1 RADIATOR ASM
FSR DBL CAB(FC**W*) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98043-027-1 01 1 1106-1109 ●
1 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98043-027-1 01 1 1110-1505 ●
1 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98299-725-0 01 1 1506- ●
16 CAP; RAD
SOU 		8-97239-187-0 01 1 1012-1105 ●
16 CAP; RAD
FSR DBL CAB(FC**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) SOU 		8-97239-187-0 01 1 1106-1109 ●
16 CAP; RAD
SOU 		8-97239-187-0 01 1 1106-1109 ●
16 CAP; RAD
TRANSMISSION CONTROL-SMOOTHER(8GF) SOU 		8-97239-187-0 01 1 1110- ●
16 CAP; RAD
SOU 		8-97239-187-0 01 1 1110- ●
16 CAP; RAD 8-98096-226-0 01 1 1001-1105 ●
16 CAP; RAD
FSR SGL CAB(FC**M*) 		8-98096-226-0 01 1 1106-1109 ●
16 CAP; RAD
FSR DBL CAB(FC**W*) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98096-226-0 01 1 1106-1109 ●
16 CAP; RAD
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98096-226-0 01 1 1110- ●
51 PLUG; DRAIN
W/GASKET SOU 		8-97171-437-0 01 1 1001-1011 ●
51 PLUG; DRAIN
W/GASKET SOU 		8-97171-437-0 01 1 1012- ● ●
62 BOLT; STAY
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1012- ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 1001- ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1001- ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1012- ●
70 STAY; RAD
(C) 		8-98018-941-0 01 1 1012- ●
70 STAY; RAD
FSR SGL CAB(FC**M*) (A) 		8-98078-897-0 01 1 1001- ●
70 STAY; RAD
FSR SGL CAB(FC**M*) (A) 		8-98078-896-0 01 1 1001- ●
70 STAY; RAD
FSR DBL CAB(FC**W*) (A) 		8-98078-905-0 01 1 1001- ●
70 STAY; RAD
FSR DBL CAB(FC**W*) (A) 		8-98078-903-0 01 1 1001- ●
79 GUIDE; FAN,RAD
(C) 		8-98010-297-0 01 1 1012- ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 1001-1505 ●
79 GUIDE; FAN,RAD
(B) 		8-98286-937-0 01 1 1506- ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1012- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1001-1101 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1102- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1001-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ●
82 COVER; FAN,RAD
(C) 		8-98006-478-0 01 1 1012- ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1001-1505 ●
82 COVER; FAN,RAD
(B) 		8-98293-253-0 01 1 1506- ●
89 BOLT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1012- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 02 1 1012- ●
89 BOLT
(A) M6X12 FLANGE SOU 		0-28050-612-0 02 1 1001- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1001- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 1012- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1001- ●
267 RUBBER; CUSHION
(C) 		1-21467-023-0 02 1 1012- ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 1001- ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1001- ●
526 TANK; UPR,RADIATOR CORE 8-98010-271-2 01 1 1012- ●
526 TANK; UPR,RADIATOR CORE 8-98004-202-2 01 1 1001- ●
527 TANK; LWR,RADIATOR CORE 8-98032-433-1 01 1 1012-1109 ●
527 TANK; LWR,RADIATOR CORE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98032-433-1 01 1 1110- ●
527 TANK; LWR,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-279-0 01 1 1110- ●
527 TANK; LWR,RADIATOR CORE
FSR DBL CAB(FC**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-365-0 01 1 1106-1109 ●
527 TANK; LWR,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-365-0 01 1 1110- ●
527 TANK; LWR,RADIATOR CORE 8-98004-203-0 01 1 1001-1105 ●
527 TANK; LWR,RADIATOR CORE
FSR SGL CAB(FC**M*) 		8-98004-203-0 01 1 1106-1109 ●
527 TANK; LWR,RADIATOR CORE
FSR DBL CAB(FC**W*) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-203-0 01 1 1106-1109 ●
527 TANK; LWR,RADIATOR CORE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-203-0 01 1 1110- ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-290-1 01 1 1012- ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-291-1 01 1 1012- ●
528 PLATE; SIDE,RADIATOR CORE 8-98043-029-1 01 1 1001- ●
528 PLATE; SIDE,RADIATOR CORE 8-98035-117-3 01 1 1001- ●
529 GASKET; CORE,RADIATOR 8-98032-435-0 02 1 1012- ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 1001- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
