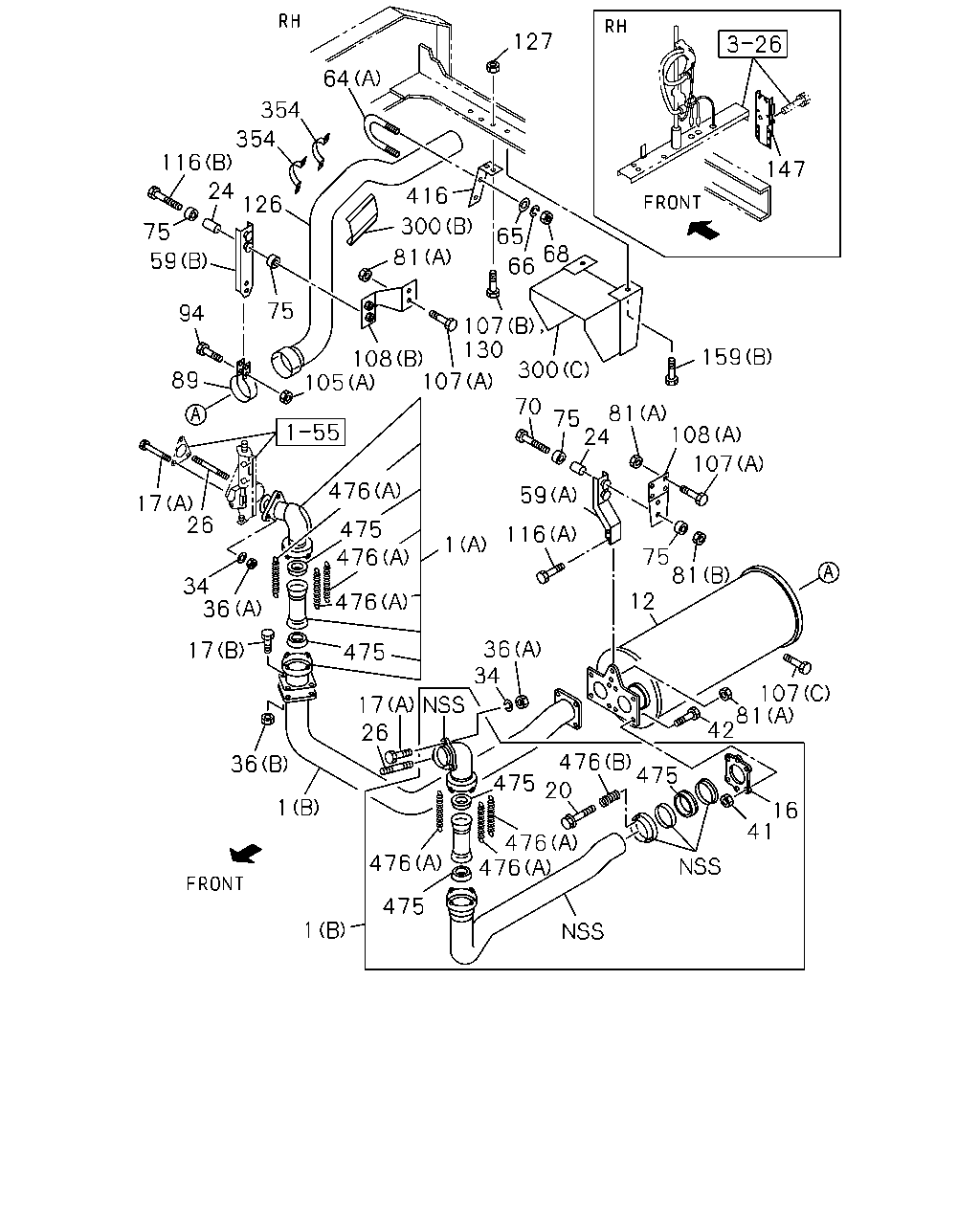

1-50B — EXHAUST PIPE AND SILENCER (#5551) — 152 parça
çizim 8740
127 64 354 354 116 147 24 416 126 300 75 65 68 66 81 59 75 94 107 130 159 108 105 107 300 89 70 81 75 24 108 107 476 59 17 26 475 476 476 116 1 75 81 34 36 12 36 34 17 475 107 81 42 17 26 476 475 36 475 476 476 20 1 16 41 476 475 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(B) 		1-22122-752-0 01 1 9603-9904 ●
1 PIPE; EXH
(B) 		1-22122-752-0 01 1 9905- ● ●
1 PIPE; EXH
(A) 		1-22122-484-0 01 1 9603-9904 ●
1 PIPE; EXH
(A) 		1-22122-484-0 01 1 9905- ● ●
1 PIPE; EXH
(B) 		1-22122-751-0 01 1 9603-9904 ●
1 PIPE; EXH
(B) 		1-22122-751-0 01 1 9905- ● ●
12 SILENCER ASM; EXH
ANTI NOISE EQUIPMENT<SV9> 		1-22140-753-4 01 1 9603-9904 ●
12 SILENCER ASM; EXH
ANTI NOISE EQUIPMENT<SV9> 		1-22140-753-4 01 1 9905-0002 ● ●
12 SILENCER ASM; EXH
ANTI NOISE EQUIPMENT<SV9> 		1-22140-920-2 01 1 0003- ● ●
12 SILENCER ASM; EXH
EXC. ANTI NOISE EQUIPMENT<SV9> 		1-22140-681-0 01 1 9603-9904 ●
12 SILENCER ASM; EXH
EXC. ANTI NOISE EQUIPMENT<SV9> 		1-22140-681-0 01 1 9905-0003 ● ●
12 SILENCER ASM; EXH
EXC. ANTI NOISE EQUIPMENT<SV9> 		1-22140-932-1 01 1 0004- ● ●
16 FLANGE; EXH PIPE 1-22115-148-1 01 1 9909- ● ●
17 BOLT; EXH PIPE
(B) M12X25 FLANGE 		1-09000-604-0 04 1 9603-9904 ●
17 BOLT; EXH PIPE
(B) M12X25 FLANGE 		1-09000-604-0 04 1 9905- ● ●
17 BOLT; EXH PIPE
(A) M12X120 		1-09000-603-0 02 1 9603-9606 ●
17 BOLT; EXH PIPE
(A) M12X120 		1-09000-293-0 02 1 9607-9904 ●
17 BOLT; EXH PIPE
(A) M12X120 		1-09000-293-0 02 1 9905- ● ●
20 BOLT; FLANGE,EXH PIPE
M10X51.4 		8-94436-943-0 02 1 9909- ● ●
24 COLLAR; DIST,CLAMP
L=22 		9-22159-024-0 04 1 9603-9904 ●
24 COLLAR; DIST,CLAMP
L=22 		9-22159-024-0 02 1 9905-9907 ● ●
24 COLLAR; DIST,CLAMP
L=22 		9-22159-024-0 02 1 9908- ● ●
24 COLLAR; DIST,CLAMP
L=22 		9-22159-024-0 02 1 9908- ● ●
26 STUD; EXH MANIF 1-09302-161-0 04 1 9603-9606 ●
26 STUD; EXH MANIF 1-09302-165-0 04 1 9607-9904 ●
26 STUD; EXH MANIF 1-09302-165-0 04 1 9905- ● ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 06 1 9603-9606 ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09556-020-0 06 1 9607-9904 ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09556-020-0 06 1 9905- ● ●
36 NUT; EXH PIPE
(B) M12 		9-99110-512-0 04 1 9603-9603 ●
36 NUT; EXH PIPE
(B) M12 		9-99110-512-0 04 1 9604-9606 ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91150-212-0 04 1 9607-9709 ●
36 NUT; EXH PIPE
(B) M12 		9-99110-512-0 04 1 9710-9904 ●
36 NUT; EXH PIPE
(B) M12 		9-99110-512-0 04 1 9905- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 06 1 9603-9807 ●
36 NUT; EXH PIPE
(A) M12 		1-09400-131-0 06 1 9808-9904 ●
36 NUT; EXH PIPE
(A) M12 		1-09400-131-0 06 1 9905- ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M12 		9-99110-512-0 08 1 9603-9606 ●
41 NUT; EXH PIPE TO EXH SILENCER
M12 FLANGE 		0-91150-212-0 08 1 9607-9701 ●
41 NUT; EXH PIPE TO EXH SILENCER
M12 		9-99110-512-0 08 1 9710-9904 ●
41 NUT; EXH PIPE TO EXH SILENCER
M12 		9-99110-512-0 08 1 9905- ● ●
42 BOLT; EXH PIPE TO EXH SILENCER
M12X25 FLANGE 		1-09000-604-0 08 1 9905-9907 ● ●
42 BOLT; EXH PIPE TO EXH SILENCER
M12X25 FLANGE 		1-09000-604-0 08 1 9908- ● ●
42 BOLT; EXH PIPE TO EXH SILENCER
M12X25 FLANGE 		1-09000-604-0 08 1 9603-9701 ●
59 BRACKET; EXH SILENCER,FRT
(B) 		1-22151-504-0 01 1 9603-9904 ●
59 BRACKET; EXH SILENCER,FRT
(B) 		1-22151-504-0 01 1 9905- ● ●
59 BRACKET; EXH SILENCER,FRT
(A) 		1-22151-623-0 01 1 9603-9904 ●
59 BRACKET; EXH SILENCER,FRT
(A) 		1-22151-623-0 01 1 9905- ● ●
64 U-BOLT; EXH PIPE,RR
(A) 		1-22113-079-0 01 1 9603-9904 ●
64 U-BOLT; EXH PIPE,RR
(A) 		1-22113-079-0 01 1 9905-9907 ● ●
64 U-BOLT; EXH PIPE,RR
(A) 		1-22113-079-0 01 1 9908- ● ●
65 WASHER; PL
ID=8.4 OD=22 		9-09160-708-0 02 1 9603-9904 ●
65 WASHER; PL
ID=8.4 OD=22 		9-09160-708-0 02 1 9905-9907 ● ●
65 WASHER; PL
ID=8.4 OD=22 		9-09160-708-0 02 1 9908- ● ●
66 WASHER; LK,U BOLT
ID=8.2 		9-09150-508-0 02 1 9603-9603 ●
66 WASHER; LK,U BOLT
ID=8.2 		9-09150-508-0 02 1 9604-9606 ●
68 NUT; U BOLT
M8 		9-09110-408-0 02 1 9604-9606 ●
68 NUT; U BOLT
M8 FLANGE 		0-91150-108-0 02 1 9607-9904 ●
68 NUT; U BOLT
M8 FLANGE 		0-91150-108-0 02 1 9905-9907 ● ●
68 NUT; U BOLT
M8 FLANGE 		0-91150-108-0 02 1 9905-9907 ● ●
68 NUT; U BOLT
M8 FLANGE 		0-91150-108-0 02 1 9908- ● ●
68 NUT; U BOLT
M8 		9-09110-408-0 02 1 9603-9603 ●
70 BOLT; BRKT
M10X50 FLANGE 		0-28081-050-0 02 1 9603-9904 ●
70 BOLT; BRKT
M10X50 FLANGE 		0-28081-050-0 02 1 9905-9907 ● ●
70 BOLT; BRKT
M10X50 FLANGE 		0-28081-050-0 02 1 9908- ● ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-094-0 08 1 9603-9904 ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-094-0 08 1 9905- ● ●
81 NUT; BRKT
(B) M10 		9-09110-510-0 02 1 9603-9606 ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9607-9904 ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 04 1 9905-9907 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 04 1 9905-9907 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 04 1 9908- ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 04 1 9908- ● ●
81 NUT; BRKT
(A) M10 		9-09110-510-0 08 1 9603-9606 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 08 1 9607-9802 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 9803-9904 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 9803-9904 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 02 1 9905-9907 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 02 1 9908- ● ●
89 CLAMP; EXH SILENCER,RR 1-22133-172-2 01 1 9603-9904 ●
89 CLAMP; EXH SILENCER,RR 1-22133-172-2 01 1 9905-9910 ● ●
89 CLAMP; EXH SILENCER,RR 1-22133-276-0 01 1 9911- ● ●
94 BOLT; CLAMP
M8X40 W/LK WASHER 		0-50040-840-0 02 1 9603-9606 ●
94 BOLT; CLAMP
M8X40 FLANGE 		0-28080-840-0 02 1 9607-9904 ●
94 BOLT; CLAMP
M8X40 FLANGE 		0-28080-840-0 02 1 9905-9907 ● ●
94 BOLT; CLAMP
M8X40 FLANGE 		0-28080-840-0 02 1 9908- ● ●
105 NUT; CLAMP
(A) M8 		9-09110-408-0 02 1 9603-9606 ●
105 NUT; CLAMP
(A) M8 FLANGE 		0-91150-108-0 02 1 9607-9904 ●
105 NUT; CLAMP
(A) M8 FLANGE 		0-91150-108-0 02 1 9905-9907 ● ●
105 NUT; CLAMP
(A) M8 FLANGE 		0-91150-108-0 02 1 9908- ● ●
107 BOLT; BRKT
(A) M10X35 FLANGE 		0-28081-035-0 02 1 9603-9606 ●
107 BOLT; BRKT
(A) M10X40 FLANGE 		0-28681-040-0 02 1 9607-9904 ●
107 BOLT; BRKT
(C) M12X45 FLANGE 		0-28081-245-0 04 1 9905- ● ●
107 BOLT; BRKT
(A) M10X40 FLANGE 		0-28681-040-0 02 1 9905-9907 ● ●
107 BOLT; BRKT
(A) M10X40 FLANGE 		0-28681-040-0 02 1 9908- ● ●
107 BOLT; BRKT
(B) M10X25 FLANGE 		0-28081-025-0 04 1 9603-9606 ●
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 04 1 9607-9802 ●
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 04 1 9803-9904 ●
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 04 1 9905-9907 ● ●
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 04 1 9908- ● ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
(B) 		1-22131-593-0 01 1 9603-9802 ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
(B) 		1-22131-593-0 01 1 9803-9904 ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
(A) 		1-22151-660-0 01 1 9603-9904 ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
(A) 		1-22151-660-0 01 1 9905- ● ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
(B) 		1-22131-593-0 01 1 9905- ● ●
116 BOLT; BRKT
(B) M10X50 FLANGE 		0-28081-050-0 02 1 9603-9904 ●
116 BOLT; BRKT
(B) M10X50 FLANGE 		0-28081-050-0 02 1 9905- ● ●
116 BOLT; BRKT
(A) M10X70 FLANGE 		0-28081-070-0 02 1 9603-9904 ●
116 BOLT; BRKT
(A) M10X70 FLANGE 		0-28081-070-0 02 1 9905- ● ●
126 PIPE; EXH,RR 1-22126-173-0 01 1 9603-9904 ●
126 PIPE; EXH,RR 1-22126-173-0 01 1 9905- ● ●
127 NUT; BRKT
M8 		9-09110-408-0 02 1 9603-9606 ●
127 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-9802 ●
127 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9803-9904 ●
127 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9905- ● ●
130 BOLT; BRKT
M8X30 FLANGE 		0-28080-830-0 02 1 9603-9606 ●
130 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 9607-9802 ●
130 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 9803-9904 ●
130 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 9905- ● ●
147 BRACKET; VERTICAL PIPE 1-48495-176-2 01 1 9603-9904 ●
147 BRACKET; VERTICAL PIPE 1-48495-176-2 01 1 9905- ● ●
147 BRACKET; VERTICAL PIPE 1-48495-181-1 01 1 9603-9904 ●
147 BRACKET; VERTICAL PIPE 1-48495-181-1 01 1 9905- ● ●
159 BOLT; HEAT PROTECTOR
(B) M8X20 FLANGE 		0-28680-820-0 04 1 9905- ● ●
159 BOLT; HEAT PROTECTOR
(B) M10X30 FLANGE 		0-28081-030-0 02 1 9603-9606 ●
159 BOLT; HEAT PROTECTOR
(B) M10X30 FLANGE 		0-28681-030-0 02 1 9607-9802 ●
159 BOLT; HEAT PROTECTOR
(B) M10X30 FLANGE 		0-28681-030-0 02 1 9803-9904 ●
159 BOLT; HEAT PROTECTOR
(B) M8X20 FLANGE 		0-28080-820-0 04 1 9604-9606 ●
159 BOLT; HEAT PROTECTOR
(B) M8X20 FLANGE 		0-28680-820-0 04 1 9607-9802 ●
159 BOLT; HEAT PROTECTOR
(B) M8X20 FLANGE 		0-28680-820-0 04 1 9803-9904 ●
159 BOLT; HEAT PROTECTOR
(B) M10X30 FLANGE 		0-28681-030-0 02 1 9905- ● ●
300 PROTECTOR; HEAT,EXH PIPE
(B) 		1-22119-309-0 01 1 9603-9904 ●
300 PROTECTOR; HEAT,EXH PIPE
(B) 		1-22119-309-0 01 1 9905-9907 ● ●
300 PROTECTOR; HEAT,EXH PIPE
(B) 		1-22119-309-0 01 1 9908- ● ●
300 PROTECTOR; HEAT,EXH PIPE
(C) 		1-22119-354-0 01 1 9603-9802 ●
300 PROTECTOR; HEAT,EXH PIPE
(C) 		1-22119-354-0 01 1 9803-9904 ●
300 PROTECTOR; HEAT,EXH PIPE
(C) 		1-22119-354-0 01 1 9905- ● ●
354 CLAMP; HEAT PROTECTOR 1-22119-307-0 02 1 9603-9701 ●
354 CLAMP; HEAT PROTECTOR 1-22119-307-0 02 1 9702-9802 ●
354 CLAMP; HEAT PROTECTOR 1-22119-307-0 02 1 9803-9904 ●
354 CLAMP; HEAT PROTECTOR 1-22119-307-0 02 1 9905-9907 ● ●
354 CLAMP; HEAT PROTECTOR 1-22119-307-0 02 1 9908- ● ●
416 BRACKET; RR EXH PIPE 1-22131-700-0 01 1 9603-9802 ●
416 BRACKET; RR EXH PIPE 1-22131-700-0 01 1 9803-9904 ●
416 BRACKET; RR EXH PIPE 1-22131-700-0 01 1 9905- ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
OD=112 		1-22119-294-0 02 1 9705-9904 ●
475 BEARING; SEAL,VIBNON,EXH PIPE
OD=112 		1-22119-294-0 02 1 9905-9908 ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
OD=112 		1-22119-294-0 05 1 9909- ● ●
476 SPRING; VIBNON,EXH PIPE
(A) 		1-09583-248-0 04 1 9705-9904 ●
476 SPRING; VIBNON,EXH PIPE
(A) 		1-09583-248-0 04 1 9905-9908 ● ●
476 SPRING; VIBNON,EXH PIPE
(A) 		1-09583-248-0 08 1 9909- ● ●
476 SPRING; VIBNON,EXH PIPE
(B) 		8-94141-851-0 02 1 9909- ● ●
