◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11161 - FSR(SOUTH AFRICA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#55509) — 322 parça

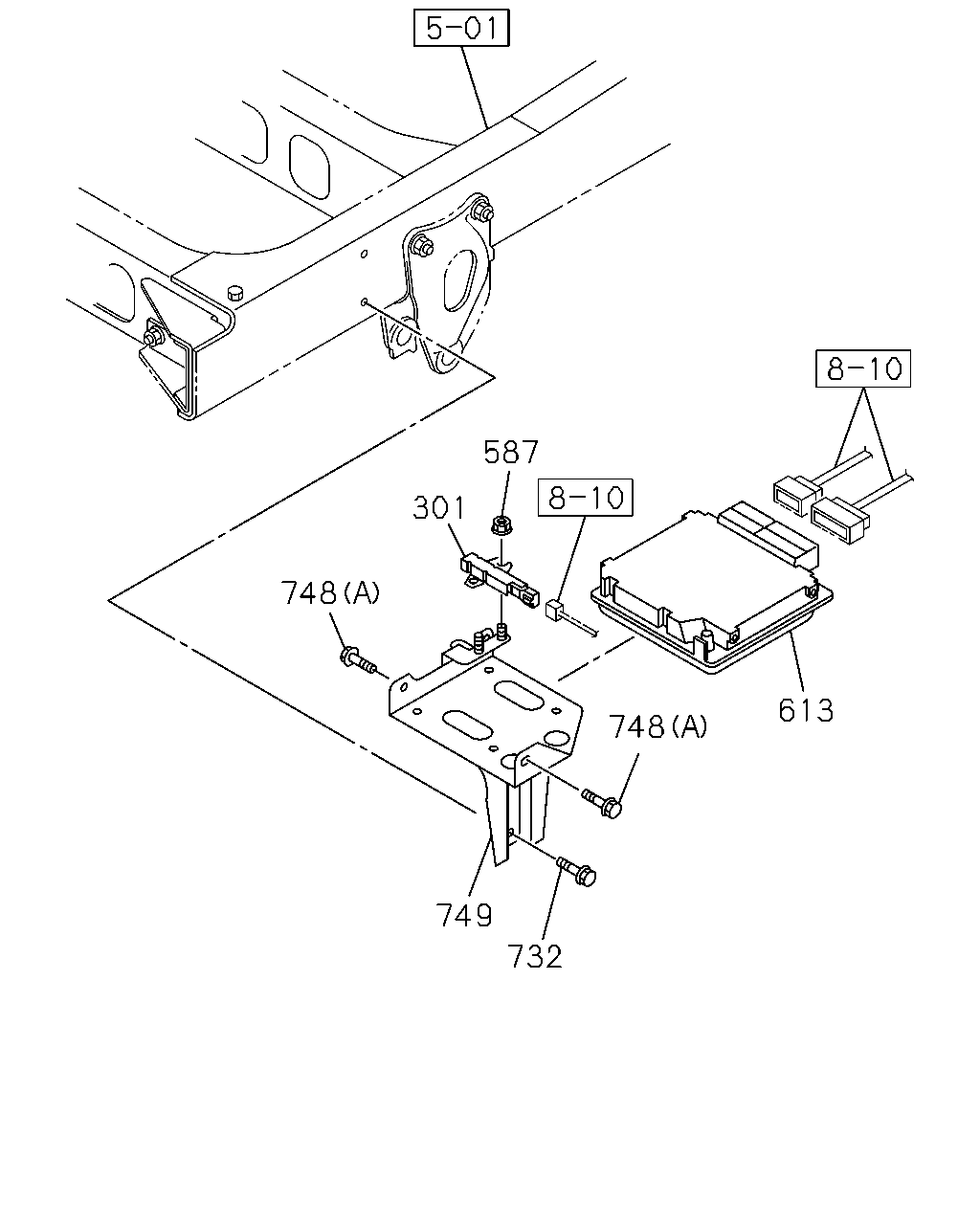

çizim 162607
587 301 748 613 748 749 732
BalonParca AdiParca NoAdetTipApplied Date A B

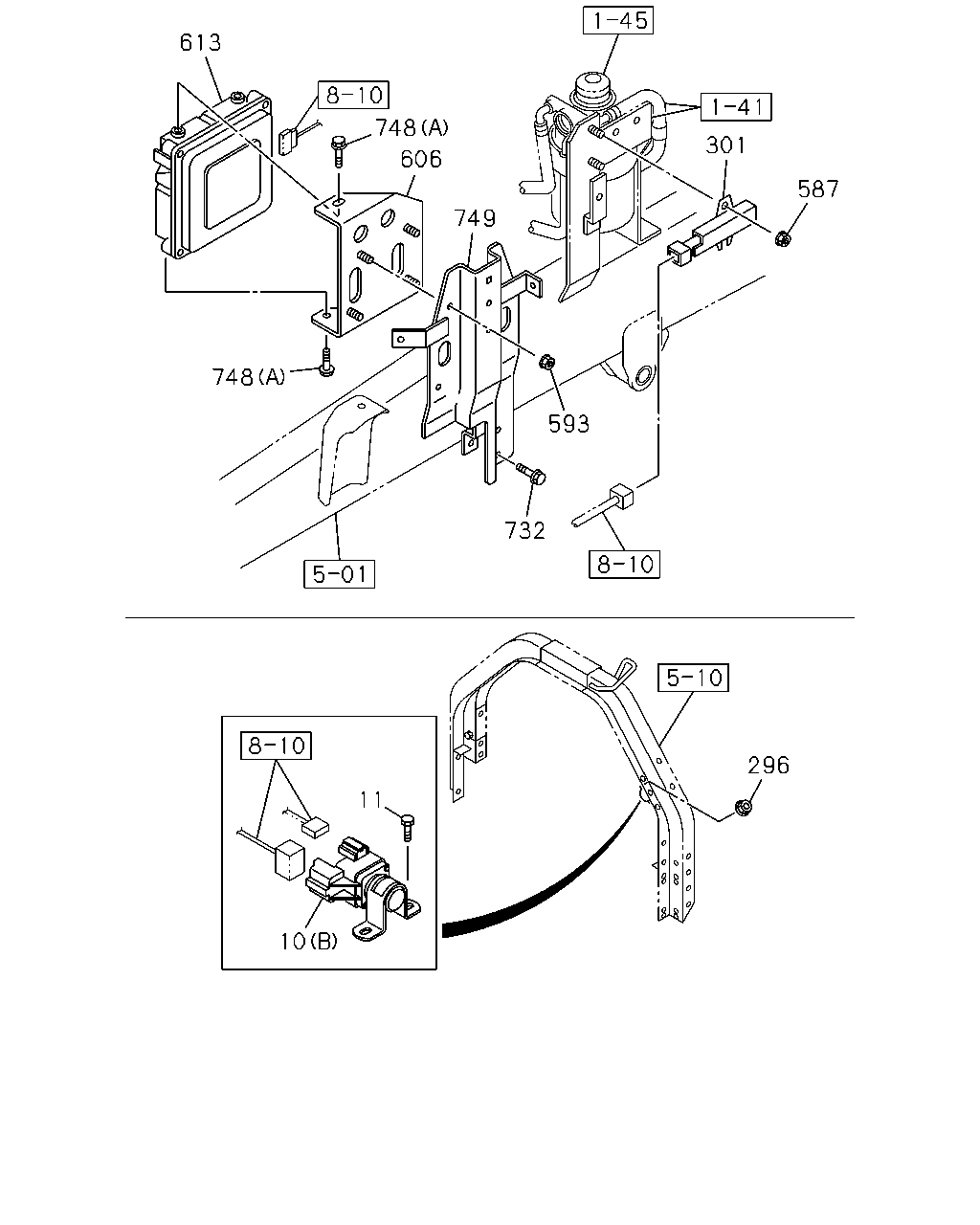

301 RESISTOR; DROPPING
6HK1-TCN ENG(82L) 		8-97357-613-0 01 1 1001-1109 ●
301 RESISTOR; DROPPING
6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> 		8-97357-613-0 01 1 1110- ●
301 RESISTOR; DROPPING
6HK1-TCN ENG(82L) 		8-97357-613-0 01 1 1110- ●
587 NUT; RESISTOR & RELAY
6HK1-TCN ENG(82L) M6 FLANGE SOU 		0-91180-106-0 02 1 1001-1109 ●
587 NUT; RESISTOR & RELAY
6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> M6 FLANGE SOU 		0-91180-106-0 02 1 1110- ●
587 NUT; RESISTOR & RELAY
6HK1-TCN ENG(82L) M6 FLANGE SOU 		0-91180-106-0 02 1 1110- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98201-101-0 01 1 1109- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98201-107-0 01 1 1110- ●
613 CONTROL UNIT; ENG
4HK1-TCS ENG(RJS) 		8-98081-131-4 01 1 1012-1109 ●
613 CONTROL UNIT; ENG
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-131-4 01 1 1110- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) 		8-98074-887-4 01 1 1001-1109 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98074-887-4 01 1 1110- ●
613 CONTROL UNIT; ENG 8-98154-919-1 01 1 1001-1105 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98154-919-1 01 1 1106- ●
732 BOLT; BRKT
M10X30 FLANGE SOU 		0-28651-030-0 03 1 1001- ● ●

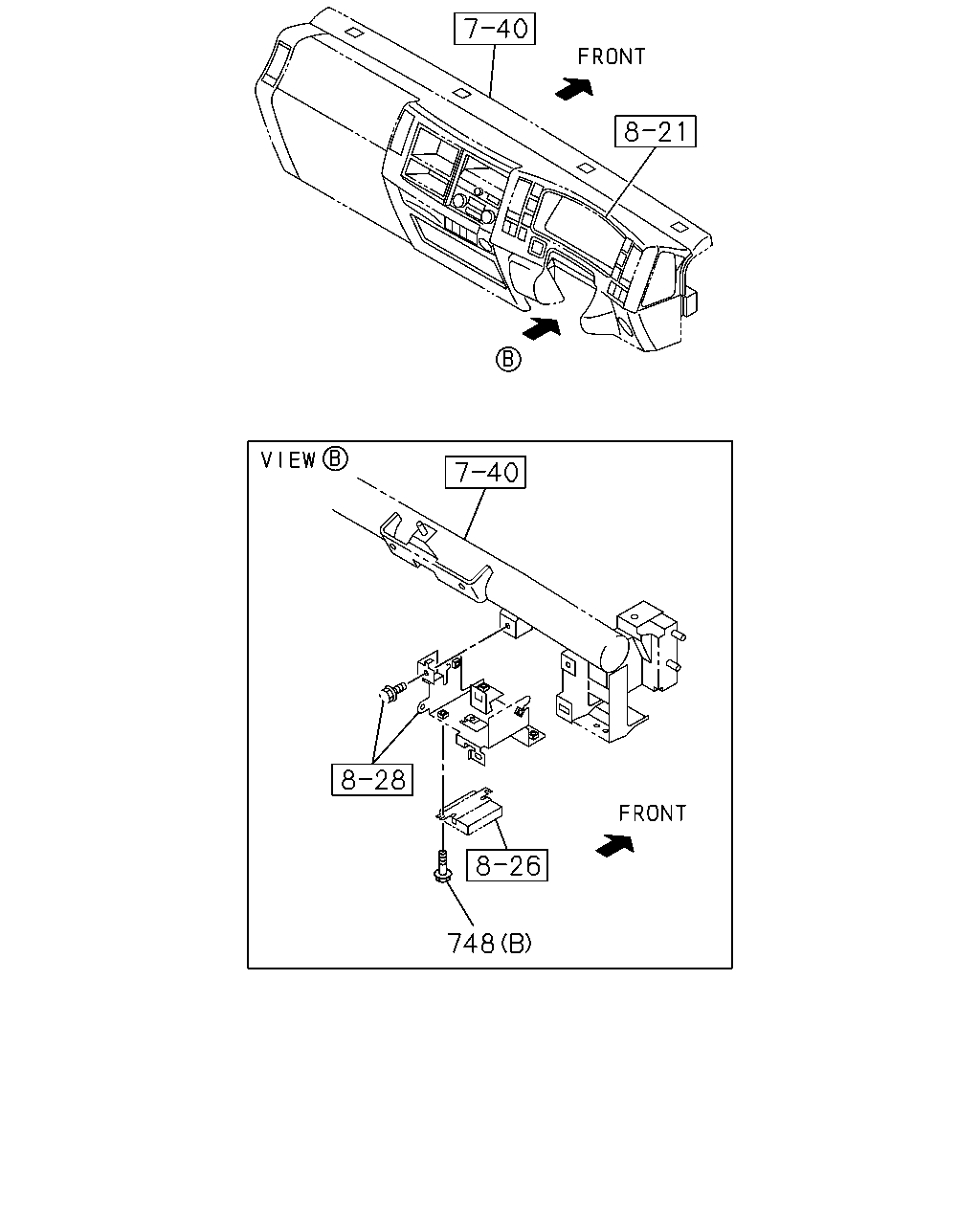

748 BOLT; CONT UNIT
(A) M6X12 FLANGE SOU 		0-28050-612-0 03 1 1001- ● ●
748 BOLT; CONT UNIT
(B) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1001-1105 ● ●
748 BOLT; CONT UNIT
(B) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1106-1109 ●
748 BOLT; CONT UNIT
EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1106-1109 ●
748 BOLT; CONT UNIT
EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1110- ● ●
749 STAY; CONT UNIT
4HK1-TCS ENG(RJS) 		1-53194-596-3 01 1 1012- ●
749 STAY; CONT UNIT 1-53194-595-3 01 1 1001-1011 ● ●
749 STAY; CONT UNIT
6HK1-TCN ENG(82L) 		1-53194-595-3 01 1 1012- ●
749 STAY; CONT UNIT 1-53194-595-3 01 1 1012- ●

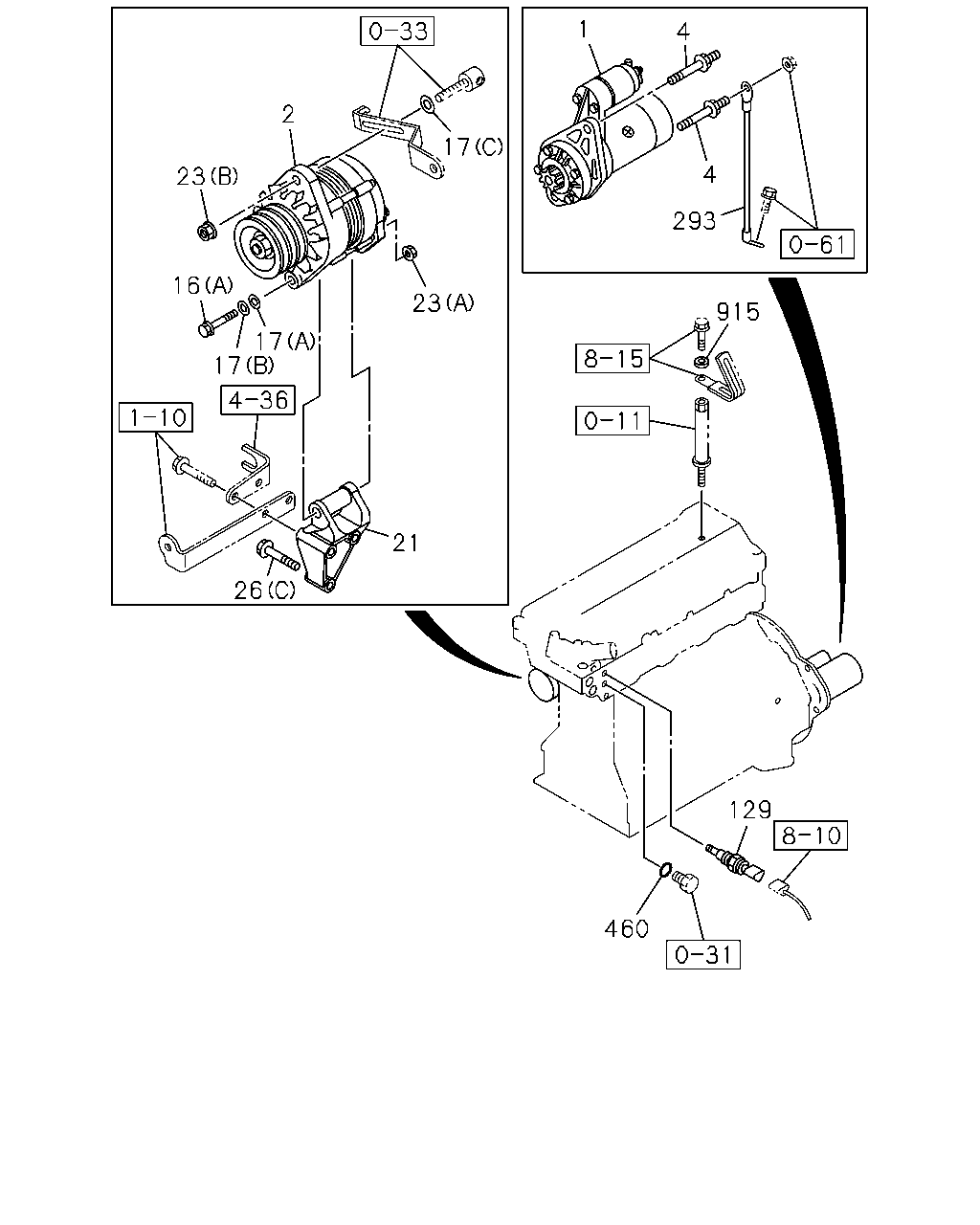

çizim 162611
460 129 915 4 293 4 1 17 23 23 2 16 17 17 21 26
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1110-1207 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) 24V 4.5KW HITACHI 		8-98009-043-2 01 1 1012-1109 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 4.5KW HITACHI 		8-98009-043-2 01 1 1110-1207 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 4.5KW HITACHI 		8-98222-023-0 01 1 1208-1311 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 4.5KW HITACHI 		8-98245-260-1 01 1 1312- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98141-206-1 01 1 1001-1011 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCN ENG(82L) 24V 5.0KW MITSUBISHI 		8-98141-206-3 01 1 1012-1409 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98141-206-3 01 1 1012-1409 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCN ENG(82L) 24V 5.0KW MITSUBISHI 		8-98261-669-0 01 1 1410- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98261-669-0 01 1 1410- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-456-4 01 1 1012- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-455-4 01 1 1012- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-461-2 01 1 1001-1011 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-461-2 01 1 1012-1108 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-461-2 01 1 1012-1108 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 50A NIKKO 		8-98013-461-2 01 1 1109-1109 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41) 24V 50A NIKKO 		8-98013-461-2 01 1 1109-1109 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) HEATER & DEFROSTER(C41) 24V 50A NIKKO 		8-98013-461-2 01 1 1109-1109 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41) 24V 50A NIKKO 		8-98013-461-3 01 1 1110-1201 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 50A NIKKO 		8-98013-461-3 01 1 1110-1201 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 50A NIKKO 		8-98013-461-3 01 1 1110-1201 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. HEATER & DEFROSTER(C41) GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 50A NIKKO 		8-98013-461-3 01 1 1110-1201 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-461-3 01 1 1202-1311 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-461-5 01 1 1312- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-462-2 01 1 1001-1011 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-462-2 01 1 1012-1108 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-462-2 01 1 1012-1108 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 60A NIKKO 		8-98013-462-2 01 1 1109-1109 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER(8GF) HEATER & DEFROSTER(C41) 24V 60A NIKKO 		8-98013-462-2 01 1 1109-1109 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41) 24V 60A NIKKO 		8-98013-462-2 01 1 1109-1109 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER(8GF) HEATER & DEFROSTER(C41) 24V 60A NIKKO 		8-98013-462-3 01 1 1110-1201 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 60A NIKKO 		8-98013-462-3 01 1 1110-1201 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 60A NIKKO 		8-98013-462-3 01 1 1110-1201 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41) 24V 60A NIKKO 		8-98013-462-3 01 1 1110-1201 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-462-3 01 1 1202-1311 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-462-5 01 1 1312- ● ●
4 BOLT; STARTER
4HK1-TCS ENG(RJS) M10X15,M14X82 L=110 		8-98029-095-0 02 1 1102- ●
4 BOLT; STARTER
4HK1-TCS ENG(RJS) M10X15,M14X82 L=110 		8-98029-095-0 02 1 1012- ●
16 BOLT; GEN
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B) M6X10 FLANGE SOU 		0-28050-610-0 03 1 1001- ●
16 BOLT; GEN
6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE SOU 		0-28050-610-0 01 1 1001- ●
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE SOU 		0-28050-610-0 01 1 1001- ●
16 BOLT; GEN
(A) M14X135 		1-09000-133-1 01 1 1001-1011 ●
16 BOLT; GEN
6HK1-TCN ENG(82L) (A) M14X135 		1-09000-133-1 01 1 1012-1101 ●
16 BOLT; GEN
(A) M14X135 		1-09000-133-1 01 1 1012-1101 ●
16 BOLT; GEN
(A) M14X135 		1-09000-133-1 01 1 1102- ● ●
16 BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE SOU 		0-28050-610-0 02 1 1001-1011 ●
16 BOLT; GEN
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE SOU 		0-28050-610-0 02 1 1012-1108 ●
16 BOLT; GEN
GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE SOU 		0-28050-610-0 02 1 1109-1109 ●
16 BOLT; GEN
GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE SOU 		0-28050-610-0 02 1 1109-1109 ●
16 BOLT; GEN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE SOU 		0-28050-610-0 02 1 1109-1109 ●
16 BOLT; GEN
6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41) GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X10 FLANGE SOU 		0-28050-610-0 02 1 1110-1201 ●
16 BOLT; GEN
6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER(8GF) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE SOU 		0-28050-610-0 02 1 1110-1201 ●
16 BOLT; GEN
GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE SOU 		0-28050-610-0 02 1 1110-1201 ●
16 BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X10 FLANGE SOU 		0-28050-610-0 02 1 1110-1201 ●
16 BOLT; GEN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE SOU 		0-28050-610-0 02 1 1110-1201 ●
16 BOLT; GEN
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE SOU 		0-28050-610-0 02 1 1202- ●
16 BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE SOU 		0-28050-610-0 02 1 1202- ●
16 BOLT; GEN
4HK1-TCS ENG(RJS) (A) M14X135 		1-09000-133-1 01 1 1012- ●
17 WASHER; PL,GEN
4HK1-TCS ENG(RJS) (A) ID=14.2 SOU 		0-91510-514-0 01 1 1102- ●
17 WASHER; PL,GEN
4HK1-TCS ENG(RJS) (C) ID=12.5 OD=32 		9-09160-712-0 01 1 1102- ●
17 WASHER; PL,GEN
(B) ID=15 		0-91610-514-0 01 1 1001-1011 ● ●
17 WASHER; PL,GEN
6HK1-TCN ENG(82L) (B) ID=15 		0-91610-514-0 01 1 1012-1101 ●
17 WASHER; PL,GEN
(B) ID=15 		0-91610-514-0 01 1 1012-1101 ●
17 WASHER; PL,GEN
(B) ID=15 		0-91610-514-0 01 1 1102- ● ●
17 WASHER; PL,GEN
4HK1-TCS ENG(RJS) (B) ID=15 		0-91610-514-0 01 1 1012- ●
17 WASHER; PL,GEN
4HK1-TCS ENG(RJS) (A) ID=14.2 SOU 		0-91510-514-0 01 1 1012- ●
17 WASHER; PL,GEN
4HK1-TCS ENG(RJS) (C) ID=12.5 OD=32 		9-09160-712-0 01 1 1012- ●
21 BRACKET; GEN
4HK1-TCS ENG(RJS) 		8-97381-404-0 01 1 1012- ●
23 NUT; GEN
4HK1-TCS ENG(RJS) (B) M12 FLANGE 		0-91180-112-0 01 1 1102- ●
23 NUT; GEN
(A) M14 SOU 		0-91110-514-0 01 1 1001-1011 ●
23 NUT; GEN
6HK1-TCN ENG(82L) (A) M14 SOU 		0-91110-514-0 01 1 1012-1101 ●
23 NUT; GEN
(A) M14 SOU 		0-91110-514-0 01 1 1012-1101 ●
23 NUT; GEN
(A) M14 SOU 		0-91110-514-0 01 1 1102- ● ●
23 NUT; GEN
4HK1-TCS ENG(RJS) (A) M14 SOU 		0-91110-514-0 01 1 1012- ●
23 NUT; GEN
4HK1-TCS ENG(RJS) (B) M12 FLANGE 		0-91180-112-0 01 1 1012- ●
26 BOLT; GEN BRKT
4HK1-TCS ENG(RJS) (C) M10X50 FLANGE 		0-28151-050-0 01 1 1012- ●
26 BOLT; GEN BRKT
(A) M10X40 FLANGE 		0-28151-040-0 02 1 1001-1011 ●
26 BOLT; GEN BRKT
6HK1-TCN ENG(82L) (A) M10X40 FLANGE 		0-28151-040-0 02 1 1012- ●
26 BOLT; GEN BRKT
(A) M10X40 FLANGE 		0-28151-040-0 02 1 1012- ●
26 BOLT; GEN BRKT
(B) M10X80 FLANGE 		0-28151-080-0 02 1 1001-1011 ●
26 BOLT; GEN BRKT
6HK1-TCN ENG(82L) (B) M10X80 FLANGE 		0-28151-080-0 02 1 1012- ●
26 BOLT; GEN BRKT
(B) M10X80 FLANGE 		0-28151-080-0 02 1 1012- ●
129 SENSOR; GLOW PLUG,THERMO
4HK1-TCS ENG(RJS) MITSUBISHI 		8-98023-883-0 01 1 1012-1503 ●
129 SENSOR; GLOW PLUG,THERMO
4HK1-TCS ENG(RJS) NISHIDA 		8-98260-257-0 01 1 1504- ●
293 CABLE; STARTER EARTH
TRANSMISSION CONTROL-SMOOTHER(8GF) L=430 		8-97621-357-0 01 1 1109-1201 ●
293 CABLE; STARTER EARTH
4HK1-TCS ENG(RJS) L=410 		8-97620-375-0 01 1 1012- ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) L=530 		8-98097-226-0 01 1 1001-1011 ● ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) L=530 		8-98097-226-0 01 1 1012-1109 ●
293 CABLE; STARTER EARTH
L=530 		8-98097-226-0 01 1 1012-1109 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) L=530 		8-98097-226-0 01 1 1110-1201 ●
293 CABLE; STARTER EARTH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=530 		8-98097-226-0 01 1 1110-1201 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) L=530 		8-98097-226-0 01 1 1202- ●
293 CABLE; STARTER EARTH
L=530 		8-98097-226-0 01 1 1202- ●
460 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) ID=16.2 		1-09630-086-0 01 1 1012- ●
915 SPACER; HARNESS
4HK1-TCS ENG(RJS) ID=8.4 OD=19 		5-11779-001-0 01 1 1012-1301 ●
915 SPACER; HARNESS
4HK1-TCS ENG(RJS) ID=9 OD=18 T=5 SOU 		9-14149-173-0 01 1 1302- ●

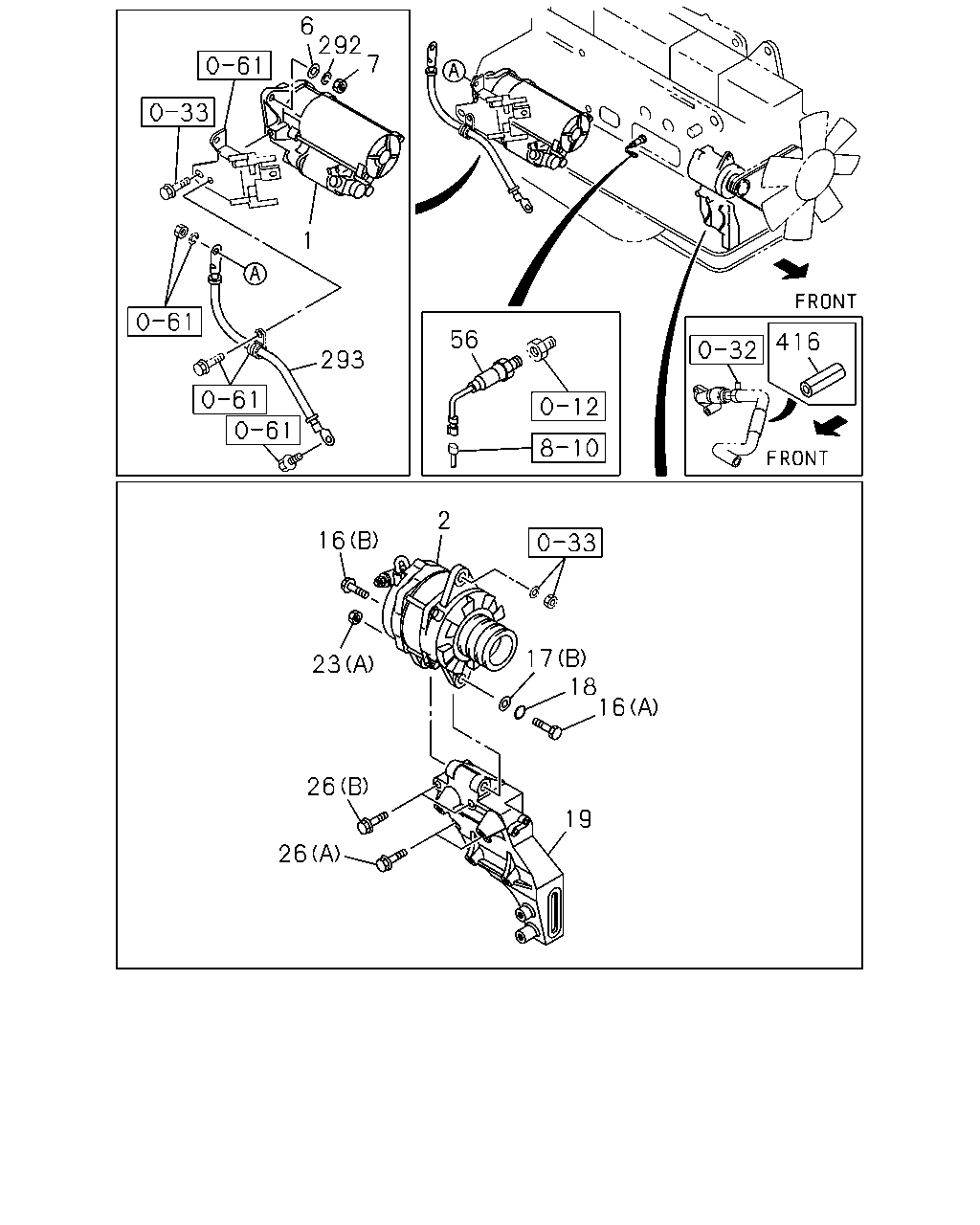

çizim 162654
6 1 293 7 292 56 416 16 2 23 26 26 19 16 18 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1110-1207 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) 24V 4.5KW HITACHI 		8-98009-043-2 01 1 1012-1109 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 4.5KW HITACHI 		8-98009-043-2 01 1 1110-1207 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 4.5KW HITACHI 		8-98222-023-0 01 1 1208-1311 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 4.5KW HITACHI 		8-98245-260-1 01 1 1312- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98141-206-1 01 1 1001-1011 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCN ENG(82L) 24V 5.0KW MITSUBISHI 		8-98141-206-3 01 1 1012-1409 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98141-206-3 01 1 1012-1409 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCN ENG(82L) 24V 5.0KW MITSUBISHI 		8-98261-669-0 01 1 1410- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98261-669-0 01 1 1410- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-456-4 01 1 1012- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-455-4 01 1 1012- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-461-2 01 1 1001-1011 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-461-2 01 1 1012-1108 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-461-2 01 1 1012-1108 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 50A NIKKO 		8-98013-461-2 01 1 1109-1109 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41) 24V 50A NIKKO 		8-98013-461-2 01 1 1109-1109 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) HEATER & DEFROSTER(C41) 24V 50A NIKKO 		8-98013-461-2 01 1 1109-1109 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41) 24V 50A NIKKO 		8-98013-461-3 01 1 1110-1201 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 50A NIKKO 		8-98013-461-3 01 1 1110-1201 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 50A NIKKO 		8-98013-461-3 01 1 1110-1201 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. HEATER & DEFROSTER(C41) GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 50A NIKKO 		8-98013-461-3 01 1 1110-1201 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-461-3 01 1 1202-1311 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-461-5 01 1 1312- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-462-2 01 1 1001-1011 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-462-2 01 1 1012-1108 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-462-2 01 1 1012-1108 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 60A NIKKO 		8-98013-462-2 01 1 1109-1109 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER(8GF) HEATER & DEFROSTER(C41) 24V 60A NIKKO 		8-98013-462-2 01 1 1109-1109 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41) 24V 60A NIKKO 		8-98013-462-2 01 1 1109-1109 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER(8GF) HEATER & DEFROSTER(C41) 24V 60A NIKKO 		8-98013-462-3 01 1 1110-1201 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 60A NIKKO 		8-98013-462-3 01 1 1110-1201 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 60A NIKKO 		8-98013-462-3 01 1 1110-1201 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41) 24V 60A NIKKO 		8-98013-462-3 01 1 1110-1201 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-462-3 01 1 1202-1311 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-462-5 01 1 1312- ● ●
6 WASHER; PL,STARTER
ID=15 		0-91610-514-0 01 1 1001-1011 ●
6 WASHER; PL,STARTER
6HK1-TCN ENG(82L) ID=15 		0-91610-514-0 01 1 1012- ●
6 WASHER; PL,STARTER
ID=15 		0-91610-514-0 01 1 1012- ●
7 NUT; STARTER
M14 SOU 		0-91110-514-0 02 1 1001-1011 ● ●
7 NUT; STARTER
6HK1-TCN ENG(82L) M14 SOU 		0-91110-514-0 02 1 1012- ●
7 NUT; STARTER
M14 SOU 		0-91110-514-0 02 1 1012- ●
16 BOLT; GEN
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B) M6X10 FLANGE SOU 		0-28050-610-0 03 1 1001- ●
16 BOLT; GEN
6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE SOU 		0-28050-610-0 01 1 1001- ●
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE SOU 		0-28050-610-0 01 1 1001- ●
16 BOLT; GEN
(A) M14X135 		1-09000-133-1 01 1 1001-1011 ●
16 BOLT; GEN
6HK1-TCN ENG(82L) (A) M14X135 		1-09000-133-1 01 1 1012-1101 ●
16 BOLT; GEN
(A) M14X135 		1-09000-133-1 01 1 1012-1101 ●
16 BOLT; GEN
(A) M14X135 		1-09000-133-1 01 1 1102- ● ●
16 BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE SOU 		0-28050-610-0 02 1 1001-1011 ●
16 BOLT; GEN
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE SOU 		0-28050-610-0 02 1 1012-1108 ●
16 BOLT; GEN
GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE SOU 		0-28050-610-0 02 1 1109-1109 ●
16 BOLT; GEN
GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE SOU 		0-28050-610-0 02 1 1109-1109 ●
16 BOLT; GEN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE SOU 		0-28050-610-0 02 1 1109-1109 ●
16 BOLT; GEN
6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41) GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X10 FLANGE SOU 		0-28050-610-0 02 1 1110-1201 ●
16 BOLT; GEN
6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER(8GF) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE SOU 		0-28050-610-0 02 1 1110-1201 ●
16 BOLT; GEN
GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE SOU 		0-28050-610-0 02 1 1110-1201 ●
16 BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X10 FLANGE SOU 		0-28050-610-0 02 1 1110-1201 ●
16 BOLT; GEN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE SOU 		0-28050-610-0 02 1 1110-1201 ●
16 BOLT; GEN
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE SOU 		0-28050-610-0 02 1 1202- ●
16 BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE SOU 		0-28050-610-0 02 1 1202- ●
16 BOLT; GEN
4HK1-TCS ENG(RJS) (A) M14X135 		1-09000-133-1 01 1 1012- ●
17 WASHER; PL,GEN
4HK1-TCS ENG(RJS) (A) ID=14.2 SOU 		0-91510-514-0 01 1 1102- ●
17 WASHER; PL,GEN
4HK1-TCS ENG(RJS) (C) ID=12.5 OD=32 		9-09160-712-0 01 1 1102- ●
17 WASHER; PL,GEN
(B) ID=15 		0-91610-514-0 01 1 1001-1011 ● ●
17 WASHER; PL,GEN
6HK1-TCN ENG(82L) (B) ID=15 		0-91610-514-0 01 1 1012-1101 ●
17 WASHER; PL,GEN
(B) ID=15 		0-91610-514-0 01 1 1012-1101 ●
17 WASHER; PL,GEN
(B) ID=15 		0-91610-514-0 01 1 1102- ● ●
17 WASHER; PL,GEN
4HK1-TCS ENG(RJS) (B) ID=15 		0-91610-514-0 01 1 1012- ●
17 WASHER; PL,GEN
4HK1-TCS ENG(RJS) (A) ID=14.2 SOU 		0-91510-514-0 01 1 1012- ●
17 WASHER; PL,GEN
4HK1-TCS ENG(RJS) (C) ID=12.5 OD=32 		9-09160-712-0 01 1 1012- ●
18 WASHER; LK,GEN
ID=14.2 SOU 		0-91510-514-0 01 1 1001-1011 ● ●
18 WASHER; LK,GEN
6HK1-TCN ENG(82L) ID=14.2 SOU 		0-91510-514-0 01 1 1012- ●
18 WASHER; LK,GEN
ID=14.2 SOU 		0-91510-514-0 01 1 1012- ●
19 BRACKET; GEN
6HK1-TCN ENG(82L) 		8-98082-615-1 01 1 1001-1011 ● ●
19 BRACKET; GEN
6HK1-TCN ENG(82L) 		8-98082-615-1 01 1 1012- ●
19 BRACKET; GEN 8-98082-615-1 01 1 1012- ●
23 NUT; GEN
4HK1-TCS ENG(RJS) (B) M12 FLANGE 		0-91180-112-0 01 1 1102- ●
23 NUT; GEN
(A) M14 SOU 		0-91110-514-0 01 1 1001-1011 ●
23 NUT; GEN
6HK1-TCN ENG(82L) (A) M14 SOU 		0-91110-514-0 01 1 1012-1101 ●
23 NUT; GEN
(A) M14 SOU 		0-91110-514-0 01 1 1012-1101 ●
23 NUT; GEN
(A) M14 SOU 		0-91110-514-0 01 1 1102- ● ●
23 NUT; GEN
4HK1-TCS ENG(RJS) (A) M14 SOU 		0-91110-514-0 01 1 1012- ●
23 NUT; GEN
4HK1-TCS ENG(RJS) (B) M12 FLANGE 		0-91180-112-0 01 1 1012- ●
26 BOLT; GEN BRKT
4HK1-TCS ENG(RJS) (C) M10X50 FLANGE 		0-28151-050-0 01 1 1012- ●
26 BOLT; GEN BRKT
(A) M10X40 FLANGE 		0-28151-040-0 02 1 1001-1011 ●
26 BOLT; GEN BRKT
6HK1-TCN ENG(82L) (A) M10X40 FLANGE 		0-28151-040-0 02 1 1012- ●
26 BOLT; GEN BRKT
(A) M10X40 FLANGE 		0-28151-040-0 02 1 1012- ●
26 BOLT; GEN BRKT
(B) M10X80 FLANGE 		0-28151-080-0 02 1 1001-1011 ●
26 BOLT; GEN BRKT
6HK1-TCN ENG(82L) (B) M10X80 FLANGE 		0-28151-080-0 02 1 1012- ●
26 BOLT; GEN BRKT
(B) M10X80 FLANGE 		0-28151-080-0 02 1 1012- ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 1001-1011 ● ●
56 SWITCH; OIL PRESSURE WARNING
6HK1-TCN ENG(82L) 		1-82410-170-1 01 1 1012- ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 1012- ●
292 WASHER; LK,STARTER
ID=14.2 SOU 		0-91510-514-0 01 1 1001-1011 ●
292 WASHER; LK,STARTER
6HK1-TCN ENG(82L) ID=14.2 SOU 		0-91510-514-0 01 1 1012- ●
292 WASHER; LK,STARTER
ID=14.2 SOU 		0-91510-514-0 01 1 1012- ●
293 CABLE; STARTER EARTH
TRANSMISSION CONTROL-SMOOTHER(8GF) L=430 		8-97621-357-0 01 1 1109-1201 ●
293 CABLE; STARTER EARTH
4HK1-TCS ENG(RJS) L=410 		8-97620-375-0 01 1 1012- ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) L=530 		8-98097-226-0 01 1 1001-1011 ● ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) L=530 		8-98097-226-0 01 1 1012-1109 ●
293 CABLE; STARTER EARTH
L=530 		8-98097-226-0 01 1 1012-1109 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) L=530 		8-98097-226-0 01 1 1110-1201 ●
293 CABLE; STARTER EARTH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=530 		8-98097-226-0 01 1 1110-1201 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) L=530 		8-98097-226-0 01 1 1202- ●
293 CABLE; STARTER EARTH
L=530 		8-98097-226-0 01 1 1202- ●
416 SLEEVE; RUBBER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=17 OD=21 L=40 		1-09337-012-0 01 1 1001-1108 ●
416 SLEEVE; RUBBER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=17 OD=21 L=40 		1-09337-012-0 01 1 1109-1201 ●
416 SLEEVE; RUBBER
6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=17 OD=21 L=40 		1-09337-012-0 01 1 1202- ●
416 SLEEVE; RUBBER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=17 OD=21 L=40 		1-09337-012-0 01 1 1202- ●

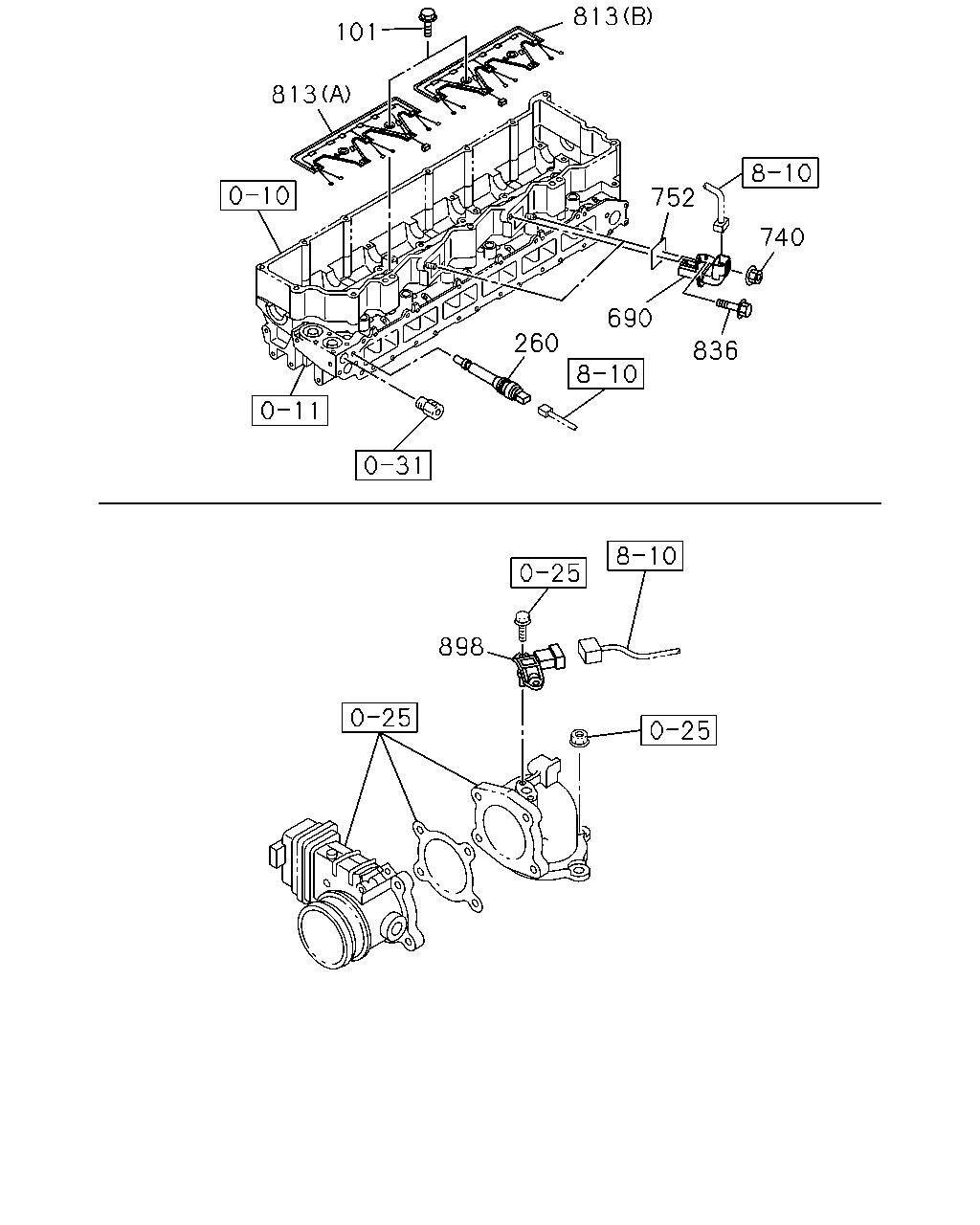

çizim 162655
101 813 813 752 740 836 690 260 898
BalonParca AdiParca NoAdetTipApplied Date A B
101 BOLT; HARNESS
M8X40 FLANGE SOU 		0-28650-840-0 04 1 1001-1011 ● ●
101 BOLT; HARNESS
6HK1-TCN ENG(82L) M8X40 FLANGE SOU 		0-28650-840-0 04 1 1012- ●
101 BOLT; HARNESS
M8X40 FLANGE SOU 		0-28650-840-0 04 1 1012- ●
260 SENSOR; WATER TEMP
MITSUBISHI 		8-98023-883-0 01 1 1001-1011 ●
260 SENSOR; WATER TEMP
6HK1-TCN ENG(82L) MITSUBISHI 		8-98023-883-0 01 1 1012-1503 ●
260 SENSOR; WATER TEMP
MITSUBISHI 		8-98023-883-0 01 1 1012-1503 ●
260 SENSOR; WATER TEMP
6HK1-TCN ENG(82L) NISHIDA 		8-98260-257-0 01 1 1504- ●
260 SENSOR; WATER TEMP
NISHIDA 		8-98260-257-0 01 1 1504- ●
690 CONNECTOR 8-94390-858-1 02 1 1001-1011 ● ●
690 CONNECTOR
6HK1-TCN ENG(82L) 		8-94390-858-1 02 1 1012- ●
690 CONNECTOR 8-94390-858-1 02 1 1012- ●
740 NUT
M8 FLANGE SOU 		0-91180-108-0 04 1 1001-1011 ● ●
740 NUT
6HK1-TCN ENG(82L) M8 FLANGE SOU 		0-91180-108-0 04 1 1012-1012 ●
740 NUT
M8 FLANGE SOU 		0-91180-108-0 04 1 1012-1012 ●
740 NUT
M8 FLANGE SOU 		0-91180-108-0 02 1 1012-1105 ● ●
740 NUT
6HK1-TCN ENG(82L) M8 FLANGE SOU 		0-91180-108-0 02 1 1106- ●
740 NUT
M8 FLANGE SOU 		0-91180-108-0 02 1 1106- ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 1001-1011 ● ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L). 		8-94391-310-0 02 1 1012- ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 1012- ●
813 HARNESS; INJECTOR
(A) FRONT 		8-97602-748-2 01 1 1001-1008 ● ●
813 HARNESS; INJECTOR
(A) FRONT 		8-98177-447-0 01 1 1009-1011 ● ●
813 HARNESS; INJECTOR
6HK1-TCN ENG(82L) (A) FRONT 		8-98177-447-0 01 1 1012-1112 ●
813 HARNESS; INJECTOR
(A) FRONT 		8-98177-447-0 01 1 1012-1112 ●
813 HARNESS; INJECTOR
6HK1-TCN ENG(82L) (A) FRONT 		8-98204-717-0 01 1 1201- ●
813 HARNESS; INJECTOR
(A) FRONT 		8-98204-717-0 01 1 1201- ●
813 HARNESS; INJECTOR
(B) REAR 		8-97602-749-2 01 1 1001-1008 ● ●
813 HARNESS; INJECTOR
(B) REAR 		8-98177-448-0 01 1 1009-1011 ● ●
813 HARNESS; INJECTOR
6HK1-TCN ENG(82L) (B) REAR 		8-98177-448-0 01 1 1012-1112 ●
813 HARNESS; INJECTOR
(B) REAR 		8-98177-448-0 01 1 1012-1112 ●
813 HARNESS; INJECTOR
6HK1-TCN ENG(82L) (B) REAR 		8-98204-718-0 01 1 1201- ●
813 HARNESS; INJECTOR
(B) REAR 		8-98204-718-0 01 1 1201- ●
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 1012-1105 ● ●
836 BOLT; CONNECTOR
6HK1-TCN ENG(82L) M8X12 FLANGE 		0-28050-812-0 02 1 1106- ●
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 1106- ●
898 SENSOR; BOOST 8-98009-418-0 01 1 1001-1011 ● ●
898 SENSOR; BOOST
6HK1-TCN ENG(82L) 		8-98009-418-0 01 1 1012- ●
898 SENSOR; BOOST 8-98009-418-0 01 1 1012- ●
çizim 162662
613 748 301 606 587 749 748 593 732 296 11 10
BalonParca AdiParca NoAdetTipApplied Date A B

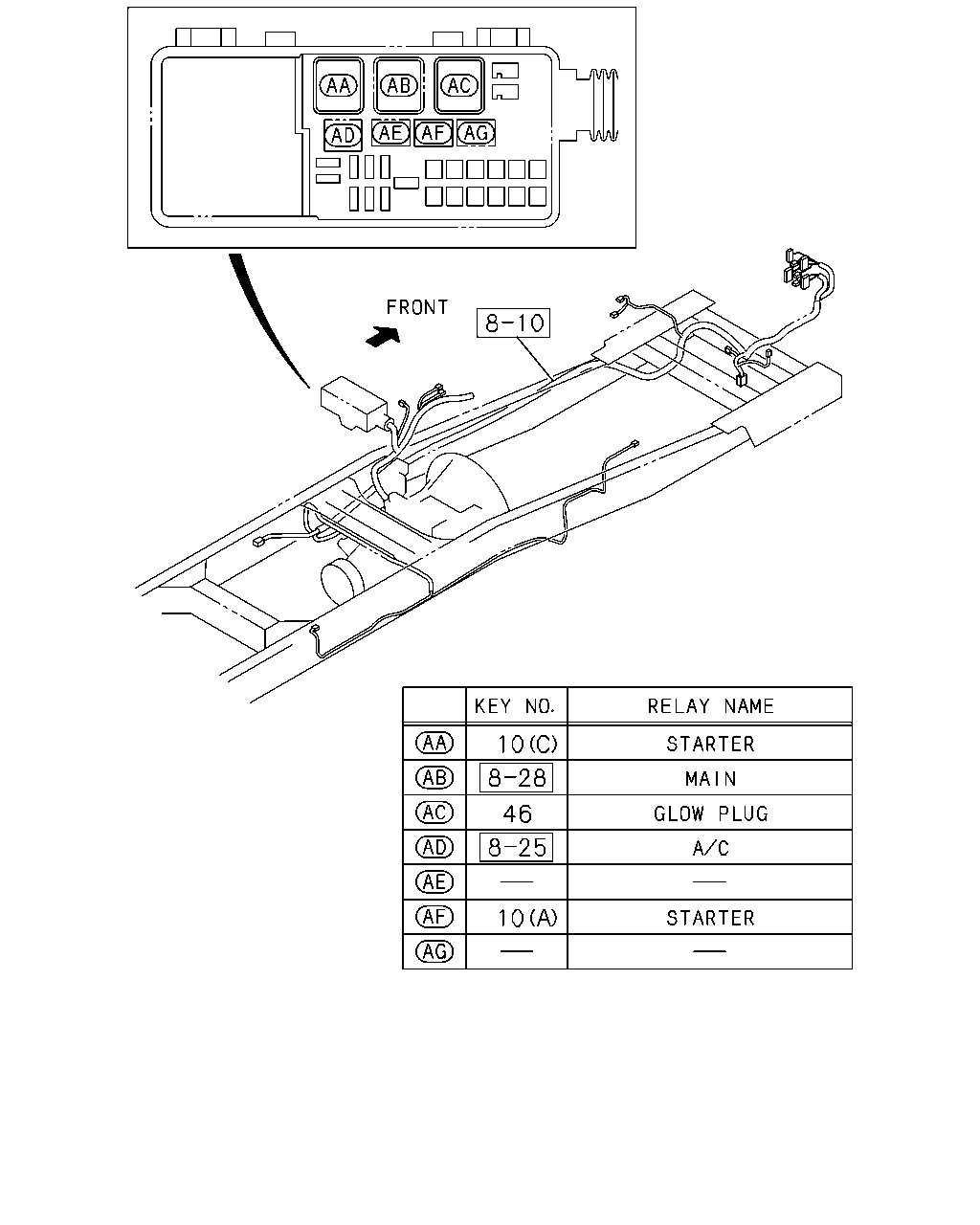

10 RELAY; STARTER
4HK1-TCS ENG(RJS) (C) 24V 50A 		8-97264-947-0 01 1 1012- ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1001-1005 ● ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1006- ● ●
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 1001-1011 ● ●
10 RELAY; STARTER
6HK1-TCN ENG(82L) (B) 24V NIKKO 		8-98005-631-1 01 1 1012- ●
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 1012- ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28650-820-0 02 1 1001-1011 ● ●
11 BOLT; RELAY STARTER
6HK1-TCN ENG(82L) M8X20 FLANGE 		0-28650-820-0 02 1 1012- ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28650-820-0 02 1 1012- ●
296 NUT; RELAY,STARTER
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-1011 ● ●
296 NUT; RELAY,STARTER
6HK1-TCN ENG(82L) M8 FLANGE SOU 		0-91180-108-0 02 1 1012- ●
296 NUT; RELAY,STARTER
M8 FLANGE SOU 		0-91180-108-0 02 1 1012- ●
301 RESISTOR; DROPPING
6HK1-TCN ENG(82L) 		8-97357-613-0 01 1 1001-1109 ●
301 RESISTOR; DROPPING
6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> 		8-97357-613-0 01 1 1110- ●
301 RESISTOR; DROPPING
6HK1-TCN ENG(82L) 		8-97357-613-0 01 1 1110- ●
587 NUT; RESISTOR & RELAY
6HK1-TCN ENG(82L) M6 FLANGE SOU 		0-91180-106-0 02 1 1001-1109 ●
587 NUT; RESISTOR & RELAY
6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> M6 FLANGE SOU 		0-91180-106-0 02 1 1110- ●
587 NUT; RESISTOR & RELAY
6HK1-TCN ENG(82L) M6 FLANGE SOU 		0-91180-106-0 02 1 1110- ●
593 NUT; BRKT
M6 FLANGE SOU 		0-91180-106-0 04 1 1001- ● ●
606 BRACKET; CONT UNIT 1-53194-675-0 01 1 1001- ● ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98201-101-0 01 1 1109- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98201-107-0 01 1 1110- ●
613 CONTROL UNIT; ENG
4HK1-TCS ENG(RJS) 		8-98081-131-4 01 1 1012-1109 ●
613 CONTROL UNIT; ENG
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-131-4 01 1 1110- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) 		8-98074-887-4 01 1 1001-1109 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98074-887-4 01 1 1110- ●
613 CONTROL UNIT; ENG 8-98154-919-1 01 1 1001-1105 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98154-919-1 01 1 1106- ●
732 BOLT; BRKT
M10X30 FLANGE SOU 		0-28651-030-0 03 1 1001- ● ●
748 BOLT; CONT UNIT
(A) M6X12 FLANGE SOU 		0-28050-612-0 03 1 1001- ● ●
748 BOLT; CONT UNIT
(B) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1001-1105 ● ●
748 BOLT; CONT UNIT
(B) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1106-1109 ●
748 BOLT; CONT UNIT
EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1106-1109 ●
748 BOLT; CONT UNIT
EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1110- ● ●
749 STAY; CONT UNIT
4HK1-TCS ENG(RJS) 		1-53194-596-3 01 1 1012- ●
749 STAY; CONT UNIT 1-53194-595-3 01 1 1001-1011 ● ●
749 STAY; CONT UNIT
6HK1-TCN ENG(82L) 		1-53194-595-3 01 1 1012- ●
749 STAY; CONT UNIT 1-53194-595-3 01 1 1012- ●
çizim 162802
10 46 10
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
4HK1-TCS ENG(RJS) (C) 24V 50A 		8-97264-947-0 01 1 1012- ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1001-1005 ● ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1006- ● ●
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 1001-1011 ● ●
10 RELAY; STARTER
6HK1-TCN ENG(82L) (B) 24V NIKKO 		8-98005-631-1 01 1 1012- ●
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 1012- ●
46 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1001- ● ●
çizim 162836
748
BalonParca AdiParca NoAdetTipApplied Date A B
748 BOLT; CONT UNIT
(A) M6X12 FLANGE SOU 		0-28050-612-0 03 1 1001- ● ●
748 BOLT; CONT UNIT
(B) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1001-1105 ● ●
748 BOLT; CONT UNIT
(B) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1106-1109 ●
748 BOLT; CONT UNIT
EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1106-1109 ●
748 BOLT; CONT UNIT
EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1110- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
