◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11161 - FSR(SOUTH AFRICA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶

0-50 — OIL COOLER AND OIL FILTER (#55505) — 171 parça

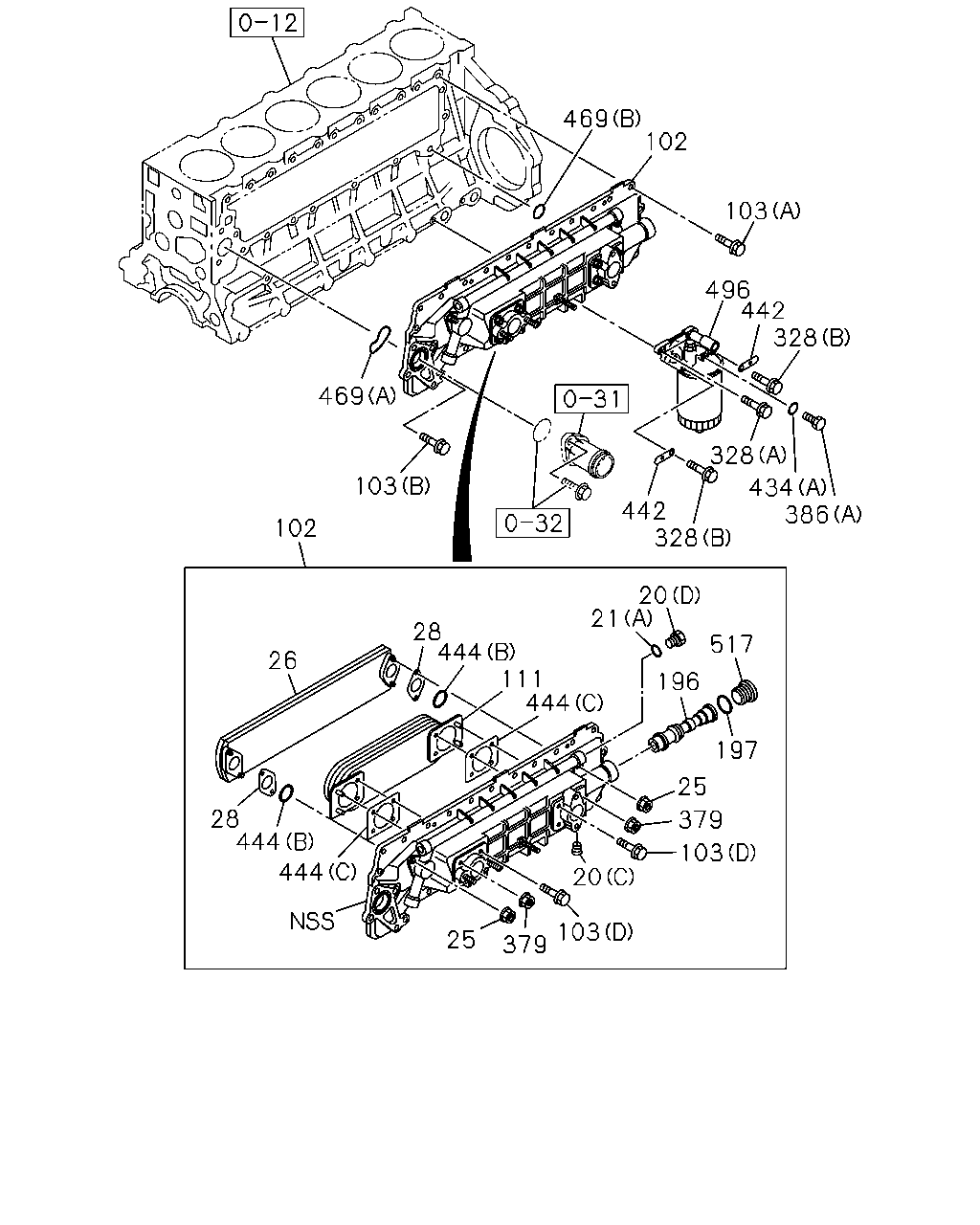

469 103 496 442 328 442 434 328 20 21 517 386 328 196 197 25 379 103 20 103 379 25 444 444 28 26 28 444 444 102 111 103 469 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (A)	8-94393-604-0	01	1	1001-	●
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (B)	8-94396-753-0	01	1	1001-	●
20	PLUG; COOLER BODY EURO3 SPECIFICATION<NT3> (C)	1-13219-240-0	02	1	1001-	●
20	PLUG; COOLER BODY EURO3 SPECIFICATION<NT3> (D)	8-97608-567-0	02	1	1001-	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (B)	1-13219-253-0	01	1	1001-	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (C) M24	8-94396-755-0	01	1	1001-	●
21	GASKET; PLUG EURO3 SPECIFICATION<NT3> (A) ID=17.8	8-97608-568-0	02	1	1001-	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	1001-	●
26	CORE ASM; OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-738-1	01	1	1001-	●
26	CORE ASM; OIL COOLER EURO3 SPECIFICATION<NT3>	8-98062-207-0	01	1	1001-	●
28	GASKET; CORE TO BODY EURO2 SPECIFICATION<NT2>	8-94394-930-0	02	1	1001-1004	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1005-	●
28	GASKET; CORE TO BODY EURO3 SPECIFICATION<NT3>	8-98063-865-0	02	1	1001-1004	●
102	COOLER ASM; OIL	8-98085-312-5	01	1	1012-		●
102	COOLER ASM; OIL EURO2 SPECIFICATION<NT2>	8-97600-156-1	01	1	1001-	●
102	COOLER ASM; OIL EURO3 SPECIFICATION<NT3>	8-98130-995-0	01	1	1001-1307	●
102	COOLER ASM; OIL EURO3 SPECIFICATION<NT3>	8-98236-650-0	01	1	1308-	●
103	BOLT; OIL COOLER EURO3 SPECIFICATION<NT3> (D) M8X18 FLANGE	8-98251-758-0	04	1	1309-	●
103	BOLT; OIL COOLER (C) M8X20 FLANGE	0-28050-820-0	08	1	1012-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	08	1	1012-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1001-	●
103	BOLT; OIL COOLER EURO2 SPECIFICATION<NT2> (A) M8X22 FLANGE	0-28080-822-0	24	1	1001-	●
103	BOLT; OIL COOLER EURO3 SPECIFICATION<NT3> (A) M8X30 FLANGE	0-28650-830-0	24	1	1001-	●
111	CORE; OIL COOLER EURO3 SPECIFICATION<NT3>	8-98063-863-0	01	1	1309-	●
111	CORE; OIL COOLER	8-97334-100-2	01	1	1012-		●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	1001-	●
197	GASKET; THERMOSTAT EURO2 SPECIFICATION<NT2> ID=25.7	8-94399-279-0	01	1	1001-	●
197	GASKET; THERMOSTAT EURO3 SPECIFICATION<NT3>	8-94391-728-0	01	1	1001-	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	1001-	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	1001-	●
379	NUT; OIL COOLER EURO3 SPECIFICATION<NT3> M8 FLANGE SOU	0-91180-108-0	04	1	1309-	●
379	NUT; OIL COOLER M8 FLANGE SOU	0-91180-108-0	03	1	1012-		●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1001-	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1001-	●
442	BRACKET; HARNESS,OIL FILTER	8-97601-310-0	02	1	1001-1011	●
444	GASKET; ELEMENT TO BODY EURO3 SPECIFICATION<NT3> (C)	8-97601-801-0	02	1	1309-	●
444	GASKET; ELEMENT TO BODY (D)	8-97384-130-0	02	1	1012-		●
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<NT2> (A)	8-94396-810-0	02	1	1001-	●
444	GASKET; ELEMENT TO BODY EURO3 SPECIFICATION<NT3> (B) ID=38.7	1-09623-299-0	02	1	1001-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-94338-878-1	01	1	1012-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=9.8	8-94399-339-0	01	1	1012-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1012-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	1001-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	1001-	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1012-1509		●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-		●
496	FILTER ASM; OIL	8-94391-015-8	01	1	1001-1307	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●
517	PLUG; THERMOSTAT,OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-740-0	01	1	1001-	●
517	PLUG; THERMOSTAT,OIL COOLER EURO3 SPECIFICATION<NT3>	8-94391-731-0	01	1	1001-	●

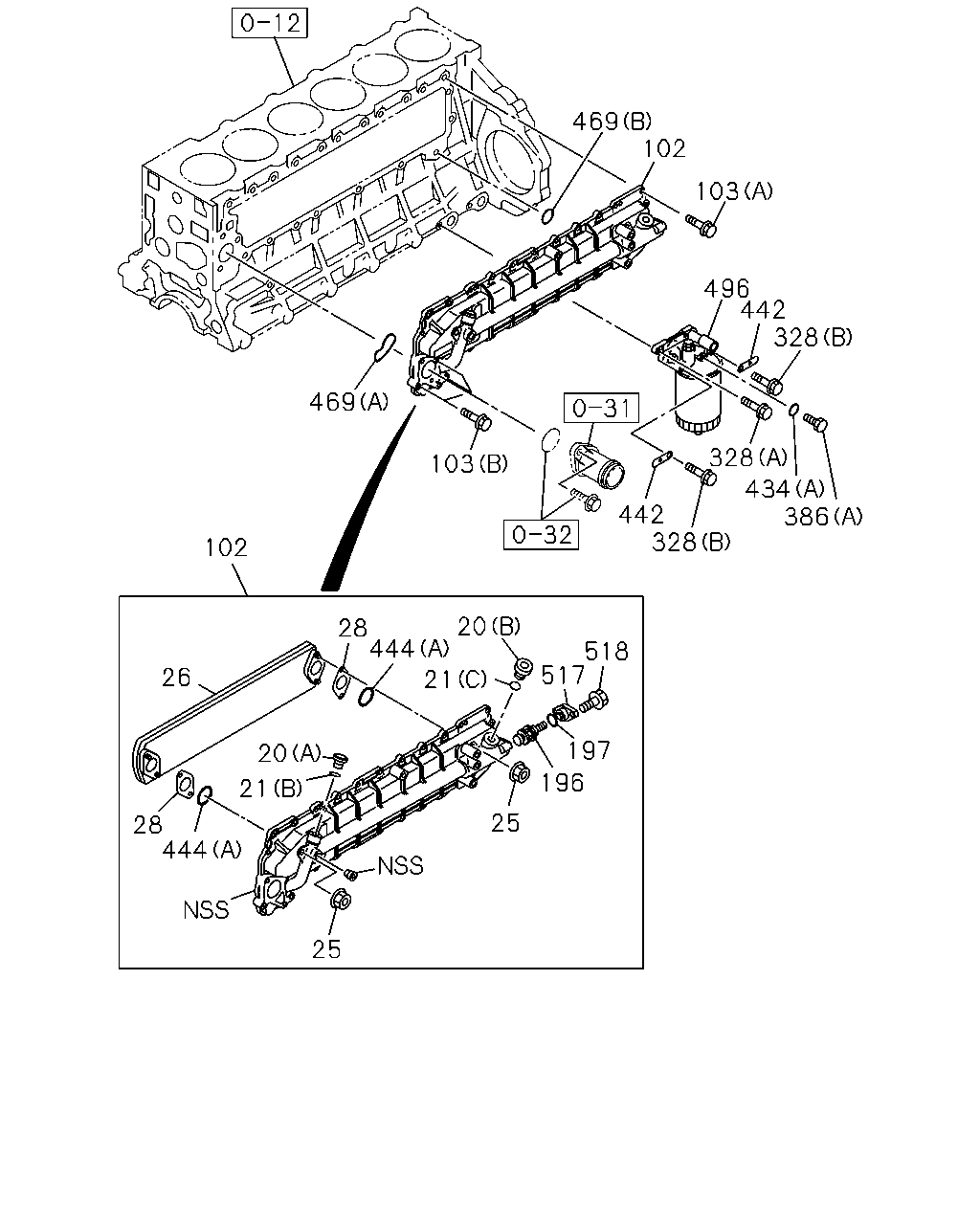

25 444 28 21 20 26 28 444 21 20 517 518 197 196 25 102 103 469 328 442 386 434 328 328 442 496 103 102 469

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (A)	8-94393-604-0	01	1	1001-	●
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (B)	8-94396-753-0	01	1	1001-	●
20	PLUG; COOLER BODY EURO3 SPECIFICATION<NT3> (C)	1-13219-240-0	02	1	1001-	●
20	PLUG; COOLER BODY EURO3 SPECIFICATION<NT3> (D)	8-97608-567-0	02	1	1001-	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (B)	1-13219-253-0	01	1	1001-	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (C) M24	8-94396-755-0	01	1	1001-	●
21	GASKET; PLUG EURO3 SPECIFICATION<NT3> (A) ID=17.8	8-97608-568-0	02	1	1001-	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	1001-	●
26	CORE ASM; OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-738-1	01	1	1001-	●
26	CORE ASM; OIL COOLER EURO3 SPECIFICATION<NT3>	8-98062-207-0	01	1	1001-	●
28	GASKET; CORE TO BODY EURO2 SPECIFICATION<NT2>	8-94394-930-0	02	1	1001-1004	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1005-	●
28	GASKET; CORE TO BODY EURO3 SPECIFICATION<NT3>	8-98063-865-0	02	1	1001-1004	●
102	COOLER ASM; OIL	8-98085-312-5	01	1	1012-		●
102	COOLER ASM; OIL EURO2 SPECIFICATION<NT2>	8-97600-156-1	01	1	1001-	●
102	COOLER ASM; OIL EURO3 SPECIFICATION<NT3>	8-98130-995-0	01	1	1001-1307	●
102	COOLER ASM; OIL EURO3 SPECIFICATION<NT3>	8-98236-650-0	01	1	1308-	●
103	BOLT; OIL COOLER EURO3 SPECIFICATION<NT3> (D) M8X18 FLANGE	8-98251-758-0	04	1	1309-	●
103	BOLT; OIL COOLER (C) M8X20 FLANGE	0-28050-820-0	08	1	1012-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	08	1	1012-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1001-	●
103	BOLT; OIL COOLER EURO2 SPECIFICATION<NT2> (A) M8X22 FLANGE	0-28080-822-0	24	1	1001-	●
103	BOLT; OIL COOLER EURO3 SPECIFICATION<NT3> (A) M8X30 FLANGE	0-28650-830-0	24	1	1001-	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	1001-	●
197	GASKET; THERMOSTAT EURO2 SPECIFICATION<NT2> ID=25.7	8-94399-279-0	01	1	1001-	●
197	GASKET; THERMOSTAT EURO3 SPECIFICATION<NT3>	8-94391-728-0	01	1	1001-	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	1001-	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	1001-	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1001-	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1001-	●
442	BRACKET; HARNESS,OIL FILTER	8-97601-310-0	02	1	1001-1011	●
444	GASKET; ELEMENT TO BODY EURO3 SPECIFICATION<NT3> (C)	8-97601-801-0	02	1	1309-	●
444	GASKET; ELEMENT TO BODY (D)	8-97384-130-0	02	1	1012-		●
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<NT2> (A)	8-94396-810-0	02	1	1001-	●
444	GASKET; ELEMENT TO BODY EURO3 SPECIFICATION<NT3> (B) ID=38.7	1-09623-299-0	02	1	1001-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-94338-878-1	01	1	1012-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=9.8	8-94399-339-0	01	1	1012-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1012-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	1001-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	1001-	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1012-1509		●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-		●
496	FILTER ASM; OIL	8-94391-015-8	01	1	1001-1307	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●
517	PLUG; THERMOSTAT,OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-740-0	01	1	1001-	●
517	PLUG; THERMOSTAT,OIL COOLER EURO3 SPECIFICATION<NT3>	8-94391-731-0	01	1	1001-	●
518	BOLT; PLUG,THERMOSTAT EURO2 SPECIFICATION<NT2> M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-	●

496 386 434 66 307 308 265 13 2 265 321 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-011-1	01	1	1010-1110	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1111-	●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	1001-	●
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	1012-1509		●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	1012-1509		●
2	ELEMENT; OIL FILTER	8-98328-207-0	01	1	1510-		●
13	VALVE; RELIEF	8-98238-944-0	01	1	1308-	●
66	SPRING; VLV	8-98238-943-0	01	1	1308-	●
265	BODY; OIL FILTER	8-97096-677-4	01	1	1012-		●
265	BODY; OIL FILTER	8-94391-016-4	01	1	1001-1307	●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1308-	●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	1001-1307	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	1001-1307	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	1001-	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	1001-	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1001-	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1001-	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1012-1509		●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-		●
496	FILTER ASM; OIL	8-94391-015-8	01	1	1001-1307	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●

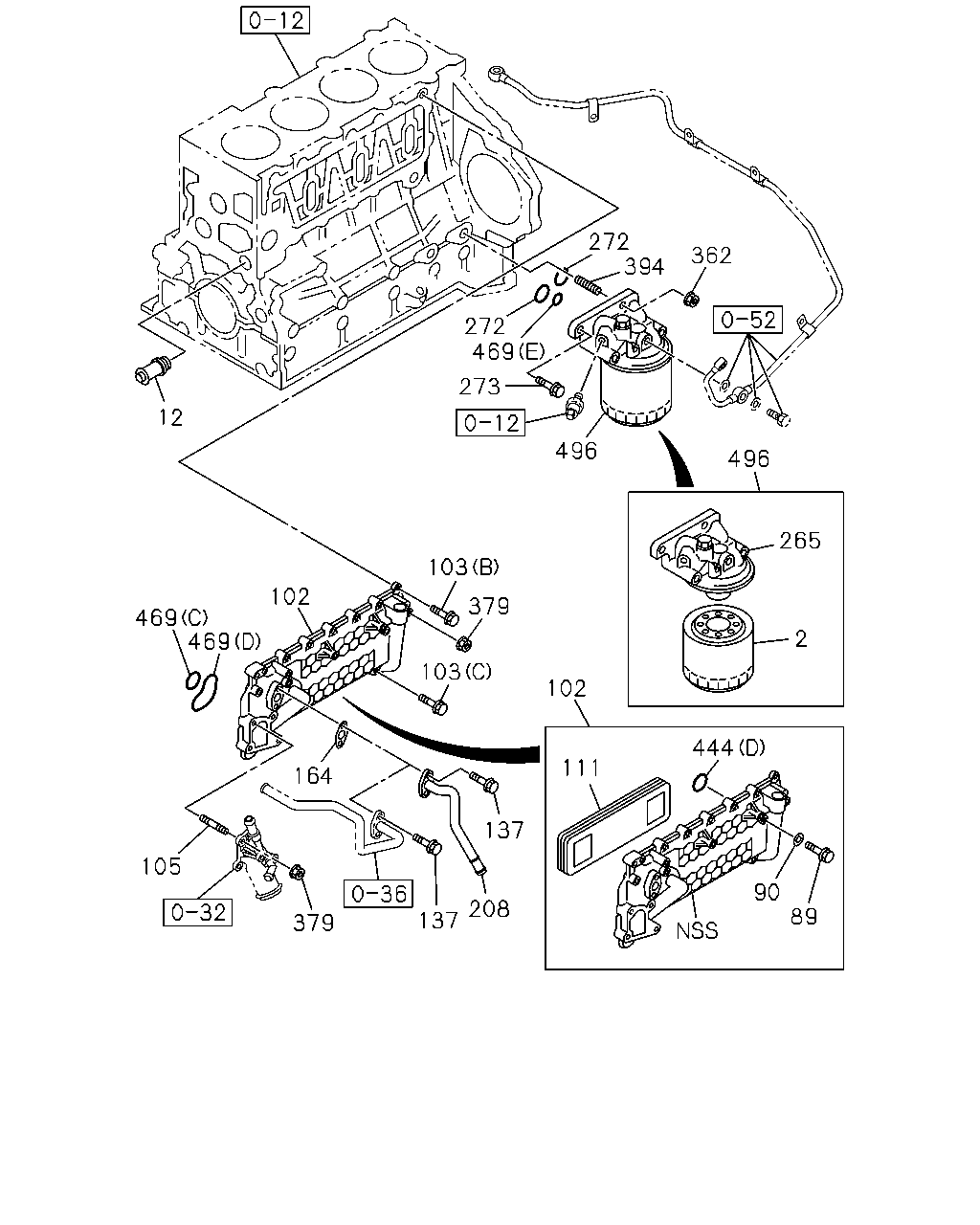

12 362 394 272 272 469 273 496 496 265 2 102 111 444 90 89 469 469 102 103 379 103 137 208 137 379 105 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-011-1	01	1	1010-1110	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1111-	●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	1001-	●
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	1012-1509		●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	1012-1509		●
2	ELEMENT; OIL FILTER	8-98328-207-0	01	1	1510-		●
12	VALVE ASM; BYPASS	8-97013-566-2	01	1	1012-		●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE SOU	0-28050-816-0	04	1	1012-		●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	1012-		●
102	COOLER ASM; OIL	8-98085-312-5	01	1	1012-		●
102	COOLER ASM; OIL EURO2 SPECIFICATION<NT2>	8-97600-156-1	01	1	1001-	●
102	COOLER ASM; OIL EURO3 SPECIFICATION<NT3>	8-98130-995-0	01	1	1001-1307	●
102	COOLER ASM; OIL EURO3 SPECIFICATION<NT3>	8-98236-650-0	01	1	1308-	●
103	BOLT; OIL COOLER EURO3 SPECIFICATION<NT3> (D) M8X18 FLANGE	8-98251-758-0	04	1	1309-	●
103	BOLT; OIL COOLER (C) M8X20 FLANGE	0-28050-820-0	08	1	1012-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	08	1	1012-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	1001-	●
103	BOLT; OIL COOLER EURO2 SPECIFICATION<NT2> (A) M8X22 FLANGE	0-28080-822-0	24	1	1001-	●
103	BOLT; OIL COOLER EURO3 SPECIFICATION<NT3> (A) M8X30 FLANGE	0-28650-830-0	24	1	1001-	●
105	STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	1012-		●
111	CORE; OIL COOLER EURO3 SPECIFICATION<NT3>	8-98063-863-0	01	1	1309-	●
111	CORE; OIL COOLER	8-97334-100-2	01	1	1012-		●
137	BOLT M8X20 FLANGE	0-28650-820-0	04	1	1012-		●
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.6	8-97146-684-0	01	1	1012-		●
208	PIPE; WATER,HTR	8-97146-519-0	01	1	1012-		●
265	BODY; OIL FILTER	8-97096-677-4	01	1	1012-		●
265	BODY; OIL FILTER	8-94391-016-4	01	1	1001-1307	●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1308-	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	1012-		●
273	BOLT; OIL FILTER M10X30	0-59331-030-0	03	1	1012-		●
362	NUT; OIL FILTER M10 FLANGE SOU	0-91180-110-0	01	1	1012-		●
379	NUT; OIL COOLER EURO3 SPECIFICATION<NT3> M8 FLANGE SOU	0-91180-108-0	04	1	1309-	●
379	NUT; OIL COOLER M8 FLANGE SOU	0-91180-108-0	03	1	1012-		●
394	STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	01	1	1012-		●
444	GASKET; ELEMENT TO BODY EURO3 SPECIFICATION<NT3> (C)	8-97601-801-0	02	1	1309-	●
444	GASKET; ELEMENT TO BODY (D)	8-97384-130-0	02	1	1012-		●
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<NT2> (A)	8-94396-810-0	02	1	1001-	●
444	GASKET; ELEMENT TO BODY EURO3 SPECIFICATION<NT3> (B) ID=38.7	1-09623-299-0	02	1	1001-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-94338-878-1	01	1	1012-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=9.8	8-94399-339-0	01	1	1012-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1012-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	1001-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	1001-	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1012-1509		●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-		●
496	FILTER ASM; OIL	8-94391-015-8	01	1	1001-1307	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
