Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#55503) — 353 parça

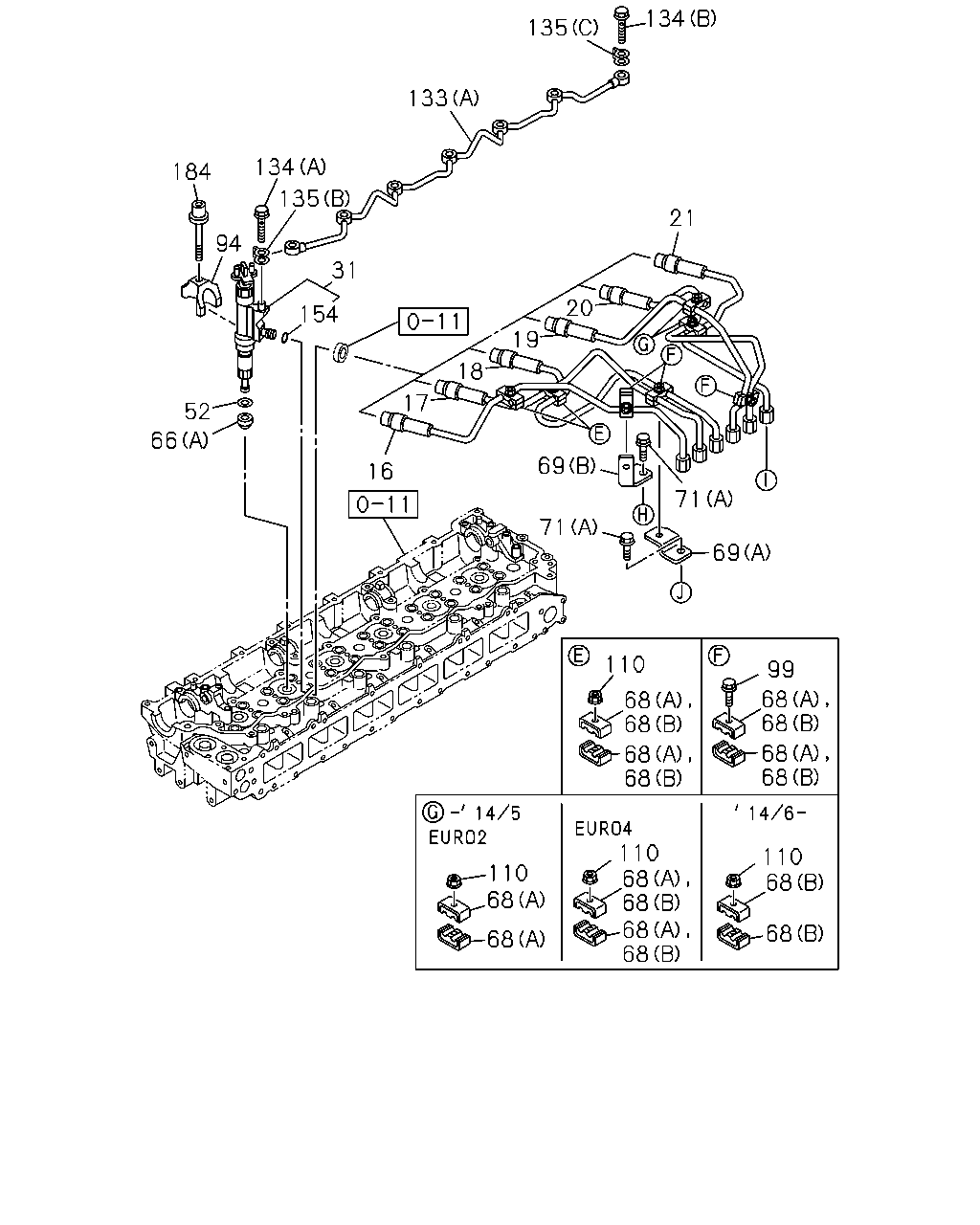

134 135 133 134 184 135 94 31 154 52 66 16 17 18 19 20 21 69 71 71 69 110 68 68 68 68 99 68 68 68 68 110 68 68 110 68 68 68 68 110 68 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PIPE; INJ NO.1	8-98039-934-0	01	1	1012-1102	●
16	PIPE; INJ NO.1	8-98185-344-0	01	1	1103-1404	●
16	PIPE; INJ NO.1	8-98271-202-0	01	1	1405-1501	●
16	PIPE; INJ NO.1	8-98298-606-0	01	1	1502-	●
16	PIPE; INJ NO.1	8-98038-936-0	01	1	1001-1102		●
16	PIPE; INJ NO.1	8-98185-362-0	01	1	1103-1403		●
16	PIPE; INJ NO.1	8-98271-207-0	01	1	1404-1501		●
16	PIPE; INJ NO.1	8-98298-611-0	01	1	1502-		●
17	PIPE; INJ NO.2	8-98039-935-0	01	1	1012-1102	●
17	PIPE; INJ NO.2	8-98185-345-0	01	1	1103-1404	●
17	PIPE; INJ NO.2	8-98271-203-0	01	1	1405-1501	●
17	PIPE; INJ NO.2	8-98298-607-0	01	1	1502-	●
17	PIPE; INJ NO.2	8-98039-770-0	01	1	1001-1102		●
17	PIPE; INJ NO.2	8-98185-363-0	01	1	1103-1403		●
17	PIPE; INJ NO.2	8-98271-208-0	01	1	1404-1501		●
17	PIPE; INJ NO.2	8-98298-612-0	01	1	1502-		●
18	PIPE; INJ NO.3	8-98039-936-0	01	1	1012-1102	●
18	PIPE; INJ NO.3	8-98185-346-0	01	1	1103-1404	●
18	PIPE; INJ NO.3	8-98271-204-0	01	1	1405-1501	●
18	PIPE; INJ NO.3	8-98298-608-0	01	1	1502-	●
18	PIPE; INJ NO.3	8-98038-937-0	01	1	1001-1102		●
18	PIPE; INJ NO.3	8-98185-364-0	01	1	1103-1403		●
18	PIPE; INJ NO.3	8-98271-209-0	01	1	1404-1501		●
18	PIPE; INJ NO.3	8-98298-613-0	01	1	1502-		●
19	PIPE; INJ NO.4	8-98039-937-0	01	1	1012-1102	●
19	PIPE; INJ NO.4	8-98185-347-0	01	1	1103-1404	●
19	PIPE; INJ NO.4	8-98271-205-0	01	1	1405-1501	●
19	PIPE; INJ NO.4	8-98298-609-0	01	1	1502-	●
19	PIPE; INJ NO.4	8-98057-085-0	01	1	1001-1102		●
19	PIPE; INJ NO.4	8-98185-365-0	01	1	1103-1403		●
19	PIPE; INJ NO.4	8-98271-210-0	01	1	1404-1501		●
19	PIPE; INJ NO.4	8-98298-614-0	01	1	1502-		●
20	PIPE; INJ NO.5	8-98038-939-0	01	1	1001-1102		●
20	PIPE; INJ NO.5	8-98185-366-0	01	1	1103-1403		●
20	PIPE; INJ NO.5	8-98271-211-0	01	1	1404-1501		●
20	PIPE; INJ NO.5	8-98298-615-0	01	1	1502-		●
21	PIPE; INJ NO.6	8-98039-771-0	01	1	1001-1102		●
21	PIPE; INJ NO.6	8-98185-367-0	01	1	1103-1403		●
21	PIPE; INJ NO.6	8-98271-212-0	01	1	1404-1501		●
21	PIPE; INJ NO.6	8-98298-617-0	01	1	1502-		●
31	NOZZLE ASM; INJ	8-97609-788-6	04	1	1012-	●
31	NOZZLE ASM; INJ EURO2 SPECIFICATION<NT2>	8-97609-789-6	06	1	1001-		●
31	NOZZLE ASM; INJ EURO3 SPECIFICATION<NT3>	8-97609-788-6	06	1	1001-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3	8-94173-412-0	06	1	1001-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3	8-94173-412-0	04	1	1012-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	1012-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	06	1	1001-		●
68	CLIP; INJ PIPE (C) ID=7 & 7 L=22	8-97330-118-3	01	1	1012-	●
68	CLIP; INJ PIPE (D) ID=7 & 7 L=22	8-97330-119-3	01	1	1012-	●
68	CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98039-293-0	06	1	1012-1405	●
68	CLIP; INJ PIPE (B) ID=11 & 11 L=19	8-98148-996-2	06	1	1406-	●
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (A) ID=11 & 11 L=19	8-98039-293-0	14	1	1001-1405		●
68	CLIP; INJ PIPE EURO3 SPECIFICATION<NT3> (A) ID=11 & 11 L=19	8-98039-293-0	10	1	1001-1405		●
68	CLIP; INJ PIPE EURO3 SPECIFICATION<NT3> (B) ID=11 & 11 L=19	8-98148-996-2	04	1	1001-1405		●
68	CLIP; INJ PIPE (B) ID=11 & 11 L=19	8-98148-996-2	14	1	1406-		●
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	1001-		●
69	BRACKET; INJ PIPE CLIP (C)	8-98038-941-0	01	1	1001-		●
69	BRACKET; INJ PIPE CLIP (A)	8-98049-015-0	01	1	1001-		●
69	BRACKET; INJ PIPE CLIP EURO2 SPECIFICATION<NT2> (D)	8-98059-807-0	01	1	1001-		●
71	BOLT; BRKT (E) M6X10 FLANGE SOU	0-28050-610-0	02	1	1012-	●
71	BOLT; BRKT (A) M8X16 FLANGE SOU	0-28050-816-0	01	1	1012-	●
71	BOLT; BRKT (C) M8X40 FLANGE	0-28050-840-0	01	1	1012-	●
71	BOLT; BRKT (D) M8X50 FLANGE	0-28050-850-0	01	1	1012-	●
71	BOLT; BRKT (B) M10X60 FLANGE SOU	0-28051-060-0	03	1	1012-	●
71	BOLT; BRKT (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-		●
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	1001-		●
71	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M10X16 FLANGE	0-28151-016-0	01	1	1001-		●
94	BRACKET; INJ NOZZLE	8-98028-999-1	04	1	1012-	●
94	BRACKET; INJ NOZZLE	8-98028-999-1	06	1	1001-		●
99	BOLT; CLIP,INJ,PIPE M6X35 FLANGE	0-28050-635-0	03	1	1001-		●
110	NUT; CLIP M6 FLANGE SOU	0-91180-106-0	04	1	1012-	●
110	NUT; CLIP M6 FLANGE SOU	0-91180-106-0	05	1	1001-		●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94391-311-0	01	1	1001-1206		●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1207-		●
133	PIPE; INJ NOZZLE LEAK OFF EURO2 SPECIFICATION<NT2> (B)	8-98059-804-0	01	1	1001-		●
133	PIPE; INJ NOZZLE LEAK OFF EURO3 SPECIFICATION<NT3> (B)	8-97610-504-0	01	1	1001-		●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	1001-		●
134	BOLT; JOINT,LEAK OFF PIPE (B) M10X21 FLANGE	8-94396-711-0	02	1	1001-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-97240-975-0	01	1	1001-1301		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-98231-393-0	01	1	1302-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	1001-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17	8-98079-755-0	01	1	1001-		●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	9-09561-111-0	04	1	1012-1106	●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	04	1	1107-	●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	9-09561-111-0	06	1	1001-1106		●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	06	1	1107-		●
184	BOLT; NOZZLE HOLDER M8X54	8-98008-895-0	06	1	1001-		●

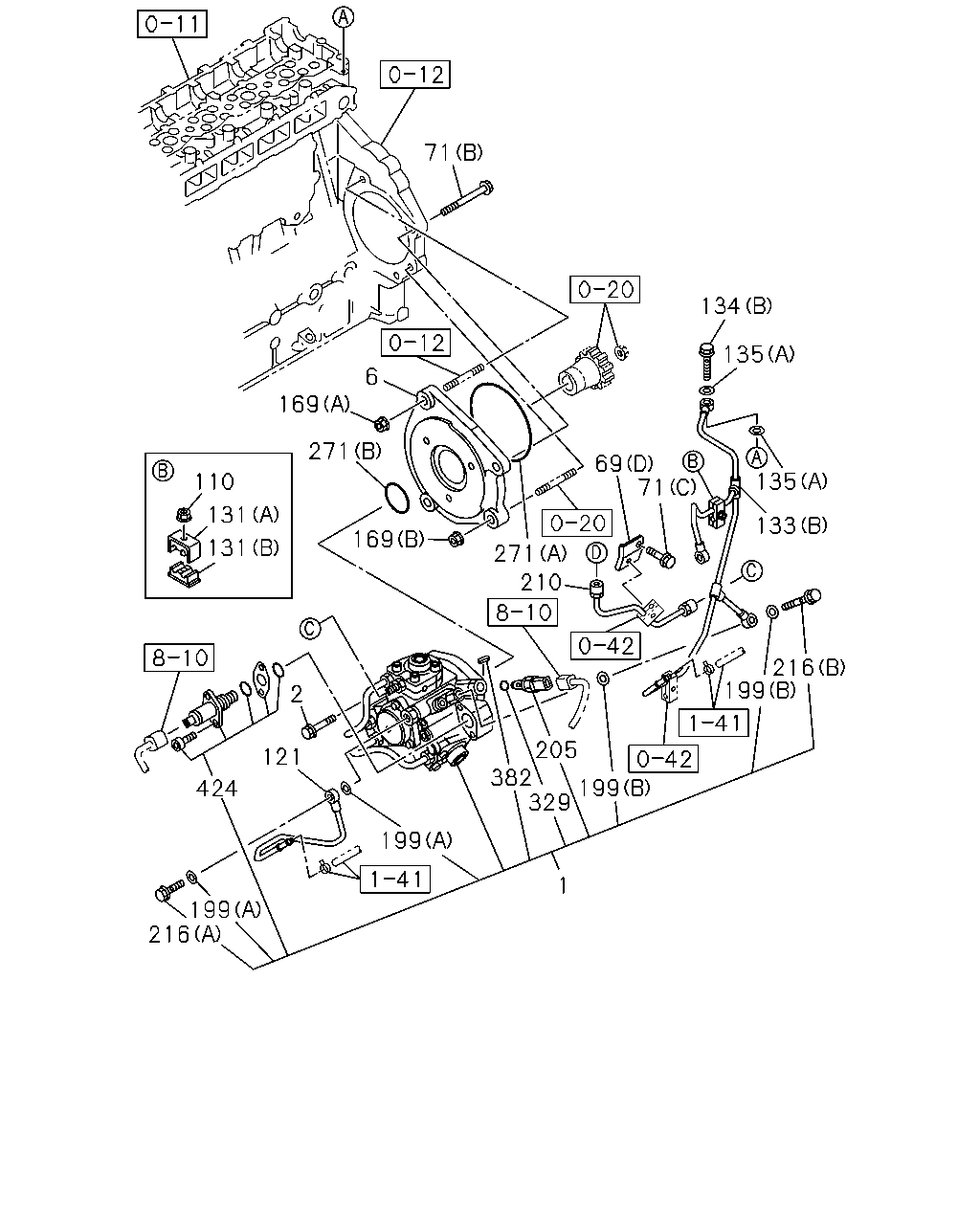

71 134 135 135 133 216 199 199 205 382 329 199 216 199 424 121 2 210 271 71 69 169 271 169 6 110 131 131 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ	8-97386-557-5	01	1	1012-	●
1	PUMP ASM; INJ	8-97605-946-7	01	1	1001-		●
2	BOLT; INJ PUMP M8X28	8-94399-256-0	03	1	1001-		●
6	BRACKET; INJ PUMP TO C/BL	8-97601-154-1	01	1	1001-		●
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	1001-		●
69	BRACKET; INJ PIPE CLIP (C)	8-98038-941-0	01	1	1001-		●
69	BRACKET; INJ PIPE CLIP (A)	8-98049-015-0	01	1	1001-		●
69	BRACKET; INJ PIPE CLIP EURO2 SPECIFICATION<NT2> (D)	8-98059-807-0	01	1	1001-		●
71	BOLT; BRKT (E) M6X10 FLANGE SOU	0-28050-610-0	02	1	1012-	●
71	BOLT; BRKT (A) M8X16 FLANGE SOU	0-28050-816-0	01	1	1012-	●
71	BOLT; BRKT (C) M8X40 FLANGE	0-28050-840-0	01	1	1012-	●
71	BOLT; BRKT (D) M8X50 FLANGE	0-28050-850-0	01	1	1012-	●
71	BOLT; BRKT (B) M10X60 FLANGE SOU	0-28051-060-0	03	1	1012-	●
71	BOLT; BRKT (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-		●
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	1001-		●
71	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M10X16 FLANGE	0-28151-016-0	01	1	1001-		●
110	NUT; CLIP M6 FLANGE SOU	0-91180-106-0	04	1	1012-	●
110	NUT; CLIP M6 FLANGE SOU	0-91180-106-0	05	1	1001-		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-98126-331-0	01	1	1001-		●
131	CLIP; OVERFLOW LEAK OFF (A) ID=7 & 9 L=25	8-98000-010-2	01	1	1001-		●
131	CLIP; OVERFLOW LEAK OFF (B) ID=7 & 9 L=25	8-98000-011-2	01	1	1001-		●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94391-311-0	01	1	1001-1206		●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1207-		●
133	PIPE; INJ NOZZLE LEAK OFF EURO2 SPECIFICATION<NT2> (B)	8-98059-804-0	01	1	1001-		●
133	PIPE; INJ NOZZLE LEAK OFF EURO3 SPECIFICATION<NT3> (B)	8-97610-504-0	01	1	1001-		●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	1001-		●
134	BOLT; JOINT,LEAK OFF PIPE (B) M10X21 FLANGE	8-94396-711-0	02	1	1001-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-97240-975-0	01	1	1001-1301		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-98231-393-0	01	1	1302-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	1001-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17	8-98079-755-0	01	1	1001-		●
169	NUT; BRKT (A) M10 FLANGE SOU	0-91180-110-0	02	1	1001-		●
169	NUT; BRKT (B) M12 FLANGE	0-91180-112-0	01	1	1001-		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1001-1011		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1012-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1001-1011		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1012-	●	●
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	1001-1011		●
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	1012-	●	●
210	PIPE; INJ,C/R	8-97376-779-0	01	1	1012-	●
210	PIPE; INJ,C/R EURO2 SPECIFICATION<NT2>	8-98059-805-0	01	1	1001-		●
210	PIPE; INJ,C/R EURO3 SPECIFICATION<NT3>	8-97608-480-1	01	1	1001-		●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1001-1011		●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1012-	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1001-1011		●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1012-	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1001-1011		●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1012-	●	●
271	GASKET; INJ PUMP (A) ID=139.6	1-09623-464-0	01	1	1001-		●
271	GASKET; INJ PUMP (B) ID=52	8-98031-844-0	01	1	1001-		●
329	GASKET; SENSOR,FUEL TEMP ID=9.8 OD=11.7	9-09566-110-0	01	1	1001-1011		●
329	GASKET; SENSOR,FUEL TEMP ID=9.8 OD=11.7	9-09566-110-0	01	1	1012-1201	●	●
382	KEY; DRIVE SHAFT	8-97375-384-0	01	1	1012-1201	●
382	KEY; DRIVE SHAFT	8-98161-995-0	01	1	1001-1201		●
382	KEY; DRIVE SHAFT	8-98161-995-0	01	1	1202-	●	●
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1012-	●
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-449-1	01	1	1001-		●

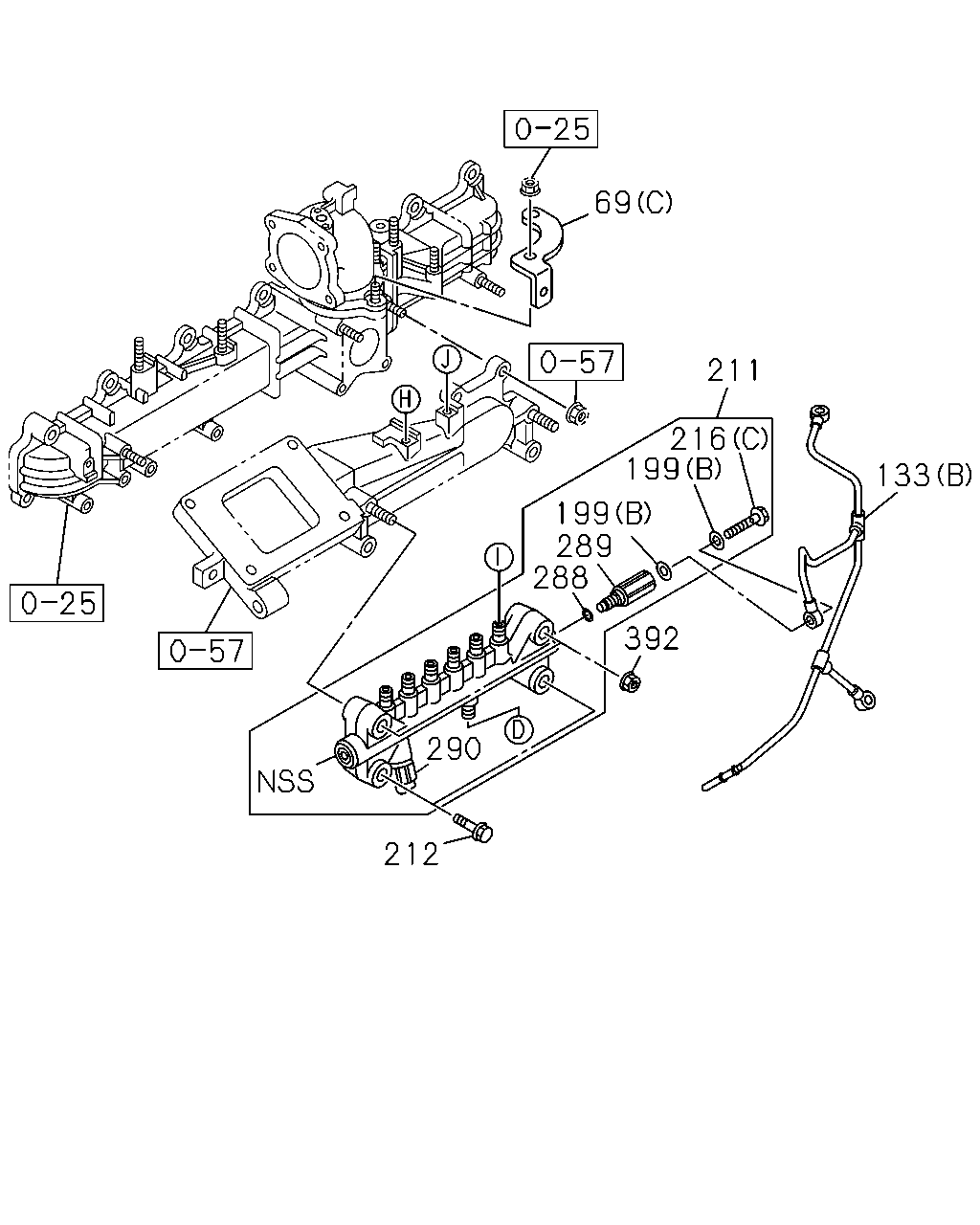

69 211 216 199 199 133 289 288 392 290 212

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	1001-		●
69	BRACKET; INJ PIPE CLIP (C)	8-98038-941-0	01	1	1001-		●
69	BRACKET; INJ PIPE CLIP (A)	8-98049-015-0	01	1	1001-		●
69	BRACKET; INJ PIPE CLIP EURO2 SPECIFICATION<NT2> (D)	8-98059-807-0	01	1	1001-		●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94391-311-0	01	1	1001-1206		●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1207-		●
133	PIPE; INJ NOZZLE LEAK OFF EURO2 SPECIFICATION<NT2> (B)	8-98059-804-0	01	1	1001-		●
133	PIPE; INJ NOZZLE LEAK OFF EURO3 SPECIFICATION<NT3> (B)	8-97610-504-0	01	1	1001-		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1001-1011		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1012-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1001-1011		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1012-	●	●
211	RAIL ASM; COMMON	8-98011-888-2	01	1	1012-	●
211	RAIL ASM; COMMON	8-97609-980-2	01	1	1001-		●
212	BOLT; RAIL ASM M10X50 FLANGE	8-97372-243-0	02	1	1001-		●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1001-1011		●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1012-	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1001-1011		●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1012-	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1001-1011		●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1012-	●	●
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1001-1011		●
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1012-	●	●
289	LIMITER; FUEL PRESS	8-98032-549-0	01	1	1001-1011		●
289	LIMITER; FUEL PRESS	8-98032-549-0	01	1	1012-	●	●
290	SENSOR; PRESS	8-98119-790-0	01	1	1001-1011		●
290	SENSOR; PRESS	8-98119-790-0	01	1	1012-	●	●
392	NUT; RAIL ASM M10 FLANGE SOU	0-91180-110-0	02	1	1001-		●

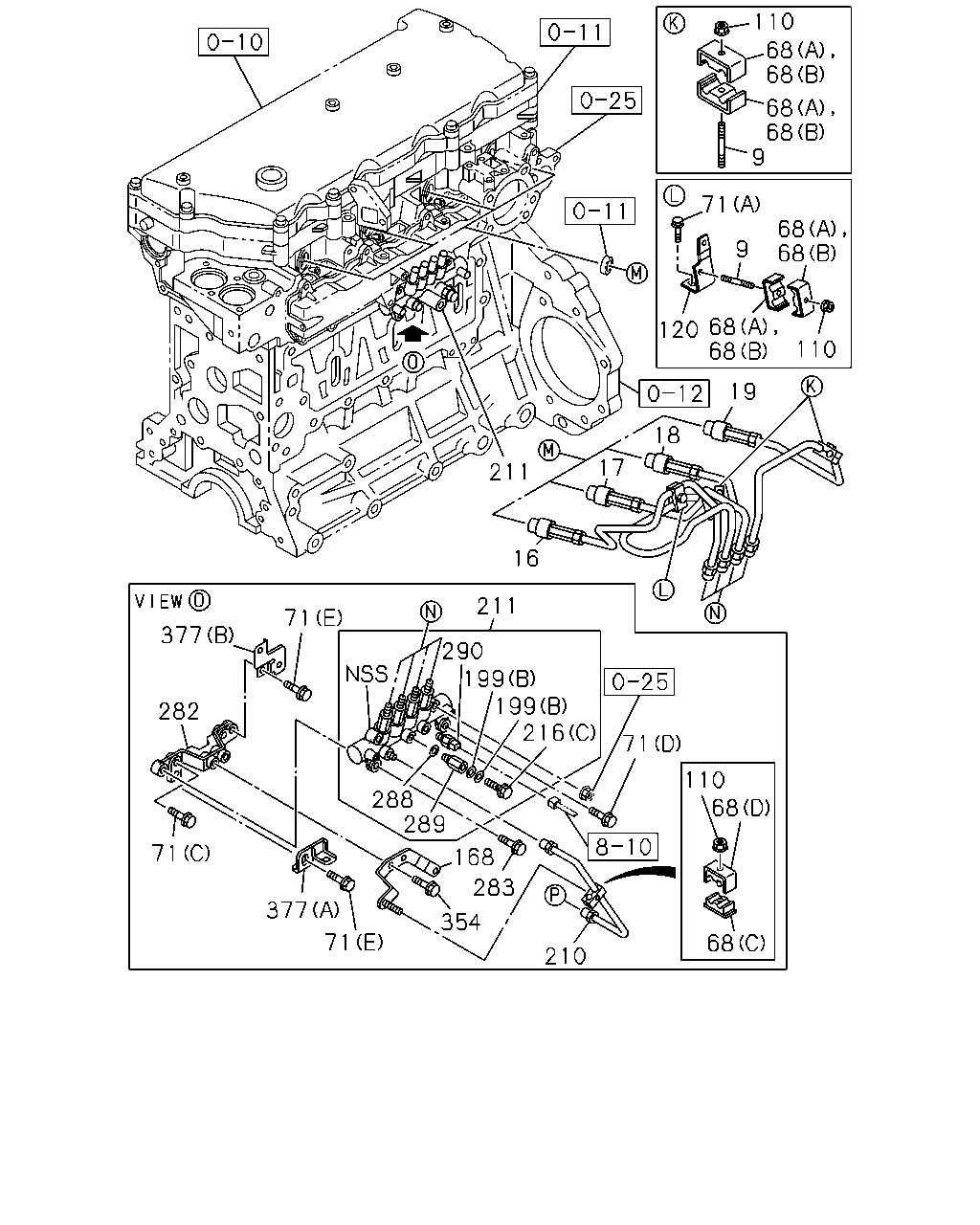

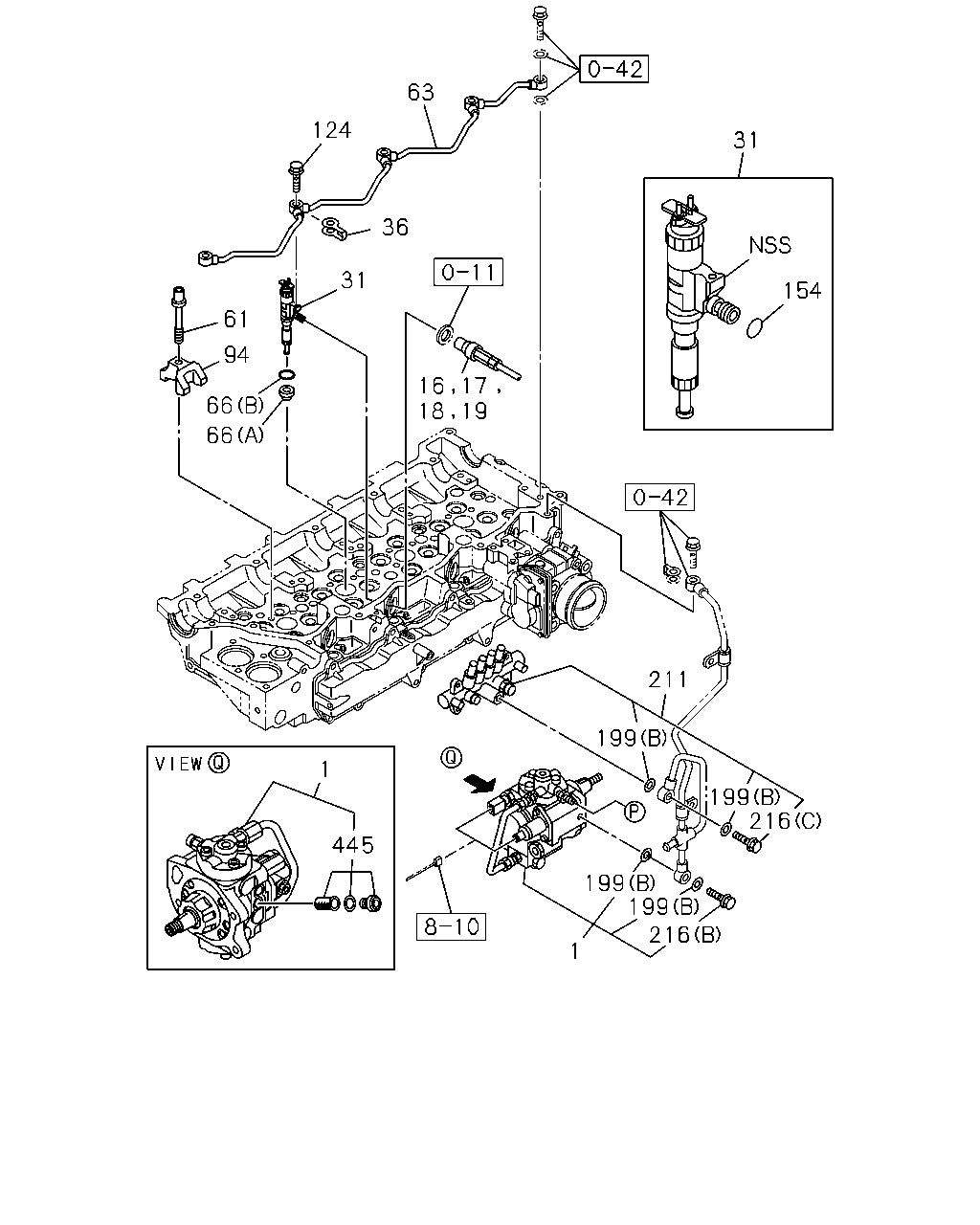

63 124 36 31 61 94 66 66 16 18 19 17 31 154 211 199 1 445 1 216 199 199 216 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ	8-97386-557-5	01	1	1012-	●
1	PUMP ASM; INJ	8-97605-946-7	01	1	1001-		●
16	PIPE; INJ NO.1	8-98039-934-0	01	1	1012-1102	●
16	PIPE; INJ NO.1	8-98185-344-0	01	1	1103-1404	●
16	PIPE; INJ NO.1	8-98271-202-0	01	1	1405-1501	●
16	PIPE; INJ NO.1	8-98298-606-0	01	1	1502-	●
16	PIPE; INJ NO.1	8-98038-936-0	01	1	1001-1102		●
16	PIPE; INJ NO.1	8-98185-362-0	01	1	1103-1403		●
16	PIPE; INJ NO.1	8-98271-207-0	01	1	1404-1501		●
16	PIPE; INJ NO.1	8-98298-611-0	01	1	1502-		●
17	PIPE; INJ NO.2	8-98039-935-0	01	1	1012-1102	●
17	PIPE; INJ NO.2	8-98185-345-0	01	1	1103-1404	●
17	PIPE; INJ NO.2	8-98271-203-0	01	1	1405-1501	●
17	PIPE; INJ NO.2	8-98298-607-0	01	1	1502-	●
17	PIPE; INJ NO.2	8-98039-770-0	01	1	1001-1102		●
17	PIPE; INJ NO.2	8-98185-363-0	01	1	1103-1403		●
17	PIPE; INJ NO.2	8-98271-208-0	01	1	1404-1501		●
17	PIPE; INJ NO.2	8-98298-612-0	01	1	1502-		●
18	PIPE; INJ NO.3	8-98039-936-0	01	1	1012-1102	●
18	PIPE; INJ NO.3	8-98185-346-0	01	1	1103-1404	●
18	PIPE; INJ NO.3	8-98271-204-0	01	1	1405-1501	●
18	PIPE; INJ NO.3	8-98298-608-0	01	1	1502-	●
18	PIPE; INJ NO.3	8-98038-937-0	01	1	1001-1102		●
18	PIPE; INJ NO.3	8-98185-364-0	01	1	1103-1403		●
18	PIPE; INJ NO.3	8-98271-209-0	01	1	1404-1501		●
18	PIPE; INJ NO.3	8-98298-613-0	01	1	1502-		●
19	PIPE; INJ NO.4	8-98039-937-0	01	1	1012-1102	●
19	PIPE; INJ NO.4	8-98185-347-0	01	1	1103-1404	●
19	PIPE; INJ NO.4	8-98271-205-0	01	1	1405-1501	●
19	PIPE; INJ NO.4	8-98298-609-0	01	1	1502-	●
19	PIPE; INJ NO.4	8-98057-085-0	01	1	1001-1102		●
19	PIPE; INJ NO.4	8-98185-365-0	01	1	1103-1403		●
19	PIPE; INJ NO.4	8-98271-210-0	01	1	1404-1501		●
19	PIPE; INJ NO.4	8-98298-614-0	01	1	1502-		●
31	NOZZLE ASM; INJ	8-97609-788-6	04	1	1012-	●
31	NOZZLE ASM; INJ EURO2 SPECIFICATION<NT2>	8-97609-789-6	06	1	1001-		●
31	NOZZLE ASM; INJ EURO3 SPECIFICATION<NT3>	8-97609-788-6	06	1	1001-		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0	8-98065-992-0	04	1	1012-	●
61	BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	04	1	1012-	●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	1012-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3	8-94173-412-0	04	1	1012-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	1012-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	06	1	1001-		●
94	BRACKET; INJ NOZZLE	8-98028-999-1	04	1	1012-	●
94	BRACKET; INJ NOZZLE	8-98028-999-1	06	1	1001-		●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	04	1	1012-	●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	9-09561-111-0	04	1	1012-1106	●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	04	1	1107-	●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	9-09561-111-0	06	1	1001-1106		●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	06	1	1107-		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1001-1011		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1012-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1001-1011		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1012-	●	●
211	RAIL ASM; COMMON	8-98011-888-2	01	1	1012-	●
211	RAIL ASM; COMMON	8-97609-980-2	01	1	1001-		●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1001-1011		●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1012-	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1001-1011		●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1012-	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1001-1011		●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1012-	●	●
445	SCREW; FILTER,INLET	8-98204-986-0	01	1	1012-	●

110 68 68 68 68 68 68 68 68 68 68 9 71 9 110 120 19 18 17 16 211 211 290 199 199 216 71 110 210 283 168 289 288 354 71 377 71 282 377 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	STUD; CLIP M6X30 L=38	0-41010-630-0	02	1	1012-	●
9	STUD; CLIP M6X35 L=43	8-97203-278-0	01	1	1012-	●
16	PIPE; INJ NO.1	8-98039-934-0	01	1	1012-1102	●
16	PIPE; INJ NO.1	8-98185-344-0	01	1	1103-1404	●
16	PIPE; INJ NO.1	8-98271-202-0	01	1	1405-1501	●
16	PIPE; INJ NO.1	8-98298-606-0	01	1	1502-	●
16	PIPE; INJ NO.1	8-98038-936-0	01	1	1001-1102		●
16	PIPE; INJ NO.1	8-98185-362-0	01	1	1103-1403		●
16	PIPE; INJ NO.1	8-98271-207-0	01	1	1404-1501		●
16	PIPE; INJ NO.1	8-98298-611-0	01	1	1502-		●
17	PIPE; INJ NO.2	8-98039-935-0	01	1	1012-1102	●
17	PIPE; INJ NO.2	8-98185-345-0	01	1	1103-1404	●
17	PIPE; INJ NO.2	8-98271-203-0	01	1	1405-1501	●
17	PIPE; INJ NO.2	8-98298-607-0	01	1	1502-	●
17	PIPE; INJ NO.2	8-98039-770-0	01	1	1001-1102		●
17	PIPE; INJ NO.2	8-98185-363-0	01	1	1103-1403		●
17	PIPE; INJ NO.2	8-98271-208-0	01	1	1404-1501		●
17	PIPE; INJ NO.2	8-98298-612-0	01	1	1502-		●
18	PIPE; INJ NO.3	8-98039-936-0	01	1	1012-1102	●
18	PIPE; INJ NO.3	8-98185-346-0	01	1	1103-1404	●
18	PIPE; INJ NO.3	8-98271-204-0	01	1	1405-1501	●
18	PIPE; INJ NO.3	8-98298-608-0	01	1	1502-	●
18	PIPE; INJ NO.3	8-98038-937-0	01	1	1001-1102		●
18	PIPE; INJ NO.3	8-98185-364-0	01	1	1103-1403		●
18	PIPE; INJ NO.3	8-98271-209-0	01	1	1404-1501		●
18	PIPE; INJ NO.3	8-98298-613-0	01	1	1502-		●
19	PIPE; INJ NO.4	8-98039-937-0	01	1	1012-1102	●
19	PIPE; INJ NO.4	8-98185-347-0	01	1	1103-1404	●
19	PIPE; INJ NO.4	8-98271-205-0	01	1	1405-1501	●
19	PIPE; INJ NO.4	8-98298-609-0	01	1	1502-	●
19	PIPE; INJ NO.4	8-98057-085-0	01	1	1001-1102		●
19	PIPE; INJ NO.4	8-98185-365-0	01	1	1103-1403		●
19	PIPE; INJ NO.4	8-98271-210-0	01	1	1404-1501		●
19	PIPE; INJ NO.4	8-98298-614-0	01	1	1502-		●
68	CLIP; INJ PIPE (C) ID=7 & 7 L=22	8-97330-118-3	01	1	1012-	●
68	CLIP; INJ PIPE (D) ID=7 & 7 L=22	8-97330-119-3	01	1	1012-	●
68	CLIP; INJ PIPE (A) ID=11 & 11 L=19	8-98039-293-0	06	1	1012-1405	●
68	CLIP; INJ PIPE (B) ID=11 & 11 L=19	8-98148-996-2	06	1	1406-	●
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2> (A) ID=11 & 11 L=19	8-98039-293-0	14	1	1001-1405		●
68	CLIP; INJ PIPE EURO3 SPECIFICATION<NT3> (A) ID=11 & 11 L=19	8-98039-293-0	10	1	1001-1405		●
68	CLIP; INJ PIPE EURO3 SPECIFICATION<NT3> (B) ID=11 & 11 L=19	8-98148-996-2	04	1	1001-1405		●
68	CLIP; INJ PIPE (B) ID=11 & 11 L=19	8-98148-996-2	14	1	1406-		●
71	BOLT; BRKT (E) M6X10 FLANGE SOU	0-28050-610-0	02	1	1012-	●
71	BOLT; BRKT (A) M8X16 FLANGE SOU	0-28050-816-0	01	1	1012-	●
71	BOLT; BRKT (C) M8X40 FLANGE	0-28050-840-0	01	1	1012-	●
71	BOLT; BRKT (D) M8X50 FLANGE	0-28050-850-0	01	1	1012-	●
71	BOLT; BRKT (B) M10X60 FLANGE SOU	0-28051-060-0	03	1	1012-	●
71	BOLT; BRKT (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-		●
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	1001-		●
71	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M10X16 FLANGE	0-28151-016-0	01	1	1001-		●
110	NUT; CLIP M6 FLANGE SOU	0-91180-106-0	04	1	1012-	●
110	NUT; CLIP M6 FLANGE SOU	0-91180-106-0	05	1	1001-		●
120	BRACKET; INJ PIPE	8-98001-041-0	01	1	1012-	●
168	BRACKET; FUEL PIPE	8-98072-403-0	01	1	1012-	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1001-1011		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1012-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1001-1011		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1012-	●	●
210	PIPE; INJ,C/R	8-97376-779-0	01	1	1012-	●
210	PIPE; INJ,C/R EURO2 SPECIFICATION<NT2>	8-98059-805-0	01	1	1001-		●
210	PIPE; INJ,C/R EURO3 SPECIFICATION<NT3>	8-97608-480-1	01	1	1001-		●
211	RAIL ASM; COMMON	8-98011-888-2	01	1	1012-	●
211	RAIL ASM; COMMON	8-97609-980-2	01	1	1001-		●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1001-1011		●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1012-	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1001-1011		●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1012-	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1001-1011		●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1012-	●	●
282	BRACKET; COMMON RAIL	8-98157-115-0	01	1	1012-	●
283	BOLT; COMMON RAIL M8X25 FLANGE SOU	0-28050-825-0	01	1	1012-	●
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1001-1011		●
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1012-	●	●
289	LIMITER; FUEL PRESS	8-98032-549-0	01	1	1001-1011		●
289	LIMITER; FUEL PRESS	8-98032-549-0	01	1	1012-	●	●
290	SENSOR; PRESS	8-98119-790-0	01	1	1001-1011		●
290	SENSOR; PRESS	8-98119-790-0	01	1	1012-	●	●
354	BOLT; FUEL PIPE M8X16 FLANGE SOU	0-28050-816-0	02	1	1012-	●
377	BRACKET; HARNESS (A)	8-97310-438-1	01	1	1012-	●
377	BRACKET; HARNESS (B)	8-97379-783-1	01	1	1012-	●

15 15 219 158 80 71 382 216 199 199 1 87 199 199 216 329 205 424 226 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ	8-97386-557-5	01	1	1012-	●
1	PUMP ASM; INJ	8-97605-946-7	01	1	1001-		●
15	COUPLING ASM; INJ PUMP (A)	8-97306-054-0	01	1	1012-	●
15	COUPLING ASM; INJ PUMP (B) SEE FIG-NO 0-87 FOR COMPONENT.	8-97306-059-1	01	1	1012-	●
71	BOLT; BRKT (E) M6X10 FLANGE SOU	0-28050-610-0	02	1	1012-	●
71	BOLT; BRKT (A) M8X16 FLANGE SOU	0-28050-816-0	01	1	1012-	●
71	BOLT; BRKT (C) M8X40 FLANGE	0-28050-840-0	01	1	1012-	●
71	BOLT; BRKT (D) M8X50 FLANGE	0-28050-850-0	01	1	1012-	●
71	BOLT; BRKT (B) M10X60 FLANGE SOU	0-28051-060-0	03	1	1012-	●
71	BOLT; BRKT (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-		●
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	1001-		●
71	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M10X16 FLANGE	0-28151-016-0	01	1	1001-		●
80	BRACKET; PUMP	8-98061-699-0	01	1	1012-	●
87	BOLT; PUMP M8X30 FLANGE	0-28650-830-0	03	1	1012-	●
87	BOLT; PUMP M8X40 FLANGE SOU	0-28650-840-0	02	1	1012-	●
158	NUT; INJ PUMP M14 FLANGE	0-91180-114-0	01	1	1012-	●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97066-386-1	02	1	1012-	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1001-1011		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1012-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1001-1011		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1012-	●	●
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	1001-1011		●
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	1012-	●	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1001-1011		●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1012-	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1001-1011		●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1012-	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1001-1011		●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1012-	●	●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=94.6	1-09623-593-0	01	1	1012-	●
226	PIPE; FUEL	8-98126-332-0	01	1	1012-	●
329	GASKET; SENSOR,FUEL TEMP ID=9.8 OD=11.7	9-09566-110-0	01	1	1001-1011		●
329	GASKET; SENSOR,FUEL TEMP ID=9.8 OD=11.7	9-09566-110-0	01	1	1012-1201	●	●
382	KEY; DRIVE SHAFT	8-97375-384-0	01	1	1012-1201	●
382	KEY; DRIVE SHAFT	8-98161-995-0	01	1	1001-1201		●
382	KEY; DRIVE SHAFT	8-98161-995-0	01	1	1202-	●	●
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1012-	●
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-449-1	01	1	1001-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
