Sayfa 0-39 - Isuzu EPC

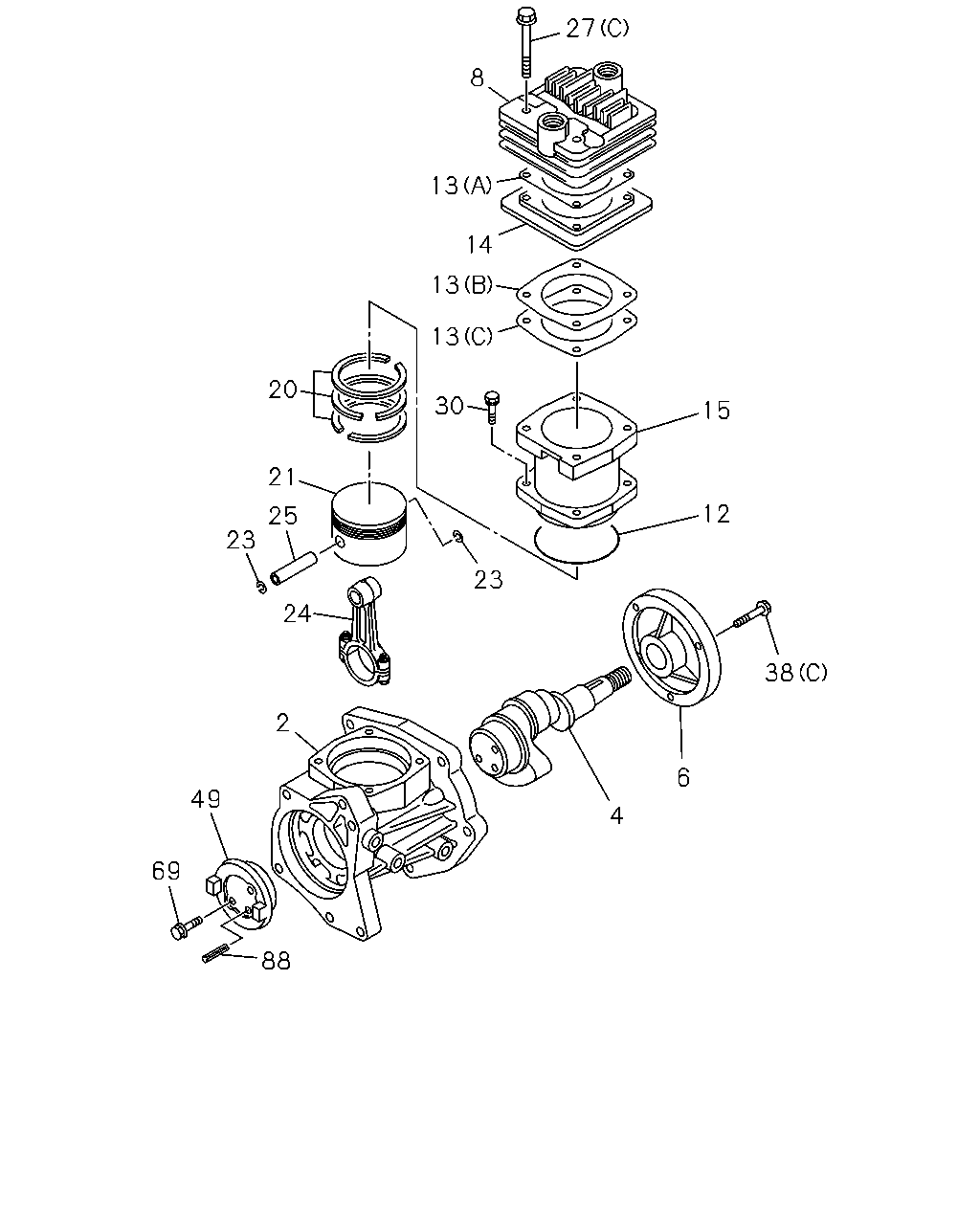

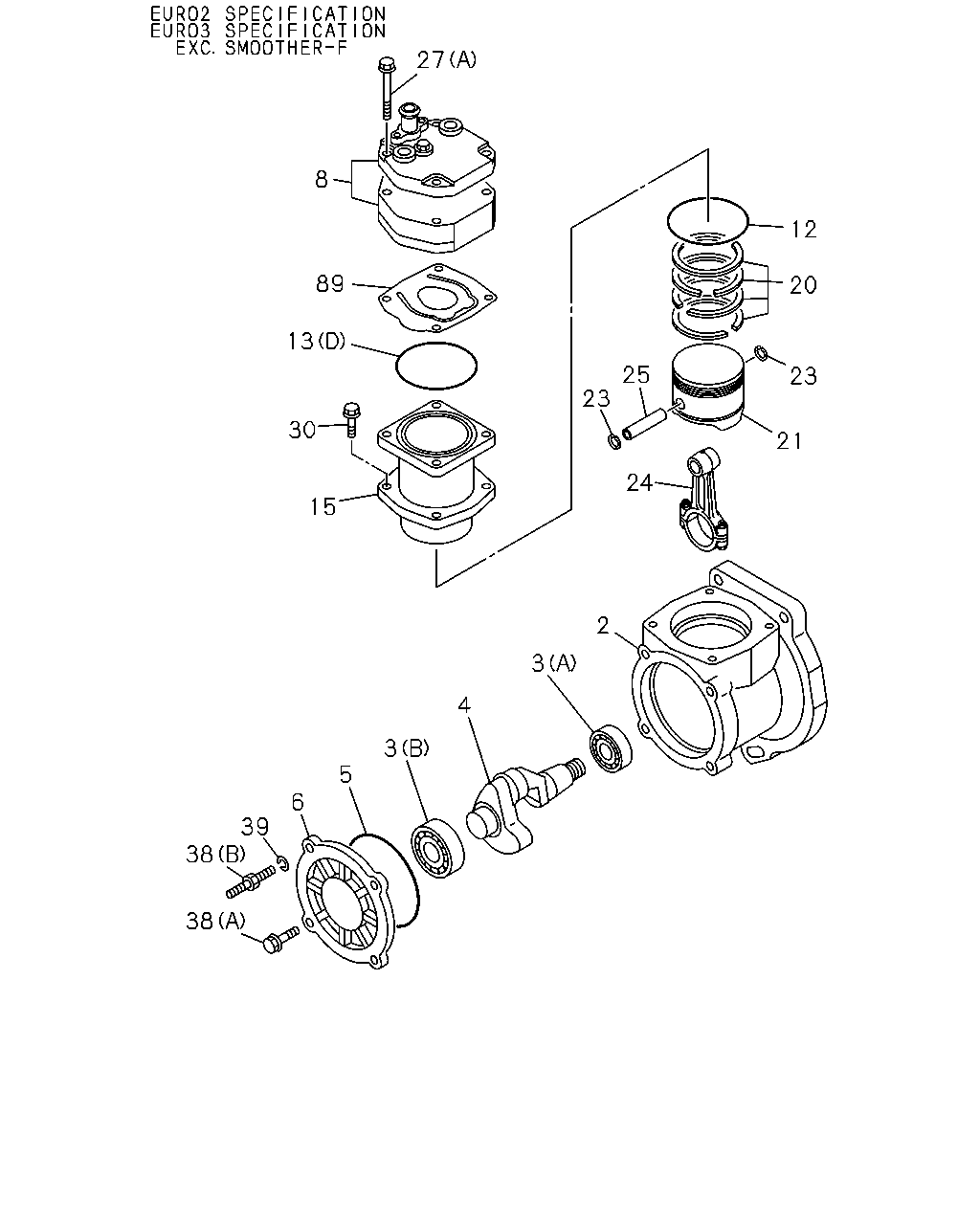

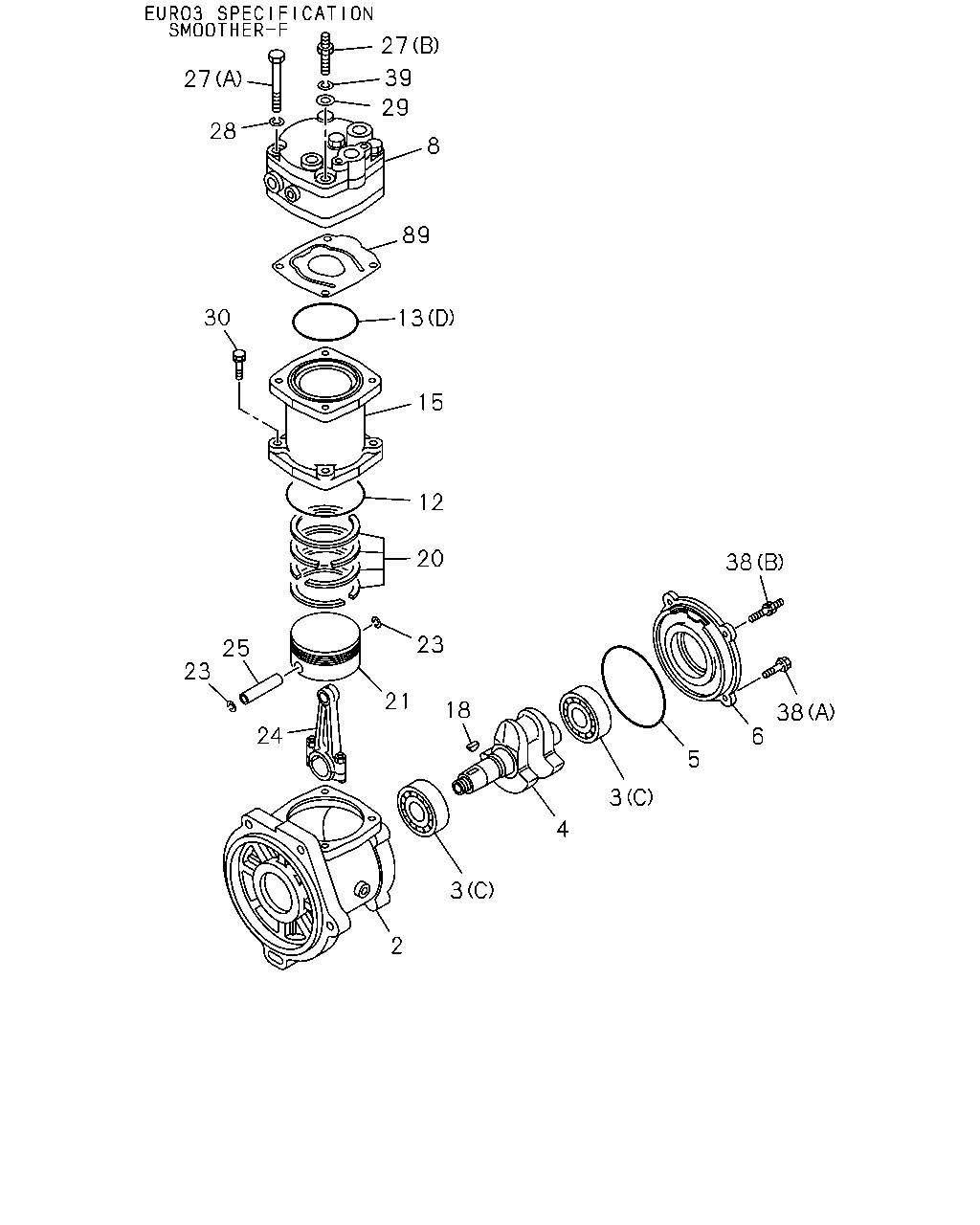

0-39 — AIR COMPRESSOR; BRAKE (#55502) — 336 parça

27 39 27 29 28 8 89 30 13 15 12 20 38 23 25 23 21 18 38 24 6 5 3 4 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	CRANKCASE; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97614-060-0	01	1	1109-1201	●
2	CRANKCASE; AIR CMPR	1-19151-303-0	01	1	1012-		●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	1001-1109	●
2	CRANKCASE; AIR CMPR FSR SGL CAB(FC*M)	1-19151-274-0	01	1	1110-1201	●
2	CRANKCASE; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-19151-274-0	01	1	1110-1201	●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	1202-	●
3	BEARING; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09800-268-0	02	1	1109-1201	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	1001-1109	●
3	BEARING; AIR CMPR FSR SGL CAB(FC*M) (B)	9-00006-206-0	01	1	1110-1201	●
3	BEARING; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	9-00006-206-0	01	1	1110-1201	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	1202-	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	1001-1109	●
3	BEARING; AIR CMPR FSR SGL CAB(FC*M) (A)	9-00090-152-0	01	1	1110-1201	●
3	BEARING; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	9-00090-152-0	01	1	1110-1201	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	1202-	●
4	CRANKSHAFT; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97614-059-1	01	1	1109-1201	●
4	CRANKSHAFT; AIR CMPR	1-19171-090-1	01	1	1012-		●
4	CRANKSHAFT; AIR CMPR	1-19171-096-0	01	1	1001-1109	●
4	CRANKSHAFT; AIR CMPR FSR SGL CAB(FC*M)	1-19171-096-0	01	1	1110-1201	●
4	CRANKSHAFT; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-19171-096-0	01	1	1110-1201	●
4	CRANKSHAFT; AIR CMPR	1-19171-096-0	01	1	1202-	●
5	GASKET; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-463-0	01	1	1109-1201	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	1001-1107	●
5	GASKET; AIR CMPR	8-98192-460-0	01	1	1108-1109	●
5	GASKET; AIR CMPR FSR SGL CAB(FC*M)	8-98192-460-0	01	1	1110-1201	●
5	GASKET; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98192-460-0	01	1	1110-1201	●
5	GASKET; AIR CMPR	8-98192-460-0	01	1	1202-	●
6	COVER ASM; BRG,AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97614-058-0	01	1	1109-1201	●
6	COVER ASM; BRG,AIR CMPR	1-19156-086-1	01	1	1012-		●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	1001-1109	●
6	COVER ASM; BRG,AIR CMPR FSR SGL CAB(FC*M)	1-19156-039-0	01	1	1110-1201	●
6	COVER ASM; BRG,AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-19156-039-0	01	1	1110-1201	●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	1202-	●
8	HEAD ASM; CYL,AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98167-012-0	01	1	1109-1201	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-076-0	01	1	1012-1101		●
8	HEAD ASM; CYL,AIR CMPR	1-19110-075-0	01	1	1102-		●
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<NT2>	8-97619-779-1	01	1	1001-1012	●
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<NT2>	8-98167-014-0	01	1	1101-	●
8	HEAD ASM; CYL,AIR CMPR EURO3 SPECIFICATION<NT3>	8-98038-657-2	01	1	1001-1012	●
8	HEAD ASM; CYL,AIR CMPR EURO3 SPECIFICATION<NT3>	8-98167-015-0	01	1	1101-1109	●
8	HEAD ASM; CYL,AIR CMPR FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3>	8-98167-015-0	01	1	1110-	●
8	HEAD ASM; CYL,AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98167-015-0	01	1	1110-	●
12	GASKET; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98048-641-0	01	1	1109-1201	●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1108-1109	●
12	GASKET; AIR CMPR FSR SGL CAB(FC*M)	8-98185-684-0	01	1	1110-1201	●
12	GASKET; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98185-684-0	01	1	1110-1201	●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1202-	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	1001-1011	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	1012-1107	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	1108-1109		●
13	GASKET; AIR CMPR (A)	1-19115-017-0	01	1	1012-1101		●
13	GASKET; AIR CMPR (A)	1-19115-015-0	01	1	1102-		●
13	GASKET; AIR CMPR (B) T=0.5	1-19115-018-0	01	1	1012-1101		●
13	GASKET; AIR CMPR (B)	1-19115-016-0	01	1	1102-		●
13	GASKET; AIR CMPR (C) T=0.8	1-19115-019-0	01	1	1012-1101		●
13	GASKET; AIR CMPR (D)	1-09623-615-0	01	1	1001-1107	●
13	GASKET; AIR CMPR (D)	8-98048-640-0	01	1	1108-	●
15	CYLINDER; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97614-056-0	01	1	1109-1201	●
15	CYLINDER; AIR CMPR	1-19163-070-2	01	1	1012-1101		●
15	CYLINDER; AIR CMPR	1-19163-068-1	01	1	1102-		●
15	CYLINDER; AIR CMPR	8-98038-668-0	01	1	1001-1109	●
15	CYLINDER; AIR CMPR FSR SGL CAB(FC*M)	8-98038-668-0	01	1	1110-1201	●
15	CYLINDER; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98038-668-0	01	1	1110-1201	●
15	CYLINDER; AIR CMPR	8-98038-668-0	01	1	1202-	●
18	KEY; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	9-08055-516-0	01	1	1109-1201	●
20	RING KIT; PISTON,AIR CMPR	1-19163-071-0	01	1	1012-1101		●
20	RING KIT; PISTON,AIR CMPR	1-19163-069-0	01	1	1102-1103		●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	1001-1103	●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	1104-	●	●
21	PISTON; AIR CMPR	1-19161-028-0	01	1	1012-1101		●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	1001-1101	●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	1102-	●	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	1001-1011	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	1012-	●	●
24	ROD ASM; CONN,AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97614-057-0	01	1	1109-1201	●
24	ROD ASM; CONN,AIR CMPR	1-19173-024-0	01	1	1012-1101		●
24	ROD ASM; CONN,AIR CMPR	1-19173-023-0	01	1	1102-		●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	1001-1109	●
24	ROD ASM; CONN,AIR CMPR FSR SGL CAB(FC*M)	1-19173-010-0	01	1	1110-1201	●
24	ROD ASM; CONN,AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-19173-010-0	01	1	1110-1201	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	1202-	●
25	PIN; PISTON,AIR CMPR	9-19167-006-0	01	1	1012-1101		●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	1001-1101	●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	1102-	●	●
27	BOLT; HD FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97614-054-0	01	1	1109-1201	●
27	BOLT; HD FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M10X75	8-98167-018-0	03	1	1109-1201	●
27	BOLT; HD (C)	1-19119-040-0	04	1	1012-1101		●
27	BOLT; HD (C)	1-19119-039-0	04	1	1102-1103		●
27	BOLT; HD (C)	8-98188-172-0	04	1	1104-		●
27	BOLT; HD (A) M10X80	8-98038-666-0	04	1	1001-1012	●
27	BOLT; HD (A) M10X75	8-98167-018-0	04	1	1101-1109	●
27	BOLT; HD FSR SGL CAB(FC*M) (A) M10X75	8-98167-018-0	04	1	1110-1201	●
27	BOLT; HD FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M10X75	8-98167-018-0	04	1	1110-1201	●
27	BOLT; HD (A) M10X75	8-98167-018-0	04	1	1202-	●
28	WASHER; LK,HD BOLT FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97613-694-0	01	1	1109-1201	●
29	WASHER; PL,HD BOLT FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97613-686-0	01	1	1109-1201	●
30	BOLT; CYL TO CRANKCASE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X30	8-97613-704-0	04	1	1109-1201	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	1012-		●
30	BOLT; CYL TO CRANKCASE M10X25	8-98038-763-0	04	1	1001-1109	●
30	BOLT; CYL TO CRANKCASE FSR SGL CAB(FC*M) M10X25	8-98038-763-0	04	1	1110-1201	●
30	BOLT; CYL TO CRANKCASE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X25	8-98038-763-0	04	1	1110-1201	●
30	BOLT; CYL TO CRANKCASE M10X25	8-98038-763-0	04	1	1202-	●
38	BOLT; COVER FIX FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M10X30	8-97613-704-0	02	1	1109-1201	●
38	BOLT; COVER FIX FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97617-310-0	02	1	1109-1201	●
38	BOLT; COVER FIX (C)	1-19159-023-0	03	1	1012-		●
38	BOLT; COVER FIX (B)	8-97617-894-0	02	1	1001-1109	●
38	BOLT; COVER FIX FSR SGL CAB(FC*M) (B)	8-97617-894-0	02	1	1110-1201	●
38	BOLT; COVER FIX FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97617-894-0	02	1	1110-1201	●
38	BOLT; COVER FIX (B)	8-97617-894-0	02	1	1202-	●
38	BOLT; COVER FIX (A) M8X20	8-97617-895-0	02	1	1001-1109	●
38	BOLT; COVER FIX FSR SGL CAB(FC*M) (A) M8X20	8-97617-895-0	02	1	1110-1201	●
38	BOLT; COVER FIX FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X20	8-97617-895-0	02	1	1110-1201	●
38	BOLT; COVER FIX (A) M8X20	8-97617-895-0	02	1	1202-	●
39	WASHER; LK,COVER FIX FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97613-694-0	02	1	1109-1201	●
39	WASHER; LK,COVER FIX	8-97617-893-0	02	1	1001-1109	●
39	WASHER; LK,COVER FIX FSR SGL CAB(FC*M)	8-97617-893-0	02	1	1110-1201	●
39	WASHER; LK,COVER FIX FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97617-893-0	02	1	1110-1201	●
39	WASHER; LK,COVER FIX	8-97617-893-0	02	1	1202-	●
89	VALVE; SUCTION	1-19119-045-0	01	1	1001-	●

27 8 12 89 20 13 25 23 23 30 21 24 15 2 3 4 3 5 6 39 38 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	CRANKCASE; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97614-060-0	01	1	1109-1201	●
2	CRANKCASE; AIR CMPR	1-19151-303-0	01	1	1012-		●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	1001-1109	●
2	CRANKCASE; AIR CMPR FSR SGL CAB(FC*M)	1-19151-274-0	01	1	1110-1201	●
2	CRANKCASE; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-19151-274-0	01	1	1110-1201	●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	1202-	●
3	BEARING; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09800-268-0	02	1	1109-1201	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	1001-1109	●
3	BEARING; AIR CMPR FSR SGL CAB(FC*M) (B)	9-00006-206-0	01	1	1110-1201	●
3	BEARING; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	9-00006-206-0	01	1	1110-1201	●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	1202-	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	1001-1109	●
3	BEARING; AIR CMPR FSR SGL CAB(FC*M) (A)	9-00090-152-0	01	1	1110-1201	●
3	BEARING; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	9-00090-152-0	01	1	1110-1201	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	1202-	●
4	CRANKSHAFT; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97614-059-1	01	1	1109-1201	●
4	CRANKSHAFT; AIR CMPR	1-19171-090-1	01	1	1012-		●
4	CRANKSHAFT; AIR CMPR	1-19171-096-0	01	1	1001-1109	●
4	CRANKSHAFT; AIR CMPR FSR SGL CAB(FC*M)	1-19171-096-0	01	1	1110-1201	●
4	CRANKSHAFT; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-19171-096-0	01	1	1110-1201	●
4	CRANKSHAFT; AIR CMPR	1-19171-096-0	01	1	1202-	●
5	GASKET; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98192-463-0	01	1	1109-1201	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	1001-1107	●
5	GASKET; AIR CMPR	8-98192-460-0	01	1	1108-1109	●
5	GASKET; AIR CMPR FSR SGL CAB(FC*M)	8-98192-460-0	01	1	1110-1201	●
5	GASKET; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98192-460-0	01	1	1110-1201	●
5	GASKET; AIR CMPR	8-98192-460-0	01	1	1202-	●
6	COVER ASM; BRG,AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97614-058-0	01	1	1109-1201	●
6	COVER ASM; BRG,AIR CMPR	1-19156-086-1	01	1	1012-		●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	1001-1109	●
6	COVER ASM; BRG,AIR CMPR FSR SGL CAB(FC*M)	1-19156-039-0	01	1	1110-1201	●
6	COVER ASM; BRG,AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-19156-039-0	01	1	1110-1201	●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	1202-	●
8	HEAD ASM; CYL,AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98167-012-0	01	1	1109-1201	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-076-0	01	1	1012-1101		●
8	HEAD ASM; CYL,AIR CMPR	1-19110-075-0	01	1	1102-		●
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<NT2>	8-97619-779-1	01	1	1001-1012	●
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<NT2>	8-98167-014-0	01	1	1101-	●
8	HEAD ASM; CYL,AIR CMPR EURO3 SPECIFICATION<NT3>	8-98038-657-2	01	1	1001-1012	●
8	HEAD ASM; CYL,AIR CMPR EURO3 SPECIFICATION<NT3>	8-98167-015-0	01	1	1101-1109	●
8	HEAD ASM; CYL,AIR CMPR FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3>	8-98167-015-0	01	1	1110-	●
8	HEAD ASM; CYL,AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98167-015-0	01	1	1110-	●
12	GASKET; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98048-641-0	01	1	1109-1201	●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1108-1109	●
12	GASKET; AIR CMPR FSR SGL CAB(FC*M)	8-98185-684-0	01	1	1110-1201	●
12	GASKET; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98185-684-0	01	1	1110-1201	●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1202-	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	1001-1011	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	1012-1107	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	1108-1109		●
13	GASKET; AIR CMPR (A)	1-19115-017-0	01	1	1012-1101		●
13	GASKET; AIR CMPR (A)	1-19115-015-0	01	1	1102-		●
13	GASKET; AIR CMPR (B) T=0.5	1-19115-018-0	01	1	1012-1101		●
13	GASKET; AIR CMPR (B)	1-19115-016-0	01	1	1102-		●
13	GASKET; AIR CMPR (C) T=0.8	1-19115-019-0	01	1	1012-1101		●
13	GASKET; AIR CMPR (D)	1-09623-615-0	01	1	1001-1107	●
13	GASKET; AIR CMPR (D)	8-98048-640-0	01	1	1108-	●
15	CYLINDER; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97614-056-0	01	1	1109-1201	●
15	CYLINDER; AIR CMPR	1-19163-070-2	01	1	1012-1101		●
15	CYLINDER; AIR CMPR	1-19163-068-1	01	1	1102-		●
15	CYLINDER; AIR CMPR	8-98038-668-0	01	1	1001-1109	●
15	CYLINDER; AIR CMPR FSR SGL CAB(FC*M)	8-98038-668-0	01	1	1110-1201	●
15	CYLINDER; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98038-668-0	01	1	1110-1201	●
15	CYLINDER; AIR CMPR	8-98038-668-0	01	1	1202-	●
20	RING KIT; PISTON,AIR CMPR	1-19163-071-0	01	1	1012-1101		●
20	RING KIT; PISTON,AIR CMPR	1-19163-069-0	01	1	1102-1103		●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	1001-1103	●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	1104-	●	●
21	PISTON; AIR CMPR	1-19161-028-0	01	1	1012-1101		●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	1001-1101	●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	1102-	●	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	1001-1011	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	1012-	●	●
24	ROD ASM; CONN,AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97614-057-0	01	1	1109-1201	●
24	ROD ASM; CONN,AIR CMPR	1-19173-024-0	01	1	1012-1101		●
24	ROD ASM; CONN,AIR CMPR	1-19173-023-0	01	1	1102-		●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	1001-1109	●
24	ROD ASM; CONN,AIR CMPR FSR SGL CAB(FC*M)	1-19173-010-0	01	1	1110-1201	●
24	ROD ASM; CONN,AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-19173-010-0	01	1	1110-1201	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	1202-	●
25	PIN; PISTON,AIR CMPR	9-19167-006-0	01	1	1012-1101		●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	1001-1101	●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	1102-	●	●
27	BOLT; HD FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97614-054-0	01	1	1109-1201	●
27	BOLT; HD FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M10X75	8-98167-018-0	03	1	1109-1201	●
27	BOLT; HD (C)	1-19119-040-0	04	1	1012-1101		●
27	BOLT; HD (C)	1-19119-039-0	04	1	1102-1103		●
27	BOLT; HD (C)	8-98188-172-0	04	1	1104-		●
27	BOLT; HD (A) M10X80	8-98038-666-0	04	1	1001-1012	●
27	BOLT; HD (A) M10X75	8-98167-018-0	04	1	1101-1109	●
27	BOLT; HD FSR SGL CAB(FC*M) (A) M10X75	8-98167-018-0	04	1	1110-1201	●
27	BOLT; HD FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M10X75	8-98167-018-0	04	1	1110-1201	●
27	BOLT; HD (A) M10X75	8-98167-018-0	04	1	1202-	●
30	BOLT; CYL TO CRANKCASE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X30	8-97613-704-0	04	1	1109-1201	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	1012-		●
30	BOLT; CYL TO CRANKCASE M10X25	8-98038-763-0	04	1	1001-1109	●
30	BOLT; CYL TO CRANKCASE FSR SGL CAB(FC*M) M10X25	8-98038-763-0	04	1	1110-1201	●
30	BOLT; CYL TO CRANKCASE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X25	8-98038-763-0	04	1	1110-1201	●
30	BOLT; CYL TO CRANKCASE M10X25	8-98038-763-0	04	1	1202-	●
38	BOLT; COVER FIX FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M10X30	8-97613-704-0	02	1	1109-1201	●
38	BOLT; COVER FIX FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97617-310-0	02	1	1109-1201	●
38	BOLT; COVER FIX (C)	1-19159-023-0	03	1	1012-		●
38	BOLT; COVER FIX (B)	8-97617-894-0	02	1	1001-1109	●
38	BOLT; COVER FIX FSR SGL CAB(FC*M) (B)	8-97617-894-0	02	1	1110-1201	●
38	BOLT; COVER FIX FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97617-894-0	02	1	1110-1201	●
38	BOLT; COVER FIX (B)	8-97617-894-0	02	1	1202-	●
38	BOLT; COVER FIX (A) M8X20	8-97617-895-0	02	1	1001-1109	●
38	BOLT; COVER FIX FSR SGL CAB(FC*M) (A) M8X20	8-97617-895-0	02	1	1110-1201	●
38	BOLT; COVER FIX FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X20	8-97617-895-0	02	1	1110-1201	●
38	BOLT; COVER FIX (A) M8X20	8-97617-895-0	02	1	1202-	●
39	WASHER; LK,COVER FIX FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97613-694-0	02	1	1109-1201	●
39	WASHER; LK,COVER FIX	8-97617-893-0	02	1	1001-1109	●
39	WASHER; LK,COVER FIX FSR SGL CAB(FC*M)	8-97617-893-0	02	1	1110-1201	●
39	WASHER; LK,COVER FIX FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97617-893-0	02	1	1110-1201	●
39	WASHER; LK,COVER FIX	8-97617-893-0	02	1	1202-	●
89	VALVE; SUCTION	1-19119-045-0	01	1	1001-	●

27 8 13 14 13 13 20 21 25 23 24 2 49 69 88 4 6 38 23 12 15 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	CRANKCASE; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97614-060-0	01	1	1109-1201	●
2	CRANKCASE; AIR CMPR	1-19151-303-0	01	1	1012-		●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	1001-1109	●
2	CRANKCASE; AIR CMPR FSR SGL CAB(FC*M)	1-19151-274-0	01	1	1110-1201	●
2	CRANKCASE; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-19151-274-0	01	1	1110-1201	●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	1202-	●
4	CRANKSHAFT; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97614-059-1	01	1	1109-1201	●
4	CRANKSHAFT; AIR CMPR	1-19171-090-1	01	1	1012-		●
4	CRANKSHAFT; AIR CMPR	1-19171-096-0	01	1	1001-1109	●
4	CRANKSHAFT; AIR CMPR FSR SGL CAB(FC*M)	1-19171-096-0	01	1	1110-1201	●
4	CRANKSHAFT; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-19171-096-0	01	1	1110-1201	●
4	CRANKSHAFT; AIR CMPR	1-19171-096-0	01	1	1202-	●
6	COVER ASM; BRG,AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97614-058-0	01	1	1109-1201	●
6	COVER ASM; BRG,AIR CMPR	1-19156-086-1	01	1	1012-		●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	1001-1109	●
6	COVER ASM; BRG,AIR CMPR FSR SGL CAB(FC*M)	1-19156-039-0	01	1	1110-1201	●
6	COVER ASM; BRG,AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-19156-039-0	01	1	1110-1201	●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	1202-	●
8	HEAD ASM; CYL,AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98167-012-0	01	1	1109-1201	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-076-0	01	1	1012-1101		●
8	HEAD ASM; CYL,AIR CMPR	1-19110-075-0	01	1	1102-		●
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<NT2>	8-97619-779-1	01	1	1001-1012	●
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<NT2>	8-98167-014-0	01	1	1101-	●
8	HEAD ASM; CYL,AIR CMPR EURO3 SPECIFICATION<NT3>	8-98038-657-2	01	1	1001-1012	●
8	HEAD ASM; CYL,AIR CMPR EURO3 SPECIFICATION<NT3>	8-98167-015-0	01	1	1101-1109	●
8	HEAD ASM; CYL,AIR CMPR FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3>	8-98167-015-0	01	1	1110-	●
8	HEAD ASM; CYL,AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98167-015-0	01	1	1110-	●
12	GASKET; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98048-641-0	01	1	1109-1201	●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1108-1109	●
12	GASKET; AIR CMPR FSR SGL CAB(FC*M)	8-98185-684-0	01	1	1110-1201	●
12	GASKET; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98185-684-0	01	1	1110-1201	●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1202-	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	1001-1011	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	1012-1107	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	1108-1109		●
13	GASKET; AIR CMPR (A)	1-19115-017-0	01	1	1012-1101		●
13	GASKET; AIR CMPR (A)	1-19115-015-0	01	1	1102-		●
13	GASKET; AIR CMPR (B) T=0.5	1-19115-018-0	01	1	1012-1101		●
13	GASKET; AIR CMPR (B)	1-19115-016-0	01	1	1102-		●
13	GASKET; AIR CMPR (C) T=0.8	1-19115-019-0	01	1	1012-1101		●
13	GASKET; AIR CMPR (D)	1-09623-615-0	01	1	1001-1107	●
13	GASKET; AIR CMPR (D)	8-98048-640-0	01	1	1108-	●
14	PLATE; AIR CMPR	1-19130-011-1	01	1	1012-1101		●
14	PLATE; AIR CMPR	1-19130-010-1	01	1	1102-1405		●
14	PLATE; AIR CMPR	8-98271-713-0	01	1	1406-		●
15	CYLINDER; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97614-056-0	01	1	1109-1201	●
15	CYLINDER; AIR CMPR	1-19163-070-2	01	1	1012-1101		●
15	CYLINDER; AIR CMPR	1-19163-068-1	01	1	1102-		●
15	CYLINDER; AIR CMPR	8-98038-668-0	01	1	1001-1109	●
15	CYLINDER; AIR CMPR FSR SGL CAB(FC*M)	8-98038-668-0	01	1	1110-1201	●
15	CYLINDER; AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98038-668-0	01	1	1110-1201	●
15	CYLINDER; AIR CMPR	8-98038-668-0	01	1	1202-	●
20	RING KIT; PISTON,AIR CMPR	1-19163-071-0	01	1	1012-1101		●
20	RING KIT; PISTON,AIR CMPR	1-19163-069-0	01	1	1102-1103		●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	1001-1103	●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	1104-	●	●
21	PISTON; AIR CMPR	1-19161-028-0	01	1	1012-1101		●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	1001-1101	●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	1102-	●	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	1001-1011	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	1012-	●	●
24	ROD ASM; CONN,AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97614-057-0	01	1	1109-1201	●
24	ROD ASM; CONN,AIR CMPR	1-19173-024-0	01	1	1012-1101		●
24	ROD ASM; CONN,AIR CMPR	1-19173-023-0	01	1	1102-		●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	1001-1109	●
24	ROD ASM; CONN,AIR CMPR FSR SGL CAB(FC*M)	1-19173-010-0	01	1	1110-1201	●
24	ROD ASM; CONN,AIR CMPR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-19173-010-0	01	1	1110-1201	●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	1202-	●
25	PIN; PISTON,AIR CMPR	9-19167-006-0	01	1	1012-1101		●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	1001-1101	●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	1102-	●	●
27	BOLT; HD FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97614-054-0	01	1	1109-1201	●
27	BOLT; HD FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M10X75	8-98167-018-0	03	1	1109-1201	●
27	BOLT; HD (C)	1-19119-040-0	04	1	1012-1101		●
27	BOLT; HD (C)	1-19119-039-0	04	1	1102-1103		●
27	BOLT; HD (C)	8-98188-172-0	04	1	1104-		●
27	BOLT; HD (A) M10X80	8-98038-666-0	04	1	1001-1012	●
27	BOLT; HD (A) M10X75	8-98167-018-0	04	1	1101-1109	●
27	BOLT; HD FSR SGL CAB(FC*M) (A) M10X75	8-98167-018-0	04	1	1110-1201	●
27	BOLT; HD FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M10X75	8-98167-018-0	04	1	1110-1201	●
27	BOLT; HD (A) M10X75	8-98167-018-0	04	1	1202-	●
30	BOLT; CYL TO CRANKCASE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X30	8-97613-704-0	04	1	1109-1201	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	1012-		●
30	BOLT; CYL TO CRANKCASE M10X25	8-98038-763-0	04	1	1001-1109	●
30	BOLT; CYL TO CRANKCASE FSR SGL CAB(FC*M) M10X25	8-98038-763-0	04	1	1110-1201	●
30	BOLT; CYL TO CRANKCASE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X25	8-98038-763-0	04	1	1110-1201	●
30	BOLT; CYL TO CRANKCASE M10X25	8-98038-763-0	04	1	1202-	●
38	BOLT; COVER FIX FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M10X30	8-97613-704-0	02	1	1109-1201	●
38	BOLT; COVER FIX FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97617-310-0	02	1	1109-1201	●
38	BOLT; COVER FIX (C)	1-19159-023-0	03	1	1012-		●
38	BOLT; COVER FIX (B)	8-97617-894-0	02	1	1001-1109	●
38	BOLT; COVER FIX FSR SGL CAB(FC*M) (B)	8-97617-894-0	02	1	1110-1201	●
38	BOLT; COVER FIX FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97617-894-0	02	1	1110-1201	●
38	BOLT; COVER FIX (B)	8-97617-894-0	02	1	1202-	●
38	BOLT; COVER FIX (A) M8X20	8-97617-895-0	02	1	1001-1109	●
38	BOLT; COVER FIX FSR SGL CAB(FC*M) (A) M8X20	8-97617-895-0	02	1	1110-1201	●
38	BOLT; COVER FIX FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X20	8-97617-895-0	02	1	1110-1201	●
38	BOLT; COVER FIX (A) M8X20	8-97617-895-0	02	1	1202-	●
49	COUPLING ASM	1-19179-032-0	01	1	1012-		●
69	BOLT ASM; AIR COMP	1-19179-033-0	02	1	1012-		●
88	PIN; SPRING	1-19179-034-0	01	1	1012-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
