Sayfa 0-38 - Isuzu EPC

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#55501) — 256 parça

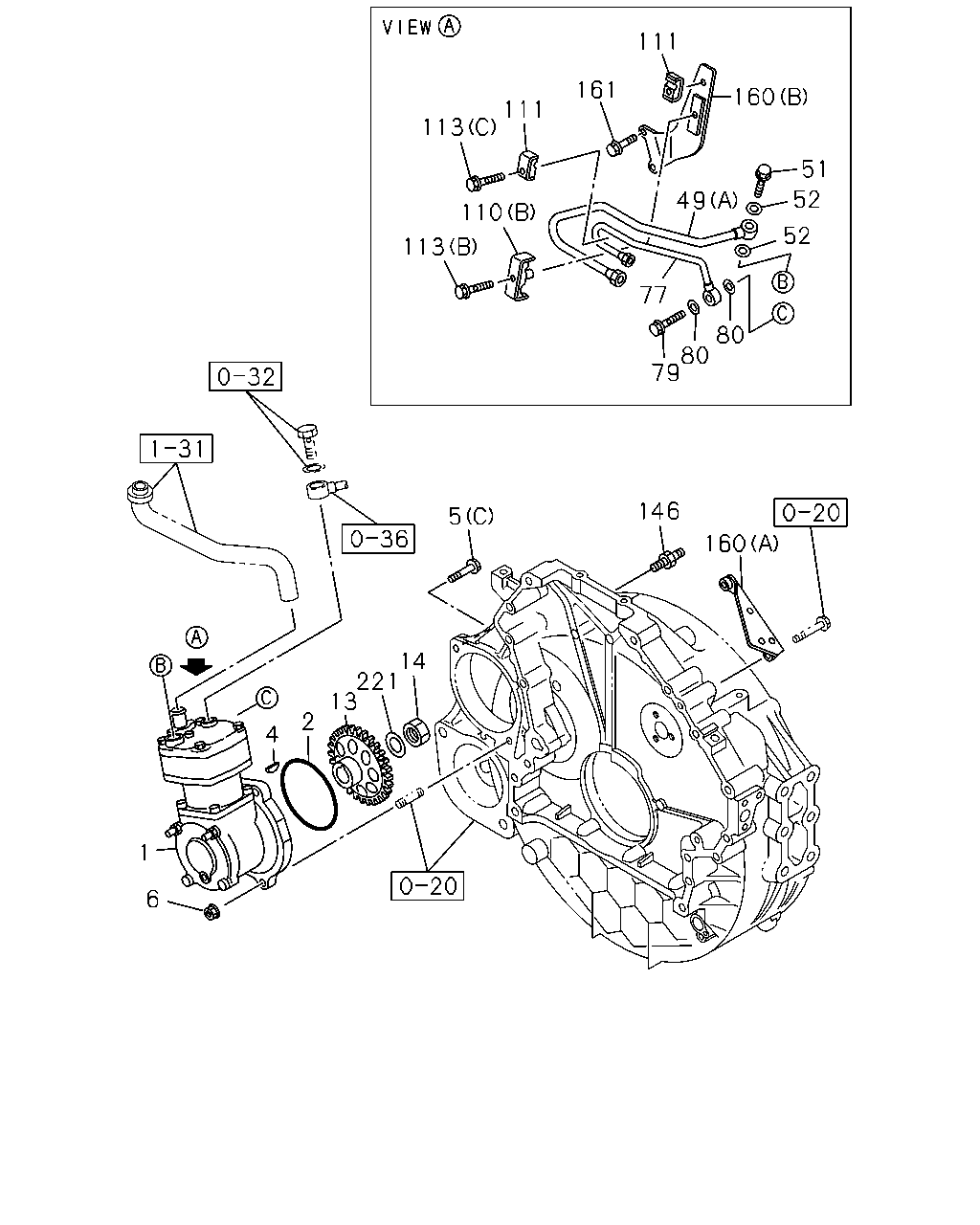

111 161 160 111 113 51 52 49 110 52 113 77 80 80 79 146 5 160 14 221 13 2 4 1 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-304-0	01	1	1109-1201	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-448-5	01	1	1012-1101		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-449-5	01	1	1102-1109		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1110-1405		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-97619-244-2	01	1	1001-1107	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-98187-299-0	01	1	1108-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NT3>	8-98055-879-2	01	1	1001-1107	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NT3>	8-98187-303-0	01	1	1108-1109	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3>	8-98187-303-0	01	1	1110-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-303-0	01	1	1110-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1012-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1001-	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1012-		●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	1001-1109	●
4	KEY; INJ PUMP GEAR FSR SGL CAB(FC*M)	9-08055-516-0	01	1	1110-1201	●
4	KEY; INJ PUMP GEAR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-08055-516-0	01	1	1110-1201	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	1202-	●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	1012-		●
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	1012-		●
5	BOLT; AIR CMPR FIX (C) M12X70 FLANGE	0-28151-270-0	02	1	1001-	●
6	NUT; AIR CMPR M10 FLANGE SOU	0-91180-110-0	02	1	1012-		●
6	NUT; AIR CMPR M12 FLANGE SOU	0-91180-212-0	01	1	1001-	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1001-	●
14	NUT; GEAR M18	8-97141-154-0	01	1	1012-		●
14	NUT; GEAR M20	0-91110-520-0	01	1	1001-	●
49	PIPE; AIR,CHARGE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98052-612-0	01	1	1109-1201	●
49	PIPE; AIR,CHARGE (C)	8-98069-425-0	01	1	1012-		●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> (A)	8-97618-722-0	01	1	1001-	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NT3> (B)	8-98042-002-0	01	1	1001-1109	●
49	PIPE; AIR,CHARGE FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> (B)	8-98042-002-0	01	1	1110-	●
49	PIPE; AIR,CHARGE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98042-002-0	01	1	1110-	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1012-1404		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1001-1404	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1001-1011	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1012-	●	●
77	PIPE; AIR,GOV EURO2 SPECIFICATION<NT2>	8-97618-724-0	01	1	1001-	●
79	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<NT2> M10X23	8-98037-824-0	01	1	1001-	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> ID=10.2 OD=15.2	1-09630-083-0	02	1	1001-	●
110	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> (B)	8-94393-037-0	01	1	1001-	●
110	CLIP; AIR PIPE EURO3 SPECIFICATION<NT3> (A) ID=17 L=17	1-09701-284-0	06	1	1001-	●
111	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> ID=5.5 L=10.5	8-98029-953-1	02	1	1001-	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (B) M6X40 FLANGE	0-28050-640-0	01	1	1001-	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (C) M6X40 FLANGE	0-28650-640-0	01	1	1001-	●
113	BOLT; CLIP,AIR PIPE EURO3 SPECIFICATION<NT3> (A) M8X45 FLANGE SOU	0-28050-845-0	03	1	1001-	●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1001-	●
160	BRACKET; AIR PIPE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98042-844-1	01	1	1109-	●
160	BRACKET; AIR PIPE (D)	8-98076-098-0	01	1	1012-		●
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	1001-	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (B)	8-98074-255-0	01	1	1001-	●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3> (C)	8-98117-350-0	01	1	1001-1109	●
160	BRACKET; AIR PIPE FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> (C)	8-98117-350-0	01	1	1110-1201	●
160	BRACKET; AIR PIPE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98117-350-0	01	1	1110-1201	●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3> (C)	8-98117-350-0	01	1	1202-	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	1001-	●

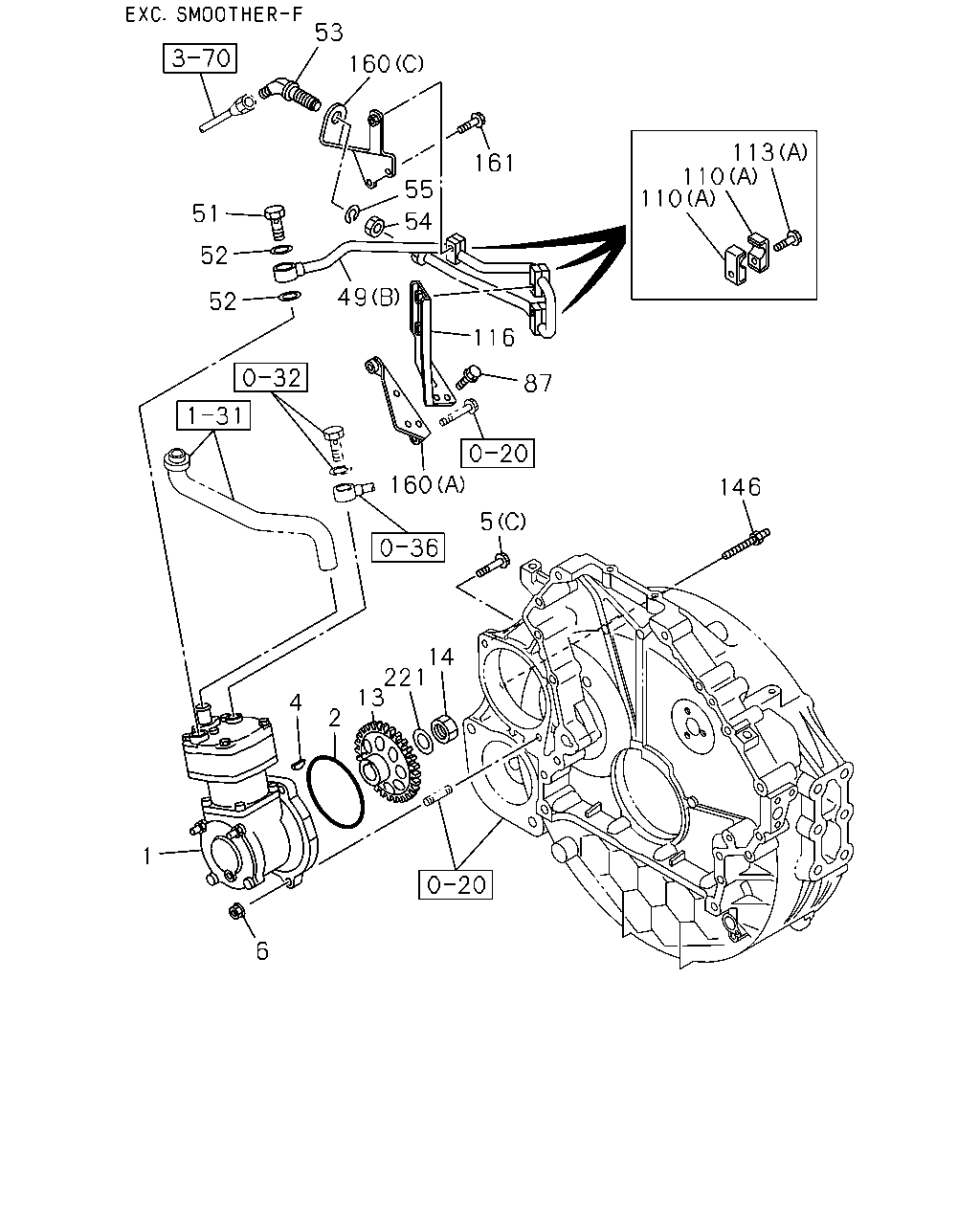

53 160 113 110 110 161 55 51 54 52 49 52 116 87 160 146 5 14 221 13 4 2 1 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-304-0	01	1	1109-1201	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-448-5	01	1	1012-1101		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-449-5	01	1	1102-1109		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1110-1405		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-97619-244-2	01	1	1001-1107	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-98187-299-0	01	1	1108-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NT3>	8-98055-879-2	01	1	1001-1107	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NT3>	8-98187-303-0	01	1	1108-1109	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3>	8-98187-303-0	01	1	1110-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-303-0	01	1	1110-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1012-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1001-	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1012-		●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	1001-1109	●
4	KEY; INJ PUMP GEAR FSR SGL CAB(FC*M)	9-08055-516-0	01	1	1110-1201	●
4	KEY; INJ PUMP GEAR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-08055-516-0	01	1	1110-1201	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	1202-	●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	1012-		●
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	1012-		●
5	BOLT; AIR CMPR FIX (C) M12X70 FLANGE	0-28151-270-0	02	1	1001-	●
6	NUT; AIR CMPR M10 FLANGE SOU	0-91180-110-0	02	1	1012-		●
6	NUT; AIR CMPR M12 FLANGE SOU	0-91180-212-0	01	1	1001-	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1001-	●
14	NUT; GEAR M18	8-97141-154-0	01	1	1012-		●
14	NUT; GEAR M20	0-91110-520-0	01	1	1001-	●
49	PIPE; AIR,CHARGE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98052-612-0	01	1	1109-1201	●
49	PIPE; AIR,CHARGE (C)	8-98069-425-0	01	1	1012-		●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> (A)	8-97618-722-0	01	1	1001-	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NT3> (B)	8-98042-002-0	01	1	1001-1109	●
49	PIPE; AIR,CHARGE FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> (B)	8-98042-002-0	01	1	1110-	●
49	PIPE; AIR,CHARGE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98042-002-0	01	1	1110-	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1012-1404		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1001-1404	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1001-1011	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1012-	●	●
53	UNION; CHARGE PIPE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1109-	●
53	UNION; CHARGE PIPE EURO3 SPECIFICATION<NT3> M22 & M26 ELBOW	8-98080-118-0	01	1	1001-1109	●
53	UNION; CHARGE PIPE FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> M22 & M26 ELBOW	8-98080-118-0	01	1	1110-1201	●
53	UNION; CHARGE PIPE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M22 & M26 ELBOW	8-98080-118-0	01	1	1110-1201	●
53	UNION; CHARGE PIPE EURO3 SPECIFICATION<NT3> M22 & M26 ELBOW	8-98080-118-0	01	1	1202-	●
54	NUT; PIPE UNION FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) M22	0-91111-522-0	01	1	1109-	●
54	NUT; PIPE UNION EURO3 SPECIFICATION<NT3> M26	8-98049-390-0	01	1	1001-1109	●
54	NUT; PIPE UNION FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> M26	8-98049-390-0	01	1	1110-1201	●
54	NUT; PIPE UNION FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M26	8-98049-390-0	01	1	1110-1201	●
54	NUT; PIPE UNION EURO3 SPECIFICATION<NT3> M26	8-98049-390-0	01	1	1202-	●
55	WASHER; LK,PIPE UNION FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) ID=22.5	0-91510-522-0	01	1	1109-	●
55	WASHER; LK,PIPE UNION EURO3 SPECIFICATION<NT3> ID=27.5	0-91510-527-0	01	1	1001-1109	●
55	WASHER; LK,PIPE UNION FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> ID=27.5	0-91510-527-0	01	1	1110-1201	●
55	WASHER; LK,PIPE UNION FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=27.5	0-91510-527-0	01	1	1110-1201	●
55	WASHER; LK,PIPE UNION EURO3 SPECIFICATION<NT3> ID=27.5	0-91510-527-0	01	1	1202-	●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NT3> M8X20 FLANGE	0-28050-820-0	03	1	1001-	●
110	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> (B)	8-94393-037-0	01	1	1001-	●
110	CLIP; AIR PIPE EURO3 SPECIFICATION<NT3> (A) ID=17 L=17	1-09701-284-0	06	1	1001-	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (B) M6X40 FLANGE	0-28050-640-0	01	1	1001-	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (C) M6X40 FLANGE	0-28650-640-0	01	1	1001-	●
113	BOLT; CLIP,AIR PIPE EURO3 SPECIFICATION<NT3> (A) M8X45 FLANGE SOU	0-28050-845-0	03	1	1001-	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3>	8-97614-183-1	01	1	1001-	●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1001-	●
160	BRACKET; AIR PIPE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98042-844-1	01	1	1109-	●
160	BRACKET; AIR PIPE (D)	8-98076-098-0	01	1	1012-		●
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	1001-	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (B)	8-98074-255-0	01	1	1001-	●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3> (C)	8-98117-350-0	01	1	1001-1109	●
160	BRACKET; AIR PIPE FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> (C)	8-98117-350-0	01	1	1110-1201	●
160	BRACKET; AIR PIPE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98117-350-0	01	1	1110-1201	●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3> (C)	8-98117-350-0	01	1	1202-	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	1001-	●

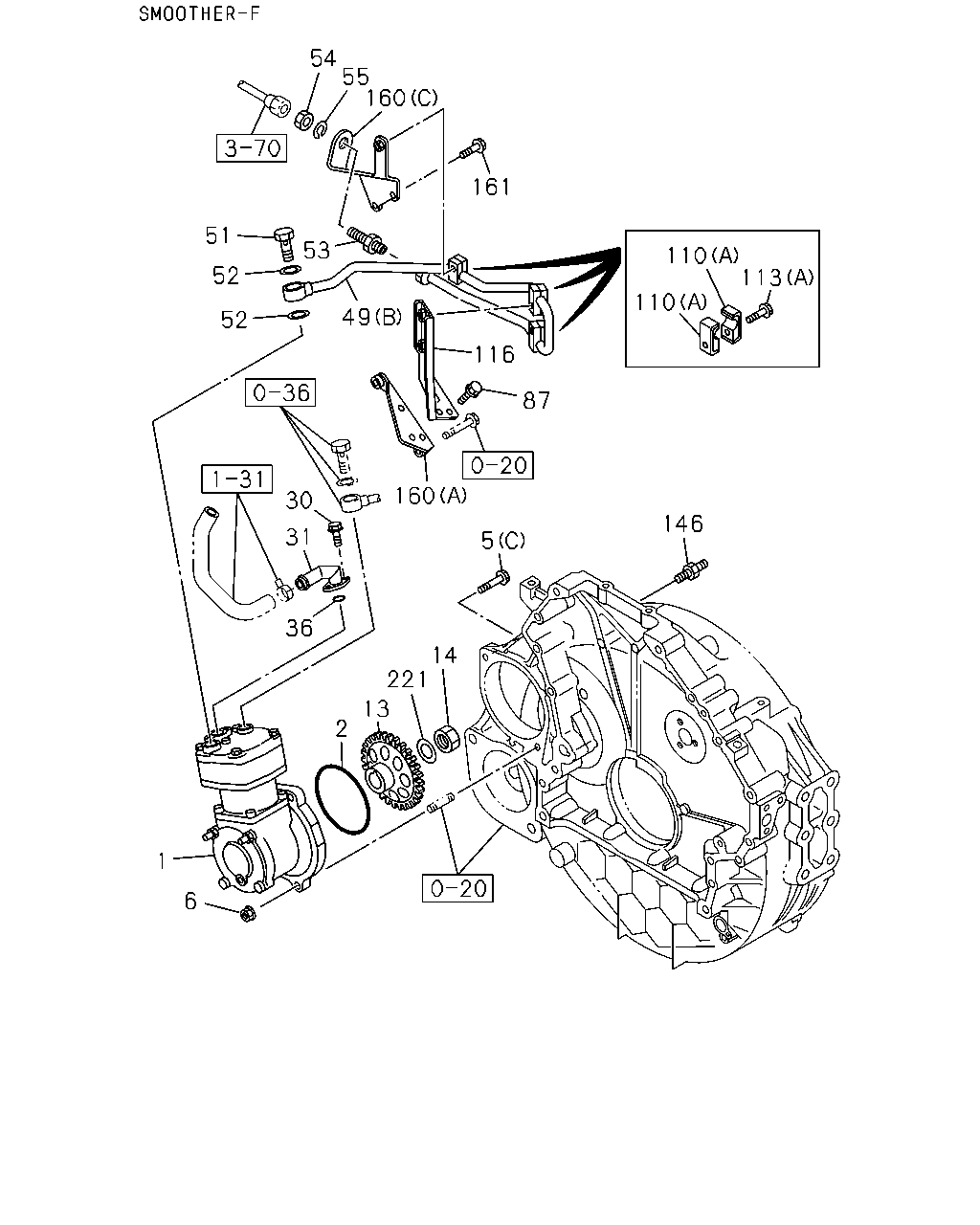

54 55 160 161 51 53 110 113 52 110 49 52 116 87 160 30 146 31 5 36 14 221 13 2 1 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-304-0	01	1	1109-1201	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-448-5	01	1	1012-1101		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-449-5	01	1	1102-1109		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1110-1405		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-97619-244-2	01	1	1001-1107	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-98187-299-0	01	1	1108-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NT3>	8-98055-879-2	01	1	1001-1107	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NT3>	8-98187-303-0	01	1	1108-1109	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3>	8-98187-303-0	01	1	1110-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-303-0	01	1	1110-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1012-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1001-	●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	1012-		●
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	1012-		●
5	BOLT; AIR CMPR FIX (C) M12X70 FLANGE	0-28151-270-0	02	1	1001-	●
6	NUT; AIR CMPR M10 FLANGE SOU	0-91180-110-0	02	1	1012-		●
6	NUT; AIR CMPR M12 FLANGE SOU	0-91180-212-0	01	1	1001-	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1001-	●
14	NUT; GEAR M18	8-97141-154-0	01	1	1012-		●
14	NUT; GEAR M20	0-91110-520-0	01	1	1001-	●
30	BOLT; PIPE CLIP FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1109-1201	●
31	PIPE; AIR,AIR CMPR SUCTION FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97620-948-0	01	1	1109-1201	●
31	PIPE; AIR,AIR CMPR SUCTION	8-98067-830-1	01	1	1012-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) ID=24.4	1-09623-057-0	01	1	1109-1201	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1012-		●
49	PIPE; AIR,CHARGE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98052-612-0	01	1	1109-1201	●
49	PIPE; AIR,CHARGE (C)	8-98069-425-0	01	1	1012-		●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> (A)	8-97618-722-0	01	1	1001-	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NT3> (B)	8-98042-002-0	01	1	1001-1109	●
49	PIPE; AIR,CHARGE FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> (B)	8-98042-002-0	01	1	1110-	●
49	PIPE; AIR,CHARGE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98042-002-0	01	1	1110-	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1012-1404		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1001-1404	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1001-1011	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1012-	●	●
53	UNION; CHARGE PIPE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1109-	●
53	UNION; CHARGE PIPE EURO3 SPECIFICATION<NT3> M22 & M26 ELBOW	8-98080-118-0	01	1	1001-1109	●
53	UNION; CHARGE PIPE FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> M22 & M26 ELBOW	8-98080-118-0	01	1	1110-1201	●
53	UNION; CHARGE PIPE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M22 & M26 ELBOW	8-98080-118-0	01	1	1110-1201	●
53	UNION; CHARGE PIPE EURO3 SPECIFICATION<NT3> M22 & M26 ELBOW	8-98080-118-0	01	1	1202-	●
54	NUT; PIPE UNION FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) M22	0-91111-522-0	01	1	1109-	●
54	NUT; PIPE UNION EURO3 SPECIFICATION<NT3> M26	8-98049-390-0	01	1	1001-1109	●
54	NUT; PIPE UNION FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> M26	8-98049-390-0	01	1	1110-1201	●
54	NUT; PIPE UNION FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M26	8-98049-390-0	01	1	1110-1201	●
54	NUT; PIPE UNION EURO3 SPECIFICATION<NT3> M26	8-98049-390-0	01	1	1202-	●
55	WASHER; LK,PIPE UNION FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) ID=22.5	0-91510-522-0	01	1	1109-	●
55	WASHER; LK,PIPE UNION EURO3 SPECIFICATION<NT3> ID=27.5	0-91510-527-0	01	1	1001-1109	●
55	WASHER; LK,PIPE UNION FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> ID=27.5	0-91510-527-0	01	1	1110-1201	●
55	WASHER; LK,PIPE UNION FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=27.5	0-91510-527-0	01	1	1110-1201	●
55	WASHER; LK,PIPE UNION EURO3 SPECIFICATION<NT3> ID=27.5	0-91510-527-0	01	1	1202-	●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NT3> M8X20 FLANGE	0-28050-820-0	03	1	1001-	●
110	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> (B)	8-94393-037-0	01	1	1001-	●
110	CLIP; AIR PIPE EURO3 SPECIFICATION<NT3> (A) ID=17 L=17	1-09701-284-0	06	1	1001-	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (B) M6X40 FLANGE	0-28050-640-0	01	1	1001-	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (C) M6X40 FLANGE	0-28650-640-0	01	1	1001-	●
113	BOLT; CLIP,AIR PIPE EURO3 SPECIFICATION<NT3> (A) M8X45 FLANGE SOU	0-28050-845-0	03	1	1001-	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3>	8-97614-183-1	01	1	1001-	●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1001-	●
160	BRACKET; AIR PIPE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98042-844-1	01	1	1109-	●
160	BRACKET; AIR PIPE (D)	8-98076-098-0	01	1	1012-		●
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	1001-	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (B)	8-98074-255-0	01	1	1001-	●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3> (C)	8-98117-350-0	01	1	1001-1109	●
160	BRACKET; AIR PIPE FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> (C)	8-98117-350-0	01	1	1110-1201	●
160	BRACKET; AIR PIPE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98117-350-0	01	1	1110-1201	●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3> (C)	8-98117-350-0	01	1	1202-	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	1001-	●

40 29 40 40 40 29 63 41 49 63 51 41 57 35 36 52 31 52 19 14 36 160 5 4 1 2 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98187-304-0	01	1	1109-1201	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-448-5	01	1	1012-1101		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-449-5	01	1	1102-1109		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1110-1405		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-97619-244-2	01	1	1001-1107	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-98187-299-0	01	1	1108-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NT3>	8-98055-879-2	01	1	1001-1107	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NT3>	8-98187-303-0	01	1	1108-1109	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3>	8-98187-303-0	01	1	1110-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-303-0	01	1	1110-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1012-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1001-	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1012-		●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	1001-1109	●
4	KEY; INJ PUMP GEAR FSR SGL CAB(FC*M)	9-08055-516-0	01	1	1110-1201	●
4	KEY; INJ PUMP GEAR FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-08055-516-0	01	1	1110-1201	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	1202-	●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	1012-		●
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	1012-		●
5	BOLT; AIR CMPR FIX (C) M12X70 FLANGE	0-28151-270-0	02	1	1001-	●
6	NUT; AIR CMPR M10 FLANGE SOU	0-91180-110-0	02	1	1012-		●
6	NUT; AIR CMPR M12 FLANGE SOU	0-91180-212-0	01	1	1001-	●
14	NUT; GEAR M18	8-97141-154-0	01	1	1012-		●
14	NUT; GEAR M20	0-91110-520-0	01	1	1001-	●
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	1012-		●
29	CLIP; AIR PIPE ID=14 L=15	1-09701-282-0	02	1	1012-		●
31	PIPE; AIR,AIR CMPR SUCTION FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97620-948-0	01	1	1109-1201	●
31	PIPE; AIR,AIR CMPR SUCTION	8-98067-830-1	01	1	1012-		●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	1012-1404		●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) ID=24.4	1-09623-057-0	01	1	1109-1201	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1012-		●
40	CLIP; AIR PIPE (C) ID=17 L=17	1-09701-284-0	04	1	1012-		●
40	CLIP; AIR PIPE (A) ID=14&17 L=32.5	8-97619-417-0	01	1	1012-		●
40	CLIP; AIR PIPE (B) ID=14&17 L=32.5	8-97619-418-0	01	1	1012-		●
41	BOLT; CLIP M8X45 FLANGE SOU	0-28050-845-0	02	1	1012-		●
49	PIPE; AIR,CHARGE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98052-612-0	01	1	1109-1201	●
49	PIPE; AIR,CHARGE (C)	8-98069-425-0	01	1	1012-		●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> (A)	8-97618-722-0	01	1	1001-	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NT3> (B)	8-98042-002-0	01	1	1001-1109	●
49	PIPE; AIR,CHARGE FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> (B)	8-98042-002-0	01	1	1110-	●
49	PIPE; AIR,CHARGE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98042-002-0	01	1	1110-	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1012-1404		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1001-1404	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1001-1011	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1012-	●	●
57	BOLT; BRKT,AIR PIPE M8X16 FLANGE SOU	0-28050-816-0	02	1	1012-		●
63	NUT; CLIP (A) M6 FLANGE SOU	0-91180-106-0	03	1	1012-		●
63	NUT; CLIP (B) M8 FLANGE SOU	0-91180-108-0	01	1	1012-		●
160	BRACKET; AIR PIPE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98042-844-1	01	1	1109-	●
160	BRACKET; AIR PIPE (D)	8-98076-098-0	01	1	1012-		●
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	1001-	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (B)	8-98074-255-0	01	1	1001-	●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3> (C)	8-98117-350-0	01	1	1001-1109	●
160	BRACKET; AIR PIPE FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> (C)	8-98117-350-0	01	1	1110-1201	●
160	BRACKET; AIR PIPE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98117-350-0	01	1	1110-1201	●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3> (C)	8-98117-350-0	01	1	1202-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
