◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11161 - FSR(SOUTH AFRICA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-37 - TURBOCHARGER ▶
0-37 — TURBOCHARGER (#55500) — 36 parça

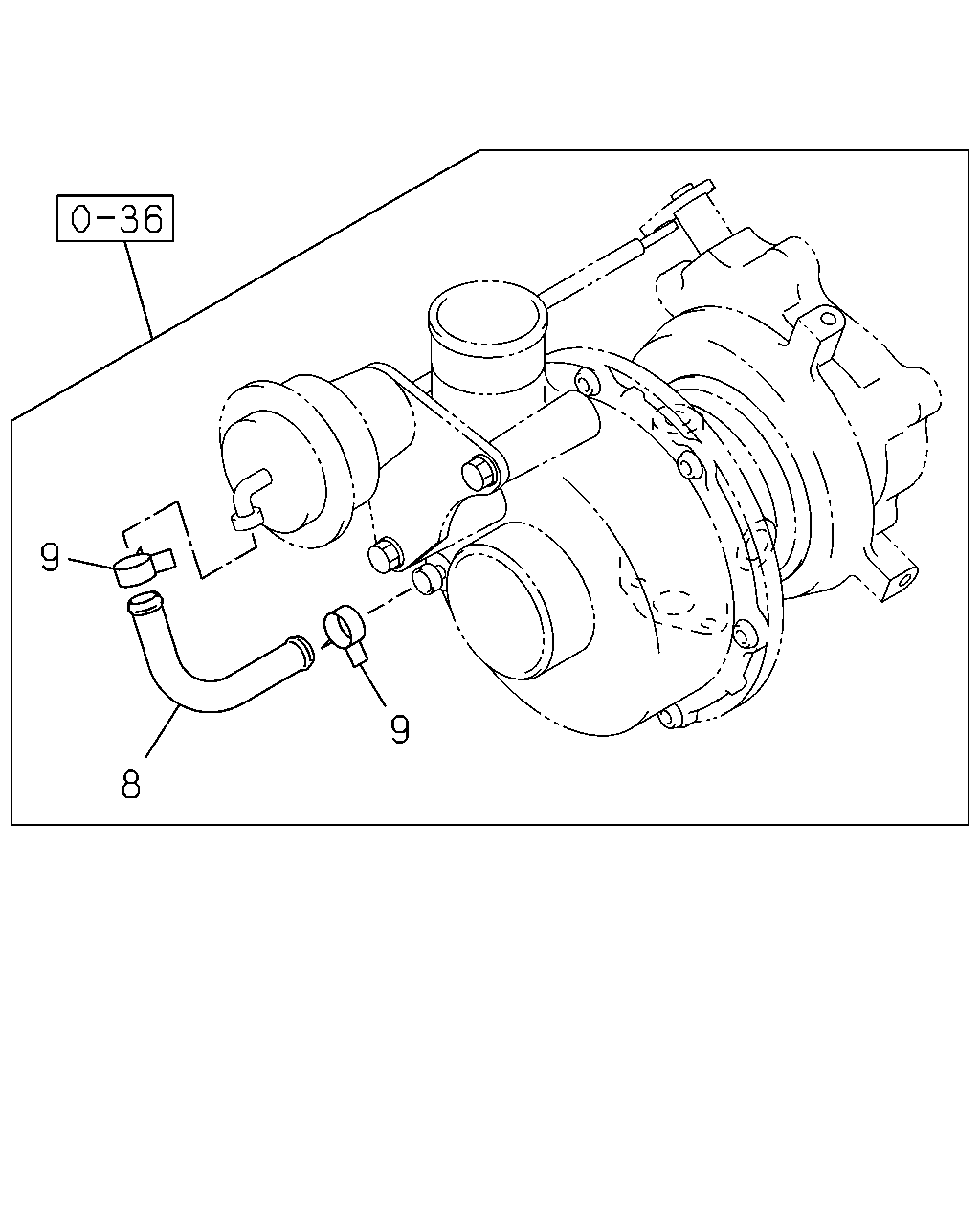

çizim 162600
9 9 8
BalonParca AdiParca NoAdetTipApplied Date
8 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: B = 8-98078-779-1 		1-14469-036-0 01 1 -
8 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: A = 8-98070-143-2 		8-94311-234-0 01 1 -
9 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: B = 8-98078-779-1 		1-14469-035-0 02 1 -
9 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: A = 8-98070-143-2 		5-09707-057-0 02 1 -

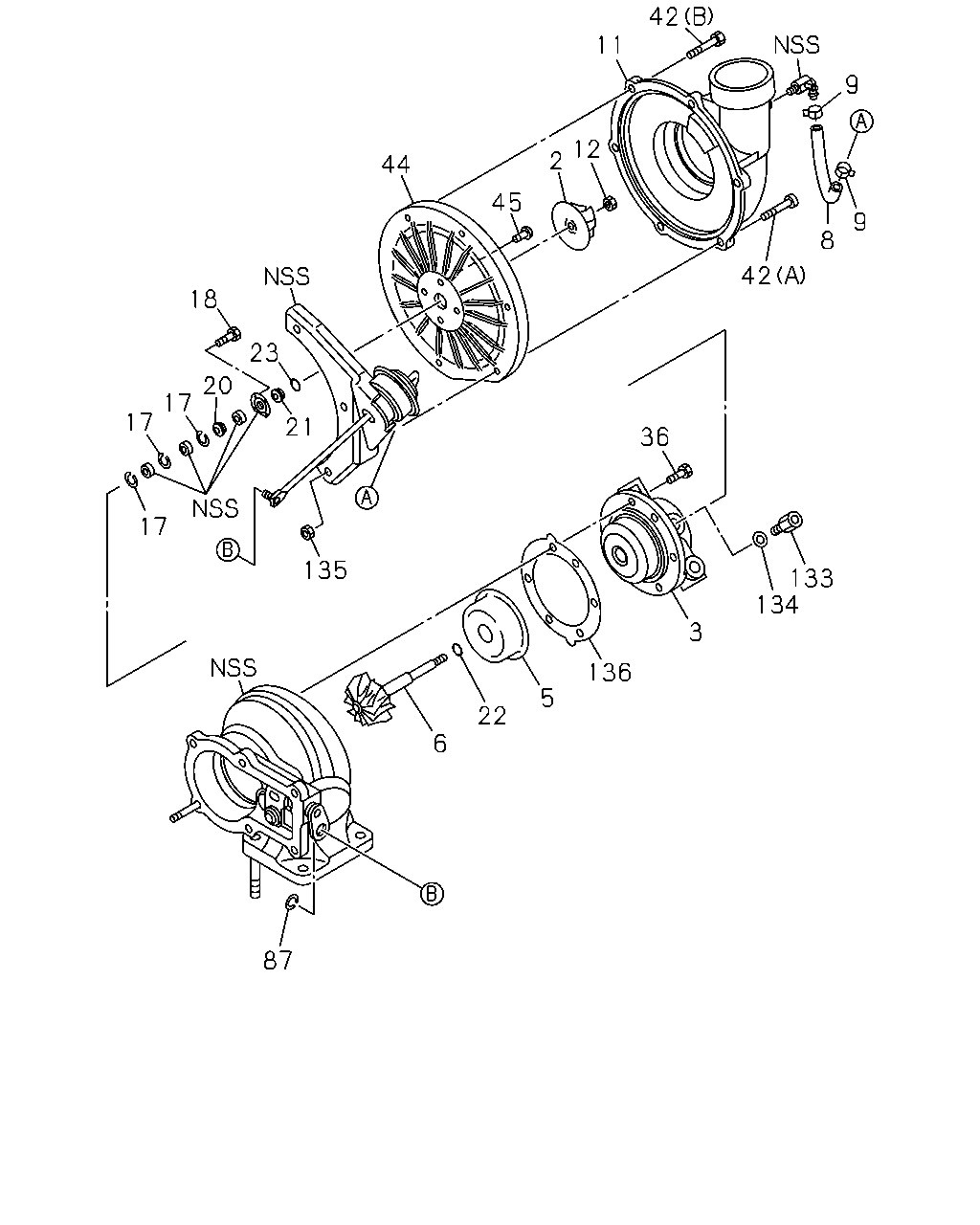

çizim 162626
42 11 9 2 12 44 45 9 8 42 18 23 20 17 17 21 36 17 135 133 134 3 136 5 22 6 87
BalonParca AdiParca NoAdetTipApplied Date
2 IMPELLER; TURBOCHARGER
ASM PART: B = 8-98078-779-1 		8-97603-425-0 01 1 -
3 HOUSING; BRG,TURBOCHARGER
ASM PART: B = 8-98078-779-1 		1-14411-054-0 01 1 -
5 PROTECTOR; HEAT,TURBOCHARGER
ASM PART: B = 8-98078-779-1 		1-14425-023-0 01 1 -
6 SHAFT; TURBINE,TURBOCHARGER
ASM PART: B = 8-98078-779-1 		1-14450-048-0 01 1 -
8 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: B = 8-98078-779-1 		1-14469-036-0 01 1 -
8 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: A = 8-98070-143-2 		8-94311-234-0 01 1 -
9 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: B = 8-98078-779-1 		1-14469-035-0 02 1 -
9 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: A = 8-98070-143-2 		5-09707-057-0 02 1 -
11 HOUSING ASM; TURBOCHARGER
ASM PART: B = 8-98078-779-1 		8-98154-221-0 01 1 -
12 NUT; LK,TURBINE SHAFT TO IMPELLER,TC
ASM PART: B = 8-98078-779-1 		1-09400-041-0 01 1 -
17 RING; JOURNAL BRG,TURBOCHARGER
ASM PART: B = 8-98078-779-1 		1-14455-038-0 03 1 -
18 SCREW; THRUST BRG,TURBOCHARGER
ASM PART: B = 8-98078-779-1 		1-09100-027-0 03 1 -
20 BUSHING; THRUST,TURBOCHARGER
ASM PART: B = 8-98078-779-1 		1-14453-078-0 01 1 -
21 THROWER; OIL,TURBOCHARGER
ASM PART: B = 8-98078-779-1 		1-14455-039-0 01 1 -
22 RING; SEAL,TURBINE SIDE,TURBOCHARGER
ASM PART: B = 8-98078-779-1 		1-14453-076-0 01 1 -
23 RING; SEAL,BLOWER SIDE,TURBOCHARGER
ASM PART: B = 8-98078-779-1 		1-14453-077-0 01 1 -
36 BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE
ASM PART: B = 8-98078-779-1 		8-97600-259-0 06 1 -
42 BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER
(A) ASM PART: B = 8-98078-779-1 		1-09100-030-0 03 1 -
42 BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER
(B) ASM PART: B = 8-98078-779-1 		1-09100-031-0 03 1 -
44 PLATE; SEAL,TURBOCHARGER
ASM PART: B = 8-98078-779-1 		1-14425-024-0 01 1 -
45 SCREW; SEAL PLATE,TURBOCHARGER
ASM PART: B = 8-98078-779-1 		1-09100-028-0 04 1 -
87 RING; ACTUATOR,TURBOCHARGER
ASM PART: B = 8-98078-779-1 		1-14469-037-0 01 1 -
133 ADAPTER; OIL PIPE
ASM PART: B = 8-98078-779-1 		1-14469-034-0 01 1 -
134 GASKET; ADAPTER
ID=12.2 ASM PART: B = 8-98078-779-1 		1-09630-084-0 01 1 -
135 NUT; BLOWER HOUSING
ASM PART: B = 8-98078-779-1 		1-09400-127-0 03 1 -
136 GASKET; TURBINE HSG,TURBOCHARGER
ASM PART: B = 8-98078-779-1 		8-97600-289-0 01 1 -

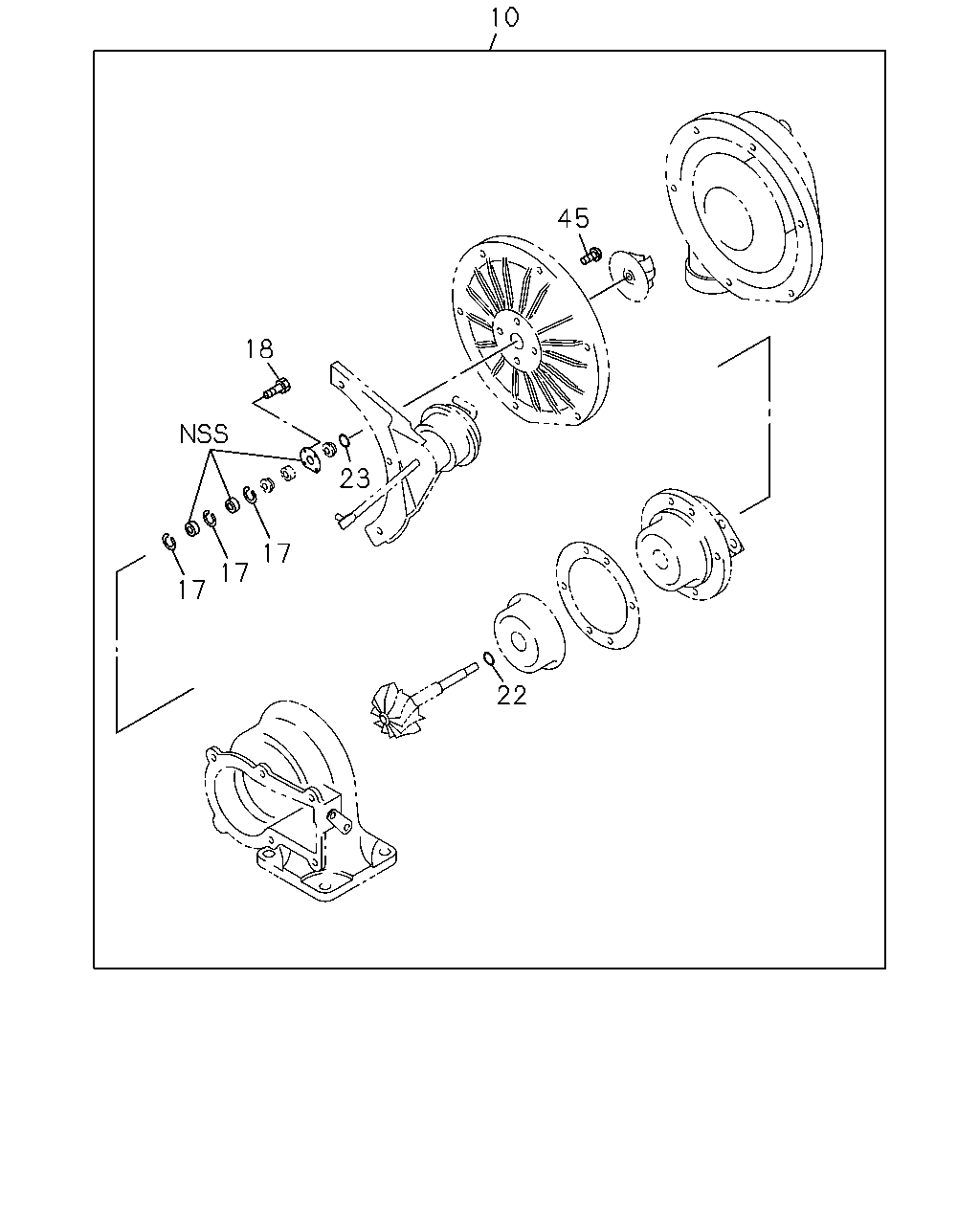

çizim 162633
10 45 18 23 17 17 17 22
BalonParca AdiParca NoAdetTipApplied Date
10 REPAIR KIT; TURBOCHARGER
ASM PART: B = 8-98078-779-1 		1-14453-075-0 01 1 -
17 RING; JOURNAL BRG,TURBOCHARGER
ASM PART: B = 8-98078-779-1 		1-14455-038-0 03 1 -
18 SCREW; THRUST BRG,TURBOCHARGER
ASM PART: B = 8-98078-779-1 		1-09100-027-0 03 1 -
22 RING; SEAL,TURBINE SIDE,TURBOCHARGER
ASM PART: B = 8-98078-779-1 		1-14453-076-0 01 1 -
23 RING; SEAL,BLOWER SIDE,TURBOCHARGER
ASM PART: B = 8-98078-779-1 		1-14453-077-0 01 1 -
45 SCREW; SEAL PLATE,TURBOCHARGER
ASM PART: B = 8-98078-779-1 		1-09100-028-0 04 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
