Sayfa 1-50A - Isuzu EPC

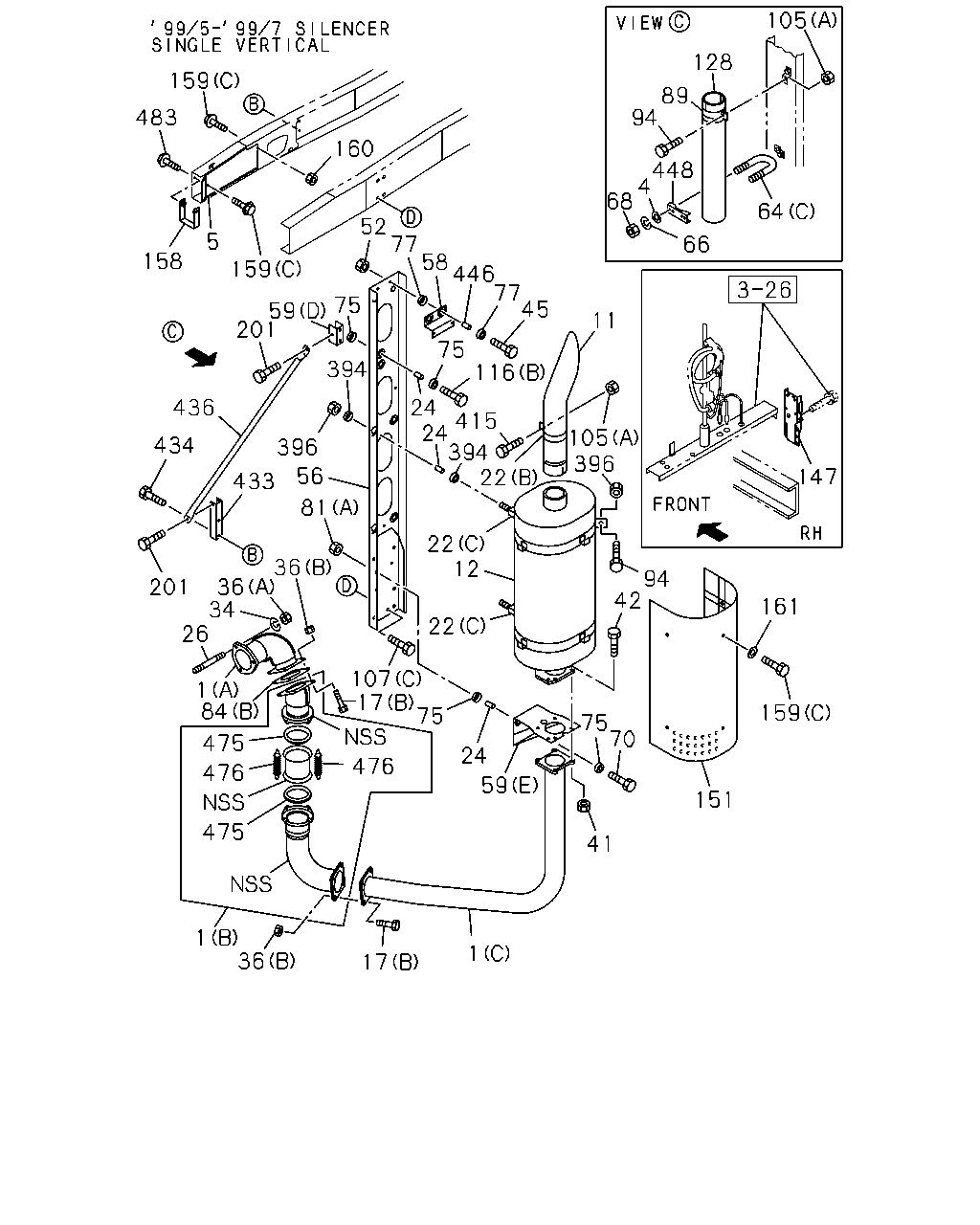

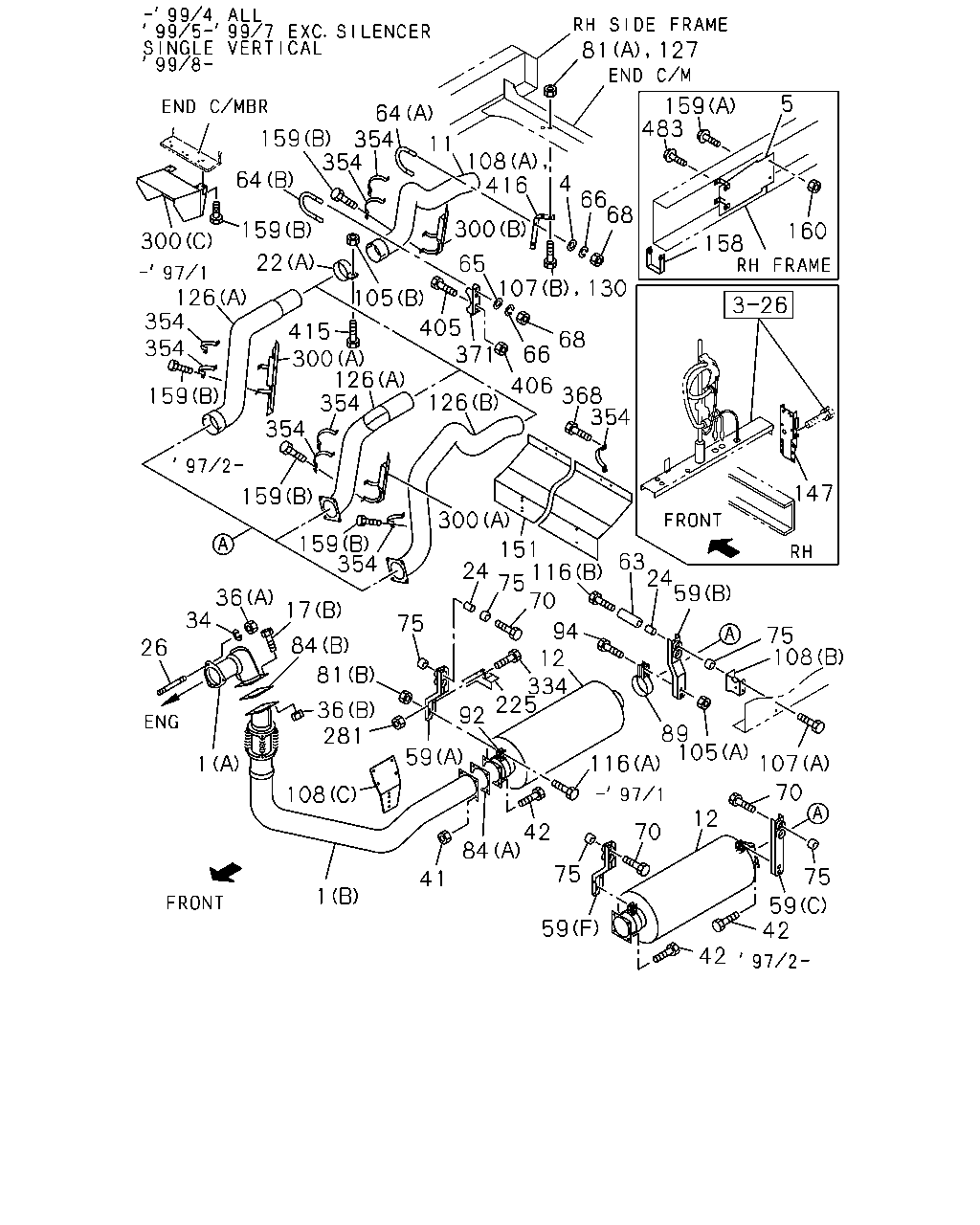

1-50A — EXHAUST PIPE AND SILENCER (#5550) — 523 parça

81 127 5 159 483 64 354 108 416 11 64 4 66 68 300 159 160 158 300 22 65 126 354 354 107 130 105 405 415 300 126 354 68 66 406 368 354 126 159 354 147 159 300 159 354 151 24 116 75 70 63 24 59 36 34 17 75 94 12 334 225 75 108 84 26 81 36 281 92 89 105 59 107 116 1 70 108 42 12 70 84 75 75 41 1 59 42 59 42 159 371

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH (B)	1-22122-622-0	01	1	9603-9701	●
1	PIPE; EXH ZF M/T<X9E> (B)	1-22122-622-0	01	1	9702-9802	●
1	PIPE; EXH ZF M/T<X9E> EXC. FUEL TANK 400L<SDH> (B)	1-22122-622-0	01	1	9803-9904	●
1	PIPE; EXH ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22122-622-0	01	1	9905-9907		●	●	●
1	PIPE; EXH ZF M/T<X9E> (B)	1-22122-622-0	01	1	9908-		●	●	●
1	PIPE; EXH (A)	1-22122-227-1	01	1	9603-9904	●
1	PIPE; EXH (A)	1-22122-227-1	01	1	9905-		●	●	●
1	PIPE; EXH FUEL TANK 400L<SDH> (B)	1-22123-126-0	01	1	9803-9904	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22122-818-0	01	1	9905-9907		●	●	●
1	PIPE; EXH MJA7U M/T(X6G) (B)	1-22122-922-0	01	1	9702-9802	●
1	PIPE; EXH ISUZU M/T<X9A> EXC. FUEL TANK 400L<SDH> (B)	1-22122-922-0	01	1	9803-9904	●
1	PIPE; EXH ISUZU M/T<X9A> EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22122-922-0	01	1	9905-9907		●	●	●
1	PIPE; EXH ISUZU M/T<X9A> (B)	1-22122-922-0	01	1	9908-		●	●	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (C)	1-22123-085-1	01	1	9905-9907		●	●	●
4	WASHER; PL,U BOLT ID=8.4 OD=22	9-09160-708-0	02	1	9603-9802	●
4	WASHER; PL,U BOLT EXC. FUEL TANK 400L<SDH> ID=8.4 OD=22	9-09160-708-0	02	1	9803-9904	●
4	WASHER; PL,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	9-09160-708-0	02	1	9905-9905		●	●	●
4	WASHER; PL,U BOLT ID=8.4 OD=22	9-09160-708-0	02	1	9905-		●	●	●
5	PROTECTOR; HEAT	1-22119-366-0	01	1	9903-9904	●
5	PROTECTOR; HEAT EXC. SILENCER SINGLE VERTICAL<N28>	1-22119-366-0	01	1	9905-9907		●	●	●
5	PROTECTOR; HEAT	1-22119-366-0	01	1	9908-		●	●	●
5	PROTECTOR; HEAT SILENCER SINGLE VERTICAL<N28>	1-22119-405-0	01	1	9905-9907		●	●	●
11	PIPE; EXH,RR	1-22122-641-0	01	1	9603-9904	●
11	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28>	1-22122-641-0	01	1	9905-9907		●	●	●
11	PIPE; EXH,RR	1-22122-641-0	01	1	9908-		●	●	●
11	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-086-1	01	1	9905-9907		●	●	●
12	SILENCER ASM; EXH	1-22140-799-0	01	1	9603-9701	●
12	SILENCER ASM; EXH	1-22140-844-0	01	1	9702-9904	●
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	1-22140-844-0	01	1	9905-9907		●	●	●
12	SILENCER ASM; EXH	1-22140-844-0	01	1	9908-0003		●	●	●
12	SILENCER ASM; EXH	1-22140-937-0	01	1	0004-		●	●	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-866-0	01	1	9905-9907		●	●	●
17	BOLT; EXH PIPE (B) M12X25 FLANGE	1-09000-604-0	04	1	9603-9904	●
17	BOLT; EXH PIPE (B) M12X25 FLANGE	1-09000-604-0	04	1	9905-		●	●	●
17	BOLT; EXH PIPE SILENCER SINGLE VERTICAL<N28> (B) M12X25 FLANGE	1-09000-604-0	03	1	9905-9907		●	●	●
22	CLAMP; EXH PIPE (A)	1-22133-222-0	01	1	9603-9904	●
22	CLAMP; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22133-222-0	01	1	9905-9907		●	●	●
22	CLAMP; EXH PIPE (A)	1-22133-222-0	01	1	9908-		●	●	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22133-266-1	01	1	9905-9907		●	●	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	1-22133-269-0	02	1	9905-9907		●	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9603-9904	●
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	02	1	9905-9907		●	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	02	1	9908-		●	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	02	1	9908-		●	●	●
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	08	1	9905-9907		●	●	●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	9603-9904	●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	9905-		●	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9603-9606	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	03	1	9607-9904	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	03	1	9905-		●	●	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	9603-9807	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	03	1	9808-9904	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	03	1	9905-		●	●	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	9603-9603	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	9604-9606	●
36	NUT; EXH PIPE (B) M12 FLANGE	0-91150-212-0	04	1	9607-9709	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	9710-9904	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	9905-		●	●	●
36	NUT; EXH PIPE SILENCER SINGLE VERTICAL<N28> (B) M12 FLANGE	0-91150-212-0	04	1	9905-9907		●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9603-9606	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9607-9701	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	08	1	9702-9709	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9710-9904	●
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12 FLANGE	0-91150-212-0	04	1	9905-9907		●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9908-		●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9710-9904	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9905-		●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	9603-9701	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	9702-9904	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	08	1	9905-9907		●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	9908-		●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	1-09000-653-0	04	1	9905-9907		●	●	●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-694-1	01	1	9603-9701	●
59	BRACKET; EXH SILENCER,FRT ZF M/T<X9E> (A)	1-22151-694-1	01	1	9702-9802	●
59	BRACKET; EXH SILENCER,FRT ZF M/T<X9E> EXC. FUEL TANK 400L<SDH> (A)	1-22151-694-1	01	1	9803-9904	●
59	BRACKET; EXH SILENCER,FRT ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22151-694-1	01	1	9905-9906		●	●	●
59	BRACKET; EXH SILENCER,FRT ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22151-828-0	01	1	9907-9907		●	●	●
59	BRACKET; EXH SILENCER,FRT ZF M/T<X9E> (A)	1-22151-828-0	01	1	9908-		●	●	●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-698-0	01	1	9603-9701	●
59	BRACKET; EXH SILENCER,FRT ZF M/T<X9E> (B)	1-22151-698-0	01	1	9702-9802	●
59	BRACKET; EXH SILENCER,FRT ZF M/T<X9E> EXC. FUEL TANK 400L<SDH> (B)	1-22151-698-0	01	1	9803-9904	●
59	BRACKET; EXH SILENCER,FRT ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22151-698-0	01	1	9905-9907		●	●	●
59	BRACKET; EXH SILENCER,FRT ZF M/T<X9E> (B)	1-22151-698-0	01	1	9908-		●	●	●
59	BRACKET; EXH SILENCER,FRT FUEL TANK 400L<SDH> (C)	1-22151-379-0	01	1	9803-9904	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (D)	1-22119-252-1	01	1	9905-9907		●	●	●
59	BRACKET; EXH SILENCER,FRT FUEL TANK 400L<SDH> (F)	1-22151-741-0	01	1	9803-9904	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (E)	1-22151-768-1	01	1	9905-9907		●	●	●
59	BRACKET; EXH SILENCER,FRT MJA7U M/T(X6G) (F)	1-22151-743-0	01	1	9702-9802	●
59	BRACKET; EXH SILENCER,FRT ISUZU M/T<X9A> EXC. FUEL TANK 400L<SDH> (F)	1-22151-743-0	01	1	9803-9904	●
59	BRACKET; EXH SILENCER,FRT ISUZU M/T<X9A> EXC. SILENCER SINGLE VERTICAL<N28> (F)	1-22151-743-0	01	1	9905-9907		●	●	●
59	BRACKET; EXH SILENCER,FRT ISUZU M/T<X9A> (F)	1-22151-743-0	01	1	9908-		●	●	●
59	BRACKET; EXH SILENCER,FRT MJA7U M/T(X6G) (B)	1-22151-744-0	01	1	9702-9802	●
59	BRACKET; EXH SILENCER,FRT ISUZU M/T<X9A> EXC. FUEL TANK 400L<SDH> (B)	1-22151-744-0	01	1	9803-9904	●
59	BRACKET; EXH SILENCER,FRT ISUZU M/T<X9A> EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22151-744-0	01	1	9905-9907		●	●	●
59	BRACKET; EXH SILENCER,FRT ISUZU M/T<X9A> (B)	1-22151-744-0	01	1	9908-		●	●	●
63	TUBE; DIST,BRKT L=44.3	1-14149-170-1	01	1	9606-9904	●
63	TUBE; DIST,BRKT EXC. SILENCER SINGLE VERTICAL<N28> L=44.3	1-14149-170-1	01	1	9905-9907		●	●	●
63	TUBE; DIST,BRKT L=44.3	1-14149-170-1	01	1	9908-		●	●	●
64	U-BOLT; EXH PIPE,RR (A)	1-22113-079-0	01	1	9603-9904	●
64	U-BOLT; EXH PIPE,RR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22113-079-0	01	1	9905-9907		●	●	●
64	U-BOLT; EXH PIPE,RR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22113-079-0	01	1	9905-9907		●	●	●
64	U-BOLT; EXH PIPE,RR (A)	1-22113-079-0	01	1	9908-		●	●	●
64	U-BOLT; EXH PIPE,RR (B)	1-22113-080-0	01	1	9603-9802	●
64	U-BOLT; EXH PIPE,RR EXC. FUEL TANK 400L<SDH> (B)	1-22113-080-0	01	1	9803-9904	●
64	U-BOLT; EXH PIPE,RR EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22113-080-0	01	1	9905-9907		●	●	●
64	U-BOLT; EXH PIPE,RR (B)	1-22113-080-0	01	1	9908-		●	●	●
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> (C)	1-22113-097-0	01	1	9905-9907		●	●	●
65	WASHER; PL ID=8.4 OD=22	9-09160-708-0	02	1	9603-9904	●
65	WASHER; PL EXC. SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	9-09160-708-0	02	1	9905-9907		●	●	●
65	WASHER; PL ID=8.4 OD=22	9-09160-708-0	02	1	9908-		●	●	●
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	9-09150-508-0	04	1	9603-9603		●	●	●
66	WASHER; LK,U BOLT ID=8.2	9-09150-508-0	02	1	9905-		●	●	●
66	WASHER; LK,U BOLT ID=8.2	9-09150-508-0	02	1	9604-9606	●
66	WASHER; LK,U BOLT ID=8.2	9-09150-508-0	02	1	9604-9606	●
68	NUT; U BOLT M8	9-09110-408-0	04	1	9603-9603	●
68	NUT; U BOLT M8	9-09110-408-0	02	1	9604-9606	●
68	NUT; U BOLT M8	9-09110-408-0	02	1	9604-9606	●
68	NUT; U BOLT M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
68	NUT; U BOLT M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
68	NUT; U BOLT M8 FLANGE	0-91150-108-0	02	1	9905-9907		●	●	●
68	NUT; U BOLT M8 FLANGE	0-91150-108-0	02	1	9905-9907		●	●	●
68	NUT; U BOLT M8 FLANGE	0-91150-108-0	02	1	9908-		●	●	●
70	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	02	1	9603-9904	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28081-050-0	02	1	9905-9907		●	●	●
70	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	02	1	9908-		●	●	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X60 FLANGE	0-28081-060-0	04	1	9905-9907		●	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	9603-9904	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	9905-		●	●	●
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	9905-9907		●	●	●
81	NUT; BRKT (A) M8	9-09110-408-0	04	1	9603-9606	●
81	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	04	1	9607-9802	●
81	NUT; BRKT EXC. FUEL TANK 400L<SDH> (A) M8 FLANGE	0-91150-108-0	02	1	9803-9904	●
81	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	9803-9904	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M8 FLANGE	0-91150-108-0	04	1	9905-9907		●	●	●
81	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	04	1	9908-		●	●	●
81	NUT; BRKT (B) M10	9-09110-510-0	02	1	9603-9606	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9607-9904	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	04	1	9905-9907		●	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	04	1	9908-		●	●	●
81	NUT; BRKT FUEL TANK 400L<SDH> (A) M10 FLANGE	0-91150-210-0	04	1	9803-9904	●
81	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	02	1	9905-9907		●	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10 FLANGE	0-91150-210-0	02	1	9905-9907		●	●	●
81	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	02	1	9908-		●	●	●
84	GASKET; EXH PIPE (A)	1-22116-027-0	01	1	9603-9904	●
84	GASKET; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22116-027-0	01	1	9905-9907		●	●	●
84	GASKET; EXH PIPE (A)	1-22116-027-0	01	1	9908-		●	●	●
84	GASKET; EXH PIPE (B)	1-22116-030-0	01	1	9603-9904	●
84	GASKET; EXH PIPE (B)	1-22116-030-0	01	1	9905-		●	●	●
89	CLAMP; EXH SILENCER,RR	1-22133-172-2	01	1	9603-9904	●
89	CLAMP; EXH SILENCER,RR SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	9905-9907		●	●	●
92	CLAMP D=101.4	1-22133-170-1	02	1	0004-		●	●	●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	02	1	9603-9606	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9607-9904	●
94	BOLT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> M8X40 FLANGE	0-28080-840-0	02	1	9905-9907		●	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9908-		●	●	●
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28681-040-0	03	1	9905-9907		●	●	●
105	NUT; CLAMP (A) M8	9-09110-408-0	02	1	9603-9606	●
105	NUT; CLAMP (A) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
105	NUT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> (A) M8 FLANGE	0-91150-108-0	02	1	9905-9907		●	●	●
105	NUT; CLAMP (A) M8 FLANGE	0-91150-108-0	02	1	9908-		●	●	●
105	NUT; CLAMP (B) M10	9-09110-510-0	01	1	9603-9606	●
105	NUT; CLAMP (B) M10 FLANGE	0-91150-210-0	01	1	9607-9802	●
105	NUT; CLAMP EXC. FUEL TANK 400L<SDH> (A) M10 FLANGE	0-91150-210-0	01	1	9803-9904	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> (A) M10 FLANGE	0-91150-210-0	01	1	9905-9907		●	●	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> (A) M10 FLANGE	0-91150-210-0	01	1	9905-9907		●	●	●
105	NUT; CLAMP (A) M10 FLANGE	0-91150-210-0	01	1	9908-		●	●	●
107	BOLT; BRKT (B) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●
107	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9802	●
107	BOLT; BRKT EXC. FUEL TANK 400L<SDH> (B) M8X30 FLANGE	0-28680-830-0	02	1	9803-9904	●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE	0-28680-830-0	02	1	9905-9907		●	●	●
107	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	9908-		●	●	●
107	BOLT; BRKT (A) M10X35 FLANGE	0-28081-035-0	02	1	9603-9606	●
107	BOLT; BRKT (A) M10X40 FLANGE	0-28681-040-0	02	1	9607-9904	●
107	BOLT; BRKT (C) M12X45 FLANGE	0-28081-245-0	04	1	9905-		●	●	●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X40 FLANGE	0-28681-040-0	02	1	9905-9907		●	●	●
107	BOLT; BRKT (A) M10X40 FLANGE	0-28681-040-0	02	1	9908-		●	●	●
107	BOLT; BRKT FUEL TANK 400L<SDH> (B) M10X30 FLANGE	0-28681-030-0	04	1	9803-9904	●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X30 FLANGE	0-28681-030-0	04	1	9905-9907		●	●	●
107	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	04	1	9908-		●	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22131-700-0	01	1	9603-9802	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. FUEL TANK 400L<SDH> (A)	1-22131-700-0	01	1	9803-9904	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22131-700-0	01	1	9905-9907		●	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22131-700-0	01	1	9908-		●	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (B)	1-22131-752-0	01	1	9603-9604	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (B)	1-22131-776-0	01	1	9605-9802	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. FUEL TANK 400L<SDH> (B)	1-22131-776-0	01	1	9803-9904	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22131-776-0	01	1	9905-9907		●	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (B)	1-22131-776-0	01	1	9908-		●	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR FUEL TANK 400L<SDH> (C)	1-22151-781-0	01	1	9803-9904	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR FUEL TANK 400L<SDH> (B)	1-22131-593-0	01	1	9803-9904	●
116	BOLT; BRKT (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
116	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9607	●
116	BOLT; BRKT (A) M8X40 FLANGE	0-28080-840-0	02	1	9607-9904	●
116	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X40 FLANGE	0-28080-840-0	02	1	9905-9907		●	●	●
116	BOLT; BRKT (A) M8X40 FLANGE	0-28080-840-0	02	1	9908-		●	●	●
116	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9603-9904	●
116	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9905-		●	●	●
126	PIPE; EXH,RR (A)	1-22122-639-0	01	1	9603-9701	●
126	PIPE; EXH,RR MJA7U M/T(X6G) (A)	1-22126-219-0	01	1	9702-9802	●
126	PIPE; EXH,RR ISUZU M/T<X9A> EXC. FUEL TANK 400L<SDH> (A)	1-22126-219-0	01	1	9803-9904	●
126	PIPE; EXH,RR ISUZU M/T<X9A> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22126-219-0	01	1	9905-9907		●	●	●
126	PIPE; EXH,RR ISUZU M/T<X9A> (A)	1-22126-219-0	01	1	9908-		●	●	●
126	PIPE; EXH,RR FUEL TANK 400L<SDH> (B)	1-22126-264-0	01	1	9803-9904	●
126	PIPE; EXH,RR ZF M/T<X9E> (A)	1-22126-220-0	01	1	9702-9802	●
126	PIPE; EXH,RR ZF M/T<X9E> EXC. FUEL TANK 400L<SDH> (A)	1-22126-220-0	01	1	9803-9904	●
126	PIPE; EXH,RR ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22126-220-0	01	1	9905-9907		●	●	●
126	PIPE; EXH,RR ZF M/T<X9E> (A)	1-22126-220-0	01	1	9908-		●	●	●
127	NUT; BRKT FUEL TANK 400L<SDH> M8 FLANGE	0-91150-108-0	02	1	9803-9904	●
130	BOLT; BRKT FUEL TANK 400L<SDH> M8X30 FLANGE	0-28680-830-0	02	1	9803-9904	●
147	BRACKET; VERTICAL PIPE	1-48495-176-2	01	1	9603-9904	●
147	BRACKET; VERTICAL PIPE	1-48495-176-2	01	1	9905-		●	●	●
147	BRACKET; VERTICAL PIPE	1-48495-181-1	01	1	9603-9904	●
147	BRACKET; VERTICAL PIPE	1-48495-181-1	01	1	9905-		●	●	●
151	PROTECTOR; HEAT,EXH PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-22159-305-0	01	1	9702-9904	●
151	PROTECTOR; HEAT,EXH PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-305-0	01	1	9905-9907		●	●	●
151	PROTECTOR; HEAT,EXH PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-22159-305-0	01	1	9908-		●	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22159-334-0	01	1	9905-9907		●	●	●
158	BRACKET; HEAT PROTECTOR	1-22119-367-0	01	1	9603-9603	●
158	BRACKET; HEAT PROTECTOR	1-22119-368-0	01	1	9604-9904	●
158	BRACKET; HEAT PROTECTOR	1-22119-368-0	01	1	9905-		●	●	●
159	BOLT; HEAT PROTECTOR (A) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28680-820-0	09	1	9607-9802	●
159	BOLT; HEAT PROTECTOR (A) M8X20 FLANGE	0-28680-820-0	01	1	9803-9902	●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28080-820-0	08	1	9603-9606	●
159	BOLT; HEAT PROTECTOR (A) M8X30 FLANGE	0-28680-830-0	02	1	9603-9902	●
159	BOLT; HEAT PROTECTOR EXC. FUEL TANK 400L<SDH> (B) M8X20 FLANGE	0-28680-820-0	08	1	9803-9904	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (C) M8X20 FLANGE	0-28080-820-0	08	1	9905-9907		●	●	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28680-820-0	08	1	9905-9907		●	●	●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28680-820-0	08	1	9908-		●	●	●
159	BOLT; HEAT PROTECTOR FUEL TANK 400L<SDH> (B) M10X30 FLANGE	0-28681-030-0	02	1	9803-9904	●
159	BOLT; HEAT PROTECTOR FUEL TANK 400L<SDH> (B) M8X20 FLANGE	0-28680-820-0	04	1	9803-9904	●
160	NUT; HEAT PROTECTOR M8	9-09110-408-0	02	1	9603-9606	●
225	PROTECTOR; HEAT	1-22159-271-0	01	1	9603-9701	●
225	PROTECTOR; HEAT ZF M/T<X9E>	1-22159-271-0	01	1	9702-9804	●
225	PROTECTOR; HEAT ZF M/T<X9E> EXC. FUEL TANK 400L<SDH>	1-22159-271-0	01	1	9805-9904	●
225	PROTECTOR; HEAT ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-271-0	01	1	9905-9907		●	●	●
225	PROTECTOR; HEAT ZF M/T<X9E>	1-22159-271-0	01	1	9908-		●	●	●
225	PROTECTOR; HEAT MJA7U M/T(X6G)	1-22159-310-0	01	1	9702-9802	●
225	PROTECTOR; HEAT ISUZU M/T<X9A> EXC. FUEL TANK 400L<SDH>	1-22159-310-0	01	1	9803-9904	●
225	PROTECTOR; HEAT ISUZU M/T<X9A> EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-310-0	01	1	9905-9907		●	●	●
225	PROTECTOR; HEAT ISUZU M/T<X9A>	1-22159-310-0	01	1	9908-		●	●	●
281	NUT; HEAT PROTECTOR M8	9-09110-408-0	01	1	9603-9606	●
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	01	1	9607-9802	●
281	NUT; HEAT PROTECTOR EXC. FUEL TANK 400L<SDH> M8 FLANGE	0-91150-108-0	01	1	9803-9904	●
281	NUT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	01	1	9905-9907		●	●	●
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	01	1	9908-	●
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	02	1	9903-9904	●
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	02	1	9905-		●	●	●
300	PROTECTOR; HEAT,EXH PIPE (A)	1-22119-305-0	01	1	9603-9701	●
300	PROTECTOR; HEAT,EXH PIPE ZF M/T<X9E> (A)	1-22119-305-0	01	1	9702-9802	●
300	PROTECTOR; HEAT,EXH PIPE ZF M/T<X9E> EXC. FUEL TANK 400L<SDH> (A)	1-22119-305-0	01	1	9803-9904	●
300	PROTECTOR; HEAT,EXH PIPE ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22119-305-0	01	1	9905-9907		●	●	●
300	PROTECTOR; HEAT,EXH PIPE ZF M/T<X9E> (A)	1-22119-305-0	01	1	9908-		●	●	●
300	PROTECTOR; HEAT,EXH PIPE (B)	1-22119-309-0	01	1	9603-9904	●
300	PROTECTOR; HEAT,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22119-309-0	01	1	9905-9907		●	●	●
300	PROTECTOR; HEAT,EXH PIPE (B)	1-22119-309-0	01	1	9908-		●	●	●
300	PROTECTOR; HEAT,EXH PIPE MJA7U M/T(X6G) (A)	1-22119-383-0	01	1	9702-9802	●
300	PROTECTOR; HEAT,EXH PIPE ISUZU M/T<X9A> EXC. FUEL TANK 400L<SDH> (A)	1-22119-383-0	01	1	9803-9904	●
300	PROTECTOR; HEAT,EXH PIPE ISUZU M/T<X9A> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22119-383-0	01	1	9905-9907		●	●	●
300	PROTECTOR; HEAT,EXH PIPE ISUZU M/T<X9A> (A)	1-22119-383-0	01	1	9908-		●	●	●
300	PROTECTOR; HEAT,EXH PIPE FUEL TANK 400L<SDH> (C)	1-22119-354-0	01	1	9803-9904	●
334	BOLT; HEAT PROTECTOR M8X70 FLANGE	0-28080-870-0	01	1	9603-9904	●
334	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8X70 FLANGE	0-28080-870-0	01	1	9905-9907		●	●	●
334	BOLT; HEAT PROTECTOR M8X70 FLANGE	0-28080-870-0	01	1	9908-		●	●	●
354	CLAMP; HEAT PROTECTOR	1-22119-307-0	04	1	9603-9802	●
354	CLAMP; HEAT PROTECTOR EXC. FUEL TANK 400L<SDH>	1-22119-307-0	04	1	9803-9904	●
354	CLAMP; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28>	1-22119-307-0	04	1	9905-9907		●	●	●
354	CLAMP; HEAT PROTECTOR	1-22119-307-0	04	1	9908-		●	●	●
354	CLAMP; HEAT PROTECTOR TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-22119-307-0	02	1	9702-9802	●
354	CLAMP; HEAT PROTECTOR FUEL TANK 400L<SDH>	1-22119-307-0	02	1	9803-9904	●
354	CLAMP; HEAT PROTECTOR TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-22119-307-0	02	1	9803-9904	●
354	CLAMP; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28>	1-22119-307-0	02	1	9905-9907		●	●	●
354	CLAMP; HEAT PROTECTOR TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-22119-307-0	02	1	9908-		●	●	●
368	BOLT; CLAMP TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28680-820-0	04	1	9702-9904	●
368	BOLT; CLAMP TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28680-820-0	04	1	9905-9907		●	●	●
368	BOLT; CLAMP TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28680-820-0	04	1	9908-		●	●	●
371	PIECE; DIST	1-22113-087-0	01	1	9603-9904	●
371	PIECE; DIST EXC. SILENCER SINGLE VERTICAL<N28>	1-22113-087-0	01	1	9905-9907		●	●	●
371	PIECE; DIST	1-22113-087-0	01	1	9908-		●	●	●
405	BOLT; DIST PIECE M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
405	BOLT; DIST PIECE M8X35 FLANGE	0-28680-835-0	02	1	9607-9904	●
405	BOLT; DIST PIECE EXC. SILENCER SINGLE VERTICAL<N28> M8X35 FLANGE	0-28680-835-0	02	1	9905-9907		●	●	●
405	BOLT; DIST PIECE M8X35 FLANGE	0-28680-835-0	02	1	9908-		●	●	●
406	NUT; DIST PIECE M8	9-09110-408-0	02	1	9603-9606	●
406	NUT; DIST PIECE M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
406	NUT; DIST PIECE EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	9905-9907		●	●	●
406	NUT; DIST PIECE M8 FLANGE	0-91150-108-0	02	1	9908-		●	●	●
415	BOLT; CLAMP M10X35 FLANGE	0-28081-035-0	01	1	9603-9606	●
415	BOLT; CLAMP M10X40 FLANGE	0-28081-040-0	01	1	9607-9904	●
415	BOLT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28081-040-0	01	1	9905-9907		●	●	●
415	BOLT; CLAMP M10X40 FLANGE	0-28081-040-0	01	1	9908-		●	●	●
415	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28681-040-0	01	1	9905-9907		●	●	●
416	BRACKET; RR EXH PIPE FUEL TANK 400L<SDH>	1-22131-700-0	01	1	9803-9904	●
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28680-830-0	01	1	9603-9904	●
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28680-830-0	01	1	9905-		●	●	●

105 128 59 89 94 483 160 448 4 68 64 52 77 58 446 77 45 5 66 158 159 75 59 201 11 75 394 116 436 24 415 24 394 22 105 396 434 396 147 433 81 22 12 36 94 42 36 34 26 201 161 22 1 84 107 17 75 159 475 24 476 476 59 151 475 41 1 36 1 17 75 70 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH (B)	1-22122-622-0	01	1	9603-9701	●
1	PIPE; EXH ZF M/T<X9E> (B)	1-22122-622-0	01	1	9702-9802	●
1	PIPE; EXH ZF M/T<X9E> EXC. FUEL TANK 400L<SDH> (B)	1-22122-622-0	01	1	9803-9904	●
1	PIPE; EXH ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22122-622-0	01	1	9905-9907		●	●	●
1	PIPE; EXH ZF M/T<X9E> (B)	1-22122-622-0	01	1	9908-		●	●	●
1	PIPE; EXH (A)	1-22122-227-1	01	1	9603-9904	●
1	PIPE; EXH (A)	1-22122-227-1	01	1	9905-		●	●	●
1	PIPE; EXH FUEL TANK 400L<SDH> (B)	1-22123-126-0	01	1	9803-9904	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22122-818-0	01	1	9905-9907		●	●	●
1	PIPE; EXH MJA7U M/T(X6G) (B)	1-22122-922-0	01	1	9702-9802	●
1	PIPE; EXH ISUZU M/T<X9A> EXC. FUEL TANK 400L<SDH> (B)	1-22122-922-0	01	1	9803-9904	●
1	PIPE; EXH ISUZU M/T<X9A> EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22122-922-0	01	1	9905-9907		●	●	●
1	PIPE; EXH ISUZU M/T<X9A> (B)	1-22122-922-0	01	1	9908-		●	●	●
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (C)	1-22123-085-1	01	1	9905-9907		●	●	●
4	WASHER; PL,U BOLT ID=8.4 OD=22	9-09160-708-0	02	1	9603-9802	●
4	WASHER; PL,U BOLT EXC. FUEL TANK 400L<SDH> ID=8.4 OD=22	9-09160-708-0	02	1	9803-9904	●
4	WASHER; PL,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	9-09160-708-0	02	1	9905-9905		●	●	●
4	WASHER; PL,U BOLT ID=8.4 OD=22	9-09160-708-0	02	1	9905-		●	●	●
5	PROTECTOR; HEAT	1-22119-366-0	01	1	9903-9904	●
5	PROTECTOR; HEAT EXC. SILENCER SINGLE VERTICAL<N28>	1-22119-366-0	01	1	9905-9907		●	●	●
5	PROTECTOR; HEAT	1-22119-366-0	01	1	9908-		●	●	●
5	PROTECTOR; HEAT SILENCER SINGLE VERTICAL<N28>	1-22119-405-0	01	1	9905-9907		●	●	●
11	PIPE; EXH,RR	1-22122-641-0	01	1	9603-9904	●
11	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28>	1-22122-641-0	01	1	9905-9907		●	●	●
11	PIPE; EXH,RR	1-22122-641-0	01	1	9908-		●	●	●
11	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-086-1	01	1	9905-9907		●	●	●
12	SILENCER ASM; EXH	1-22140-799-0	01	1	9603-9701	●
12	SILENCER ASM; EXH	1-22140-844-0	01	1	9702-9904	●
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	1-22140-844-0	01	1	9905-9907		●	●	●
12	SILENCER ASM; EXH	1-22140-844-0	01	1	9908-0003		●	●	●
12	SILENCER ASM; EXH	1-22140-937-0	01	1	0004-		●	●	●
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-866-0	01	1	9905-9907		●	●	●
17	BOLT; EXH PIPE (B) M12X25 FLANGE	1-09000-604-0	04	1	9603-9904	●
17	BOLT; EXH PIPE (B) M12X25 FLANGE	1-09000-604-0	04	1	9905-		●	●	●
17	BOLT; EXH PIPE SILENCER SINGLE VERTICAL<N28> (B) M12X25 FLANGE	1-09000-604-0	03	1	9905-9907		●	●	●
22	CLAMP; EXH PIPE (A)	1-22133-222-0	01	1	9603-9904	●
22	CLAMP; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22133-222-0	01	1	9905-9907		●	●	●
22	CLAMP; EXH PIPE (A)	1-22133-222-0	01	1	9908-		●	●	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22133-266-1	01	1	9905-9907		●	●	●
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	1-22133-269-0	02	1	9905-9907		●	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9603-9904	●
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	02	1	9905-9907		●	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	02	1	9908-		●	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	02	1	9908-		●	●	●
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	08	1	9905-9907		●	●	●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	9603-9904	●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	9905-		●	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9603-9606	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	03	1	9607-9904	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	03	1	9905-		●	●	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	9603-9807	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	03	1	9808-9904	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	03	1	9905-		●	●	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	9603-9603	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	9604-9606	●
36	NUT; EXH PIPE (B) M12 FLANGE	0-91150-212-0	04	1	9607-9709	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	9710-9904	●
36	NUT; EXH PIPE (B) M12	9-99110-512-0	04	1	9905-		●	●	●
36	NUT; EXH PIPE SILENCER SINGLE VERTICAL<N28> (B) M12 FLANGE	0-91150-212-0	04	1	9905-9907		●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9603-9606	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9607-9701	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	08	1	9702-9709	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9710-9904	●
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12 FLANGE	0-91150-212-0	04	1	9905-9907		●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9908-		●	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9710-9904	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9905-		●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	9603-9701	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	9702-9904	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	08	1	9905-9907		●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	9908-		●	●	●
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	1-09000-653-0	04	1	9905-9907		●	●	●
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28081-050-0	02	1	9905-9907		●	●	●
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	02	1	9905-9907		●	●	●
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-767-3	01	1	9905-9907		●	●	●
58	BRACKET; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22131-799-0	01	1	9905-9907		●	●	●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-694-1	01	1	9603-9701	●
59	BRACKET; EXH SILENCER,FRT ZF M/T<X9E> (A)	1-22151-694-1	01	1	9702-9802	●
59	BRACKET; EXH SILENCER,FRT ZF M/T<X9E> EXC. FUEL TANK 400L<SDH> (A)	1-22151-694-1	01	1	9803-9904	●
59	BRACKET; EXH SILENCER,FRT ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22151-694-1	01	1	9905-9906		●	●	●
59	BRACKET; EXH SILENCER,FRT ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22151-828-0	01	1	9907-9907		●	●	●
59	BRACKET; EXH SILENCER,FRT ZF M/T<X9E> (A)	1-22151-828-0	01	1	9908-		●	●	●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-698-0	01	1	9603-9701	●
59	BRACKET; EXH SILENCER,FRT ZF M/T<X9E> (B)	1-22151-698-0	01	1	9702-9802	●
59	BRACKET; EXH SILENCER,FRT ZF M/T<X9E> EXC. FUEL TANK 400L<SDH> (B)	1-22151-698-0	01	1	9803-9904	●
59	BRACKET; EXH SILENCER,FRT ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22151-698-0	01	1	9905-9907		●	●	●
59	BRACKET; EXH SILENCER,FRT ZF M/T<X9E> (B)	1-22151-698-0	01	1	9908-		●	●	●
59	BRACKET; EXH SILENCER,FRT FUEL TANK 400L<SDH> (C)	1-22151-379-0	01	1	9803-9904	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (D)	1-22119-252-1	01	1	9905-9907		●	●	●
59	BRACKET; EXH SILENCER,FRT FUEL TANK 400L<SDH> (F)	1-22151-741-0	01	1	9803-9904	●
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (E)	1-22151-768-1	01	1	9905-9907		●	●	●
59	BRACKET; EXH SILENCER,FRT MJA7U M/T(X6G) (F)	1-22151-743-0	01	1	9702-9802	●
59	BRACKET; EXH SILENCER,FRT ISUZU M/T<X9A> EXC. FUEL TANK 400L<SDH> (F)	1-22151-743-0	01	1	9803-9904	●
59	BRACKET; EXH SILENCER,FRT ISUZU M/T<X9A> EXC. SILENCER SINGLE VERTICAL<N28> (F)	1-22151-743-0	01	1	9905-9907		●	●	●
59	BRACKET; EXH SILENCER,FRT ISUZU M/T<X9A> (F)	1-22151-743-0	01	1	9908-		●	●	●
59	BRACKET; EXH SILENCER,FRT MJA7U M/T(X6G) (B)	1-22151-744-0	01	1	9702-9802	●
59	BRACKET; EXH SILENCER,FRT ISUZU M/T<X9A> EXC. FUEL TANK 400L<SDH> (B)	1-22151-744-0	01	1	9803-9904	●
59	BRACKET; EXH SILENCER,FRT ISUZU M/T<X9A> EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22151-744-0	01	1	9905-9907		●	●	●
59	BRACKET; EXH SILENCER,FRT ISUZU M/T<X9A> (B)	1-22151-744-0	01	1	9908-		●	●	●
64	U-BOLT; EXH PIPE,RR (A)	1-22113-079-0	01	1	9603-9904	●
64	U-BOLT; EXH PIPE,RR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22113-079-0	01	1	9905-9907		●	●	●
64	U-BOLT; EXH PIPE,RR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22113-079-0	01	1	9905-9907		●	●	●
64	U-BOLT; EXH PIPE,RR (A)	1-22113-079-0	01	1	9908-		●	●	●
64	U-BOLT; EXH PIPE,RR (B)	1-22113-080-0	01	1	9603-9802	●
64	U-BOLT; EXH PIPE,RR EXC. FUEL TANK 400L<SDH> (B)	1-22113-080-0	01	1	9803-9904	●
64	U-BOLT; EXH PIPE,RR EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22113-080-0	01	1	9905-9907		●	●	●
64	U-BOLT; EXH PIPE,RR (B)	1-22113-080-0	01	1	9908-		●	●	●
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> (C)	1-22113-097-0	01	1	9905-9907		●	●	●
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	9-09150-508-0	04	1	9603-9603		●	●	●
66	WASHER; LK,U BOLT ID=8.2	9-09150-508-0	02	1	9905-		●	●	●
66	WASHER; LK,U BOLT ID=8.2	9-09150-508-0	02	1	9604-9606	●
66	WASHER; LK,U BOLT ID=8.2	9-09150-508-0	02	1	9604-9606	●
68	NUT; U BOLT M8	9-09110-408-0	04	1	9603-9603	●
68	NUT; U BOLT M8	9-09110-408-0	02	1	9604-9606	●
68	NUT; U BOLT M8	9-09110-408-0	02	1	9604-9606	●
68	NUT; U BOLT M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
68	NUT; U BOLT M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
68	NUT; U BOLT M8 FLANGE	0-91150-108-0	02	1	9905-9907		●	●	●
68	NUT; U BOLT M8 FLANGE	0-91150-108-0	02	1	9905-9907		●	●	●
68	NUT; U BOLT M8 FLANGE	0-91150-108-0	02	1	9908-		●	●	●
70	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	02	1	9603-9904	●
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28081-050-0	02	1	9905-9907		●	●	●
70	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	02	1	9908-		●	●	●
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X60 FLANGE	0-28081-060-0	04	1	9905-9907		●	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	9603-9904	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	9905-		●	●	●
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	9905-9907		●	●	●
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	9905-9907		●	●	●
81	NUT; BRKT (A) M8	9-09110-408-0	04	1	9603-9606	●
81	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	04	1	9607-9802	●
81	NUT; BRKT EXC. FUEL TANK 400L<SDH> (A) M8 FLANGE	0-91150-108-0	02	1	9803-9904	●
81	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	9803-9904	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M8 FLANGE	0-91150-108-0	04	1	9905-9907		●	●	●
81	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	04	1	9908-		●	●	●
81	NUT; BRKT (B) M10	9-09110-510-0	02	1	9603-9606	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9607-9904	●
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	04	1	9905-9907		●	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	04	1	9908-		●	●	●
81	NUT; BRKT FUEL TANK 400L<SDH> (A) M10 FLANGE	0-91150-210-0	04	1	9803-9904	●
81	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	02	1	9905-9907		●	●	●
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M10 FLANGE	0-91150-210-0	02	1	9905-9907		●	●	●
81	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	02	1	9908-		●	●	●
84	GASKET; EXH PIPE (A)	1-22116-027-0	01	1	9603-9904	●
84	GASKET; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22116-027-0	01	1	9905-9907		●	●	●
84	GASKET; EXH PIPE (A)	1-22116-027-0	01	1	9908-		●	●	●
84	GASKET; EXH PIPE (B)	1-22116-030-0	01	1	9603-9904	●
84	GASKET; EXH PIPE (B)	1-22116-030-0	01	1	9905-		●	●	●
89	CLAMP; EXH SILENCER,RR	1-22133-172-2	01	1	9603-9904	●
89	CLAMP; EXH SILENCER,RR SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	9905-9907		●	●	●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	02	1	9603-9606	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9607-9904	●
94	BOLT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> M8X40 FLANGE	0-28080-840-0	02	1	9905-9907		●	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9908-		●	●	●
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28681-040-0	03	1	9905-9907		●	●	●
105	NUT; CLAMP (A) M8	9-09110-408-0	02	1	9603-9606	●
105	NUT; CLAMP (A) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
105	NUT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> (A) M8 FLANGE	0-91150-108-0	02	1	9905-9907		●	●	●
105	NUT; CLAMP (A) M8 FLANGE	0-91150-108-0	02	1	9908-		●	●	●
105	NUT; CLAMP (B) M10	9-09110-510-0	01	1	9603-9606	●
105	NUT; CLAMP (B) M10 FLANGE	0-91150-210-0	01	1	9607-9802	●
105	NUT; CLAMP EXC. FUEL TANK 400L<SDH> (A) M10 FLANGE	0-91150-210-0	01	1	9803-9904	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> (A) M10 FLANGE	0-91150-210-0	01	1	9905-9907		●	●	●
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> (A) M10 FLANGE	0-91150-210-0	01	1	9905-9907		●	●	●
105	NUT; CLAMP (A) M10 FLANGE	0-91150-210-0	01	1	9908-		●	●	●
107	BOLT; BRKT (B) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●
107	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9802	●
107	BOLT; BRKT EXC. FUEL TANK 400L<SDH> (B) M8X30 FLANGE	0-28680-830-0	02	1	9803-9904	●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE	0-28680-830-0	02	1	9905-9907		●	●	●
107	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	9908-		●	●	●
107	BOLT; BRKT (A) M10X35 FLANGE	0-28081-035-0	02	1	9603-9606	●
107	BOLT; BRKT (A) M10X40 FLANGE	0-28681-040-0	02	1	9607-9904	●
107	BOLT; BRKT (C) M12X45 FLANGE	0-28081-245-0	04	1	9905-		●	●	●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X40 FLANGE	0-28681-040-0	02	1	9905-9907		●	●	●
107	BOLT; BRKT (A) M10X40 FLANGE	0-28681-040-0	02	1	9908-		●	●	●
107	BOLT; BRKT FUEL TANK 400L<SDH> (B) M10X30 FLANGE	0-28681-030-0	04	1	9803-9904	●
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X30 FLANGE	0-28681-030-0	04	1	9905-9907		●	●	●
107	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	04	1	9908-		●	●	●
116	BOLT; BRKT (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
116	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9607	●
116	BOLT; BRKT (A) M8X40 FLANGE	0-28080-840-0	02	1	9607-9904	●
116	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X40 FLANGE	0-28080-840-0	02	1	9905-9907		●	●	●
116	BOLT; BRKT (A) M8X40 FLANGE	0-28080-840-0	02	1	9908-		●	●	●
116	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9603-9904	●
116	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9905-		●	●	●
128	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-087-1	01	1	9905-9907		●	●	●
147	BRACKET; VERTICAL PIPE	1-48495-176-2	01	1	9603-9904	●
147	BRACKET; VERTICAL PIPE	1-48495-176-2	01	1	9905-		●	●	●
147	BRACKET; VERTICAL PIPE	1-48495-181-1	01	1	9603-9904	●
147	BRACKET; VERTICAL PIPE	1-48495-181-1	01	1	9905-		●	●	●
151	PROTECTOR; HEAT,EXH PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-22159-305-0	01	1	9702-9904	●
151	PROTECTOR; HEAT,EXH PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-305-0	01	1	9905-9907		●	●	●
151	PROTECTOR; HEAT,EXH PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-22159-305-0	01	1	9908-		●	●	●
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22159-334-0	01	1	9905-9907		●	●	●
158	BRACKET; HEAT PROTECTOR	1-22119-367-0	01	1	9603-9603	●
158	BRACKET; HEAT PROTECTOR	1-22119-368-0	01	1	9604-9904	●
158	BRACKET; HEAT PROTECTOR	1-22119-368-0	01	1	9905-		●	●	●
159	BOLT; HEAT PROTECTOR (A) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28680-820-0	09	1	9607-9802	●
159	BOLT; HEAT PROTECTOR (A) M8X20 FLANGE	0-28680-820-0	01	1	9803-9902	●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28080-820-0	08	1	9603-9606	●
159	BOLT; HEAT PROTECTOR (A) M8X30 FLANGE	0-28680-830-0	02	1	9603-9902	●
159	BOLT; HEAT PROTECTOR EXC. FUEL TANK 400L<SDH> (B) M8X20 FLANGE	0-28680-820-0	08	1	9803-9904	●
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (C) M8X20 FLANGE	0-28080-820-0	08	1	9905-9907		●	●	●
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X20 FLANGE	0-28680-820-0	08	1	9905-9907		●	●	●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28680-820-0	08	1	9908-		●	●	●
159	BOLT; HEAT PROTECTOR FUEL TANK 400L<SDH> (B) M10X30 FLANGE	0-28681-030-0	02	1	9803-9904	●
159	BOLT; HEAT PROTECTOR FUEL TANK 400L<SDH> (B) M8X20 FLANGE	0-28680-820-0	04	1	9803-9904	●
160	NUT; HEAT PROTECTOR M8	9-09110-408-0	02	1	9603-9606	●
161	WASHER; PL,HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	9-09160-708-0	08	1	9905-9907		●	●	●
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> M10X25 FLANGE	0-28681-025-0	04	1	9905-9907		●	●	●
394	RUBBER; SUPPORT,CLAMP SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	08	1	9905-9907		●	●	●
396	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	06	1	9905-9907		●	●	●
415	BOLT; CLAMP M10X35 FLANGE	0-28081-035-0	01	1	9603-9606	●
415	BOLT; CLAMP M10X40 FLANGE	0-28081-040-0	01	1	9607-9904	●
415	BOLT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28081-040-0	01	1	9905-9907		●	●	●
415	BOLT; CLAMP M10X40 FLANGE	0-28081-040-0	01	1	9908-		●	●	●
415	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28681-040-0	01	1	9905-9907		●	●	●
433	BRACKET; STAY,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-811-0	01	1	9905-9907		●	●	●
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X30 FLANGE	0-28681-030-0	04	1	9905-9907		●	●	●
436	STAY; SUPPORT,EXH SILENCER SINGLE VERTICAL<N28>	1-22131-798-2	02	1	9905-9907		●	●	●
446	PIECE; DIST,EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	02	1	9905-9907		●	●	●
448	PIECE; DIST,U-BOLT SILENCER SINGLE VERTICAL<N28>	1-22113-095-0	01	1	9905-9907		●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=122	1-22119-297-0	02	1	9909-		●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> OD=122	1-22119-297-0	02	1	9905-9907		●	●	●
476	SPRING; VIBNON,EXH PIPE	1-09583-298-0	04	1	9909-		●	●	●
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-09583-298-0	04	1	9905-9907		●	●	●
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28680-830-0	01	1	9603-9904	●
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28680-830-0	01	1	9905-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
