◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11161 - FSR(SOUTH AFRICA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-36 - TURBOCHARGER SYSTEM ▶
0-36 — TURBOCHARGER SYSTEM (#55499) — 204 parça

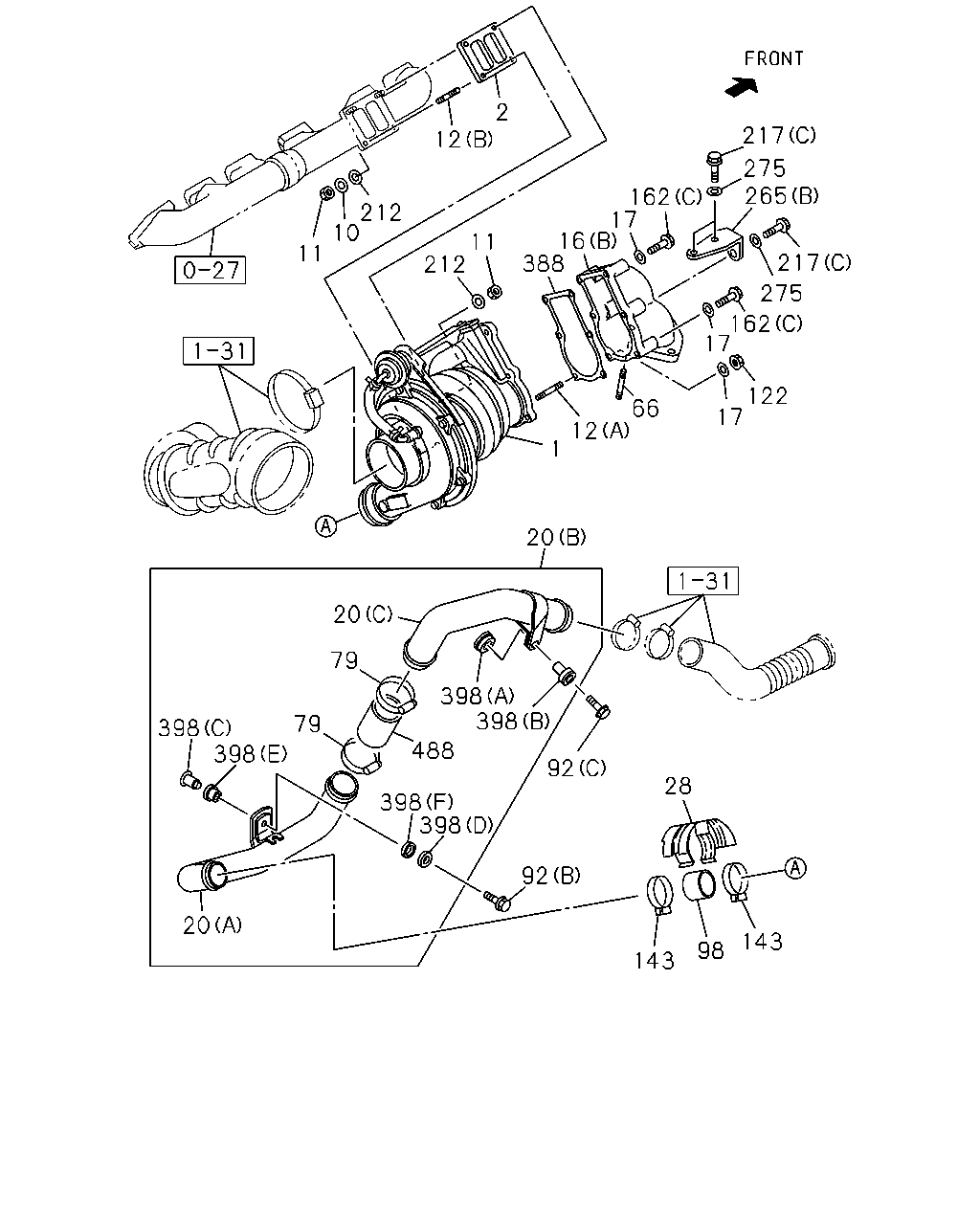

çizim 162617
2 12 217 275 265 162 17 16 388 212 10 11 212 11 217 275 162 17 122 17 66 12 1 20 20 79 398 398 79 398 398 488 92 28 398 398 92 20 143 98 143
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98070-143-2 01 1 1012- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1001- ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> 		8-97604-975-9 01 1 1001- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94390-044-0 01 1 1001- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NT3> 		8-97024-124-0 01 1 1001- ●
10 WASHER; LK,TURBOCHARGER
EURO2 SPECIFICATION<NT2> T=2.2 		1-09556-015-0 02 1 1001- ●
10 WASHER; LK,TURBOCHARGER
EURO3 SPECIFICATION<NT3> T=2.2 		1-09556-015-0 04 1 1001- ●
11 NUT; TURBOCHARGER
M10 P=1.5 H=8 		9-09842-007-0 04 1 1012- ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> M10 		1-09420-005-0 04 1 1001- ●
12 STUD; TURBOCHARGER
(D) M10X28 		9-04731-028-0 02 1 1012- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 1001- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 1001- ●
12 STUD; TURBOCHARGER
EURO3 SPECIFICATION<NT3> (C) M8X25 L=36 		8-94476-282-0 02 1 1001- ●
16 ADAPTER; EXH PIPE
(C) 		8-97039-749-2 01 1 1012- ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-98069-083-0 01 1 1001- ●
16 ADAPTER; EXH PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-98018-241-1 01 1 1001- ●
17 WASHER; PL,ADAPTER
EURO2 SPECIFICATION<NT2> T=1.9 		5-09500-012-0 06 1 1001- ●
17 WASHER; PL,ADAPTER
EURO3 SPECIFICATION<NT3> T=1.9 		5-09500-012-0 04 1 1001- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (A) 		8-97606-675-1 01 1 1001- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-97618-726-2 01 1 1001-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-98251-577-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-97618-734-0 01 1 1001- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> (D) 		8-98046-167-4 01 1 1001-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> (D) 		8-98251-581-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> (E) 		8-98046-168-1 01 1 1001- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> (F) 		8-98046-169-2 01 1 1001- ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
EURO2 SPECIFICATION<NT2> 		8-94393-182-0 01 1 1001- ●
66 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 03 1 1012- ●
66 STUD; EXH PIPE
EURO2 SPECIFICATION<NT2> M12X30 L=48 		8-98059-951-0 03 1 1001- ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 1001- ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE SOU 		0-28650-835-0 01 1 1001- ●
92 BOLT; INL PIPE
(C) M8X40 FLANGE SOU 		0-28650-840-0 01 1 1001- ●
92 BOLT; INL PIPE
EURO3 SPECIFICATION<NT3> (A) M8X30 FLANGE 		0-28650-830-0 03 1 1001- ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 1001-1408 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1409- ●
122 NUT; ADAPTER
EURO2 SPECIFICATION<NT2> M8 		1-09400-118-1 01 1 1001- ●
122 NUT; ADAPTER
EURO3 SPECIFICATION<NT3> M8 		1-09400-118-1 02 1 1001- ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=58-79 		8-94126-771-0 02 1 1001- ●
162 BOLT; ADAPTER
(C) M8X57 		5-09000-275-0 01 1 1012- ●
162 BOLT; ADAPTER
EURO3 SPECIFICATION<NT3> (B) M8X60 		8-98158-604-0 02 1 1001- ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (C) M8X57 		5-09000-275-0 05 1 1001- ●
162 BOLT; ADAPTER
EURO3 SPECIFICATION<NT3> (A) M10X60 FLANGE SOU 		0-28051-060-0 01 1 1001- ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 1001- ●
217 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M12X30 		8-94394-324-0 03 1 1001- ●
217 BOLT; BRKT
EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1001- ●
217 BOLT; BRKT
EURO3 SPECIFICATION<NT3> (B) M10X25 FLANGE 		0-28751-025-0 01 1 1001- ●
265 BRACKET; EXH PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-98260-415-0 01 1 1001- ●
265 BRACKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-94395-764-2 01 1 1001- ●
275 WASHER; PL
EURO2 SPECIFICATION<NT2> ID=12.2 		1-09503-008-0 03 1 1001- ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94394-248-2 01 1 1001- ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 1001- ●
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 1001- ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 1001- ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 1001- ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 1001- ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 1001- ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 1001-1408 ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1409- ●
488 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 		8-98046-356-0 01 1 1001-1408 ●
488 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> ID=52.5 L=70 		8-98245-242-0 01 1 1409- ●

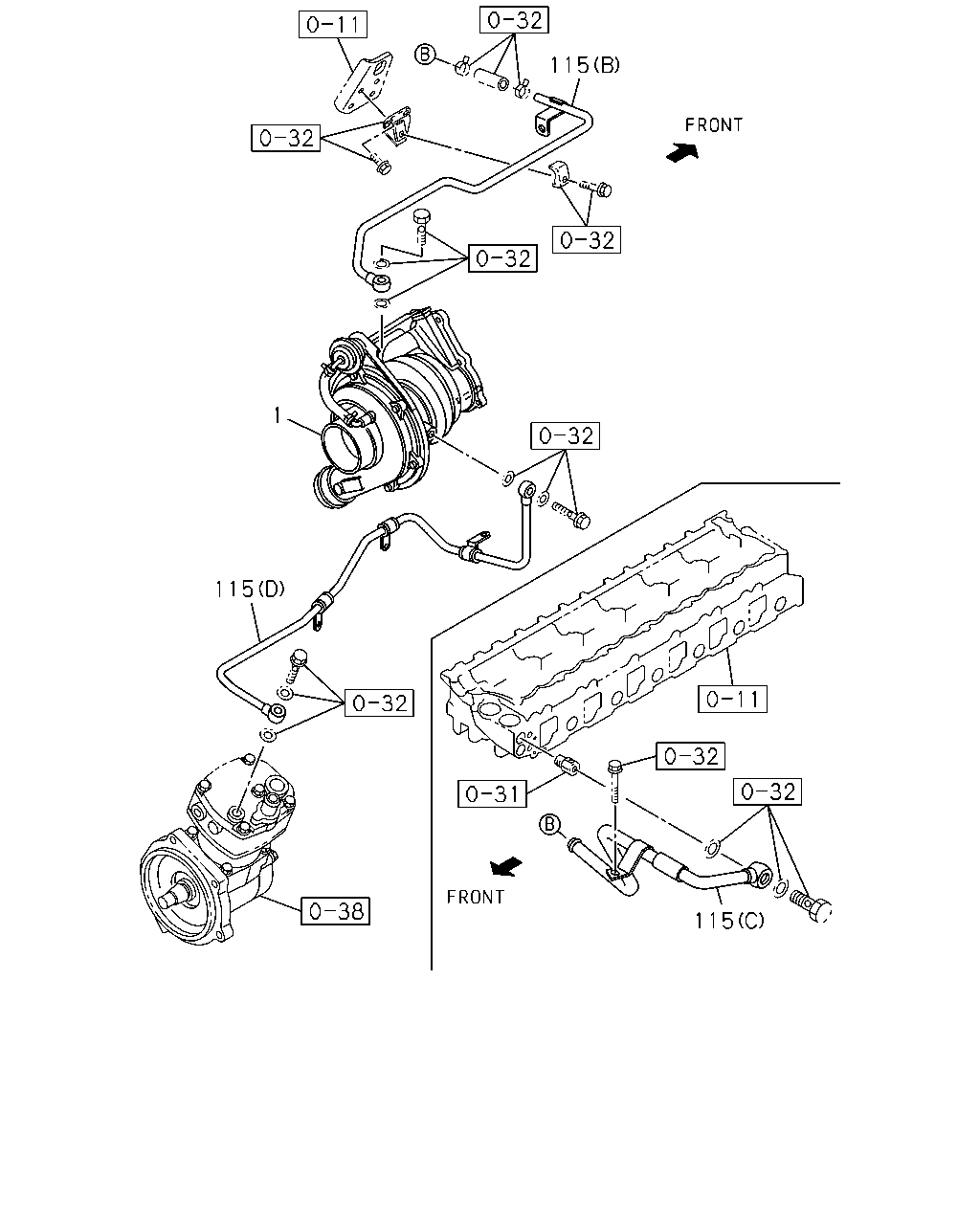

çizim 162618
115 1 115 115
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98070-143-2 01 1 1012- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1001- ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> 		8-97604-975-9 01 1 1001- ●
115 PIPE; WATER,TURBOCHARGER OUT
FSR DBL CAB(FC**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97610-087-2 01 1 1109-1201 ●
115 PIPE; WATER,TURBOCHARGER OUT
(E) 		8-98063-841-0 01 1 1012- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 1001- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 1001- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (D) 		8-97618-808-0 01 1 1001- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> (A) 		8-97615-877-0 01 1 1001-1109 ●
115 PIPE; WATER,TURBOCHARGER OUT
FSR SGL CAB(FC**M*) EURO3 SPECIFICATION<NT3> (A) 		8-97615-877-0 01 1 1110- ●
115 PIPE; WATER,TURBOCHARGER OUT
FSR DBL CAB(FC**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97615-877-0 01 1 1110- ●

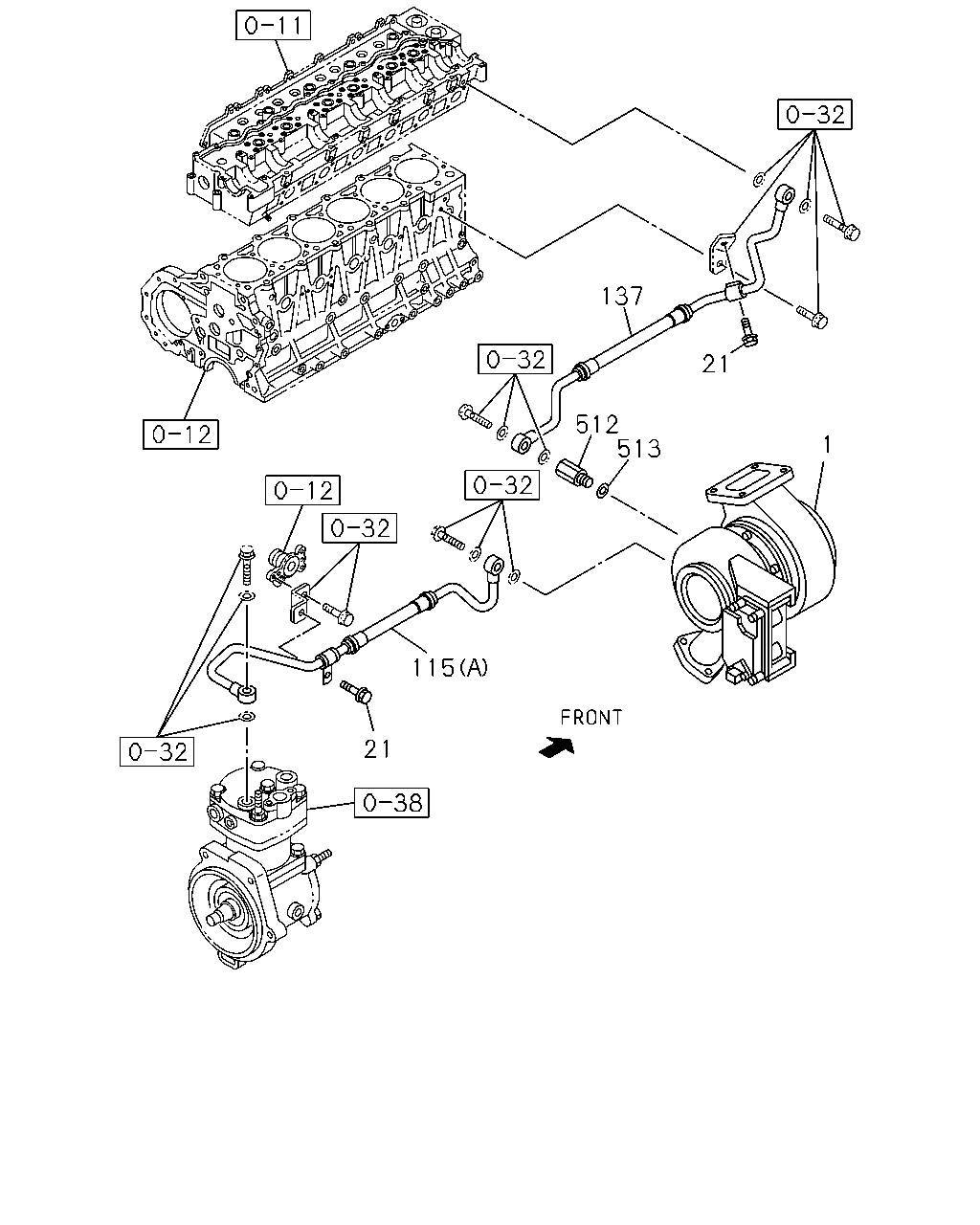

çizim 162623
137 21 512 513 1 115 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98070-143-2 01 1 1012- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1001- ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> 		8-97604-975-9 01 1 1001- ●
21 BOLT; PIPE
EURO3 SPECIFICATION<NT3> M8X16 FLANGE SOU 		0-28050-816-0 02 1 1001- ●
115 PIPE; WATER,TURBOCHARGER OUT
FSR DBL CAB(FC**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97610-087-2 01 1 1109-1201 ●
115 PIPE; WATER,TURBOCHARGER OUT
(E) 		8-98063-841-0 01 1 1012- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 1001- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 1001- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (D) 		8-97618-808-0 01 1 1001- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> (A) 		8-97615-877-0 01 1 1001-1109 ●
115 PIPE; WATER,TURBOCHARGER OUT
FSR SGL CAB(FC**M*) EURO3 SPECIFICATION<NT3> (A) 		8-97615-877-0 01 1 1110- ●
115 PIPE; WATER,TURBOCHARGER OUT
FSR DBL CAB(FC**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97615-877-0 01 1 1110- ●
137 PIPE; WATER,TURBOCHARGER IN 8-98063-007-0 01 1 1012- ●
137 PIPE; WATER,TURBOCHARGER IN
EURO3 SPECIFICATION<NT3> 		8-98046-783-0 01 1 1001- ●
512 CONNECTOR; TURBO
EURO3 SPECIFICATION<NT3> 		8-98031-856-0 01 1 1001- ●
513 GASKET; CONNECTOR
EURO3 SPECIFICATION<NT3> ID=14.2 OD=19.2 SOU 		1-09630-085-0 01 1 1001-1312 ●
513 GASKET; CONNECTOR
EURO3 SPECIFICATION<NT3> ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401- ●

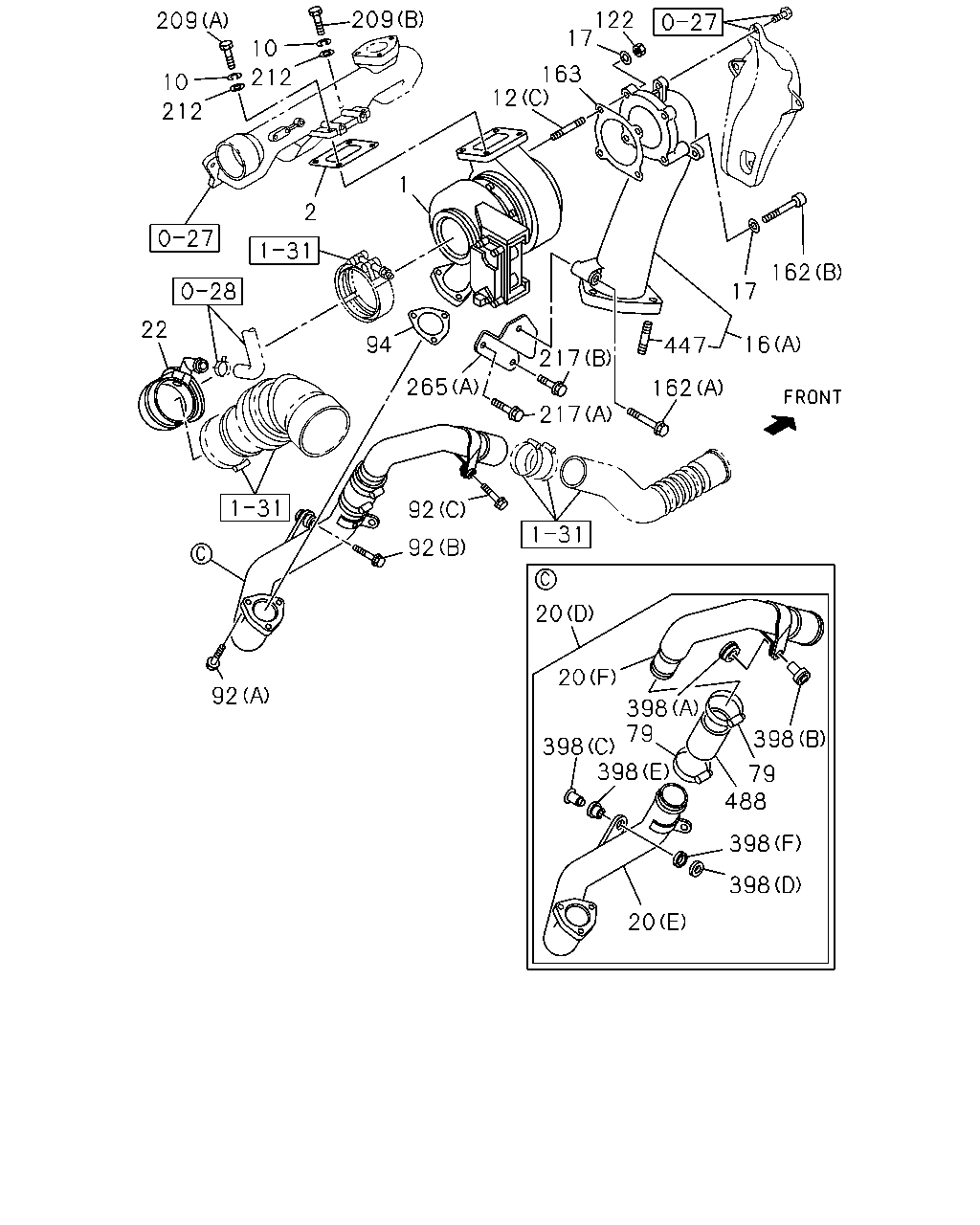

çizim 162664
209 122 17 209 10 163 12 212 10 212 1 2 162 17 22 16 94 447 217 265 162 217 92 92 20 20 92 398 79 398 398 398 79 488 398 398 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98070-143-2 01 1 1012- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1001- ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> 		8-97604-975-9 01 1 1001- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94390-044-0 01 1 1001- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NT3> 		8-97024-124-0 01 1 1001- ●
10 WASHER; LK,TURBOCHARGER
EURO2 SPECIFICATION<NT2> T=2.2 		1-09556-015-0 02 1 1001- ●
10 WASHER; LK,TURBOCHARGER
EURO3 SPECIFICATION<NT3> T=2.2 		1-09556-015-0 04 1 1001- ●
12 STUD; TURBOCHARGER
(D) M10X28 		9-04731-028-0 02 1 1012- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 1001- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 1001- ●
12 STUD; TURBOCHARGER
EURO3 SPECIFICATION<NT3> (C) M8X25 L=36 		8-94476-282-0 02 1 1001- ●
16 ADAPTER; EXH PIPE
(C) 		8-97039-749-2 01 1 1012- ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-98069-083-0 01 1 1001- ●
16 ADAPTER; EXH PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-98018-241-1 01 1 1001- ●
17 WASHER; PL,ADAPTER
EURO2 SPECIFICATION<NT2> T=1.9 		5-09500-012-0 06 1 1001- ●
17 WASHER; PL,ADAPTER
EURO3 SPECIFICATION<NT3> T=1.9 		5-09500-012-0 04 1 1001- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (A) 		8-97606-675-1 01 1 1001- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-97618-726-2 01 1 1001-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-98251-577-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-97618-734-0 01 1 1001- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> (D) 		8-98046-167-4 01 1 1001-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> (D) 		8-98251-581-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> (E) 		8-98046-168-1 01 1 1001- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> (F) 		8-98046-169-2 01 1 1001- ●
22 DUCT; INL,ACL TO TURBOCHARGER
EURO3 SPECIFICATION<NT3> 		8-98036-164-1 01 1 1001- ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 1001- ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE SOU 		0-28650-835-0 01 1 1001- ●
92 BOLT; INL PIPE
(C) M8X40 FLANGE SOU 		0-28650-840-0 01 1 1001- ●
92 BOLT; INL PIPE
EURO3 SPECIFICATION<NT3> (A) M8X30 FLANGE 		0-28650-830-0 03 1 1001- ●
94 GASKET; INL PIPE
EURO3 SPECIFICATION<NT3> ID=55 		8-98053-830-0 01 1 1001- ●
122 NUT; ADAPTER
EURO2 SPECIFICATION<NT2> M8 		1-09400-118-1 01 1 1001- ●
122 NUT; ADAPTER
EURO3 SPECIFICATION<NT3> M8 		1-09400-118-1 02 1 1001- ●
162 BOLT; ADAPTER
(C) M8X57 		5-09000-275-0 01 1 1012- ●
162 BOLT; ADAPTER
EURO3 SPECIFICATION<NT3> (B) M8X60 		8-98158-604-0 02 1 1001- ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (C) M8X57 		5-09000-275-0 05 1 1001- ●
162 BOLT; ADAPTER
EURO3 SPECIFICATION<NT3> (A) M10X60 FLANGE SOU 		0-28051-060-0 01 1 1001- ●
163 GASKET; ADAPTER TO EXH PIPE
EURO3 SPECIFICATION<NT3> ID=83 		8-94392-553-2 01 1 1001- ●
209 BOLT; BRACE,TURBOCHARGER
EURO3 SPECIFICATION<NT3> (B) M10X80 		8-98049-825-0 02 1 1001- ●
209 BOLT; BRACE,TURBOCHARGER
EURO3 SPECIFICATION<NT3> (A) M10X40 		9-09604-007-1 02 1 1001- ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 1001- ●
217 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M12X30 		8-94394-324-0 03 1 1001- ●
217 BOLT; BRKT
EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1001- ●
217 BOLT; BRKT
EURO3 SPECIFICATION<NT3> (B) M10X25 FLANGE 		0-28751-025-0 01 1 1001- ●
265 BRACKET; EXH PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-98260-415-0 01 1 1001- ●
265 BRACKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-94395-764-2 01 1 1001- ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 1001- ●
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 1001- ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 1001- ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 1001- ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 1001- ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 1001- ●
447 STUD; ADAPTER
EURO3 SPECIFICATION<NT3> M12X30 L=48 		0-44011-230-0 03 1 1001- ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 1001-1408 ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1409- ●
488 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 		8-98046-356-0 01 1 1001-1408 ●
488 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> ID=52.5 L=70 		8-98245-242-0 01 1 1409- ●

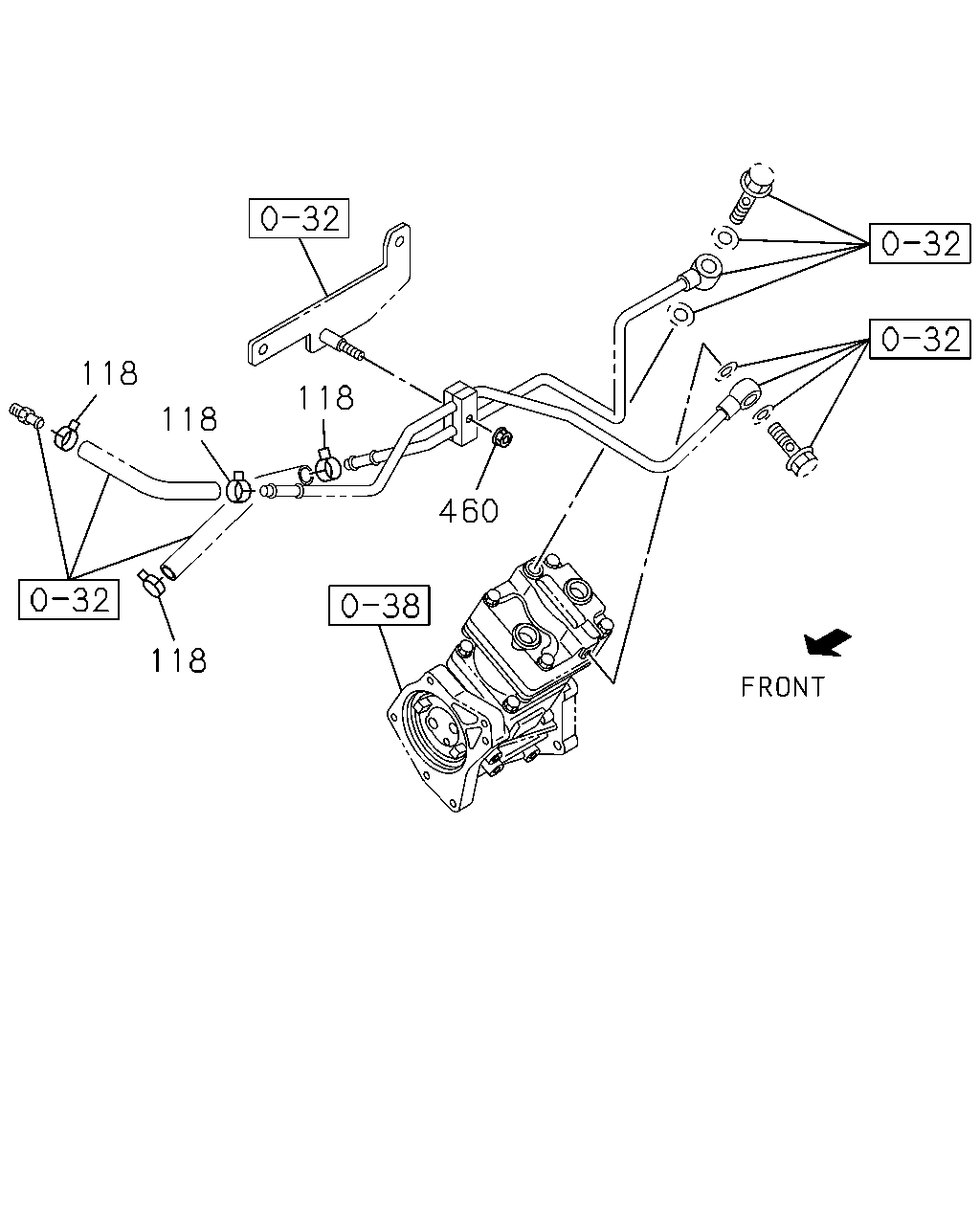

çizim 162819
460 118 118 118 118
BalonParca AdiParca NoAdetTipApplied Date A B
118 CLIP; WATER HOSE
ID=15.5 		8-94221-519-0 02 1 1012-1101 ●
118 CLIP; WATER HOSE
ID=15.5 		8-94221-519-0 06 1 1102- ●
460 NUT; PIPE
M6 FLANGE SOU 		0-91180-106-0 01 1 1102- ●

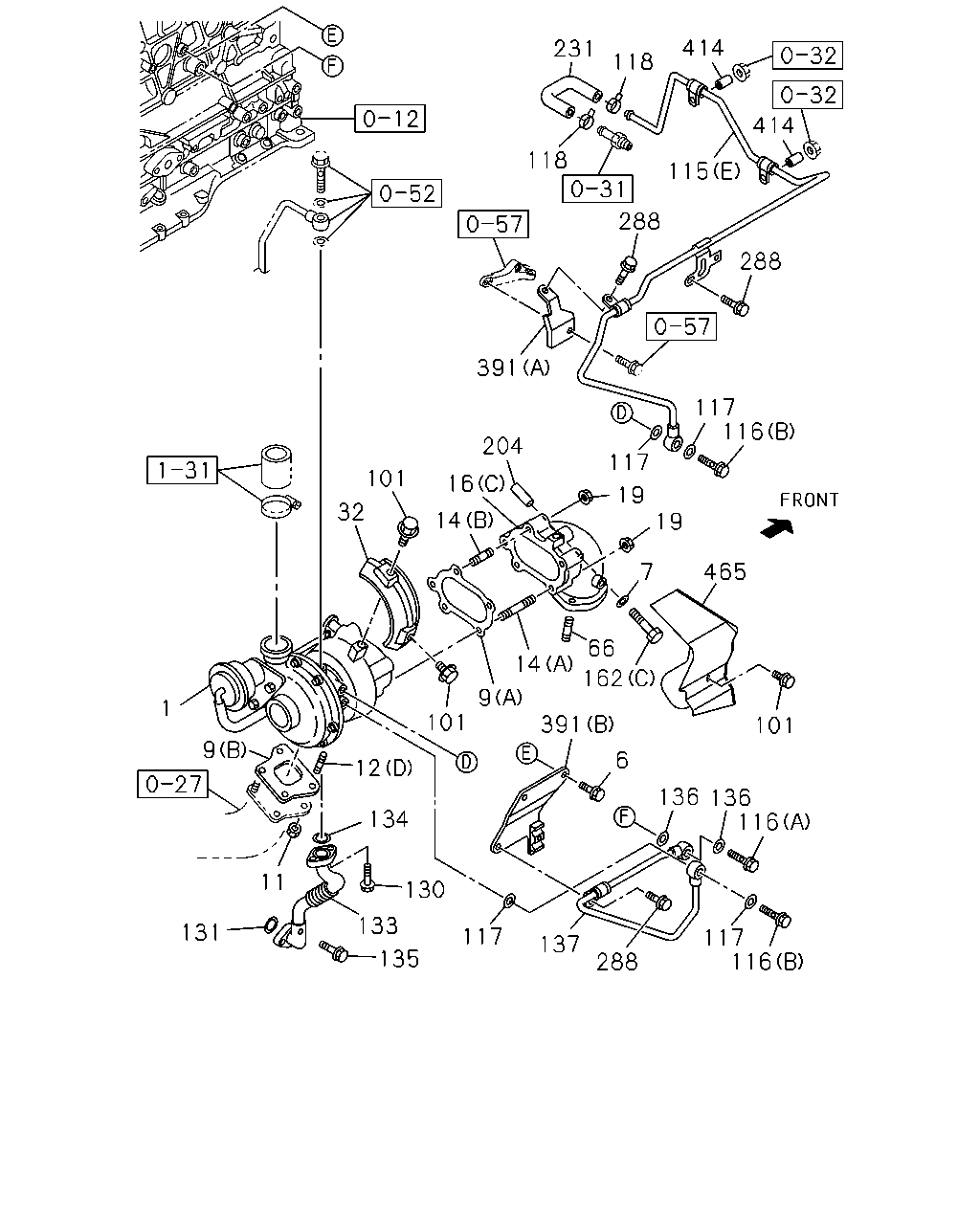

çizim 162824
414 231 118 414 118 115 288 288 391 117 116 204 117 101 16 19 32 14 19 465 7 66 14 162 9 1 101 391 101 9 6 12 136 136 116 134 11 130 133 131 117 117 116 137 135 288
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98070-143-2 01 1 1012- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 1001- ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> 		8-97604-975-9 01 1 1001- ●
6 BOLT; BRKT TO C/BL
M8X16 FLANGE SOU 		0-28050-816-0 02 1 1012- ●
7 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 1012- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-97039-777-1 01 1 1012- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-97374-412-0 01 1 1012- ●
11 NUT; TURBOCHARGER
M10 P=1.5 H=8 		9-09842-007-0 04 1 1012- ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> M10 		1-09420-005-0 04 1 1001- ●
12 STUD; TURBOCHARGER
(D) M10X28 		9-04731-028-0 02 1 1012- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 1001- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 1001- ●
12 STUD; TURBOCHARGER
EURO3 SPECIFICATION<NT3> (C) M8X25 L=36 		8-94476-282-0 02 1 1001- ●
14 STUD; TURBOCHARGER TO EXH PIPE
(A) M8X94 L=108 		8-97019-477-0 02 1 1012- ●
14 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 		8-97019-478-0 03 1 1012- ●
16 ADAPTER; EXH PIPE
(C) 		8-97039-749-2 01 1 1012- ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-98069-083-0 01 1 1001- ●
16 ADAPTER; EXH PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-98018-241-1 01 1 1001- ●
19 NUT; EXH PIPE,TURBOCHARGER
M8 FLANGE 		8-94170-486-0 05 1 1012- ●
32 PROTECTOR; HEAT,TURBOCHARGER 8-97351-168-0 01 1 1012- ●
66 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 03 1 1012- ●
66 STUD; EXH PIPE
EURO2 SPECIFICATION<NT2> M12X30 L=48 		8-98059-951-0 03 1 1001- ●
101 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER 		8-98054-289-0 06 1 1012- ●
115 PIPE; WATER,TURBOCHARGER OUT
FSR DBL CAB(FC**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97610-087-2 01 1 1109-1201 ●
115 PIPE; WATER,TURBOCHARGER OUT
(E) 		8-98063-841-0 01 1 1012- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 1001- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 1001- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (D) 		8-97618-808-0 01 1 1001- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> (A) 		8-97615-877-0 01 1 1001-1109 ●
115 PIPE; WATER,TURBOCHARGER OUT
FSR SGL CAB(FC**M*) EURO3 SPECIFICATION<NT3> (A) 		8-97615-877-0 01 1 1110- ●
115 PIPE; WATER,TURBOCHARGER OUT
FSR DBL CAB(FC**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97615-877-0 01 1 1110- ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT 		1-09675-081-0 02 1 1012- ●
116 BOLT; WATER PIPE
(A) M14X30 EYE-BOLT 		8-94455-144-0 01 1 1012- ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		9-09571-412-0 04 1 1012- ●
118 CLIP; WATER HOSE
ID=15.5 		8-94221-519-0 02 1 1012-1101 ●
118 CLIP; WATER HOSE
ID=15.5 		8-94221-519-0 06 1 1102- ●
130 BOLT; OIL PIPE TO TURBOCHARGER DRAIN
M6X20 W/LK WASHER 		0-50540-620-0 02 1 1012- ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 1012- ●
133 PIPE; OIL DRAIN,TURBOCHARGER 8-98172-662-0 01 1 1012- ●
134 GASKET; OIL PIPE,TURBOCHARGER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 1012- ●
135 BOLT; OIL PIPE TO C/BL
M8X20 FLANGE 		0-28050-820-0 02 1 1012- ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 SOU 		1-09630-085-0 02 1 1012-1312 ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
137 PIPE; WATER,TURBOCHARGER IN 8-98063-007-0 01 1 1012- ●
137 PIPE; WATER,TURBOCHARGER IN
EURO3 SPECIFICATION<NT3> 		8-98046-783-0 01 1 1001- ●
162 BOLT; ADAPTER
(C) M8X57 		5-09000-275-0 01 1 1012- ●
162 BOLT; ADAPTER
EURO3 SPECIFICATION<NT3> (B) M8X60 		8-98158-604-0 02 1 1001- ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (C) M8X57 		5-09000-275-0 05 1 1001- ●
162 BOLT; ADAPTER
EURO3 SPECIFICATION<NT3> (A) M10X60 FLANGE SOU 		0-28051-060-0 01 1 1001- ●
204 COLLAR; PIPE ADAPTER 8-97214-384-1 01 1 1012- ●
231 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 1012- ●
288 BOLT; WATER PIPE CLIP
M8X16 FLANGE SOU 		0-28050-816-0 02 1 1012- ●
391 BRACKET; WATER PIPE
(A) 		8-98013-958-0 01 1 1012-1303 ●
391 BRACKET; WATER PIPE
(B) 		8-98057-168-2 01 1 1012- ●
414 SPACER
M8X10 		1-11369-081-0 02 1 1012- ●
465 PROTECTOR; HEAT,EXH ADAPTER 8-97351-167-0 01 1 1012-1204 ●
465 PROTECTOR; HEAT,EXH ADAPTER 8-98176-248-0 01 1 1205- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
