0-33 — FAN AND FAN BELT (#55497) — 57 parça

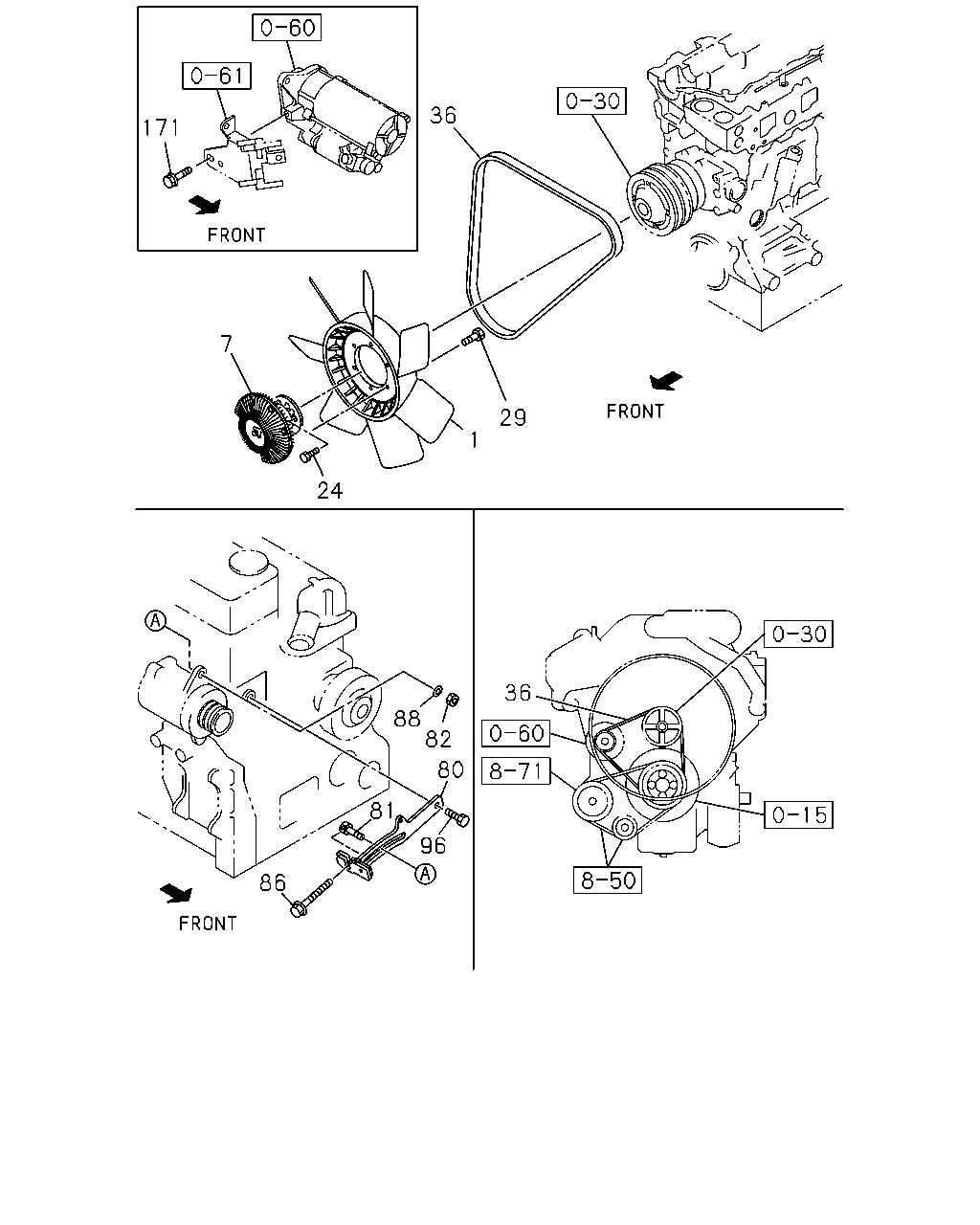

çizim 162644
171 36 7 24 29 1 88 82 80 81 96 86 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 FAN; COOLING
FSR SGL CAB(FC**M*) OD=510 		8-98003-191-0 01 1 1102-1108 ●
1 FAN; COOLING
OD=510 		8-98190-148-1 01 1 1109- ●
1 FAN; COOLING
OD=560 		8-98073-467-1 01 1 1001- ●
1 FAN; COOLING
OD=510 		8-98003-191-0 01 1 1012-1101 ●
7 COUPLING; FAN 8-98075-290-1 01 1 1001- ●
24 BOLT; FAN
M8X18 FLANGE 		0-28080-818-0 04 1 1012- ●
24 BOLT; FAN
M10X25 FLANGE 		0-28151-025-0 04 1 1001- ●
29 BOLT; COUPLING TO WATER PUMP
M8X16 FLANGE SOU 		0-28050-816-0 06 1 1001- ●
36 BELT; COOLING FAN
L=1086 MITSUBOSHI 		8-98020-247-0 01 1 1102- ●
36 BELT; COOLING FAN
L=1170 MITSUBOSHI 		8-97611-859-1 01 1 1001- ●
36 BELT; COOLING FAN
L=1086 MITSUBOSHI 		8-98020-247-0 01 1 1012-1101 ●
36 BELT; COOLING FAN
BEST VALUE PARTS 		1-87610-105-0 01 1 1001- ●
36 BELT; COOLING FAN
BEST VALUE PARTS 		1-87610-107-0 01 1 1102- ●
80 PLATE; ADJ 8-98054-181-0 01 1 1012- ●
80 PLATE; ADJ 8-97601-020-1 01 1 1001- ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 1001-1101 ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 1102- ● ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 1012-1101 ●
82 NUT; ADJ PLATE
M12 FLANGE 		0-91180-112-0 01 1 1001- ●
86 BOLT; ADJ
M10X135 		1-09009-113-1 01 1 1102- ●
86 BOLT; ADJ
M10X155 FLANGE 		1-09009-114-1 01 1 1001- ●
86 BOLT; ADJ
M10X135 		1-09009-113-1 01 1 1012-1101 ●
88 WASHER; PL,ADJ PLATE
ID=12.5 OD=32 		0-91614-712-0 01 1 1001- ●
96 BOLT; ADJ PLATE
M10X45 FLANGE 		0-28151-045-0 01 1 1001- ●
171 BOLT; HEAT PROTECTOR
M10X20 FLANGE 		0-28051-020-0 01 1 1001- ●

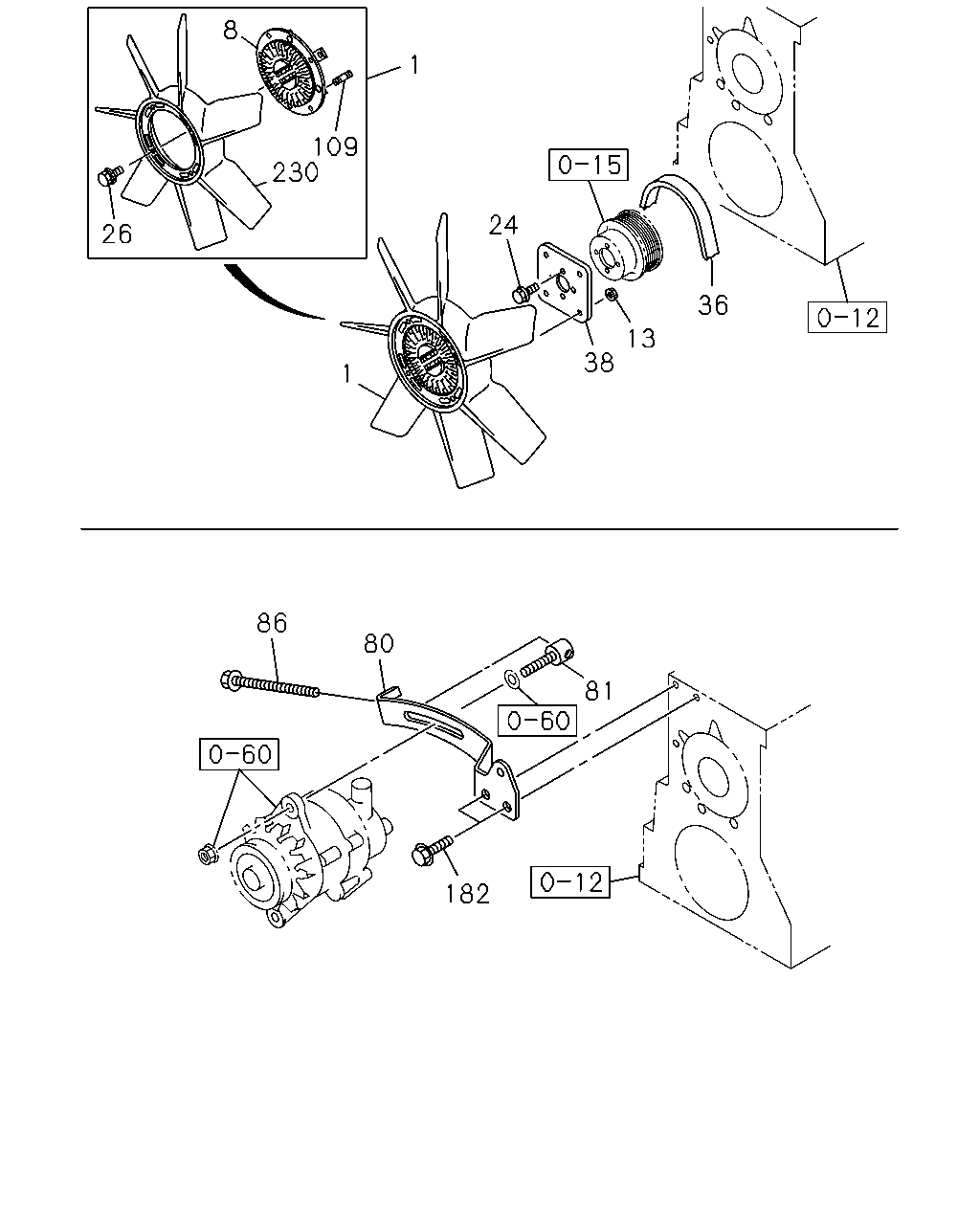

çizim 162776
8 1 109 230 24 26 36 13 38 1 86 80 81 182
BalonParca AdiParca NoAdetTipApplied Date A B
1 FAN; COOLING
FSR SGL CAB(FC**M*) OD=510 		8-98003-191-0 01 1 1102-1108 ●
1 FAN; COOLING
OD=510 		8-98190-148-1 01 1 1109- ●
1 FAN; COOLING
OD=560 		8-98073-467-1 01 1 1001- ●
1 FAN; COOLING
OD=510 		8-98003-191-0 01 1 1012-1101 ●
8 CLUTCH; COOLING FAN
FSR SGL CAB(FC**M*) 		8-98019-743-0 01 1 1102- ●
8 CLUTCH; COOLING FAN 8-98019-743-0 01 1 1012-1101 ●
13 NUT; COOLING FAN
FSR SGL CAB(FC**M*) M8 FLANGE SOU 		0-91180-108-0 04 1 1102- ●
13 NUT; COOLING FAN
M8 FLANGE SOU 		0-91180-108-0 04 1 1012-1101 ●
24 BOLT; FAN
M8X18 FLANGE 		0-28080-818-0 04 1 1012- ●
24 BOLT; FAN
M10X25 FLANGE 		0-28151-025-0 04 1 1001- ●
26 BOLT; FAN TO CLU
FSR SGL CAB(FC**M*) 		8-94389-764-0 04 1 1102- ●
26 BOLT; FAN TO CLU 8-94389-764-0 04 1 1012-1101 ●
36 BELT; COOLING FAN
L=1086 MITSUBOSHI 		8-98020-247-0 01 1 1102- ●
36 BELT; COOLING FAN
L=1170 MITSUBOSHI 		8-97611-859-1 01 1 1001- ●
36 BELT; COOLING FAN
L=1086 MITSUBOSHI 		8-98020-247-0 01 1 1012-1101 ●
36 BELT; COOLING FAN
BEST VALUE PARTS 		1-87610-105-0 01 1 1001- ●
36 BELT; COOLING FAN
BEST VALUE PARTS 		1-87610-107-0 01 1 1102- ●
38 SPACER; FAN 8-97108-643-0 01 1 1012- ●
80 PLATE; ADJ 8-98054-181-0 01 1 1012- ●
80 PLATE; ADJ 8-97601-020-1 01 1 1001- ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 1001-1101 ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 1102- ● ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 1012-1101 ●
86 BOLT; ADJ
M10X135 		1-09009-113-1 01 1 1102- ●
86 BOLT; ADJ
M10X155 FLANGE 		1-09009-114-1 01 1 1001- ●
86 BOLT; ADJ
M10X135 		1-09009-113-1 01 1 1012-1101 ●
109 STUD; FAN CLU
FSR SGL CAB(FC**M*) M8X13.5 L=22 		8-97049-577-1 04 1 1102- ●
109 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 1012-1101 ●
182 BOLT; BRKT
M8X35 FLANGE SOU 		0-28650-835-0 02 1 1012- ●
230 FAN; COOLING
FSR SGL CAB(FC**M*) 		8-97367-381-0 01 1 1102-1108 ●
230 FAN; COOLING 8-98190-058-0 01 1 1109- ●
230 FAN; COOLING 8-97367-381-0 01 1 1012-1101 ●
