Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#55496) — 198 parça

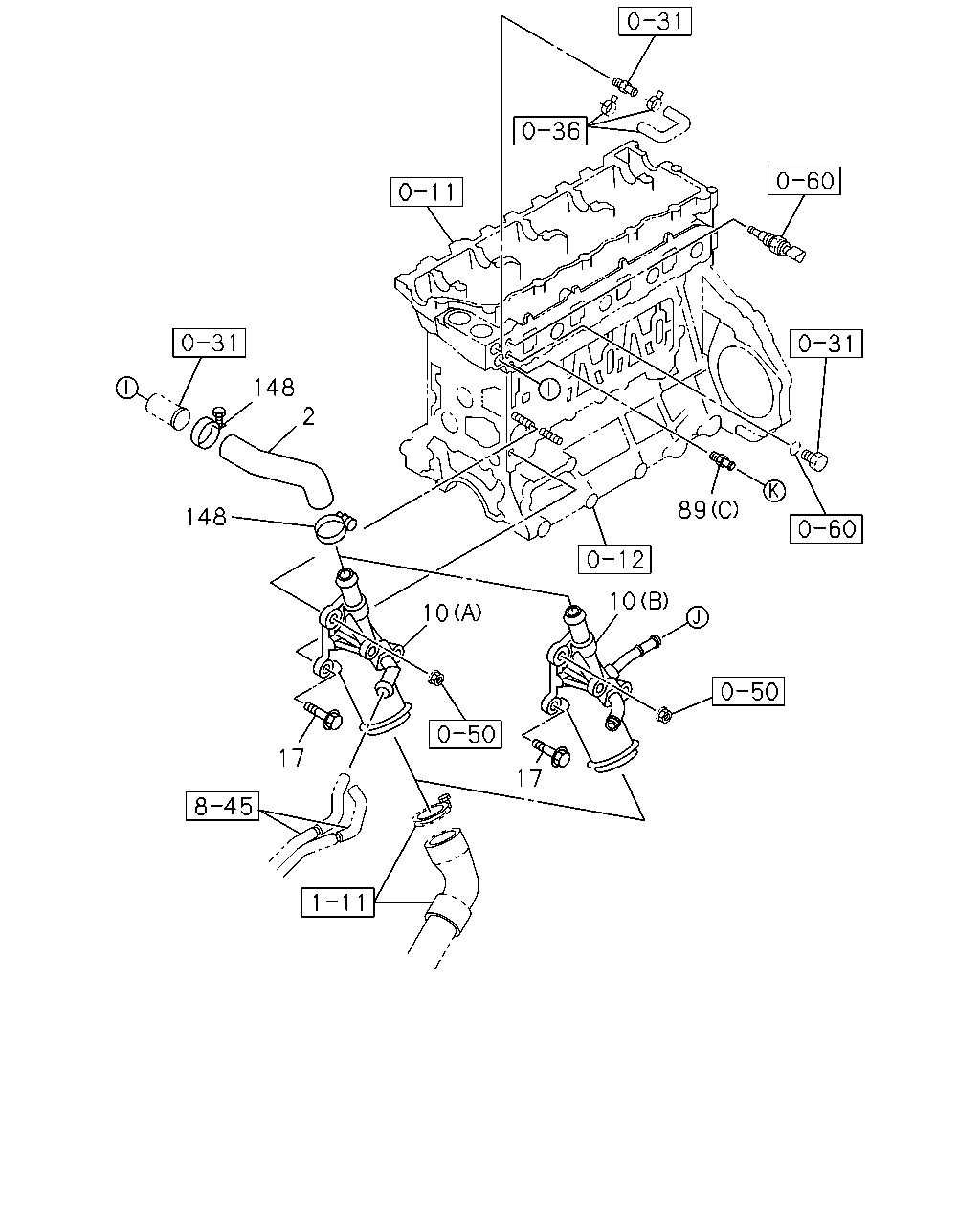

148 2 89 148 10 10 17 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; WATER,BY-PASS	8-97379-228-1	01	1	1012-	●
10	PIPE; SUCTION (A)	8-98166-991-0	01	1	1012-1101	●
10	PIPE; SUCTION (B)	8-98166-995-0	01	1	1102-	●
17	BOLT; SUCTION PIPE M8X48 FLANGE	8-94458-473-1	01	1	1012-	●
89	PIPE; WATER,AIR CMPR,IN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97610-086-0	01	1	1109-1201		●
89	PIPE; WATER,AIR CMPR,IN (C)	8-97358-699-0	01	1	1102-	●
89	PIPE; WATER,AIR CMPR,IN (B)	8-97376-783-1	01	1	1102-	●
89	PIPE; WATER,AIR CMPR,IN (A)	8-97611-095-0	01	1	1001-1109		●
89	PIPE; WATER,AIR CMPR,IN FSR SGL CAB(FC*M) (A)	8-97611-095-0	01	1	1110-1201		●
89	PIPE; WATER,AIR CMPR,IN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97611-095-0	01	1	1110-1201		●
89	PIPE; WATER,AIR CMPR,IN (A)	8-97611-095-0	01	1	1202-		●
148	CLIP; BYPASS HOSE ID=30	9-09915-315-1	02	1	1012-	●

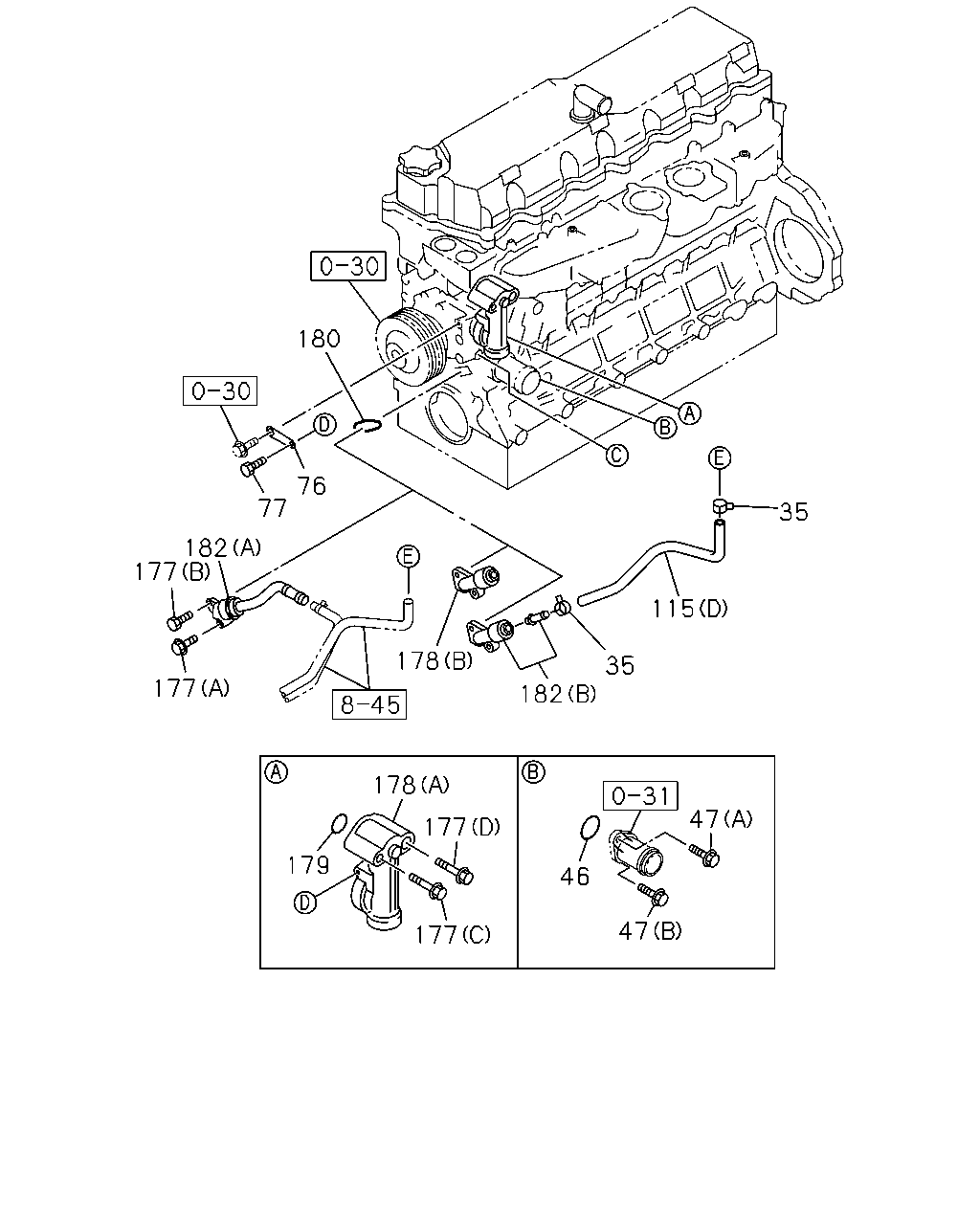

35 115 35 182 178 76 180 77 182 177 177 47 47 46 177 178 177 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> ID=20	8-98127-648-0	05	1	1001-1104		●
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> ID=20	8-98127-648-0	06	1	1105-		●
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-98127-648-0	02	1	1001-		●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	1001-		●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE SOU	0-28050-845-0	01	1	1001-		●
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-		●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	1001-		●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	1001-		●
115	HOSE; RUBBER (F)	8-98009-361-0	01	1	1102-	●
115	HOSE; RUBBER (G) L=130	8-98136-884-0	01	1	1102-	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1001-		●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (A) L=320 SERVICED BY L=3000 SOU	0-03566-300-0	01	1	1001-		●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (B)	8-97606-735-1	01	1	1001-		●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (C)	8-98043-192-0	01	1	1001-		●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-97618-843-0	01	1	1001-		●
177	BOLT; WATER DUCT (C) M8X80 FLANGE SOU	0-28050-880-0	01	1	1001-		●
177	BOLT; WATER DUCT (B) M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-		●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	1001-		●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	1001-		●
178	DUCT; WATER,BYPASS (A)	8-94396-627-3	01	1	1001-		●
178	DUCT; WATER,BYPASS EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94390-644-0	01	1	1001-		●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	1001-1408		●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-98276-756-0	01	1	1409-		●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	1001-		●
182	DUCT; WATER,HTR EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94396-727-3	01	1	1001-		●
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94394-348-5	01	1	1001-		●

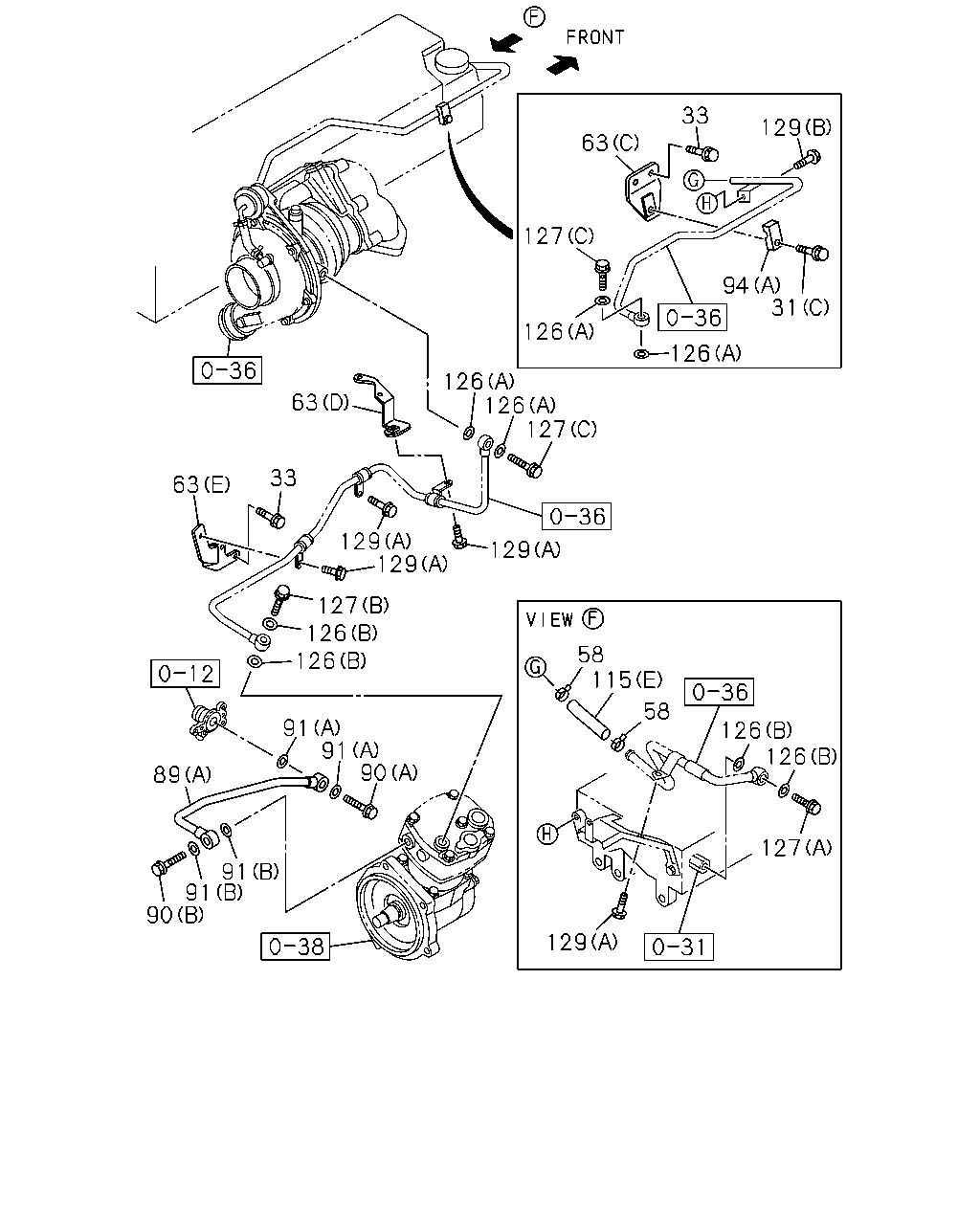

63 33 129 94 31 126 126 127 126 126 127 129 129 129 127 126 126 33 63 63 91 91 90 91 91 90 89 129 58 115 58 126 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	BOLT; CLIP EURO2 SPECIFICATION<NT2> (C) M6X35 FLANGE	0-28650-635-0	01	1	1001-		●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (B) M6X45 FLANGE	0-28050-645-0	01	1	1001-		●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M6X40 FLANGE	0-28650-640-0	02	1	1001-1106		●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M6X40 FLANGE	0-28650-640-0	03	1	1107-		●
33	BOLT; BRKT M6X10 FLANGE SOU	0-28050-610-0	02	1	1102-	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-		●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> M8X20 FLANGE	0-28050-820-0	02	1	1001-		●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> M8X16 FLANGE SOU	0-28050-816-0	01	1	1001-		●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> M8X20 FLANGE	0-28650-820-0	03	1	1001-		●
58	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> ID=16	8-94392-924-0	02	1	1001-		●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (C)	8-94392-951-0	01	1	1001-		●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (D)	8-98074-252-0	01	1	1001-		●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (E)	8-98074-253-0	01	1	1001-		●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (A)	8-97615-878-0	01	1	1001-1001		●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (A)	8-98153-457-0	01	1	1002-1109		●
63	BRACKET; WATER PIPE FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> (A)	8-98153-457-0	01	1	1110-		●
63	BRACKET; WATER PIPE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98153-457-0	01	1	1110-		●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (B)	8-98046-784-0	01	1	1001-		●
89	PIPE; WATER,AIR CMPR,IN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97610-086-0	01	1	1109-1201		●
89	PIPE; WATER,AIR CMPR,IN (C)	8-97358-699-0	01	1	1102-	●
89	PIPE; WATER,AIR CMPR,IN (B)	8-97376-783-1	01	1	1102-	●
89	PIPE; WATER,AIR CMPR,IN (A)	8-97611-095-0	01	1	1001-1109		●
89	PIPE; WATER,AIR CMPR,IN FSR SGL CAB(FC*M) (A)	8-97611-095-0	01	1	1110-1201		●
89	PIPE; WATER,AIR CMPR,IN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97611-095-0	01	1	1110-1201		●
89	PIPE; WATER,AIR CMPR,IN (A)	8-97611-095-0	01	1	1202-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1102-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1001-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1001-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 SOU	1-09630-085-0	04	1	1102-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 SOU	1-09630-085-0	02	1	1001-1312		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1001-		●
94	CLIP; WATER PIPE (C) ID=9 & 9 L=25	1-09701-180-0	01	1	1102-	●
94	CLIP; WATER PIPE (D) ID=9 & 9 L=25	8-94393-280-3	01	1	1102-	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (A)	8-94396-860-0	01	1	1001-		●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NT3> (B)	8-97605-129-1	08	1	1001-		●
115	HOSE; RUBBER (F)	8-98009-361-0	01	1	1102-	●
115	HOSE; RUBBER (G) L=130	8-98136-884-0	01	1	1102-	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1001-		●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (A) L=320 SERVICED BY L=3000 SOU	0-03566-300-0	01	1	1001-		●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (B)	8-97606-735-1	01	1	1001-		●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (C)	8-98043-192-0	01	1	1001-		●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-97618-843-0	01	1	1001-		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) ID=14.2 OD=19.2 SOU	1-09630-085-0	04	1	1001-1312		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (B) ID=16.2	1-09630-086-0	04	1	1001-		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (A) ID=14.2 OD=19.2 SOU	1-09630-085-0	06	1	1001-1312		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (B) ID=16.2	1-09630-086-0	02	1	1001-		●
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	1001-		●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	1001-		●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (A) M16X25	5-09675-028-2	01	1	1001-		●
127	BOLT; EYE EURO3 SPECIFICATION<NT3> (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	1001-		●
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE SOU	0-28050-816-0	05	1	1001-		●
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<NT2> (B) M12X20 FLANGE	0-28151-220-0	01	1	1001-		●

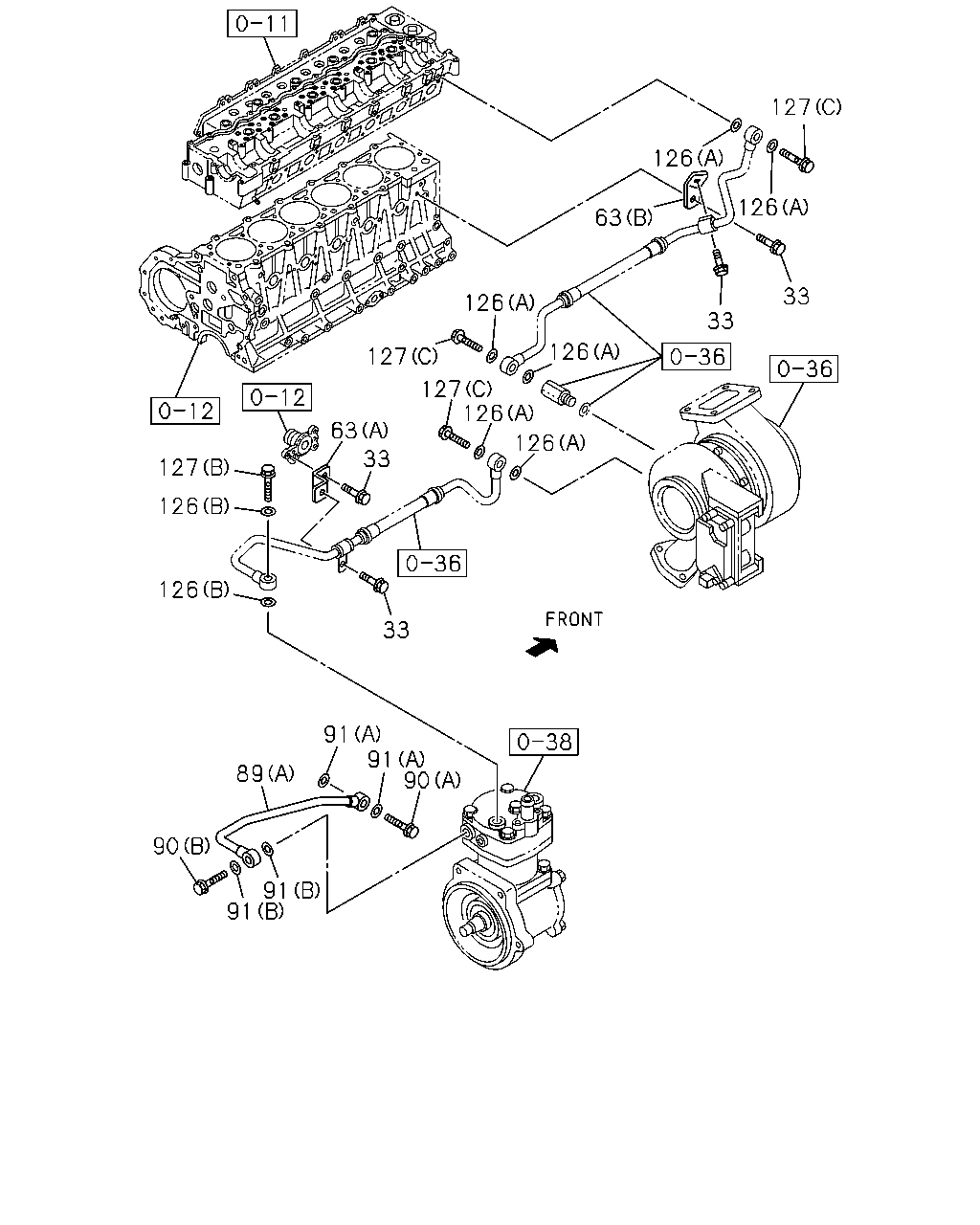

127 126 126 63 33 126 33 126 127 127 126 63 126 33 127 126 126 33 91 91 90 89 90 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	BOLT; BRKT M6X10 FLANGE SOU	0-28050-610-0	02	1	1102-	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-		●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> M8X20 FLANGE	0-28050-820-0	02	1	1001-		●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> M8X16 FLANGE SOU	0-28050-816-0	01	1	1001-		●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> M8X20 FLANGE	0-28650-820-0	03	1	1001-		●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (C)	8-94392-951-0	01	1	1001-		●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (D)	8-98074-252-0	01	1	1001-		●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (E)	8-98074-253-0	01	1	1001-		●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (A)	8-97615-878-0	01	1	1001-1001		●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (A)	8-98153-457-0	01	1	1002-1109		●
63	BRACKET; WATER PIPE FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> (A)	8-98153-457-0	01	1	1110-		●
63	BRACKET; WATER PIPE FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98153-457-0	01	1	1110-		●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (B)	8-98046-784-0	01	1	1001-		●
89	PIPE; WATER,AIR CMPR,IN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97610-086-0	01	1	1109-1201		●
89	PIPE; WATER,AIR CMPR,IN (C)	8-97358-699-0	01	1	1102-	●
89	PIPE; WATER,AIR CMPR,IN (B)	8-97376-783-1	01	1	1102-	●
89	PIPE; WATER,AIR CMPR,IN (A)	8-97611-095-0	01	1	1001-1109		●
89	PIPE; WATER,AIR CMPR,IN FSR SGL CAB(FC*M) (A)	8-97611-095-0	01	1	1110-1201		●
89	PIPE; WATER,AIR CMPR,IN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97611-095-0	01	1	1110-1201		●
89	PIPE; WATER,AIR CMPR,IN (A)	8-97611-095-0	01	1	1202-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1102-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1001-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1001-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 SOU	1-09630-085-0	04	1	1102-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 SOU	1-09630-085-0	02	1	1001-1312		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1001-		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) ID=14.2 OD=19.2 SOU	1-09630-085-0	04	1	1001-1312		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (B) ID=16.2	1-09630-086-0	04	1	1001-		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (A) ID=14.2 OD=19.2 SOU	1-09630-085-0	06	1	1001-1312		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (B) ID=16.2	1-09630-086-0	02	1	1001-		●
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	1001-		●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	1001-		●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (A) M16X25	5-09675-028-2	01	1	1001-		●
127	BOLT; EYE EURO3 SPECIFICATION<NT3> (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	1001-		●

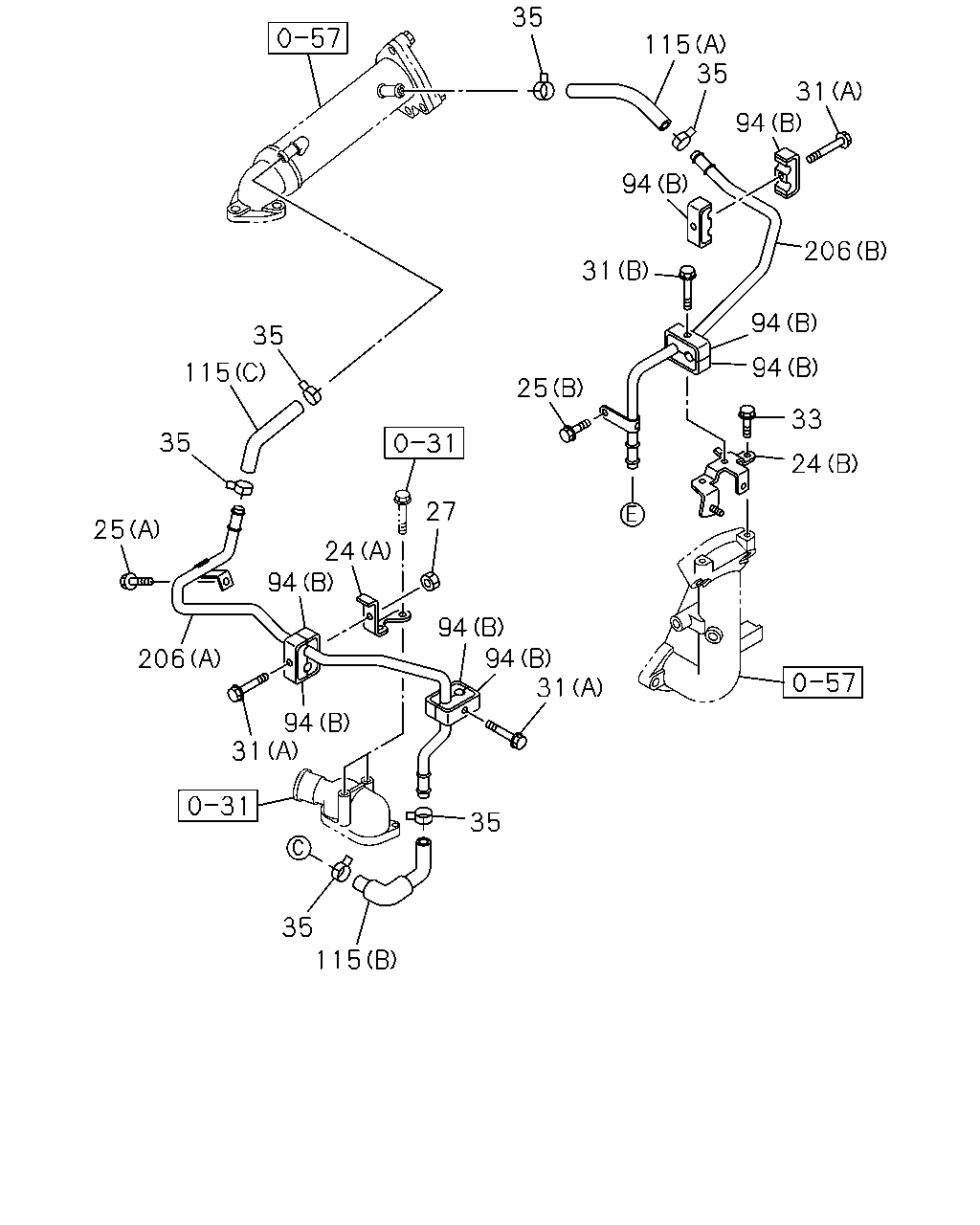

35 115 35 31 94 94 206 31 94 35 94 115 25 33 35 24 27 25 24 94 94 94 31 206 94 31 35 35 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE (C)	8-97379-140-0	01	1	1102-	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (A)	8-98000-557-2	01	1	1001-		●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (B)	8-98051-626-1	01	1	1001-		●
25	BOLT; WATER PIPE EURO3 SPECIFICATION<NT3> (A) M8X12 FLANGE	0-28050-812-0	01	1	1001-		●
25	BOLT; WATER PIPE EURO3 SPECIFICATION<NT3> (B) M8X20 FLANGE	0-28650-820-0	01	1	1001-		●
27	NUT; PIPE FIX EURO3 SPECIFICATION<NT3> M6 FLANGE SOU	0-91180-106-0	01	1	1001-		●
31	BOLT; CLIP EURO2 SPECIFICATION<NT2> (C) M6X35 FLANGE	0-28650-635-0	01	1	1001-		●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (B) M6X45 FLANGE	0-28050-645-0	01	1	1001-		●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M6X40 FLANGE	0-28650-640-0	02	1	1001-1106		●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M6X40 FLANGE	0-28650-640-0	03	1	1107-		●
33	BOLT; BRKT M6X10 FLANGE SOU	0-28050-610-0	02	1	1102-	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-		●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> M8X20 FLANGE	0-28050-820-0	02	1	1001-		●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> M8X16 FLANGE SOU	0-28050-816-0	01	1	1001-		●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> M8X20 FLANGE	0-28650-820-0	03	1	1001-		●
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> ID=20	8-98127-648-0	05	1	1001-1104		●
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> ID=20	8-98127-648-0	06	1	1105-		●
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-98127-648-0	02	1	1001-		●
94	CLIP; WATER PIPE (C) ID=9 & 9 L=25	1-09701-180-0	01	1	1102-	●
94	CLIP; WATER PIPE (D) ID=9 & 9 L=25	8-94393-280-3	01	1	1102-	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (A)	8-94396-860-0	01	1	1001-		●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NT3> (B)	8-97605-129-1	08	1	1001-		●
115	HOSE; RUBBER (F)	8-98009-361-0	01	1	1102-	●
115	HOSE; RUBBER (G) L=130	8-98136-884-0	01	1	1102-	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1001-		●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (A) L=320 SERVICED BY L=3000 SOU	0-03566-300-0	01	1	1001-		●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (B)	8-97606-735-1	01	1	1001-		●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (C)	8-98043-192-0	01	1	1001-		●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-97618-843-0	01	1	1001-		●
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NT3> (A)	8-97604-928-2	01	1	1001-		●
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NT3> (B)	8-98000-480-1	01	1	1001-		●

24 33 92 90 91 91 91 90 91 89 115 115 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE (C)	8-97379-140-0	01	1	1102-	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (A)	8-98000-557-2	01	1	1001-		●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (B)	8-98051-626-1	01	1	1001-		●
33	BOLT; BRKT M6X10 FLANGE SOU	0-28050-610-0	02	1	1102-	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-		●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> M8X20 FLANGE	0-28050-820-0	02	1	1001-		●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> M8X16 FLANGE SOU	0-28050-816-0	01	1	1001-		●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> M8X20 FLANGE	0-28650-820-0	03	1	1001-		●
89	PIPE; WATER,AIR CMPR,IN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97610-086-0	01	1	1109-1201		●
89	PIPE; WATER,AIR CMPR,IN (C)	8-97358-699-0	01	1	1102-	●
89	PIPE; WATER,AIR CMPR,IN (B)	8-97376-783-1	01	1	1102-	●
89	PIPE; WATER,AIR CMPR,IN (A)	8-97611-095-0	01	1	1001-1109		●
89	PIPE; WATER,AIR CMPR,IN FSR SGL CAB(FC*M) (A)	8-97611-095-0	01	1	1110-1201		●
89	PIPE; WATER,AIR CMPR,IN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97611-095-0	01	1	1110-1201		●
89	PIPE; WATER,AIR CMPR,IN (A)	8-97611-095-0	01	1	1202-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	1102-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	1001-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	1001-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 SOU	1-09630-085-0	04	1	1102-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 SOU	1-09630-085-0	02	1	1001-1312		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	1001-		●
92	PIPE; WATER,AIR CMPR,OUT	8-97376-784-0	01	1	1102-	●
94	CLIP; WATER PIPE (C) ID=9 & 9 L=25	1-09701-180-0	01	1	1102-	●
94	CLIP; WATER PIPE (D) ID=9 & 9 L=25	8-94393-280-3	01	1	1102-	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (A)	8-94396-860-0	01	1	1001-		●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NT3> (B)	8-97605-129-1	08	1	1001-		●
115	HOSE; RUBBER (F)	8-98009-361-0	01	1	1102-	●
115	HOSE; RUBBER (G) L=130	8-98136-884-0	01	1	1102-	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1001-		●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (A) L=320 SERVICED BY L=3000 SOU	0-03566-300-0	01	1	1001-		●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (B)	8-97606-735-1	01	1	1001-		●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (C)	8-98043-192-0	01	1	1001-		●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-97618-843-0	01	1	1001-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
