Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#55491) — 83 parça

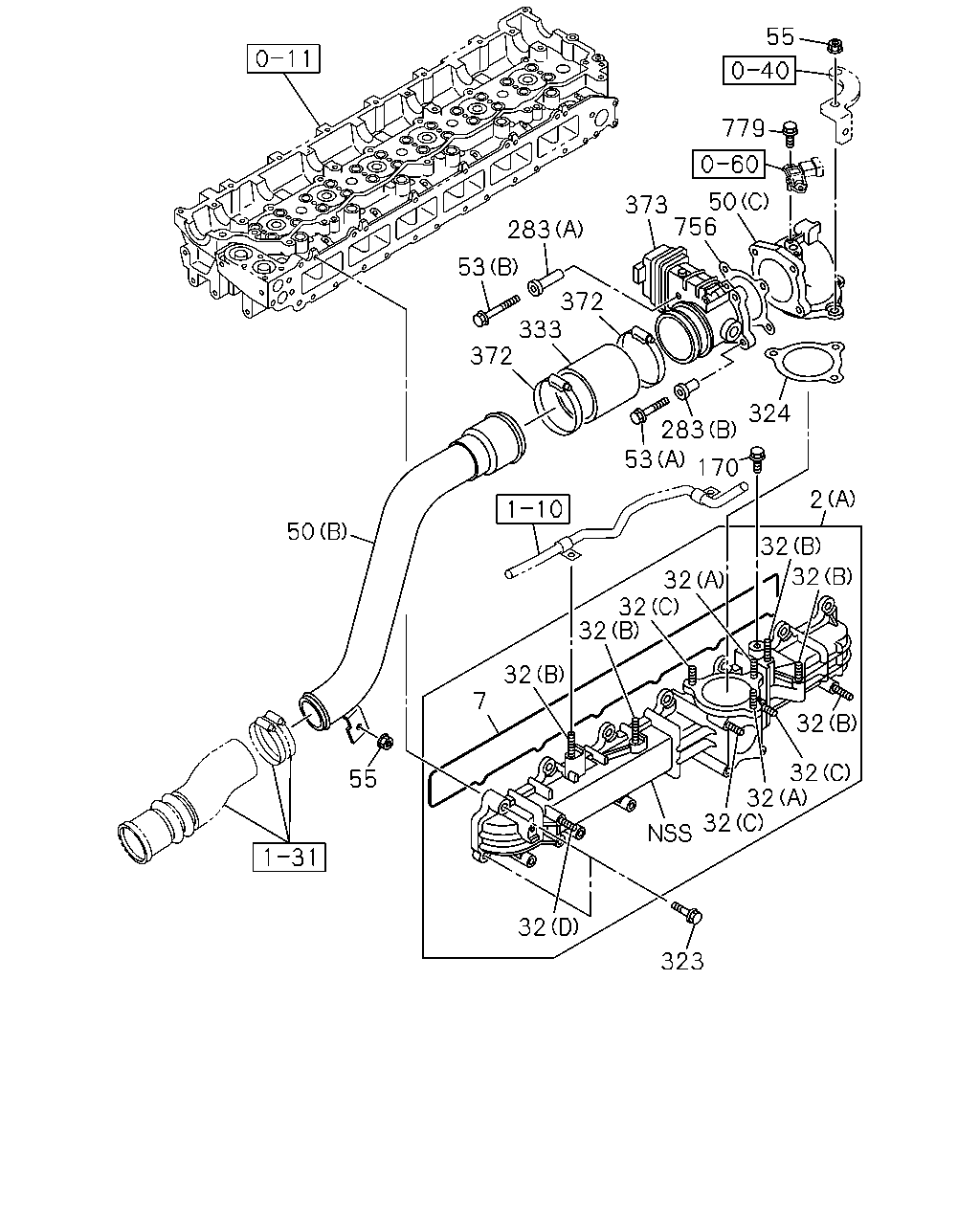

50 55 7 32 32 32 32 32 32 32 32 32 323 32 32 324 333 372 372 373 50 779 55 756 283 53 170 2 283 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; INL (C)	8-97387-039-0	01	1	1012-	●
2	COVER; INL (B)	8-97387-038-0	01	1	1012-1409	●
2	COVER; INL (A)	8-98061-091-0	01	1	1001-		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	1001-		●
20	NUT; INL MANIF M8 FLANGE SOU	0-91180-108-0	02	1	1012-	●
32	STUD; INL PIPE (B) M6X30 L=38	0-41010-630-0	05	1	1001-		●
32	STUD; INL PIPE (C) M8X28 L=40	0-41010-828-0	03	1	1001-		●
32	STUD; INL PIPE (A) M8X40 L=52	0-41010-840-0	02	1	1001-		●
32	STUD; INL PIPE (D) M10X30 L=45	0-44011-030-0	01	1	1001-		●
50	PIPE; INL (B)	8-97607-412-2	01	1	1001-		●
50	PIPE; INL EURO2 SPECIFICATION<NT2> (A)	8-98061-804-1	01	1	1001-		●
50	PIPE; INL EURO3 SPECIFICATION<NT3> (C)	8-97604-940-0	01	1	1001-1305		●
50	PIPE; INL EURO3 SPECIFICATION<NT3> (C)	8-98239-524-0	01	1	1306-		●
53	BOLT; INL PIPE (C) M8X30 FLANGE	0-28650-830-0	03	1	1012-	●
53	BOLT; INL PIPE EURO3 SPECIFICATION<NT3> (A) M8X30 FLANGE	0-28050-830-0	02	1	1001-		●
53	BOLT; INL PIPE EURO3 SPECIFICATION<NT3> (B) M8X70 FLANGE SOU	0-28050-870-0	02	1	1001-		●
55	NUT; INL PIPE M8 FLANGE SOU	0-91180-108-0	04	1	1001-		●
170	BOLT; BRKT M8X35 FLANGE	0-28050-835-0	01	1	1001-		●
283	RUBBER EURO3 SPECIFICATION<NT3> (B) L=18	8-97219-650-0	02	1	1001-		●
283	RUBBER EURO3 SPECIFICATION<NT3> (A) L=58	8-97387-995-1	02	1	1001-		●
323	BOLT; DUCT M8X50 FLANGE	0-28050-850-0	06	1	1001-		●
323	BOLT; DUCT M8X25 FLANGE SOU	0-28650-825-0	06	1	1001-		●
323	BOLT; DUCT M8X48 FLANGE	8-97229-317-1	02	1	1001-		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=78	8-97601-777-0	01	1	1001-		●
333	HOSE; RUBBER,INL PIPE ID=80 OD=90 L=80	8-97611-306-0	01	1	1001-		●
372	CLIP; HOSE ID=77-99	1-09707-141-0	02	1	1001-		●
373	THROTTLE ASM; INT EURO3 SPECIFICATION<NT3>	8-98061-061-3	01	1	1001-		●
756	GASKET; INTAKE,THROTTLE EURO3 SPECIFICATION<NT3> ID=88	8-97387-009-0	01	1	1001-		●
779	BOLT; SENSOR M4X10 W/PL WASHER	8-97316-615-0	02	1	1001-		●

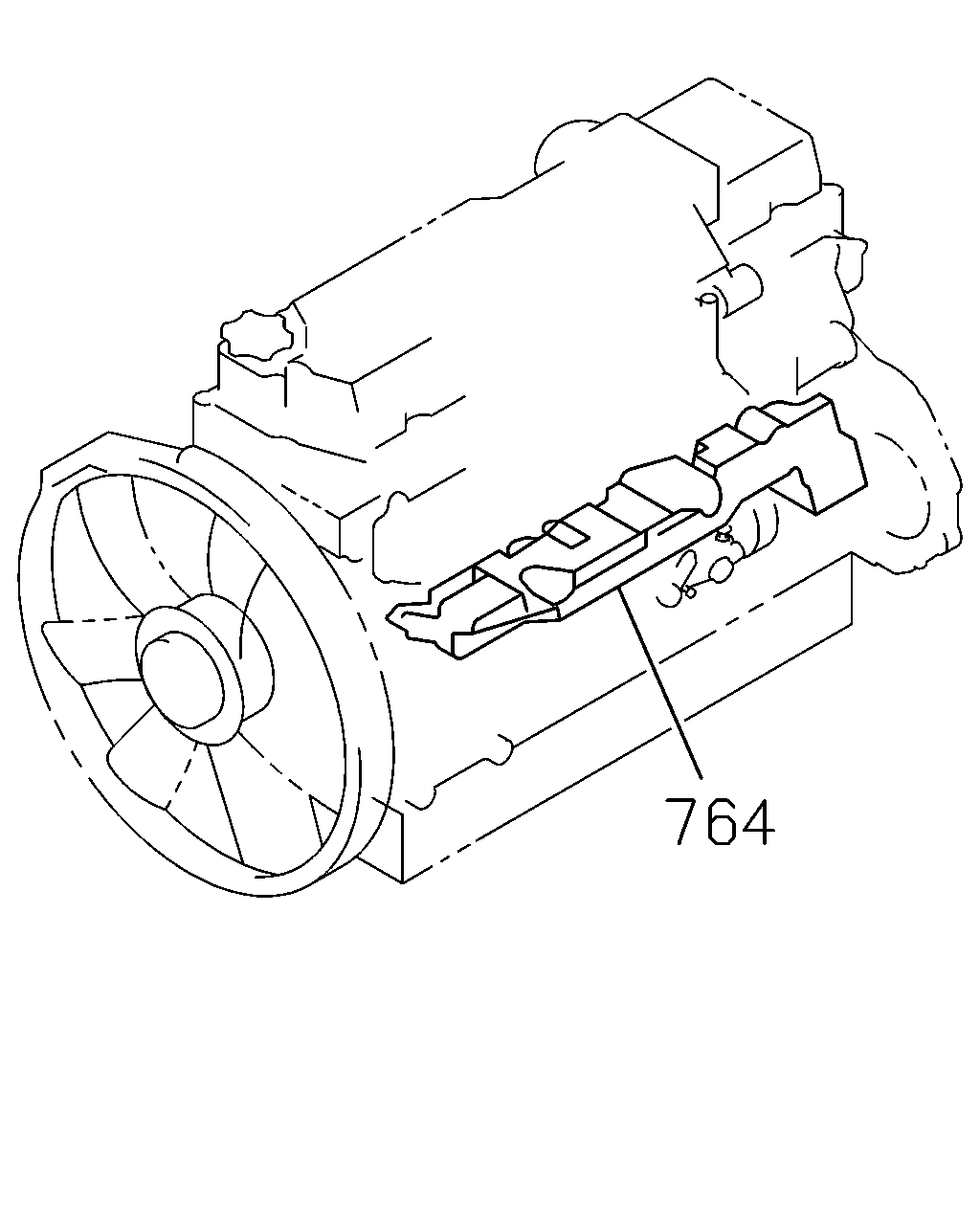

764

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	20	NUT; INL MANIF M8 FLANGE SOU	0-91180-108-0	02	1	1012-	●
	764	SPACER; INL COVER EURO3 SPECIFICATION<NT3>	8-98023-639-2	01	1	1001-		●

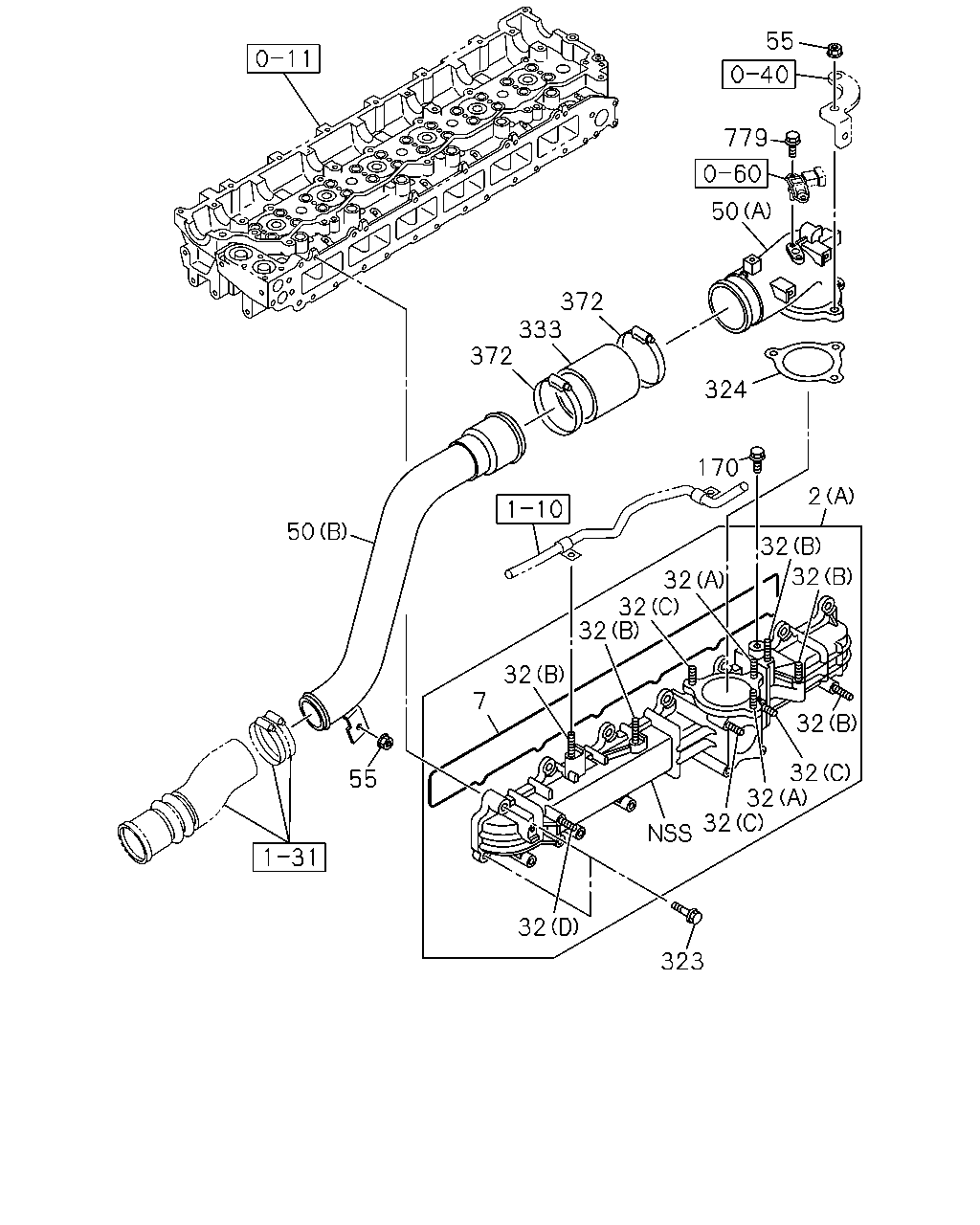

55 779 50 372 333 372 50 55 7 32 32 32 32 170 324 2 32 32 32 32 32 32 32 323

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; INL (C)	8-97387-039-0	01	1	1012-	●
2	COVER; INL (B)	8-97387-038-0	01	1	1012-1409	●
2	COVER; INL (A)	8-98061-091-0	01	1	1001-		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-775-0	01	1	1001-		●
20	NUT; INL MANIF M8 FLANGE SOU	0-91180-108-0	02	1	1012-	●
32	STUD; INL PIPE (B) M6X30 L=38	0-41010-630-0	05	1	1001-		●
32	STUD; INL PIPE (C) M8X28 L=40	0-41010-828-0	03	1	1001-		●
32	STUD; INL PIPE (A) M8X40 L=52	0-41010-840-0	02	1	1001-		●
32	STUD; INL PIPE (D) M10X30 L=45	0-44011-030-0	01	1	1001-		●
50	PIPE; INL (B)	8-97607-412-2	01	1	1001-		●
50	PIPE; INL EURO2 SPECIFICATION<NT2> (A)	8-98061-804-1	01	1	1001-		●
50	PIPE; INL EURO3 SPECIFICATION<NT3> (C)	8-97604-940-0	01	1	1001-1305		●
50	PIPE; INL EURO3 SPECIFICATION<NT3> (C)	8-98239-524-0	01	1	1306-		●
55	NUT; INL PIPE M8 FLANGE SOU	0-91180-108-0	04	1	1001-		●
170	BOLT; BRKT M8X35 FLANGE	0-28050-835-0	01	1	1001-		●
323	BOLT; DUCT M8X50 FLANGE	0-28050-850-0	06	1	1001-		●
323	BOLT; DUCT M8X25 FLANGE SOU	0-28650-825-0	06	1	1001-		●
323	BOLT; DUCT M8X48 FLANGE	8-97229-317-1	02	1	1001-		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=78	8-97601-777-0	01	1	1001-		●
333	HOSE; RUBBER,INL PIPE ID=80 OD=90 L=80	8-97611-306-0	01	1	1001-		●
372	CLIP; HOSE ID=77-99	1-09707-141-0	02	1	1001-		●
779	BOLT; SENSOR M4X10 W/PL WASHER	8-97316-615-0	02	1	1001-		●

203 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
20	NUT; INL MANIF M8 FLANGE SOU	0-91180-108-0	02	1	1012-	●
203	TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	1012-	●
208	BRACKET; CATCH TANK,OIL	8-98075-767-0	01	1	1012-	●

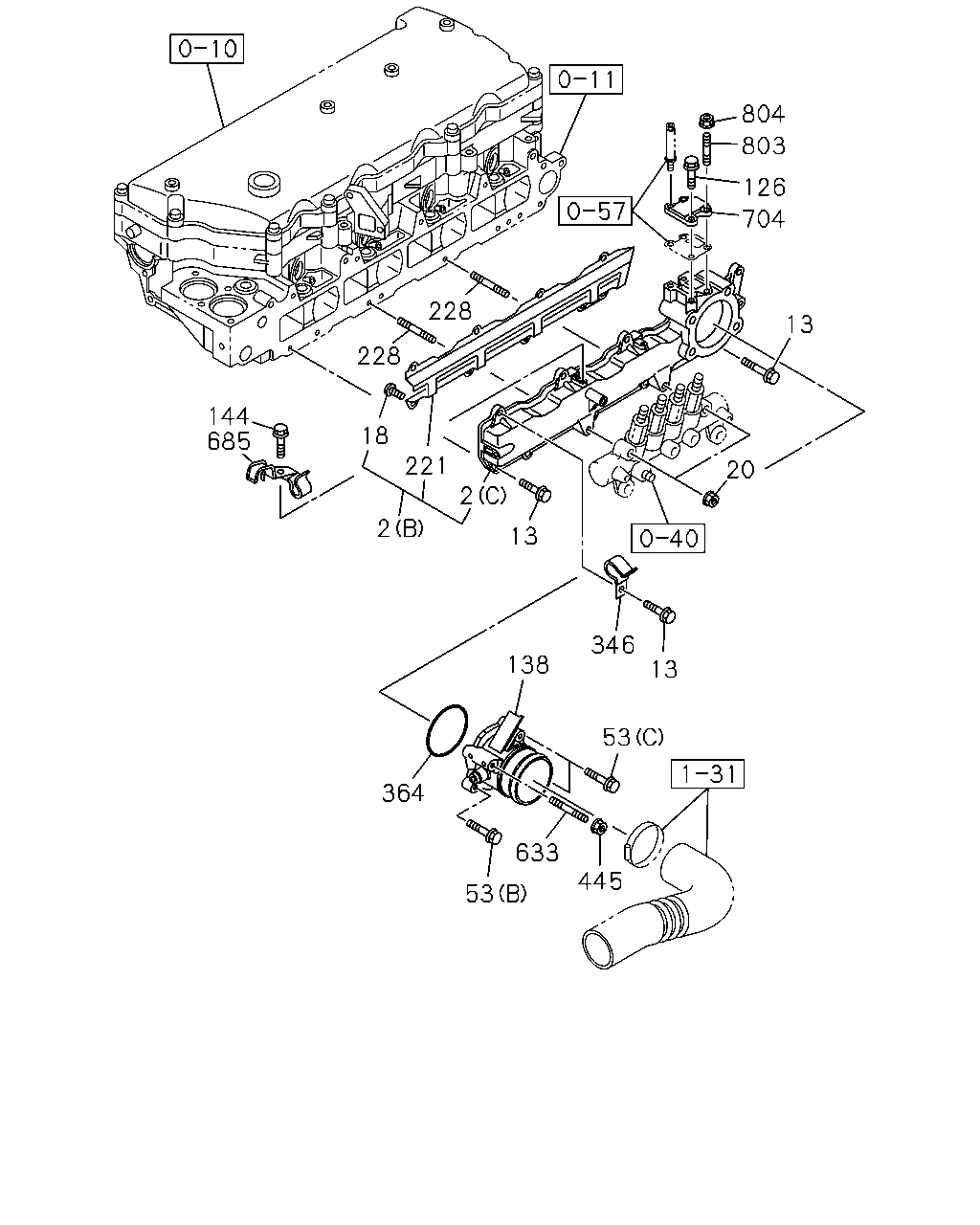

804 803 126 704 13 228 228 144 685 18 2 221 13 2 346 138 13 53 633 364 53 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; INL (C)	8-97387-039-0	01	1	1012-	●
2	COVER; INL (B)	8-97387-038-0	01	1	1012-1409	●
2	COVER; INL (A)	8-98061-091-0	01	1	1001-		●
13	BOLT; INL MANIF M8X30 FLANGE	0-28050-830-0	09	1	1012-	●
13	BOLT; INL MANIF M8X80 FLANGE SOU	0-28050-880-0	01	1	1012-	●
18	SCREW; PLATE,INL CVR M6X10	9-03490-610-0	09	1	1012-1409	●
20	NUT; INL MANIF M8 FLANGE SOU	0-91180-108-0	02	1	1012-	●
53	BOLT; INL PIPE (C) M8X30 FLANGE	0-28650-830-0	03	1	1012-	●
53	BOLT; INL PIPE EURO3 SPECIFICATION<NT3> (A) M8X30 FLANGE	0-28050-830-0	02	1	1001-		●
53	BOLT; INL PIPE EURO3 SPECIFICATION<NT3> (B) M8X70 FLANGE SOU	0-28050-870-0	02	1	1001-		●
126	BOLT; COVER M8X25 FLANGE SOU	0-28650-825-0	01	1	1012-	●
138	PIPE; INL	8-98101-477-0	01	1	1012-1212	●
138	PIPE; INL	8-98217-016-0	01	1	1301-	●
144	BOLT; BRKT FIX M8X12 FLANGE	0-28050-812-0	01	1	1012-	●
221	PLATE; INL COVER	8-97379-202-0	01	1	1012-1409	●
228	STUD; INL COVER M8X117 L=128	8-97111-477-0	02	1	1012-	●
346	CLIP; ENG HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-	●
364	GASKET ALSO INCLUDED IN GASKET SET(ENGINE).	8-97363-723-0	01	1	1012-1212	●
445	NUT; THROTTLE BODY TO MANIF M8 FLANGE SOU	0-91180-108-0	01	1	1012-	●
633	STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	1012-	●
685	BRACKET; HARNESS	8-97331-921-1	01	1	1012-	●
704	COVER	8-98062-651-1	01	1	1012-1408	●
704	COVER	8-98260-138-0	01	1	1409-	●
803	STUD; COVER M8X20 L=32	0-41010-820-0	02	1	1012-	●
804	NUT; COVER M8 FLANGE SOU	0-91180-108-0	02	1	1012-	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	8	GASKET; INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NT3>	8-98196-271-0	01	1	1107-		●
	20	NUT; INL MANIF M8 FLANGE SOU	0-91180-108-0	02	1	1012-	●
