◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11161 - FSR(SOUTH AFRICA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#55489) — 170 parça

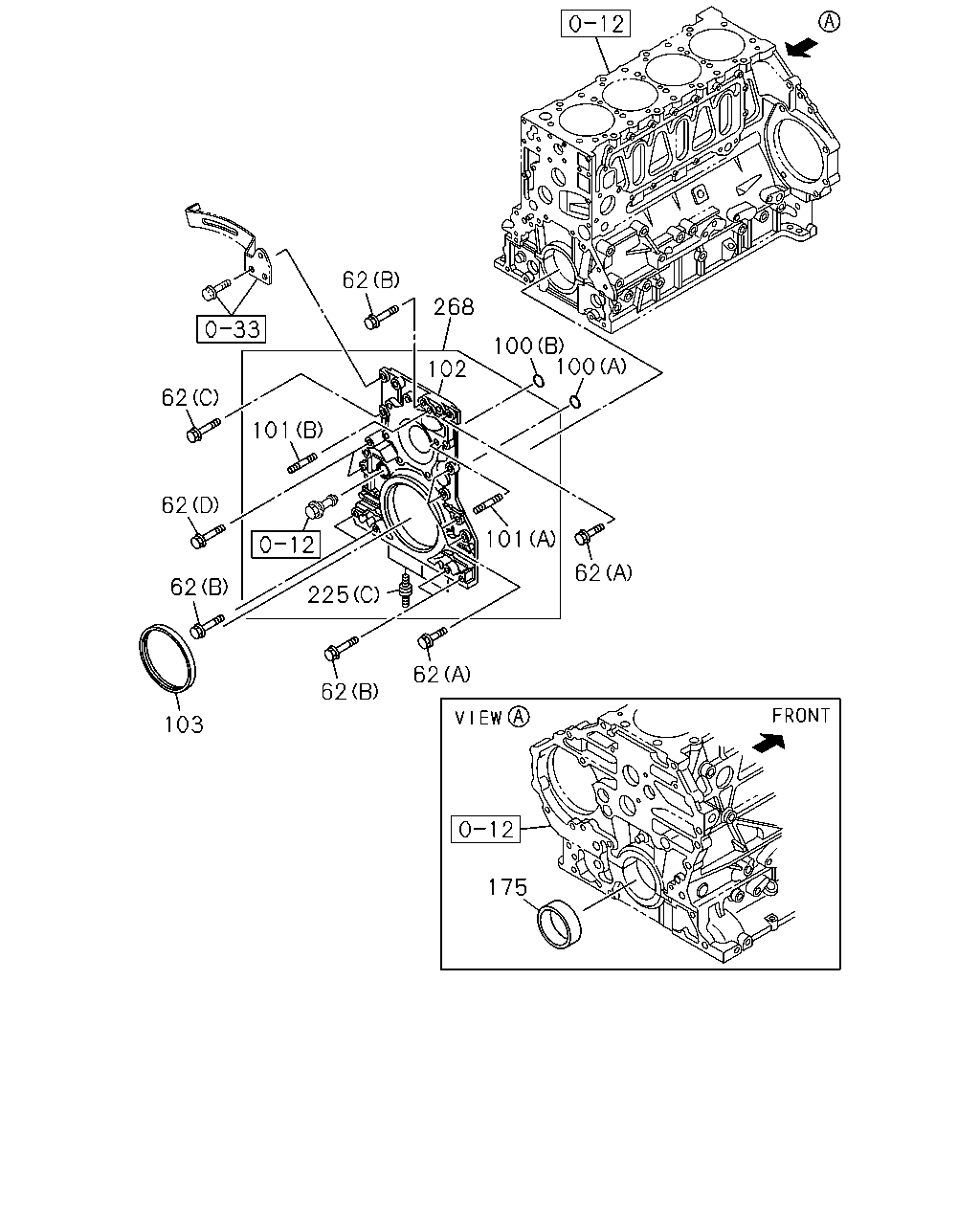

çizim 162578
62 268 100 100 102 62 101 62 101 62 62 225 62 62 103 175
BalonParca AdiParca NoAdetTipApplied Date A B
62 BOLT; COVER
(A) M8X25 FLANGE SOU 		0-28650-825-0 06 1 1012- ●
62 BOLT; COVER
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ●
62 BOLT; COVER
(B) M8X35 FLANGE SOU 		0-28650-835-0 06 1 1012- ●
62 BOLT; COVER
(D) M8X65 FLANGE 		1-09044-072-1 02 1 1012- ●
62 BOLT; COVER
(E) M8X14 FLANGE 		0-28080-814-0 03 1 1001- ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1 		8-97028-748-1 01 1 1012- ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8 		9-09561-318-0 01 1 1012- ●
101 STUD; WATER PUMP
(B) M8X18 L=30 		0-41010-818-0 01 1 1012- ●
101 STUD; WATER PUMP
(A) M8X18 L=29 		8-97028-541-0 01 1 1012- ●
102 RETAINER; FRT 8-98039-932-2 01 1 1012- ●
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 1012- ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1001-1011 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1012- ● ●
225 STUD; OIL PAN
FSR DBL CAB(FC**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X28 L=38 		8-94396-512-0 04 1 1109-1201 ●
225 STUD; OIL PAN
(C) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 1012-1107 ●
225 STUD; OIL PAN
(A) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 04 1 1001-1109 ●
225 STUD; OIL PAN
FSR SGL CAB(FC**M*) (A) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 04 1 1110-1201 ●
225 STUD; OIL PAN
FSR DBL CAB(FC**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 04 1 1110-1201 ●
225 STUD; OIL PAN
(A) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 04 1 1202- ●
225 STUD; OIL PAN
(B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 03 1 1001-1109 ●
225 STUD; OIL PAN
FSR SGL CAB(FC**M*) (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 03 1 1110-1201 ●
225 STUD; OIL PAN
FSR DBL CAB(FC**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 03 1 1110-1201 ●
225 STUD; OIL PAN
(B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 03 1 1202- ●
268 COVER; FRT 8-98039-931-1 01 1 1012-1107 ●
268 COVER; FRT 8-97148-937-3 01 1 1108- ●

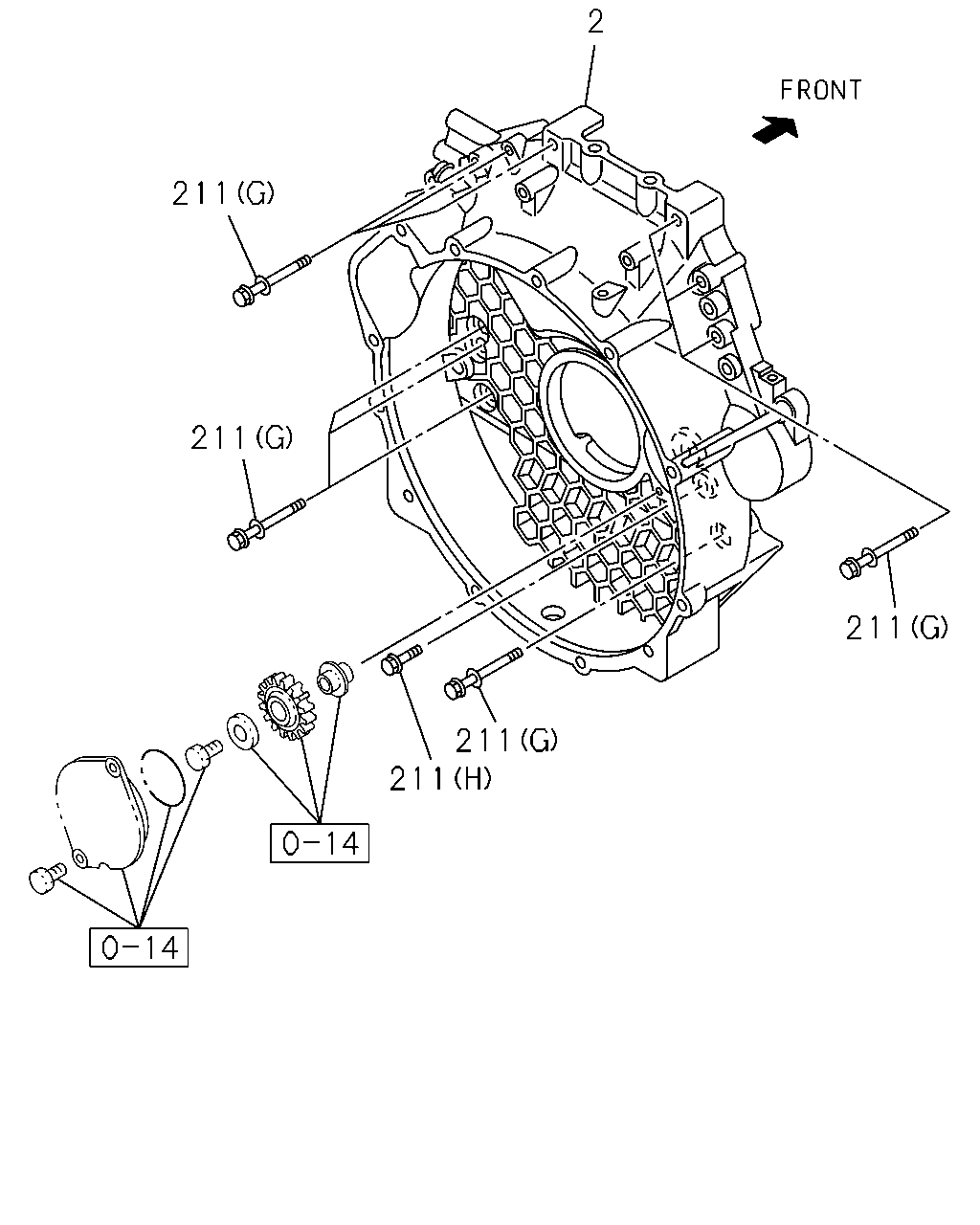

çizim 162583
2 211 211 211 211 211
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL 8-98032-562-4 01 1 1012-1509 ●
2 HOUSING; FLYWHEEL 8-98328-140-0 01 1 1510- ●
2 HOUSING; FLYWHEEL 8-97609-996-9 01 1 1001- ●
211 BOLT; HSG
(F) M10X40 FLANGE 		0-28751-040-0 01 1 1012- ●
211 BOLT; HSG
(G) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 1012-1102 ●
211 BOLT; HSG
(G) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1103- ●
211 BOLT; HSG
(H) M12X30 FLANGE 		8-97135-419-0 01 1 1012- ●
211 BOLT; HSG
(A) M12X60 		0-16856-260-0 01 1 1001- ●
211 BOLT; HSG
(D) M12X70 		0-16956-270-0 08 1 1001- ●
211 BOLT; HSG
(E) M12X90 		0-16956-290-0 03 1 1001- ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28151-050-0 01 1 1001-1011 ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28151-050-0 01 1 1012- ● ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 1001- ●

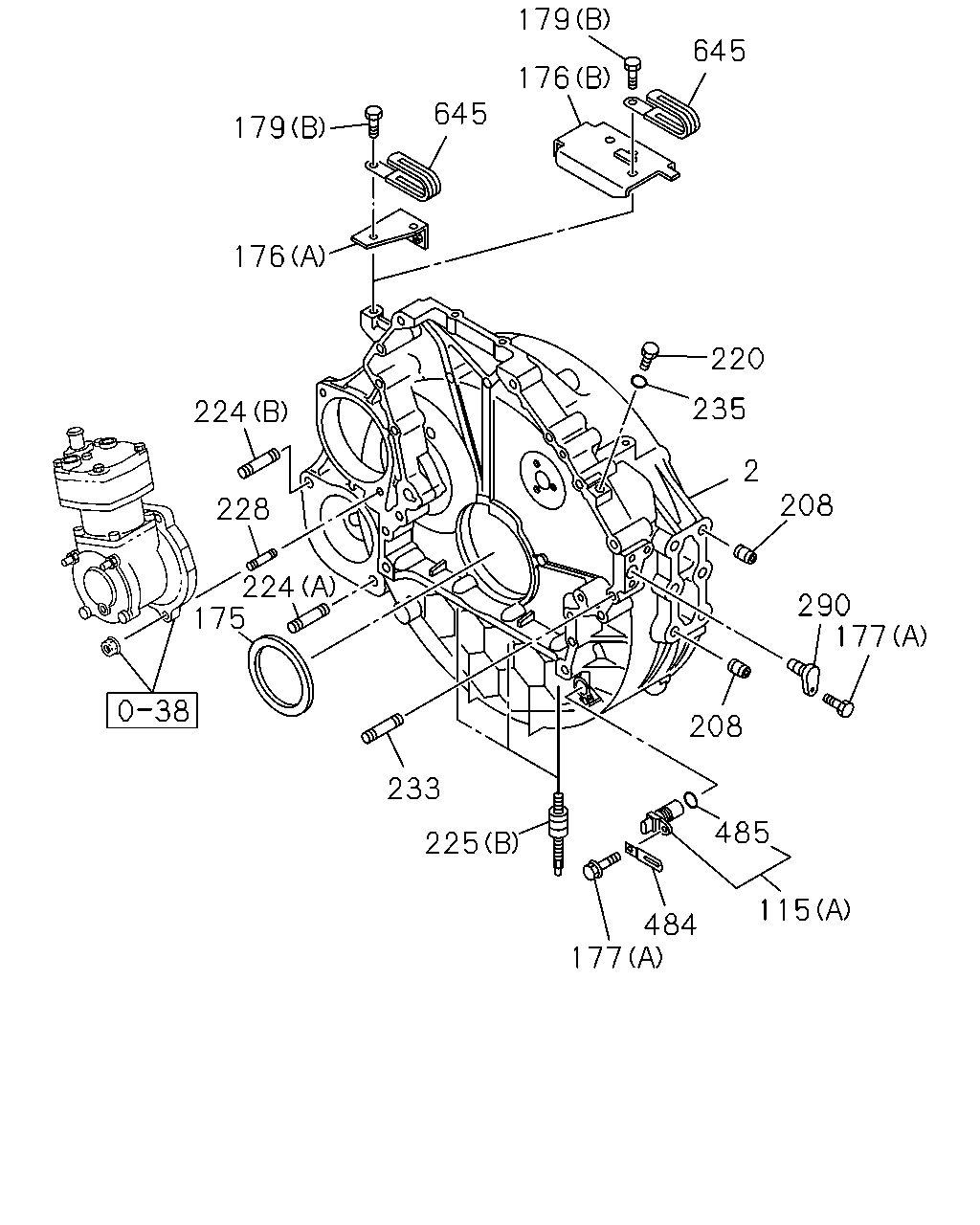

çizim 162601
179 645 176 645 179 176 220 235 224 2 208 228 224 175 290 177 38 208 233 485 225 115 484 177
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL 8-98032-562-4 01 1 1012-1509 ●
2 HOUSING; FLYWHEEL 8-98328-140-0 01 1 1510- ●
2 HOUSING; FLYWHEEL 8-97609-996-9 01 1 1001- ●
38 PIN; GEAR CASE COVER
L=22 		8-94483-674-0 02 1 1001- ●
115 SENSOR; REVOLUTION,ENG SPD
(A) 		8-97606-943-0 01 1 1001- ●
115 SENSOR; REVOLUTION,ENG SPD
(B) 		8-98019-024-0 01 1 1001- ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1001-1011 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1012- ● ●
176 BRACKET; HARNESS
FSR DBL CAB(FC**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98076-212-0 01 1 1109-1201 ●
176 BRACKET; HARNESS
(A) 		1-82699-828-1 01 1 1001-1109 ●
176 BRACKET; HARNESS
FSR SGL CAB(FC**M*) (A) 		1-82699-828-1 01 1 1110-1201 ●
176 BRACKET; HARNESS
FSR DBL CAB(FC**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-82699-828-1 01 1 1110-1201 ●
176 BRACKET; HARNESS
(A) 		1-82699-828-1 01 1 1202- ●
177 BOLT; SENSOR
(B) M6X12 FLANGE SOU 		0-28050-612-0 01 1 1001- ●
177 BOLT; SENSOR
(A) M6X16 FLANGE SOU 		0-28050-616-0 02 1 1001- ●
179 BOLT; BRKT
(B) M8X16 FLANGE SOU 		0-28050-816-0 01 1 1001- ●
179 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 1001- ●
208 DOWEL; ENG FOOT 9-43269-009-1 04 1 1001- ●
220 PLUG; GEAR CHECK HOLE
M12X10 		1-09605-125-0 01 1 1001-1008 ●
220 PLUG; GEAR CHECK HOLE
M12X10 		5-13265-001-0 01 1 1009- ●
224 STUD; STARTER
(A) M14X35 L=56 		0-44011-435-0 01 1 1001- ●
224 STUD; STARTER
(B) M14X45 L=66 		0-44011-445-0 01 1 1001- ●
225 STUD; OIL PAN
FSR DBL CAB(FC**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X28 L=38 		8-94396-512-0 04 1 1109-1201 ●
225 STUD; OIL PAN
(C) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 1012-1107 ●
225 STUD; OIL PAN
(A) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 04 1 1001-1109 ●
225 STUD; OIL PAN
FSR SGL CAB(FC**M*) (A) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 04 1 1110-1201 ●
225 STUD; OIL PAN
FSR DBL CAB(FC**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 04 1 1110-1201 ●
225 STUD; OIL PAN
(A) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 04 1 1202- ●
225 STUD; OIL PAN
(B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 03 1 1001-1109 ●
225 STUD; OIL PAN
FSR SGL CAB(FC**M*) (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 03 1 1110-1201 ●
225 STUD; OIL PAN
FSR DBL CAB(FC**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 03 1 1110-1201 ●
225 STUD; OIL PAN
(B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 03 1 1202- ●
228 STUD; AIR CMPR
M12X35 L=53 		0-44011-235-0 01 1 1001- ●
233 STUD; BRKT
M12X67 L=82 		1-09302-112-0 01 1 1001- ●
235 GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 1001-1312 ●
235 GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		8-98251-344-0 01 1 1401- ●
290 PLUG; SENSOR HOLE 8-97101-974-0 01 1 1001- ●
484 CLIP; BAND
L=80 		5-09700-307-1 01 1 1001- ●
485 GASKET; SENSOR
ID=14.2 OD=18.8 		8-97369-404-0 02 1 1001- ●
645 CLIP; HARNESS
EURO3 SPECIFICATION<NT3> ID=18 L=44 		8-97367-985-1 01 1 1001-1308 ●
645 CLIP; HARNESS
ID=18 L=44 		8-97367-985-1 01 1 1309- ●

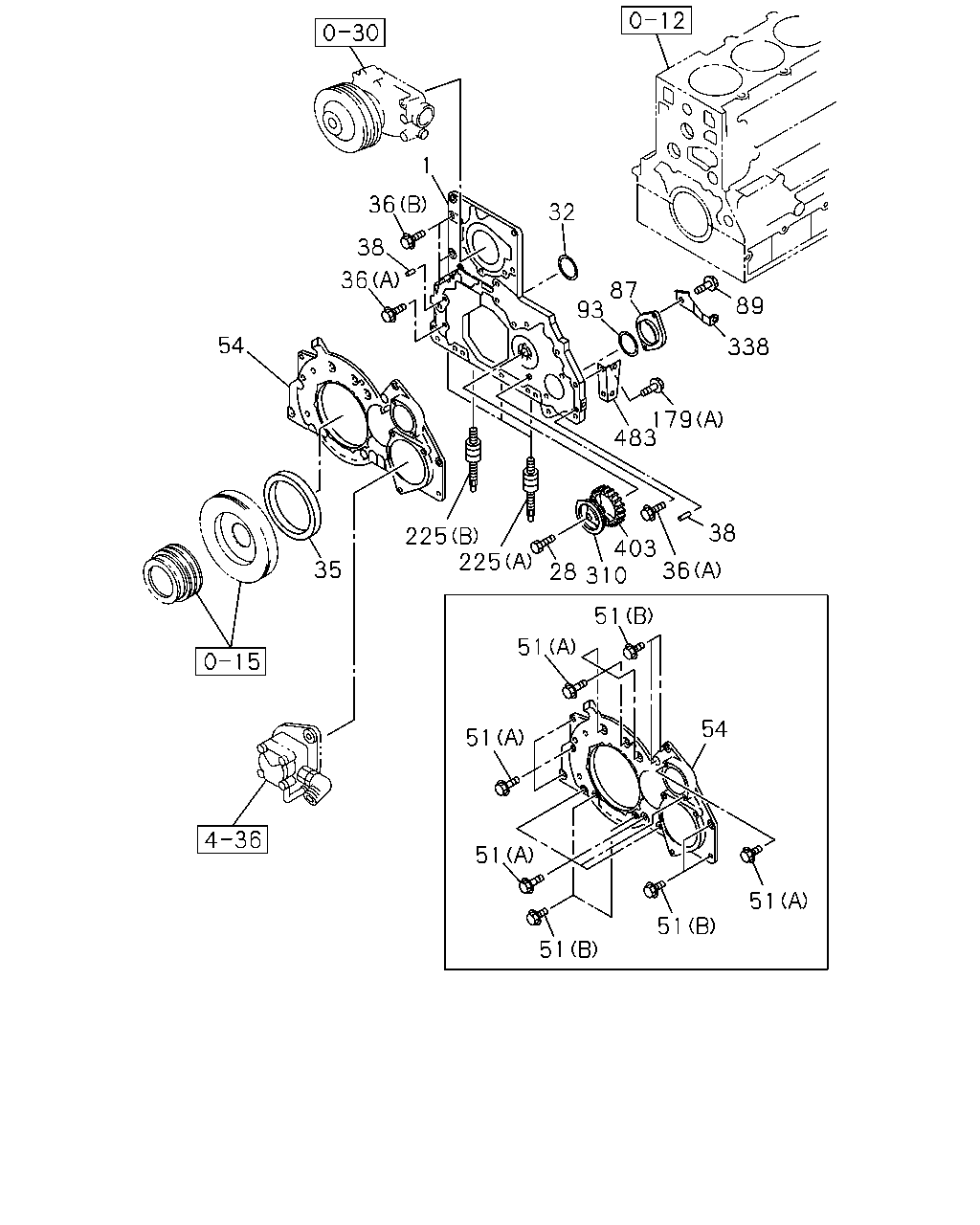

çizim 162604
54 35 225 225 28 310 36 403 38 483 179 36 38 36 1 32 87 93 89 338 51 51 51 51 51 51 51 54
BalonParca AdiParca NoAdetTipApplied Date A B
1 CASE; TIMING GEAR
FSR DBL CAB(FC**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-94396-434-6 01 1 1109-1201 ●
1 CASE; TIMING GEAR 8-94392-282-1 01 1 1001- ●
28 BOLT; DRIVE GEAR
M8X28 		8-94399-256-0 03 1 1001- ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1 		8-97028-748-1 01 1 1001- ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-97602-378-3 01 1 1001- ●
36 BOLT; GEAR CASE
(B) M8X35 FLANGE 		0-28050-835-0 04 1 1001- ●
36 BOLT; GEAR CASE
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1001- ●
38 PIN; GEAR CASE COVER
L=22 		8-94483-674-0 02 1 1001- ●
51 BOLT; GEAR CASE COVER
(A) M8X40 FLANGE 		0-28050-840-0 11 1 1001- ●
51 BOLT; GEAR CASE COVER
(B) M8X20 FLANGE 		0-28650-820-0 06 1 1001- ●
54 COVER; GEAR CASE 8-94393-304-1 01 1 1001- ●
87 COVER; TACHOMETER DRIVE 8-94396-370-0 01 1 1001- ●
89 BOLT; ELBOW
M8X18 FLANGE 		0-28080-818-0 02 1 1001- ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ID=47.7 		1-09623-465-0 01 1 1001- ●
179 BOLT; BRKT
(B) M8X16 FLANGE SOU 		0-28050-816-0 01 1 1001- ●
179 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 1001- ●
225 STUD; OIL PAN
FSR DBL CAB(FC**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X28 L=38 		8-94396-512-0 04 1 1109-1201 ●
225 STUD; OIL PAN
(C) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 1012-1107 ●
225 STUD; OIL PAN
(A) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 04 1 1001-1109 ●
225 STUD; OIL PAN
FSR SGL CAB(FC**M*) (A) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 04 1 1110-1201 ●
225 STUD; OIL PAN
FSR DBL CAB(FC**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 04 1 1110-1201 ●
225 STUD; OIL PAN
(A) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER 		8-97087-680-2 04 1 1202- ●
225 STUD; OIL PAN
(B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 03 1 1001-1109 ●
225 STUD; OIL PAN
FSR SGL CAB(FC**M*) (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 03 1 1110-1201 ●
225 STUD; OIL PAN
FSR DBL CAB(FC**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 03 1 1110-1201 ●
225 STUD; OIL PAN
(B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER 		8-97601-889-0 03 1 1202- ●
310 SHAFT; IDLE GEAR 8-94394-806-0 01 1 1001- ●
338 BRACKET; CLIP,HARNESS 1-82699-889-0 01 1 1001- ●
403 GEAR; IDLE,FRONT
Z=33 		8-94395-943-1 01 1 1001- ●
483 BRACKET; WATER DUCT 8-94394-405-1 01 1 1001- ●

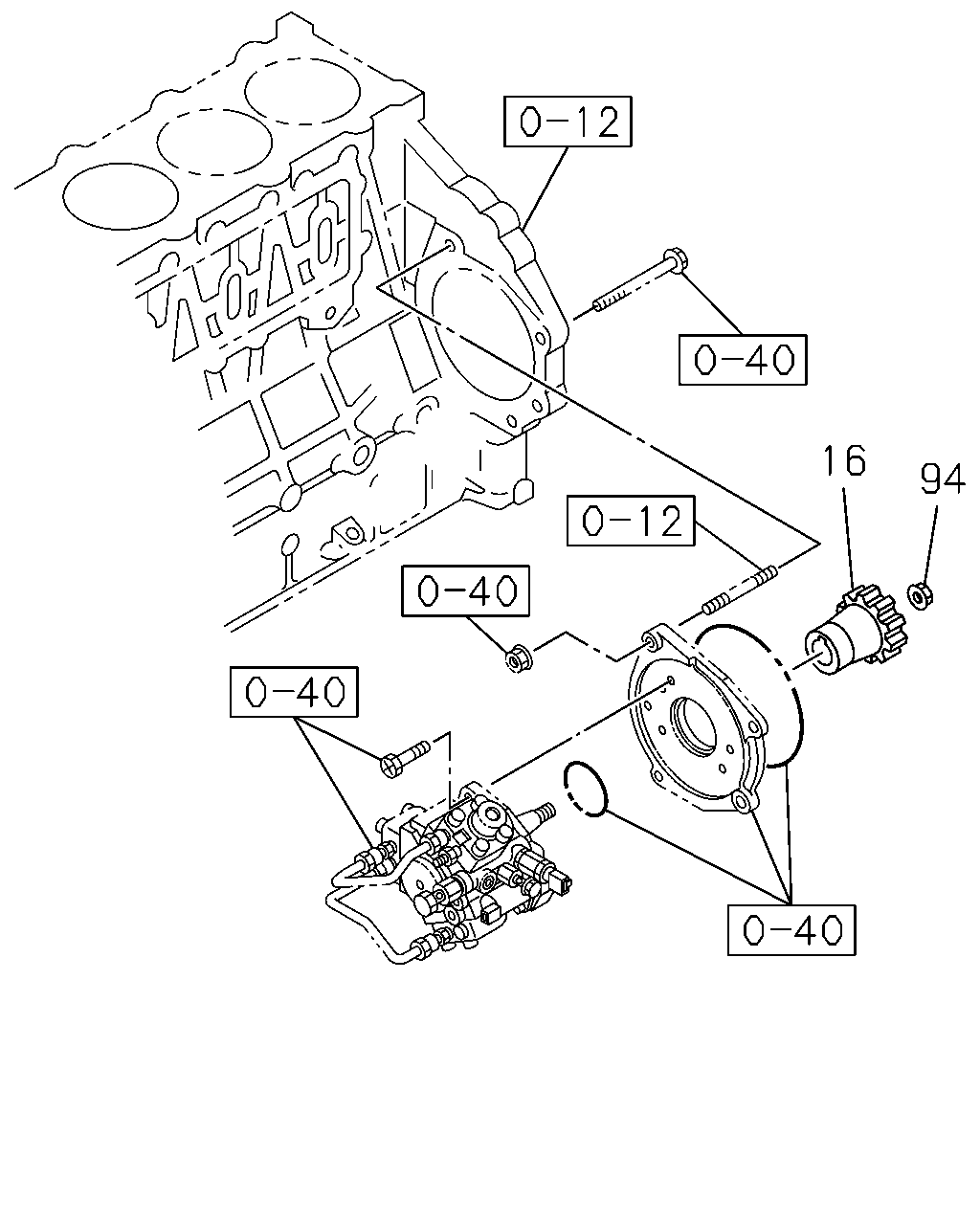

çizim 162606
16 94
BalonParca AdiParca NoAdetTipApplied Date A B
16 GEAR; INJ PUMP DRIVE
Z=35 		8-97601-153-1 01 1 1001- ●
94 NUT; GEAR
M14 FLANGE SOU 		0-91180-214-0 01 1 1001- ●

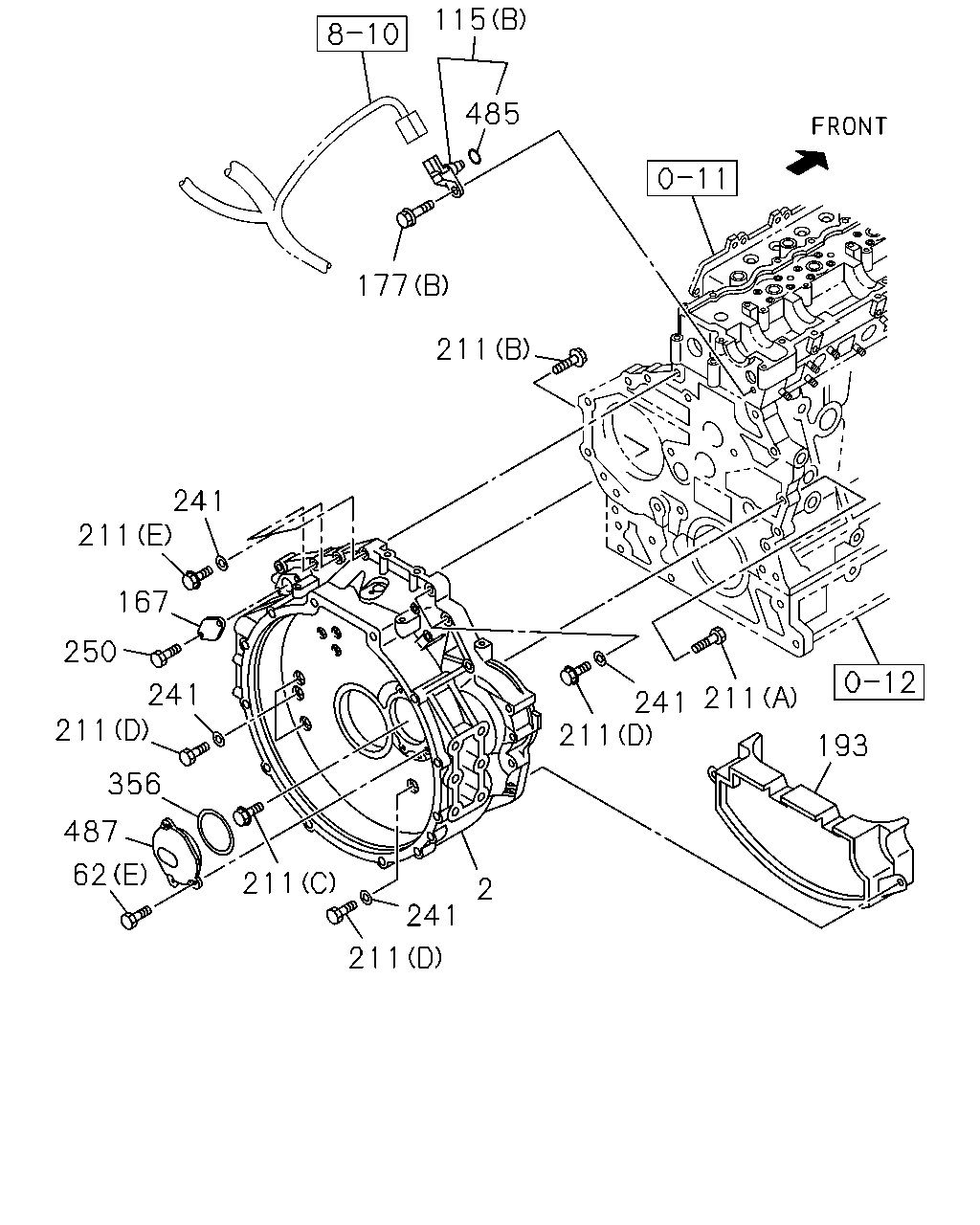

çizim 162629
241 211 211 193 241 211 2 211 356 487 62 241 211 211 167 250 241 177 211 485 115
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL 8-98032-562-4 01 1 1012-1509 ●
2 HOUSING; FLYWHEEL 8-98328-140-0 01 1 1510- ●
2 HOUSING; FLYWHEEL 8-97609-996-9 01 1 1001- ●
62 BOLT; COVER
(A) M8X25 FLANGE SOU 		0-28650-825-0 06 1 1012- ●
62 BOLT; COVER
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ●
62 BOLT; COVER
(B) M8X35 FLANGE SOU 		0-28650-835-0 06 1 1012- ●
62 BOLT; COVER
(D) M8X65 FLANGE 		1-09044-072-1 02 1 1012- ●
62 BOLT; COVER
(E) M8X14 FLANGE 		0-28080-814-0 03 1 1001- ●
115 SENSOR; REVOLUTION,ENG SPD
(A) 		8-97606-943-0 01 1 1001- ●
115 SENSOR; REVOLUTION,ENG SPD
(B) 		8-98019-024-0 01 1 1001- ●
167 COVER; OIL 1-11219-163-0 01 1 1001- ●
177 BOLT; SENSOR
(B) M6X12 FLANGE SOU 		0-28050-612-0 01 1 1001- ●
177 BOLT; SENSOR
(A) M6X16 FLANGE SOU 		0-28050-616-0 02 1 1001- ●
193 SPACER; STAY TO OIL,PAN
EURO3 SPECIFICATION<NT3> 		8-98019-738-1 01 1 1001- ●
211 BOLT; HSG
(F) M10X40 FLANGE 		0-28751-040-0 01 1 1012- ●
211 BOLT; HSG
(G) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 1012-1102 ●
211 BOLT; HSG
(G) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1103- ●
211 BOLT; HSG
(H) M12X30 FLANGE 		8-97135-419-0 01 1 1012- ●
211 BOLT; HSG
(A) M12X60 		0-16856-260-0 01 1 1001- ●
211 BOLT; HSG
(D) M12X70 		0-16956-270-0 08 1 1001- ●
211 BOLT; HSG
(E) M12X90 		0-16956-290-0 03 1 1001- ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28151-050-0 01 1 1001-1011 ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28151-050-0 01 1 1012- ● ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 1001- ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 12 1 1001- ●
250 BOLT; COVER,OIL
M8X18 FLANGE 		0-28080-818-0 02 1 1001- ●
356 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=110 		8-94394-186-0 01 1 1001- ●
485 GASKET; SENSOR
ID=14.2 OD=18.8 		8-97369-404-0 02 1 1001- ●
487 COVER; HOLE 8-98023-824-1 01 1 1001- ●

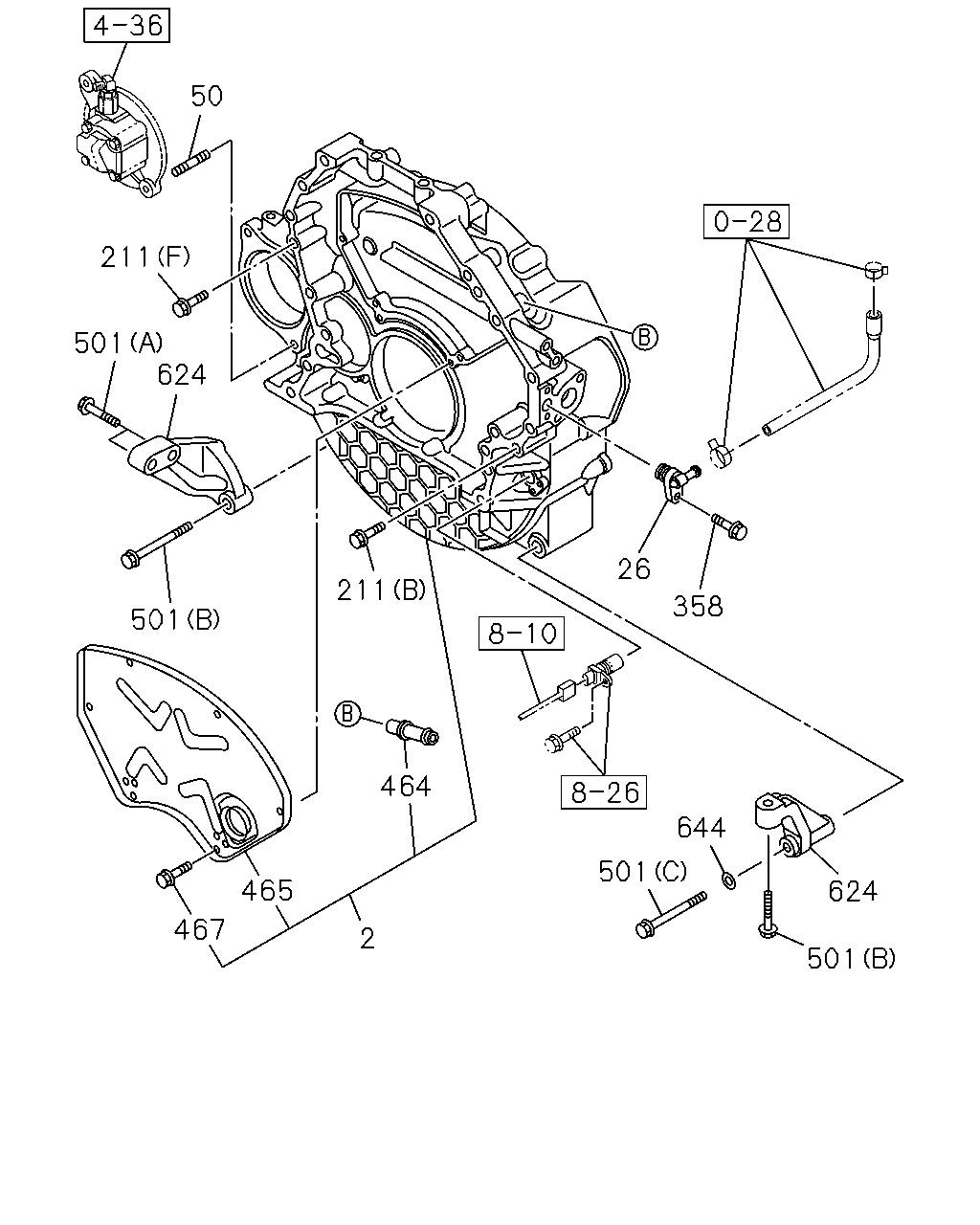

çizim 162766
50 211 501 624 211 501 464 2 465 467 501 644 501 624 358 26
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL 8-98032-562-4 01 1 1012-1509 ●
2 HOUSING; FLYWHEEL 8-98328-140-0 01 1 1510- ●
2 HOUSING; FLYWHEEL 8-97609-996-9 01 1 1001- ●
26 ADAPTER 8-97354-819-0 01 1 1012- ●
50 STUD
M10X25 L=48.5 		0-49241-025-0 01 1 1012- ●
211 BOLT; HSG
(F) M10X40 FLANGE 		0-28751-040-0 01 1 1012- ●
211 BOLT; HSG
(G) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 1012-1102 ●
211 BOLT; HSG
(G) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1103- ●
211 BOLT; HSG
(H) M12X30 FLANGE 		8-97135-419-0 01 1 1012- ●
211 BOLT; HSG
(A) M12X60 		0-16856-260-0 01 1 1001- ●
211 BOLT; HSG
(D) M12X70 		0-16956-270-0 08 1 1001- ●
211 BOLT; HSG
(E) M12X90 		0-16956-290-0 03 1 1001- ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28151-050-0 01 1 1001-1011 ●
211 BOLT; HSG
(B) M10X50 FLANGE 		0-28151-050-0 01 1 1012- ● ●
211 BOLT; HSG
(C) M14X27 FLANGE 		8-94393-995-0 01 1 1001- ●
358 BOLT; ADAPTER
M6X16 FLANGE SOU 		0-28050-616-0 01 1 1012- ●
464 PIPE; PCV,FLYWHEEL HSG 8-94373-246-3 01 1 1012- ●
465 PLATE; FLYWHEEL HSG 8-97388-568-1 01 1 1012- ●
467 BOLT; PLATE
M6X10 		8-98030-649-0 06 1 1012- ●
501 BOLT; STIFFENER
FSR SGL CAB(FC**M*) (A) M10X40 FLANGE 		0-28151-040-0 02 1 1102-1308 ●
501 BOLT; STIFFENER
FSR SGL CAB(FC**M*) (B) M12X50 FLANGE 		0-28151-250-0 02 1 1102-1308 ●
501 BOLT; STIFFENER
FSR SGL CAB(FC**M*) (C) M12X90 FLANGE 		0-28151-290-0 01 1 1102-1308 ●
501 BOLT; STIFFENER
(A) M10X40 FLANGE 		0-28151-040-0 02 1 1012-1101 ●
501 BOLT; STIFFENER
(B) M12X50 FLANGE 		0-28151-250-0 02 1 1012-1101 ●
501 BOLT; STIFFENER
(C) M12X90 FLANGE 		0-28151-290-0 01 1 1012-1101 ●
624 STIFFENER
FSR SGL CAB(FC**M*) 		8-97380-613-1 01 1 1102-1308 ●
624 STIFFENER
FSR SGL CAB(FC**M*) 		8-97380-614-1 01 1 1102-1308 ●
624 STIFFENER 8-97380-613-1 01 1 1012-1101 ●
624 STIFFENER 8-97380-614-1 01 1 1012-1101 ●
644 WASHER; STIFFENER
ID=12.5 OD=22 SOU 		8-94279-627-0 01 1 1012-1308 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
