0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#55488) — 127 parça

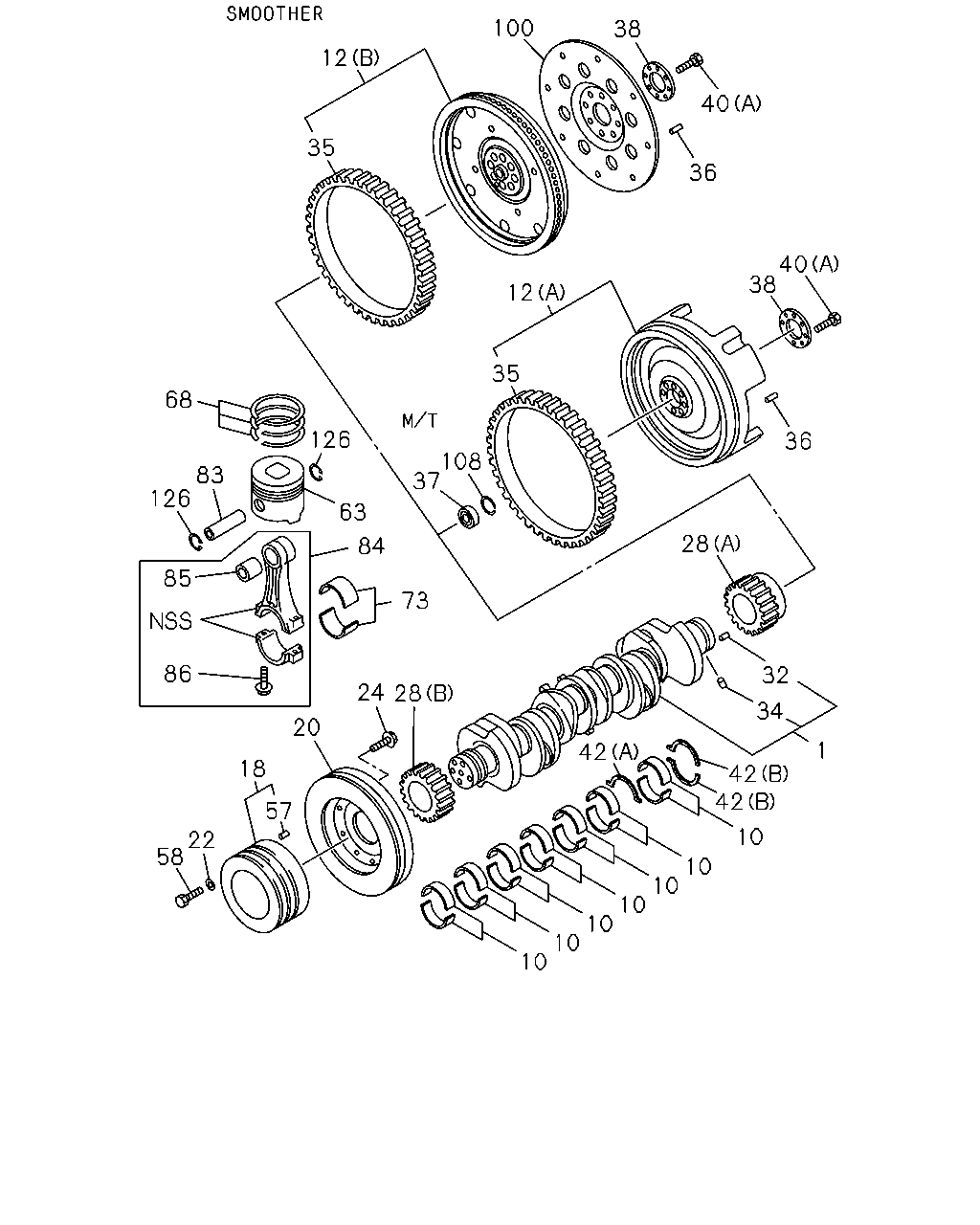

12 100 38 40 36 40 38 12 35 36 28 108 37 126 68 83 126 85 86 63 73 84 24 28 20 18 57 22 58 32 34 1 42 42 42 10 10 10 10 10 10 10 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-98029-270-0	01	1	1012-	●
1	CRANKSHAFT	8-97603-004-0	01	1	1001-		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1012-	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1012-	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1012-	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	1001-		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	1001-		●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	1001-		●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97604-545-2	01	1	1109-		●
12	FLYWHEEL (C)	8-98056-355-2	01	1	1012-	●
12	FLYWHEEL (A)	8-97602-463-2	01	1	1001-1105		●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97602-463-2	01	1	1106-		●
18	PULLEY; CR/SHF 3-GROOVE	8-97606-944-0	01	1	1001-		●
20	DAMPER; CR/SHF	8-94392-276-2	01	1	1001-1004		●
20	DAMPER; CR/SHF	8-97613-696-1	01	1	1005-		●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	1001-		●
24	BOLT; DAMPER M16X42	8-97028-733-0	04	1	1012-	●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	1001-		●
28	GEAR; CR/SHF (C) Z=42	8-94394-342-4	01	1	1012-	●
28	GEAR; CR/SHF (A) Z=42	8-94392-255-1	01	1	1001-		●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	1001-		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	1001-		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1001-1011		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1012-	●	●
35	GEAR; RING Z=143	8-97375-675-1	01	1	1012-	●
35	GEAR; RING Z=140	8-94396-784-1	01	1	1001-		●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	1001-1105		●
36	PIN; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=10 L=22	9-08151-022-0	02	1	1106-		●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	1001-1105		●
37	BEARING; PILOT,TOP GEAR SHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-94392-288-0	01	1	1106-		●
37	BEARING; PILOT,TOP GEAR SHAFT BEST VALUE PARTS	1-87610-157-0	01	1	1001-1105		●
37	BEARING; PILOT,TOP GEAR SHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	1-87610-157-0	01	1	1106-		●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) ID=50 OD=120	8-98176-500-0	01	1	1109-		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	1001-1011		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	1012-1105	●	●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=55 OD=110	8-94397-496-1	01	1	1106-		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	1106-	●
40	BOLT; FLYWHEEL (B) M16X51	8-94334-870-1	08	1	1012-	●
40	BOLT; FLYWHEEL (A) M16X62	8-94393-070-2	08	1	1001-		●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1001-1011		●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1012-	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1001-1011		●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1012-	●	●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	02	1	1012-	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	1001-		●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	1001-		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	04	1	1012-1109	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	08	1	1110-	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	06	1	1001-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	1012-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	1001-		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	1012-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	1012-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	1001-		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	1001-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	1012-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	1001-		●
84	ROD ASM; CONN	8-98018-425-3	04	1	1012-	●
84	ROD ASM; CONN	8-98018-425-3	06	1	1001-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	1012-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	1001-		●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1012-	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	1001-1004		●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1005-		●
100	PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98148-782-1	01	1	1109-		●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	1001-1105		●
108	RING; SNAP,BRG SET TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=59.2	9-09180-155-0	01	1	1106-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	08	1	1012-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	1001-		●

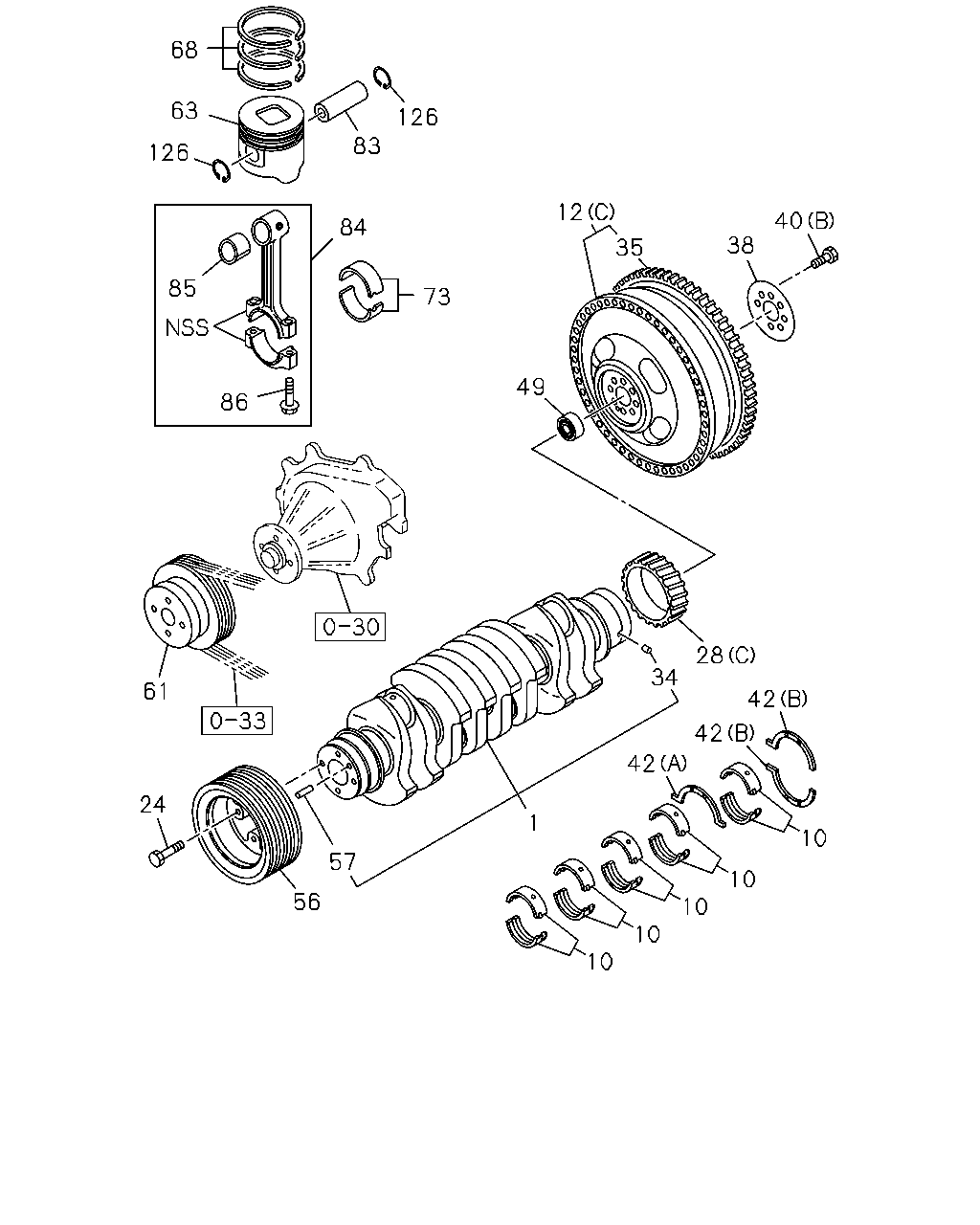

68 63 126 85 86 126 83 84 73 12 35 38 40 49 28 34 42 42 42 10 10 10 10 10 1 57 56 24 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-98029-270-0	01	1	1012-	●
1	CRANKSHAFT	8-97603-004-0	01	1	1001-		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1012-	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1012-	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1012-	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	1001-		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	1001-		●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	1001-		●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97604-545-2	01	1	1109-		●
12	FLYWHEEL (C)	8-98056-355-2	01	1	1012-	●
12	FLYWHEEL (A)	8-97602-463-2	01	1	1001-1105		●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97602-463-2	01	1	1106-		●
24	BOLT; DAMPER M16X42	8-97028-733-0	04	1	1012-	●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	1001-		●
28	GEAR; CR/SHF (C) Z=42	8-94394-342-4	01	1	1012-	●
28	GEAR; CR/SHF (A) Z=42	8-94392-255-1	01	1	1001-		●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	1001-		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1001-1011		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1012-	●	●
35	GEAR; RING Z=143	8-97375-675-1	01	1	1012-	●
35	GEAR; RING Z=140	8-94396-784-1	01	1	1001-		●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) ID=50 OD=120	8-98176-500-0	01	1	1109-		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	1001-1011		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	1012-1105	●	●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=55 OD=110	8-94397-496-1	01	1	1106-		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	1106-	●
40	BOLT; FLYWHEEL (B) M16X51	8-94334-870-1	08	1	1012-	●
40	BOLT; FLYWHEEL (A) M16X62	8-94393-070-2	08	1	1001-		●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1001-1011		●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1012-	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1001-1011		●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1012-	●	●
49	BEARING; PILOT	8-97258-239-0	01	1	1012-	●
49	BEARING; PILOT BEST VALUE PARTS	5-87610-164-0	01	1	1012-	●
56	PULLEY; CR/SHF DAMPER 3-GROOVE	8-98004-024-3	01	1	1012-	●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	02	1	1012-	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	1001-		●
61	PULLEY; FAN DRIVE 1-GROOVE	8-98003-384-1	01	1	1012-	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	04	1	1012-1109	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	08	1	1110-	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	06	1	1001-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	1012-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	1001-		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	1012-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	1012-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	1001-		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	1001-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	1012-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	1001-		●
84	ROD ASM; CONN	8-98018-425-3	04	1	1012-	●
84	ROD ASM; CONN	8-98018-425-3	06	1	1001-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	1012-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	1001-		●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1012-	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	1001-1004		●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1005-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	08	1	1012-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	1001-		●
