Isuzu WW
▶
TRUCKS
▶
FSR
▶
11161 - FSR(SOUTH AFRICA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-14 - CAMSHAFT AND VALVE
▶
0-14 — CAMSHAFT AND VALVE
(#55487) — 168 parça
Tümü
A - 4HK1-TCS ENG
B - 6HK1-TCN ENG
◀

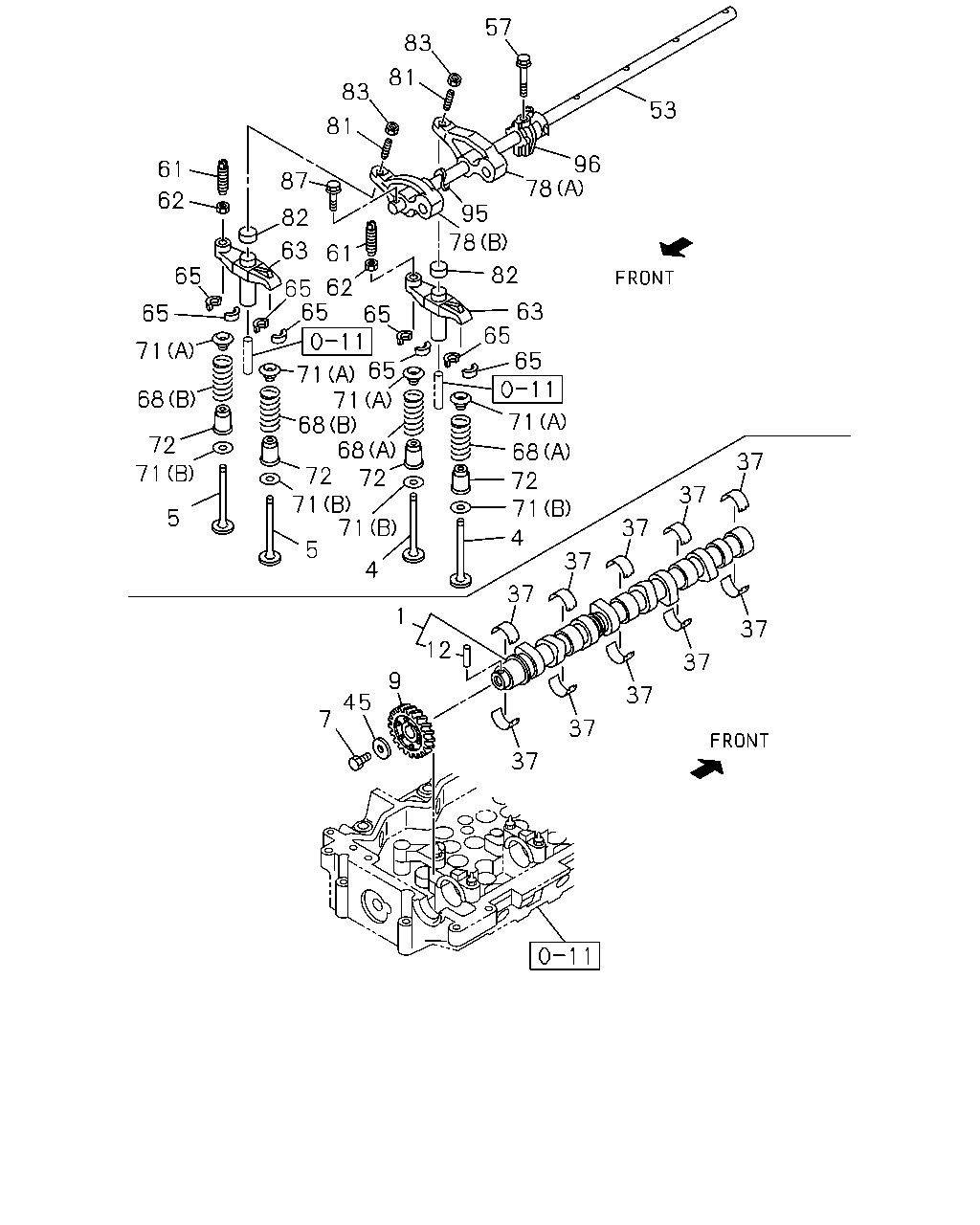

[014A] 4HK1;VALVE AND CAMSHAFT (51 parça)

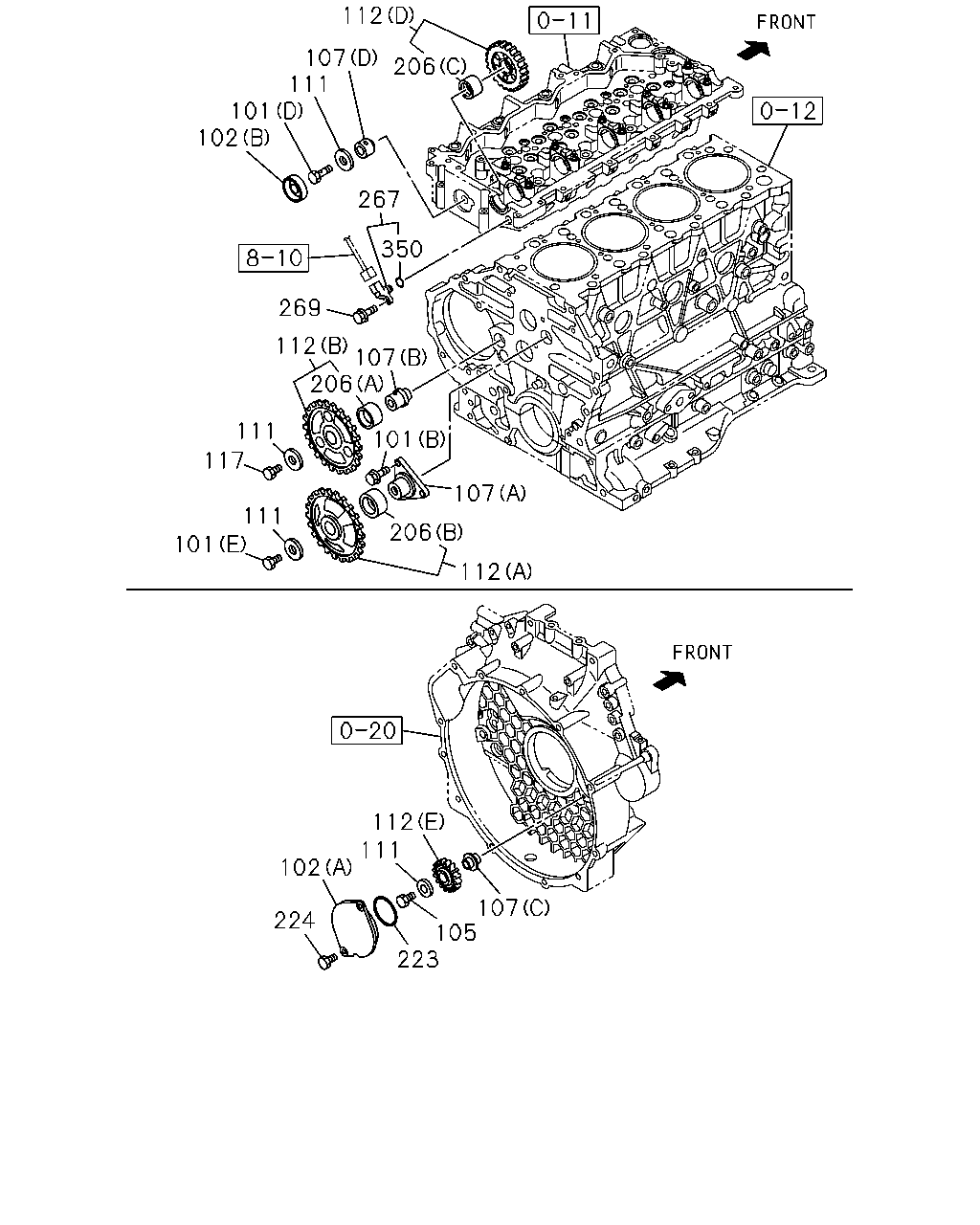

[014A] 4HK1;IDLE GEAR (38 parça)

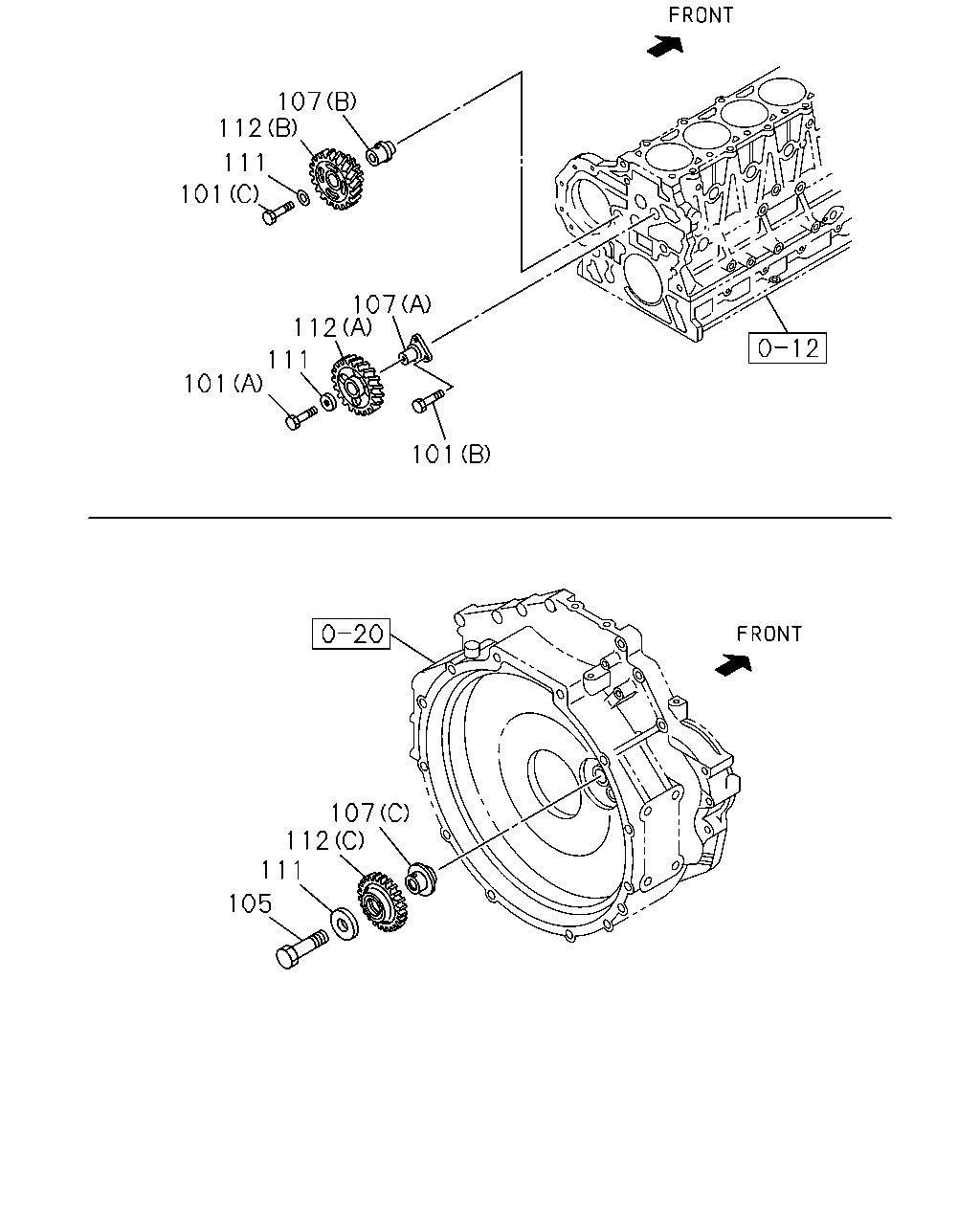

[014A] 6HK1;IDLE GEAR (26 parça)

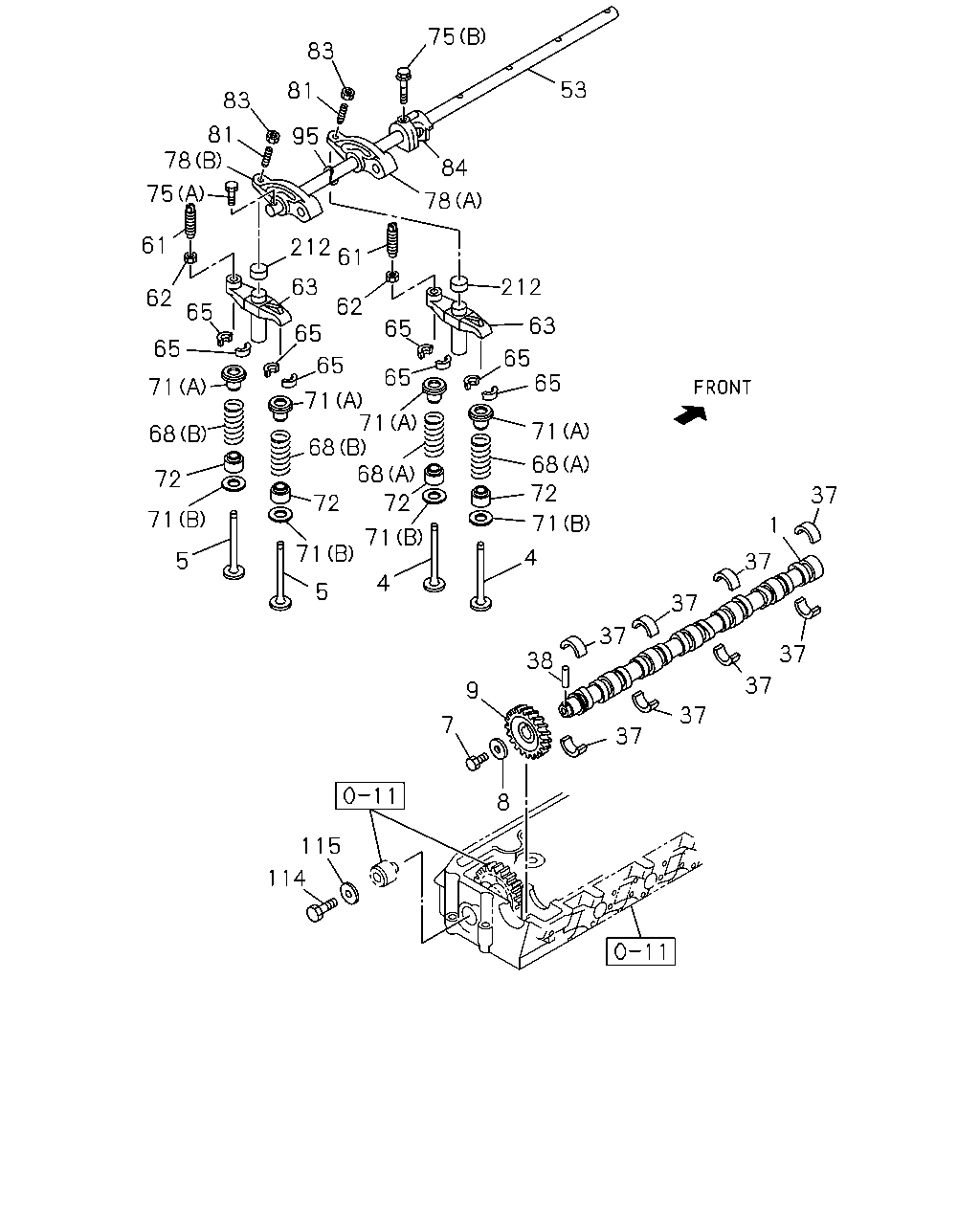

[014A] 6HK1;VALVE AND CAMSHAFT (53 parça)
▶
37
37
37
37
37
37
37
37
37
37
12
1
9
45
7
53
96
95
78
63
82
65
65
4
72
71
68
71
78
57
83
81
83
81
87
61
65
62
82
62
61
63
65
71
65
65
65
71
68
68
72
72
71
5
4
71
5
71
72
68
71
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CAMSHAFT
8-97262-166-0
01
1
1012-
●
1
CAMSHAFT
8-97601-438-0
01
1
1001-1311
●
1
CAMSHAFT
8-98227-261-1
01
1
1312-
●
4
VALVE; INL
8-94395-882-2
08
1
1012-
●
4
VALVE; INL
8-94395-882-2
12
1
1001-
●
5
VALVE; EXH
8-97209-876-4
08
1
1012-
●
5
VALVE; EXH
8-97209-876-4
12
1
1001-
●
7
BOLT; CM/SHF GEAR
M14X40
8-94396-439-0
01
1
1001-1011
●
7
BOLT; CM/SHF GEAR
M14X40
8-94396-439-0
01
1
1012-
●
●
9
GEAR; CM/SHF
Z=35
8-98018-935-3
01
1
1012-
●
9
GEAR; CM/SHF
Z=35
8-98018-934-3
01
1
1001-
●
12
KEY; CAM GEAR SET
OD=7 L=7.5
8-94399-487-0
02
1
1012-
●
37
METAL; CM/SHF
B=16
8-97386-189-0
10
1
1012-
●
37
METAL; CM/SHF
UPPER B=16
8-97386-189-0
04
1
1001-
●
37
METAL; CM/SHF
LOWER B=26
8-97602-699-0
04
1
1001-
●
45
WASHER; GEAR CAM
ID=14.5
9-09851-850-3
01
1
1012-
●
53
SHAFT; ROCKER ARM
8-97389-921-0
01
1
1012-
●
53
SHAFT; ROCKER ARM
8-97389-918-0
01
1
1001-
●
57
BOLT; ROCKER ARM BRKT
M10X62 FLANGE
8-94393-131-0
03
1
1012-
●
61
SCREW; ADJ,BRIDGE
M8X21
8-94394-803-0
08
1
1012-
●
61
SCREW; ADJ,BRIDGE
M8X21
8-94394-803-0
12
1
1001-
●
62
NUT; ADJ SCREW LK BRIDGE
M8 FLANGE SOU
9-09844-574-0
08
1
1012-
●
62
NUT; ADJ SCREW LK BRIDGE
M8 FLANGE SOU
9-09844-574-0
12
1
1001-
●
63
BRIDGE
8-94392-002-3
08
1
1012-
●
63
BRIDGE
8-94392-002-3
12
1
1001-
●
65
COLLAR; SPLIT
5-12565-004-0
32
1
1012-
●
65
COLLAR; SPLIT
5-12565-004-0
48
1
1001-
●
68
SPRING; VLV
(B) EXHAUST MARK RED
8-97210-682-0
08
1
1012-
●
68
SPRING; VLV
(A) INLET MARK BLUE
8-97352-888-0
08
1
1012-
●
68
SPRING; VLV
(A) INLET MARK BLUE
8-97352-888-0
12
1
1001-
●
68
SPRING; VLV
EURO2 SPECIFICATION<NT2> (B) EXHAUST MARK WHITE
8-94395-885-1
12
1
1001-
●
68
SPRING; VLV
EURO3 SPECIFICATION<NT3> (B) EXHAUST MARK RED
8-97210-682-0
12
1
1001-
●
71
SEAT; SPR
(A) UPPER OD=32.8 T=12.75
8-94390-783-2
16
1
1012-
●
71
SEAT; SPR
(B) LOWER ID=14.3 T=1.0
8-94391-468-0
16
1
1012-
●
71
SEAT; SPR
(A) UPPER OD=32.8 T=12.75
8-94390-783-2
24
1
1001-
●
71
SEAT; SPR
(B) LOWER ID=14.3 T=1.0
8-94391-468-0
24
1
1001-
●
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97376-720-0
16
1
1012-
●
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97376-720-0
24
1
1001-
●
78
ARM; ROCKER
(A) INLET
8-97306-421-3
04
1
1012-
●
78
ARM; ROCKER
(B) EXHAUST
8-97306-424-3
04
1
1012-
●
78
ARM; ROCKER
(A) INLET
8-97306-421-3
06
1
1001-
●
78
ARM; ROCKER
(B) EXHAUST
8-97306-424-3
06
1
1001-
●
81
SCREW; ADJ,ROCKER ARM
M10 L=32
8-94395-024-0
08
1
1012-
●
81
SCREW; ADJ,ROCKER ARM
M10 L=32
8-94395-024-0
12
1
1001-
●
82
CAP; ROCKER SHAFT
8-94396-015-2
08
1
1012-
●
83
NUT; ADJ SCREW,LK
M10
0-91111-510-0
08
1
1012-
●
83
NUT; ADJ SCREW,LK
M10
0-91111-510-0
12
1
1001-
●
87
BOLT; ROCKER SHAFT
M8X40 FLANGE
0-28050-840-0
02
1
1012-
●
95
SPRING; ROCKER SHAFT
8-94392-999-0
04
1
1012-
●
95
SPRING; ROCKER SHAFT
8-94392-999-0
06
1
1001-
●
96
BRACKET; ROCKER ARM SHAFT
8-97334-414-0
03
1
1012-
●
112
107
111
101
102
206
267
350
269
112
107
206
111
101
117
107
111
101
206
112
112
111
102
107
105
223
224
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
101
BOLT; THRUST COLLAR
(D) M14X36.5
8-94372-221-1
01
1
1012-
●
101
BOLT; THRUST COLLAR
(E) M14X25
9-92361-425-0
01
1
1012-1310
●
101
BOLT; THRUST COLLAR
(E) M14X25
0-23951-425-0
01
1
1311-
●
101
BOLT; THRUST COLLAR
(C) M14X60
0-16956-460-0
01
1
1001-
●
101
BOLT; THRUST COLLAR
(A) M14X30
0-23951-430-0
01
1
1001-
●
101
BOLT; THRUST COLLAR
(B) M8X16 FLANGE
0-28060-816-0
03
1
1001-1011
●
101
BOLT; THRUST COLLAR
(B) M8X16 FLANGE
0-28060-816-0
03
1
1012-
●
●
102
COVER; IDLE GEAR
(A)
8-94334-681-1
01
1
1012-
●
102
COVER; IDLE GEAR
(B) OD=51
8-97096-826-0
01
1
1012-
●
105
BOLT; IDLE GEAR SHAFT
M14X60
0-16956-460-0
01
1
1012-
●
105
BOLT; IDLE GEAR SHAFT
M14X65
8-97066-798-0
01
1
1001-
●
107
SHAFT; IDLE GEAR
(D)
8-97186-398-1
01
1
1012-
●
107
SHAFT; IDLE GEAR
(C)
8-94334-682-0
01
1
1001-1011
●
107
SHAFT; IDLE GEAR
(C)
8-94334-682-1
01
1
1012-
●
●
107
SHAFT; IDLE GEAR
(A)
8-97350-021-0
01
1
1001-1011
●
107
SHAFT; IDLE GEAR
(A)
8-97350-021-0
01
1
1012-
●
●
107
SHAFT; IDLE GEAR
(B)
8-98060-780-0
01
1
1001-1011
●
107
SHAFT; IDLE GEAR
(B)
8-98060-780-0
01
1
1012-
●
●
111
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
8-97209-728-2
04
1
1012-
●
111
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
8-97209-728-2
03
1
1001-
●
112
GEAR; IDLE
(E) Z=34
8-97120-005-1
01
1
1012-
●
112
GEAR; IDLE
(D) Z=41
8-97606-929-0
01
1
1012-
●
112
GEAR; IDLE
(B) Z=72-60-30
8-97600-586-1
01
1
1001-1011
●
112
GEAR; IDLE
(B) Z=72-60-30
8-97600-586-1
01
1
1012-1402
●
●
112
GEAR; IDLE
(B) Z=72-60-30
8-98254-970-0
01
1
1403-
●
●
112
GEAR; IDLE
(A) Z=61
8-97606-767-0
01
1
1001-1011
●
112
GEAR; IDLE
(A) Z=61
8-97606-767-0
01
1
1012-
●
●
112
GEAR; IDLE
(C) Z=34
8-97606-771-0
01
1
1001-
●
117
BOLT; FLANGE
M14X65 FLANGE
8-97113-167-0
01
1
1012-
●
206
BUSHING; IDLE GEAR
(A) AFTER PRESS FITTING, MACHINE IT.
1-12528-028-0
01
1
1012-1402
●
206
BUSHING; IDLE GEAR
(A) AFTER PRESS FITTING, MACHINE IT.
8-98255-899-0
01
1
1403-
●
206
BUSHING; IDLE GEAR
(B) AFTER PRESS FITTING, MACHINE IT.
8-97606-768-0
01
1
1012-
●
206
BUSHING; IDLE GEAR
(C) AFTER PRESS FITTING, MACHINE IT.
8-97606-770-0
01
1
1012-
●
223
GASKET; COVER,IDLE GEAR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6
1-09623-423-0
01
1
1012-
●
224
BOLT; COVER
M8X16 FLANGE SOU
0-28050-816-0
02
1
1012-
●
267
SENSOR; CAM ANGLE
8-98019-024-0
01
1
1012-
●
269
BOLT; SENSOR
M6X12 FLANGE SOU
0-28050-612-0
01
1
1012-
●
350
GASKET; SENSOR,CAM ANGLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=18.8
8-97369-404-0
01
1
1012-
●
107
112
111
101
107
112
111
101
101
107
112
111
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
101
BOLT; THRUST COLLAR
(D) M14X36.5
8-94372-221-1
01
1
1012-
●
101
BOLT; THRUST COLLAR
(E) M14X25
9-92361-425-0
01
1
1012-1310
●
101
BOLT; THRUST COLLAR
(E) M14X25
0-23951-425-0
01
1
1311-
●
101
BOLT; THRUST COLLAR
(C) M14X60
0-16956-460-0
01
1
1001-
●
101
BOLT; THRUST COLLAR
(A) M14X30
0-23951-430-0
01
1
1001-
●
101
BOLT; THRUST COLLAR
(B) M8X16 FLANGE
0-28060-816-0
03
1
1001-1011
●
101
BOLT; THRUST COLLAR
(B) M8X16 FLANGE
0-28060-816-0
03
1
1012-
●
●
105
BOLT; IDLE GEAR SHAFT
M14X60
0-16956-460-0
01
1
1012-
●
105
BOLT; IDLE GEAR SHAFT
M14X65
8-97066-798-0
01
1
1001-
●
107
SHAFT; IDLE GEAR
(D)
8-97186-398-1
01
1
1012-
●
107
SHAFT; IDLE GEAR
(C)
8-94334-682-0
01
1
1001-1011
●
107
SHAFT; IDLE GEAR
(C)
8-94334-682-1
01
1
1012-
●
●
107
SHAFT; IDLE GEAR
(A)
8-97350-021-0
01
1
1001-1011
●
107
SHAFT; IDLE GEAR
(A)
8-97350-021-0
01
1
1012-
●
●
107
SHAFT; IDLE GEAR
(B)
8-98060-780-0
01
1
1001-1011
●
107
SHAFT; IDLE GEAR
(B)
8-98060-780-0
01
1
1012-
●
●
111
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
8-97209-728-2
04
1
1012-
●
111
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
8-97209-728-2
03
1
1001-
●
112
GEAR; IDLE
(E) Z=34
8-97120-005-1
01
1
1012-
●
112
GEAR; IDLE
(D) Z=41
8-97606-929-0
01
1
1012-
●
112
GEAR; IDLE
(B) Z=72-60-30
8-97600-586-1
01
1
1001-1011
●
112
GEAR; IDLE
(B) Z=72-60-30
8-97600-586-1
01
1
1012-1402
●
●
112
GEAR; IDLE
(B) Z=72-60-30
8-98254-970-0
01
1
1403-
●
●
112
GEAR; IDLE
(A) Z=61
8-97606-767-0
01
1
1001-1011
●
112
GEAR; IDLE
(A) Z=61
8-97606-767-0
01
1
1012-
●
●
112
GEAR; IDLE
(C) Z=34
8-97606-771-0
01
1
1001-
●
212
78
84
53
75
83
81
83
81
78
75
95
212
61
62
63
65
65
65
63
65
65
71
68
72
71
4
4
5
71
72
68
71
71
65
68
71
72
72
71
68
71
65
65
62
61
5
37
1
37
37
37
38
9
7
115
114
37
8
37
37
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CAMSHAFT
8-97262-166-0
01
1
1012-
●
1
CAMSHAFT
8-97601-438-0
01
1
1001-1311
●
1
CAMSHAFT
8-98227-261-1
01
1
1312-
●
4
VALVE; INL
8-94395-882-2
08
1
1012-
●
4
VALVE; INL
8-94395-882-2
12
1
1001-
●
5
VALVE; EXH
8-97209-876-4
08
1
1012-
●
5
VALVE; EXH
8-97209-876-4
12
1
1001-
●
7
BOLT; CM/SHF GEAR
M14X40
8-94396-439-0
01
1
1001-1011
●
7
BOLT; CM/SHF GEAR
M14X40
8-94396-439-0
01
1
1012-
●
●
8
WASHER; CM/SHF GEAR
ID=14.5
9-09851-850-3
01
1
1001-
●
9
GEAR; CM/SHF
Z=35
8-98018-935-3
01
1
1012-
●
9
GEAR; CM/SHF
Z=35
8-98018-934-3
01
1
1001-
●
37
METAL; CM/SHF
B=16
8-97386-189-0
10
1
1012-
●
37
METAL; CM/SHF
UPPER B=16
8-97386-189-0
04
1
1001-
●
37
METAL; CM/SHF
LOWER B=26
8-97602-699-0
04
1
1001-
●
38
PIN; CAM BRG SET
OD=7 L=7.5
8-94399-487-0
01
1
1001-
●
53
SHAFT; ROCKER ARM
8-97389-921-0
01
1
1012-
●
53
SHAFT; ROCKER ARM
8-97389-918-0
01
1
1001-
●
61
SCREW; ADJ,BRIDGE
M8X21
8-94394-803-0
08
1
1012-
●
61
SCREW; ADJ,BRIDGE
M8X21
8-94394-803-0
12
1
1001-
●
62
NUT; ADJ SCREW LK BRIDGE
M8 FLANGE SOU
9-09844-574-0
08
1
1012-
●
62
NUT; ADJ SCREW LK BRIDGE
M8 FLANGE SOU
9-09844-574-0
12
1
1001-
●
63
BRIDGE
8-94392-002-3
08
1
1012-
●
63
BRIDGE
8-94392-002-3
12
1
1001-
●
65
COLLAR; SPLIT
5-12565-004-0
32
1
1012-
●
65
COLLAR; SPLIT
5-12565-004-0
48
1
1001-
●
68
SPRING; VLV
(B) EXHAUST MARK RED
8-97210-682-0
08
1
1012-
●
68
SPRING; VLV
(A) INLET MARK BLUE
8-97352-888-0
08
1
1012-
●
68
SPRING; VLV
(A) INLET MARK BLUE
8-97352-888-0
12
1
1001-
●
68
SPRING; VLV
EURO2 SPECIFICATION<NT2> (B) EXHAUST MARK WHITE
8-94395-885-1
12
1
1001-
●
68
SPRING; VLV
EURO3 SPECIFICATION<NT3> (B) EXHAUST MARK RED
8-97210-682-0
12
1
1001-
●
71
SEAT; SPR
(A) UPPER OD=32.8 T=12.75
8-94390-783-2
16
1
1012-
●
71
SEAT; SPR
(B) LOWER ID=14.3 T=1.0
8-94391-468-0
16
1
1012-
●
71
SEAT; SPR
(A) UPPER OD=32.8 T=12.75
8-94390-783-2
24
1
1001-
●
71
SEAT; SPR
(B) LOWER ID=14.3 T=1.0
8-94391-468-0
24
1
1001-
●
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97376-720-0
16
1
1012-
●
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97376-720-0
24
1
1001-
●
75
BOLT; BRKT
(A) M8X40 FLANGE
0-28050-840-0
02
1
1001-
●
75
BOLT; BRKT
(B) M10X62 FLANGE
8-94393-131-0
05
1
1001-
●
78
ARM; ROCKER
(A) INLET
8-97306-421-3
04
1
1012-
●
78
ARM; ROCKER
(B) EXHAUST
8-97306-424-3
04
1
1012-
●
78
ARM; ROCKER
(A) INLET
8-97306-421-3
06
1
1001-
●
78
ARM; ROCKER
(B) EXHAUST
8-97306-424-3
06
1
1001-
●
81
SCREW; ADJ,ROCKER ARM
M10 L=32
8-94395-024-0
08
1
1012-
●
81
SCREW; ADJ,ROCKER ARM
M10 L=32
8-94395-024-0
12
1
1001-
●
83
NUT; ADJ SCREW,LK
M10
0-91111-510-0
08
1
1012-
●
83
NUT; ADJ SCREW,LK
M10
0-91111-510-0
12
1
1001-
●
84
BRACKET; ROCKER SHAFT,INTER
8-94395-836-2
05
1
1001-
●
95
SPRING; ROCKER SHAFT
8-94392-999-0
04
1
1012-
●
95
SPRING; ROCKER SHAFT
8-94392-999-0
06
1
1001-
●
114
BOLT; IDLE GEAR
M14X36.5
8-94372-221-1
01
1
1001-
●
115
WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46
8-97209-728-2
01
1
1001-
●
212
CAP; ADJ SCREW
8-94396-015-2
12
1
1001-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
