Sayfa 0-13 - Isuzu EPC

0-13 — OIL PAN AND LEVEL GAUGE (#55486) — 219 parça

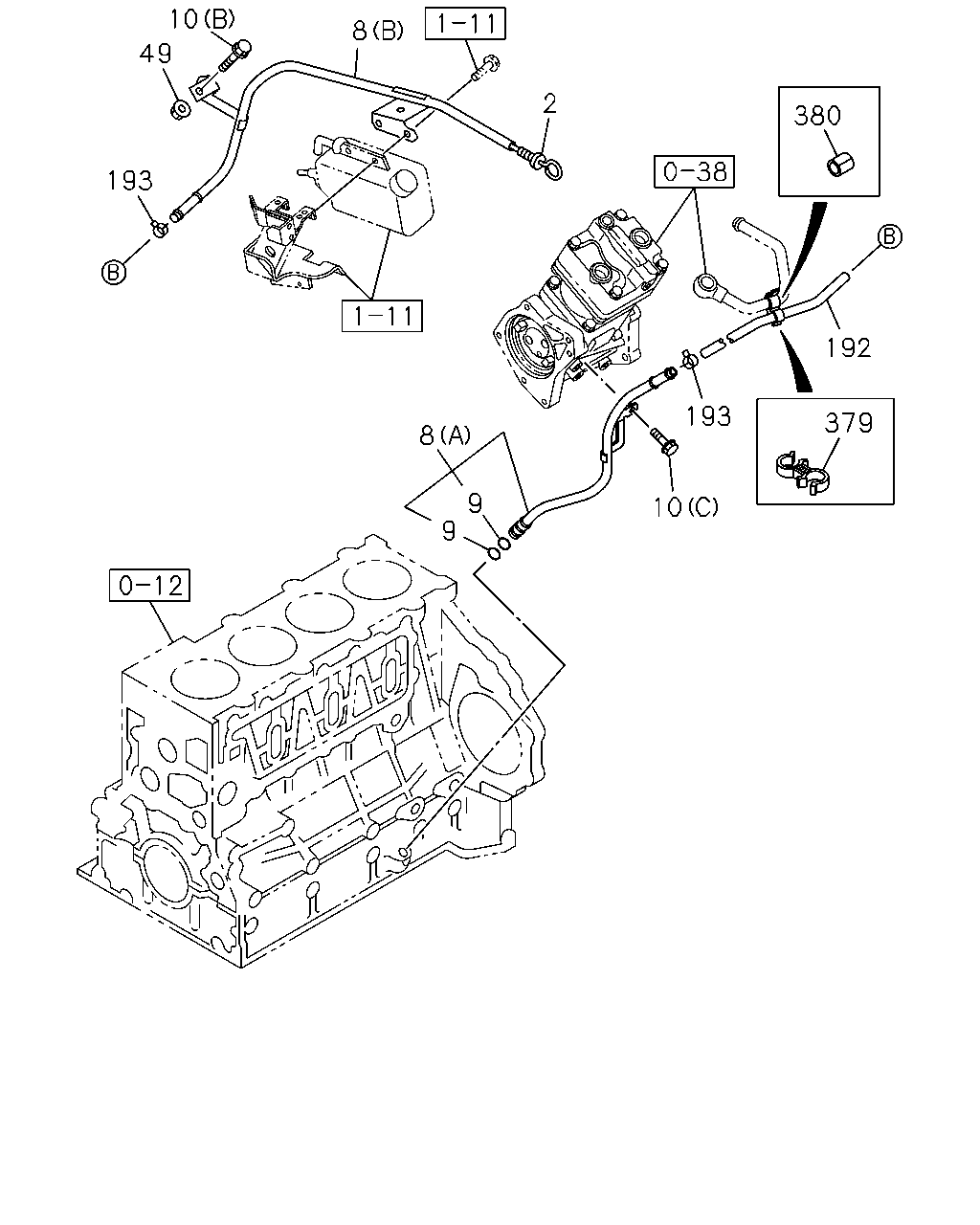

10 8 49 2 380 193 192 193 379 8 9 10 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	GAUGE; OIL LEVEL	8-98085-152-0	01	1	1012-1406	●
2	GAUGE; OIL LEVEL	8-98245-515-0	01	1	1407-	●
2	GAUGE; OIL LEVEL FSR SGL CAB(FC*M)	8-98092-125-1	01	1	1001-		●
2	GAUGE; OIL LEVEL FSR DBL CAB(FC*W)	8-98084-260-0	01	1	1001-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98177-509-0	01	1	1110-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE FSR SGL CAB(FC*M) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98098-761-0	01	1	1110-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	8-98084-771-0	01	1	1012-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-98009-115-1	01	1	1012-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	8-98063-554-0	01	1	1001-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE FSR SGL CAB(FC*M) (A)	8-97618-220-1	01	1	1001-1109		●
8	TUBE; GUIDE,OIL LEVEL GAUGE FSR SGL CAB(FC*M) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-97618-220-1	01	1	1110-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE FSR SGL CAB(FC*M) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97618-220-1	01	1	1110-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE FSR DBL CAB(FC*W) (A)	8-98093-643-0	01	1	1001-		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ID=11 ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-469-0	02	1	1001-		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ID=11	1-09623-469-0	02	1	1012-	●
10	BOLT; GUIDE TUBE (C) M6X12 FLANGE SOU	0-28050-612-0	01	1	1012-	●
10	BOLT; GUIDE TUBE (A) M10X35 FLANGE	0-28151-035-0	01	1	1001-		●
10	BOLT; GUIDE TUBE FSR SGL CAB(FC*M) (B) M8X20 FLANGE	0-28650-820-0	01	1	1001-1011		●
10	BOLT; GUIDE TUBE FSR SGL CAB(FC*M) (B) M8X20 FLANGE	0-28650-820-0	01	1	1012-		●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
49	NUT; GUIDE TUBE FSR SGL CAB(FC*M) M8 FLANGE SOU	0-91180-108-0	01	1	1001-1011		●
49	NUT; GUIDE TUBE EURO2 SPECIFICATION<NT2> M8 FLANGE SOU	0-91180-108-0	01	1	1012-		●
49	NUT; GUIDE TUBE EURO3 SPECIFICATION<NT3> M8 FLANGE SOU	0-91180-108-0	02	1	1001-		●
192	HOSE; GUIDE TUBE FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98177-980-0	01	1	1110-		●
192	HOSE; GUIDE TUBE L=338	8-98054-843-0	01	1	1012-	●
192	HOSE; GUIDE TUBE FSR SGL CAB(FC*M) L=310	8-98092-068-0	01	1	1001-1109		●
192	HOSE; GUIDE TUBE FSR SGL CAB(FC*M) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TURBO - CONVENTIONAL<Q5T> L=310	8-98092-068-0	01	1	1110-		●
192	HOSE; GUIDE TUBE FSR SGL CAB(FC*M) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=310	8-98092-068-0	01	1	1110-		●
192	HOSE; GUIDE TUBE FSR SGL CAB(FC*M) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=310	8-98092-068-0	01	1	1110-		●
192	HOSE; GUIDE TUBE FSR DBL CAB(FC*W) L=395	8-98093-949-0	01	1	1001-		●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	1001-1011		●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	1012-	●	●
379	CLIP; PIPE TO HOSE ID=18 & 18	8-94323-068-0	01	1	1012-	●
380	PROTECTOR; PIPE ID=18 L=40	8-98070-445-0	01	1	1012-	●

10 8 49 2 193 192 193 9 9 10 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	GAUGE; OIL LEVEL	8-98085-152-0	01	1	1012-1406	●
2	GAUGE; OIL LEVEL	8-98245-515-0	01	1	1407-	●
2	GAUGE; OIL LEVEL FSR SGL CAB(FC*M)	8-98092-125-1	01	1	1001-		●
2	GAUGE; OIL LEVEL FSR DBL CAB(FC*W)	8-98084-260-0	01	1	1001-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98177-509-0	01	1	1110-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE FSR SGL CAB(FC*M) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98098-761-0	01	1	1110-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	8-98084-771-0	01	1	1012-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-98009-115-1	01	1	1012-	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	8-98063-554-0	01	1	1001-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE FSR SGL CAB(FC*M) (A)	8-97618-220-1	01	1	1001-1109		●
8	TUBE; GUIDE,OIL LEVEL GAUGE FSR SGL CAB(FC*M) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-97618-220-1	01	1	1110-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE FSR SGL CAB(FC*M) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97618-220-1	01	1	1110-		●
8	TUBE; GUIDE,OIL LEVEL GAUGE FSR DBL CAB(FC*W) (A)	8-98093-643-0	01	1	1001-		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ID=11 ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-469-0	02	1	1001-		●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ID=11	1-09623-469-0	02	1	1012-	●
10	BOLT; GUIDE TUBE (C) M6X12 FLANGE SOU	0-28050-612-0	01	1	1012-	●
10	BOLT; GUIDE TUBE (A) M10X35 FLANGE	0-28151-035-0	01	1	1001-		●
10	BOLT; GUIDE TUBE FSR SGL CAB(FC*M) (B) M8X20 FLANGE	0-28650-820-0	01	1	1001-1011		●
10	BOLT; GUIDE TUBE FSR SGL CAB(FC*M) (B) M8X20 FLANGE	0-28650-820-0	01	1	1012-		●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
49	NUT; GUIDE TUBE FSR SGL CAB(FC*M) M8 FLANGE SOU	0-91180-108-0	01	1	1001-1011		●
49	NUT; GUIDE TUBE EURO2 SPECIFICATION<NT2> M8 FLANGE SOU	0-91180-108-0	01	1	1012-		●
49	NUT; GUIDE TUBE EURO3 SPECIFICATION<NT3> M8 FLANGE SOU	0-91180-108-0	02	1	1001-		●
192	HOSE; GUIDE TUBE FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98177-980-0	01	1	1110-		●
192	HOSE; GUIDE TUBE L=338	8-98054-843-0	01	1	1012-	●
192	HOSE; GUIDE TUBE FSR SGL CAB(FC*M) L=310	8-98092-068-0	01	1	1001-1109		●
192	HOSE; GUIDE TUBE FSR SGL CAB(FC*M) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TURBO - CONVENTIONAL<Q5T> L=310	8-98092-068-0	01	1	1110-		●
192	HOSE; GUIDE TUBE FSR SGL CAB(FC*M) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=310	8-98092-068-0	01	1	1110-		●
192	HOSE; GUIDE TUBE FSR SGL CAB(FC*M) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=310	8-98092-068-0	01	1	1110-		●
192	HOSE; GUIDE TUBE FSR DBL CAB(FC*W) L=395	8-98093-949-0	01	1	1001-		●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	1001-1011		●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	1012-	●	●

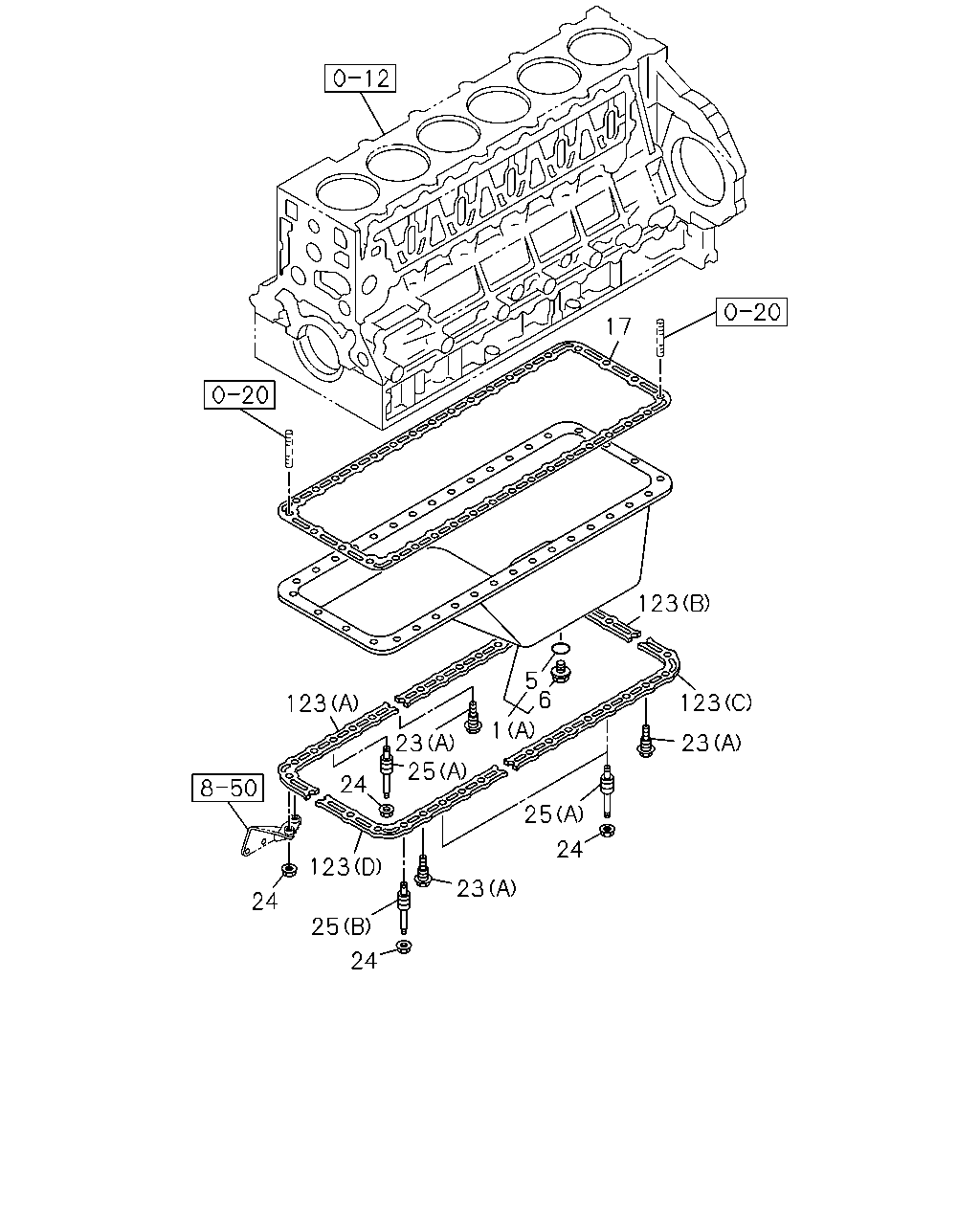

17 123 5 6 123 123 1 23 23 25 24 25 24 123 23 24 25 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98061-544-0	01	1	1109-1201		●
1	PAN ASM; OIL (C)	8-98124-513-0	01	1	1012-1107	●
1	PAN ASM; OIL (C)	8-97149-314-0	01	1	1108-1109	●
1	PAN ASM; OIL (C)	8-98191-050-0	01	1	1110-	●
1	PAN ASM; OIL EURO2 SPECIFICATION<NT2> (A)	8-98061-363-0	01	1	1001-		●
1	PAN ASM; OIL EURO3 SPECIFICATION<NT3> (B)	8-98061-543-0	01	1	1001-1109		●
1	PAN ASM; OIL FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> (B)	8-98061-543-0	01	1	1110-		●
1	PAN ASM; OIL FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98061-543-0	01	1	1110-		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5	8-94399-398-0	01	1	1001-		●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	1001-		●
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	1012-1107	●
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-617-1	01	1	1001-		●
23	BOLT; OIL PAN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X18 FLANGE	0-28080-818-0	28	1	1109-1201		●
23	BOLT; OIL PAN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X28 FLANGE	8-97329-626-0	02	1	1109-1201		●
23	BOLT; OIL PAN (B) M8X14	8-97047-005-0	01	1	1108-1109	●
23	BOLT; OIL PAN (B) M8X14	8-97047-005-0	18	1	1110-	●
23	BOLT; OIL PAN (A) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	1012-1107	●
23	BOLT; OIL PAN (B) M8X14 W/SCOTCH GRIP	8-97047-004-1	18	1	1108-1109	●
23	BOLT; OIL PAN (B) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	1110-	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2> (A) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	22	1	1001-		●
23	BOLT; OIL PAN EURO3 SPECIFICATION<NT3> (A) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	20	1	1001-1109		●
23	BOLT; OIL PAN FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> (A) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	20	1	1110-		●
23	BOLT; OIL PAN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	20	1	1110-		●
24	NUT; OIL PAN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	04	1	1109-1201		●
24	NUT; OIL PAN M8 FLANGE SOU	0-91180-108-0	13	1	1012-1107	●
24	NUT; OIL PAN M8 FLANGE SOU	0-91180-108-0	07	1	1108-1109	●
24	NUT; OIL PAN M8 W/LK WASHER	8-97581-234-0	07	1	1110-	●
24	NUT; OIL PAN EURO2 SPECIFICATION<NT2> M8 FLANGE SOU	0-91180-108-0	12	1	1001-		●
24	NUT; OIL PAN EURO3 SPECIFICATION<NT3> M8 FLANGE SOU	0-91180-108-0	14	1	1001-1109		●
24	NUT; OIL PAN FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> M8 FLANGE SOU	0-91180-108-0	14	1	1110-		●
24	NUT; OIL PAN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE SOU	0-91180-108-0	14	1	1110-		●
25	STUD; OIL PAN (C) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	1012-1107	●
25	STUD; OIL PAN (D) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	1012-1107	●
25	STUD; OIL PAN EURO2 SPECIFICATION<NT2> (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	04	1	1001-		●
25	STUD; OIL PAN EURO2 SPECIFICATION<NT2> (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	01	1	1001-		●
25	STUD; OIL PAN EURO3 SPECIFICATION<NT3> (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	05	1	1001-1109		●
25	STUD; OIL PAN FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	05	1	1110-		●
25	STUD; OIL PAN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	05	1	1110-		●
25	STUD; OIL PAN EURO3 SPECIFICATION<NT3> (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	02	1	1001-1109		●
25	STUD; OIL PAN FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	02	1	1110-		●
25	STUD; OIL PAN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	02	1	1110-		●
123	RUBBER; SEAL OIL (E)	8-97186-988-0	01	1	1012-1107	●
123	RUBBER; SEAL OIL (F)	8-97186-994-0	01	1	1012-1107	●
123	RUBBER; SEAL OIL (G)	8-97186-998-0	01	1	1012-1107	●
123	RUBBER; SEAL OIL (H)	8-97187-000-0	01	1	1012-1107	●
123	RUBBER; SEAL OIL (A)	8-94391-755-0	01	1	1001-		●
123	RUBBER; SEAL OIL (B)	8-94391-757-0	01	1	1001-		●
123	RUBBER; SEAL OIL (C)	8-94391-758-0	01	1	1001-		●
123	RUBBER; SEAL OIL (D)	8-94392-548-0	01	1	1001-		●

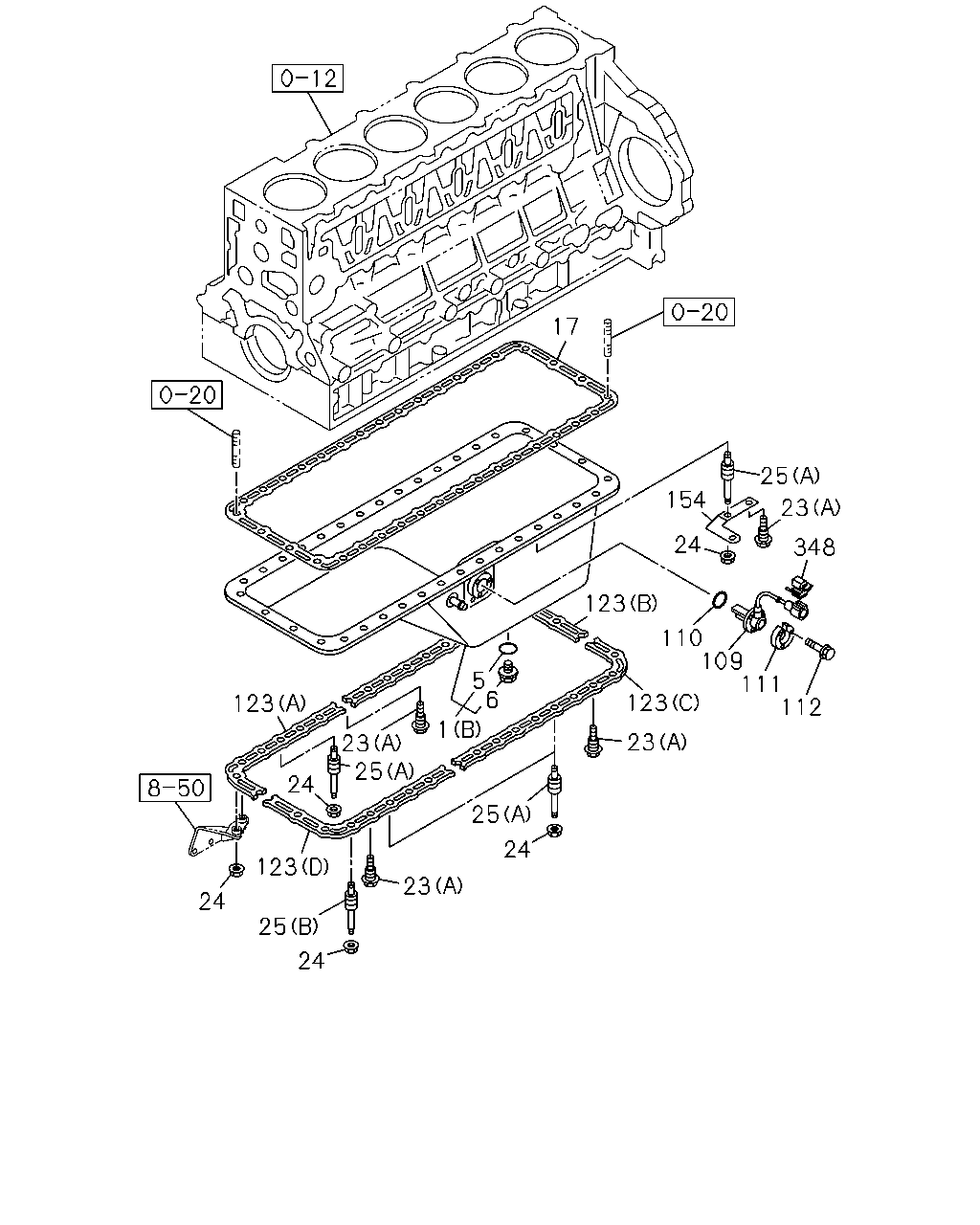

17 25 154 23 24 348 123 110 109 111 112 1 5 6 123 123 23 23 25 24 25 24 123 23 24 25 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98061-544-0	01	1	1109-1201		●
1	PAN ASM; OIL (C)	8-98124-513-0	01	1	1012-1107	●
1	PAN ASM; OIL (C)	8-97149-314-0	01	1	1108-1109	●
1	PAN ASM; OIL (C)	8-98191-050-0	01	1	1110-	●
1	PAN ASM; OIL EURO2 SPECIFICATION<NT2> (A)	8-98061-363-0	01	1	1001-		●
1	PAN ASM; OIL EURO3 SPECIFICATION<NT3> (B)	8-98061-543-0	01	1	1001-1109		●
1	PAN ASM; OIL FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> (B)	8-98061-543-0	01	1	1110-		●
1	PAN ASM; OIL FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98061-543-0	01	1	1110-		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5	8-94399-398-0	01	1	1001-		●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	1001-		●
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	1012-1107	●
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-617-1	01	1	1001-		●
23	BOLT; OIL PAN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X18 FLANGE	0-28080-818-0	28	1	1109-1201		●
23	BOLT; OIL PAN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X28 FLANGE	8-97329-626-0	02	1	1109-1201		●
23	BOLT; OIL PAN (B) M8X14	8-97047-005-0	01	1	1108-1109	●
23	BOLT; OIL PAN (B) M8X14	8-97047-005-0	18	1	1110-	●
23	BOLT; OIL PAN (A) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	1012-1107	●
23	BOLT; OIL PAN (B) M8X14 W/SCOTCH GRIP	8-97047-004-1	18	1	1108-1109	●
23	BOLT; OIL PAN (B) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	1110-	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2> (A) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	22	1	1001-		●
23	BOLT; OIL PAN EURO3 SPECIFICATION<NT3> (A) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	20	1	1001-1109		●
23	BOLT; OIL PAN FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> (A) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	20	1	1110-		●
23	BOLT; OIL PAN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	20	1	1110-		●
24	NUT; OIL PAN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	04	1	1109-1201		●
24	NUT; OIL PAN M8 FLANGE SOU	0-91180-108-0	13	1	1012-1107	●
24	NUT; OIL PAN M8 FLANGE SOU	0-91180-108-0	07	1	1108-1109	●
24	NUT; OIL PAN M8 W/LK WASHER	8-97581-234-0	07	1	1110-	●
24	NUT; OIL PAN EURO2 SPECIFICATION<NT2> M8 FLANGE SOU	0-91180-108-0	12	1	1001-		●
24	NUT; OIL PAN EURO3 SPECIFICATION<NT3> M8 FLANGE SOU	0-91180-108-0	14	1	1001-1109		●
24	NUT; OIL PAN FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> M8 FLANGE SOU	0-91180-108-0	14	1	1110-		●
24	NUT; OIL PAN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE SOU	0-91180-108-0	14	1	1110-		●
25	STUD; OIL PAN (C) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	1012-1107	●
25	STUD; OIL PAN (D) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	1012-1107	●
25	STUD; OIL PAN EURO2 SPECIFICATION<NT2> (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	04	1	1001-		●
25	STUD; OIL PAN EURO2 SPECIFICATION<NT2> (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	01	1	1001-		●
25	STUD; OIL PAN EURO3 SPECIFICATION<NT3> (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	05	1	1001-1109		●
25	STUD; OIL PAN FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	05	1	1110-		●
25	STUD; OIL PAN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	05	1	1110-		●
25	STUD; OIL PAN EURO3 SPECIFICATION<NT3> (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	02	1	1001-1109		●
25	STUD; OIL PAN FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	02	1	1110-		●
25	STUD; OIL PAN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	02	1	1110-		●
109	SWITCH; OIL LEVEL EURO3 SPECIFICATION<NT3>	8-97601-121-0	01	1	1001-		●
110	GASKET; SW,OIL LEVEL EURO3 SPECIFICATION<NT3> ID=27	8-98056-488-0	01	1	1001-		●
111	SPACER; SW,OIL LEVEL EURO3 SPECIFICATION<NT3>	5-11369-072-0	01	1	1001-		●
112	BOLT; SW,OIL LEVEL EURO3 SPECIFICATION<NT3> M6X25 FLANGE	0-28050-625-0	03	1	1001-		●
123	RUBBER; SEAL OIL (E)	8-97186-988-0	01	1	1012-1107	●
123	RUBBER; SEAL OIL (F)	8-97186-994-0	01	1	1012-1107	●
123	RUBBER; SEAL OIL (G)	8-97186-998-0	01	1	1012-1107	●
123	RUBBER; SEAL OIL (H)	8-97187-000-0	01	1	1012-1107	●
123	RUBBER; SEAL OIL (A)	8-94391-755-0	01	1	1001-		●
123	RUBBER; SEAL OIL (B)	8-94391-757-0	01	1	1001-		●
123	RUBBER; SEAL OIL (C)	8-94391-758-0	01	1	1001-		●
123	RUBBER; SEAL OIL (D)	8-94392-548-0	01	1	1001-		●
154	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3>	8-98064-103-0	01	1	1001-		●
348	CONNECTOR EURO3 SPECIFICATION<NT3> OD=9 H=6	1-09709-178-0	01	1	1001-		●

25 25 25 17 23 23 3 1 4 123 123 123 24 123 24 24 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98061-544-0	01	1	1109-1201		●
1	PAN ASM; OIL (C)	8-98124-513-0	01	1	1012-1107	●
1	PAN ASM; OIL (C)	8-97149-314-0	01	1	1108-1109	●
1	PAN ASM; OIL (C)	8-98191-050-0	01	1	1110-	●
1	PAN ASM; OIL EURO2 SPECIFICATION<NT2> (A)	8-98061-363-0	01	1	1001-		●
1	PAN ASM; OIL EURO3 SPECIFICATION<NT3> (B)	8-98061-543-0	01	1	1001-1109		●
1	PAN ASM; OIL FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> (B)	8-98061-543-0	01	1	1110-		●
1	PAN ASM; OIL FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98061-543-0	01	1	1110-		●
3	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1012-	●
4	PLUG; DRAIN,OIL M14X14	8-94152-613-0	01	1	1012-	●
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	1012-1107	●
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-617-1	01	1	1001-		●
23	BOLT; OIL PAN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X18 FLANGE	0-28080-818-0	28	1	1109-1201		●
23	BOLT; OIL PAN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X28 FLANGE	8-97329-626-0	02	1	1109-1201		●
23	BOLT; OIL PAN (B) M8X14	8-97047-005-0	01	1	1108-1109	●
23	BOLT; OIL PAN (B) M8X14	8-97047-005-0	18	1	1110-	●
23	BOLT; OIL PAN (A) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	1012-1107	●
23	BOLT; OIL PAN (B) M8X14 W/SCOTCH GRIP	8-97047-004-1	18	1	1108-1109	●
23	BOLT; OIL PAN (B) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	1110-	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2> (A) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	22	1	1001-		●
23	BOLT; OIL PAN EURO3 SPECIFICATION<NT3> (A) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	20	1	1001-1109		●
23	BOLT; OIL PAN FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> (A) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	20	1	1110-		●
23	BOLT; OIL PAN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	20	1	1110-		●
24	NUT; OIL PAN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	04	1	1109-1201		●
24	NUT; OIL PAN M8 FLANGE SOU	0-91180-108-0	13	1	1012-1107	●
24	NUT; OIL PAN M8 FLANGE SOU	0-91180-108-0	07	1	1108-1109	●
24	NUT; OIL PAN M8 W/LK WASHER	8-97581-234-0	07	1	1110-	●
24	NUT; OIL PAN EURO2 SPECIFICATION<NT2> M8 FLANGE SOU	0-91180-108-0	12	1	1001-		●
24	NUT; OIL PAN EURO3 SPECIFICATION<NT3> M8 FLANGE SOU	0-91180-108-0	14	1	1001-1109		●
24	NUT; OIL PAN FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> M8 FLANGE SOU	0-91180-108-0	14	1	1110-		●
24	NUT; OIL PAN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE SOU	0-91180-108-0	14	1	1110-		●
25	STUD; OIL PAN (C) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	1012-1107	●
25	STUD; OIL PAN (D) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	1012-1107	●
25	STUD; OIL PAN EURO2 SPECIFICATION<NT2> (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	04	1	1001-		●
25	STUD; OIL PAN EURO2 SPECIFICATION<NT2> (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	01	1	1001-		●
25	STUD; OIL PAN EURO3 SPECIFICATION<NT3> (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	05	1	1001-1109		●
25	STUD; OIL PAN FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	05	1	1110-		●
25	STUD; OIL PAN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	05	1	1110-		●
25	STUD; OIL PAN EURO3 SPECIFICATION<NT3> (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	02	1	1001-1109		●
25	STUD; OIL PAN FSR SGL CAB(FC*M) EURO3 SPECIFICATION<NT3> (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	02	1	1110-		●
25	STUD; OIL PAN FSR DBL CAB(FC*W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	02	1	1110-		●
123	RUBBER; SEAL OIL (E)	8-97186-988-0	01	1	1012-1107	●
123	RUBBER; SEAL OIL (F)	8-97186-994-0	01	1	1012-1107	●
123	RUBBER; SEAL OIL (G)	8-97186-998-0	01	1	1012-1107	●
123	RUBBER; SEAL OIL (H)	8-97187-000-0	01	1	1012-1107	●
123	RUBBER; SEAL OIL (A)	8-94391-755-0	01	1	1001-		●
123	RUBBER; SEAL OIL (B)	8-94391-757-0	01	1	1001-		●
123	RUBBER; SEAL OIL (C)	8-94391-758-0	01	1	1001-		●
123	RUBBER; SEAL OIL (D)	8-94392-548-0	01	1	1001-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
