0-12 — CYLINDER BLOCK (#55485) — 156 parça

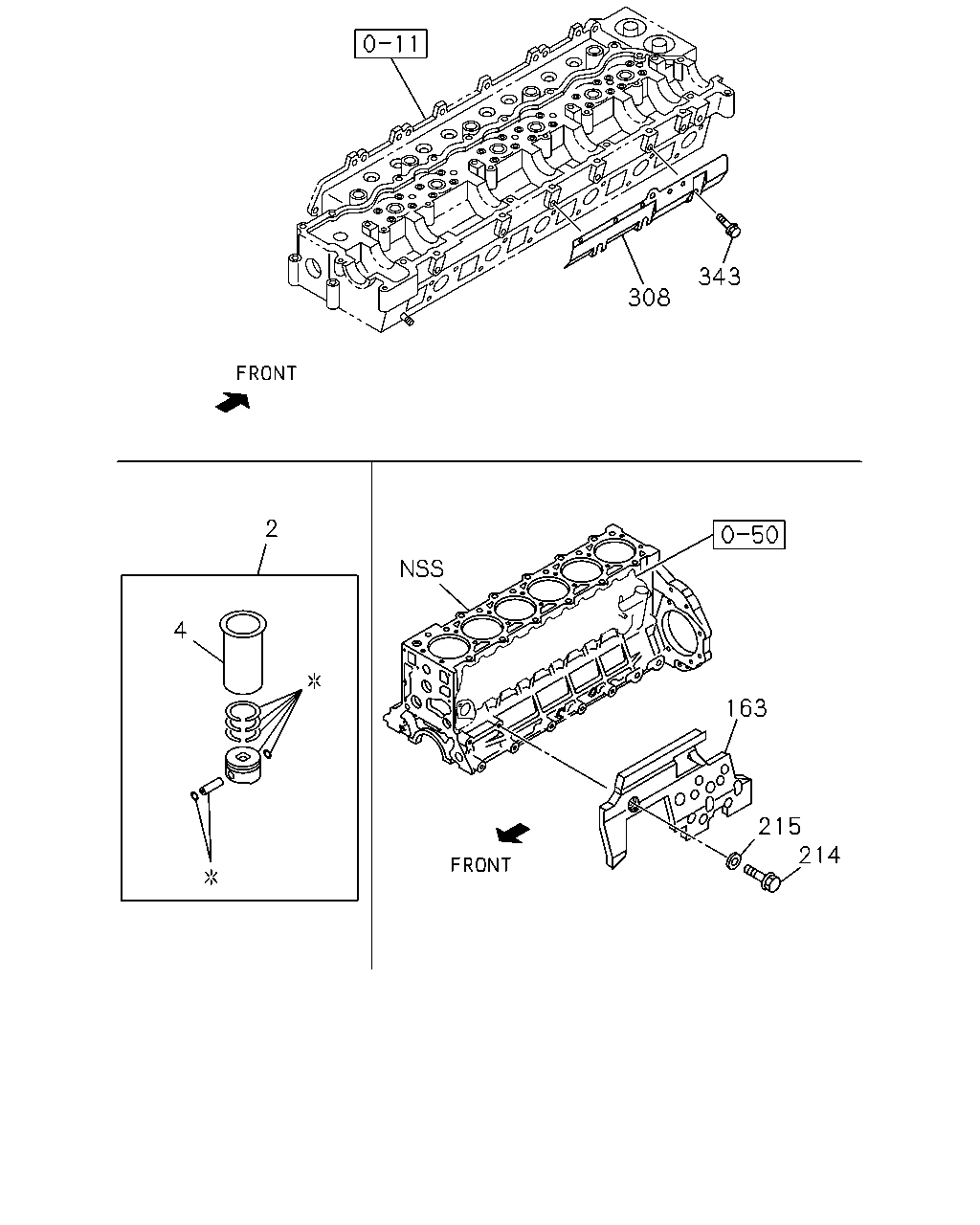

343 308 2 4 163 215 214

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	04	1	1012-1405	●
2	LINER SET; ENG CYL GRADE=1X	1-87814-726-0	04	1	1406-	●
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	04	1	1012-1405	●
2	LINER SET; ENG CYL GRADE=3X	1-87814-727-0	04	1	1406-	●
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	06	1	1001-		●
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	06	1	1001-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	04	1	1012-1405	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	04	1	1012-1405	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1001-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1001-		●
163	COVER ASM; C/BL SKIRT EURO3 SPECIFICATION<NT3>	8-97601-248-0	01	1	1001-		●
214	BOLT; NOISE COVER EURO3 SPECIFICATION<NT3> M10X16 FLANGE	0-28151-016-0	03	1	1001-		●
215	WASHER; PL,NOISE COVER EURO3 SPECIFICATION<NT3> ID=10.5 OD=32	0-91614-810-0	02	1	1001-		●
308	PROTECTOR; HEAT,HD COVER EURO2 SPECIFICATION<NT2>	8-94390-997-0	01	1	1001-		●
343	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> M8X12 FLANGE	0-28050-812-0	03	1	1001-		●

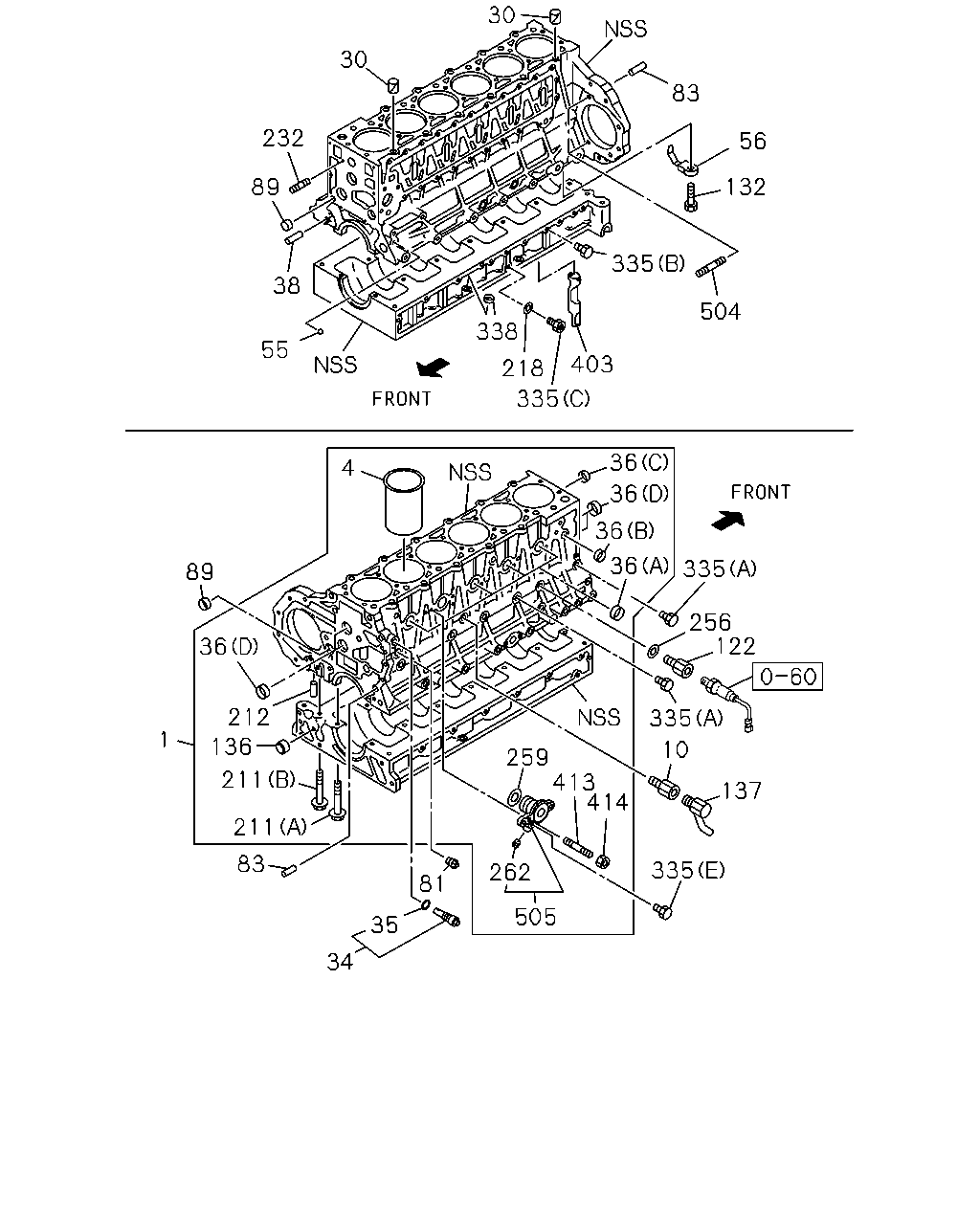

232 30 30 83 56 132 335 504 403 218 338 335 55 38 89 36 36 36 36 335 256 122 335 10 137 335 262 505 414 413 259 35 34 81 83 211 211 136 36 89 212 1 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-98046-721-3	01	1	1012-1209	●
1	BLOCK ASM; CYL	8-98204-529-0	01	1	1210-1405	●
1	BLOCK ASM; CYL	8-98204-528-0	01	1	1406-	●
1	BLOCK ASM; CYL EURO2 SPECIFICATION<NT2>	8-98206-966-0	01	1	1210-		●
1	BLOCK ASM; CYL EURO2 SPECIFICATION<NT2>	8-97618-663-3	01	1	1001-1209		●
1	BLOCK ASM; CYL EURO3 SPECIFICATION<NT3>	8-97618-664-3	01	1	1001-1209		●
1	BLOCK ASM; CYL EURO3 SPECIFICATION<NT3>	8-98206-967-0	01	1	1210-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	04	1	1012-1405	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	04	1	1012-1405	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1001-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1001-		●
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	1001-1012		●
10	CONNECTOR; WATER DRAIN EURO3 SPECIFICATION<NT3>	8-94396-378-0	01	1	1101-		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	1001-		●
34	VALVE; OIL RELIEF	8-97328-859-0	01	1	1012-	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	1001-		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=23.3	8-94173-412-0	01	1	1012-	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	1001-		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	1001-		●
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	01	1	1001-		●
36	CUP; SEALING,WATER JACKET (C) OD=25	8-94399-005-0	01	1	1001-		●
36	CUP; SEALING,WATER JACKET (D) OD=40	8-97096-824-0	04	1	1001-		●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	1001-		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	1001-		●
56	JET; OIL,PISTON COOLING	8-98173-342-0	04	1	1012-	●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	1001-1007		●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-		●
81	PLUG; WATER JACKET PT3/8	8-94397-338-0	01	1	1001-		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	1001-		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1001-1011		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1012-	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-97603-667-0	01	1	1001-		●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	04	1	1012-	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	1001-		●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1012-	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1001-		●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	1001-1012		●
137	COCK; DRAIN,WATER EURO3 SPECIFICATION<NT3>	8-94393-716-1	01	1	1101-		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	1012-	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	10	1	1012-	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	1001-		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	1001-		●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1012-	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1001-		●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	01	1	1001-1312		●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	8-98251-344-0	01	1	1401-		●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	1001-		●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	1001-		●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	1001-		●
262	PLUG; ADAPTER EURO3 SPECIFICATION<NT3>	1-13163-002-0	01	1	1101-1108		●
262	PLUG; ADAPTER EURO3 SPECIFICATION<NT3>	1-13163-002-0	02	1	1109-		●
262	PLUG; ADAPTER EURO2 SPECIFICATION<NT2> M14X14	9-09862-156-0	01	1	1001-		●
335	PLUG; C/BL,SIDE EURO3 SPECIFICATION<NT3> (E) M14	8-94399-225-0	01	1	1101-		●
335	PLUG; C/BL,SIDE (D) M14X18	8-98038-403-0	01	1	1012-	●
335	PLUG; C/BL,SIDE (C) M12X10	5-13265-001-0	01	1	1001-		●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	1001-1011		●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	1012-	●	●
335	PLUG; C/BL,SIDE (B) M8X10	8-98003-416-0	01	1	1001-		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	1001-		●
403	GUIDE; GALLERY	8-94395-351-1	01	1	1001-		●
413	STUD; ADAPTER M8X30 L=41	0-41010-830-0	02	1	1001-		●
414	NUT; ADAPTER M8 FLANGE SOU	0-91180-208-0	02	1	1001-		●
504	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	1001-		●
505	ADAPTER; WATER FEED EURO2 SPECIFICATION<NT2>	8-97611-854-0	01	1	1001-		●
505	ADAPTER; WATER FEED EURO3 SPECIFICATION<NT3>	8-97607-409-0	01	1	1001-1012		●
505	ADAPTER; WATER FEED EURO3 SPECIFICATION<NT3>	8-98145-412-1	01	1	1101-		●

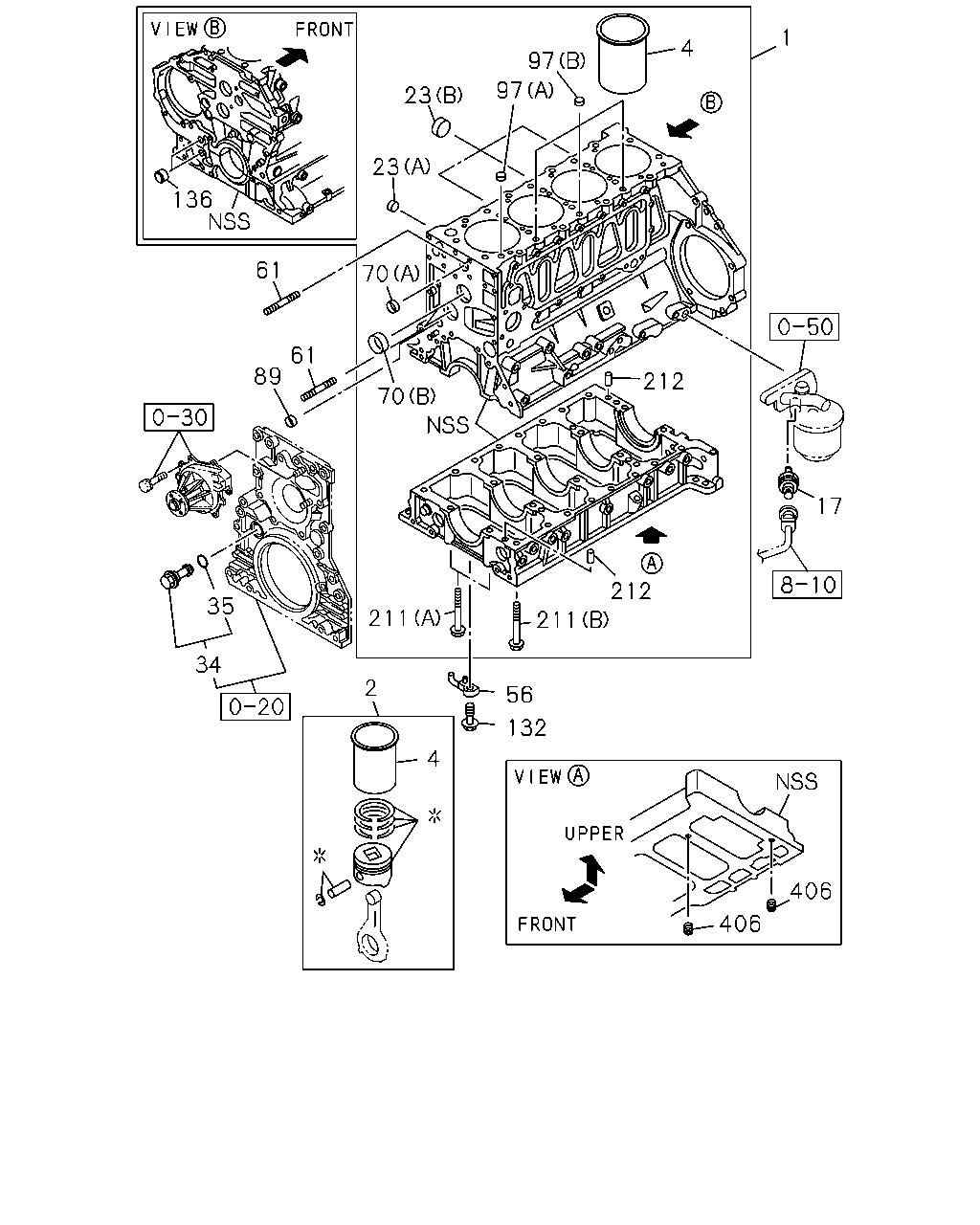

1 4 97 97 23 23 136 61 70 61 89 212 70 17 212 35 211 211 34 2 56 132 4 406 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-98046-721-3	01	1	1012-1209	●
1	BLOCK ASM; CYL	8-98204-529-0	01	1	1210-1405	●
1	BLOCK ASM; CYL	8-98204-528-0	01	1	1406-	●
1	BLOCK ASM; CYL EURO2 SPECIFICATION<NT2>	8-98206-966-0	01	1	1210-		●
1	BLOCK ASM; CYL EURO2 SPECIFICATION<NT2>	8-97618-663-3	01	1	1001-1209		●
1	BLOCK ASM; CYL EURO3 SPECIFICATION<NT3>	8-97618-664-3	01	1	1001-1209		●
1	BLOCK ASM; CYL EURO3 SPECIFICATION<NT3>	8-98206-967-0	01	1	1210-		●
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	04	1	1012-1405	●
2	LINER SET; ENG CYL GRADE=1X	1-87814-726-0	04	1	1406-	●
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	04	1	1012-1405	●
2	LINER SET; ENG CYL GRADE=3X	1-87814-727-0	04	1	1406-	●
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	06	1	1001-		●
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	06	1	1001-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	04	1	1012-1405	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	04	1	1012-1405	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1001-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1001-		●
17	SWITCH; OIL PRESSURE	8-97176-230-0	01	1	1012-	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=25	1-09600-016-0	01	1	1012-	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	1012-	●
34	VALVE; OIL RELIEF	8-97328-859-0	01	1	1012-	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	1001-		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=23.3	8-94173-412-0	01	1	1012-	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	1001-		●
56	JET; OIL,PISTON COOLING	8-98173-342-0	04	1	1012-	●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	1001-1007		●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-		●
61	PIN; STRAIGHT L=22	8-94483-674-0	04	1	1012-	●
70	CUP; SEALING,FRT & RR (A) OD=25	1-09600-016-0	01	1	1012-	●
70	CUP; SEALING,FRT & RR (B) OD=40	8-97096-824-0	04	1	1012-	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1001-1011		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1012-	●	●
97	CUP; SEALING (A) OD=16	5-11129-006-0	01	1	1012-	●
97	CUP; SEALING (C) OD=12	8-97036-335-1	01	1	1012-	●
97	CUP; SEALING (B) OD=22	8-97209-609-0	03	1	1012-	●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	04	1	1012-	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	1001-		●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1012-	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1001-		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	1012-	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	10	1	1012-	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	1001-		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	1001-		●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1012-	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1001-		●
406	PLUG; CRANK CASE PT3/8	5-09605-005-0	02	1	1012-	●

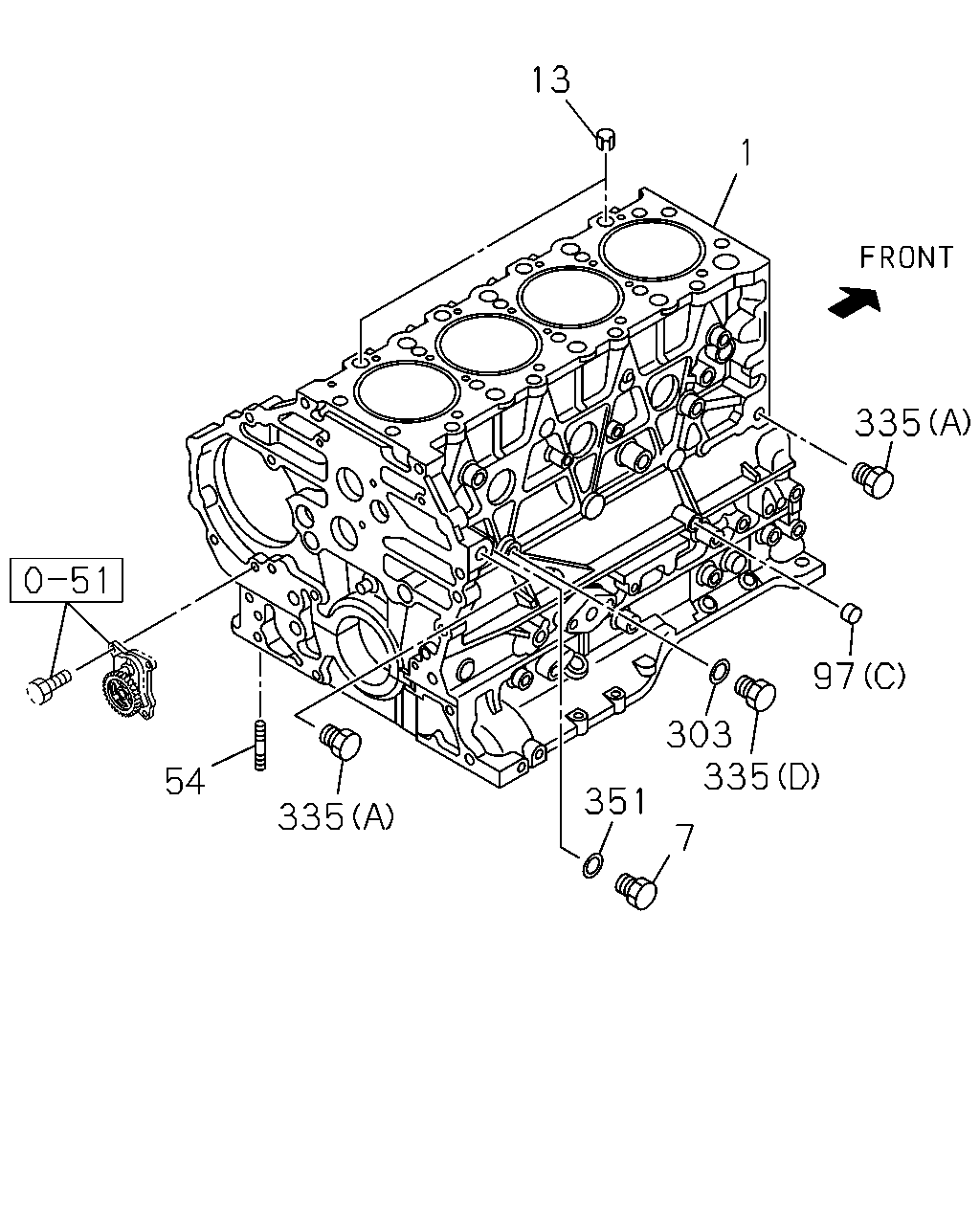

13 1 335 97 303 335 54 351 335 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-98046-721-3	01	1	1012-1209	●
1	BLOCK ASM; CYL	8-98204-529-0	01	1	1210-1405	●
1	BLOCK ASM; CYL	8-98204-528-0	01	1	1406-	●
1	BLOCK ASM; CYL EURO2 SPECIFICATION<NT2>	8-98206-966-0	01	1	1210-		●
1	BLOCK ASM; CYL EURO2 SPECIFICATION<NT2>	8-97618-663-3	01	1	1001-1209		●
1	BLOCK ASM; CYL EURO3 SPECIFICATION<NT3>	8-97618-664-3	01	1	1001-1209		●
1	BLOCK ASM; CYL EURO3 SPECIFICATION<NT3>	8-98206-967-0	01	1	1210-		●
7	PLUG; WATER DRAIN EURO2 SPECIFICATION<NT2> M14X16.5	8-97329-617-0	01	1	1101-		●
7	PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	1012-	●
13	DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	1012-	●
54	STUD; OIL PAN TO BLOCK M8X20 L=38	8-97021-431-0	03	1	1108-	●
97	CUP; SEALING (A) OD=16	5-11129-006-0	01	1	1012-	●
97	CUP; SEALING (C) OD=12	8-97036-335-1	01	1	1012-	●
97	CUP; SEALING (B) OD=22	8-97209-609-0	03	1	1012-	●
303	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 SOU	1-09630-085-0	01	1	1012-1312	●
303	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-	●
335	PLUG; C/BL,SIDE EURO3 SPECIFICATION<NT3> (E) M14	8-94399-225-0	01	1	1101-		●
335	PLUG; C/BL,SIDE (D) M14X18	8-98038-403-0	01	1	1012-	●
335	PLUG; C/BL,SIDE (C) M12X10	5-13265-001-0	01	1	1001-		●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	1001-1011		●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	1012-	●	●
335	PLUG; C/BL,SIDE (B) M8X10	8-98003-416-0	01	1	1001-		●
351	GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	1012-	●
