Isuzu WW
▶
TRUCKS
▶
FTR
▶
11360 - FTR(MALAYSIA)W/B6000
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-30 - LOCK CYLINDER SET
▶

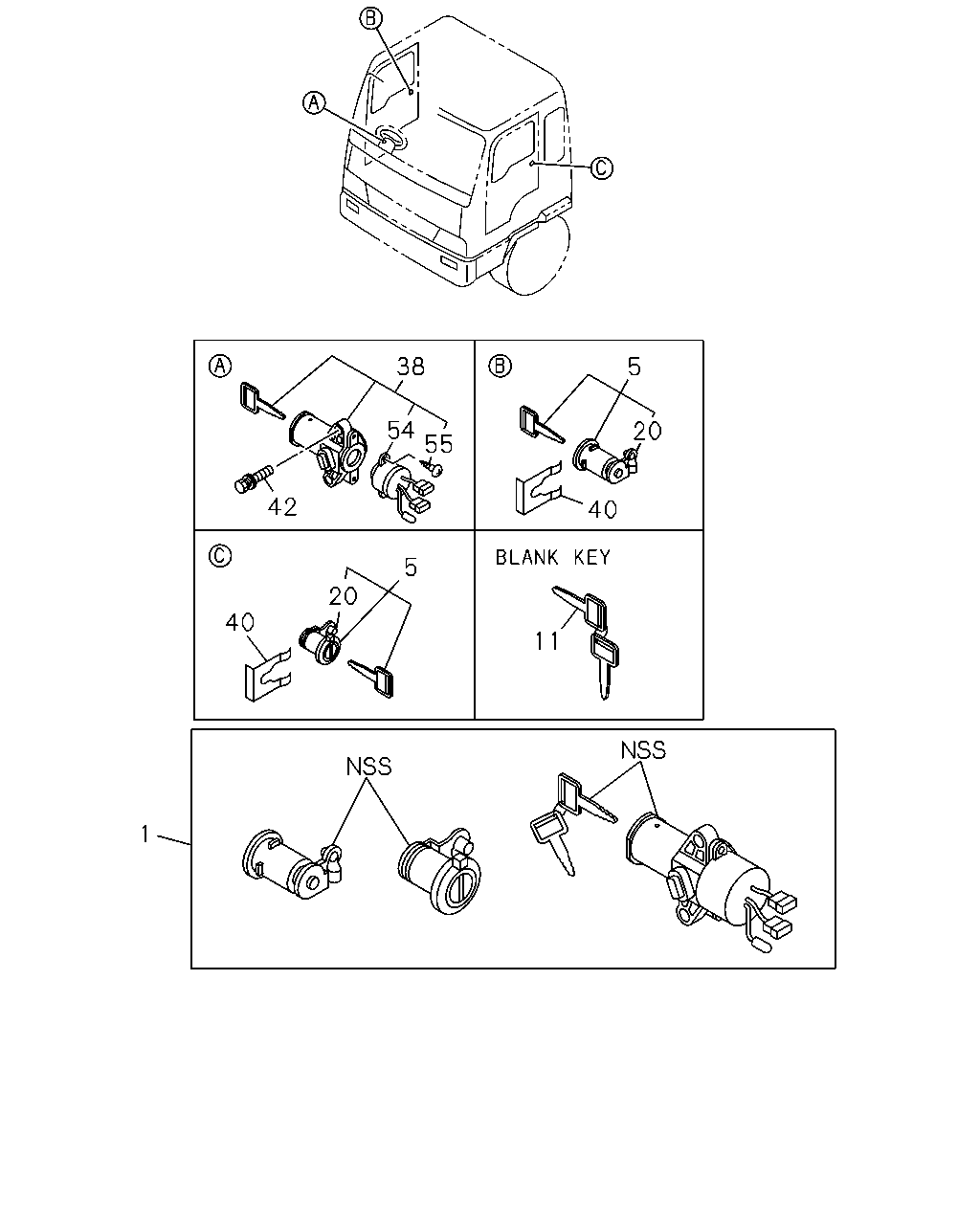

7-30 — LOCK CYLINDER SET
(#55480) — 14 parça
38
5
54
55
20
42
40
5
20
40
11
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER SET; CAR LOCK
1-79138-199-3
01
1
0110-0505
1
CYLINDER SET; CAR LOCK
EXC. EQUIPMENT-ADDITIONAL KEY<Z1V>
1-79138-199-5
01
1
0506-
1
CYLINDER SET; CAR LOCK
EQUIPMENT-ADDITIONAL KEY<Z1V>
1-79138-239-1
01
1
0506-
5
CYLINDER ASM; DOOR LOCK
1-79138-202-2
01
1
0110-
5
CYLINDER ASM; DOOR LOCK
1-79138-203-2
01
1
0110-
11
KEY; BLANK
WO/RESIN
1-79137-129-1
AR
1
0110-
11
KEY; BLANK
W/RESIN
1-79137-130-1
AR
1
0110-
20
SNAP; DOOR LOCK CYL
PINK
1-79138-192-0
01
1
0110-
20
SNAP; DOOR LOCK CYL
GREEN
1-79138-193-0
01
1
0110-
38
LOCK ASM; STRG
1-79138-201-2
01
1
0110-
40
CLIP; CYL LK
1-79137-033-1
02
1
0110-
42
BOLT; STRG LOCK
M8X30 TORQUE SHEAR BOLT
1-09980-621-1
02
1
0110-
54
SWITCH ASM; STRG LOCK CYL
1-79137-050-2
01
1
0110-
55
SCREW; SWITCH
M3X10 W/LK WASHER
9-03910-310-0
02
1
0110-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
