◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11360 - FTR(MALAYSIA)W/B6000 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#55468) — 23 parça

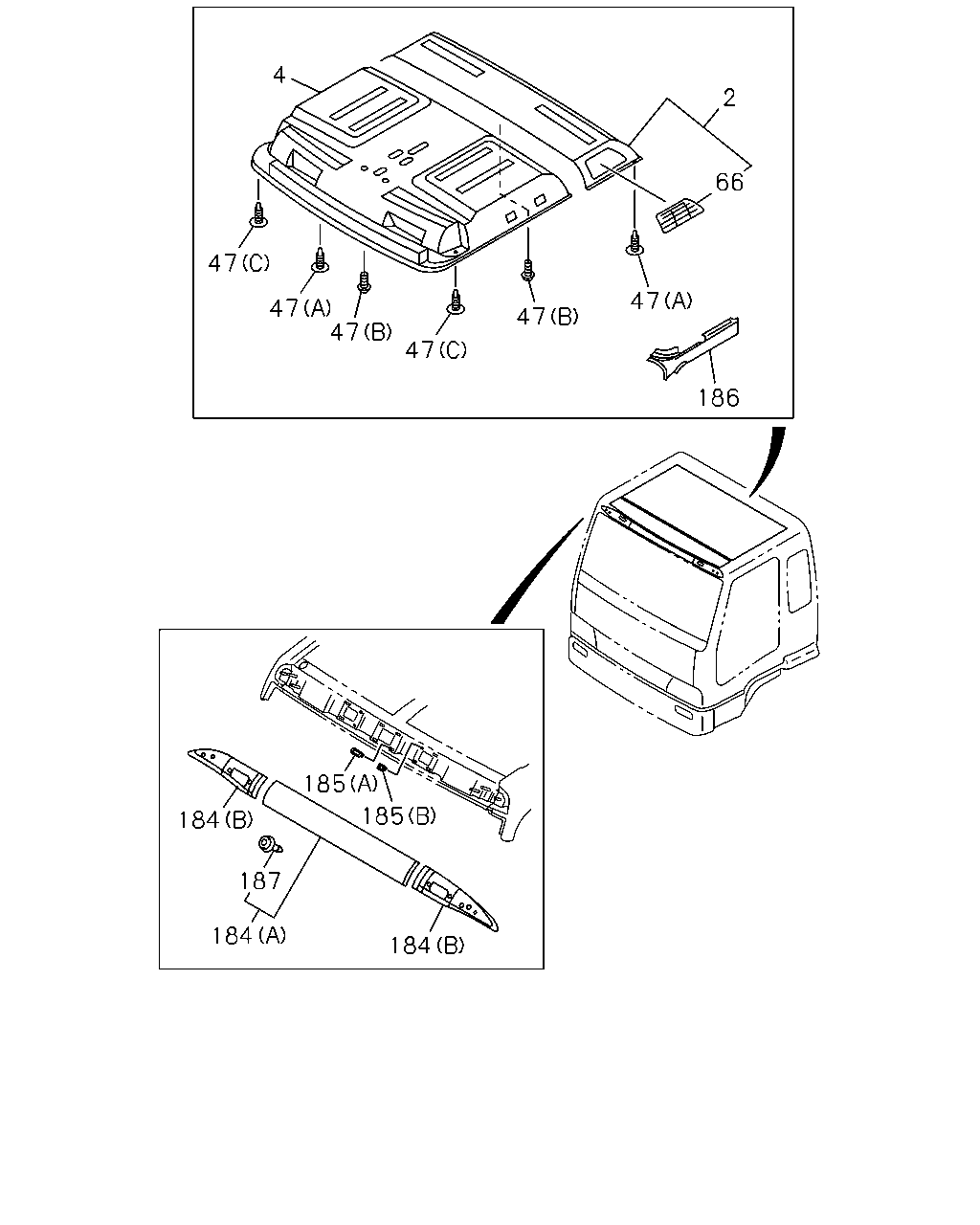

çizim 173410
4 2 66 47 47 47 47 47 47 186 185 185 184 187 184 184
BalonParca AdiParca NoAdetTipApplied Date
2 LINING; HD,ROOF RR 1-73318-598-3 01 1 0110-0212
2 LINING; HD,ROOF RR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73318-598-5 01 1 0301-
2 LINING; HD,ROOF RR
PROVISIONAL PACKAGE<NLY> 		1-73318-708-2 01 1 0301-
4 LINING; ROOF,FRT 8-97865-577-1 01 1 0110-0212
4 LINING; ROOF,FRT
EXC. PROVISIONAL PACKAGE<NLY> 		8-97865-577-4 01 1 0301-
4 LINING; ROOF,FRT
PROVISIONAL PACKAGE<NLY> 		8-97893-788-3 01 1 0301-
47 CLIP; HEADLINING
(A) D6X23 LIGHT GRAY 		1-73318-629-0 12 1 0110-
47 CLIP; HEADLINING
(B) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0110-
47 CLIP; HEADLINING
EXC. WINDOW CURTAIN ROUND<BW4> (C) D7.7X25 LIGHT GRAY 		1-73317-371-0 06 1 0110-
66 GRILLE; AIR OUTLET 1-73317-366-1 01 1 0110-
66 GRILLE; AIR OUTLET 1-73317-367-1 01 1 0110-
184 ORNAMENT; ROOF
(A) 		1-73318-587-0 01 1 0110-
184 ORNAMENT; ROOF
(B) 		1-73318-581-0 02 1 0110-
184 ORNAMENT; ROOF
(B) 		1-73318-580-0 02 1 0110-
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 0110-
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 0110-
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-919-0 01 1 0110-0212
186 TRIM; ROOM,CANT RAIL SIDE
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-919-2 01 1 0301-
186 TRIM; ROOM,CANT RAIL SIDE 1-73348-918-0 01 1 0110-0212
186 TRIM; ROOM,CANT RAIL SIDE
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-918-2 01 1 0301-
186 TRIM; ROOM,CANT RAIL SIDE
PROVISIONAL PACKAGE<NLY> 		1-73348-963-1 01 1 0301-
186 TRIM; ROOM,CANT RAIL SIDE
PROVISIONAL PACKAGE<NLY> 		1-73348-962-1 01 1 0301-
187 PIN; ORNAMENT
D4.2X13 MAL 		1-09983-161-0 08 1 0110-
