Isuzu WW
▶
TRUCKS
▶
FTR
▶
11360 - FTR(MALAYSIA)W/B6000
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

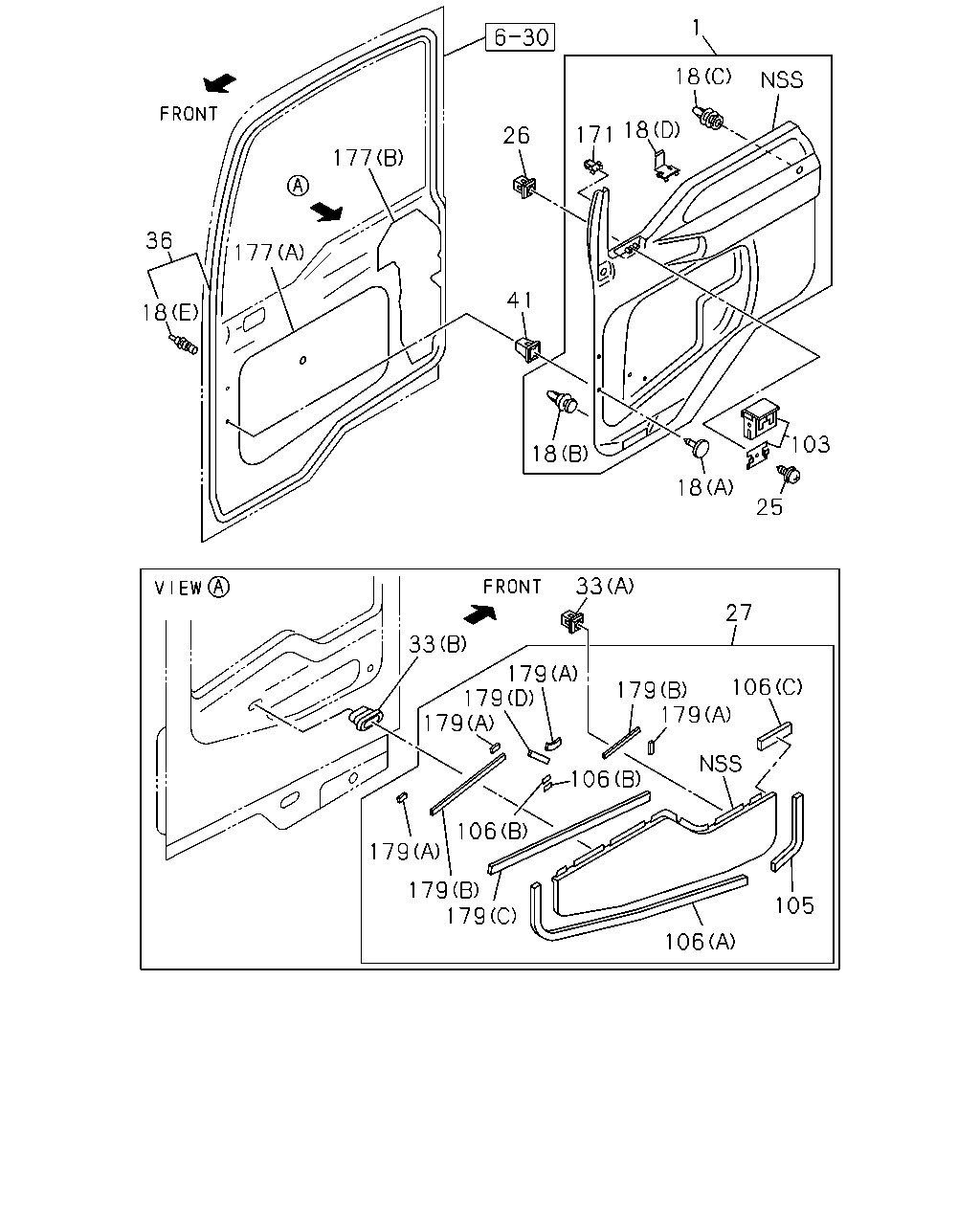

6-35 - FRONT DOOR TRIM
▶
6-35 — FRONT DOOR TRIM
(#55463) — 44 parça
106
105
179
179
179
106
106
179
179
179
179
179
27
33
33
106
18
103
18
41
26
171
18
18
1
25
177
177
36
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAD; TRIM,FRT DOOR
1-73338-538-0
01
1
0110-0702
1
PAD; TRIM,FRT DOOR
1-73337-515-1
01
1
0703-
1
PAD; TRIM,FRT DOOR
1-73337-510-0
01
1
0110-0702
1
PAD; TRIM,FRT DOOR
1-73337-514-1
01
1
0703-
18
CLIP; DOOR PAD
(D)
1-09987-262-0
10
1
0110-
18
CLIP; DOOR PAD
(A) D4.2X19.9 GRAY
1-09987-272-0
04
1
0110-
18
CLIP; DOOR PAD
(C) OD=7.9 BLACK MAL
8-94279-974-1
02
1
0110-
18
CLIP; DOOR PAD
(B) OD=8.5 GRAY
8-97893-482-0
10
1
0110-
18
CLIP; DOOR PAD
(E) NATURAL
1-09987-257-0
23
1
0110-
18
CLIP; DOOR PAD
(E) NATURAL
1-09987-257-0
23
1
0110-
25
SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING MAL
8-94279-123-0
02
1
0110-
26
GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL MAL
8-94279-043-0
02
1
0110-
27
PANEL; ORNAMENT,DOOR
1-76218-095-7
01
1
0110-1210
27
PANEL; ORNAMENT,DOOR
8-98229-328-0
01
1
1211-
27
PANEL; ORNAMENT,DOOR
1-76218-099-7
01
1
0110-
33
GROMMET; DOOR ORNAMENT
(A)
1-09983-149-1
02
1
0110-0802
33
GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2
1-09983-151-1
02
1
0803-
33
GROMMET; DOOR ORNAMENT
(B)
1-74998-111-0
02
1
0110-
36
SEAL; DOOR,MAIN,CAB SIDE
1-76718-177-9
01
1
0110-1010
36
SEAL; DOOR,MAIN,CAB SIDE
8-98177-764-0
01
1
1011-
36
SEAL; DOOR,MAIN,CAB SIDE
1-76718-176-9
01
1
0110-1010
36
SEAL; DOOR,MAIN,CAB SIDE
8-98177-763-0
01
1
1011-
41
GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2
1-09983-151-1
04
1
0110-
103
TRAY ASM; ASH,DOOR
1-76457-054-0
01
1
0110-0111
103
TRAY ASM; ASH,DOOR
1-76458-086-1
01
1
0112-
103
TRAY ASM; ASH,DOOR
1-76457-053-0
01
1
0110-0111
103
TRAY ASM; ASH,DOOR
1-76458-085-1
01
1
0112-
105
SEAL; DOOR ORNAMENT,FRT
1-76218-082-2
01
1
0110-
105
SEAL; DOOR ORNAMENT,FRT
1-76218-082-2
01
1
0110-
106
SEAL; DOOR ORNAMENT
(C)
8-98226-642-0
01
1
1211-
106
SEAL; DOOR ORNAMENT
(A)
1-76218-083-2
01
1
0110-
106
SEAL; DOOR ORNAMENT
(A)
1-76218-083-2
01
1
0110-
106
SEAL; DOOR ORNAMENT
(B)
1-76218-104-0
02
1
0110-
171
RETAINER; DOOR PAD
1-09987-264-0
02
1
0110-
177
SEAL; WATER,DOOR
(A)
1-76778-047-3
02
1
0110-
177
SEAL; WATER,DOOR
(B)
1-76778-055-2
02
1
0110-
179
TAPE; ORNAMENT
(A) L=45
1-76218-063-2
04
1
0110-
179
TAPE; ORNAMENT
(A) L=45
1-76218-063-2
04
1
0110-
179
TAPE; ORNAMENT
(C) L=770
1-76218-091-2
01
1
0110-
179
TAPE; ORNAMENT
(C) L=770
1-76218-091-2
01
1
0110-
179
TAPE; ORNAMENT
(D) L=160
1-76218-094-1
01
1
0110-
179
TAPE; ORNAMENT
(D) L=160
1-76218-094-1
01
1
0110-
179
TAPE; ORNAMENT
(B) L=235
1-76218-127-1
02
1
0110-
179
TAPE; ORNAMENT
(B) L=235
1-76218-127-1
02
1
0110-
