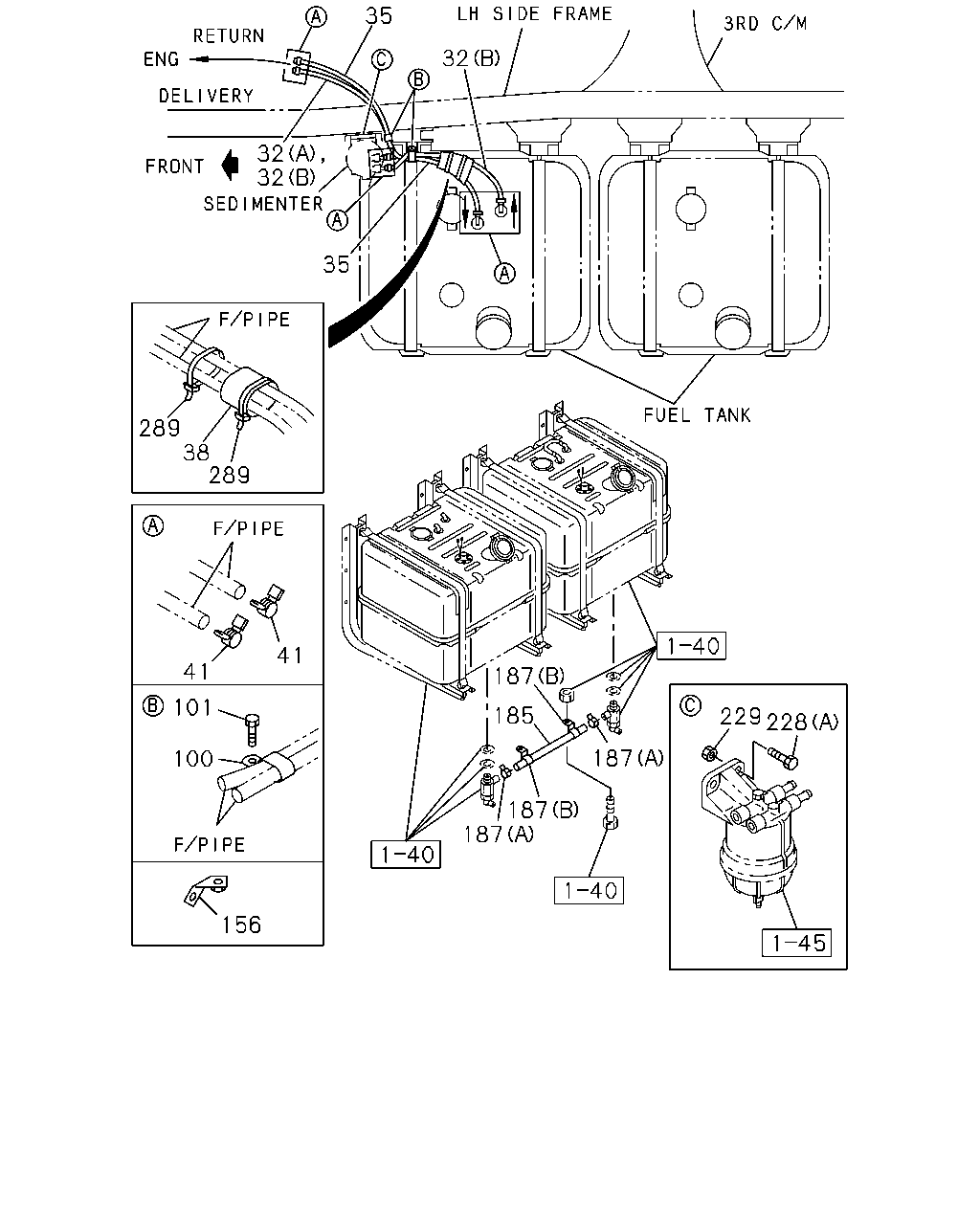

1-41A — FUEL PIPING; CHASSIS (#5546) — 126 parça

35 32 32 32 35 289 38 289 41 187 41 101 185 229 228 187 100 187 187 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
32	PIPE; DELIVERY,FUEL TANK (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9606	●
32	PIPE; DELIVERY,FUEL TANK (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9606	●
32	PIPE; DELIVERY,FUEL TANK (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9607-9805	●
32	PIPE; DELIVERY,FUEL TANK (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9607-9805	●
32	PIPE; DELIVERY,FUEL TANK (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9803-9904	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 400L<SDH> (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9803-9904	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 400L<SDH> (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9907		●	●	●
32	PIPE; DELIVERY,FUEL TANK (A),(B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9908-		●	●	●
32	PIPE; DELIVERY,FUEL TANK (A),(B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9908-		●	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9904	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (B) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	9806-9904	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (B) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9907		●	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (A) L=1850 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9907		●	●	●
35	PIPE; FUEL TANK,RETURN EXC. FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9904	●
35	PIPE; FUEL TANK,RETURN EXC. FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9907		●	●	●
35	PIPE; FUEL TANK,RETURN L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9908-		●	●	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 400L<SDH> L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9907		●	●	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 400L<SDH> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9806-9904	●
38	SLEEVE; RUBBER,RUBBER HOSE L=1300	1-09360-677-1	01	1	9603-9904	●
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 400L<SDH> L=1300	1-09360-677-1	02	1	9905-9907		●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE EXC. FUEL TANK 400L<SDH> L=1300	1-09360-677-1	01	1	9905-9907		●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=1300	1-09360-677-1	01	1	9908-		●	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9603-9904	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9905-		●	●	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	02	1	9603-9608	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	02	1	9609-9904	●
100	CLIP; FUEL PIPE ISUZU M/T<X9A> FUEL TANK 400L<SDH> ID=16X2 L=20	9-09535-536-0	04	1	9905-9907		●	●	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	03	1	9609-9904	●
100	CLIP; FUEL PIPE ZF M/T<X9E> FUEL TANK 400L<SDH> ID=16X2 L=20	9-09535-536-0	03	1	9905-9907		●	●	●
100	CLIP; FUEL PIPE EXC. FUEL TANK 400L<SDH> ID=16X2 L=20	9-09535-536-0	02	1	9905-9907		●	●	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	02	1	9908-		●	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9607-9608	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9609-9904	●
101	BOLT; CLIP,FUEL PIPE EXC. FUEL TANK 400L<SDH> M8X25 FLANGE	0-28680-825-0	02	1	9905-9907		●	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9908-		●	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	03	1	9609-9904	●
101	BOLT; CLIP,FUEL PIPE ISUZU M/T<X9A> FUEL TANK 400L<SDH> M8X20 FLANGE	0-28680-820-0	03	1	9905-9907		●	●	●
101	BOLT; CLIP,FUEL PIPE ZF M/T<X9E> FUEL TANK 400L<SDH> M8X20 FLANGE	0-28680-820-0	03	1	9905-9907		●	●	●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTER SHIFT CONTROL<WX8>	1-47477-330-0	01	1	9603-9608	●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTER SHIFT CONTROL<WX8>	1-47477-330-0	02	1	9609-9805	●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTER SHIFT CONTROL<WX8> L=80 H=20	1-82699-304-0	01	1	9806-9810	●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTER SHIFT CONTROL<WX8> L=80 H=20	1-82699-304-0	01	1	9811-9904	●		●
156	BRACKET; FUEL HOSE ZF M/T<X9E> ASSISTER SHIFT CONTROL<WX8>	1-47478-306-0	02	1	9905-		●	●	●
185	PIPE; FUEL TANK TO TANK L=840 SERVICED BY L=3000	0-01262-300-0	01	1	9603-9904	●
185	PIPE; FUEL TANK TO TANK EXC. FUEL TANK 400L<SDH> L=840 SERVICED BY L=3000	0-01262-300-0	01	1	9905-		●	●	●
187	CLIP; FUEL PIPE TANK TO TANK (A) ID=17.1	8-94122-679-0	02	1	9603-9904	●
187	CLIP; FUEL PIPE TANK TO TANK EXC. FUEL TANK 400L<SDH> (A) ID=17.1	8-94122-679-0	02	1	9905-		●	●	●
187	CLIP; FUEL PIPE TANK TO TANK (B) ID=19 H=25 L=25	9-09917-035-0	02	1	9603-9904	●
187	CLIP; FUEL PIPE TANK TO TANK EXC. FUEL TANK 400L<SDH> (B) ID=19 H=25 L=25	9-09917-035-0	02	1	9905-		●	●	●
228	BOLT; BRKT,SEDIMENTER (A) M10X30 FLANGE	0-28081-030-0	02	1	9603-9606	●
228	BOLT; BRKT,SEDIMENTER (A) M10X35 FLANGE	0-28681-035-0	02	1	9607-9904	●
228	BOLT; BRKT,SEDIMENTER (A) M10X35 FLANGE	0-28681-035-0	02	1	9905-		●	●	●
228	BOLT; BRKT,SEDIMENTER FUEL TANK 400L<SDH> (B) M10X30 FLANGE	0-28681-030-0	02	1	9905-9907		●	●	●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9603-9606	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9607-9904	●
229	NUT; BRKT,FUEL FILTER FUEL TANK 400L<SDH> M10 FLANGE	0-91150-210-0	02	1	9905-9907		●	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9908-		●	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9603-9904	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9905-		●	●	●
289	CLIP; BAND,HOSE FUEL TANK 400L<SDH> L=250	5-09707-030-1	04	1	9905-9907		●	●	●

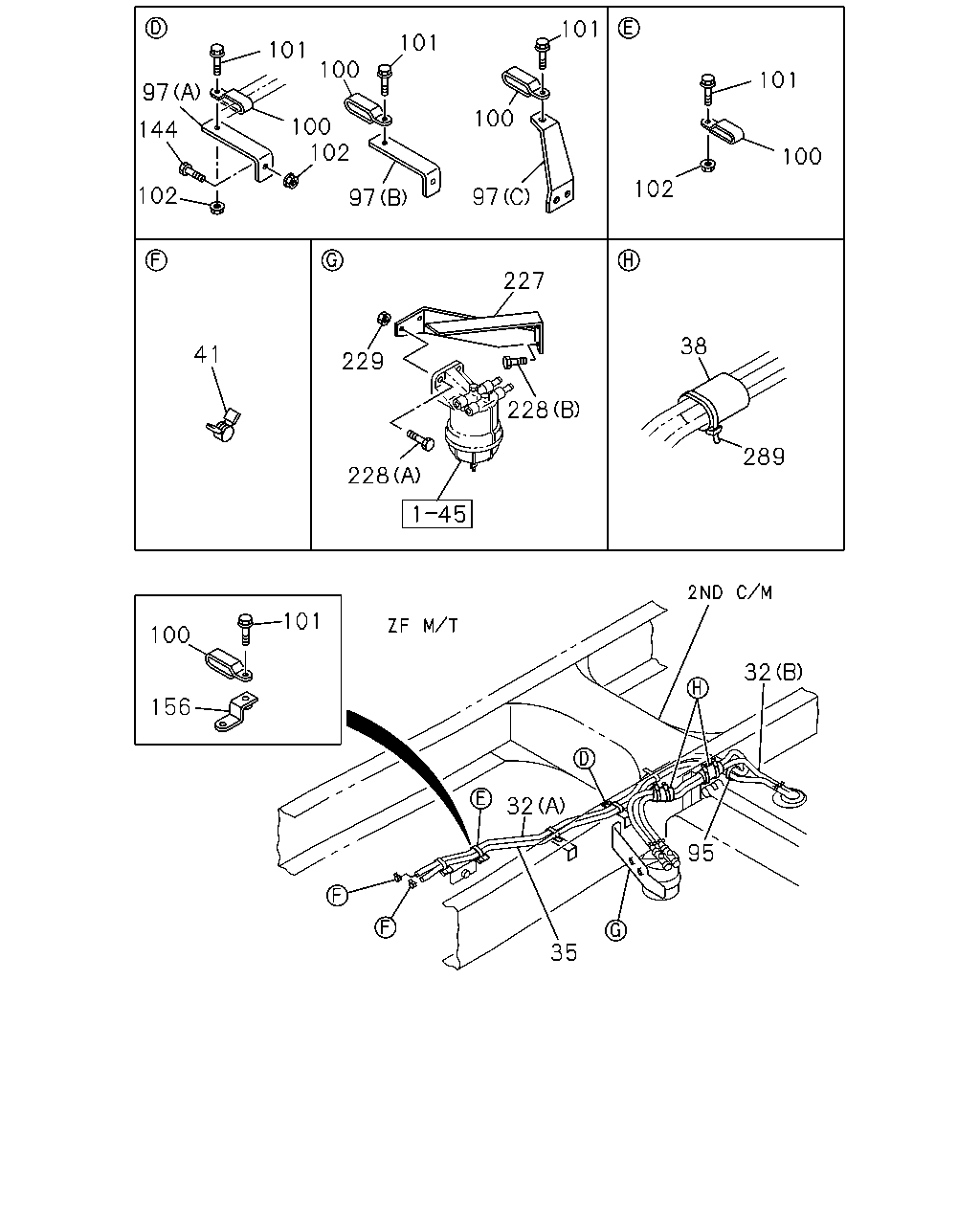

101 101 101 100 101 97 100 100 102 144 100 102 102 97 97 227 38 41 229 228 289 228 101 100 32 156 32 95 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
32	PIPE; DELIVERY,FUEL TANK (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9606	●
32	PIPE; DELIVERY,FUEL TANK (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9606	●
32	PIPE; DELIVERY,FUEL TANK (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9607-9805	●
32	PIPE; DELIVERY,FUEL TANK (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9607-9805	●
32	PIPE; DELIVERY,FUEL TANK (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9803-9904	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 400L<SDH> (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9803-9904	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 400L<SDH> (B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9907		●	●	●
32	PIPE; DELIVERY,FUEL TANK (A),(B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9908-		●	●	●
32	PIPE; DELIVERY,FUEL TANK (A),(B) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9908-		●	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9904	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (B) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	9806-9904	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (B) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9907		●	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (A) L=1850 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9907		●	●	●
35	PIPE; FUEL TANK,RETURN EXC. FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9603-9904	●
35	PIPE; FUEL TANK,RETURN EXC. FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9907		●	●	●
35	PIPE; FUEL TANK,RETURN L=900 SERVICED BY L=3000	0-01260-300-0	01	1	9908-		●	●	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 400L<SDH> L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	9905-9907		●	●	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 400L<SDH> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9806-9904	●
38	SLEEVE; RUBBER,RUBBER HOSE L=1300	1-09360-677-1	01	1	9603-9904	●
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 400L<SDH> L=1300	1-09360-677-1	02	1	9905-9907		●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE EXC. FUEL TANK 400L<SDH> L=1300	1-09360-677-1	01	1	9905-9907		●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L=1300	1-09360-677-1	01	1	9908-		●	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9603-9904	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9905-		●	●	●
95	BUSHING; PIPE,FUEL TANK FUEL TANK 400L<SDH> ID=28 OD=35 T=25	1-09332-011-1	01	1	9905-9907		●	●	●
97	BRACKET; CLIP FUEL TANK 400L<SDH> (A) L=95	1-82699-085-0	01	1	9905-9907		●	●	●
97	BRACKET; CLIP ZF M/T<X9E> (C)	1-47478-442-0	01	1	9905-		●	●	●
97	BRACKET; CLIP ZF M/T<X9E> FUEL TANK 400L<SDH> (B) L=115	1-47475-305-0	01	1	9905-9907		●	●	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	02	1	9603-9608	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	02	1	9609-9904	●
100	CLIP; FUEL PIPE ISUZU M/T<X9A> FUEL TANK 400L<SDH> ID=16X2 L=20	9-09535-536-0	04	1	9905-9907		●	●	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	03	1	9609-9904	●
100	CLIP; FUEL PIPE ZF M/T<X9E> FUEL TANK 400L<SDH> ID=16X2 L=20	9-09535-536-0	03	1	9905-9907		●	●	●
100	CLIP; FUEL PIPE EXC. FUEL TANK 400L<SDH> ID=16X2 L=20	9-09535-536-0	02	1	9905-9907		●	●	●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	02	1	9908-		●	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9607-9608	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9609-9904	●
101	BOLT; CLIP,FUEL PIPE EXC. FUEL TANK 400L<SDH> M8X25 FLANGE	0-28680-825-0	02	1	9905-9907		●	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9908-		●	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	03	1	9609-9904	●
101	BOLT; CLIP,FUEL PIPE ISUZU M/T<X9A> FUEL TANK 400L<SDH> M8X20 FLANGE	0-28680-820-0	03	1	9905-9907		●	●	●
101	BOLT; CLIP,FUEL PIPE ZF M/T<X9E> FUEL TANK 400L<SDH> M8X20 FLANGE	0-28680-820-0	03	1	9905-9907		●	●	●
102	NUT; CLIP,FUEL PIPE ISUZU M/T<X9A> FUEL TANK 400L<SDH> M8 FLANGE	0-91150-108-0	03	1	9905-9907		●	●	●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	9909-		●	●	●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> FUEL TANK 400L<SDH> M8 FLANGE	0-91150-108-0	04	1	9905-9907		●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR FUEL TANK 400L<SDH> M8X25 FLANGE	0-28680-825-0	01	1	9905-9907		●	●	●
144	BOLT; CLIP,FUEL PIPE,C/MBR ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	01	1	9909-		●	●	●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTER SHIFT CONTROL<WX8>	1-47477-330-0	01	1	9603-9608	●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTER SHIFT CONTROL<WX8>	1-47477-330-0	02	1	9609-9805	●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTER SHIFT CONTROL<WX8> L=80 H=20	1-82699-304-0	01	1	9806-9810	●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N) ASSISTER SHIFT CONTROL<WX8> L=80 H=20	1-82699-304-0	01	1	9811-9904	●		●
156	BRACKET; FUEL HOSE ZF M/T<X9E> ASSISTER SHIFT CONTROL<WX8>	1-47478-306-0	02	1	9905-		●	●	●
227	BRACKET; FUEL SEDIMENTER FUEL TANK 400L<SDH>	1-22518-163-0	01	1	9905-9907		●	●	●
228	BOLT; BRKT,SEDIMENTER (A) M10X30 FLANGE	0-28081-030-0	02	1	9603-9606	●
228	BOLT; BRKT,SEDIMENTER (A) M10X35 FLANGE	0-28681-035-0	02	1	9607-9904	●
228	BOLT; BRKT,SEDIMENTER (A) M10X35 FLANGE	0-28681-035-0	02	1	9905-		●	●	●
228	BOLT; BRKT,SEDIMENTER FUEL TANK 400L<SDH> (B) M10X30 FLANGE	0-28681-030-0	02	1	9905-9907		●	●	●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9603-9606	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9607-9904	●
229	NUT; BRKT,FUEL FILTER FUEL TANK 400L<SDH> M10 FLANGE	0-91150-210-0	02	1	9905-9907		●	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9908-		●	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9603-9904	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9905-		●	●	●
289	CLIP; BAND,HOSE FUEL TANK 400L<SDH> L=250	5-09707-030-1	04	1	9905-9907		●	●	●
