◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11360 - FTR(MALAYSIA)W/B6000 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#55459) — 70 parça

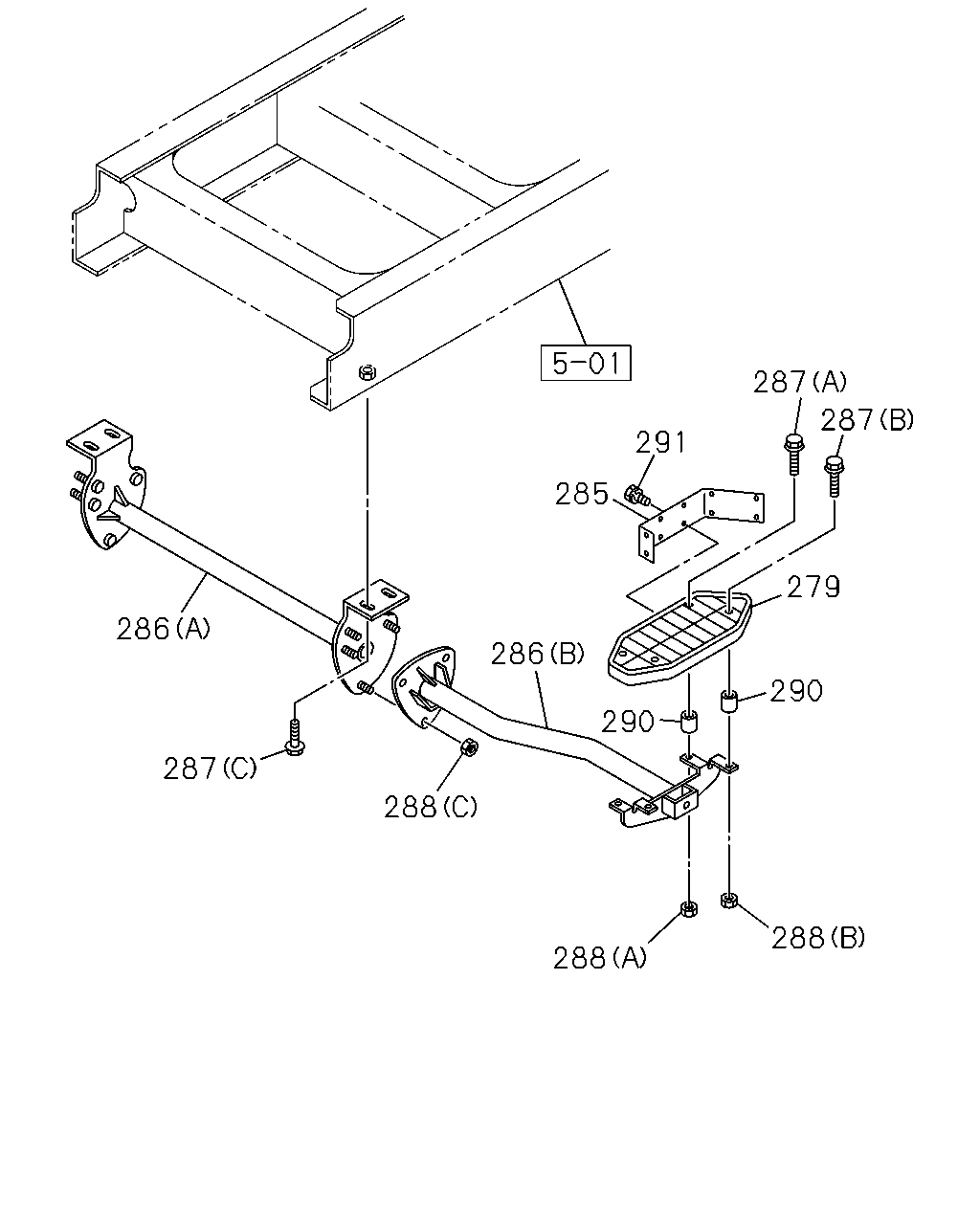

çizim 173385
287 287 291 285 279 286 286 290 290 287 288 288 288
BalonParca AdiParca NoAdetTipApplied Date
279 BOARD; STEP 1ST 1-53414-035-0 02 1 0110-
285 PLATE; STEP,1ST STEP 1-53414-066-0 02 1 0110-
286 STEP ASM; 1ST
(A) 		1-53414-126-1 01 1 0110-0112
286 STEP ASM; 1ST
(A) 		1-53414-254-0 01 1 0201-
286 STEP ASM; 1ST
(B) 		1-53414-129-2 01 1 0110-
286 STEP ASM; 1ST
(B) 		1-53414-130-2 01 1 0110-
287 BOLT; BOARD STEP
(A) M6X35 FLANGE 		0-28680-635-0 04 1 0110-0512
287 BOLT; BOARD STEP
(A) M6X35 FLANGE 		0-28650-635-0 04 1 0601-
287 BOLT; BOARD STEP
(B) M8X35 FLANGE 		0-28680-835-0 04 1 0110-0512
287 BOLT; BOARD STEP
(B) M8X35 FLANGE 		0-28650-835-0 04 1 0601-
287 BOLT; BOARD STEP
(C) M12X35 FLANGE 		0-28681-235-0 04 1 0110-0512
287 BOLT; BOARD STEP
(C) M12X35 FLANGE 		0-28651-235-0 04 1 0601-
288 NUT; STEP
(A) M6 FLANGE 		0-91150-106-0 04 1 0110-0602
288 NUT; STEP
(A) M6 FLANGE MAL 		0-91180-106-0 04 1 0603-
288 NUT; STEP
(B) M8 FLANGE 		0-91150-108-0 04 1 0110-0602
288 NUT; STEP
(B) M8 FLANGE MAL 		0-91180-108-0 04 1 0603-
288 NUT; STEP
(C) M12 FLANGE 		0-91150-212-0 06 1 0110-0602
288 NUT; STEP
(C) M12 FLANGE MAL 		0-91180-212-0 06 1 0603-
290 SPACER 1-53414-016-0 08 1 0110-
291 BOLT; STEP PLATE
M6X16 FLANGE 		0-28080-616-0 10 1 0110-0512
291 BOLT; STEP PLATE
M6X16 FLANGE MAL 		0-28050-616-0 10 1 0601-

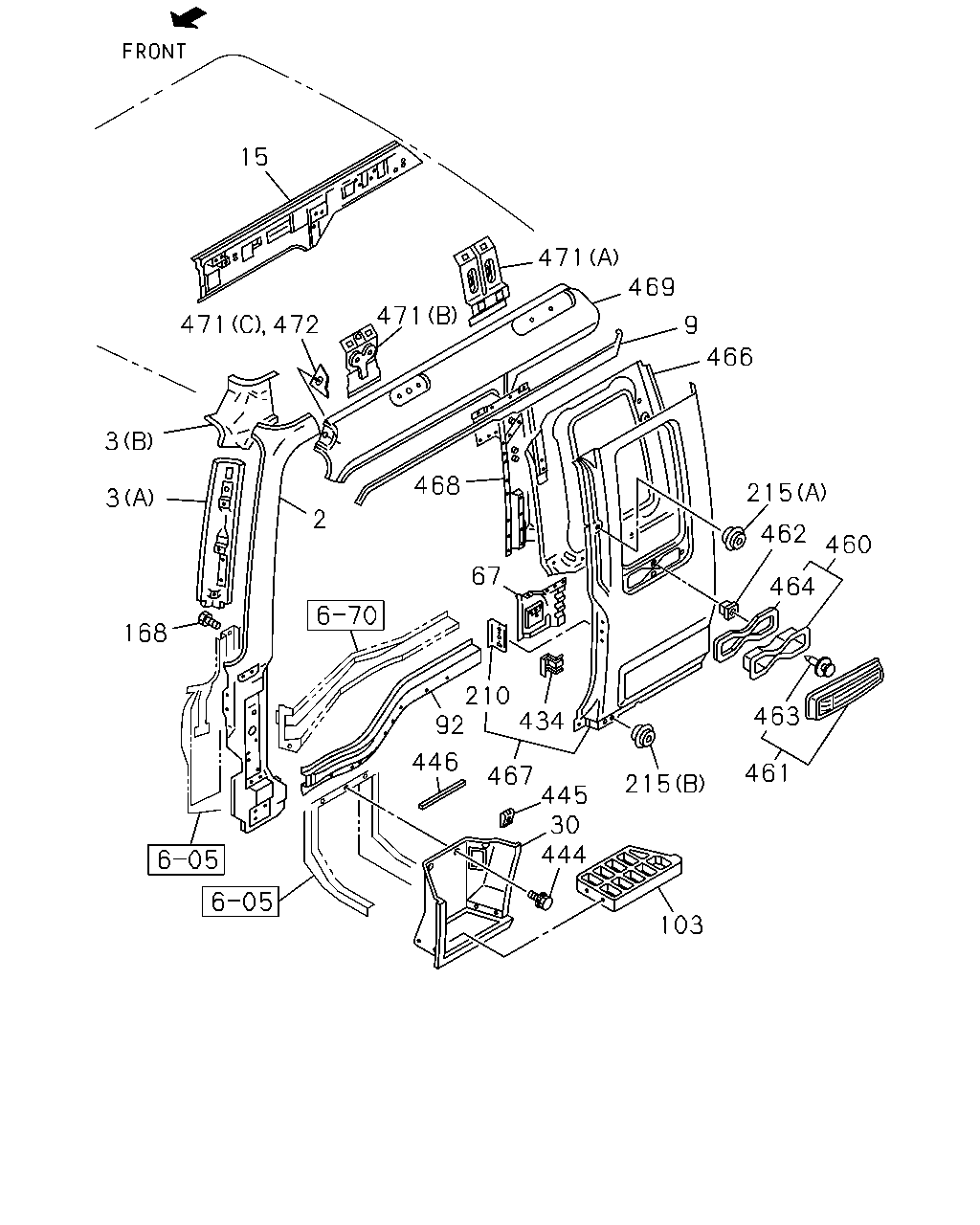

çizim 173391
15 471 469 471 9 466 3 468 215 3 2 462 460 67 464 168 210 92 434 463 446 461 467 445 30 444 215 103 471 472
BalonParca AdiParca NoAdetTipApplied Date
2 PILLAR; FRT 1-61281-156-4 01 1 0110-
2 PILLAR; FRT 1-61281-155-4 01 1 0110-
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-170-5 01 1 0110-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-344-5 01 1 0110-
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-169-5 01 1 0110-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-343-5 01 1 0110-
9 MOLDING; DRIP,CAB SIDE 1-61281-281-5 01 1 0110-
9 MOLDING; DRIP,CAB SIDE 1-61281-280-5 01 1 0110-
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 0110-
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 0110-
30 CLOSING; SIDE STEP 1-71998-878-7 01 1 0110-
30 CLOSING; SIDE STEP 1-71998-877-7 01 1 0110-
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 0110-
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 0110-
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 0110-
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0110-
103 PLATE; STEP 1-71996-174-0 01 1 0110-
103 PLATE; STEP 1-71996-173-0 01 1 0110-
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0110-0512
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601-
210 PANEL; DOOR STRIKER REINF
MAL 		8-97851-446-1 01 1 0110-
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0110-
215 GROMMET; RR PILLAR
(B) OD=28.5 MAL 		8-94279-711-0 02 1 0110-
434 PATCH; ASSIST GRIP 1-61270-763-1 02 1 0110-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER MAL 		8-94279-208-0 06 1 0110-0904
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER MAL 		8-98059-720-0 06 1 0905-
445 NUT; CLOSING 8-94279-723-0 02 1 0110-0404
445 NUT; CLOSING 8-94279-723-0 02 1 0405-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0110-
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 0110-
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 0110-
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 0110-
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 0110-
463 PIN; ORNAMENT
D4.2X13 MAL 		1-09983-161-0 08 1 0110-
464 SEAL; VENTILATOR 1-76378-299-0 02 1 0110-
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 0110-
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 0110-
467 PANEL; OUTER,BACK CORNER 1-61281-204-4 01 1 0110-
467 PANEL; OUTER,BACK CORNER 1-61281-203-4 01 1 0110-
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 0110-
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 0110-
469 ROOF; SIDE 1-61281-199-8 01 1 0110-
469 ROOF; SIDE 1-61281-198-8 01 1 0110-
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 02 1 0110-
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-201-3 01 1 0110-
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-233-4 01 1 0110-0812
471 PATCH; AIR DEFLECTOR
(C) 		8-98132-463-0 01 1 0901-
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-200-3 01 1 0110-
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 0110-
