◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11360 - FTR(MALAYSIA)W/B6000 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#55457) — 165 parça

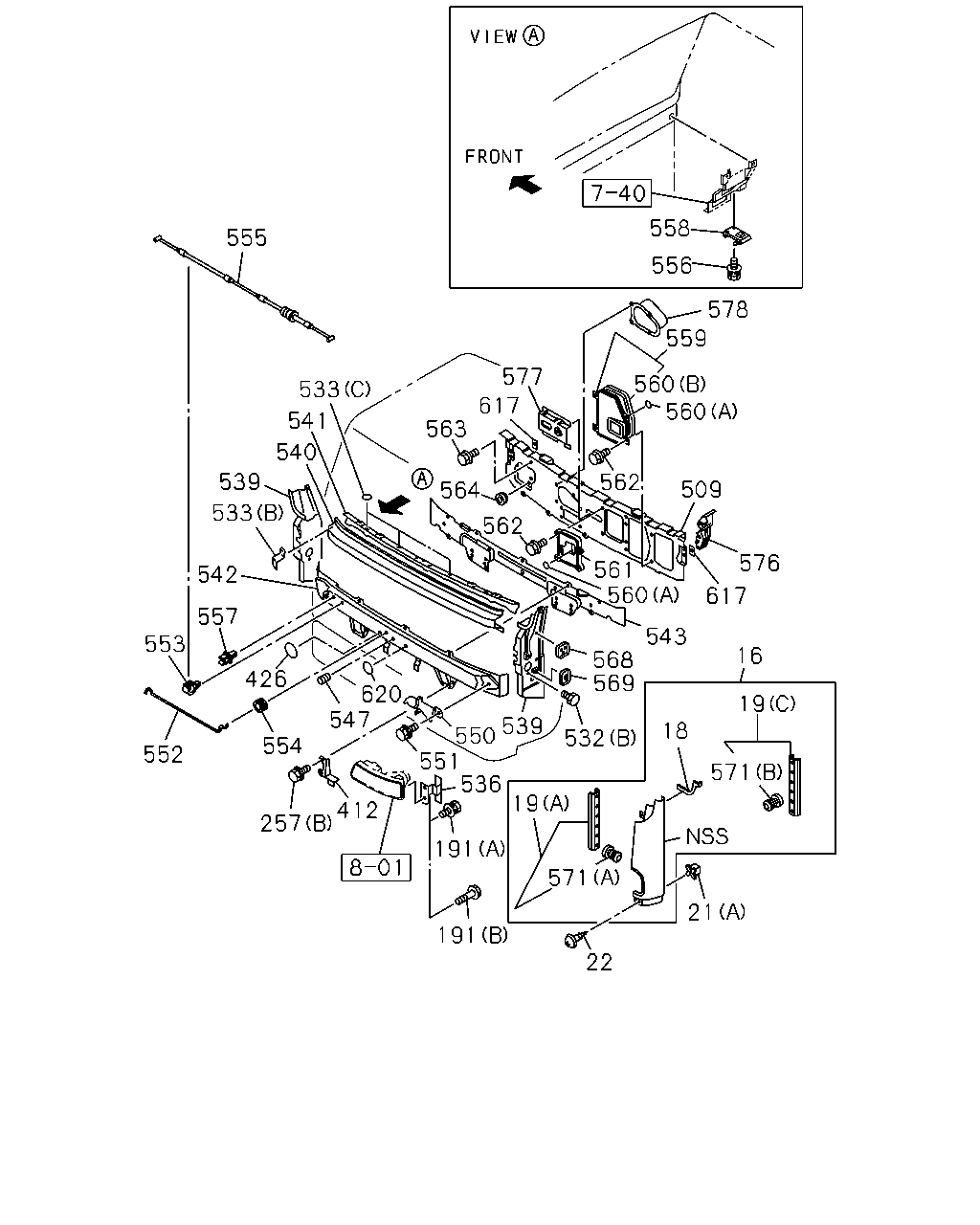

çizim 173384
558 555 556 578 559 577 560 560 533 617 541 563 540 539 562 509 564 533 562 561 560 576 542 617 557 543 553 16 568 569 426 620 547 19 539 550 551 536 18 532 554 552 571 412 257 19 191 571 21 191 22
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
MIR O/S RR VIEW LONG ARM<DH2> WHITE 		1-65481-562-3 01 1 0110-
16 PANEL; FRONT,SIDE
EXC. MIR O/S RR VIEW LONG ARM<DH2> WHITE 		1-65481-590-2 01 1 0110-
16 PANEL; FRONT,SIDE
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-563-3 01 1 0110-
16 PANEL; FRONT,SIDE
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-591-2 01 1 0110-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0110-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0110-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0110-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0110-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0110-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0110-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0110-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0110-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 MAL 		8-94279-078-0 02 1 0110-
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0110-0810
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING MAL 		8-94279-123-0 12 1 0811-1010
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 1011-
191 BOLT; HINGE
(A) M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 04 1 0110-0708
191 BOLT; HINGE
(B) M6X16 FLANGE MAL 		0-28650-616-0 04 1 0709-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0110-
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER MAL 		8-94279-208-0 04 1 0110-0904
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER MAL 		8-98059-720-0 04 1 0905-
412 BRACKET ASM; HD LAMP UPR 1-86830-044-3 01 1 0110-
412 BRACKET ASM; HD LAMP UPR 1-86830-043-3 01 1 0110-
426 GASKET
OD=25 BLACK MAL 		1-76798-019-0 01 1 0110-0112
426 GASKET
OD=25 BLACK MAL 		1-76798-019-0 03 1 0110-
509 PANEL; DASH 1-62280-213-1 01 1 0110-0604
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0110-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0110-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0110-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0110-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK MAL 		5-76777-035-0 13 1 0110-
533 SEAL; FRT PANEL
(A) 25X25 MAL 		8-94272-533-0 02 1 0110-
536 HINGE 1-86830-004-5 01 1 0110-
536 HINGE 1-86830-003-5 01 1 0110-
539 CLOSING; PILLAR 1-61480-673-6 01 1 0110-
539 CLOSING; PILLAR 1-61480-674-6 01 1 0110-
540 PANEL; FRONT,OUTER 1-61480-785-1 01 1 0110-
541 PANEL; FRONT,INNER 1-61480-679-0 01 1 0110-
542 RAIL; FRT MOUNTING 1-61480-773-9 01 1 0110-
543 CLOSING; FRT MTG RAIL 1-61480-687-4 01 1 0110-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 0110-
550 LOCK ASM; FRT LID 1-79318-010-2 01 1 0110-
550 LOCK ASM; FRT LID 1-79318-009-4 01 1 0110-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER MAL 		8-94279-207-0 04 1 0110-
552 STAY; FRT LID 1-71998-810-2 01 1 0110-0205
552 STAY; FRT LID 1-71996-310-0 01 1 0206-0706
552 STAY; FRT LID 1-71996-352-0 01 1 0707-
553 CLIP; STAY 8-97031-428-0 01 1 0110-
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 0110-
555 CABLE; FRT LID
L=2142 		1-79348-001-4 01 1 0110-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER MAL 		8-94279-200-0 01 1 0110-
557 CLIP; CABLE
ID=4.8 MAL 		8-94128-483-0 02 1 0110-
558 LEVER; FRT LID 1-79338-003-1 01 1 0110-0212
558 LEVER; FRT LID 1-79338-007-1 01 1 0301-
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 0110-
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 0110-
560 SEAL; COVER
(A) OD=36 T=0.05 BLACK MAL 		5-76777-035-0 01 1 0110-
560 SEAL; COVER
(A) OD=36 T=0.05 BLACK MAL 		5-76777-035-0 02 1 0110-
561 COVER; HEATER CORE 1-71998-829-1 01 1 0110-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 08 1 0110-
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 14 1 0110-0202
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 0203-
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0203-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0110-
568 PATCH; INST REINF 1-61480-675-2 02 1 0110-
569 PATCH; LWR GRIP 1-61480-689-2 01 1 0110-
569 PATCH; LWR GRIP 1-61480-736-2 01 1 0110-
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 0110-
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 0110-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0110-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0110-
576 FRAME; INST SIDE 1-62280-176-6 01 1 0110-0604
576 FRAME; INST SIDE 1-62280-177-7 01 1 0110-0604
577 BRACKET; IDLER 1-62280-195-0 01 1 0110-0604
578 COVER; WIPER MOTOR 1-62280-173-4 01 1 0110-0604
617 SEAL; DASH 1-61281-497-0 02 1 0110-0604
620 SEAL; FRT MTG
OD=25 BLACK MAL 		1-76798-019-0 02 1 0110-

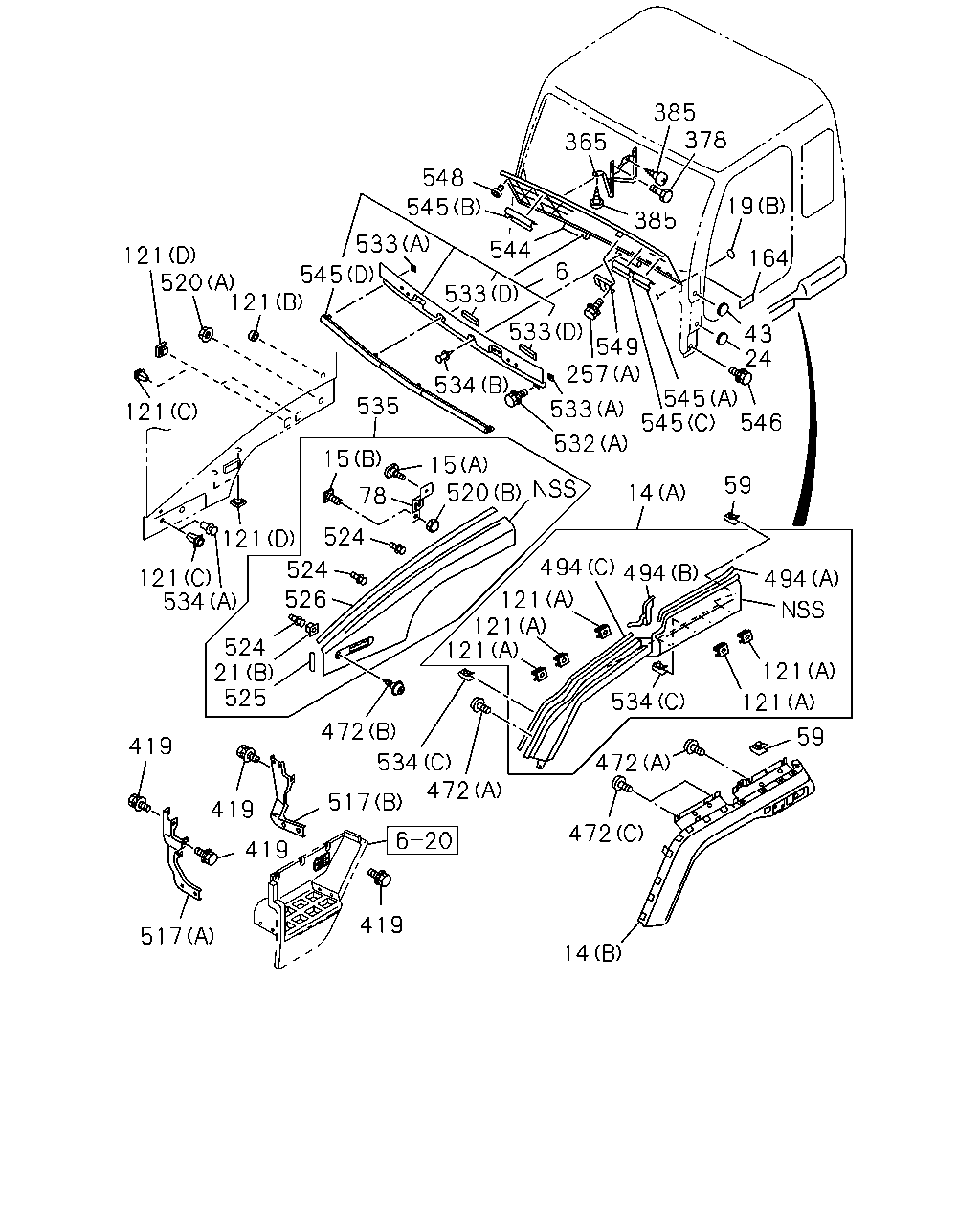

çizim 173404
385 378 365 548 19 545 385 533 544 121 520 164 6 545 121 533 533 534 43 24 549 257 545 545 546 535 533 121 532 15 15 520 59 78 14 524 121 494 494 524 121 534 494 526 121 121 121 524 21 525 121 534 121 472 59 419 534 472 472 517 419 419 472 419 517 14
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65481-744-2 01 1 0110-
14 FENDER; FRT
(A) 		1-65481-638-1 01 1 0110-0209
14 FENDER; FRT
(A) WHITE 		1-65482-045-1 01 1 0210-
14 FENDER; FRT
(B) 		1-71996-178-1 01 1 0110-
14 FENDER; FRT
(A) 		1-65481-637-1 01 1 0110-0209
14 FENDER; FRT
(A) WHITE 		1-65482-044-1 01 1 0210-
14 FENDER; FRT
(B) 		1-71996-177-1 01 1 0110-
14 FENDER; FRT
(A) WHITE 		1-65482-045-1 01 1 0210-
14 FENDER; FRT
(A) WHITE 		1-65482-044-1 01 1 0210-
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 0110-
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 0110-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0110-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0110-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0110-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0110-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0110-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0110-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 MAL 		8-94279-078-0 02 1 0110-
24 SEAL; FRT PANEL LWR
OD=25 BLACK MAL 		1-76798-019-0 08 1 0110-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0110-
59 GROMMET; SCREW 8-94279-723-0 02 1 0110-
78 BRACKET; FENDER 1-71268-323-0 01 1 0110-
78 BRACKET; FENDER 1-71268-322-0 01 1 0110-
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 0110-1009
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL MAL 		8-94279-043-0 02 1 0110-0304
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL MAL 		8-94279-043-0 12 1 0305-
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK 		8-94279-714-0 10 1 0110-0304
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 0110-
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0110-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0110-
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER MAL 		8-94279-208-0 04 1 0110-0904
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER MAL 		8-98059-720-0 04 1 0905-
365 SUPPORT; FENDER 1-71996-147-1 01 1 0110-
378 BOLT; SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0110-
385 SCREW; FENDER LWR
M6X30 		1-65481-387-0 04 1 0110-
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER MAL 		8-94279-208-0 10 1 0110-0904
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER MAL 		8-98059-720-0 10 1 0905-
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0110-0204
419 BOLT; STEP
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-0301
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0302-
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 08 1 0110-
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 26 1 0110-
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 04 1 0110-
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING MAL 		8-94279-123-0 02 1 0110-
494 FINISHER; FENDER
(C) 		1-71998-900-3 02 1 0110-0610
494 FINISHER; FENDER
(C) 		1-71907-641-0 02 1 0611-
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 0110-
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 0110-
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 0110-
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 0110-
517 SUPPORT; STEP PANEL
(A) 		1-71998-780-5 01 1 0110-
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 0110-
517 SUPPORT; STEP PANEL
(A) 		1-71998-779-5 01 1 0110-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0110-
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 0110-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0110-
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 0110-0409
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410-
526 FINISHER; FENDER 1-71268-276-1 01 1 0110-0209
526 FINISHER; FENDER 1-71268-275-1 01 1 0110-0209
526 FINISHER; FENDER 1-71268-275-1 02 1 0210-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0110-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0110-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0110-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0110-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK MAL 		5-76777-035-0 13 1 0110-
533 SEAL; FRT PANEL
(A) 25X25 MAL 		8-94272-533-0 02 1 0110-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0110-1302
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-
534 FASTENER
(C) 		1-71996-035-1 20 1 0110-
534 FASTENER
(C) 		1-71996-035-1 04 1 0110-0404
534 FASTENER
(C) 		1-71996-035-1 06 1 0405-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0110-
535 FENDER; BLISTER
WHITE 		1-71268-361-3 01 1 0110-0209
535 FENDER; BLISTER
WHITE 		1-71268-429-1 01 1 0210-
535 FENDER; BLISTER
WHITE 		1-71268-360-3 01 1 0110-0209
535 FENDER; BLISTER
WHITE 		1-71268-428-2 01 1 0210-
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> MITRAS 		1-71108-116-0 01 1 0110-0411
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> HITACHI CHEMICAL 		1-71108-152-0 01 1 0110-
544 LID; FRT
EXC. FRONT PANEL CARGO FACE<NGD> 		1-71108-235-3 01 1 0110-
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 0110-
545 SEAL; FRT LID
(B) 		1-71996-253-1 01 1 0110-
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 0110-
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 0110-
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 0110-
548 STRIKER; FRT LID PANEL 1-79318-008-1 02 1 0110-
549 BRACKET; STOPPER,FRT LID 1-71108-033-4 01 1 0110-0301
549 BRACKET; STOPPER,FRT LID 1-71108-358-0 01 1 0302-
