5-01 — FRAME AND OTHER PARTS (#55450) — 76 parça

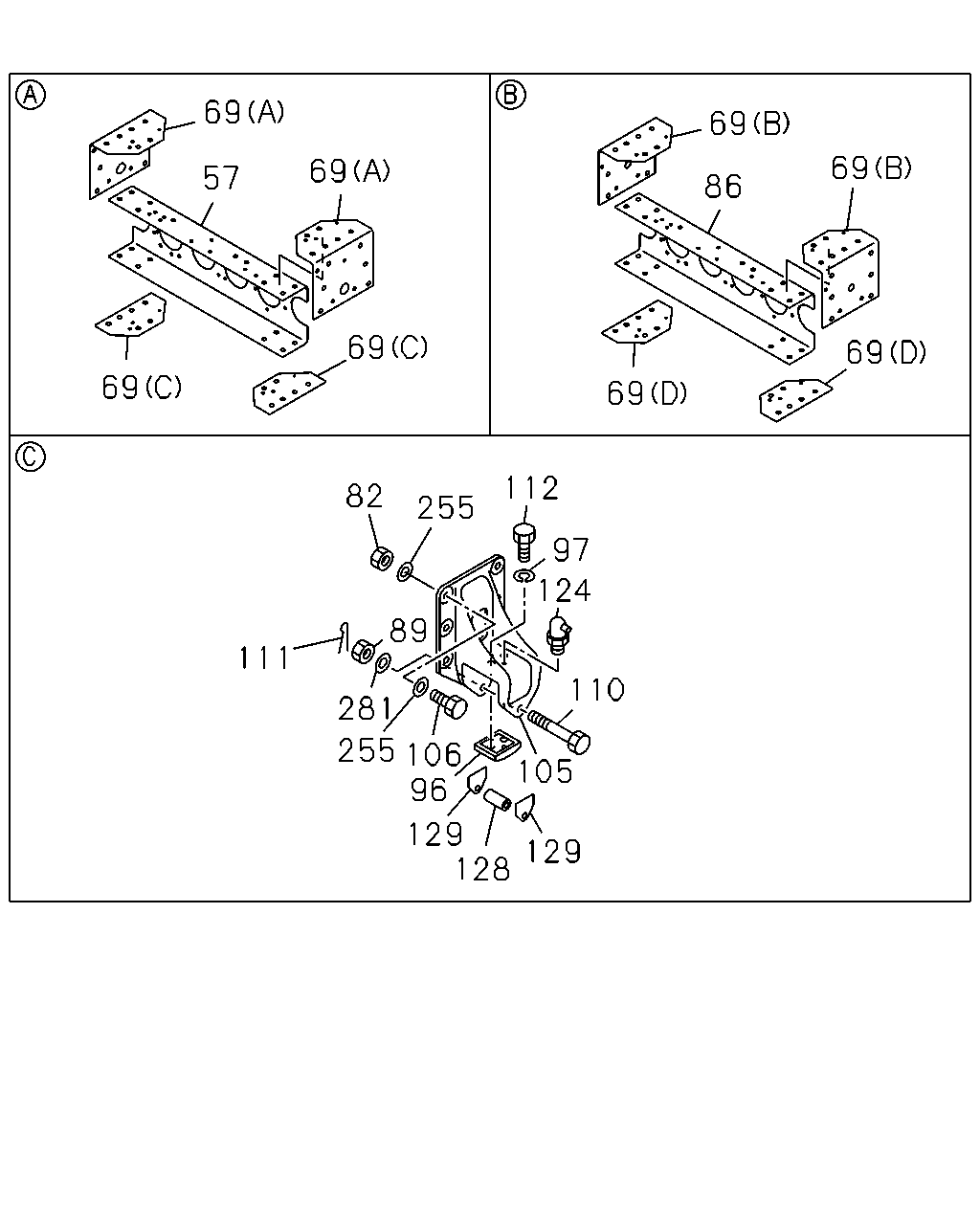

çizim 173371
69 69 69 69 57 86 69 69 69 69 112 82 255 97 124 89 281 255 106 105 96 111 110 129 128 129
BalonParca AdiParca NoAdetTipApplied Date
57 MEMBER; CROSS,RR SUSP FRT 1-53181-691-4 01 1 0110-
69 GUSSET; RR SUSP,UPR
(A) 21-HOLE 		1-53167-095-5 01 1 0110-
69 GUSSET; RR SUSP,UPR
(A) 21-HOLE 		1-53167-096-4 01 1 0110-
69 GUSSET; RR SUSP,UPR
(B) 17-HOLE 		1-53167-097-5 01 1 0110-
69 GUSSET; RR SUSP,UPR
(B) 17-HOLE 		1-53167-098-5 01 1 0110-
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-099-4 02 1 0110-
69 GUSSET; RR SUSP,UPR
(C) 		1-53167-100-3 02 1 0110-
82 NUT; BRKT
M14 		9-99110-514-0 24 1 0110-0512
82 NUT; BRKT
M14 MAL 		0-91110-514-0 24 1 0601-
86 MEMBER; CROSS,RR SUSP RR 1-53181-691-4 01 1 0110-
89 NUT; LEAF SPR STOPPER
M14 		9-99116-414-0 02 1 0110-0604
89 NUT; LEAF SPR STOPPER
M14 SLOTTED 		0-91116-514-0 02 1 0605-
96 PAD; RR SPR 1-53359-047-0 02 1 0110-
97 WASHER; LK,PAD
ID=14.2 		9-09150-514-0 04 1 0110-0603
97 WASHER; LK,PAD
ID=14.2 		0-91510-514-0 04 1 0604-
105 BRACKET; RR SPR,RR
MAL 		1-53354-064-1 02 1 0110-
106 BOLT; BRKT
M14X45 		9-92061-445-0 24 1 0110-
110 BOLT; LEAF SPR STOPPER 1-09000-007-0 02 1 0110-
111 PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28 		9-08113-028-0 02 1 0110-0606
111 PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28 		0-81123-028-0 02 1 0607-
112 BOLT; PAD
M14X35 		0-20801-435-0 04 1 0110-0512
112 BOLT; PAD
M14X35 		0-20851-435-0 04 1 0601-
124 NIPPLE; GREASE
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0110-0512
124 NIPPLE; GREASE
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601-
128 COLLAR; RUBBER 1-53359-004-0 02 1 0110-
129 SHIM; SIDE
T=4.5 		1-53359-061-1 02 1 0110-
129 SHIM; SIDE
T=3.2 		1-53359-062-1 02 1 0110-
255 WASHER; PL,BRKT
ID=15 MAL 		9-09651-069-0 64 1 0110-1201
255 WASHER; PL,BRKT
ID=15 		8-98010-627-1 64 1 1202-
281 WASHER; LEAF SPR STOPPER
ID=15 OD=30 		9-09160-614-0 04 1 0110-

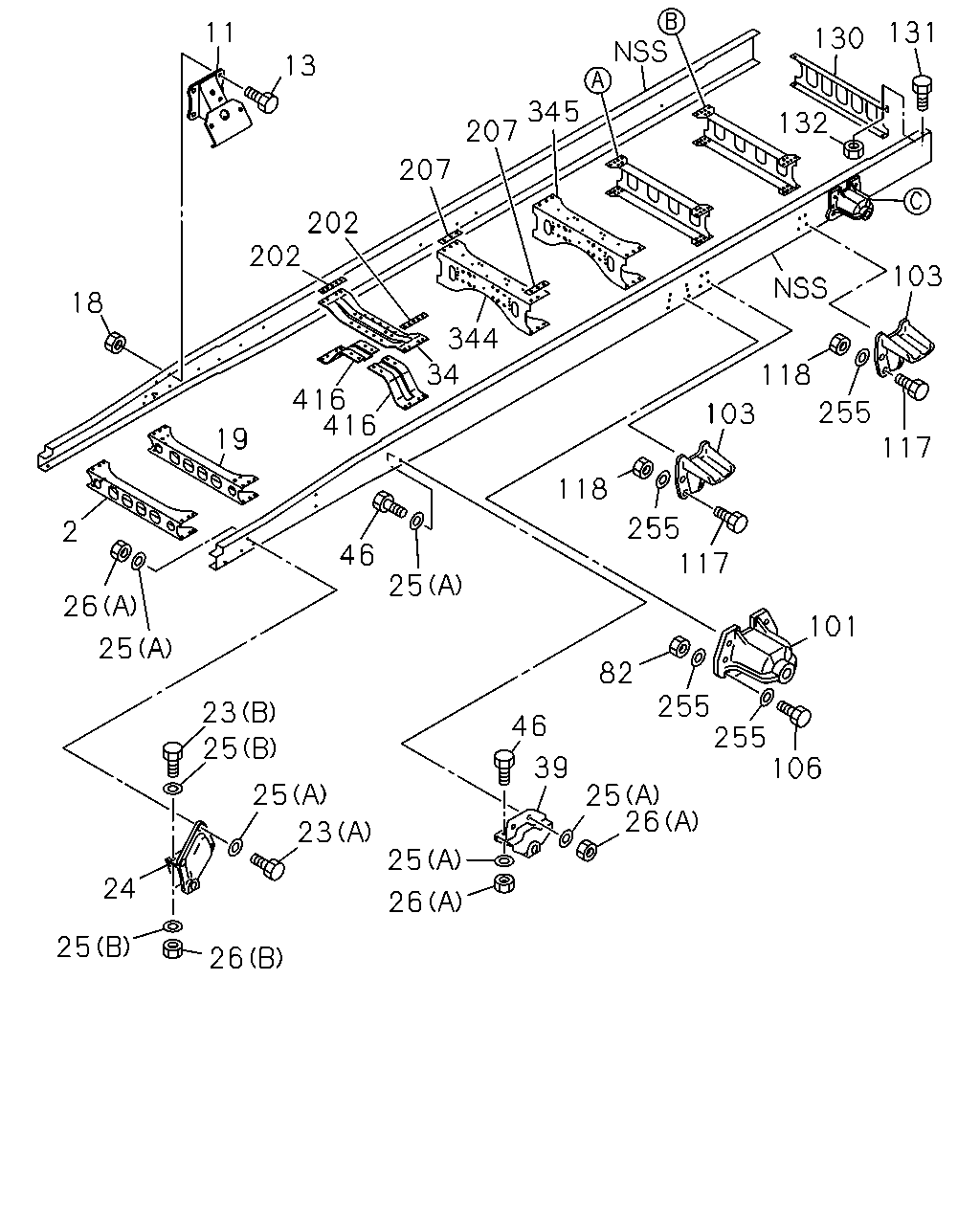

çizim 173402
345 207 131 11 130 13 132 207 202 202 344 34 103 18 118 416 416 255 103 19 117 118 255 117 2 46 25 26 101 25 82 255 255 106 23 25 46 39 25 25 26 23 25 24 26 25 26
BalonParca AdiParca NoAdetTipApplied Date
2 MEMBER; CROSS,1ST 1-53181-696-7 01 1 0110-
11 BRACKET; ENG MTG 1-53211-196-0 02 1 0110-
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28691-235-0 08 1 0110-0512
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE MAL 		0-28661-235-0 08 1 0601-
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91150-212-0 08 1 0110-0602
18 NUT; BRKT,ENG MTG
M12 FLANGE MAL 		0-91180-212-0 08 1 0603-
19 MEMBER; CROSS,2ND 1-53181-714-8 01 1 0110-
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0110-
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 04 1 0110-0512
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 0601-
24 BRACKET; FRT SPR,FRT 1-53351-148-3 01 1 0110-
24 BRACKET; FRT SPR,FRT 1-53351-149-3 01 1 0110-
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0110-
25 WASHER; PL,BRKT
(A) ID=15 MAL 		9-09651-069-0 28 1 0110-1201
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1202-
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0110-0512
26 NUT; BRKT,SPR
(A) M14 MAL 		0-91110-514-0 14 1 0601-
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0110-0512
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0601-
34 MEMBER; CROSS,3RD 1-53174-231-2 01 1 0110-
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0110-
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0110-
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 04 1 0110-0512
46 BOLT; BRKT FIX
M14X40 		0-20951-440-0 04 1 0601-
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 04 1 0110-
82 NUT; BRKT
M14 		9-99110-514-0 24 1 0110-0512
82 NUT; BRKT
M14 MAL 		0-91110-514-0 24 1 0601-
101 BRACKET; RR SPR,FRT 1-53353-078-1 02 1 0110-
103 STOPPER; SUB SPR 1-53356-057-0 04 1 0110-
106 BOLT; BRKT
M14X45 		9-92061-445-0 24 1 0110-
117 BOLT; STOPPER
M14X45 		9-92061-445-0 16 1 0110-
118 NUT; STOPPER
M14 		9-99110-514-0 16 1 0110-0512
118 NUT; STOPPER
M14 MAL 		0-91110-514-0 16 1 0601-
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0110-
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0110-0512
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28651-230-0 04 1 0601-
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0110-0602
132 NUT; END C/MBR
M12 FLANGE MAL 		0-91180-112-0 04 1 0603-
202 SPACER; 3RD C/MBR 1-53168-351-1 02 1 0110-
207 SPACER; 4TH C/MBR 1-53168-163-1 02 1 0110-
255 WASHER; PL,BRKT
ID=15 MAL 		9-09651-069-0 64 1 0110-1201
255 WASHER; PL,BRKT
ID=15 		8-98010-627-1 64 1 1202-
344 MEMBER; CROSS,4TH 1-53171-953-2 01 1 0110-
345 MEMBER; CROSS,5TH 1-53171-953-2 01 1 0110-
416 GUSSET; 3RD C/MBR 1-53164-213-1 01 1 0110-
416 GUSSET; 3RD C/MBR 1-53164-214-1 01 1 0110-
