◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11360 - FTR(MALAYSIA)W/B6000 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#55449) — 201 parça

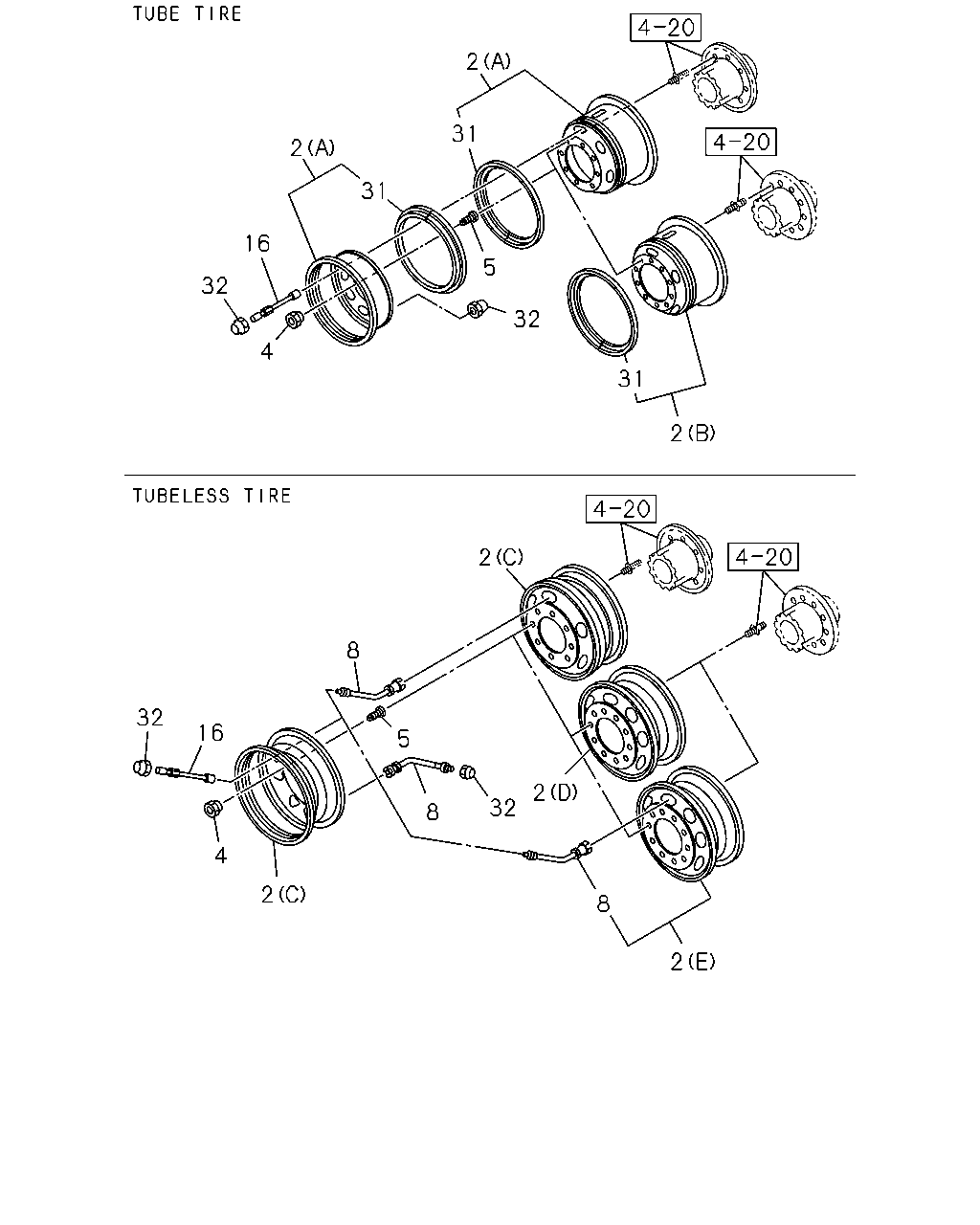

çizim 173373
2 31 2 31 16 5 32 32 4 31 2 2 8 32 16 5 2 32 8 4 2 8 2
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL 10STUD 20X7.00T(Q58) DISC WHEEL SPECIAL PAINTED<W20> (B) SPARE 		1-42350-527-0 01 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 10STUD 20X7.00T(Q58) DISC WHEEL SPECIAL PAINTED<W20> (B) FRONT,REAR 		1-42350-527-0 06 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 10STUD 20X7.00T(Q58) EXC. DISC WHEEL SPECIAL PAINTED<W20> (B) FRONT,REAR 		1-42350-447-0 06 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 10STUD 20X7.00T(Q58) (B) FRONT,REAR 		1-42350-447-0 06 1 0205-
2 WHEEL; DISC
DISC WHEEL 10STUD 20X7.00T(Q58) EXC. DISC WHEEL SPECIAL PAINTED<W20> (B) SPARE 		1-42350-447-0 01 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 10STUD 20X7.00T(Q58) (B) SPARE 		1-42350-447-0 01 1 0205-
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (E) SPARE 		1-42350-539-0 01 1 0110-0302
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (E) FRONT,REAR 		1-42350-539-0 06 1 0110-0302
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) EXC. DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (E) FRONT,REAR 		1-42350-544-0 06 1 0110-0211
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL NOT PAINTED LEMMERZ BLACK<TGU> (E) FRONT,REAR 		1-42350-544-0 06 1 0212-0302
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (E) FRONT,REAR 		1-42350-636-0 06 1 0303-0304
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (E) FRONT,REAR 		1-42350-544-0 06 1 0305-0310
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (E) FRONT,REAR 		1-42350-636-0 06 1 0311-0604
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (D) FRONT,REAR 		1-42350-745-0 06 1 0605-
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) EXC. DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (E) SPARE 		1-42350-544-0 01 1 0110-0211
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL NOT PAINTED LEMMERZ BLACK<TGU> (E) SPARE 		1-42350-544-0 01 1 0212-0302
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (E) SPARE 		1-42350-636-0 01 1 0303-0304
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (E) SPARE 		1-42350-544-0 01 1 0305-0310
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (E) SPARE 		1-42350-636-0 01 1 0311-0604
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (E) SPARE 		1-42350-745-0 01 1 0605-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) SPARE 		1-42350-448-0 01 1 0110-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) FRONT,REAR 		1-42350-448-0 06 1 0110-
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 152-11(Q50) DISC WHEEL SPECIAL PAINTED<W20> (A) SPARE 		1-42350-524-0 01 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 152-11(Q50) DISC WHEEL SPECIAL PAINTED<W20> (A) FRONT,REAR 		1-42350-524-0 06 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 152-11(Q50) EXC. DISC WHEEL SPECIAL PAINTED<W20> (A) SPARE 		1-42350-268-2 01 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 152-11(Q50) (A) FRONT,REAR 		1-42350-268-2 06 1 0205-
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 152-11(Q50) EXC. DISC WHEEL SPECIAL PAINTED<W20> (A) FRONT,REAR 		1-42350-268-2 06 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 152-11(Q50) (A) SPARE 		1-42350-268-2 01 1 0205-
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) DISC WHEEL SPECIAL PAINTED<W20> (A) SPARE 		1-42350-526-0 01 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) DISC WHEEL SPECIAL PAINTED<W20> (A) FRONT,REAR 		1-42350-526-0 06 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) EXC. DISC WHEEL SPECIAL PAINTED<W20> (A) SPARE MAL 		1-42350-478-0 01 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A) FRONT,REAR MAL 		1-42350-478-0 06 1 0205-
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) EXC. DISC WHEEL SPECIAL PAINTED<W20> (A) FRONT,REAR MAL 		1-42350-478-0 06 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A) SPARE MAL 		1-42350-478-0 01 1 0205-
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) DISC WHEEL SPECIAL PAINTED<W20> (C) SPARE 		1-42350-529-0 01 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) (C) FRONT,REAR 		1-42350-615-0 06 1 0205-0304
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) (C) FRONT,REAR 		1-42350-655-0 06 1 0305-0311
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) (C) FRONT,REAR 		1-42350-665-0 06 1 0312-0605
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) (C) FRONT,REAR 		1-42350-758-0 06 1 0606-1310
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) (C) FRONT,REAR 		8-98232-031-0 01 1 1311-
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) DISC WHEEL SPECIAL PAINTED<W20> (C) FRONT,REAR 		1-42350-529-0 06 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) (C) SPARE 		1-42350-615-0 01 1 0205-0304
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) (C) SPARE 		1-42350-655-0 01 1 0305-0311
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) (C) SPARE 		1-42350-665-0 01 1 0312-0605
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) (C) SPARE 		1-42350-758-0 01 1 0606-1310
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) (C) SPARE 		8-98232-031-0 06 1 1311-
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) EXC. DISC WHEEL SPECIAL PAINTED<W20> (C) SPARE 		1-42350-429-2 01 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) EXC. DISC WHEEL SPECIAL PAINTED<W20> (C) FRONT,REAR 		1-42350-429-2 06 1 0110-0204
4 NUT; WHEEL,RR AXLE
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) M22 MAL 		1-42333-043-0 20 1 0110-0606
4 NUT; WHEEL,RR AXLE
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) M22X1.5 MAL 		1-42333-050-1 20 1 0607-0907
4 NUT; WHEEL,RR AXLE
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) M22X1.5 MAL 		1-42333-055-0 20 1 0908-
4 NUT; WHEEL,RR AXLE
EXC. DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) M30 LH THREAD MAL 		1-42334-023-0 08 1 0110-0610
4 NUT; WHEEL,RR AXLE
EXC. DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) M30 LH THREAD MAL 		8-97359-810-0 08 1 0611-
4 NUT; WHEEL,RR AXLE
EXC. DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) M30 MAL 		1-42333-023-0 08 1 0110-0610
4 NUT; WHEEL,RR AXLE
EXC. DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) M30 RH THREAD MAL 		8-97359-809-0 08 1 0611-
5 NUT; WHEEL,INNER,RR AXLE
EXC. DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) OUTER M30,INNER M20 LH THREAD MAL 		1-42336-005-1 08 1 0110-0610
5 NUT; WHEEL,INNER,RR AXLE
EXC. DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) OUTER M30,INNER M20 LH THREAD MAL 		8-97359-806-0 08 1 0611-
5 NUT; WHEEL,INNER,RR AXLE
EXC. DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) OUTER M30,INNER M20 RH THREAD MAL 		1-42335-005-1 08 1 0110-0610
5 NUT; WHEEL,INNER,RR AXLE
EXC. DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) OUTER M30,INNER M20 RH THREAD MAL 		8-97359-805-0 08 1 0611-
8 VALVE; TIRE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) SPARE 		1-42370-048-0 01 1 1311-
8 VALVE; TIRE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) FRONT,REAR 		1-42370-048-0 06 1 1311-
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE 		1-42370-041-0 01 1 0304-0304
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> FRONT,REAR 		1-42370-041-0 06 1 0304-0304
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE 		1-42370-041-0 01 1 0311-0604
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> FRONT,REAR 		1-42370-041-0 06 1 0311-0604
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> FRONT,REAR 		1-42370-020-3 06 1 0110-0302
8 VALVE; TIRE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) FRONT,REAR 		1-42370-020-3 06 1 0110-0302
8 VALVE; TIRE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) FRONT,REAR 		1-42370-020-3 06 1 0303-0604
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> FRONT,REAR 		1-42370-020-3 06 1 0605-1310
8 VALVE; TIRE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) FRONT,REAR 		1-42370-020-3 06 1 0605-1310
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> FRONT,REAR 		1-42370-020-3 06 1 1311-
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> SPARE 		1-42370-020-3 01 1 0110-0302
8 VALVE; TIRE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) SPARE 		1-42370-020-3 01 1 0110-0302
8 VALVE; TIRE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) SPARE 		1-42370-020-3 01 1 0303-0604
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE 		1-42370-020-3 01 1 0605-1310
8 VALVE; TIRE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) SPARE 		1-42370-020-3 01 1 0605-1310
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE 		1-42370-020-3 01 1 1311-
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 MAL 		1-42370-024-0 02 1 0110-0210
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) L=170 MAL 		1-42370-024-0 02 1 0211-0304
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T162-12(Q54),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD22.5X7.50 162-12(Q87) L=170 MAL 		1-42370-024-0 02 1 0305-1003
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T162-12(Q54),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD22.5X7.50 162-12(Q87) L=170 MAL 		8-98167-052-0 02 1 1004-1010
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) L=170 MAL 		8-98167-052-0 02 1 1011-1106
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) L=170 MAL 		8-98167-052-0 02 1 1107-
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) KD PREPARATORY PACK<6HF> L=170 MAL 		8-98167-052-0 02 1 1107-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE 		1-42355-014-0 01 1 0110-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) FRONT,REAR 		1-42355-014-0 06 1 0110-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 10STUD 20X7.00T(Q58) EXC. DISC WHEEL SPECIAL PAINTED<W20> SPARE 		1-42355-012-1 01 1 0110-0204
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 10STUD 20X7.00T(Q58) FRONT,REAR 		1-42355-012-1 06 1 0205-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 10STUD 20X7.00T(Q58) EXC. DISC WHEEL SPECIAL PAINTED<W20> FRONT,REAR 		1-42355-012-1 06 1 0110-0204
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 10STUD 20X7.00T(Q58) SPARE 		1-42355-012-1 01 1 0205-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL 10STUD 20X7.00T(Q58) DISC WHEEL SPECIAL PAINTED<W20> SPARE 		1-42355-040-0 01 1 0110-0204
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL 10STUD 20X7.00T(Q58) DISC WHEEL SPECIAL PAINTED<W20> FRONT,REAR 		1-42355-040-0 06 1 0110-0204
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) EXC. DISC WHEEL SPECIAL PAINTED<W20> SPARE MAL 		1-42355-003-1 01 1 0110-0204
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) FRONT,REAR MAL 		1-42355-003-1 06 1 0205-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) EXC. DISC WHEEL SPECIAL PAINTED<W20> FRONT,REAR MAL 		1-42355-003-1 06 1 0110-0204
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE MAL 		1-42355-003-1 01 1 0205-
32 CAP; VALVE
MAL 		1-42374-001-0 05 1 0110-0210
32 CAP; VALVE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) MAL 		1-42374-001-0 05 1 0211-0304
32 CAP; VALVE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T162-12(Q54),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD22.5X7.50 162-12(Q87) MAL 		1-42374-001-0 05 1 0305-0612
32 CAP; VALVE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T162-12(Q54),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) MAL 		1-42374-001-0 05 1 0701-1006
32 CAP; VALVE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) MAL 		1-42374-001-0 07 1 1007-
32 CAP; VALVE
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) MAL 		1-42374-001-0 04 1 1007-
32 CAP; VALVE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> MAL 		1-42374-001-0 01 1 0605-
32 CAP; VALVE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> MAL 		1-42374-001-0 06 1 0605-1006
32 CAP; VALVE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> MAL 		1-42374-001-0 06 1 1007-
32 CAP; VALVE
DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) MAL 		1-42374-001-0 06 1 1007-
32 CAP; VALVE
DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) MAL 		1-42374-001-0 07 1 0211-0304

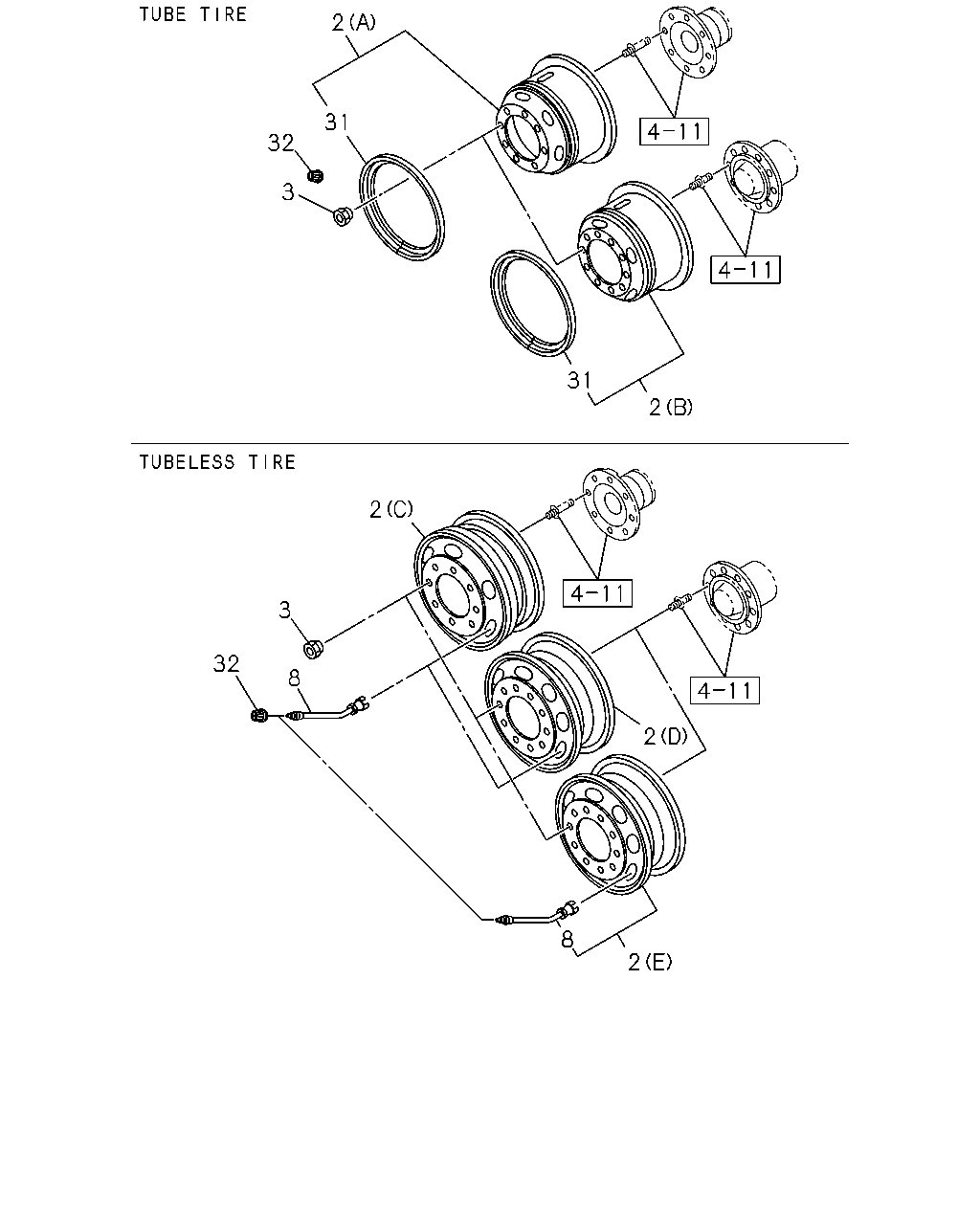

çizim 173394
2 31 32 3 31 2 2 3 32 8 2 8 2
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL 10STUD 20X7.00T(Q58) DISC WHEEL SPECIAL PAINTED<W20> (B) SPARE 		1-42350-527-0 01 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 10STUD 20X7.00T(Q58) DISC WHEEL SPECIAL PAINTED<W20> (B) FRONT,REAR 		1-42350-527-0 06 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 10STUD 20X7.00T(Q58) EXC. DISC WHEEL SPECIAL PAINTED<W20> (B) FRONT,REAR 		1-42350-447-0 06 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 10STUD 20X7.00T(Q58) (B) FRONT,REAR 		1-42350-447-0 06 1 0205-
2 WHEEL; DISC
DISC WHEEL 10STUD 20X7.00T(Q58) EXC. DISC WHEEL SPECIAL PAINTED<W20> (B) SPARE 		1-42350-447-0 01 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 10STUD 20X7.00T(Q58) (B) SPARE 		1-42350-447-0 01 1 0205-
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (E) SPARE 		1-42350-539-0 01 1 0110-0302
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (E) FRONT,REAR 		1-42350-539-0 06 1 0110-0302
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) EXC. DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (E) FRONT,REAR 		1-42350-544-0 06 1 0110-0211
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL NOT PAINTED LEMMERZ BLACK<TGU> (E) FRONT,REAR 		1-42350-544-0 06 1 0212-0302
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (E) FRONT,REAR 		1-42350-636-0 06 1 0303-0304
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (E) FRONT,REAR 		1-42350-544-0 06 1 0305-0310
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (E) FRONT,REAR 		1-42350-636-0 06 1 0311-0604
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (D) FRONT,REAR 		1-42350-745-0 06 1 0605-
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) EXC. DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (E) SPARE 		1-42350-544-0 01 1 0110-0211
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL NOT PAINTED LEMMERZ BLACK<TGU> (E) SPARE 		1-42350-544-0 01 1 0212-0302
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (E) SPARE 		1-42350-636-0 01 1 0303-0304
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (E) SPARE 		1-42350-544-0 01 1 0305-0310
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (E) SPARE 		1-42350-636-0 01 1 0311-0604
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (E) SPARE 		1-42350-745-0 01 1 0605-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) SPARE 		1-42350-448-0 01 1 0110-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) FRONT,REAR 		1-42350-448-0 06 1 0110-
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 152-11(Q50) DISC WHEEL SPECIAL PAINTED<W20> (A) SPARE 		1-42350-524-0 01 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 152-11(Q50) DISC WHEEL SPECIAL PAINTED<W20> (A) FRONT,REAR 		1-42350-524-0 06 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 152-11(Q50) EXC. DISC WHEEL SPECIAL PAINTED<W20> (A) SPARE 		1-42350-268-2 01 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 152-11(Q50) (A) FRONT,REAR 		1-42350-268-2 06 1 0205-
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 152-11(Q50) EXC. DISC WHEEL SPECIAL PAINTED<W20> (A) FRONT,REAR 		1-42350-268-2 06 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 152-11(Q50) (A) SPARE 		1-42350-268-2 01 1 0205-
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) DISC WHEEL SPECIAL PAINTED<W20> (A) SPARE 		1-42350-526-0 01 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) DISC WHEEL SPECIAL PAINTED<W20> (A) FRONT,REAR 		1-42350-526-0 06 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) EXC. DISC WHEEL SPECIAL PAINTED<W20> (A) SPARE MAL 		1-42350-478-0 01 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A) FRONT,REAR MAL 		1-42350-478-0 06 1 0205-
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) EXC. DISC WHEEL SPECIAL PAINTED<W20> (A) FRONT,REAR MAL 		1-42350-478-0 06 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A) SPARE MAL 		1-42350-478-0 01 1 0205-
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) DISC WHEEL SPECIAL PAINTED<W20> (C) SPARE 		1-42350-529-0 01 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) (C) FRONT,REAR 		1-42350-615-0 06 1 0205-0304
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) (C) FRONT,REAR 		1-42350-655-0 06 1 0305-0311
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) (C) FRONT,REAR 		1-42350-665-0 06 1 0312-0605
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) (C) FRONT,REAR 		1-42350-758-0 06 1 0606-1310
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) (C) FRONT,REAR 		8-98232-031-0 01 1 1311-
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) DISC WHEEL SPECIAL PAINTED<W20> (C) FRONT,REAR 		1-42350-529-0 06 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) (C) SPARE 		1-42350-615-0 01 1 0205-0304
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) (C) SPARE 		1-42350-655-0 01 1 0305-0311
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) (C) SPARE 		1-42350-665-0 01 1 0312-0605
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) (C) SPARE 		1-42350-758-0 01 1 0606-1310
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) (C) SPARE 		8-98232-031-0 06 1 1311-
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) EXC. DISC WHEEL SPECIAL PAINTED<W20> (C) SPARE 		1-42350-429-2 01 1 0110-0204
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) EXC. DISC WHEEL SPECIAL PAINTED<W20> (C) FRONT,REAR 		1-42350-429-2 06 1 0110-0204
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) M22 MAL 		1-42333-043-0 20 1 0110-0606
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) M22X1.5 MAL 		1-42333-050-1 20 1 0607-0907
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) M22X1.5 MAL 		1-42333-055-0 20 1 0908-
3 NUT; WHEEL,FRT AXLE
EXC. DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) M24 LH THREAD MAL 		1-42334-022-3 08 1 0110-
3 NUT; WHEEL,FRT AXLE
EXC. DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) M24 MAL 		1-42333-022-3 08 1 0110-
8 VALVE; TIRE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) SPARE 		1-42370-048-0 01 1 1311-
8 VALVE; TIRE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) FRONT,REAR 		1-42370-048-0 06 1 1311-
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE 		1-42370-041-0 01 1 0304-0304
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> FRONT,REAR 		1-42370-041-0 06 1 0304-0304
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE 		1-42370-041-0 01 1 0311-0604
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> FRONT,REAR 		1-42370-041-0 06 1 0311-0604
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> FRONT,REAR 		1-42370-020-3 06 1 0110-0302
8 VALVE; TIRE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) FRONT,REAR 		1-42370-020-3 06 1 0110-0302
8 VALVE; TIRE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) FRONT,REAR 		1-42370-020-3 06 1 0303-0604
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> FRONT,REAR 		1-42370-020-3 06 1 0605-1310
8 VALVE; TIRE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) FRONT,REAR 		1-42370-020-3 06 1 0605-1310
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> FRONT,REAR 		1-42370-020-3 06 1 1311-
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> SPARE 		1-42370-020-3 01 1 0110-0302
8 VALVE; TIRE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) SPARE 		1-42370-020-3 01 1 0110-0302
8 VALVE; TIRE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) SPARE 		1-42370-020-3 01 1 0303-0604
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE 		1-42370-020-3 01 1 0605-1310
8 VALVE; TIRE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) SPARE 		1-42370-020-3 01 1 0605-1310
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE 		1-42370-020-3 01 1 1311-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE 		1-42355-014-0 01 1 0110-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) FRONT,REAR 		1-42355-014-0 06 1 0110-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 10STUD 20X7.00T(Q58) EXC. DISC WHEEL SPECIAL PAINTED<W20> SPARE 		1-42355-012-1 01 1 0110-0204
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 10STUD 20X7.00T(Q58) FRONT,REAR 		1-42355-012-1 06 1 0205-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 10STUD 20X7.00T(Q58) EXC. DISC WHEEL SPECIAL PAINTED<W20> FRONT,REAR 		1-42355-012-1 06 1 0110-0204
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 10STUD 20X7.00T(Q58) SPARE 		1-42355-012-1 01 1 0205-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL 10STUD 20X7.00T(Q58) DISC WHEEL SPECIAL PAINTED<W20> SPARE 		1-42355-040-0 01 1 0110-0204
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL 10STUD 20X7.00T(Q58) DISC WHEEL SPECIAL PAINTED<W20> FRONT,REAR 		1-42355-040-0 06 1 0110-0204
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) EXC. DISC WHEEL SPECIAL PAINTED<W20> SPARE MAL 		1-42355-003-1 01 1 0110-0204
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) FRONT,REAR MAL 		1-42355-003-1 06 1 0205-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) EXC. DISC WHEEL SPECIAL PAINTED<W20> FRONT,REAR MAL 		1-42355-003-1 06 1 0110-0204
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE MAL 		1-42355-003-1 01 1 0205-
32 CAP; VALVE
MAL 		1-42374-001-0 05 1 0110-0210
32 CAP; VALVE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) MAL 		1-42374-001-0 05 1 0211-0304
32 CAP; VALVE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T162-12(Q54),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD22.5X7.50 162-12(Q87) MAL 		1-42374-001-0 05 1 0305-0612
32 CAP; VALVE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T162-12(Q54),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) MAL 		1-42374-001-0 05 1 0701-1006
32 CAP; VALVE
DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) MAL 		1-42374-001-0 07 1 1007-
32 CAP; VALVE
DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) MAL 		1-42374-001-0 04 1 1007-
32 CAP; VALVE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> MAL 		1-42374-001-0 01 1 0605-
32 CAP; VALVE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> MAL 		1-42374-001-0 06 1 0605-1006
32 CAP; VALVE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> MAL 		1-42374-001-0 06 1 1007-
32 CAP; VALVE
DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) MAL 		1-42374-001-0 06 1 1007-
32 CAP; VALVE
DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) MAL 		1-42374-001-0 07 1 0211-0304
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
