1 |

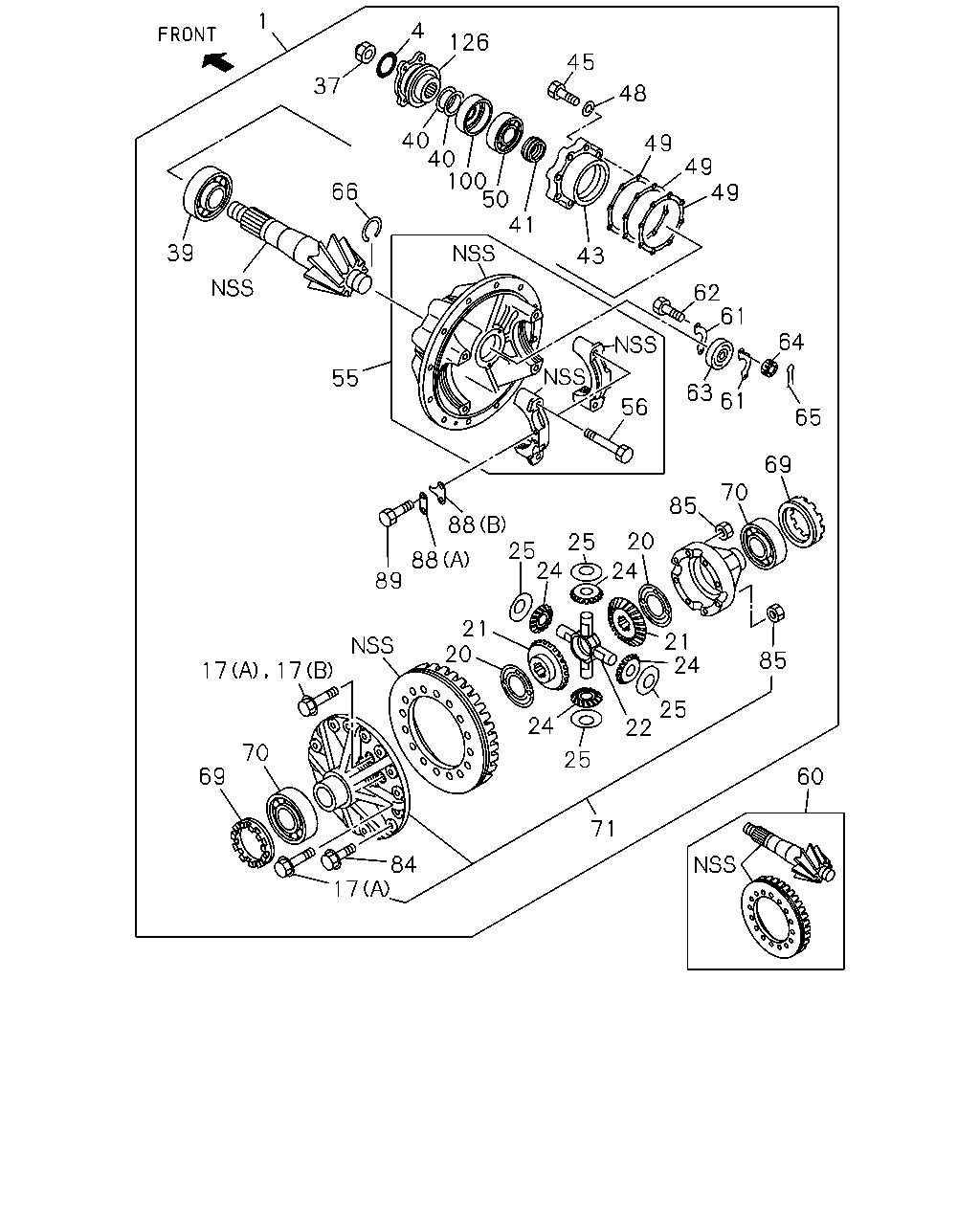

DRIVE ASM; FINAL,RR
43/7
|
1-41000-923-0 |
01 |
1 |
0110- |
● |
|
|
| |
1 |
DRIVE ASM; FINAL,RR
39/6
|
1-41000-380-0 |
01 |
1 |
0511-0602 |
|
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
39/6
|
1-41001-060-0 |
01 |
1 |
0604- |
|
● |
|
| |
1 |
DRIVE ASM; FINAL,RR
41/6
|
1-41003-298-0 |
01 |
1 |
0610- |
|
|
● |
| |
4 |
GASKET; FLANGE,FINAL PINION
ID=42
|
1-09623-475-0 |
01 |
1 |
0110-0208 |
● |
|
|
| |
4 |
GASKET; FLANGE,FINAL PINION
ID=42
|
9-09921-116-0 |
01 |
1 |
0209-0510 |
● |
|
|
| |
4 |
GASKET; FLANGE,FINAL PINION
ID=42
|
9-09921-116-0 |
01 |
1 |
0511-0602 |
● |
● |
|
| |
4 |
GASKET; FLANGE,FINAL PINION
ID=42
|
9-09921-116-0 |
01 |
1 |
0603-0603 |
● |
|
|
| |
4 |
GASKET; FLANGE,FINAL PINION
ID=42
|
9-09921-116-0 |
01 |
1 |
0604-0609 |
● |
● |
|
| |
4 |
GASKET; FLANGE,FINAL PINION
ID=42
|
9-09921-116-0 |
01 |
1 |
0610- |
● |
● |
● |
| |
17 |
BOLT; DIFF CAGE SETTING
(A)
M14X121 FLANGE
|
1-09044-006-0 |
08 |
1 |
0110-0510 |
● |
|
|
| |
17 |
BOLT; DIFF CAGE SETTING
(A)
M14X121 FLANGE
|
1-09044-006-0 |
08 |
1 |
0511-0602 |
● |
● |
|
| |
17 |
BOLT; DIFF CAGE SETTING
(A)
M14X121 FLANGE
|
1-09044-006-0 |
08 |
1 |
0603-0603 |
● |
|
|
| |
17 |
BOLT; DIFF CAGE SETTING
(A)
M14X121 FLANGE
|
1-09044-006-0 |
08 |
1 |
0604-0609 |
● |
● |
|
| |
17 |
BOLT; DIFF CAGE SETTING
(A)
M14X121 FLANGE
|
1-09044-006-0 |
08 |
1 |
0610- |
● |
● |
● |
| |
17 |
BOLT; DIFF CAGE SETTING
(B)
M14X95 FLANGE
|
1-09044-007-0 |
04 |
1 |
0110-0510 |
● |
|
|
| |
17 |
BOLT; DIFF CAGE SETTING
(B)
M14X95 FLANGE
|
1-09044-007-0 |
04 |
1 |
0511-0602 |
● |
● |
|
| |
17 |
BOLT; DIFF CAGE SETTING
(B)
M14X95 FLANGE
|
1-09044-007-0 |
04 |
1 |
0603-0603 |
● |
|
|
| |
17 |
BOLT; DIFF CAGE SETTING
(B)
M14X95 FLANGE
|
1-09044-007-0 |
04 |
1 |
0604-0609 |
● |
● |
|
| |
17 |
BOLT; DIFF CAGE SETTING
(B)
M14X95 FLANGE
|
1-09044-007-0 |
04 |
1 |
0610- |
● |
● |
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.80
|
1-41562-169-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.80
|
1-41562-169-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.80
|
1-41562-169-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.80
|
1-41562-169-0 |
AR |
1 |
0604- |
● |
● |
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.90
|
1-41562-170-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.90
|
1-41562-170-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.90
|
1-41562-170-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.90
|
1-41562-170-0 |
AR |
1 |
0604- |
● |
● |
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.00
|
1-41562-171-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.00
|
1-41562-171-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.00
|
1-41562-171-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.00
|
1-41562-171-0 |
AR |
1 |
0604- |
● |
● |
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.10
|
1-41562-172-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.10
|
1-41562-172-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.10
|
1-41562-172-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.10
|
1-41562-172-0 |
AR |
1 |
0604- |
● |
● |
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.20
|
1-41562-173-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.20
|
1-41562-173-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.20
|
1-41562-173-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.20
|
1-41562-173-0 |
AR |
1 |
0604- |
● |
● |
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.30
|
1-41562-174-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.30
|
1-41562-174-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.30
|
1-41562-174-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.30
|
1-41562-174-0 |
AR |
1 |
0604- |
● |
● |
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.40
|
1-41562-175-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.40
|
1-41562-175-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.40
|
1-41562-175-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.40
|
1-41562-175-0 |
AR |
1 |
0604- |
● |
● |
|
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.80
|
1-41562-169-0 |
02 |
1 |
0610- |
|
|
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.90
|
1-41562-170-0 |
02 |
1 |
0610- |
|
|
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.00
|
1-41562-171-0 |
02 |
1 |
0610- |
|
|
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.10
|
1-41562-172-0 |
02 |
1 |
0610- |
|
|
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.20
|
1-41562-173-0 |
02 |
1 |
0610- |
|
|
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.30
|
1-41562-174-0 |
02 |
1 |
0610- |
|
|
● |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.40
|
1-41562-175-0 |
02 |
1 |
0610- |
|
|
● |
| |
21 |
GEAR; SIDE,DIFF
Z=16
|
1-41561-076-0 |
02 |
1 |
0110-0405 |
● |
|
|
| |
21 |
GEAR; SIDE,DIFF
Z=16
|
1-41561-123-0 |
02 |
1 |
0406-0510 |
● |
|
|
| |
21 |
GEAR; SIDE,DIFF
Z=16
|
1-41561-123-0 |
02 |
1 |
0511-0602 |
● |
● |
|
| |
21 |
GEAR; SIDE,DIFF
Z=16
|
1-41561-123-0 |
02 |
1 |
0603-0603 |
● |
|
|
| |
21 |
GEAR; SIDE,DIFF
Z=16
|
1-41561-123-0 |
02 |
1 |
0604-0609 |
● |
● |
|
| |
21 |
GEAR; SIDE,DIFF
Z=16
|
1-41561-123-0 |
02 |
1 |
0610-0911 |
● |
● |
● |
| |
21 |
GEAR; SIDE,DIFF
Z=16
|
1-41561-162-0 |
02 |
1 |
0912- |
● |
● |
● |
| |
22 |
SPIDER; DIFF PINION
OD=32
|
1-41521-002-1 |
01 |
1 |
0110-0510 |
● |
|
|
| |
22 |
SPIDER; DIFF PINION
OD=32
|
1-41521-002-1 |
01 |
1 |
0511-0602 |
● |
● |
|
| |
22 |
SPIDER; DIFF PINION
OD=32
|
1-41521-002-1 |
01 |
1 |
0603-0603 |
● |
|
|
| |
22 |
SPIDER; DIFF PINION
OD=32
|
1-41521-002-1 |
01 |
1 |
0604-0609 |
● |
● |
|
| |
22 |
SPIDER; DIFF PINION
OD=32
|
1-41521-002-1 |
01 |
1 |
0610- |
● |
● |
● |
| |
24 |
GEAR; PINION,DIFF
Z=10
|
1-41551-022-0 |
04 |
1 |
0110-0405 |
● |
|
|
| |
24 |
GEAR; PINION,DIFF
Z=10
|
1-41551-040-0 |
04 |
1 |
0406-0510 |
● |
|
|
| |
24 |
GEAR; PINION,DIFF
Z=10
|
1-41551-040-0 |
04 |
1 |
0511-0602 |
● |
● |
|
| |
24 |
GEAR; PINION,DIFF
Z=10
|
1-41551-040-0 |
04 |
1 |
0603-0603 |
● |
|
|
| |
24 |
GEAR; PINION,DIFF
Z=10
|
1-41551-040-0 |
04 |
1 |
0604-0609 |
● |
● |
|
| |
24 |
GEAR; PINION,DIFF
Z=10
|
1-41551-040-0 |
04 |
1 |
0610-0911 |
● |
● |
● |
| |
24 |
GEAR; PINION,DIFF
Z=10
|
1-41551-052-0 |
04 |
1 |
0912- |
● |
● |
● |
| |
25 |
WASHER; THRUST,PINION
T=1.6
|
1-41552-001-0 |
04 |
1 |
0110-0510 |
● |
|
|
| |
25 |
WASHER; THRUST,PINION
T=1.6
|
1-41552-001-0 |
04 |
1 |
0511-0602 |
● |
● |
|
| |
25 |
WASHER; THRUST,PINION
T=1.6
|
1-41552-001-0 |
04 |
1 |
0603-0603 |
● |
|
|
| |
25 |
WASHER; THRUST,PINION
T=1.6
|
1-41552-001-0 |
04 |
1 |
0604-0609 |
● |
● |
|
| |
25 |
WASHER; THRUST,PINION
T=1.6
|
1-41552-001-0 |
04 |
1 |
0610- |
● |
● |
● |
| |
37 |
NUT; DRIVING PINION
M39 FLANGE
|
1-09449-056-2 |
01 |
1 |
0110-0510 |
● |
|
|
| |
37 |
NUT; DRIVING PINION
M39 FLANGE
|
1-09449-056-2 |
01 |
1 |
0511-0602 |
● |
● |
|
| |
37 |
NUT; DRIVING PINION
M39 FLANGE
|
1-09449-056-2 |
01 |
1 |
0603-0603 |
● |
|
|
| |
37 |
NUT; DRIVING PINION
M39 FLANGE
|
1-09449-056-2 |
01 |
1 |
0604-0609 |
● |
● |
|
| |
37 |
NUT; DRIVING PINION
M39 FLANGE
|
1-09449-056-2 |
01 |
1 |
0610- |
● |
● |
● |
| |
39 |
BEARING; FINAL PINION
NSK
|
1-09812-086-0 |
01 |
1 |
0110-0510 |
● |
|
|
| |
39 |
BEARING; FINAL PINION
NSK
|
1-09812-086-0 |
01 |
1 |
0511-0602 |
● |
● |
|
| |
39 |
BEARING; FINAL PINION
NSK
|
1-09812-086-0 |
01 |
1 |
0603-0603 |
● |
|
|
| |
39 |
BEARING; FINAL PINION
NSK
|
1-09812-086-0 |
01 |
1 |
0604-0609 |
● |
● |
|
| |
39 |
BEARING; FINAL PINION
NSK
|
1-09812-086-0 |
01 |
1 |
0610- |
● |
● |
● |
| |
39 |
BEARING; FINAL PINION
NTN
|
9-00093-072-1 |
01 |
1 |
0110-0510 |
● |
|
|
| |
39 |
BEARING; FINAL PINION
NTN
|
9-00093-072-1 |
01 |
1 |
0511-0602 |
● |
● |
|
| |
39 |
BEARING; FINAL PINION
NTN
|
9-00093-072-1 |
01 |
1 |
0603-0603 |
● |
|
|
| |
39 |
BEARING; FINAL PINION
NTN
|
9-00093-072-1 |
01 |
1 |
0604-0609 |
● |
● |
|
| |
39 |
BEARING; FINAL PINION
NTN
|
9-00093-072-1 |
01 |
1 |
0610- |
● |
● |
● |
| |
39 |
BEARING; FINAL PINION
JTEKT
|
9-00093-206-2 |
01 |
1 |
0110-0510 |
● |
|
|
| |
39 |
BEARING; FINAL PINION
JTEKT
|
9-00093-206-2 |
01 |
1 |
0511-0602 |
● |
● |
|
| |
39 |
BEARING; FINAL PINION
JTEKT
|
9-00093-206-2 |
01 |
1 |
0603-0603 |
● |
|
|
| |
39 |
BEARING; FINAL PINION
JTEKT
|
9-00093-206-2 |
01 |
1 |
0604-0609 |
● |
● |
|
| |
39 |
BEARING; FINAL PINION
JTEKT
|
9-00093-206-2 |
01 |
1 |
0610- |
● |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.50
|
1-41229-106-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
40 |
SHIM; FINAL PINION
T=3.50
|
1-41229-106-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
40 |
SHIM; FINAL PINION
T=3.50
|
1-41229-106-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
40 |
SHIM; FINAL PINION
T=3.50
|
1-41229-106-0 |
AR |
1 |
0604-0609 |
● |
● |
|
| |
40 |
SHIM; FINAL PINION
T=3.50
|
1-41229-106-0 |
AR |
1 |
0610- |
● |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.51
|
1-41229-107-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
40 |
SHIM; FINAL PINION
T=3.51
|
1-41229-107-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
40 |
SHIM; FINAL PINION
T=3.51
|
1-41229-107-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
40 |
SHIM; FINAL PINION
T=3.51
|
1-41229-107-0 |
AR |
1 |
0604-0609 |
● |
● |
|
| |
40 |
SHIM; FINAL PINION
T=3.51
|
1-41229-107-0 |
AR |
1 |
0610- |
● |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.52
|
1-41229-108-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
40 |
SHIM; FINAL PINION
T=3.52
|
1-41229-108-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
40 |
SHIM; FINAL PINION
T=3.52
|
1-41229-108-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
40 |
SHIM; FINAL PINION
T=3.52
|
1-41229-108-0 |
AR |
1 |
0604-0609 |
● |
● |
|
| |
40 |
SHIM; FINAL PINION
T=3.52
|
1-41229-108-0 |
AR |
1 |
0610- |
● |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.53
|
1-41229-109-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
40 |
SHIM; FINAL PINION
T=3.53
|
1-41229-109-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
40 |
SHIM; FINAL PINION
T=3.53
|
1-41229-109-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
40 |
SHIM; FINAL PINION
T=3.53
|
1-41229-109-0 |
AR |
1 |
0604-0609 |
● |
● |
|
| |
40 |
SHIM; FINAL PINION
T=3.53
|
1-41229-109-0 |
AR |
1 |
0610- |
● |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.54
|
1-41229-110-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
40 |
SHIM; FINAL PINION
T=3.54
|
1-41229-110-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
40 |
SHIM; FINAL PINION
T=3.54
|
1-41229-110-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
40 |
SHIM; FINAL PINION
T=3.54
|
1-41229-110-0 |
AR |
1 |
0604-0609 |
● |
● |
|
| |
40 |
SHIM; FINAL PINION
T=3.54
|
1-41229-110-0 |
AR |
1 |
0610- |
● |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.55
|
1-41229-111-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
40 |
SHIM; FINAL PINION
T=3.55
|
1-41229-111-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
40 |
SHIM; FINAL PINION
T=3.55
|
1-41229-111-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
40 |
SHIM; FINAL PINION
T=3.55
|
1-41229-111-0 |
AR |
1 |
0604-0609 |
● |
● |
|
| |
40 |
SHIM; FINAL PINION
T=3.55
|
1-41229-111-0 |
AR |
1 |
0610- |
● |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.56
|
1-41229-112-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
40 |
SHIM; FINAL PINION
T=3.56
|
1-41229-112-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
40 |
SHIM; FINAL PINION
T=3.56
|
1-41229-112-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
40 |
SHIM; FINAL PINION
T=3.56
|
1-41229-112-0 |
AR |
1 |
0604-0609 |
● |
● |
|
| |
40 |
SHIM; FINAL PINION
T=3.56
|
1-41229-112-0 |
AR |
1 |
0610- |
● |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.57
|
1-41229-113-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
40 |
SHIM; FINAL PINION
T=3.57
|
1-41229-113-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
40 |
SHIM; FINAL PINION
T=3.57
|
1-41229-113-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
40 |
SHIM; FINAL PINION
T=3.57
|
1-41229-113-0 |
AR |
1 |
0604-0609 |
● |
● |
|
| |
40 |
SHIM; FINAL PINION
T=3.57
|
1-41229-113-0 |
AR |
1 |
0610- |
● |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.58
|
1-41229-114-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
40 |
SHIM; FINAL PINION
T=3.58
|
1-41229-114-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
40 |
SHIM; FINAL PINION
T=3.58
|
1-41229-114-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
40 |
SHIM; FINAL PINION
T=3.58
|
1-41229-114-0 |
AR |
1 |
0604-0609 |
● |
● |
|
| |
40 |
SHIM; FINAL PINION
T=3.58
|
1-41229-114-0 |
AR |
1 |
0610- |
● |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.59
|
1-41229-115-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
40 |
SHIM; FINAL PINION
T=3.59
|
1-41229-115-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
40 |
SHIM; FINAL PINION
T=3.59
|
1-41229-115-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
40 |
SHIM; FINAL PINION
T=3.59
|
1-41229-115-0 |
AR |
1 |
0604-0609 |
● |
● |
|
| |
40 |
SHIM; FINAL PINION
T=3.59
|
1-41229-115-0 |
AR |
1 |
0610- |
● |
● |
● |
| |
40 |
SHIM; FINAL PINION
T=3.60
|
1-41229-116-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
40 |
SHIM; FINAL PINION
T=3.60
|
1-41229-116-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
40 |
SHIM; FINAL PINION
T=3.60
|
1-41229-116-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
40 |
SHIM; FINAL PINION
T=3.60
|
1-41229-116-0 |
AR |
1 |
0604-0609 |
● |
● |
|
| |
40 |
SHIM; FINAL PINION
T=3.60
|
1-41229-116-0 |
AR |
1 |
0610- |
● |
● |
● |
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=7.600
|
1-41229-101-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=7.600
|
1-41229-101-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=7.600
|
1-41229-101-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=7.600
|
1-41229-101-0 |
AR |
1 |
0604-0609 |
● |
● |
|
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=7.600
|
1-41229-101-0 |
AR |
1 |
0610- |
● |
● |
● |
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=7.800
|
1-41229-102-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=7.800
|
1-41229-102-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=7.800
|
1-41229-102-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=7.800
|
1-41229-102-0 |
AR |
1 |
0604-0609 |
● |
● |
|
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=7.800
|
1-41229-102-0 |
AR |
1 |
0610- |
● |
● |
● |
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=8.000
|
1-41229-103-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=8.000
|
1-41229-103-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=8.000
|
1-41229-103-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=8.000
|
1-41229-103-0 |
AR |
1 |
0604-0609 |
● |
● |
|
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=8.000
|
1-41229-103-0 |
AR |
1 |
0610- |
● |
● |
● |
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=8.200
|
1-41229-104-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=8.200
|
1-41229-104-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=8.200
|
1-41229-104-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=8.200
|
1-41229-104-0 |
AR |
1 |
0604-0609 |
● |
● |
|
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=8.200
|
1-41229-104-0 |
AR |
1 |
0610- |
● |
● |
● |
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=8.400
|
1-41229-105-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=8.400
|
1-41229-105-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=8.400
|
1-41229-105-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=8.400
|
1-41229-105-0 |
AR |
1 |
0604-0609 |
● |
● |
|
| |
41 |
SPACER; FINAL DRIVE PINION BRG
T=8.400
|
1-41229-105-0 |
AR |
1 |
0610- |
● |
● |
● |
| |
43 |
CAGE; FINAL PINION
T=75
|
1-41151-005-0 |
01 |
1 |
0110-0510 |
● |
|
|
| |
43 |
CAGE; FINAL PINION
T=75
|
1-41151-005-0 |
01 |
1 |
0511-0602 |
● |
● |
|
| |
43 |
CAGE; FINAL PINION
T=75
|
1-41151-005-0 |
01 |
1 |
0603-0603 |
● |
|
|
| |
43 |
CAGE; FINAL PINION
T=75
|
1-41151-005-0 |
01 |
1 |
0604-0609 |
● |
● |
|
| |
43 |
CAGE; FINAL PINION
T=75
|
1-41151-005-0 |
01 |
1 |
0610- |
● |
● |
● |
| |
45 |
BOLT; FINAL PINION CAGE
M14X50
|
0-16806-450-0 |
08 |
1 |
0110-0510 |
● |
|
|
| |
45 |
BOLT; FINAL PINION CAGE
M14X50
|
0-16806-450-0 |
08 |
1 |
0511-0602 |
● |
● |
|
| |
45 |
BOLT; FINAL PINION CAGE
M14X50
|
0-16806-450-0 |
08 |
1 |
0603-0603 |
● |
|
|
| |
45 |
BOLT; FINAL PINION CAGE
M14X50
|
0-16806-450-0 |
08 |
1 |
0604-0609 |
● |
● |
|
| |
45 |
BOLT; FINAL PINION CAGE
M14X50
|
0-16806-450-0 |
08 |
1 |
0610- |
● |
● |
● |
| |
48 |
WASHER; LK,FINAL PINION
ID=14.2
|
9-09150-514-0 |
08 |
1 |
0110-0510 |
● |
|
|
| |
48 |
WASHER; LK,FINAL PINION
ID=14.2
|
9-09150-514-0 |
08 |
1 |
0511-0602 |
● |
● |
|
| |
48 |
WASHER; LK,FINAL PINION
ID=14.2
|
9-09150-514-0 |
08 |
1 |
0603-0603 |
● |
|
|
| |
48 |
WASHER; LK,FINAL PINION
ID=14.2
|
9-09150-514-0 |
08 |
1 |
0604-0604 |
● |
● |
|
| |
48 |
WASHER; LK,FINAL PINION
ID=14.2
|
0-91510-514-0 |
08 |
1 |
0604-0609 |
● |
● |
|
| |
48 |
WASHER; LK,FINAL PINION
ID=14.2
|
0-91510-514-0 |
08 |
1 |
0610- |
● |
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
T=1.000
|
1-41154-009-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
49 |
SHIM; FINAL PINION CAGE
T=1.000
|
1-41154-009-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
49 |
SHIM; FINAL PINION CAGE
T=1.000
|
1-41154-009-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
49 |
SHIM; FINAL PINION CAGE
T=1.000
|
1-41154-009-0 |
AR |
1 |
0604-0609 |
● |
● |
|
| |
49 |
SHIM; FINAL PINION CAGE
T=1.000
|
1-41154-009-0 |
AR |
1 |
0610- |
● |
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
T=0.500
|
1-41154-010-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
49 |
SHIM; FINAL PINION CAGE
T=0.500
|
1-41154-010-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
49 |
SHIM; FINAL PINION CAGE
T=0.500
|
1-41154-010-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
49 |
SHIM; FINAL PINION CAGE
T=0.500
|
1-41154-010-0 |
AR |
1 |
0604-0609 |
● |
● |
|
| |
49 |
SHIM; FINAL PINION CAGE
T=0.500
|
1-41154-010-0 |
AR |
1 |
0610- |
● |
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
T=0.300
|
1-41154-104-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
49 |
SHIM; FINAL PINION CAGE
T=0.300
|
1-41154-104-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
49 |
SHIM; FINAL PINION CAGE
T=0.300
|
1-41154-104-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
49 |
SHIM; FINAL PINION CAGE
T=0.300
|
1-41154-104-0 |
AR |
1 |
0604-0609 |
● |
● |
|
| |
49 |
SHIM; FINAL PINION CAGE
T=0.300
|
1-41154-104-0 |
AR |
1 |
0610- |
● |
● |
● |
| |
49 |
SHIM; FINAL PINION CAGE
T=0.400
|
1-41154-105-0 |
AR |
1 |
0110-0510 |
● |
|
|
| |
49 |
SHIM; FINAL PINION CAGE
T=0.400
|
1-41154-105-0 |
AR |
1 |
0511-0602 |
● |
● |
|
| |
49 |
SHIM; FINAL PINION CAGE
T=0.400
|
1-41154-105-0 |
AR |
1 |
0603-0603 |
● |
|
|
| |
49 |
SHIM; FINAL PINION CAGE
T=0.400
|
1-41154-105-0 |
AR |
1 |
0604-0609 |
● |
● |
|
| |
49 |
SHIM; FINAL PINION CAGE
T=0.400
|
1-41154-105-0 |
AR |
1 |
0610- |
● |
● |
● |
| |
50 |
BEARING; FINAL PINION
NTN
|
1-09812-013-0 |
01 |
1 |
0110-0510 |
● |
|
|
| |
50 |
BEARING; FINAL PINION
NTN
|
1-09812-013-0 |
01 |
1 |
0511-0602 |
● |
● |
|
| |
50 |
BEARING; FINAL PINION
NTN
|
1-09812-013-0 |
01 |
1 |
0603-0603 |
● |
|
|
| |
50 |
BEARING; FINAL PINION
NTN
|
1-09812-013-0 |
01 |
1 |
0604-0609 |
● |
● |
|
| |
50 |
BEARING; FINAL PINION
NTN
|
1-09812-013-0 |
01 |
1 |
0610- |
● |
● |
● |
| |
50 |
BEARING; FINAL PINION
JTEKT
|
1-09812-070-1 |
01 |
1 |
0110-0510 |
● |
|
|
| |
50 |
BEARING; FINAL PINION
JTEKT
|
1-09812-070-1 |
01 |
1 |
0511-0602 |
● |
● |
|
| |
50 |
BEARING; FINAL PINION
JTEKT
|
1-09812-070-1 |
01 |
1 |
0603-0603 |
● |
|
|
| |
50 |
BEARING; FINAL PINION
JTEKT
|
1-09812-070-1 |
01 |
1 |
0604-0609 |
● |
● |
|
| |
50 |
BEARING; FINAL PINION
JTEKT
|
1-09812-070-1 |
01 |
1 |
0610- |
● |
● |
● |
| |
55 |
CARRIER; DIFF
|
1-41110-120-1 |
01 |
1 |
0110-0510 |
● |
|
|
| |
55 |
CARRIER; DIFF
|
1-41110-120-1 |
01 |
1 |
0511-0602 |
● |
● |
|
| |
55 |
CARRIER; DIFF
|
1-41110-120-1 |
01 |
1 |
0603-0603 |
● |
|
|
| |
55 |
CARRIER; DIFF
|
1-41110-120-1 |
01 |
1 |
0604-0609 |
● |
● |
|
| |
55 |
CARRIER; DIFF
|
1-41110-120-1 |
01 |
1 |
0610- |
● |
● |
● |
| |
56 |
BOLT; BRG CAP
M20X112
|
1-09070-042-0 |
04 |
1 |
0110-0510 |
● |
|
|
| |
56 |
BOLT; BRG CAP
M20X112
|
1-09070-042-0 |
04 |
1 |
0511-0602 |
● |
● |
|
| |
56 |
BOLT; BRG CAP
M20X112
|
1-09070-042-0 |
04 |
1 |
0603-0603 |
● |
|
|
| |
56 |
BOLT; BRG CAP
M20X112
|
1-09070-042-0 |
04 |
1 |
0604-0609 |
● |
● |
|
| |
56 |
BOLT; BRG CAP
M20X112
|
1-09070-042-0 |
04 |
1 |
0610- |
● |
● |
● |
| |
60 |
GEAR SET; FINAL DRIVE,RR
43/7
|
1-41210-549-0 |
01 |
1 |
0110- |
● |
|
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
39/6
|
1-41210-371-2 |
01 |
1 |
0511-0602 |
|
● |
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
39/6
|
1-41210-371-2 |
01 |
1 |
0604- |
|
● |
|
| |
60 |
GEAR SET; FINAL DRIVE,RR
41/6
|
1-41210-515-0 |
01 |
1 |
0610- |
|
|
● |
| |
61 |
RETAINER; PILOT BRG,PINION
T=3.2
|
1-41227-015-0 |
02 |
1 |
0110-0510 |
● |
|
|
| |
61 |
RETAINER; PILOT BRG,PINION
T=3.2
|
1-41227-015-0 |
02 |
1 |
0511-0602 |
● |
● |
|
| |
61 |
RETAINER; PILOT BRG,PINION
T=3.2
|
1-41227-015-0 |
02 |
1 |
0603-0603 |
● |
|
|
| |
61 |
RETAINER; PILOT BRG,PINION
T=3.2
|
1-41227-015-0 |
02 |
1 |
0604-0609 |
● |
● |
|
| |
61 |
RETAINER; PILOT BRG,PINION
T=3.2
|
1-41227-015-0 |
02 |
1 |
0610- |
● |
● |
● |
| |
62 |
BOLT; RET
M8X38 W/PIN HOLE
|
1-09042-036-0 |
02 |
1 |
0110-0510 |
● |
|
|
| |
62 |
BOLT; RET
M8X38 W/PIN HOLE
|
1-09042-036-0 |
02 |
1 |
0511-0602 |
● |
● |
|
| |
62 |
BOLT; RET
M8X38 W/PIN HOLE
|
1-09042-036-0 |
02 |
1 |
0603-0603 |
● |
|
|
| |
62 |
BOLT; RET
M8X38 W/PIN HOLE
|
1-09042-036-0 |
02 |
1 |
0604-0609 |
● |
● |
|
| |
62 |
BOLT; RET
M8X38 W/PIN HOLE
|
1-09042-036-0 |
02 |
1 |
0610- |
● |
● |
● |
| |
63 |
BEARING; PINION PILOT
JTEKT
|
1-09810-229-2 |
01 |
1 |
0110-0510 |
● |
|
|
| |
63 |
BEARING; PINION PILOT
JTEKT
|
1-09810-229-2 |
01 |
1 |
0511-0602 |
● |
● |
|
| |
63 |
BEARING; PINION PILOT
JTEKT
|
1-09810-229-2 |
01 |
1 |
0603-0603 |
● |
|
|
| |
63 |
BEARING; PINION PILOT
JTEKT
|
1-09810-229-2 |
01 |
1 |
0604-0609 |
● |
● |
|
| |
63 |
BEARING; PINION PILOT
JTEKT
|
1-09810-229-2 |
01 |
1 |
0610- |
● |
● |
● |
| |
63 |
BEARING; PINION PILOT
NSK
|
1-09810-230-1 |
01 |
1 |
0110-0510 |
● |
|
|
| |
63 |
BEARING; PINION PILOT
NSK
|
1-09810-230-1 |
01 |
1 |
0511-0602 |
● |
● |
|
| |
63 |
BEARING; PINION PILOT
NSK
|
1-09810-230-1 |
01 |
1 |
0603-0603 |
● |
|
|
| |
63 |
BEARING; PINION PILOT
NSK
|
1-09810-230-1 |
01 |
1 |
0604-0609 |
● |
● |
|
| |
63 |
BEARING; PINION PILOT
NSK
|
1-09810-230-1 |
01 |
1 |
0610- |
● |
● |
● |
| |
64 |
NUT; RET
M8 SLOTTED
|
9-09117-508-0 |
02 |
1 |
0110-0510 |
● |
|
|
| |
64 |
NUT; RET
M8 SLOTTED
|
9-09117-508-0 |
02 |
1 |
0511-0512 |
● |
● |
|
| |
64 |
NUT; RET
M8 SLOTTED
|
0-91117-508-0 |
02 |
1 |
0601-0602 |
● |
● |
|
| |
64 |
NUT; RET
M8 SLOTTED
|
0-91117-508-0 |
02 |
1 |
0603-0603 |
● |
|
|
| |
64 |
NUT; RET
M8 SLOTTED
|
0-91117-508-0 |
02 |
1 |
0604-0609 |
● |
● |
|
| |
64 |
NUT; RET
M8 SLOTTED
|
0-91117-508-0 |
02 |
1 |
0610- |
● |
● |
● |
| |
65 |
PIN; SPLIT,RET
|
9-08112-012-0 |
02 |
1 |
0110-0510 |
● |
|
|
| |
65 |
PIN; SPLIT,RET
|
9-08112-012-0 |
02 |
1 |
0511-0602 |
● |
● |
|
| |
65 |
PIN; SPLIT,RET
|
9-08112-012-0 |
02 |
1 |
0603-0603 |
● |
|
|
| |
65 |
PIN; SPLIT,RET
|
9-08112-012-0 |
02 |
1 |
0604-0609 |
● |
● |
|
| |
65 |
PIN; SPLIT,RET
|
9-08112-012-0 |
02 |
1 |
0610-0805 |
● |
● |
● |
| |
65 |
PIN; SPLIT,RET
|
0-81122-012-0 |
02 |
1 |
0806- |
● |
● |
● |
| |
66 |
RING; SNAP,PILOT BRG
OD=42
|
9-09950-179-0 |
01 |
1 |
0110-0510 |
● |
|
|
| |
66 |
RING; SNAP,PILOT BRG
OD=42
|
9-09950-179-0 |
01 |
1 |
0511-0602 |
● |
● |
|
| |
66 |
RING; SNAP,PILOT BRG
OD=42
|
9-09950-179-0 |
01 |
1 |
0603-0603 |
● |
|
|
| |
66 |
RING; SNAP,PILOT BRG
OD=42
|
9-09950-179-0 |
01 |
1 |
0604-0609 |
● |
● |
|
| |
66 |
RING; SNAP,PILOT BRG
OD=42
|
9-09950-179-0 |
01 |
1 |
0610- |
● |
● |
● |
| |
69 |
NUT; ADJ,DIFF CAGE
M155 H=26
|
1-41121-001-0 |
01 |
1 |
0110-0510 |
● |
|
|
| |
69 |
NUT; ADJ,DIFF CAGE
M155 H=26
|
1-41121-001-0 |
01 |
1 |
0511-0602 |
● |
● |
|
| |
69 |
NUT; ADJ,DIFF CAGE
M155 H=26
|
1-41121-001-0 |
01 |
1 |
0603-0603 |
● |
|
|
| |
69 |
NUT; ADJ,DIFF CAGE
M155 H=26
|
1-41121-001-0 |
01 |
1 |
0604-0609 |
● |
● |
|
| |
69 |
NUT; ADJ,DIFF CAGE
M155 H=26
|
1-41121-001-0 |
01 |
1 |
0610- |
● |
● |
● |
| |
69 |
NUT; ADJ,DIFF CAGE
M155 H=30
|
1-41121-002-0 |
01 |
1 |
0110-0510 |
● |
|
|
| |
69 |
NUT; ADJ,DIFF CAGE
M155 H=30
|
1-41121-002-0 |
01 |
1 |
0511-0602 |
● |
● |
|
| |
69 |
NUT; ADJ,DIFF CAGE
M155 H=30
|
1-41121-002-0 |
01 |
1 |
0603-0603 |
● |
|
|
| |
69 |
NUT; ADJ,DIFF CAGE
M155 H=30
|
1-41121-002-0 |
01 |
1 |
0604-0609 |
● |
● |
|
| |
69 |
NUT; ADJ,DIFF CAGE
M155 H=30
|
1-41121-002-0 |
01 |
1 |
0610- |
● |
● |
● |
| |
70 |
BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40
|
1-09812-225-0 |
02 |
1 |
0110-0510 |
● |
|
|
| |
70 |
BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40
|
1-09812-225-0 |
02 |
1 |
0511-0602 |
● |
● |
|
| |
70 |
BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40
|
1-09812-225-0 |
02 |
1 |
0603-0603 |
● |
|
|
| |
70 |
BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40
|
1-09812-225-0 |
02 |
1 |
0604-0609 |
● |
● |
|
| |
70 |
BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40
|
1-09812-225-0 |
02 |
1 |
0610- |
● |
● |
● |
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
|
1-41510-270-0 |
01 |
1 |
0110-0510 |
● |
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
|
1-41510-270-0 |
01 |
1 |
0511-0512 |
|
● |
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
|
1-41510-270-0 |
01 |
1 |
0601-0602 |
● |
● |
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
|
1-41510-270-0 |
01 |
1 |
0603-0603 |
● |
|
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
|
1-41510-270-0 |
01 |
1 |
0604-0609 |
● |
● |
|
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
|
1-41510-270-0 |
01 |
1 |
0610- |
● |
● |
● |
| |
84 |
BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE
|
1-09020-167-0 |
16 |
1 |
0110-0510 |
● |
|
|
| |
84 |
BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE
|
1-09020-167-0 |
16 |
1 |
0511-0602 |
● |
● |
|
| |
84 |
BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE
|
1-09020-167-0 |
16 |
1 |
0603-0603 |
● |
|
|
| |
84 |
BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE
|
1-09020-167-0 |
16 |
1 |
0604-0609 |
● |
● |
|
| |
84 |
BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE
|
1-09020-167-0 |
16 |
1 |
0610- |
● |
● |
● |
| |
85 |
NUT; DIFF CAGE SETTING
M14
|
1-09400-077-1 |
12 |
1 |
0110-0510 |
● |
|
|
| |
85 |
NUT; DIFF CAGE SETTING
M14
|
1-09400-077-1 |
12 |
1 |
0511-0602 |
● |
● |
|
| |
85 |
NUT; DIFF CAGE SETTING
M14
|
1-09400-077-1 |
12 |
1 |
0603-0603 |
● |
|
|
| |
85 |
NUT; DIFF CAGE SETTING
M14
|
1-09400-077-1 |
12 |
1 |
0604-0609 |
● |
● |
|
| |
85 |
NUT; DIFF CAGE SETTING
M14
|
1-09400-077-1 |
12 |
1 |
0610- |
● |
● |
● |
| |
88 |
PLATE; LK,ADJ NUT
(B)
T=3.2
|
1-41124-006-0 |
02 |
1 |
0110-0510 |
● |
|
|
| |
88 |
PLATE; LK,ADJ NUT
(B)
T=3.2
|
1-41124-006-0 |
02 |
1 |
0511-0602 |
● |
● |
|
| |
88 |
PLATE; LK,ADJ NUT
(B)
T=3.2
|
1-41124-006-0 |
02 |
1 |
0603-0603 |
● |
|
|
| |
88 |
PLATE; LK,ADJ NUT
(B)
T=3.2
|
1-41124-006-0 |
02 |
1 |
0604-0609 |
● |
● |
|
| |
88 |
PLATE; LK,ADJ NUT
(B)
T=3.2
|
1-41124-006-0 |
02 |
1 |
0610- |
● |
● |
● |
| |
88 |
PLATE; LK,ADJ NUT
(A)
T=1.0
|
9-41124-005-0 |
02 |
1 |
0110-0510 |
● |
|
|
| |
88 |
PLATE; LK,ADJ NUT
(A)
T=1.0
|
9-41124-005-0 |
02 |
1 |
0511-0602 |
● |
● |
|
| |
88 |
PLATE; LK,ADJ NUT
(A)
T=1.0
|
9-41124-005-0 |
02 |
1 |
0603-0603 |
● |
|
|
| |
88 |
PLATE; LK,ADJ NUT
(A)
T=1.0
|
9-41124-005-0 |
02 |
1 |
0604-0609 |
● |
● |
|
| |
88 |
PLATE; LK,ADJ NUT
(A)
T=1.0
|
9-41124-005-0 |
02 |
1 |
0610- |
● |
● |
● |
| |
89 |
BOLT; LK PLATE
M8X16
|
0-20800-816-0 |
04 |
1 |
0110-0510 |
● |
|
|
| |
89 |
BOLT; LK PLATE
M8X16
|
0-20800-816-0 |
04 |
1 |
0511-0512 |
● |
● |
|
| |
89 |
BOLT; LK PLATE
M8X16
|
0-20850-816-0 |
04 |
1 |
0601-0602 |
● |
● |
|
| |
89 |
BOLT; LK PLATE
M8X16
|
0-20850-816-0 |
04 |
1 |
0603-0603 |
● |
|
|
| |
89 |
BOLT; LK PLATE
M8X16
|
0-20850-816-0 |
04 |
1 |
0604-0609 |
● |
● |
|
| |
89 |
BOLT; LK PLATE
M8X16
|
0-20850-816-0 |
04 |
1 |
0610- |
● |
● |
● |
| |
100 |
SEAL; OIL,FINAL PINION
NOK
|
1-09625-017-0 |
01 |
1 |
0110-0510 |
● |
|
|
| |
100 |
SEAL; OIL,FINAL PINION
NOK
|
1-09625-017-0 |
01 |
1 |
0511-0602 |
● |
● |
|
| |
100 |
SEAL; OIL,FINAL PINION
NOK
|
1-09625-017-0 |
01 |
1 |
0603-0603 |
● |
|
|
| |
100 |
SEAL; OIL,FINAL PINION
NOK
|
1-09625-017-0 |
01 |
1 |
0604-0609 |
● |
● |
|
| |
100 |
SEAL; OIL,FINAL PINION
NOK
|
1-09625-017-0 |
01 |
1 |
0610- |
● |
● |
● |
| |
126 |
COUPLING; DRIVING PINION
|
1-37245-222-3 |
01 |
1 |
0110-0208 |
● |
|
|
| |
126 |
COUPLING; DRIVING PINION
|
1-37245-387-0 |
01 |
1 |
0209-0603 |
● |
|
|
| |
126 |
COUPLING; DRIVING PINION
|
1-37245-387-0 |
01 |
1 |
0604-0609 |
● |
● |
|
| |
126 |
COUPLING; DRIVING PINION
|
1-37245-387-0 |
01 |
1 |
0610- |
● |
● |
● |
| |
126 |
COUPLING; DRIVING PINION
|
1-37245-403-0 |
01 |
1 |
0511-0602 |
|
● |
|
