4-10 — FRONT AXLE (#55434) — 155 parça

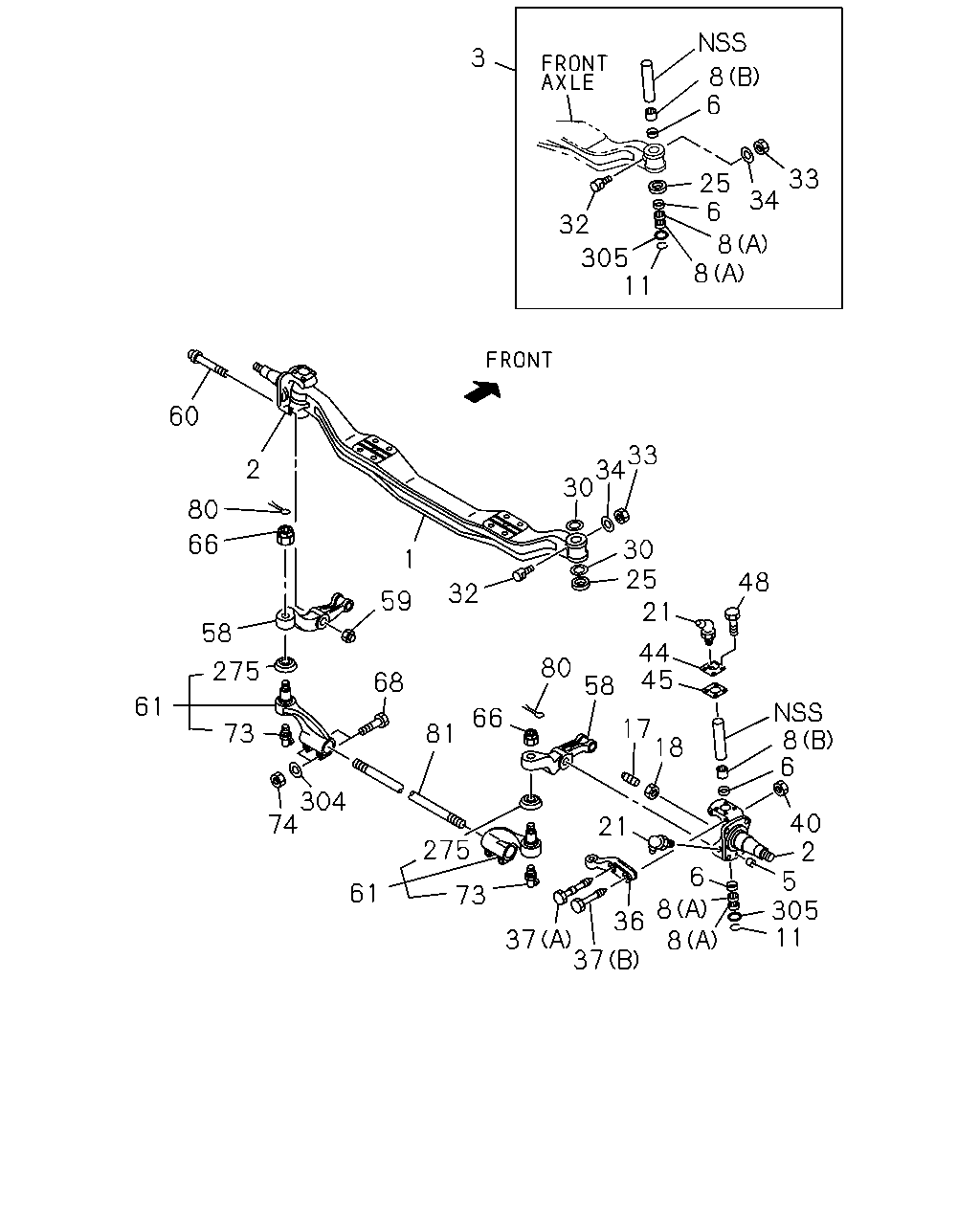

3 8 6 33 34 25 6 8 8 32 305 11 60 33 34 30 2 80 30 25 66 1 48 32 59 21 58 44 45 80 275 68 58 61 8 6 66 17 18 81 73 21 304 74 40 2 5 305 11 275 6 61 73 8 8 36 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-113-6	01	1	0110-
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	0110-
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	0110-
3	KING PIN SET	1-87830-738-6	02	1	0110-
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	0110-
6	SEAL; KING PIN	9-09926-024-0	04	1	0110-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0110-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0110-
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0110-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0110-0705
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	0110-0512
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0110-0512
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0110-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0110-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0110-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0110-0512
33	NUT; KEY BOLT M10 MAL	0-91110-510-0	02	1	0601-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0110-0603
34	WASHER; LK,KEY BOLT ID=10.2 MAL	0-91510-510-0	02	1	0604-
36	ARM; KNUCKLE	1-43133-063-3	01	1	0110-
37	BOLT; KNUCKLE ARM (A) M22X179	1-09000-578-1	01	1	0110-0704
37	BOLT; KNUCKLE ARM (A) M22X179	8-98052-380-1	01	1	0705-
37	BOLT; KNUCKLE ARM (B) M22X167	9-09806-847-3	01	1	0110-0704
37	BOLT; KNUCKLE ARM (B) M22X167	8-98052-381-1	01	1	0705-
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0110-0704
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-
44	COVER; KING PIN	1-43175-014-1	02	1	0110-
45	GASKET; KING PIN COVER	1-42319-044-0	02	1	0110-
48	BOLT; COVER M12X16 FLANGE	0-28081-216-0	08	1	0110-0512
48	BOLT; COVER M12X16 FLANGE	0-28051-216-0	08	1	0601-
58	ARM; TIE ROD	1-43134-042-3	01	1	0110-
58	ARM; TIE ROD	1-43135-042-3	01	1	0110-
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0110-0704
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	0110-0704
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	0705-
61	ROD END; TIE ROD	1-43150-801-0	01	1	0110-1009
61	ROD END; TIE ROD	8-98171-444-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98236-800-0	01	1	1307-
61	ROD END; TIE ROD	1-43150-802-0	01	1	0110-1009
61	ROD END; TIE ROD	8-98171-445-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98236-801-0	01	1	1307-
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0110-0805
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0110-0704
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0705-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0110-0512
74	NUT; TIE ROD END M12 MAL	0-91110-512-0	04	1	0601-
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0110-0606
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-
81	ROD; TIE	1-43151-119-0	01	1	0110-1009
81	ROD; TIE	8-98172-133-0	01	1	1010-1109
81	ROD; TIE	8-98193-965-0	01	1	1110-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0110-1009
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	0110-0704
304	WASHER; PL ID=12.5	0-91614-512-0	04	1	0705-
305	COVER; KNUCKLE	1-43175-021-0	02	1	0110-0704
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-

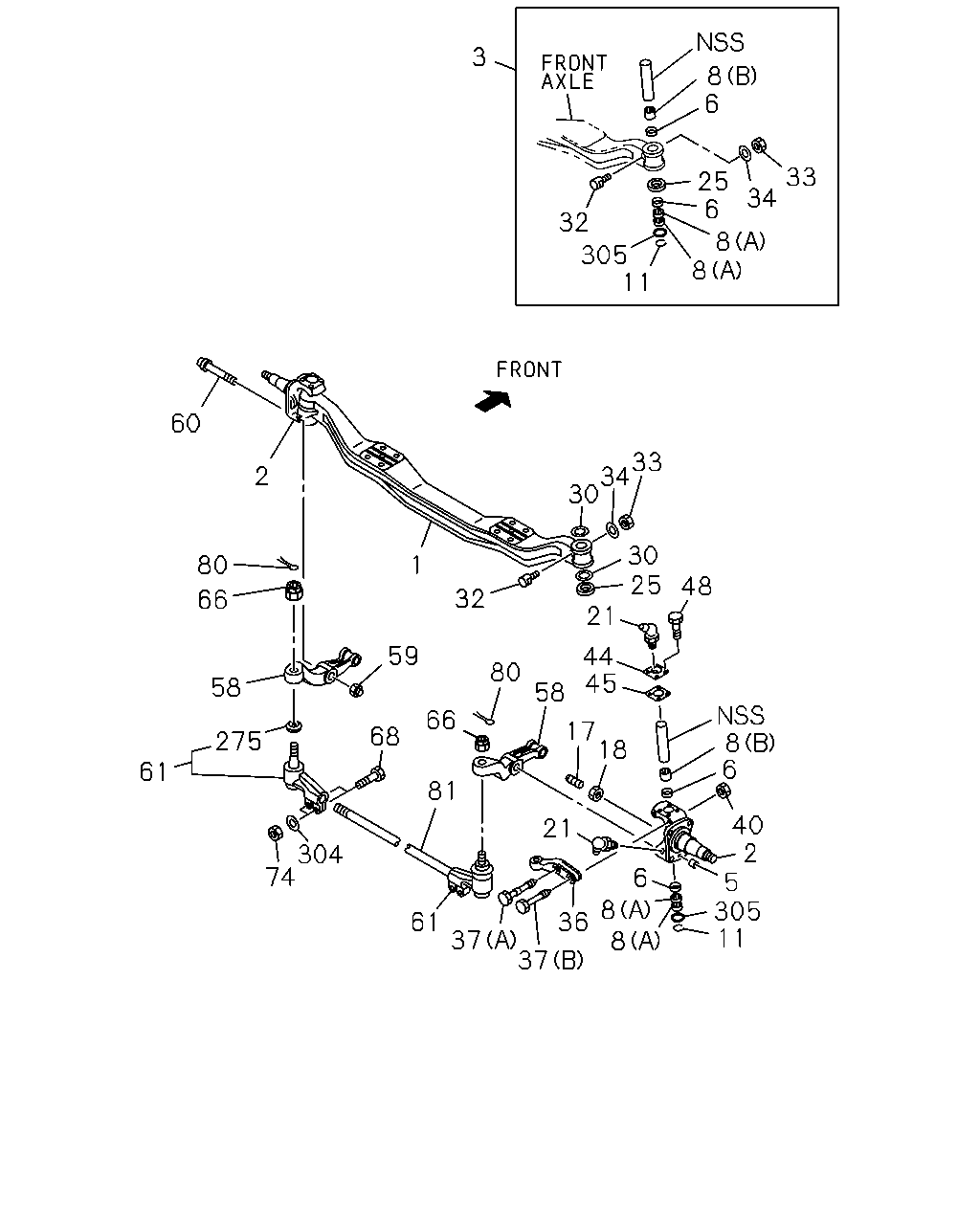

3 8 6 33 34 25 6 8 8 32 305 11 60 33 34 30 2 30 25 1 80 48 32 66 21 59 44 45 80 58 58 8 6 66 17 18 68 275 61 81 21 40 2 5 305 11 304 74 6 8 8 61 36 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-113-6	01	1	0110-
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	0110-
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	0110-
3	KING PIN SET	1-87830-738-6	02	1	0110-
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	0110-
6	SEAL; KING PIN	9-09926-024-0	04	1	0110-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0110-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0110-
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0110-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0110-0705
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	0110-0512
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0110-0512
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0110-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0110-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0110-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0110-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0110-0512
33	NUT; KEY BOLT M10 MAL	0-91110-510-0	02	1	0601-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0110-0603
34	WASHER; LK,KEY BOLT ID=10.2 MAL	0-91510-510-0	02	1	0604-
36	ARM; KNUCKLE	1-43133-063-3	01	1	0110-
37	BOLT; KNUCKLE ARM (A) M22X179	1-09000-578-1	01	1	0110-0704
37	BOLT; KNUCKLE ARM (A) M22X179	8-98052-380-1	01	1	0705-
37	BOLT; KNUCKLE ARM (B) M22X167	9-09806-847-3	01	1	0110-0704
37	BOLT; KNUCKLE ARM (B) M22X167	8-98052-381-1	01	1	0705-
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0110-0704
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-
44	COVER; KING PIN	1-43175-014-1	02	1	0110-
45	GASKET; KING PIN COVER	1-42319-044-0	02	1	0110-
48	BOLT; COVER M12X16 FLANGE	0-28081-216-0	08	1	0110-0512
48	BOLT; COVER M12X16 FLANGE	0-28051-216-0	08	1	0601-
58	ARM; TIE ROD	1-43134-042-3	01	1	0110-
58	ARM; TIE ROD	1-43135-042-3	01	1	0110-
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0110-0704
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	0110-0704
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	0705-
61	ROD END; TIE ROD	1-43150-801-0	01	1	0110-1009
61	ROD END; TIE ROD	8-98171-444-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98236-800-0	01	1	1307-
61	ROD END; TIE ROD	1-43150-802-0	01	1	0110-1009
61	ROD END; TIE ROD	8-98171-445-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98236-801-0	01	1	1307-
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0110-0805
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0110-0704
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0705-
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0110-0512
74	NUT; TIE ROD END M12 MAL	0-91110-512-0	04	1	0601-
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0110-0606
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-
81	ROD; TIE	1-43151-119-0	01	1	0110-1009
81	ROD; TIE	8-98172-133-0	01	1	1010-1109
81	ROD; TIE	8-98193-965-0	01	1	1110-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0110-1009
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	0110-0704
304	WASHER; PL ID=12.5	0-91614-512-0	04	1	0705-
305	COVER; KNUCKLE	1-43175-021-0	02	1	0110-0704
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-
