Isuzu WW
▶
TRUCKS
▶
FTR
▶
11360 - FTR(MALAYSIA)W/B6000
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#55430) — 15 parça
◀
[375A] CAB SIDE (10 parça)
[375A] FRAME SIDE (5 parça)
▶
118
106
107
106
139
122
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
52
CONNECTOR; NYLON TUBE
DIN12 & M16 STRAIGHT MAL
1-09660-876-0
01
1
0110-
52
CONNECTOR; NYLON TUBE
DIN12 & M16 STRAIGHT MAL
1-09660-876-0
01
1
0110-
106
NUT; FLEX HOSE
M16 MAL
9-99111-416-0
02
1
0110-0512
106
NUT; FLEX HOSE
M16 MAL
0-91111-516-0
02
1
0601-
107
WASHER; LK,FLEX HOSE
ID=16.2
9-09150-516-0
02
1
0110-0603
107
WASHER; LK,FLEX HOSE
ID=16.2 MAL
0-91510-516-0
02
1
0604-
118
PIPE; AIR,BRK VLV TO FLEX HOSE
L=419
1-49115-942-3
01
1
0110-
122
CONNECTOR; FLEX HOSE
M16 STRAIGHT
1-09654-380-0
01
1
0110-
139
WASHER; PL,CONNECTOR
ID=17
9-09160-516-0
01
1
0110-0605
139
WASHER; PL,CONNECTOR
ID=17 OD=30
0-91610-516-0
01
1
0606-

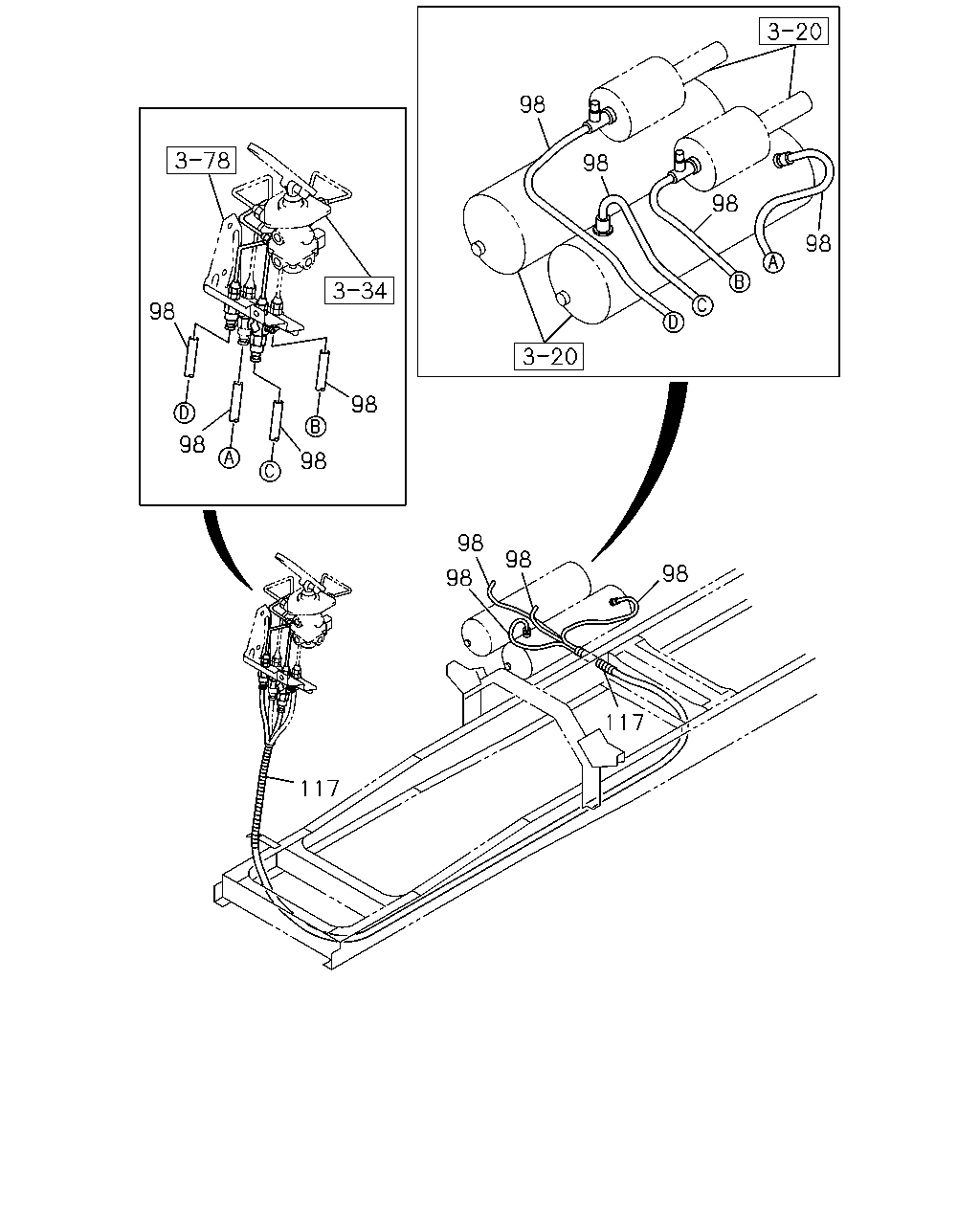

98
98
98
98
98
98
98
98
98
98
98
98
117
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
98
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0110-
98
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0110-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
0110-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87411-033-0
AR
1
0110-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32
1-87411-035-0
AR
1
0110-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
