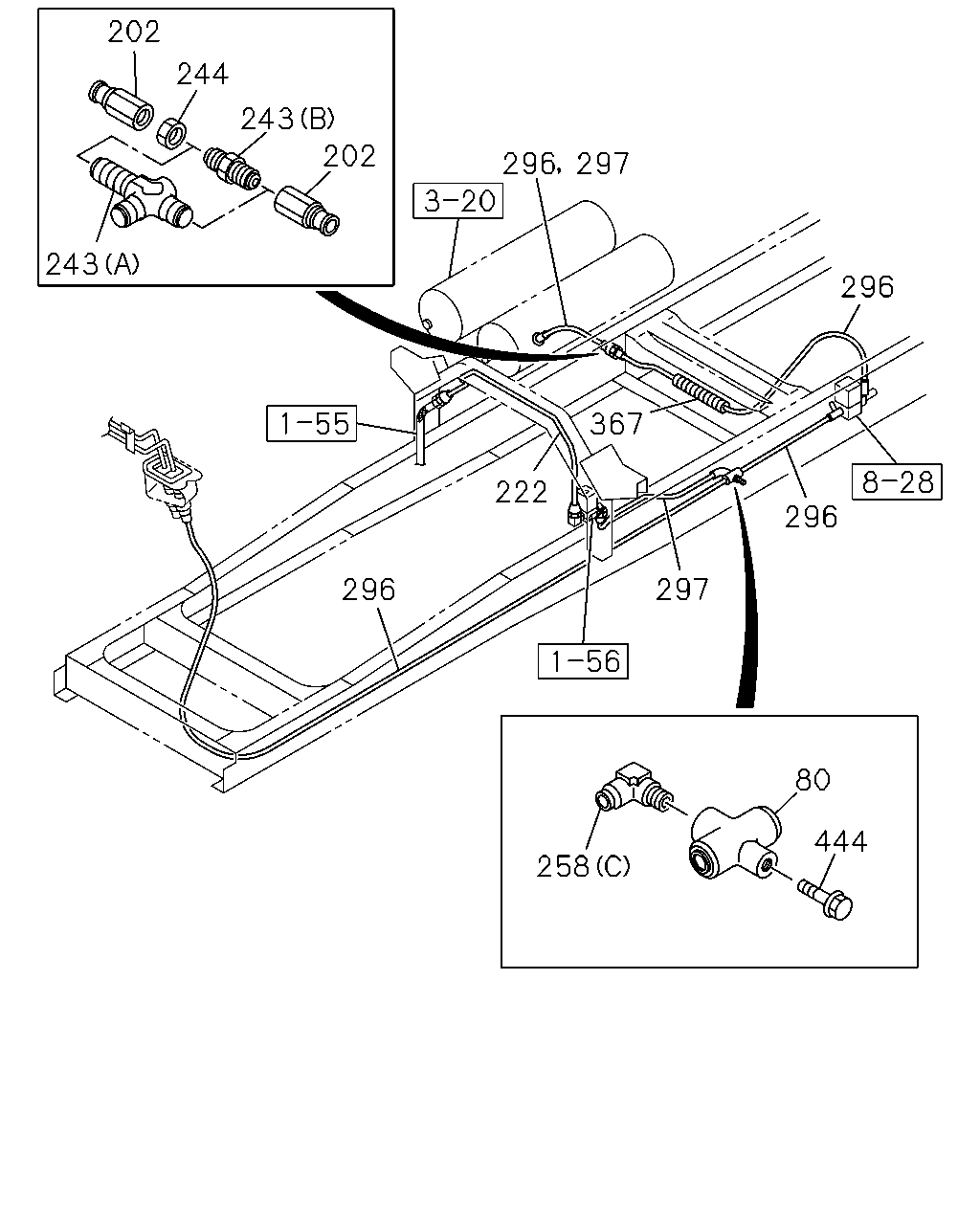

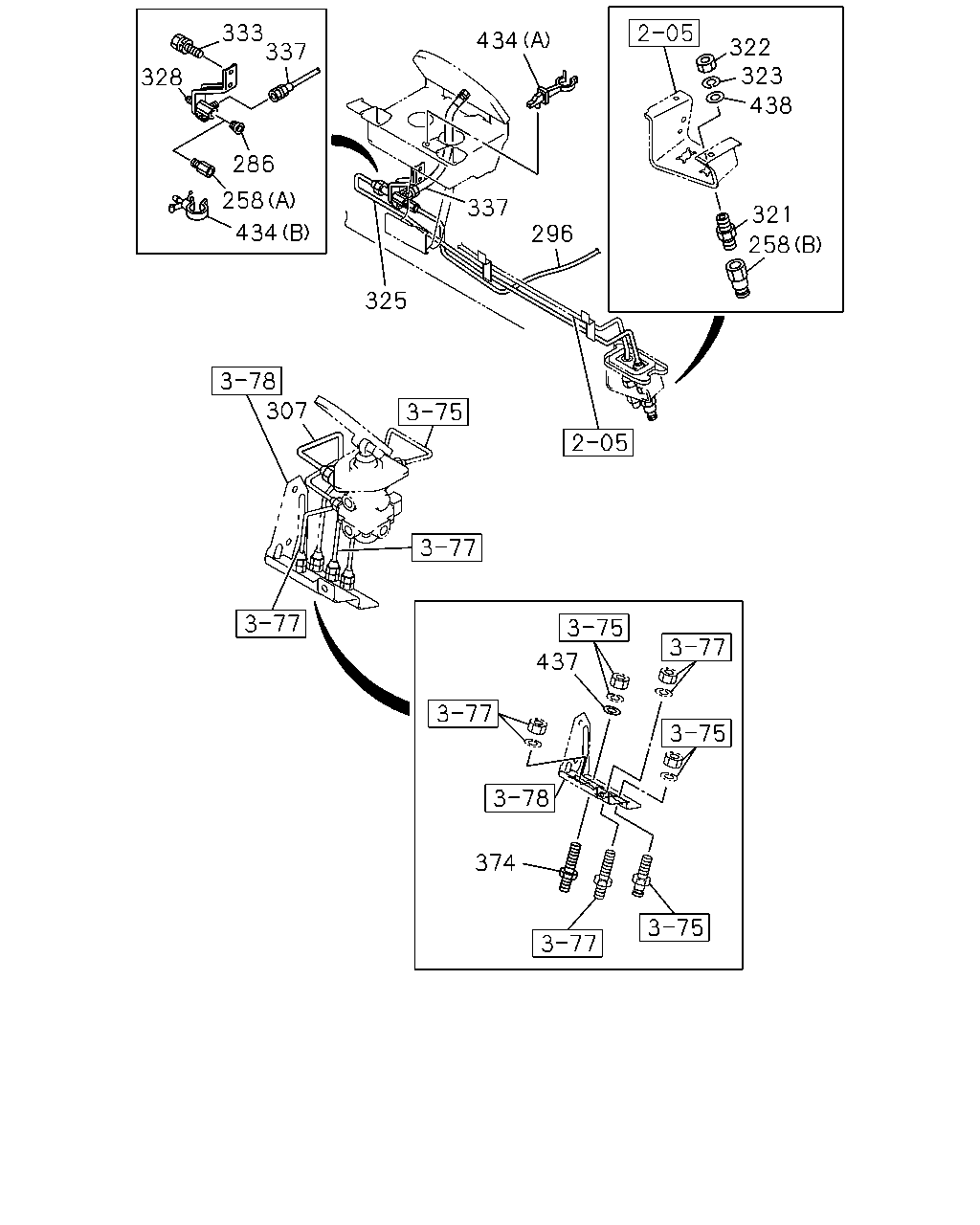

3-70 — BRAKE PIPING; AIR,AIR MASTER (#55429) — 70 parça

333 337 434 322 323 328 438 286 258 337 321 434 296 258 325 307 437 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
258	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0110-
258	CONNECTOR; NYLON TUBE (C) DIN8 & R3/8 ELBOW MAL	1-09660-957-0	01	1	0110-0510
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) (C) DIN8 & R3/8 ELBOW MAL	1-09660-957-0	01	1	0511-
258	CONNECTOR; NYLON TUBE 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (C) DIN8 & R3/8 ELBOW MAL	1-09660-957-0	01	1	0511-
258	CONNECTOR; NYLON TUBE 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0511-
286	PLUG; AIR PIPE	9-09204-510-0	01	1	0110-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0110-
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=421	1-49121-486-0	01	1	0110-
321	JOINT; FLEX HOSE	1-09656-738-0	01	1	0110-
322	NUT; JOINT,FLEX HOSE M10 H=8	1-09400-029-0	01	1	0110-
323	WASHER; LK,JOINT ID=10.2	9-09150-510-0	01	1	0110-0603
323	WASHER; LK,JOINT ID=10.2 MAL	0-91510-510-0	01	1	0604-
325	PIPE; AIR,FLEX HOSE TO UNION	1-47492-452-2	01	1	0110-
328	UNION; AIR PIPE	1-47470-362-2	01	1	0110-
333	BOLT; PIPE UNION M6X19.5 W/LK&PL WASHER MAL	8-94279-201-0	02	1	0110-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=810	0-07210-810-0	01	1	0110-0605
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=810	0-57210-810-0	01	1	0606-
374	CONNECTOR M16 STRAIGHT	1-09654-380-0	01	1	0110-
434	CLIP (A) ID=17	1-09987-105-1	01	1	0110-
434	CLIP (B)	8-94297-486-0	02	1	0110-
437	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	0110-0605
437	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	01	1	0606-
438	WASHER; PL,JOINT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0110-

202 244 243 202 296 297 243 296 367 222 296 297 296 80 444 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0110-0510
80	UNION; 3 WAY 6HE1 TC ENG(57L),6HH1 STD ENG(65L) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0511-
202	ADAPTER DIN8 & M12 STRAIGHT MAL	1-09660-873-0	02	1	0110-
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HE1 TC ENG(57L) L=1011 SERVICED BY L=1100	1-47426-351-0	01	1	0511-
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HH1 STD ENG(65L) L=1078 SERVICED BY L=1100	1-47434-387-0	01	1	0110-
243	UNION; AIR PIPE ASSISTOR SHIFT CONTROL<WX8> (A) M12 3WAY	9-09228-906-1	01	1	0110-0510
243	UNION; AIR PIPE AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M12 3WAY	9-09228-906-1	01	1	0511-0607
243	UNION; AIR PIPE ASSISTOR SHIFT CONTROL<WX8> (A) M12 3WAY	9-09228-906-1	01	1	0511-0607
243	UNION; AIR PIPE AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M12 3WAY	0-92138-906-0	01	1	0608-
243	UNION; AIR PIPE ASSISTOR SHIFT CONTROL<WX8> (A) M12 3WAY	0-92138-906-0	01	1	0608-
243	UNION; AIR PIPE EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 L=66.5	9-09223-306-1	01	1	0110-0510
243	UNION; AIR PIPE EXC. AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (B) M12 L=66.5	9-09223-306-1	01	1	0511-0607
243	UNION; AIR PIPE EXC. AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (B) M12 L=66.5	0-92113-306-0	01	1	0608-
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0110-
258	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0110-
258	CONNECTOR; NYLON TUBE (C) DIN8 & R3/8 ELBOW MAL	1-09660-957-0	01	1	0110-0510
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) (C) DIN8 & R3/8 ELBOW MAL	1-09660-957-0	01	1	0511-
258	CONNECTOR; NYLON TUBE 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (C) DIN8 & R3/8 ELBOW MAL	1-09660-957-0	01	1	0511-
258	CONNECTOR; NYLON TUBE 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0511-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0110-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0110-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0110-
444	BOLT; UNION M8X20 FLANGE MAL	0-28080-820-0	01	1	0110-0512
444	BOLT; UNION M8X20 FLANGE MAL	0-28050-820-0	01	1	0601-

14 154 170 34 14 154 176 171 184 186 185 1 6 3 2 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=360	1-09363-530-0	01	1	0110-0510
1	HOSE; FLEX,AIR TANK EXC. EURO2 SPECIFICATION<THN> L=360	1-09363-530-0	01	1	0511-
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<THN> L=320	1-09363-560-1	01	1	0511-
2	NUT; FLEX HOSE,AIR TANK M22	9-09111-422-0	01	1	0110-0512
2	NUT; FLEX HOSE,AIR TANK M22	0-91111-522-0	01	1	0601-
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	9-09150-522-0	01	1	0110-0603
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	0-91510-522-0	01	1	0604-
6	BRACKET; FLEX HOSE,AIR TANK	1-47477-264-2	01	1	0110-0304
6	BRACKET; FLEX HOSE,AIR TANK	1-47478-864-0	01	1	0305-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	0110-0512
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0601-
14	PIPE; AIR,FLEX HOSE TO AIR TANK AIR DRYER<PS7>	1-49114-876-0	01	1	0110-
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7>	1-49118-360-0	01	1	0110-
34	PIPE; AIR AIR DRYER<PS7>	1-49118-294-0	01	1	0110-
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49122-147-0	01	1	0110-
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	1-49122-149-0	01	1	0110-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7>	1-49122-157-0	01	1	0110-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7>	1-49114-885-0	01	1	0110-
184	HOSE; FLEX,AIR GOV 6HE1 TC ENG(57L) L=330	1-09363-584-0	01	1	0511-
184	HOSE; FLEX,AIR GOV 6HH1 STD ENG(65L) L=350	1-09363-651-0	01	1	0110-
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	0110-
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	0110-0603
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2 MAL	0-91510-512-0	01	1	0604-
