Sayfa 1-31B - Isuzu EPC

1-31B — AIR DUCT (#5542) — 208 parça

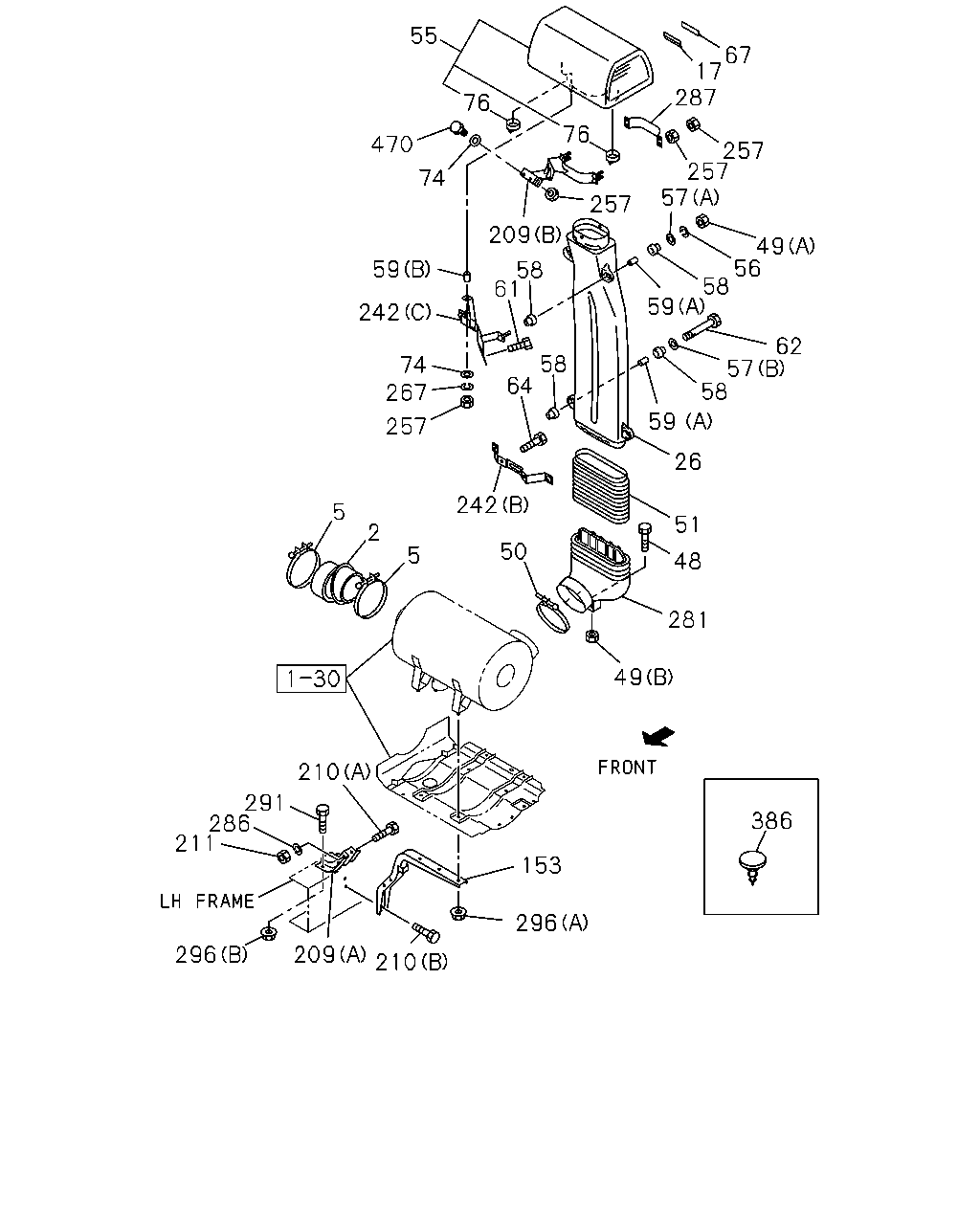

55 67 17 287 76 76 470 257 257 57 74 257 209 49 56 58 59 58 61 59 242 62 57 58 58 64 74 267 59 257 26 242 5 51 2 50 5 48 281 49 210 291 286 211 386 153 296 209 296 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; ACL	1-14231-937-0	01	1	9603-9904	●
2	HOSE; ACL	1-14231-937-0	01	1	9905-	●	●
5	CLIP; AIR DUCT ID=104-142	1-09707-155-0	02	1	9603-9904	●
5	CLIP; AIR DUCT ID=104-142	1-09707-155-0	02	1	9905-	●	●
17	GASKET; AIR DUCT PRE CLEANER<W17>	1-14239-170-0	01	1	9603-9904	●
17	GASKET; AIR DUCT PRE CLEANER<W17>	1-14239-170-0	01	1	9905-	●	●
26	DUCT; AIR INT PRE CLEANER<W17>	1-14231-938-0	01	1	9603-9904	●
26	DUCT; AIR INT PRE CLEANER<W17>	1-14231-938-0	01	1	9905-	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-134-1	01	1	9603-9904	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-134-1	01	1	9905-	●	●
48	BOLT; AIR DUCT M10X25 FLANGE	0-28081-025-0	01	1	9603-9606	●
48	BOLT; AIR DUCT M10X25 FLANGE	0-28681-025-0	01	1	9607-9904	●
48	BOLT; AIR DUCT M10X25 FLANGE	0-28681-025-0	01	1	9905-	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-110-0	01	1	9603-9606	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	9607-9904	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	9905-	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	9603-9904	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	9905-	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	9603-9904	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	9905-	●	●
50	CLIP; JOINT HOSE ID=158	1-09707-097-1	01	1	9603-9904	●
50	CLIP; JOINT HOSE ID=158	1-09707-097-1	01	1	9905-	●	●
51	GASKET ASM; RUBBER PRE CLEANER<W17>	1-14230-150-0	01	1	9603-9904	●
51	GASKET ASM; RUBBER PRE CLEANER<W17>	1-14230-150-0	01	1	9905-	●	●
55	CLEANER ASM; AIR,PRE PRE CLEANER<W17>	1-14210-768-0	01	1	9603-9904	●
55	CLEANER ASM; AIR,PRE PRE CLEANER<W17>	1-14210-768-0	01	1	9905-	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=10	1-09985-185-0	02	1	9603-9904	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=10	1-09985-185-0	02	1	9905-	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10	1-09985-185-0	01	1	9603-9904	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10	1-09985-185-0	01	1	9905-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	9603-9904	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	9905-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	9603-9904	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	9905-	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	9603-9904	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	9905-	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	08	1	9603-9904	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	08	1	9905-	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	9603-9904	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	9905-	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	9603-9904	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	9905-	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	9603-9904	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	9905-	●	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	9603-9904	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	9905-	●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9603-9904	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9905-	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> M10X80 FLANGE	0-28081-080-0	01	1	9603-9904	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> M10X80 FLANGE	0-28081-080-0	01	1	9905-	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> M10X26	1-09030-044-1	01	1	9603-9904	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> M10X26	1-09030-044-1	01	1	9905-	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> M10X26	1-09030-044-1	02	1	9603-9904	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> M10X26	1-09030-044-1	02	1	9905-	●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9603-9904	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9905-	●	●
67	SPACER; AIR DUCT PRE CLEANER<W17>	1-14239-171-0	01	1	9603-9904	●
67	SPACER; AIR DUCT PRE CLEANER<W17>	1-14239-171-0	01	1	9905-	●	●
74	WASHER; PL,ACL PRE CLEANER<W17> ID=10.5	1-09985-107-0	03	1	9603-9904	●
74	WASHER; PL,ACL PRE CLEANER<W17> ID=10.5	1-09985-107-0	03	1	9905-	●	●
76	VALVE; PRE ACL PRE CLEANER<W17>	1-14219-129-0	02	1	9603-9904	●
76	VALVE; PRE ACL PRE CLEANER<W17>	1-14219-129-0	02	1	9905-	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	9603-9904	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	9905-	●	●
209	BRACKET; ACL (A)	1-53419-266-0	01	1	9603-9904	●
209	BRACKET; ACL (A)	1-53419-266-0	01	1	9905-	●	●
209	BRACKET; ACL PRE CLEANER<W17> (B)	1-14239-246-0	01	1	9603-9904	●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-246-0	01	1	9905-	●	●
209	BRACKET; ACL HIGH ROOF<S2F> PRE CLEANER<W17> (B)	1-14239-258-0	01	1	9905-	●	●
210	BOLT; ACL BRKT (A) M8X65	0-10805-865-0	02	1	9603-9606	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	9607-9904	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	9905-	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28081-230-0	01	1	9603-9606	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	9607-9904	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	9905-	●	●
211	NUT; BRKT M8	9-09110-408-0	02	1	9603-9606	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
242	BRACKET; AIR DUCT (B)	1-79997-327-1	01	1	9603-9904	●
242	BRACKET; AIR DUCT (B)	1-79997-327-1	01	1	9905-	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (C)	1-79996-120-0	01	1	9603-9612	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-120-0	01	1	9701-9904	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-120-0	01	1	9905-	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-362-0	01	1	9701-9904	●
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> PRE CLEANER<W17> (C)	1-79996-362-0	01	1	9905-	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-323-1	01	1	9603-9904	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-323-1	01	1	9905-	●	●
257	NUT; BRKT PRE CLEANER<W17> M10	1-09400-053-0	11	1	9603-9904	●
257	NUT; BRKT PRE CLEANER<W17> M10	1-09400-053-0	11	1	9905-	●	●
267	WASHER; LK,ACL PRE CLEANER<W17>	1-09500-033-0	01	1	9603-9904	●
267	WASHER; LK,ACL PRE CLEANER<W17> ID=10	1-09985-180-0	01	1	9905-	●	●
281	DUCT; AIR,VERTICAL INT	1-14230-136-1	01	1	9603-9904	●
281	DUCT; AIR,VERTICAL INT	1-14230-136-1	01	1	9905-	●	●
286	WASHER; LK,BRKT ID=8.2	9-09150-508-0	02	1	9603-9606	●
287	CLIP; AIR DUCT PRE CLEANER<W17>	1-14239-165-1	01	1	9603-9904	●
287	CLIP; AIR DUCT PRE CLEANER<W17>	1-14239-165-1	01	1	9905-	●	●
291	BOLT; ACL M12X30 FLANGE	0-28081-230-0	02	1	9603-9606	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	9607-9904	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	9905-	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	9603-9904	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	9905-	●	●
296	NUT; ACL (B) M12	9-99110-512-0	02	1	9603-9606	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	9607-9904	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	9905-	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	01	1	9603-9810	●
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	9603-9810		●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	01	1	9811-9904	●
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	9811-9904		●
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	9905-0002	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0003-	●	●
470	BOLT; BRKT PRE CLEANER<W17>	1-09000-372-0	02	1	9603-9904	●
470	BOLT; BRKT PRE CLEANER<W17>	1-09000-372-0	02	1	9905-	●	●

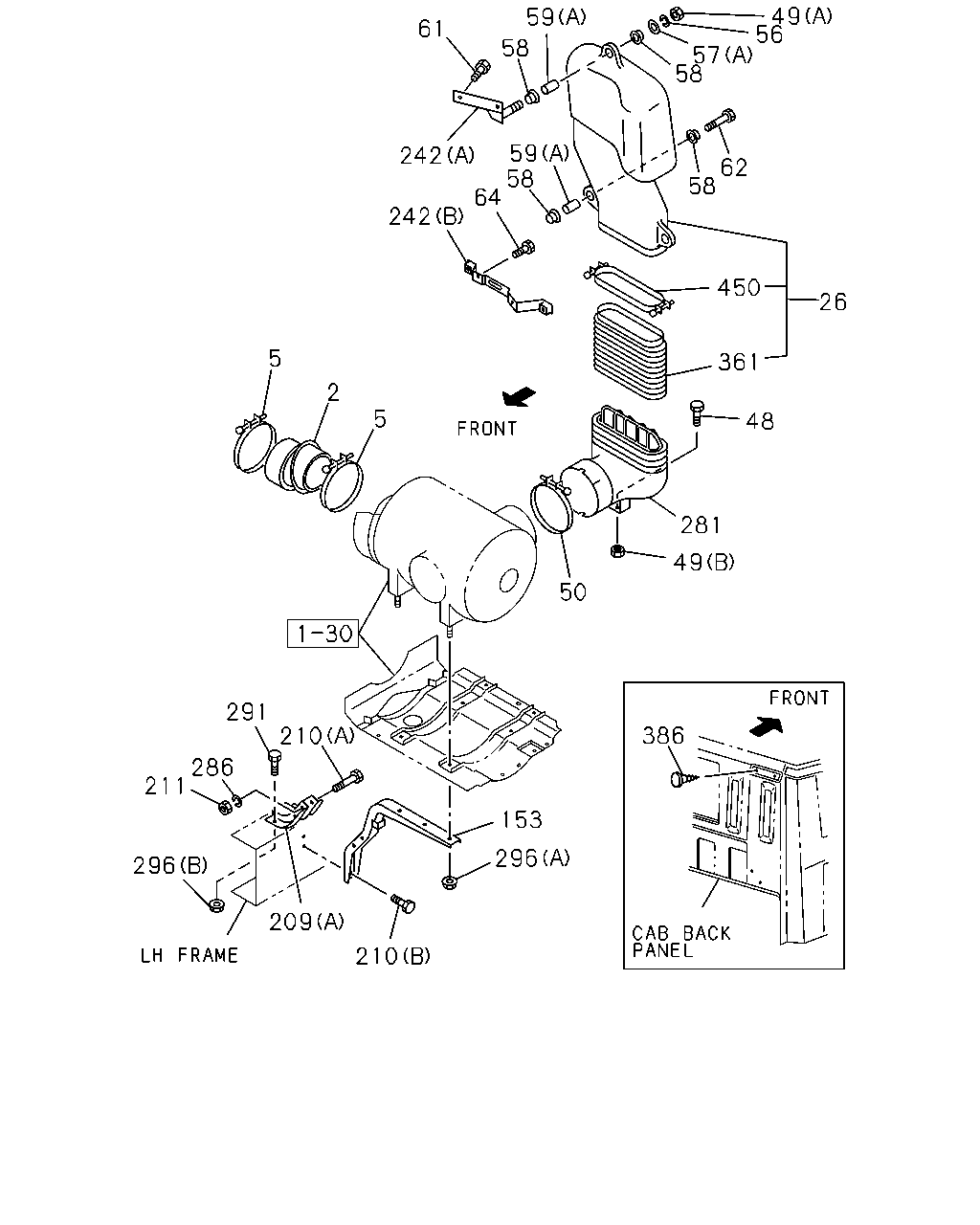

49 56 59 61 58 57 58 59 58 64 242 62 58 242 450 26 5 361 2 5 48 281 49 50 291 386 210 286 211 153 296 296 209 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; ACL	1-14231-937-0	01	1	9603-9904	●
2	HOSE; ACL	1-14231-937-0	01	1	9905-	●	●
5	CLIP; AIR DUCT ID=104-142	1-09707-155-0	02	1	9603-9904	●
5	CLIP; AIR DUCT ID=104-142	1-09707-155-0	02	1	9905-	●	●
26	DUCT; AIR INT PRE CLEANER<W17>	1-14231-938-0	01	1	9603-9904	●
26	DUCT; AIR INT PRE CLEANER<W17>	1-14231-938-0	01	1	9905-	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-134-1	01	1	9603-9904	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-134-1	01	1	9905-	●	●
48	BOLT; AIR DUCT M10X25 FLANGE	0-28081-025-0	01	1	9603-9606	●
48	BOLT; AIR DUCT M10X25 FLANGE	0-28681-025-0	01	1	9607-9904	●
48	BOLT; AIR DUCT M10X25 FLANGE	0-28681-025-0	01	1	9905-	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-110-0	01	1	9603-9606	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	9607-9904	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	9905-	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	9603-9904	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	9905-	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	9603-9904	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	9905-	●	●
50	CLIP; JOINT HOSE ID=158	1-09707-097-1	01	1	9603-9904	●
50	CLIP; JOINT HOSE ID=158	1-09707-097-1	01	1	9905-	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=10	1-09985-185-0	02	1	9603-9904	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=10	1-09985-185-0	02	1	9905-	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10	1-09985-185-0	01	1	9603-9904	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10	1-09985-185-0	01	1	9905-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	9603-9904	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	9905-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	9603-9904	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	9905-	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	9603-9904	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	9905-	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	08	1	9603-9904	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	08	1	9905-	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	9603-9904	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	9905-	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	9603-9904	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	9905-	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	9603-9904	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	9905-	●	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	9603-9904	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	9905-	●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9603-9904	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9905-	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> M10X80 FLANGE	0-28081-080-0	01	1	9603-9904	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> M10X80 FLANGE	0-28081-080-0	01	1	9905-	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> M10X26	1-09030-044-1	01	1	9603-9904	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> M10X26	1-09030-044-1	01	1	9905-	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> M10X26	1-09030-044-1	02	1	9603-9904	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> M10X26	1-09030-044-1	02	1	9905-	●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9603-9904	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9905-	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	9603-9904	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	9905-	●	●
209	BRACKET; ACL (A)	1-53419-266-0	01	1	9603-9904	●
209	BRACKET; ACL (A)	1-53419-266-0	01	1	9905-	●	●
209	BRACKET; ACL PRE CLEANER<W17> (B)	1-14239-246-0	01	1	9603-9904	●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-246-0	01	1	9905-	●	●
209	BRACKET; ACL HIGH ROOF<S2F> PRE CLEANER<W17> (B)	1-14239-258-0	01	1	9905-	●	●
210	BOLT; ACL BRKT (A) M8X65	0-10805-865-0	02	1	9603-9606	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	9607-9904	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	9905-	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28081-230-0	01	1	9603-9606	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	9607-9904	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	9905-	●	●
211	NUT; BRKT M8	9-09110-408-0	02	1	9603-9606	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
242	BRACKET; AIR DUCT (B)	1-79997-327-1	01	1	9603-9904	●
242	BRACKET; AIR DUCT (B)	1-79997-327-1	01	1	9905-	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (C)	1-79996-120-0	01	1	9603-9612	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-120-0	01	1	9701-9904	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-120-0	01	1	9905-	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-362-0	01	1	9701-9904	●
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> PRE CLEANER<W17> (C)	1-79996-362-0	01	1	9905-	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-323-1	01	1	9603-9904	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-323-1	01	1	9905-	●	●
281	DUCT; AIR,VERTICAL INT	1-14230-136-1	01	1	9603-9904	●
281	DUCT; AIR,VERTICAL INT	1-14230-136-1	01	1	9905-	●	●
286	WASHER; LK,BRKT ID=8.2	9-09150-508-0	02	1	9603-9606	●
291	BOLT; ACL M12X30 FLANGE	0-28081-230-0	02	1	9603-9606	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	9607-9904	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	9905-	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	9603-9904	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	9905-	●	●
296	NUT; ACL (B) M12	9-99110-512-0	02	1	9603-9606	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	9607-9904	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	9905-	●	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-124-0	01	1	9603-9904	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-124-0	01	1	9905-	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	01	1	9603-9810	●
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	9603-9810		●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	01	1	9811-9904	●
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	9811-9904		●
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	9905-0002	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0003-	●	●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	9603-9904	●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	9905-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
