◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11360 - FTR(MALAYSIA)W/B6000 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#55415) — 8 parça

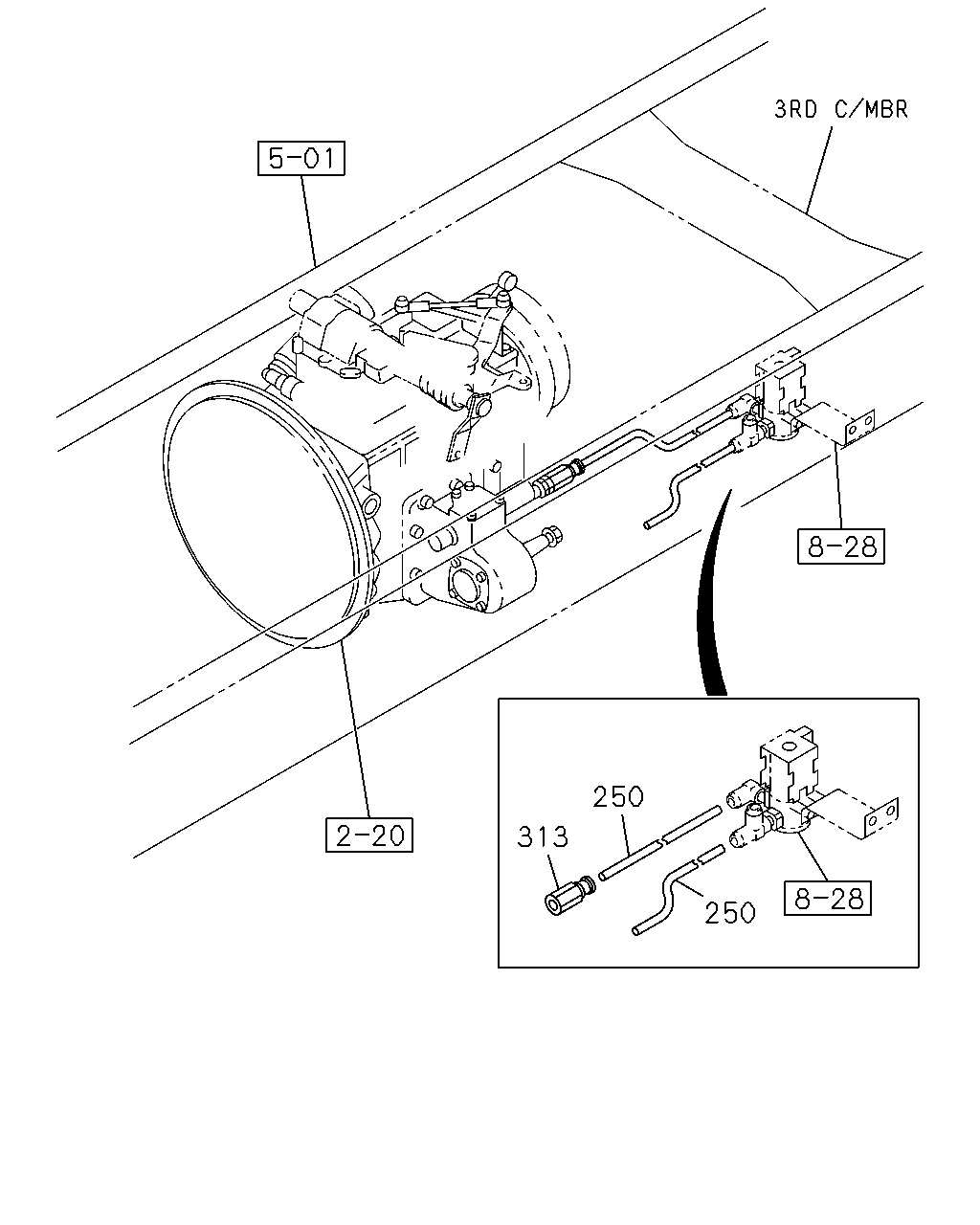

çizim 173613
250 313 250
BalonParca AdiParca NoAdetTipApplied Date
250 TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0110-0212
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0110-0212
250 TUBE; NYLON
PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
313 ADAPTER
TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8 & M12 STRAIGHT MAL 		1-09660-873-0 01 1 0110-
çizim 173618
3 3 1 55
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 0110-
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER MAL 		8-94279-207-0 03 1 0110-
55 GROMMET; CABLE 1-09983-068-0 01 1 0110-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
