2-39 — POWER ASSISTOR (#55413) — 74 parça

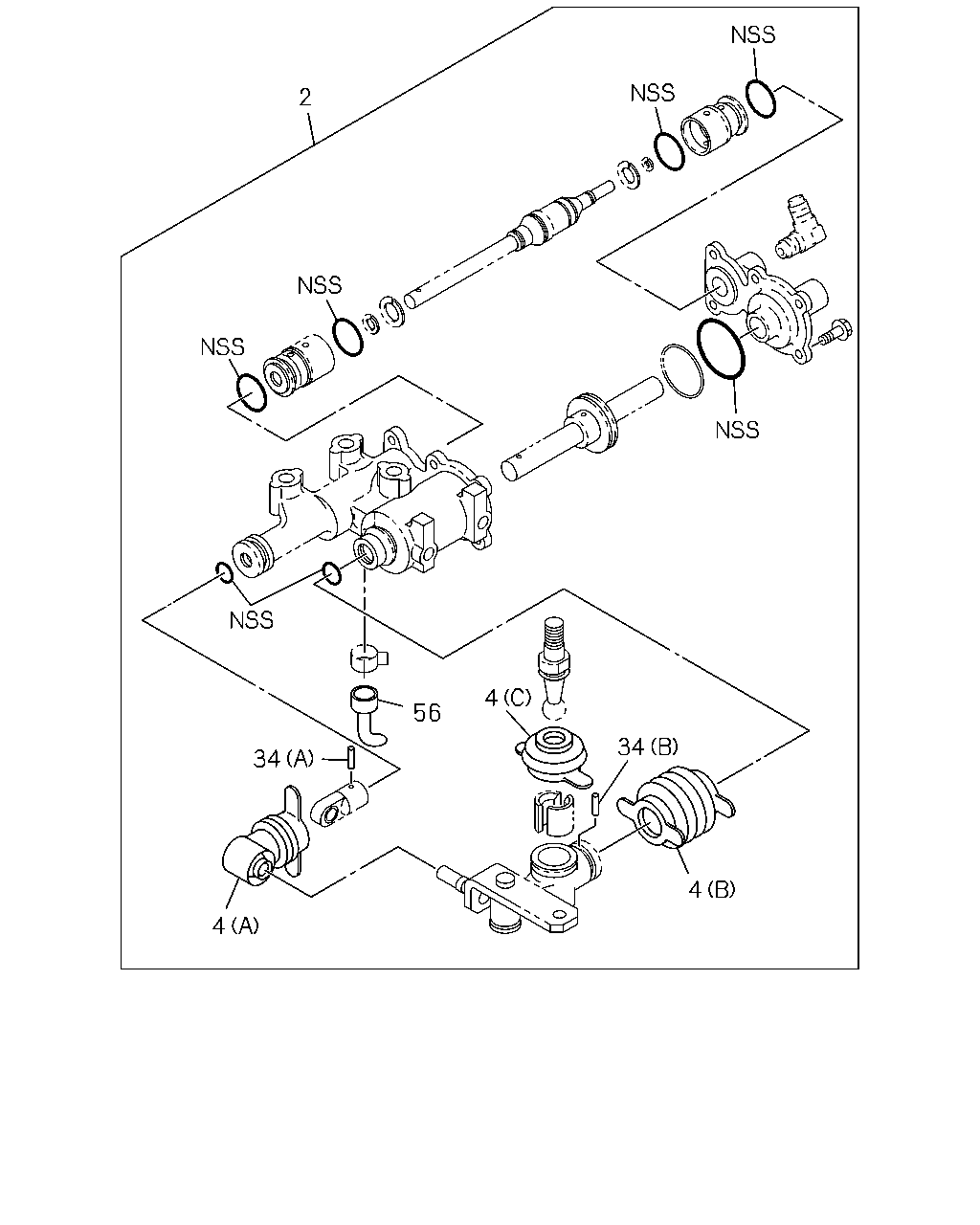

2 4 56 34 34 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33738-028-0	01	1	0110-0510	●
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33738-028-0	01	1	0511-	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	0110-0510	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	0511-	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	0110-0510	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	0511-	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	0110-0510	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	0511-	●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	0110-0510	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	0511-	●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	0110-0510	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	0511-	●	●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	0110-0510	●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	0511-	●	●

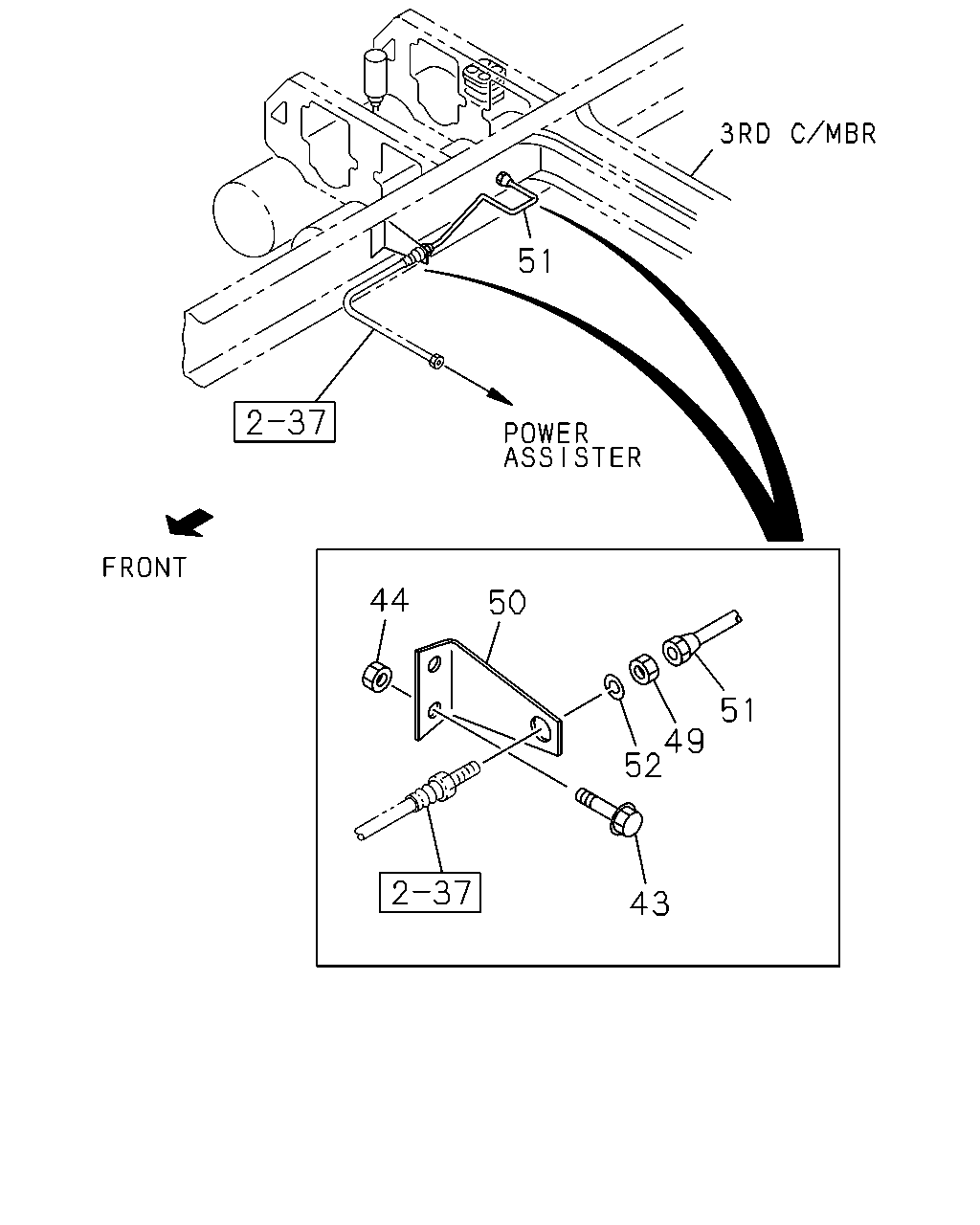

51 44 50 51 49 52 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	BOLT; BRKT,FRAME ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE	0-28680-830-0	02	1	0110-0510	●
43	BOLT; BRKT,FRAME ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	02	1	0511-0512	●
43	BOLT; BRKT,FRAME ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
44	NUT; BRKT,FRAME ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91150-108-0	02	1	0110-0510	●
44	NUT; BRKT,FRAME ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	02	1	0511-0602	●
44	NUT; BRKT,FRAME ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE MAL	0-91180-108-0	02	1	0603-	●
49	NUT; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	01	1	0110-0510	●
49	NUT; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> M12	9-09840-280-0	01	1	0511-	●
50	BRACKET; POWER ASSIST ASSISTOR SHIFT CONTROL<WX8>	1-47475-028-0	01	1	0110-0510	●
50	BRACKET; POWER ASSIST ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1>	1-47475-028-0	01	1	0511-	●
51	PIPE ASM; AIR ASSISTOR SHIFT CONTROL<WX8>	1-49119-461-0	01	1	0110-0510	●
51	PIPE ASM; AIR ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1>	1-49119-461-0	01	1	0511-	●	●
52	WASHER; LK,FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	0110-0510	●
52	WASHER; LK,FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> ID=12.2	9-09150-512-0	01	1	0511-0603	●
52	WASHER; LK,FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1> ID=12.2 MAL	0-91510-512-0	01	1	0604-	●

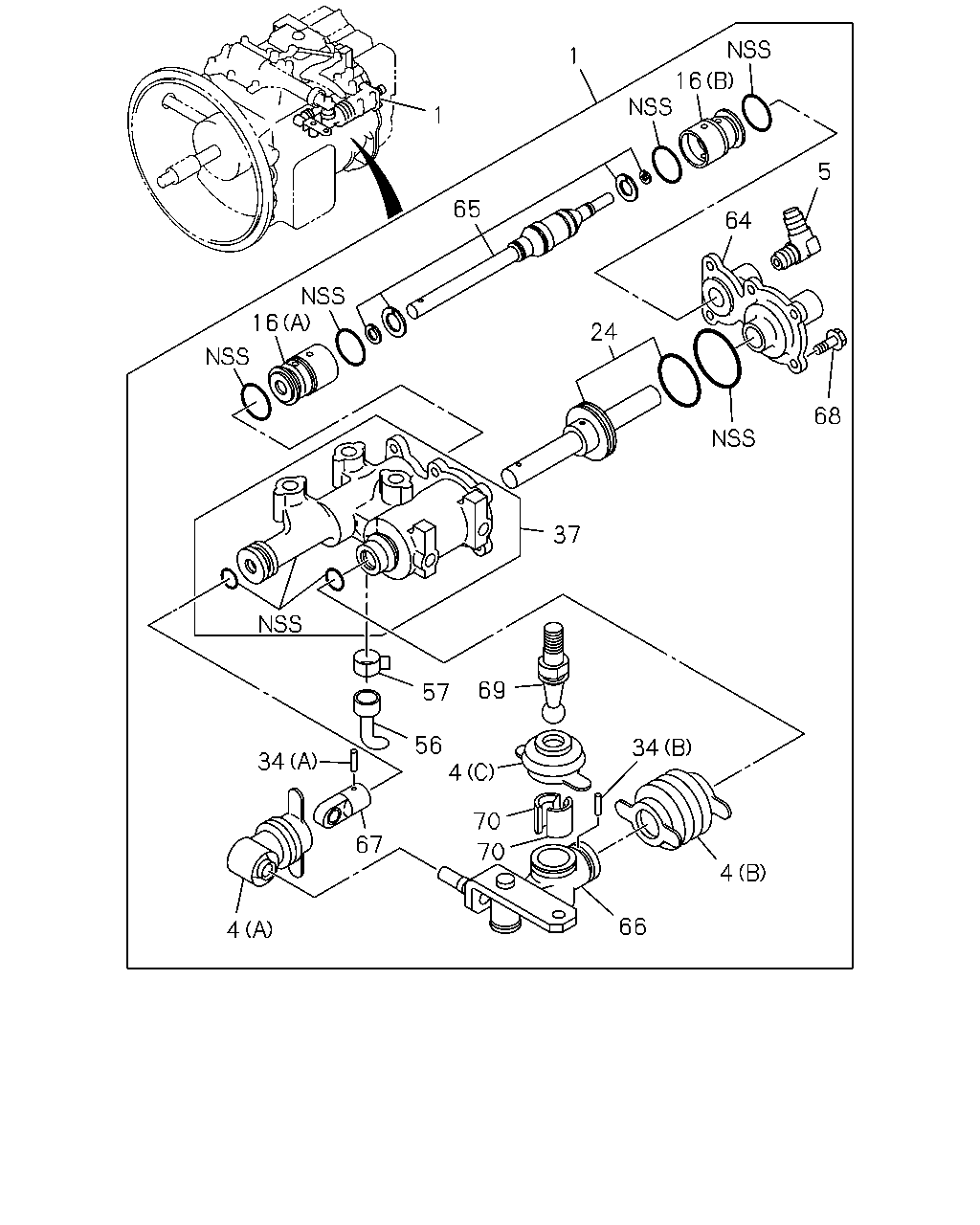

1 16 1 5 65 64 16 24 68 37 69 57 56 4 34 34 70 67 70 4 66 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33730-233-3	01	1	0110-0510	●
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33730-233-3	01	1	0511-0705	●	●
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	8-98022-843-0	01	1	0706-	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	0110-0510	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	0511-	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	0110-0510	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	0511-	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	0110-0510	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	0511-	●	●
5	CONNECTOR; CYL ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8	9-09224-306-2	01	1	0110-0510	●
5	CONNECTOR; CYL ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8	9-09224-306-2	01	1	0511-0705	●	●
5	CONNECTOR; CYL ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8	0-92124-306-0	01	1	0706-	●	●
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-838-1	01	1	0110-0510	●
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-838-1	01	1	0511-0705	●	●
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	8-97388-032-0	01	1	0706-	●	●
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-839-1	01	1	0110-0510	●
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-839-1	01	1	0511-0705	●	●
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	8-97388-033-0	01	1	0706-	●	●
24	PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-836-1	01	1	0110-0510	●
24	PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-836-1	01	1	0511-	●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	0110-0510	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	0511-	●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	0110-0510	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	0511-	●	●
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-969-0	01	1	0110-0510	●
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-969-0	01	1	0511-	●	●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	0110-0510	●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	0511-	●	●
57	CLAMP; HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33739-849-0	01	1	0110-0510	●
57	CLAMP; HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33739-849-0	01	1	0511-	●	●
64	COVER; HOUSING ASSISTOR SHIFT CONTROL<WX8>	1-33739-970-0	01	1	0110-0510	●
64	COVER; HOUSING ASSISTOR SHIFT CONTROL<WX8>	1-33739-970-0	01	1	0511-	●	●
65	VALVE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-971-0	01	1	0110-0510	●
65	VALVE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-971-0	01	1	0511-0705	●	●
65	VALVE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	8-97388-029-0	01	1	0706-	●	●
66	JOINT ASM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-972-0	01	1	0110-0510	●
66	JOINT ASM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-972-0	01	1	0511-	●	●
67	JOINT; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-973-0	01	1	0110-0510	●
67	JOINT; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-973-0	01	1	0511-	●	●
68	BOLT; COVER ASSISTOR SHIFT CONTROL<WX8> M6X12 FLANGE	1-33739-842-0	06	1	0110-0510	●
68	BOLT; COVER ASSISTOR SHIFT CONTROL<WX8> M6X12 FLANGE	1-33739-842-0	06	1	0511-	●	●
69	STUD; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-846-0	01	1	0110-0510	●
69	STUD; BALL,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-846-0	01	1	0511-	●	●
70	SEAT; BALL STUD ASSISTOR SHIFT CONTROL<WX8>	1-33659-118-0	02	1	0110-0510	●
70	SEAT; BALL STUD ASSISTOR SHIFT CONTROL<WX8>	1-33659-118-0	02	1	0511-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
