Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#55409) — 455 parça

382 383

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
382	BRACKET; PARKING BRK CONT CABLE	1-46147-109-1	01	1	0110-0510	●
382	BRACKET; PARKING BRK CONT CABLE	1-46147-109-1	01	1	0511-	●	●
383	BOLT; BRKT,PARK BRAKE M10X22 FLANGE	0-28181-022-0	03	1	0110-0510	●
383	BOLT; BRKT,PARK BRAKE M10X22 FLANGE	0-28181-022-0	03	1	0511-	●	●

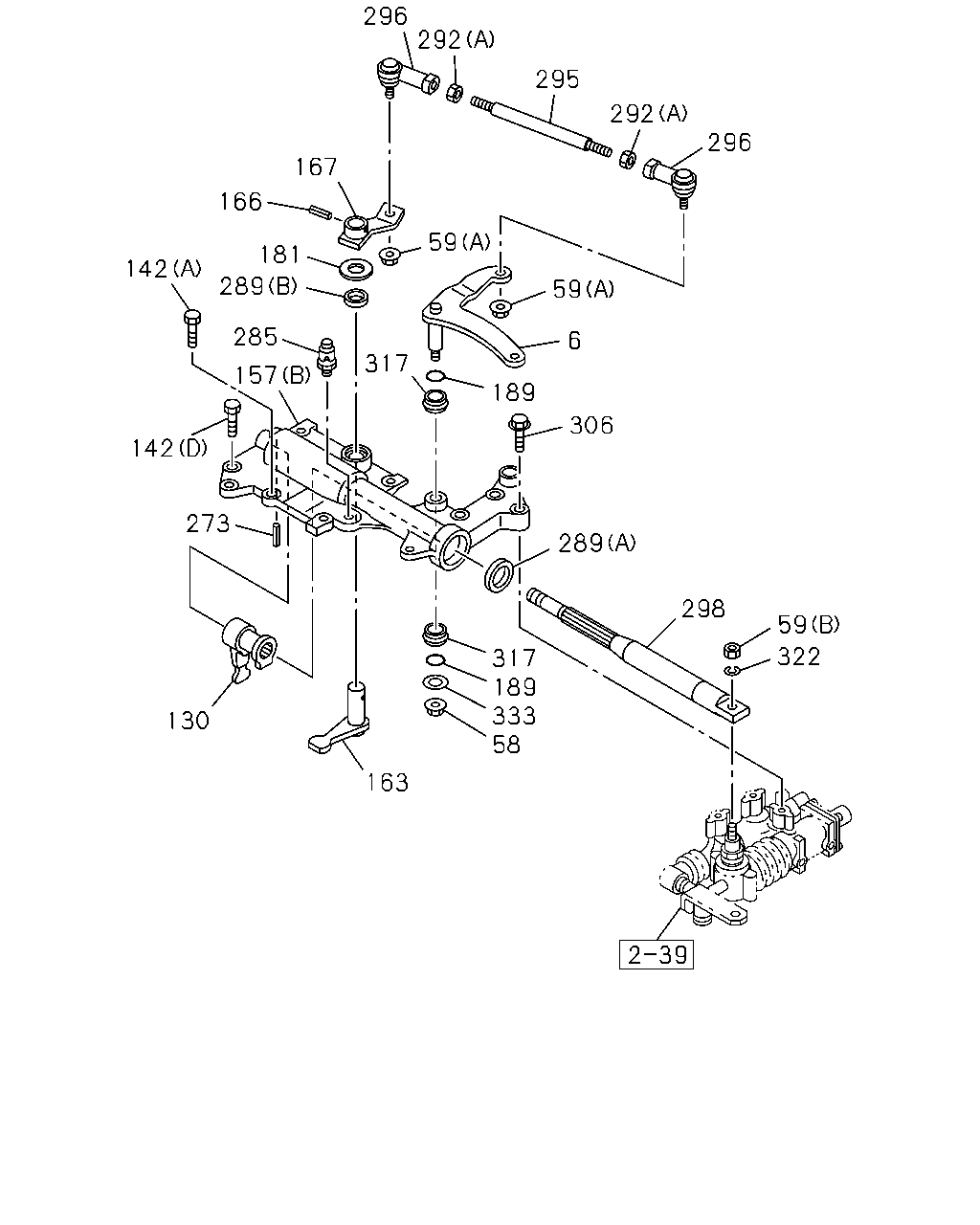

296 292 295 292 296 167 166 59 181 142 289 59 285 6 317 157 189 306 142 273 289 298 59 322 317 189 333 58 130 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33651-686-2	01	1	0110-0510	●
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33651-686-2	01	1	0511-	●	●
58	NUT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE MAL	0-91150-110-0	01	1	0110-0510	●
58	NUT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE MAL	0-91150-110-0	01	1	0511-0602	●	●
58	NUT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE MAL	0-91180-110-0	01	1	0603-	●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	0-91150-108-0	02	1	0110-0510	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	0-91150-108-0	02	1	0511-0602	●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE MAL	0-91180-108-0	02	1	0603-	●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (B) M12	9-99110-412-0	01	1	0110-0510	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (B) M12	9-99110-412-0	01	1	0511-0512	●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (B) M12 MAL	0-91110-512-0	01	1	0601-	●	●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-165-0	01	1	0110-0510	●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-165-0	01	1	0511-	●	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-111-1	01	1	0110-0510	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-111-1	01	1	0511-	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0110-0510	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0511-0805	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●	●
142	BOLT; QUAD BOX (D) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0110-0510	●
142	BOLT; QUAD BOX (D) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0511-0805	●	●
142	BOLT; QUAD BOX (D) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	04	1	0110-0510	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	04	1	0511-0512	●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28151-060-0	04	1	0601-	●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	03	1	0110-0510	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	03	1	0511-0512	●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28151-060-0	03	1	0601-	●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	0110-0510	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	0511-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	0110-	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	0110-0510	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	0511-	●	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0110-0510	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0511-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0511-		●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-153-0	01	1	0110-0510	●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-153-0	01	1	0511-	●	●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	0110-0510	●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	0511-	●	●
166	PIN; SPR,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8> L=25 OD=5	1-09748-032-0	01	1	0110-0510	●
166	PIN; SPR,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8> L=25 OD=5	1-09748-032-0	01	1	0511-	●	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	0110-0510	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	0511-	●	●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-0	01	1	0110-0510	●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	0511-	●	●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	0110-0510	●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	0511-	●	●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0110-0510	●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0511-	●	●
189	GASKET; SELECT LEVER,CONT BOX ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0110-0510	●
189	GASKET; SELECT LEVER,CONT BOX ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0511-	●	●
273	PIN; SPR,STOPPER ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4	1-09748-031-0	01	1	0110-0510	●
273	PIN; SPR,STOPPER ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4	1-09748-031-0	01	1	0511-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0110-0510	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0511-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A)	1-09625-599-0	01	1	0110-0510	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A)	1-09625-599-0	01	1	0511-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B)	1-09625-600-0	01	1	0110-0510	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B)	1-09625-600-0	01	1	0511-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41	1-09625-334-0	01	1	0110-0307	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41	1-09625-647-0	01	1	0308-0510	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41	1-09625-647-0	01	1	0511-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (B) OD=30	1-09625-386-0	01	1	0110-0510	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (B) OD=30	1-09625-386-0	01	1	0511-	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	0110-0510	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	0511-0512	●	●
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	0601-	●	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	1-09440-062-1	02	1	0110-0510	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	1-09440-062-1	02	1	0511-	●	●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	9-08400-808-0	01	1	0110-0510	●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	9-08400-808-0	01	1	0511-0705	●	●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98023-095-0	01	1	0706-	●	●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	0110-0510	●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	0511-	●	●
296	ROD END L=48	1-09760-038-1	02	1	0110-0309	●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-0510	●
296	ROD END L=45.5	1-09760-118-1	02	1	0511-	●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-163-0	01	1	0110-0510	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-163-0	01	1	0511-	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-166-0	01	1	0110-0307	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-187-0	01	1	0308-0510	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-187-0	01	1	0511-	●	●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28081-050-0	03	1	0110-0510	●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28081-050-0	03	1	0511-0512	●	●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE MAL	0-28051-050-0	03	1	0601-	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0110-0510	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0511-	●	●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	0110-0510	●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	0511-0603	●	●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=12.2 MAL	0-91510-512-0	01	1	0604-0705	●	●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0706-	●	●
333	WASHER; PL,LEVER ASSISTOR SHIFT CONTROL<WX8> ID=10.5 OD=26	9-09160-710-0	01	1	0110-0510	●
333	WASHER; PL,LEVER ASSISTOR SHIFT CONTROL<WX8> ID=10.5 OD=26	9-09160-710-0	01	1	0511-0705	●	●
333	WASHER; PL,LEVER ASSISTOR SHIFT CONTROL<WX8> ID=10.5	0-91610-710-0	01	1	0706-	●	●

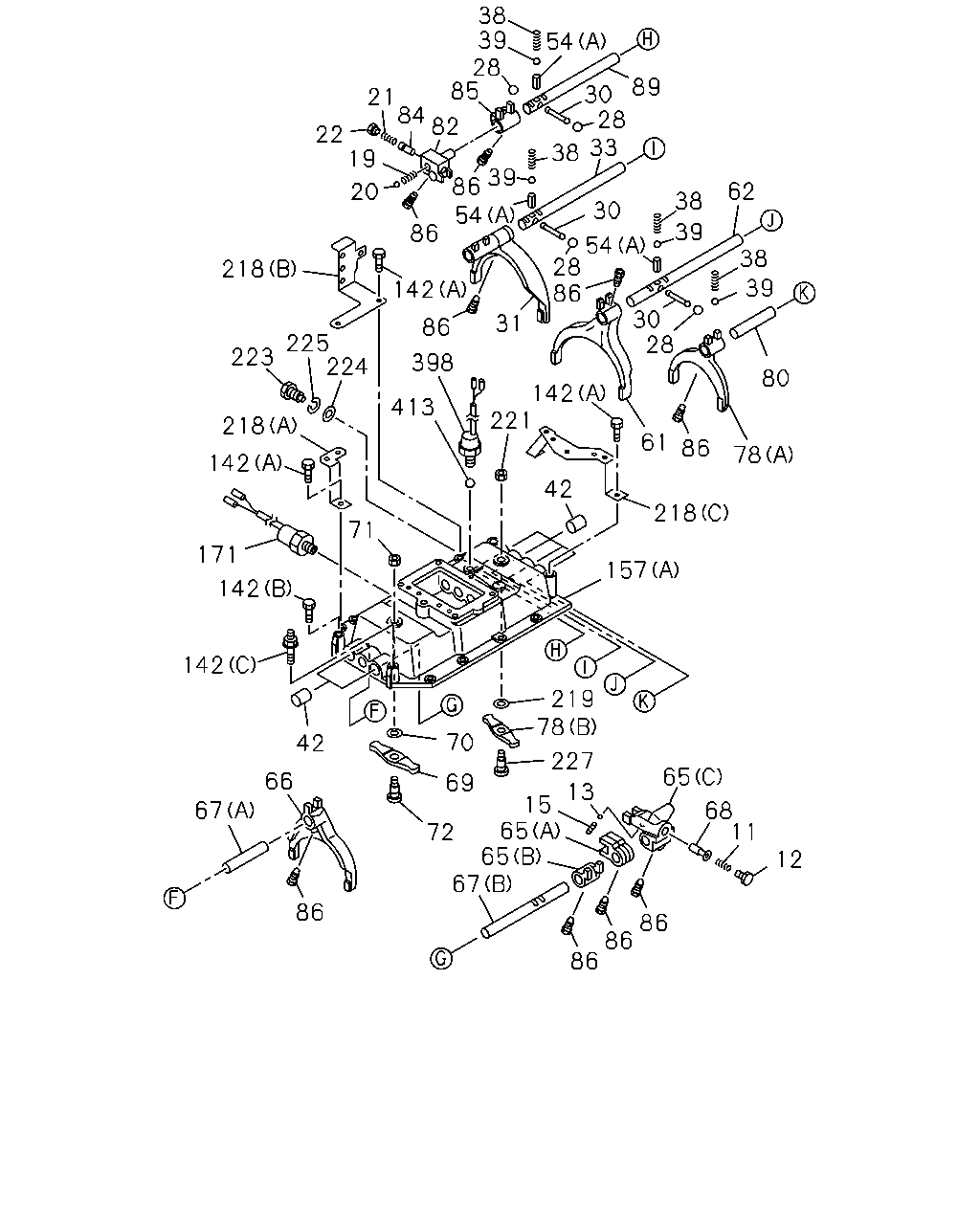

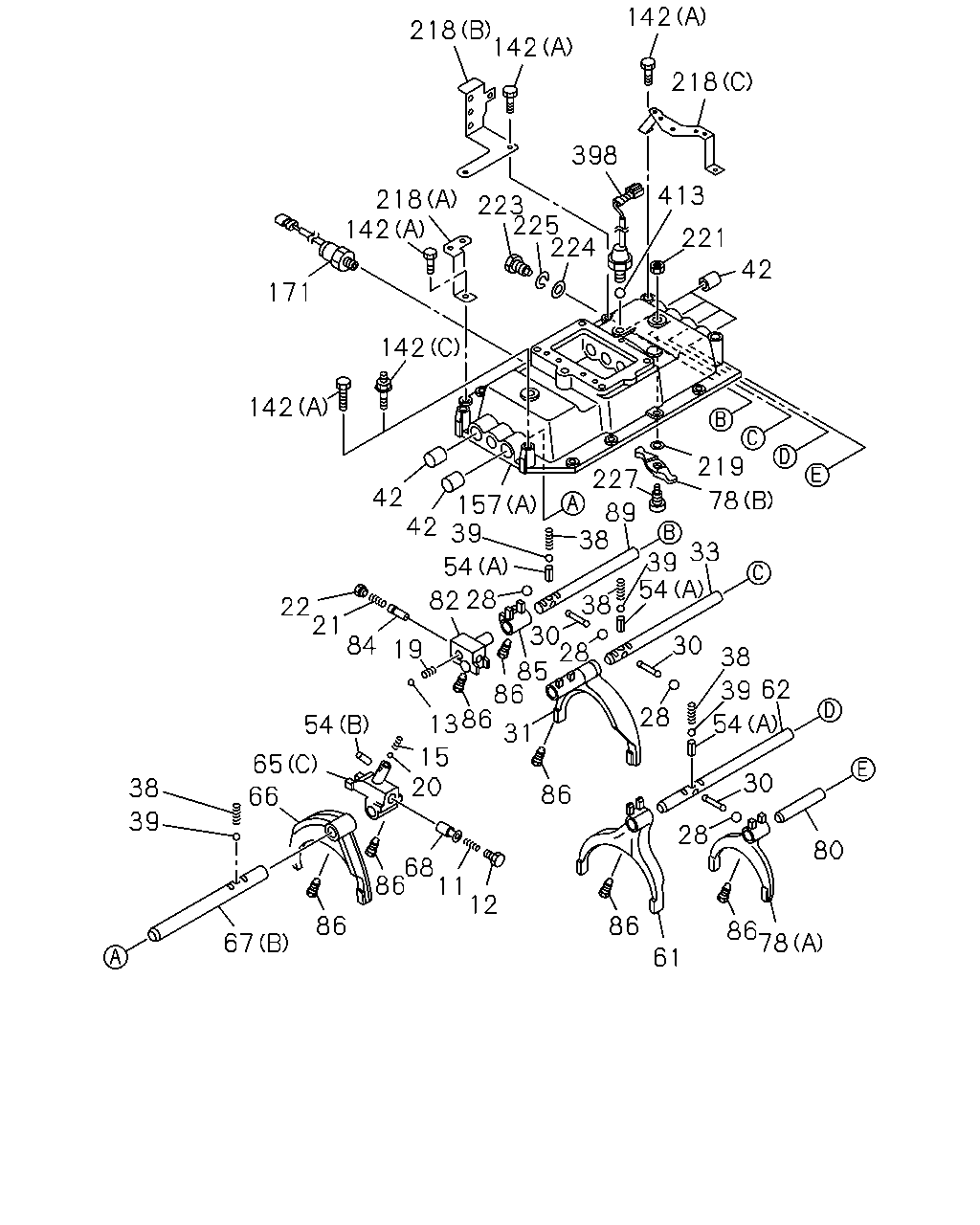

142 218 142 218 398 413 218 142 223 225 224 221 42 171 142 142 219 227 42 42 78 157 39 89 38 39 54 33 54 38 22 21 84 30 28 30 19 38 85 86 13 86 28 54 54 31 15 20 65 30 38 86 66 39 28 80 68 6 11 12 86 86 86 78 67 61 82 28 39 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33651-686-2	01	1	0110-0510	●
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33651-686-2	01	1	0511-	●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0110-0510	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0511-	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0110-0510	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0511-	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0110-0510	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0511-	●	●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0110-0510	●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0511-	●	●
19	SPRING; COIL COMP	1-09580-441-0	01	1	0110-0510	●
19	SPRING; COIL COMP	1-09580-441-0	01	1	0511-	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0110-0510	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0511-	●	●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0110-0510	●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0511-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0110-0510	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0511-	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	0110-0510	●
28	BALL; INTER LK	9-00097-501-0	04	1	0511-	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	0110-0510	●
30	PIN; INTER LK	9-33534-003-0	03	1	0511-	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0110-0510	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0511-	●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0110-0510	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0511-1202	●	●
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-	●	●
38	SPRING; DETENT ASSISTOR SHIFT CONTROL<WX8>	1-09580-379-0	04	1	0110-0510	●
38	SPRING; DETENT ASSISTOR SHIFT CONTROL<WX8>	1-09580-379-0	04	1	0511-	●	●
38	SPRING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09580-419-0	04	1	0110-0510	●
38	SPRING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09580-419-0	04	1	0511-	●	●
39	BALL; DETENT	1-09843-012-0	04	1	0110-0510	●
39	BALL; DETENT	1-09843-012-0	04	1	0511-	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0110-0510	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0511-	●	●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	0110-0201	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	0110-0510	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	0511-	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0110-0510	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0511-	●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0110-0510	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0511-1202	●	●
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0110-0510	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0511-	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	0511-		●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0511-		●
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	0110-	●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0511-		●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0110-0510	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0511-1202	●	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	8-98207-589-0	01	1	1203-	●	●
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	0511-1202		●
67	ROD; SHIFT,5TH & 6TH (A) L=122	8-98207-587-0	01	1	1203-		●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0110-0510	●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0511-	●	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0110-0510	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0511-	●	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0110-0510	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0511-	●	●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0110-0510	●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0511-1202	●	●
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1203-	●	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0110-0510	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0511-	●	●
84	SLEEVE; REV	1-33516-025-0	01	1	0110-0510	●
84	SLEEVE; REV	1-33516-025-0	01	1	0511-	●	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0110-0510	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0511-	●	●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	07	1	0110-	●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0511-		●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0110-0510	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0511-1202	●	●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0110-0510	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0511-0805	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●	●
142	BOLT; QUAD BOX (D) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0110-0510	●
142	BOLT; QUAD BOX (D) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0511-0805	●	●
142	BOLT; QUAD BOX (D) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	04	1	0110-0510	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	04	1	0511-0512	●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28151-060-0	04	1	0601-	●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	03	1	0110-0510	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	03	1	0511-0512	●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28151-060-0	03	1	0601-	●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	0110-0510	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	0511-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	0110-	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	0110-0510	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	0511-	●	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0110-0510	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0511-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0511-		●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0110-0510	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0511-0702	●	●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104	●	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0110-0510	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0511-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	0110-0510	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	0511-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0110-0510	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0511-	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0110-0510	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0511-	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0110-0510	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0511-0602	●	●
221	NUT; SPINDLE M12 FLANGE MAL	0-91180-212-0	01	1	0603-	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0110-0510	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0511-	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0110-0510	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0511-0605	●	●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0606-	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0110-0510	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0511-0603	●	●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0604-	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0110-0510	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0511-	●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0110-0510	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0511-0602	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209	●	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	0110-0510	●
413	BALL; BACK SW	9-00097-013-0	01	1	0511-	●	●

38 39 28 85 54 89 30 28 33 21 84 82 22 19 38 39 86 54 62 20 38 30 39 86 54 28 86 38 218 39 142 30 28 31 86 225 224 223 398 80 142 221 413 218 61 86 78 142 42 218 71 171 157 142 142 219 78 70 42 227 65 66 69 13 15 65 65 67 67 68 11 72 12 86 86 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0110-0510	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0511-	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0110-0510	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0511-	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0110-0510	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0511-	●	●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0110-0510	●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0511-	●	●
19	SPRING; COIL COMP	1-09580-441-0	01	1	0110-0510	●
19	SPRING; COIL COMP	1-09580-441-0	01	1	0511-	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0110-0510	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0511-	●	●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0110-0510	●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0511-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0110-0510	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0511-	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	0110-0510	●
28	BALL; INTER LK	9-00097-501-0	04	1	0511-	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	0110-0510	●
30	PIN; INTER LK	9-33534-003-0	03	1	0511-	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0110-0510	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0511-	●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0110-0510	●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0511-1202	●	●
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-	●	●
38	SPRING; DETENT ASSISTOR SHIFT CONTROL<WX8>	1-09580-379-0	04	1	0110-0510	●
38	SPRING; DETENT ASSISTOR SHIFT CONTROL<WX8>	1-09580-379-0	04	1	0511-	●	●
38	SPRING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09580-419-0	04	1	0110-0510	●
38	SPRING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09580-419-0	04	1	0511-	●	●
39	BALL; DETENT	1-09843-012-0	04	1	0110-0510	●
39	BALL; DETENT	1-09843-012-0	04	1	0511-	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0110-0510	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0511-	●	●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	0110-0201	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	0110-0510	●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	0511-	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0110-0510	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0511-	●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0110-0510	●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0511-1202	●	●
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0110-0510	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0511-	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	0511-		●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0511-		●
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	0110-	●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0511-		●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0110-0510	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0511-1202	●	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	8-98207-589-0	01	1	1203-	●	●
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	0511-1202		●
67	ROD; SHIFT,5TH & 6TH (A) L=122	8-98207-587-0	01	1	1203-		●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0110-0510	●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0511-	●	●
69	LEVER; SHIFT,5TH & 6TH	1-33511-082-0	01	1	0511-		●
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	0511-		●
71	NUT; SHIFT LEVER M12 FLANGE	0-91150-212-0	01	1	0511-0602		●
71	NUT; SHIFT LEVER M12 FLANGE MAL	0-91180-212-0	01	1	0603-		●
72	SPINDLE; 5TH & 6TH	1-33519-012-0	01	1	0511-		●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0110-0510	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0511-	●	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0110-0510	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0511-	●	●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0110-0510	●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0511-1202	●	●
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1203-	●	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0110-0510	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0511-	●	●
84	SLEEVE; REV	1-33516-025-0	01	1	0110-0510	●
84	SLEEVE; REV	1-33516-025-0	01	1	0511-	●	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0110-0510	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0511-	●	●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	07	1	0110-	●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0511-		●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0110-0510	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0511-1202	●	●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0110-0510	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0511-0805	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●	●
142	BOLT; QUAD BOX (D) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0110-0510	●
142	BOLT; QUAD BOX (D) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0511-0805	●	●
142	BOLT; QUAD BOX (D) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	04	1	0110-0510	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	04	1	0511-0512	●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28151-060-0	04	1	0601-	●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	03	1	0110-0510	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	03	1	0511-0512	●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28151-060-0	03	1	0601-	●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	0110-0510	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	0511-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	0110-	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	0110-0510	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	0511-	●	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0110-0510	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0511-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0511-		●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0110-0510	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0511-0702	●	●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104	●	●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109	●	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0110-0510	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0511-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	0110-0510	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	0511-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0110-0510	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0511-	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0110-0510	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0511-	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0110-0510	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0511-0602	●	●
221	NUT; SPINDLE M12 FLANGE MAL	0-91180-212-0	01	1	0603-	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0110-0510	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0511-	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0110-0510	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0511-0605	●	●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0606-	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0110-0510	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0511-0603	●	●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0604-	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0110-0510	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0511-	●	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0110-0510	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0511-0602	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209	●	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	0110-0510	●
413	BALL; BACK SW	9-00097-013-0	01	1	0511-	●	●

296 292 295 292 296 167 293 188 321 187 320 292 181 289 433 315 142 271 274 142 285 317 292 433 317 142 319 327 323 157 271 289 305 272 130 163 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-165-0	01	1	0110-0510	●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-165-0	01	1	0511-	●	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-111-1	01	1	0110-0510	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-111-1	01	1	0511-	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0110-0510	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0511-0805	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-	●	●
142	BOLT; QUAD BOX (D) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0110-0510	●
142	BOLT; QUAD BOX (D) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0511-0805	●	●
142	BOLT; QUAD BOX (D) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	04	1	0110-0510	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	04	1	0511-0512	●	●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28151-060-0	04	1	0601-	●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	03	1	0110-0510	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28181-060-0	03	1	0511-0512	●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X60 FLANGE	0-28151-060-0	03	1	0601-	●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	0110-0510	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	0511-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	0110-	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	0110-0510	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	0511-	●	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0110-0510	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0511-	●	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0511-		●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-153-0	01	1	0110-0510	●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-153-0	01	1	0511-	●	●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	0110-0510	●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	0511-	●	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	0110-0510	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	0511-	●	●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-0	01	1	0110-0510	●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	0511-	●	●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	0110-0510	●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	0511-	●	●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0110-0510	●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0511-	●	●
187	BOLT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X42	1-33659-045-0	01	1	0110-0510	●
187	BOLT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X42	1-33659-045-0	01	1	0511-	●	●
188	NUT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-062-1	01	1	0110-0510	●
188	NUT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-062-1	01	1	0511-	●	●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) ID=20 OD=23	1-33549-016-0	01	1	0110-0510	●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) ID=20 OD=23	1-33549-016-0	01	1	0511-	●	●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=28 OD=32	1-33549-104-0	01	1	0110-0510	●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=28 OD=32	1-33549-104-0	01	1	0511-	●	●
272	RING; SNAP,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09588-175-0	01	1	0110-0510	●
272	RING; SNAP,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09588-175-0	01	1	0511-	●	●
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	9-33545-017-1	01	1	0110-0510	●
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	9-33545-017-1	01	1	0511-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0110-0510	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0511-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A)	1-09625-599-0	01	1	0110-0510	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A)	1-09625-599-0	01	1	0511-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B)	1-09625-600-0	01	1	0110-0510	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B)	1-09625-600-0	01	1	0511-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41	1-09625-334-0	01	1	0110-0307	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41	1-09625-647-0	01	1	0308-0510	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41	1-09625-647-0	01	1	0511-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (B) OD=30	1-09625-386-0	01	1	0110-0510	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (B) OD=30	1-09625-386-0	01	1	0511-	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	0110-0510	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	0511-0512	●	●
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	0601-	●	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	1-09440-062-1	02	1	0110-0510	●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	1-09440-062-1	02	1	0511-	●	●
293	WASHER; PL,TAPER BOLT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22	9-09160-708-0	01	1	0110-0510	●
293	WASHER; PL,TAPER BOLT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22	9-09160-708-0	01	1	0511-0605	●	●
293	WASHER; PL,TAPER BOLT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	9-08400-808-0	01	1	0110-0510	●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	9-08400-808-0	01	1	0511-0705	●	●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98023-095-0	01	1	0706-	●	●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	0110-0510	●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	0511-	●	●
296	ROD END L=48	1-09760-038-1	02	1	0110-0309	●
296	ROD END L=45.5	1-09760-118-1	02	1	0310-0510	●
296	ROD END L=45.5	1-09760-118-1	02	1	0511-	●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-163-0	01	1	0110-0510	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-163-0	01	1	0511-	●	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-166-0	01	1	0110-0307	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-187-0	01	1	0308-0510	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-187-0	01	1	0511-	●	●
305	BOOT; LEVER SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33529-028-0	01	1	0110-0510	●
305	BOOT; LEVER SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33529-028-0	01	1	0511-	●	●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-702-0	01	1	0110-0510	●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-702-0	01	1	0511-	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0110-0510	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0511-	●	●
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-515-0	01	1	0110-0510	●
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-515-0	01	1	0511-	●	●
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-474-0	01	1	0110-0510	●
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-474-0	01	1	0511-	●	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	0110-0510	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	0511-0512	●	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10856-080-0	02	1	0601-	●	●
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE MAL	0-91150-110-0	01	1	0110-0510	●
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE MAL	0-91150-110-0	01	1	0511-	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	0110-0510	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	0511-0602	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE MAL	0-91180-210-0	02	1	0603-	●	●
433	GASKET; BUSHING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0110-0510	●
433	GASKET; BUSHING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0511-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
