Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#55408) — 298 parça

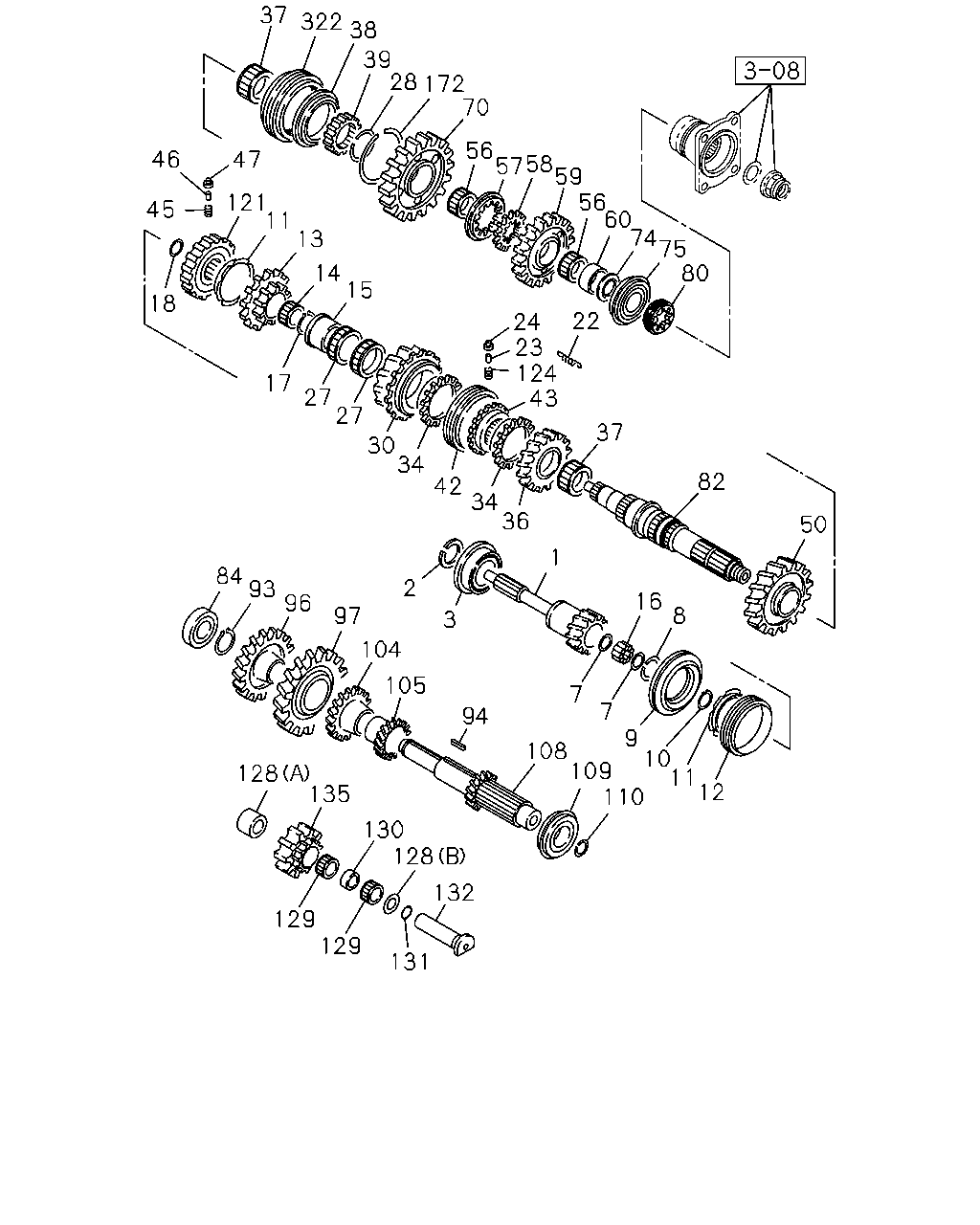

37 322 38 39 28 172 70 56 57 58 59 56 60 74 75 80 46 47 121 11 45 13 14 15 18 22 24 23 124 43 17 27 27 37 30 34 42 34 36 82 50 1 84 93 96 2 16 8 97 3 104 105 7 7 94 9 10 11 12 108 109 110 128 135 130 128 132 129 129 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-984-0	01	1	0110-	●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-989-0	01	1	0511-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0110-0510	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0511-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0110-0510	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0511-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0110-0510	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0511-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0110-0510	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0511-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0110-0510	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0511-	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0110-0510	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0511-	●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0110-0510	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0511-	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0110-0510	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0511-	●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0110-0510	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0511-	●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0110-0510	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0511-	●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0110-0510	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0511-	●	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-711-0	01	1	0110-	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	0110-0510	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	0511-	●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0110-0510	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0511-	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	0110-0510	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	0511-	●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	0110-0510	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	0511-	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0110-0510	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0511-	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0110-0510	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0511-	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0110-0510	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0511-	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0110-0510	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0511-	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0110-0510	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0511-	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0110-0510	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0511-	●	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	0110-	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	0511-1107		●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-		●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	0110-0312	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0401-0510	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0511-	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	0110-	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0511-		●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	0110-0510	●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	0511-	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	0110-0510	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	0511-	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	0110-0312	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0401-0510	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0511-	●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0110-0510	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0511-	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	0110-0510	●
42	SLEEVE Z=54	1-33262-154-0	01	1	0511-	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0110-0510	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0511-	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0110-0510	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0511-	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0110-0510	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0511-	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0110-0510	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0511-	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0110-0510	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0511-	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	0110-0510	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	0511-	●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0110-0510	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0511-	●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0110-0510	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0511-	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0110-0510	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0511-	●	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0110-0510	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0511-	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0110-0510	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0511-	●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0110-0510	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0511-	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0110-0510	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0511-	●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0110-0510	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0511-	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0110-0510	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0511-	●	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0110-0510	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0511-	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0110-0510	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0511-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0110-0510	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0511-	●	●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	0110-0510	●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	0511-	●	●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	0110-0510	●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	0511-	●	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-213-1	01	1	0110-	●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	0511-		●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	0110-	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	0110-1302	●
104	GEAR; 4TH,COUNTER Z=33	8-98240-187-0	01	1	1303-	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0511-1107		●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311		●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-		●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	0110-1311	●
105	GEAR; 3RD,COUNTER Z=27	8-98256-802-0	01	1	1312-	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	0511-1311		●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	0110-0510	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	0511-	●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	0110-0510	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	0511-	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0110-0510	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0511-	●	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0110-0510	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0511-	●	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	0110-0212	●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0301-0510	●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0511-	●	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	0110-0510	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	0511-	●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0110-0510	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0511-	●	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0110-0510	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0511-	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	0110-0510	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	0511-	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0110-0510	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0511-	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0110-0510	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0511-	●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0110-0510	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0511-	●	●
132	SHAFT; REV	1-33351-017-0	01	1	0110-0510	●
132	SHAFT; REV	1-33351-017-0	01	1	0511-	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0110-0510	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0511-	●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	0110-0510	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	0511-	●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0110-0510	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0511-	●	●

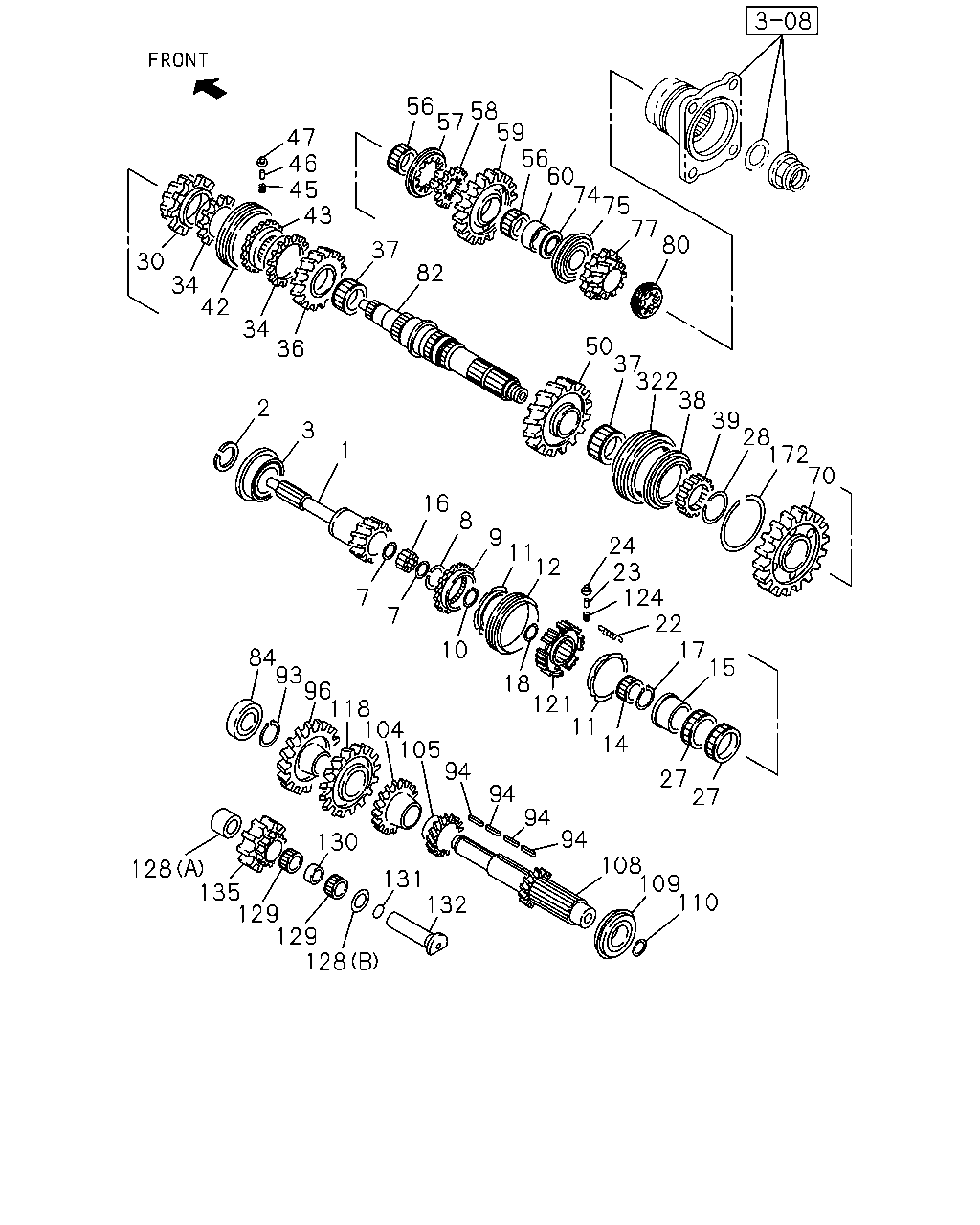

56 58 57 59 56 60 74 75 77 80 47 46 45 43 37 30 34 42 82 34 36 50 37 322 38 39 28 172 70 2 3 1 16 8 9 11 12 24 23 124 22 17 15 7 7 10 84 93 96 118 104 105 94 18 121 11 14 27 27 94 94 94 130 108 109 110 128 135 129 129 128 131 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-984-0	01	1	0110-	●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-989-0	01	1	0511-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0110-0510	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0511-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0110-0510	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0511-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0110-0510	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0511-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0110-0510	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0511-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0110-0510	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0511-	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0110-0510	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0511-	●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0110-0510	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	0511-	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0110-0510	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0511-	●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0110-0510	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0511-	●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0110-0510	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0511-	●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0110-0510	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0511-	●	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	0110-0510	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	0511-	●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0110-0510	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0511-	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	0110-0510	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	0511-	●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	0110-0510	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	0511-	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0110-0510	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0511-	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0110-0510	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0511-	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0110-0510	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0511-	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0110-0510	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0511-	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0110-0510	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0511-	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0110-0510	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0511-	●	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	0110-	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	0511-1107		●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-		●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	0110-0312	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0401-0510	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0511-	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	0110-	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0511-		●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	0110-0510	●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	0511-	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	0110-0510	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	0511-	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	0110-0312	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0401-0510	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0511-	●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0110-0510	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0511-	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	0110-0510	●
42	SLEEVE Z=54	1-33262-154-0	01	1	0511-	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0110-0510	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0511-	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0110-0510	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0511-	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0110-0510	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0511-	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0110-0510	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0511-	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0110-0510	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0511-	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	0110-0510	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	0511-	●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0110-0510	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0511-	●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0110-0510	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0511-	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0110-0510	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0511-	●	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0110-0510	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0511-	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0110-0510	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0511-	●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0110-0510	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0511-	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0110-0510	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0511-	●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0110-0510	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0511-	●	●
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	0511-		●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0110-0510	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0511-	●	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0110-0510	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0511-	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0110-0510	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0511-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0110-0510	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0511-	●	●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	0110-0510	●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	0511-	●	●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	0110-0510	●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	0511-	●	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-213-1	01	1	0110-	●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	0511-		●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	0110-1302	●
104	GEAR; 4TH,COUNTER Z=33	8-98240-187-0	01	1	1303-	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0511-1107		●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311		●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-		●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	0110-1311	●
105	GEAR; 3RD,COUNTER Z=27	8-98256-802-0	01	1	1312-	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	0511-1311		●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	0110-0510	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	0511-	●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	0110-0510	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	0511-	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0110-0510	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0511-	●	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0110-0510	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0511-	●	●
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	0511-		●
121	HUB; CLU,6TH	1-33261-156-2	01	1	0110-0212	●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0301-0510	●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0511-	●	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	0110-0510	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	0511-	●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0110-0510	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0511-	●	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0110-0510	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0511-	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	0110-0510	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	0511-	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0110-0510	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0511-	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0110-0510	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0511-	●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0110-0510	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0511-	●	●
132	SHAFT; REV	1-33351-017-0	01	1	0110-0510	●
132	SHAFT; REV	1-33351-017-0	01	1	0511-	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0110-0510	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0511-	●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	0110-0510	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	0511-	●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0110-0510	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0511-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
