2-05 — CLUTCH PIPING (#55401) — 158 parça

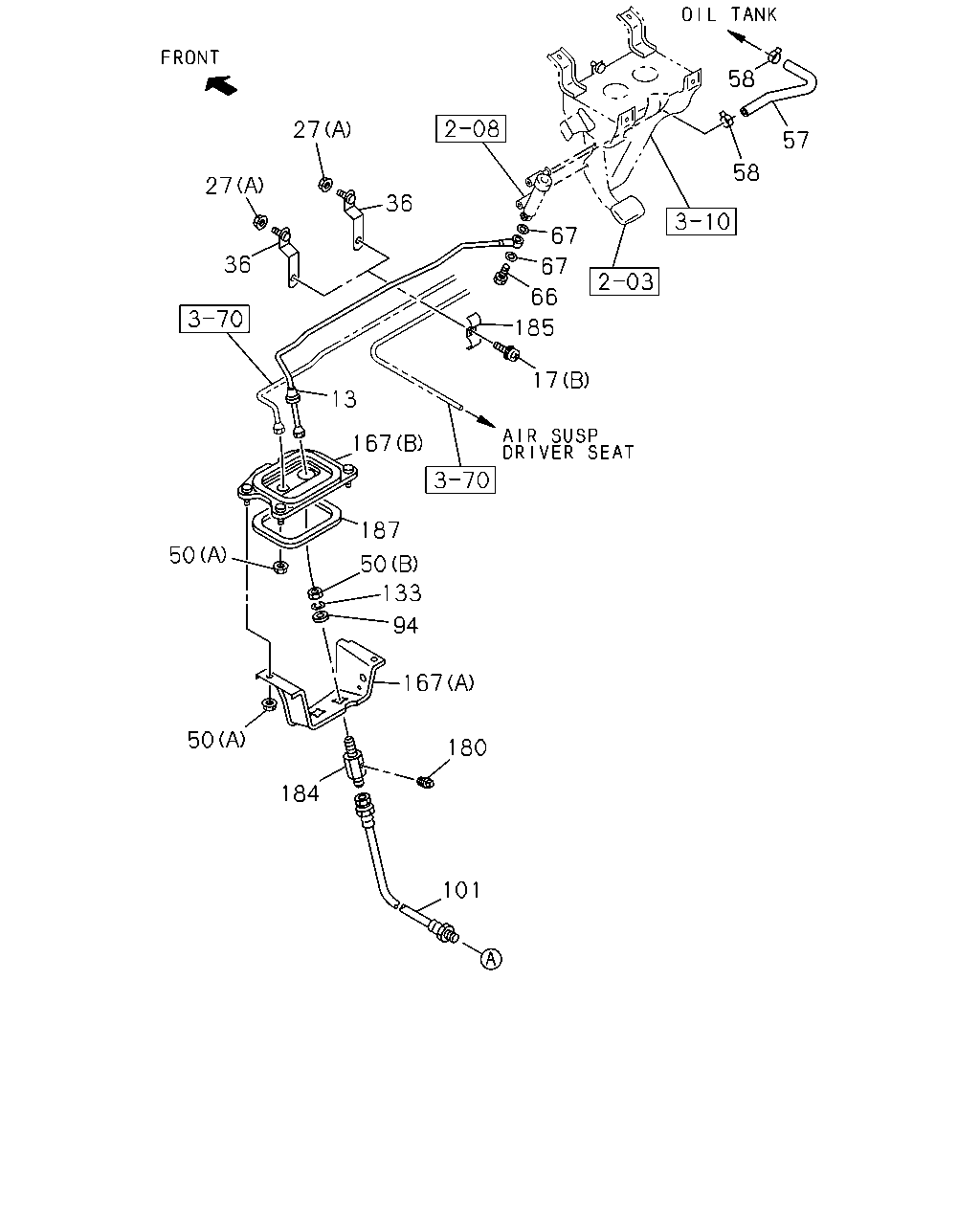

58 27 57 58 27 36 67 36 67 66 185 17 13 167 187 50 50 133 94 167 50 180 184 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	0110-
17	BOLT; BRKT (A) M8X20 FLANGE MAL	0-28680-820-0	02	1	0110-0512
17	BOLT; BRKT (A) M8X20 FLANGE MAL	0-28650-820-0	02	1	0601-
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER MAL	8-94279-201-0	02	1	0110-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0110-0602
27	NUT; BRKT (B) M8 FLANGE MAL	0-91180-108-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0110-
36	BRACKET; CLIP	1-79738-186-1	02	1	0110-
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE MAL	1-09985-340-0	03	1	0110-
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0110-0512
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-
50	NUT; UNION AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> (C) M12	9-09840-280-0	01	1	0511-
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0110-
58	CLIP; RUBBER HOSE TO M/CYL ID=14 MAL	8-94238-572-0	02	1	0110-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0110-0805
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0110-1312
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0110-0605
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0606-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0110-0703
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0110-0603
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-
167	BRACKET; UNION (A)	1-79738-193-6	01	1	0110-
167	BRACKET; UNION (B)	1-79738-845-1	01	1	0110-
180	PLUG; PIPE	9-09204-510-0	01	1	0110-0804
184	UNION; FLEX HOSE STRAIGHT 3WAY	1-09656-679-0	01	1	0110-0804
184	UNION; FLEX HOSE STRAIGHT 2WAY	1-09654-435-0	01	1	0805-
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	0110-
187	SEAL; BRKT	1-79738-190-0	01	1	0110-

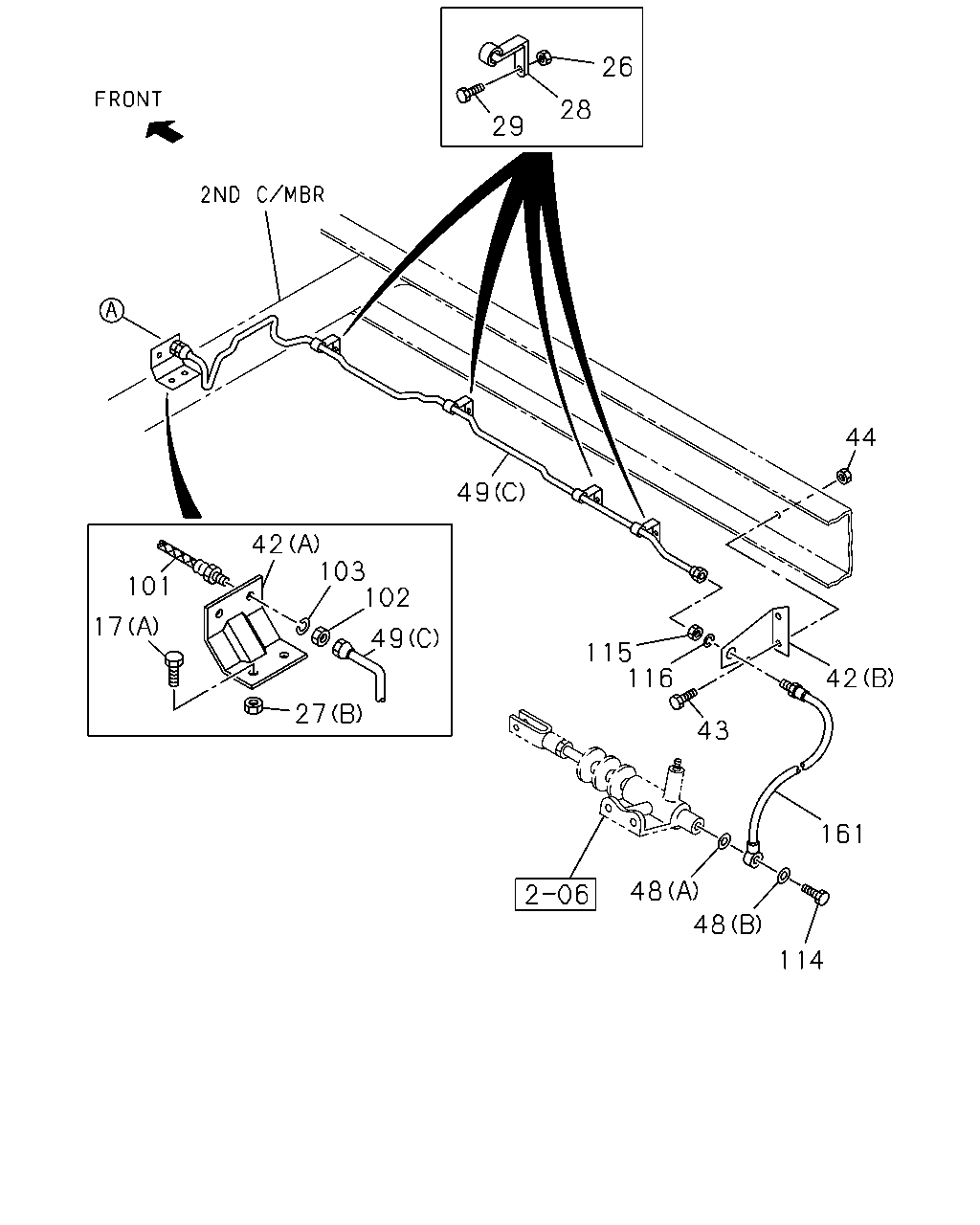

26 28 29 44 49 42 103 102 101 17 49 115 116 42 27 43 161 48 48 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; BRKT (A) M8X20 FLANGE MAL	0-28680-820-0	02	1	0110-0512
17	BOLT; BRKT (A) M8X20 FLANGE MAL	0-28650-820-0	02	1	0601-
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER MAL	8-94279-201-0	02	1	0110-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0110-0510
26	NUT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	03	1	0511-0602
26	NUT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE MAL	0-91180-108-0	03	1	0603-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0110-0602
26	NUT; CLIP,OIL PIPE M8 FLANGE MAL	0-91180-108-0	01	1	0603-
26	NUT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	04	1	0511-0602
26	NUT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8 FLANGE MAL	0-91180-108-0	04	1	0603-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0110-0602
27	NUT; BRKT (B) M8 FLANGE MAL	0-91180-108-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0110-
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0110-
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0110-0510
28	CLIP; OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	03	1	0511-
28	CLIP; OIL PIPE AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	04	1	0511-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE MAL	0-28680-825-0	01	1	0110-0512
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE MAL	0-28650-825-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	0110-0510
29	BOLT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	03	1	0511-0512
29	BOLT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	03	1	0601-
29	BOLT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	04	1	0511-0512
29	BOLT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	04	1	0601-
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	0110-0510
42	BRACKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B)	1-47475-709-0	01	1	0511-
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0110-
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (B)	1-47477-944-0	01	1	0511-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0110-0512
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0110-0602
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE MAL	0-91180-108-0	02	1	0603-
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.5	1-09630-074-1	01	1	0110-0510
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (A) ID=10.5	1-09630-074-1	01	1	0511-
48	GASKET; FLEX HOSE,CLU CONT (B) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	0110-0510
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	0511-
48	GASKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0511-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) L=2366 SERVICED BY L=2400	1-47426-395-0	01	1	0110-0510
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. AIR ASSIST CLUTCH<PK1> (C) L=2366 SERVICED BY L=2400	1-47426-395-0	01	1	0511-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A) L=2973 SERVICED BY L=3000	1-47426-397-0	01	1	0511-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B) L=204	1-49117-400-0	01	1	0511-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0110-0703
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0110-0512
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0110-0603
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
114	BOLT; EYE,FLEX HOSE	1-09675-158-0	01	1	0110-0510
114	BOLT; EYE,FLEX HOSE EXC. AIR ASSIST CLUTCH<PK1>	1-09675-158-0	01	1	0511-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0110-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0110-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
161	HOSE; FLEX,SLAVE CYL L=400	1-09364-597-0	01	1	0110-0510
161	HOSE; FLEX,SLAVE CYL EXC. AIR ASSIST CLUTCH<PK1> L=400	1-09364-597-0	01	1	0511-

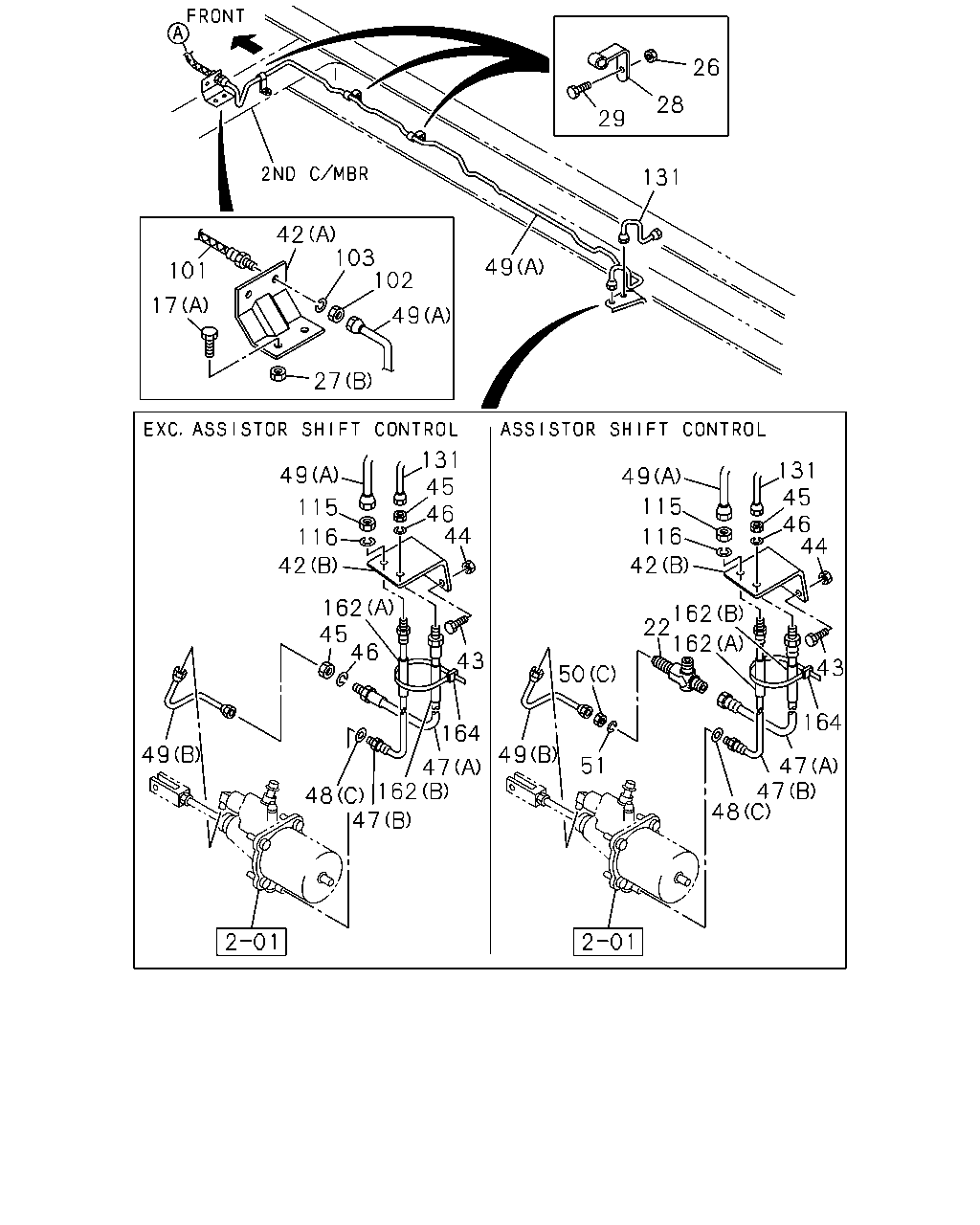

26 28 29 131 42 103 102 49 101 17 49 27 131 45 46 44 131 45 46 44 49 49 115 115 116 116 42 42 162 45 46 162 22 162 43 43 50 164 164 49 49 51 47 47 48 47 162 48 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; BRKT (A) M8X20 FLANGE MAL	0-28680-820-0	02	1	0110-0512
17	BOLT; BRKT (A) M8X20 FLANGE MAL	0-28650-820-0	02	1	0601-
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER MAL	8-94279-201-0	02	1	0110-
22	UNION; CLU PIPE AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	9-09228-706-1	01	1	0511-0607
22	UNION; CLU PIPE AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	0608-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0110-0510
26	NUT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	03	1	0511-0602
26	NUT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8 FLANGE MAL	0-91180-108-0	03	1	0603-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0110-0602
26	NUT; CLIP,OIL PIPE M8 FLANGE MAL	0-91180-108-0	01	1	0603-
26	NUT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8 FLANGE	0-91150-108-0	04	1	0511-0602
26	NUT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8 FLANGE MAL	0-91180-108-0	04	1	0603-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0110-0602
27	NUT; BRKT (B) M8 FLANGE MAL	0-91180-108-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0110-
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0110-
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0110-0510
28	CLIP; OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	03	1	0511-
28	CLIP; OIL PIPE AIR ASSIST CLUTCH<PK1> ID=8 H=20 L=20	1-09700-604-0	04	1	0511-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE MAL	0-28680-825-0	01	1	0110-0512
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE MAL	0-28650-825-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	0110-0510
29	BOLT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	03	1	0511-0512
29	BOLT; CLIP,OIL PIPE EXC. AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	03	1	0601-
29	BOLT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28680-830-0	04	1	0511-0512
29	BOLT; CLIP,OIL PIPE AIR ASSIST CLUTCH<PK1> M8X30 FLANGE	0-28650-830-0	04	1	0601-
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	0110-0510
42	BRACKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B)	1-47475-709-0	01	1	0511-
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0110-
42	BRACKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (B)	1-47477-944-0	01	1	0511-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0110-0512
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0110-0602
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE MAL	0-91180-108-0	02	1	0603-
45	NUT; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	01	1	0511-
45	NUT; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	02	1	0511-
46	WASHER; LK,FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	0511-0603
46	WASHER; LK,FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> ID=12.2 MAL	0-91510-512-0	01	1	0604-
46	WASHER; LK,FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	02	1	0511-0603
46	WASHER; LK,FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2 MAL	0-91510-512-0	02	1	0604-
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> (B) L=415	1-09364-490-0	01	1	0511-
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> (A) L=420	1-09363-633-0	01	1	0511-
47	HOSE; FLEX,CLU CONT AIR ASSIST CLUTCH<PK1> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=500	1-09363-720-0	01	1	0511-
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.5	1-09630-074-1	01	1	0110-0510
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (A) ID=10.5	1-09630-074-1	01	1	0511-
48	GASKET; FLEX HOSE,CLU CONT (B) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	0110-0510
48	GASKET; FLEX HOSE,CLU CONT EXC. AIR ASSIST CLUTCH<PK1> (B) T=1.5 ID=14.2 OD=20	9-09851-004-0	01	1	0511-
48	GASKET; FLEX HOSE,CLU CONT AIR ASSIST CLUTCH<PK1> (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0511-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) L=2366 SERVICED BY L=2400	1-47426-395-0	01	1	0110-0510
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. AIR ASSIST CLUTCH<PK1> (C) L=2366 SERVICED BY L=2400	1-47426-395-0	01	1	0511-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A) L=2973 SERVICED BY L=3000	1-47426-397-0	01	1	0511-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B) L=204	1-49117-400-0	01	1	0511-
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE MAL	1-09985-340-0	03	1	0110-
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0110-0512
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-
50	NUT; UNION AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> (C) M12	9-09840-280-0	01	1	0511-
51	WASHER; LK AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	0511-0603
51	WASHER; LK AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> ID=12.2 MAL	0-91510-512-0	01	1	0604-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0110-0703
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0110-0512
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0110-0603
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0110-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0110-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
131	PIPE; AIR,UNION TO FLEX HOSE AIR ASSIST CLUTCH<PK1>	1-49119-462-0	01	1	0511-
162	COVER; RUBBER,FLEX HOSE AIR ASSIST CLUTCH<PK1> (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	0511-
162	COVER; RUBBER,FLEX HOSE AIR ASSIST CLUTCH<PK1> (B) ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	0511-
164	CLIP; BAND,FLEX HOSE AIR ASSIST CLUTCH<PK1> L=140 MAL	5-09707-031-1	01	1	0511-
