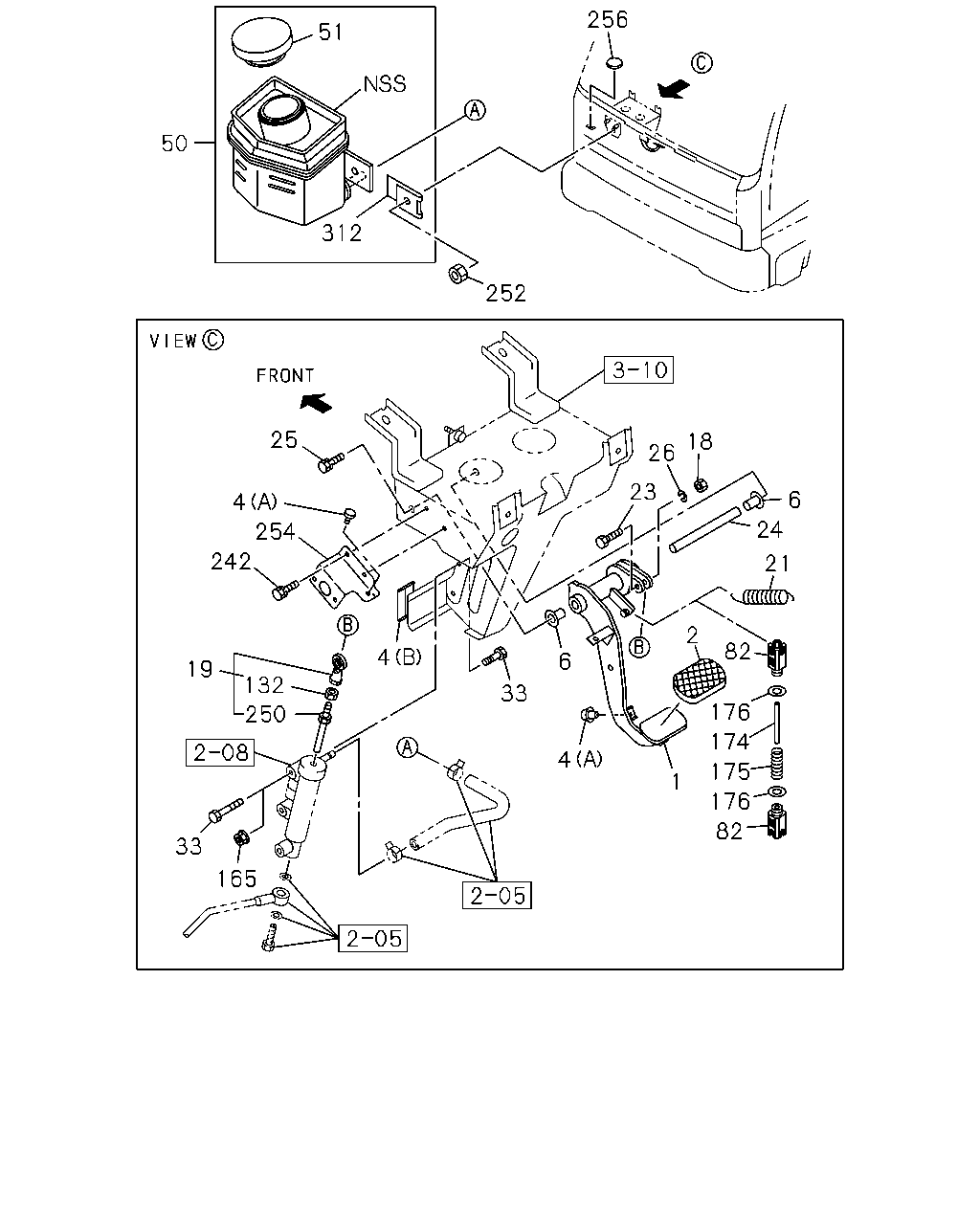

2-03 — CLUTCH PEDAL AND CONTROL (#55400) — 53 parça

256 51 50 312 252 25 18 26 23 6 4 24 254 242 21 2 82 4 6 19 132 33 176 250 174 4 175 1 176 82 33 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PEDAL; CLU	1-73908-331-2	01	1	0110-0510
1	PEDAL; CLU EXC. AIR ASSIST CLUTCH<PK1>	1-73908-331-2	01	1	0511-
1	PEDAL; CLU AIR ASSIST CLUTCH<PK1>	1-73908-171-3	01	1	0511-
2	COVER; CLU PEDAL	8-97893-618-1	01	1	0110-
4	STOPPER; CLU PEDAL (A)	1-47319-014-1	02	1	0110-0510
4	STOPPER; CLU PEDAL EXC. AIR ASSIST CLUTCH<PK1> (A)	1-47319-014-1	02	1	0511-
4	STOPPER; CLU PEDAL (B)	1-73908-088-1	01	1	0110-0510
4	STOPPER; CLU PEDAL EXC. AIR ASSIST CLUTCH<PK1> (B)	1-73908-088-1	01	1	0511-
4	STOPPER; CLU PEDAL AIR ASSIST CLUTCH<PK1> (A)	1-47319-014-1	04	1	0511-
6	BUSHING; CLU PEDAL	1-09330-045-0	02	1	0110-
18	NUT; PUSH ROD M8	9-09110-508-0	01	1	0110-0510
18	NUT; PUSH ROD EXC. AIR ASSIST CLUTCH<PK1> M8	9-09110-508-0	01	1	0511-
18	NUT; PUSH ROD AIR ASSIST CLUTCH<PK1> M8	0-91110-508-0	01	1	0511-
19	ROD ASM; PUSH,CLU	1-73908-332-0	01	1	0110-0510
19	ROD ASM; PUSH,CLU EXC. AIR ASSIST CLUTCH<PK1>	1-73908-332-0	01	1	0511-
19	ROD ASM; PUSH,CLU AIR ASSIST CLUTCH<PK1>	1-73996-144-1	01	1	0511-
21	SPRING; RETURN,CLU PEDAL AIR ASSIST CLUTCH<PK1>	1-73908-265-0	01	1	0511-
23	BOLT; PUSH ROD M8X43.7	1-73908-333-0	01	1	0110-0510
23	BOLT; PUSH ROD EXC. AIR ASSIST CLUTCH<PK1> M8X43.7	1-73908-333-0	01	1	0511-
23	BOLT; PUSH ROD AIR ASSIST CLUTCH<PK1> M8X35	0-10960-835-0	01	1	0511-
24	SHAFT; CLU PEDAL	1-73998-936-1	01	1	0110-
25	BOLT; PEDAL M10X25 W/LK WASHER	0-50051-025-0	02	1	0110-
26	WASHER; LK,PUSH ROD ID=8.2	9-09150-608-0	01	1	0110-0510
26	WASHER; LK,PUSH ROD EXC. AIR ASSIST CLUTCH<PK1> ID=8.2	9-09150-608-0	01	1	0511-
26	WASHER; LK,PUSH ROD AIR ASSIST CLUTCH<PK1> ID=8.2	0-91510-608-0	01	1	0511-
33	BOLT; CLU M/CYL TO BRKT M10X65	5-09030-024-1	02	1	0110-0510
33	BOLT; CLU M/CYL TO BRKT EXC. AIR ASSIST CLUTCH<PK1> M10X65	5-09030-024-1	02	1	0511-
33	BOLT; CLU M/CYL TO BRKT AIR ASSIST CLUTCH<PK1> M10X60 FLANGE	0-28081-060-0	02	1	0511-0512
33	BOLT; CLU M/CYL TO BRKT AIR ASSIST CLUTCH<PK1> M10X60 FLANGE	0-28051-060-0	02	1	0601-
50	TANK; OIL,CLU	1-47530-182-0	01	1	0110-
51	CAP; OIL TANK,CLU	8-94136-483-1	01	1	0110-
82	CLEVIS; HELPER,CLU PEDAL	1-73998-472-1	02	1	0110-0510
82	CLEVIS; HELPER,CLU PEDAL EXC. AIR ASSIST CLUTCH<PK1>	1-73998-472-1	02	1	0511-
132	NUT; LK,PUSH ROD M8 MAL	9-09110-408-0	01	1	0110-0510
132	NUT; LK,PUSH ROD EXC. AIR ASSIST CLUTCH<PK1> M8 MAL	9-09110-408-0	01	1	0511-
132	NUT; LK,PUSH ROD AIR ASSIST CLUTCH<PK1> M8	0-91110-508-0	01	1	0511-
165	NUT; CLU M/CYL M10 FLANGE	0-91150-210-0	02	1	0110-0510
165	NUT; CLU M/CYL EXC. AIR ASSIST CLUTCH<PK1> M10 FLANGE	0-91150-210-0	02	1	0511-0602
165	NUT; CLU M/CYL EXC. AIR ASSIST CLUTCH<PK1> M10 FLANGE MAL	0-91180-210-0	02	1	0603-
174	PIN; STRAIGHT,CLU PEDAL	1-73998-474-0	01	1	0110-0510
174	PIN; STRAIGHT,CLU PEDAL EXC. AIR ASSIST CLUTCH<PK1>	1-73998-474-0	01	1	0511-
175	SPRING; HELPER	1-73908-052-0	01	1	0110-0510
175	SPRING; HELPER EXC. AIR ASSIST CLUTCH<PK1>	1-73908-052-0	01	1	0511-
176	SEAT; SPRING	1-09503-114-0	02	1	0110-0510
176	SEAT; SPRING EXC. AIR ASSIST CLUTCH<PK1>	1-09503-114-0	02	1	0511-
242	BOLT; BRKT,CLUTCH M6X16 W/LK WASHER	0-50040-616-0	04	1	0110-0510
242	BOLT; BRKT,CLUTCH EXC. AIR ASSIST CLUTCH<PK1> M6X16 W/LK WASHER	0-50040-616-0	04	1	0511-
242	BOLT; BRKT,CLUTCH AIR ASSIST CLUTCH<PK1> M6X16 W/LK WASHER	0-50540-616-0	02	1	0511-
250	ROD; PUSH,CLU	1-73996-219-0	01	1	0110-
252	NUT; OIL TANK M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0110-
254	BRACKET; CLU SENSOR	1-73998-979-5	01	1	0110-
256	SEAL; HOLE OD=25 BLACK MAL	1-76798-019-0	01	1	0110-
312	PLATE; OIL TANK,CLU	1-21249-007-1	01	1	0110-
