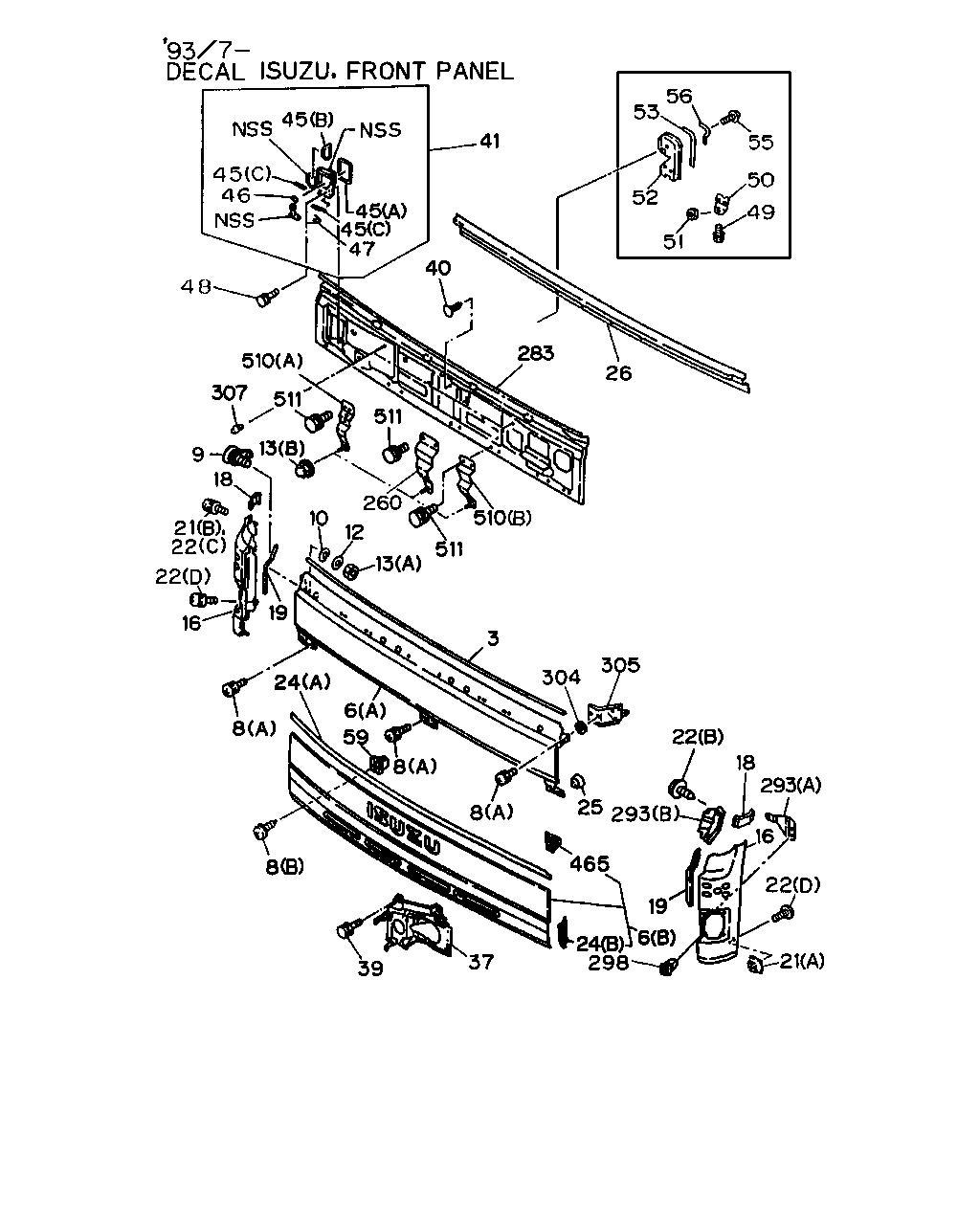

6-05 — FRONT PANEL (#554) — 304 parça

56 55 50 49 53 52 51 41 45 45 47 48 40 283 26 510 307 511 511 13 9 260 18 510 511 13 12 10 21 22 22 16 19 3 305 304 22 18 293 16 22 21 19 6 24 465 298 293 25 8 37 39 8 8 8 59 24 6 46 45 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	FINISHER; FRT PANEL UPR L=2040	1-71997-513-1	01	1	8712-9008
3	FINISHER; FRT PANEL UPR L=2040	1-71907-013-0	01	1	9009-9012
3	FINISHER; FRT PANEL UPR L=2100	1-71907-093-0	01	1	9101-
6	PANEL; FRONT (B)	1-65470-910-2	01	1	8712-9001
6	PANEL; FRONT (A)	1-65470-915-1	01	1	8712-9101
6	PANEL; FRONT (A)	1-65471-493-1	01	1	9102-9306
6	PANEL; FRONT (B)	1-65471-382-0	01	1	9002-9306
6	PANEL; FRONT DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-682-4	01	1	9307-
6	PANEL; FRONT DECAL ISUZU FRONT PANEL<TAM> EXC. MIRROR O/S RR VIEW<D37> (A)	1-65471-453-2	01	1	9307-
6	PANEL; FRONT EXC. DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-382-0	01	1	9307-
6	PANEL; FRONT MIRROR O/S RR VIEW<D37> DECAL ISUZU FRONT PANEL<TAM> (A)	1-65471-708-0	01	1	9307-
6	PANEL; FRONT EXC. MIRROR O/S RR VIEW<D37>,DECAL ISUZU FRONT PANEL<TAM> (A)	1-65471-493-1	01	1	9307-
8	SCREW; FRT PANEL (A) M6X16 W/LK&PL WASHER	1-09981-431-0	05	1	8712-8809
8	SCREW; FRT PANEL (A) M6X16 W/LK&PL WASHER	1-09980-574-0	05	1	8810-
8	SCREW; FRT PANEL (B) M6X16 W/PL WASHER	1-09981-438-0	07	1	8712-9306
8	SCREW; FRT PANEL DECAL ISUZU FRONT PANEL<TAM> (B) M5X40	1-09140-012-0	02	1	9307-
8	SCREW; FRT PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> (B) M6X16 W/PL WASHER	1-09981-438-0	07	1	9307-
9	FASTENER; FRT PANEL TO SIDE PANEL MIRROR O/S RR VIEW<D37>	1-65570-152-1	01	1	8712-
9	FASTENER; FRT PANEL TO SIDE PANEL EXC. MIRROR O/S RR VIEW<D37>	1-65570-152-1	02	1	8712-
10	WASHER; FRT PANEL TO SIDE PANEL MIRROR O/S RR VIEW<D37> ID=9 OD=20	1-09985-145-0	01	1	8712-
10	WASHER; FRT PANEL TO SIDE PANEL EXC. MIRROR O/S RR VIEW<D37> ID=9 OD=20	1-09985-145-0	02	1	8712-
12	WASHER; PL,FRT PANEL TO SIDE PANEL MIRROR O/S RR VIEW<D37> ID=8.4 OD=22	1-09985-188-0	01	1	8712-
12	WASHER; PL,FRT PANEL TO SIDE PANEL EXC. MIRROR O/S RR VIEW<D37> ID=8.4 OD=22	1-09985-188-0	02	1	8712-
13	NUT; FRT PANEL TO SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> (B) M6 CAP NUT FLANGE	1-65471-734-0	05	1	9307-
13	NUT; FRT PANEL TO SIDE PANEL MIRROR O/S RR VIEW<D37> (A) M8 FLANGE	1-09984-122-0	01	1	8712-
13	NUT; FRT PANEL TO SIDE PANEL EXC. MIRROR O/S RR VIEW<D37> (A) M8 FLANGE	1-09984-122-0	02	1	8712-
16	PANEL; FRONT,SIDE	1-65470-904-4	01	1	8712-9101
16	PANEL; FRONT,SIDE	1-65471-473-0	01	1	9102-9306
16	PANEL; FRONT,SIDE DECAL ISUZU FRONT PANEL<TAM>	1-65471-767-0	01	1	9307-
16	PANEL; FRONT,SIDE DECAL ISUZU FRONT PANEL<TAM>	1-65471-642-4	01	1	9307-
16	PANEL; FRONT,SIDE EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65471-497-0	01	1	9307-
16	PANEL; FRONT,SIDE MIRROR O/S RR VIEW<D37>	1-65470-905-4	01	1	8712-9306
16	PANEL; FRONT,SIDE MIRROR O/S RR VIEW<D37> EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65471-498-0	01	1	9307-
16	PANEL; FRONT,SIDE EXC. MIRROR O/S RR VIEW<D37>	1-65470-938-2	01	1	8712-9101
16	PANEL; FRONT,SIDE EXC. MIRROR O/S RR VIEW<D37>	1-65470-940-3	01	1	9102-9306
16	PANEL; FRONT,SIDE EXC. MIRROR O/S RR VIEW<D37>,DECAL ISUZU FRONT PANEL<TAM>	1-65470-940-3	01	1	9307-
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-65570-172-1	01	1	8712-9306
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-65570-171-1	01	1	8712-9306
18	SEAL; A-POST UPR,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-531-0	01	1	9307-
18	SEAL; A-POST UPR,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-530-0	01	1	9307-
18	SEAL; A-POST UPR,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-172-1	01	1	9307-
18	SEAL; A-POST UPR,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-171-1	01	1	9307-
19	SEAL; FRT SIDE PANEL	1-65570-205-0	01	1	8712-9306
19	SEAL; FRT SIDE PANEL	1-65570-204-0	01	1	8712-9306
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-575-2	01	1	9307-
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-574-2	01	1	9307-
19	SEAL; FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-205-0	01	1	9307-
19	SEAL; FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-204-0	01	1	9307-
21	GROMMET; SCREW,FRT SIDE PANEL (A)	1-09983-061-0	04	1	8712-9001
21	GROMMET; SCREW,FRT SIDE PANEL (A) D=10X10 L=8 M6	1-09983-119-0	02	1	9002-9306
21	GROMMET; SCREW,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> (A) D=10X10 L=8 M6	1-09983-119-0	02	1	9307-
21	GROMMET; SCREW,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> (A) D=10X10 L=10.5 M5 RED	1-09983-144-0	04	1	9307-9308
21	GROMMET; SCREW,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> (A) D=10X10 L=10.5 M5 RED	1-09983-144-1	02	1	9309-
21	GROMMET; SCREW,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> (B) D=10X10 L=10 M5 BLACK	1-09983-102-0	02	1	9309-
21	GROMMET; SCREW,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> (B) D=10X16 L=8 M6	1-09983-118-0	02	1	9307-
22	SCREW; FRT PANEL SIDE (C) M6X16 W/LK&PL WASHER	1-09981-426-0	04	1	8712-9306
22	SCREW; FRT PANEL SIDE (C) M6X16 W/PL WASHER	1-09981-438-0	02	1	8712-9306
22	SCREW; FRT PANEL SIDE (A) D=10X16 L=8 M6	1-09983-118-0	02	1	8712-9306
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (B) M5X12 TAPPING W/PL WASHER	0-74110-512-0	04	1	9307-9312
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (B) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9401-
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (D) M6X12 W/PL WASHER	1-09981-380-0	04	1	9307-9312
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (D) M6X12 W/PL WASHER	1-09981-380-0	02	1	9401-
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (C) M6X16 W/LK&PL WASHER	1-09981-426-0	06	1	9307-
22	SCREW; FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM> (A) M6X16 W/LK&PL WASHER	1-09981-426-0	04	1	9307-
22	SCREW; FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM> (C) M6X16 W/PL WASHER	1-09981-438-0	02	1	9307-
24	SEAL; FRT PANEL LWR (A)	1-65570-159-0	01	1	8712-9306
24	SEAL; FRT PANEL LWR EXC. DECAL ISUZU FRONT PANEL<TAM> (A)	1-65570-159-0	01	1	9307-
24	SEAL; FRT PANEL LWR DECAL ISUZU FRONT PANEL<TAM> (B) L=140	1-65471-540-1	02	1	9307-
24	SEAL; FRT PANEL LWR DECAL ISUZU FRONT PANEL<TAM> (A) L=50	1-65471-726-1	02	1	9307-
25	CUSHION; FRT PANEL	1-09983-084-1	02	1	8712-
26	PANEL; REINF,FRT PANEL CENTER,INNER	1-61470-569-1	01	1	8712-
37	PANEL ASM; HEADLAMP RIM	1-65671-004-4	01	1	8712-9306
37	PANEL ASM; HEADLAMP RIM	1-65671-003-4	01	1	8712-9306
37	PANEL ASM; HEADLAMP RIM DECAL ISUZU FRONT PANEL<TAM>	1-65671-595-0	01	1	9307-9309
37	PANEL ASM; HEADLAMP RIM DECAL ISUZU FRONT PANEL<TAM> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-595-0	01	1	9310-
37	PANEL ASM; HEADLAMP RIM DECAL ISUZU FRONT PANEL<TAM>	1-65671-594-0	01	1	9307-9309
37	PANEL ASM; HEADLAMP RIM DECAL ISUZU FRONT PANEL<TAM> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-594-0	01	1	9310-
37	PANEL ASM; HEADLAMP RIM EXC. DECAL ISUZU FRONT PANEL<TAM>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-004-4	01	1	9307-
37	PANEL ASM; HEADLAMP RIM EXC. DECAL ISUZU FRONT PANEL<TAM>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-003-4	01	1	9307-
37	PANEL ASM; HEADLAMP RIM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-372-8	01	1	9307-
37	PANEL ASM; HEADLAMP RIM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-371-8	01	1	9307-
39	BOLT; PNL,HEADLAMP M6X16 W/LK&PL WASHER	1-09980-497-0	04	1	8712-9306
39	BOLT; PNL,HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-497-0	04	1	9307-9307
39	BOLT; PNL,HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-586-0	04	1	9308-
39	BOLT; PNL,HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9307-
40	PLUG; FRT PANEL OD=15 L=14.5	1-76378-157-0	01	1	9002-
41	VENTILATOR ASM; DASH	1-76337-255-6	01	1	8712-
45	SEAL; VENT (A)	1-76337-260-1	01	1	8712-
45	SEAL; VENT (B)	1-76337-261-0	01	1	8712-
45	SEAL; VENT (C)	1-76337-318-0	02	1	8712-
46	CLIP; VENT	1-76337-243-0	02	1	8712-
47	SPRING; VENT	1-76337-244-0	01	1	8712-
48	BOLT; DASH VENT M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	8712-
49	SCREW; BRKT M6X16 W/LK&PL WASHER	1-09981-141-0	02	1	8712-
50	BRACKET; CABLE,DASH VENT	1-76337-292-1	01	1	8712-
51	NUT; BRKT TO CABLE M12	9-99110-412-0	01	1	8712-
52	GUIDE; AIR,DASH VENT	1-76337-264-2	01	1	8712-9306
52	GUIDE; AIR,DASH VENT EXC. DECAL ISUZU FRONT PANEL<TAM>	1-76337-264-2	01	1	9307-
52	GUIDE; AIR,DASH VENT DECAL ISUZU FRONT PANEL<TAM>	1-76337-450-0	01	1	9307-
53	SEAL; AIR GUIDE,DASH VENT L=730	1-76337-235-1	01	1	8712-9306
53	SEAL; AIR GUIDE,DASH VENT EXC. DECAL ISUZU FRONT PANEL<TAM> L=730	1-76337-235-2	01	1	9307-
53	SEAL; AIR GUIDE,DASH VENT DECAL ISUZU FRONT PANEL<TAM> L=640	1-76337-452-1	01	1	9307-
55	BOLT; AIR GUIDE,DASH VENT M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	8712-
56	SEAL; AIR GUIDE,DASH VENT L=470	1-76337-236-1	01	1	8712-9306
56	SEAL; AIR GUIDE,DASH VENT EXC. DECAL ISUZU FRONT PANEL<TAM> L=470	1-76337-236-2	01	1	9307-
56	SEAL; AIR GUIDE,DASH VENT DECAL ISUZU FRONT PANEL<TAM> L=340 L=340	1-76337-453-1	01	1	9307-
56	SEAL; AIR GUIDE,DASH VENT DECAL ISUZU FRONT PANEL<TAM> L=70	1-76337-455-1	01	1	9307-
59	GROMMET; SCREW DECAL ISUZU FRONT PANEL<TAM> D=10X10 L=10 M5 BLACK	1-09983-102-0	04	1	9307-
260	BOLT; STAY DECAL ISUZU FRONT PANEL<TAM>	1-65471-728-0	01	1	9307-
283	PANEL ASM; FRT CENTER,INNER	1-61470-601-4	01	1	8712-8905
283	PANEL ASM; FRT CENTER,INNER	1-61470-653-2	01	1	8906-9306
283	PANEL ASM; FRT CENTER,INNER EXC. DECAL ISUZU FRONT PANEL<TAM>	1-61470-653-2	01	1	9307-
283	PANEL ASM; FRT CENTER,INNER DECAL ISUZU FRONT PANEL<TAM>	1-61470-694-1	01	1	9307-
293	BRACKET; PANEL DECAL ISUZU FRONT PANEL<TAM> (A)	1-65471-689-2	01	1	9307-
293	BRACKET; PANEL DECAL ISUZU FRONT PANEL<TAM> (B)	1-65481-043-3	01	1	9307-
293	BRACKET; PANEL DECAL ISUZU FRONT PANEL<TAM> (A)	1-65471-688-2	01	1	9307-
293	BRACKET; PANEL DECAL ISUZU FRONT PANEL<TAM> (B)	1-65481-042-3	01	1	9307-
298	GROMMET; SCREW,LAMP,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> M5	1-09983-116-0	08	1	9307-9312
298	GROMMET; SCREW,LAMP,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> M5	1-09983-116-0	04	1	9401-
304	SPACER; FRT PANEL EXC. MIRROR O/S RR VIEW<D37>	1-09985-144-0	01	1	8712-
305	SUPPORT ASM; OUTSIDE MIRROR BRKT MIRROR O/S RR VIEW<D37>	1-65570-145-1	01	1	8712-
307	GROMMET; FRT PANEL OD=20	5-09983-020-0	02	1	8712-9210
307	GROMMET; FRT PANEL OD=23.5	1-09983-101-0	02	1	9211-
465	CLIP; FRT PANEL LWR DECAL ISUZU FRONT PANEL<TAM>	1-65471-500-0	07	1	9307-
510	BRACKET; FRT PNL CTR DECAL ISUZU FRONT PANEL<TAM> (A)	1-65471-729-1	01	1	9307-
510	BRACKET; FRT PNL CTR DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-730-0	01	1	9307-
511	BOLT; SET,BRKT DECAL ISUZU FRONT PANEL<TAM> M6X20 W/LK&PL WASHER	1-09980-493-0	06	1	9307-

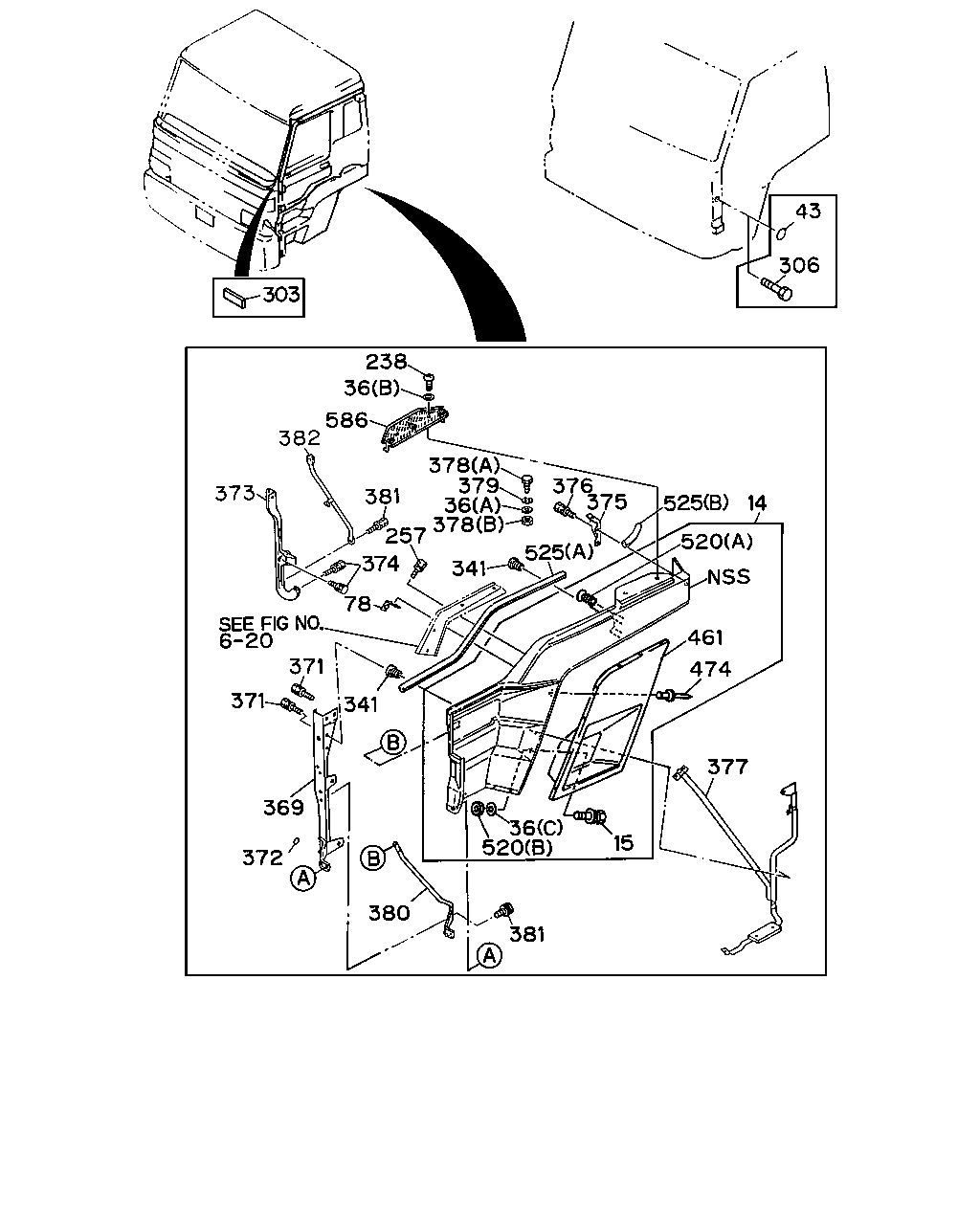

43 306 14 525 520 461 474 377 15 36 520 381 380 372 371 341 369 371 373 382 586 36 238 381 78 374 257 378 379 36 378 341 525 376 375 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	FENDER; FRT	1-65470-928-5	01	1	8712-9503
14	FENDER; FRT	1-65471-983-0	01	1	9504-
14	FENDER; FRT	1-65470-927-5	01	1	8712-9503
14	FENDER; FRT	1-65471-982-0	01	1	9504-
15	BOLT; FENDER M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	8712-
36	WASHER; PL (A)	1-09985-174-0	02	1	8712-
36	WASHER; PL (C) M6 FLANGE	1-09985-176-0	02	1	8712-
36	WASHER; PL (B)	1-09985-154-0	06	1	9504-
43	GROMMET; LOCATION HOLE,A-POST OD=36	1-76778-007-0	02	1	9002-9306
43	GROMMET; LOCATION HOLE,A-POST OD=36	1-76798-018-0	02	1	9307-
78	BRACKET; FENDER	1-65670-625-0	02	1	8712-
238	SCREW M5X16 TAPPING	0-71090-516-0	06	1	9504-
257	BOLT; BRKT M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	8712-
303	SEAL; A POST TO FRT SIDE	1-71997-790-0	02	1	8712-8802
306	BOLT; SUPPORT,OUTSIDE MIRROR BRKT M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9208-9209
306	BOLT; SUPPORT,OUTSIDE MIRROR BRKT MIRROR O/S RR VIEW<D37> M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9505-
341	BOLT; FENDER TO COWL M6X20 W/LK&PL WASHER	1-09980-495-0	13	1	8712-
369	SUPPORT; FENDER STEP FRT	1-65671-022-3	01	1	8712-
369	SUPPORT; FENDER STEP FRT	1-65671-021-2	01	1	8712-
371	BOLT; SUPPORT,FENDER STEP FRT M8X20 W/LK&PL WASHER	1-09980-496-0	05	1	8712-9001
371	BOLT; SUPPORT,FENDER STEP FRT M8X25	1-09980-491-0	05	1	9002-9201
371	BOLT; SUPPORT,FENDER STEP FRT M8X20 W/LK&PL WASHER	1-09980-496-0	06	1	9202-9210
371	BOLT; SUPPORT,FENDER STEP FRT M8X20 W/LK&PL WASHER	1-09980-512-0	06	1	9211-
372	SEAL; SUPPORT OD=20	1-76797-006-0	04	1	8712-9508
373	SUPPORT; FENDER STEP REAR	1-65671-085-3	01	1	8712-
373	SUPPORT; FENDER STEP REAR	1-65671-084-3	01	1	8712-
374	BOLT; SUPPORT,FENDER STEP REAR M8X20 W/LK&PL WASHER	1-09980-496-0	04	1	8712-9001
374	BOLT; SUPPORT,FENDER STEP REAR M8X25	1-09980-491-0	04	1	9002-9201
374	BOLT; SUPPORT,FENDER STEP REAR M8X20 W/LK&PL WASHER	1-09980-496-0	06	1	9202-9210
374	BOLT; SUPPORT,FENDER STEP REAR M8X20 W/LK&PL WASHER	1-09980-512-0	06	1	9211-9301
374	BOLT; SUPPORT,FENDER STEP REAR M8X20 W/LK&PL WASHER	1-09980-512-0	04	1	9302-
375	SUPPORT; FENDER REAR	1-65670-627-2	02	1	8712-
376	BOLT; SUPPORT,FENDER RR M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	8712-
377	SUPPORT; SIDE STEP	1-65671-042-5	01	1	8712-
377	SUPPORT; SIDE STEP	1-65671-041-5	01	1	8712-9310
377	SUPPORT; SIDE STEP	1-65671-347-0	01	1	9311-
378	BOLT; SUPPORT (A) M8X25	1-09980-491-0	04	1	8712-
378	BOLT; SUPPORT (B) M8 FLANGE	1-09984-122-0	02	1	8712-
379	WASHER; LK ID=8.2	1-09985-177-0	02	1	8712-
380	STAY ASM; FENDER STEP FRT	1-65671-031-4	01	1	8712-
380	STAY ASM; FENDER STEP FRT	1-65671-032-4	01	1	8712-
381	BOLT; STAY,FENDER STEP M8X20 W/LK&PL WASHER	1-09980-496-0	08	1	8712-8906
381	BOLT; STAY,FENDER STEP M8X25	1-09980-491-0	08	1	8907-9301
381	BOLT; STAY,FENDER STEP M8X20 W/LK&PL WASHER	1-09980-512-0	08	1	9302-
382	STAY ASM; FENDER STEP RR	1-65670-641-6	01	1	8712-
382	STAY ASM; FENDER STEP RR	1-65670-640-6	01	1	8712-
461	PANEL; FRT SIDE	1-65470-933-2	01	1	8712-
461	PANEL; FRT SIDE	1-65470-932-2	01	1	8712-
474	RIVET; FENDER	1-09987-128-0	12	1	8712-
520	NUT; FENDER (A)	1-09984-100-0	18	1	8712-
520	NUT; FENDER (B) M6 FLANGE	1-09984-123-0	02	1	8712-
525	SEAL; FENDER (A)	1-76777-047-3	02	1	8712-
525	SEAL; FENDER (B)	1-76777-048-3	02	1	8712-
586	STEP; FENDER	1-71907-022-1	02	1	9504-

20 21 22 19 8 25 24 304 305 16 297 18 283 26 3 307 40 13 12 10 9 18 21 22 16 11 8 6 11 8 6 8 39 37 48 46 45 45 41 45 45 47 52 53 56 55 50 49 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	FINISHER; FRT PANEL UPR L=2040	1-71997-513-1	01	1	8712-9008
3	FINISHER; FRT PANEL UPR L=2040	1-71907-013-0	01	1	9009-9012
3	FINISHER; FRT PANEL UPR L=2100	1-71907-093-0	01	1	9101-
6	PANEL; FRONT (B)	1-65470-910-2	01	1	8712-9001
6	PANEL; FRONT (A)	1-65470-915-1	01	1	8712-9101
6	PANEL; FRONT (A)	1-65471-493-1	01	1	9102-9306
6	PANEL; FRONT (B)	1-65471-382-0	01	1	9002-9306
6	PANEL; FRONT DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-682-4	01	1	9307-
6	PANEL; FRONT DECAL ISUZU FRONT PANEL<TAM> EXC. MIRROR O/S RR VIEW<D37> (A)	1-65471-453-2	01	1	9307-
6	PANEL; FRONT EXC. DECAL ISUZU FRONT PANEL<TAM> (B)	1-65471-382-0	01	1	9307-
6	PANEL; FRONT MIRROR O/S RR VIEW<D37> DECAL ISUZU FRONT PANEL<TAM> (A)	1-65471-708-0	01	1	9307-
6	PANEL; FRONT EXC. MIRROR O/S RR VIEW<D37>,DECAL ISUZU FRONT PANEL<TAM> (A)	1-65471-493-1	01	1	9307-
8	SCREW; FRT PANEL (A) M6X16 W/LK&PL WASHER	1-09981-431-0	05	1	8712-8809
8	SCREW; FRT PANEL (A) M6X16 W/LK&PL WASHER	1-09980-574-0	05	1	8810-
8	SCREW; FRT PANEL (B) M6X16 W/PL WASHER	1-09981-438-0	07	1	8712-9306
8	SCREW; FRT PANEL DECAL ISUZU FRONT PANEL<TAM> (B) M5X40	1-09140-012-0	02	1	9307-
8	SCREW; FRT PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> (B) M6X16 W/PL WASHER	1-09981-438-0	07	1	9307-
9	FASTENER; FRT PANEL TO SIDE PANEL MIRROR O/S RR VIEW<D37>	1-65570-152-1	01	1	8712-
9	FASTENER; FRT PANEL TO SIDE PANEL EXC. MIRROR O/S RR VIEW<D37>	1-65570-152-1	02	1	8712-
10	WASHER; FRT PANEL TO SIDE PANEL MIRROR O/S RR VIEW<D37> ID=9 OD=20	1-09985-145-0	01	1	8712-
10	WASHER; FRT PANEL TO SIDE PANEL EXC. MIRROR O/S RR VIEW<D37> ID=9 OD=20	1-09985-145-0	02	1	8712-
11	WASHER; NYLON,FRT PANEL SIDE ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	09	1	8712-9306
11	WASHER; NYLON,FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM> ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	09	1	9307-
12	WASHER; PL,FRT PANEL TO SIDE PANEL MIRROR O/S RR VIEW<D37> ID=8.4 OD=22	1-09985-188-0	01	1	8712-
12	WASHER; PL,FRT PANEL TO SIDE PANEL EXC. MIRROR O/S RR VIEW<D37> ID=8.4 OD=22	1-09985-188-0	02	1	8712-
13	NUT; FRT PANEL TO SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> (B) M6 CAP NUT FLANGE	1-65471-734-0	05	1	9307-
13	NUT; FRT PANEL TO SIDE PANEL MIRROR O/S RR VIEW<D37> (A) M8 FLANGE	1-09984-122-0	01	1	8712-
13	NUT; FRT PANEL TO SIDE PANEL EXC. MIRROR O/S RR VIEW<D37> (A) M8 FLANGE	1-09984-122-0	02	1	8712-
16	PANEL; FRONT,SIDE	1-65470-904-4	01	1	8712-9101
16	PANEL; FRONT,SIDE	1-65471-473-0	01	1	9102-9306
16	PANEL; FRONT,SIDE DECAL ISUZU FRONT PANEL<TAM>	1-65471-767-0	01	1	9307-
16	PANEL; FRONT,SIDE DECAL ISUZU FRONT PANEL<TAM>	1-65471-642-4	01	1	9307-
16	PANEL; FRONT,SIDE EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65471-497-0	01	1	9307-
16	PANEL; FRONT,SIDE MIRROR O/S RR VIEW<D37>	1-65470-905-4	01	1	8712-9306
16	PANEL; FRONT,SIDE MIRROR O/S RR VIEW<D37> EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65471-498-0	01	1	9307-
16	PANEL; FRONT,SIDE EXC. MIRROR O/S RR VIEW<D37>	1-65470-938-2	01	1	8712-9101
16	PANEL; FRONT,SIDE EXC. MIRROR O/S RR VIEW<D37>	1-65470-940-3	01	1	9102-9306
16	PANEL; FRONT,SIDE EXC. MIRROR O/S RR VIEW<D37>,DECAL ISUZU FRONT PANEL<TAM>	1-65470-940-3	01	1	9307-
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-65570-172-1	01	1	8712-9306
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-65570-171-1	01	1	8712-9306
18	SEAL; A-POST UPR,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-531-0	01	1	9307-
18	SEAL; A-POST UPR,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-530-0	01	1	9307-
18	SEAL; A-POST UPR,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-172-1	01	1	9307-
18	SEAL; A-POST UPR,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-171-1	01	1	9307-
19	SEAL; FRT SIDE PANEL	1-65570-205-0	01	1	8712-9306
19	SEAL; FRT SIDE PANEL	1-65570-204-0	01	1	8712-9306
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-575-2	01	1	9307-
19	SEAL; FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM>	1-71998-574-2	01	1	9307-
19	SEAL; FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-205-0	01	1	9307-
19	SEAL; FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM>	1-65570-204-0	01	1	9307-
20	CLIP; FRT PANEL SIDE	1-71997-793-1	04	1	8712-9306
21	GROMMET; SCREW,FRT SIDE PANEL (A)	1-09983-061-0	04	1	8712-9001
21	GROMMET; SCREW,FRT SIDE PANEL (A) D=10X10 L=8 M6	1-09983-119-0	02	1	9002-9306
21	GROMMET; SCREW,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> (A) D=10X10 L=8 M6	1-09983-119-0	02	1	9307-
21	GROMMET; SCREW,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> (A) D=10X10 L=10.5 M5 RED	1-09983-144-0	04	1	9307-9308
21	GROMMET; SCREW,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> (A) D=10X10 L=10.5 M5 RED	1-09983-144-1	02	1	9309-
21	GROMMET; SCREW,FRT SIDE PANEL DECAL ISUZU FRONT PANEL<TAM> (B) D=10X10 L=10 M5 BLACK	1-09983-102-0	02	1	9309-
21	GROMMET; SCREW,FRT SIDE PANEL EXC. DECAL ISUZU FRONT PANEL<TAM> (B) D=10X16 L=8 M6	1-09983-118-0	02	1	9307-
22	SCREW; FRT PANEL SIDE (C) M6X16 W/LK&PL WASHER	1-09981-426-0	04	1	8712-9306
22	SCREW; FRT PANEL SIDE (C) M6X16 W/PL WASHER	1-09981-438-0	02	1	8712-9306
22	SCREW; FRT PANEL SIDE (A) D=10X16 L=8 M6	1-09983-118-0	02	1	8712-9306
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (B) M5X12 TAPPING W/PL WASHER	0-74110-512-0	04	1	9307-9312
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (B) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9401-
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (D) M6X12 W/PL WASHER	1-09981-380-0	04	1	9307-9312
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (D) M6X12 W/PL WASHER	1-09981-380-0	02	1	9401-
22	SCREW; FRT PANEL SIDE DECAL ISUZU FRONT PANEL<TAM> (C) M6X16 W/LK&PL WASHER	1-09981-426-0	06	1	9307-
22	SCREW; FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM> (A) M6X16 W/LK&PL WASHER	1-09981-426-0	04	1	9307-
22	SCREW; FRT PANEL SIDE EXC. DECAL ISUZU FRONT PANEL<TAM> (C) M6X16 W/PL WASHER	1-09981-438-0	02	1	9307-
24	SEAL; FRT PANEL LWR (A)	1-65570-159-0	01	1	8712-9306
24	SEAL; FRT PANEL LWR EXC. DECAL ISUZU FRONT PANEL<TAM> (A)	1-65570-159-0	01	1	9307-
24	SEAL; FRT PANEL LWR DECAL ISUZU FRONT PANEL<TAM> (B) L=140	1-65471-540-1	02	1	9307-
24	SEAL; FRT PANEL LWR DECAL ISUZU FRONT PANEL<TAM> (A) L=50	1-65471-726-1	02	1	9307-
25	CUSHION; FRT PANEL	1-09983-084-1	02	1	8712-
26	PANEL; REINF,FRT PANEL CENTER,INNER	1-61470-569-1	01	1	8712-
37	PANEL ASM; HEADLAMP RIM	1-65671-004-4	01	1	8712-9306
37	PANEL ASM; HEADLAMP RIM	1-65671-003-4	01	1	8712-9306
37	PANEL ASM; HEADLAMP RIM DECAL ISUZU FRONT PANEL<TAM>	1-65671-595-0	01	1	9307-9309
37	PANEL ASM; HEADLAMP RIM DECAL ISUZU FRONT PANEL<TAM> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-595-0	01	1	9310-
37	PANEL ASM; HEADLAMP RIM DECAL ISUZU FRONT PANEL<TAM>	1-65671-594-0	01	1	9307-9309
37	PANEL ASM; HEADLAMP RIM DECAL ISUZU FRONT PANEL<TAM> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-594-0	01	1	9310-
37	PANEL ASM; HEADLAMP RIM EXC. DECAL ISUZU FRONT PANEL<TAM>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-004-4	01	1	9307-
37	PANEL ASM; HEADLAMP RIM EXC. DECAL ISUZU FRONT PANEL<TAM>,HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-003-4	01	1	9307-
37	PANEL ASM; HEADLAMP RIM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-372-8	01	1	9307-
37	PANEL ASM; HEADLAMP RIM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-65671-371-8	01	1	9307-
39	BOLT; PNL,HEADLAMP M6X16 W/LK&PL WASHER	1-09980-497-0	04	1	8712-9306
39	BOLT; PNL,HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-497-0	04	1	9307-9307
39	BOLT; PNL,HEADLAMP HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-586-0	04	1	9308-
39	BOLT; PNL,HEADLAMP EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9307-
40	PLUG; FRT PANEL OD=15 L=14.5	1-76378-157-0	01	1	9002-
41	VENTILATOR ASM; DASH	1-76337-255-6	01	1	8712-
45	SEAL; VENT (A)	1-76337-260-1	01	1	8712-
45	SEAL; VENT (B)	1-76337-261-0	01	1	8712-
45	SEAL; VENT (C)	1-76337-318-0	02	1	8712-
46	CLIP; VENT	1-76337-243-0	02	1	8712-
47	SPRING; VENT	1-76337-244-0	01	1	8712-
48	BOLT; DASH VENT M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	8712-
49	SCREW; BRKT M6X16 W/LK&PL WASHER	1-09981-141-0	02	1	8712-
50	BRACKET; CABLE,DASH VENT	1-76337-292-1	01	1	8712-
51	NUT; BRKT TO CABLE M12	9-99110-412-0	01	1	8712-
52	GUIDE; AIR,DASH VENT	1-76337-264-2	01	1	8712-9306
52	GUIDE; AIR,DASH VENT EXC. DECAL ISUZU FRONT PANEL<TAM>	1-76337-264-2	01	1	9307-
52	GUIDE; AIR,DASH VENT DECAL ISUZU FRONT PANEL<TAM>	1-76337-450-0	01	1	9307-
53	SEAL; AIR GUIDE,DASH VENT L=730	1-76337-235-1	01	1	8712-9306
53	SEAL; AIR GUIDE,DASH VENT EXC. DECAL ISUZU FRONT PANEL<TAM> L=730	1-76337-235-2	01	1	9307-
53	SEAL; AIR GUIDE,DASH VENT DECAL ISUZU FRONT PANEL<TAM> L=640	1-76337-452-1	01	1	9307-
55	BOLT; AIR GUIDE,DASH VENT M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	8712-
56	SEAL; AIR GUIDE,DASH VENT L=470	1-76337-236-1	01	1	8712-9306
56	SEAL; AIR GUIDE,DASH VENT EXC. DECAL ISUZU FRONT PANEL<TAM> L=470	1-76337-236-2	01	1	9307-
56	SEAL; AIR GUIDE,DASH VENT DECAL ISUZU FRONT PANEL<TAM> L=340 L=340	1-76337-453-1	01	1	9307-
56	SEAL; AIR GUIDE,DASH VENT DECAL ISUZU FRONT PANEL<TAM> L=70	1-76337-455-1	01	1	9307-
283	PANEL ASM; FRT CENTER,INNER	1-61470-601-4	01	1	8712-8905
283	PANEL ASM; FRT CENTER,INNER	1-61470-653-2	01	1	8906-9306
283	PANEL ASM; FRT CENTER,INNER EXC. DECAL ISUZU FRONT PANEL<TAM>	1-61470-653-2	01	1	9307-
283	PANEL ASM; FRT CENTER,INNER DECAL ISUZU FRONT PANEL<TAM>	1-61470-694-1	01	1	9307-
297	FINISHER; SIDE PANEL,CAB L=190	1-71998-300-0	02	1	8712-9008
297	FINISHER; SIDE PANEL,CAB L=2040	1-71907-013-0	02	1	9009-9012
297	FINISHER; SIDE PANEL,CAB L=190	1-71998-300-0	02	1	9101-9205
297	FINISHER; SIDE PANEL,CAB L=170	1-71907-124-1	02	1	9206-9306
297	FINISHER; SIDE PANEL,CAB EXC. DECAL ISUZU FRONT PANEL<TAM> L=170	1-71907-124-1	02	1	9307-
304	SPACER; FRT PANEL EXC. MIRROR O/S RR VIEW<D37>	1-09985-144-0	01	1	8712-
305	SUPPORT ASM; OUTSIDE MIRROR BRKT MIRROR O/S RR VIEW<D37>	1-65570-145-1	01	1	8712-
307	GROMMET; FRT PANEL OD=20	5-09983-020-0	02	1	8712-9210
307	GROMMET; FRT PANEL OD=23.5	1-09983-101-0	02	1	9211-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
