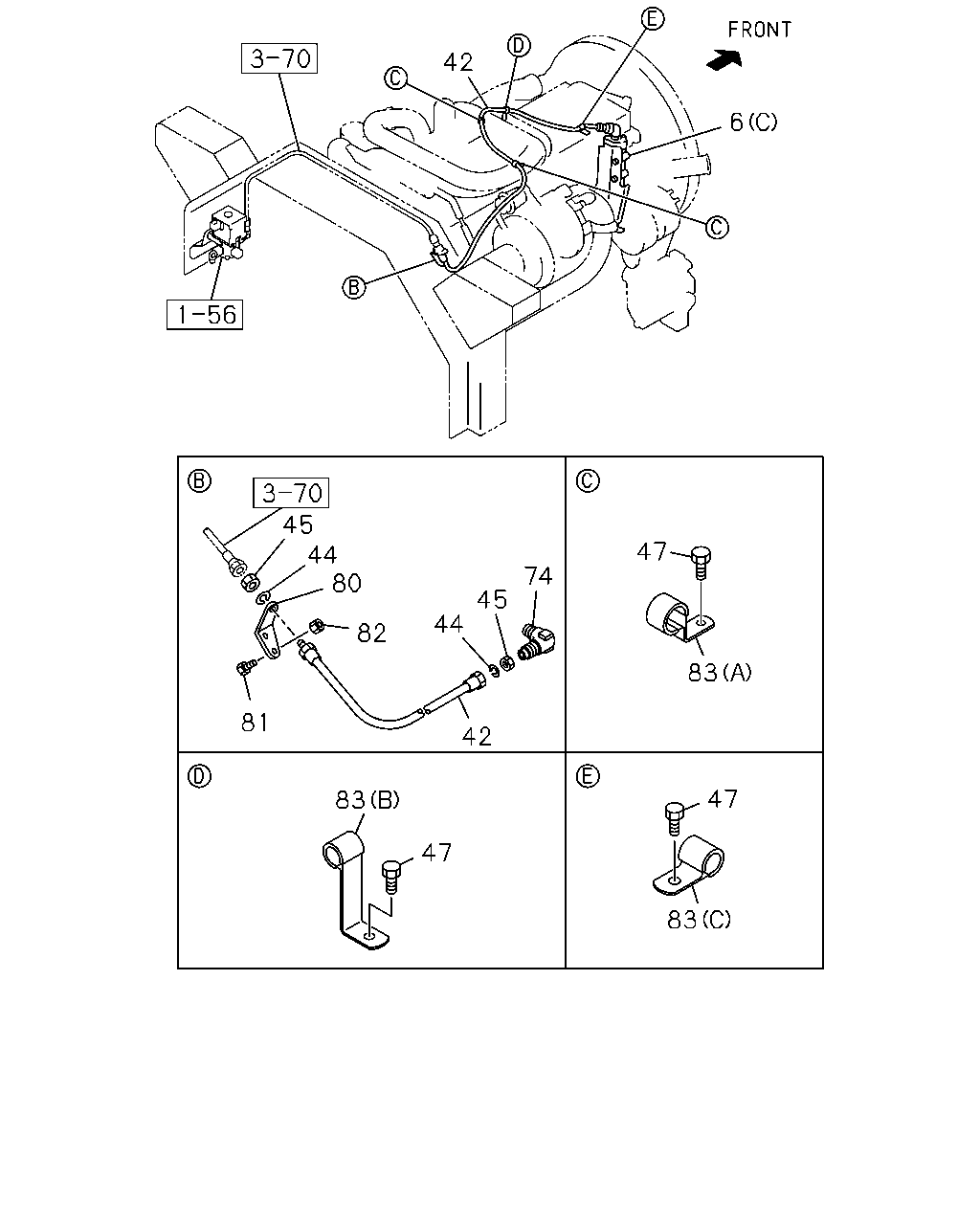

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#55397) — 101 parça

42 6 45 44 80 47 74 45 44 82 83 81 42 47 83 47 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	VALVE; EXH BRAKE (B)	1-22181-158-0	01	1	0110-0211	●
6	VALVE; EXH BRAKE (B)	8-97600-870-0	01	1	0212-	●
6	VALVE; EXH BRAKE (A)	8-94391-043-1	01	1	0110-0211	●
6	VALVE; EXH BRAKE (A)	8-97602-529-0	01	1	0212-	●
6	VALVE; EXH BRAKE EURO2 SPECIFICATION<THN> (C)	8-97602-527-1	01	1	0511-		●
42	HOSE; FLEX,EXH BRK L=300	1-09363-608-0	01	1	0110-	●
42	HOSE; FLEX,EXH BRK EURO2 SPECIFICATION<THN> L=1030	1-09363-568-1	01	1	0511-		●
42	HOSE; FLEX,EXH BRK EXC. EURO2 SPECIFICATION<THN> L=330	1-09363-584-0	01	1	0511-		●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0110-0510	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0511-0603	●
44	WASHER; LK,FLEX HOSE EURO2 SPECIFICATION<THN> ID=12.2	9-09150-512-0	01	1	0511-0603		●
44	WASHER; LK,FLEX HOSE ID=12.2 MAL	0-91510-512-0	01	1	0604-	●
44	WASHER; LK,FLEX HOSE EURO2 SPECIFICATION<THN> ID=12.2 MAL	0-91510-512-0	01	1	0604-		●
44	WASHER; LK,FLEX HOSE EXC. EURO2 SPECIFICATION<THN> ID=12.2	9-09150-512-0	02	1	0511-0603		●
44	WASHER; LK,FLEX HOSE EXC. EURO2 SPECIFICATION<THN> ID=12.2 MAL	0-91510-512-0	02	1	0604-		●
45	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0110-0510	●
45	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0511-	●
45	NUT; FLEX HOSE EURO2 SPECIFICATION<THN> M12	9-09840-280-0	01	1	0511-		●
45	NUT; FLEX HOSE EXC. EURO2 SPECIFICATION<THN> M12	9-09840-280-0	02	1	0511-		●
47	BOLT; CLIP EURO2 SPECIFICATION<THN> M8X20 FLANGE MAL	0-28680-820-0	04	1	0511-0512		●
47	BOLT; CLIP EURO2 SPECIFICATION<THN> M8X20 FLANGE MAL	0-28650-820-0	04	1	0601-		●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW MAL	1-09650-430-0	01	1	0212-	●	●
80	BRACKET; FLEX HOSE	1-47476-355-0	01	1	0110-	●
80	BRACKET; FLEX HOSE	1-47476-880-1	01	1	0511-		●
81	BOLT; HOSE BRKT M8X20 FLANGE MAL	0-28680-820-0	02	1	0110-0510	●
81	BOLT; HOSE BRKT M8X20 FLANGE MAL	0-28680-820-0	02	1	0511-0512	●	●
81	BOLT; HOSE BRKT M8X20 FLANGE MAL	0-28650-820-0	02	1	0601-	●	●
82	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	0110-0510	●
82	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	0511-0602	●	●
82	NUT; HOSE BRKT M8 FLANGE MAL	0-91180-108-0	02	1	0603-	●	●
83	CLIP; FLEX HOSE EURO2 SPECIFICATION<THN> (A) ID=11 H=20 L=25	1-09700-848-0	02	1	0511-		●
83	CLIP; FLEX HOSE EURO2 SPECIFICATION<THN> (B) ID=11 H=34 L=27	1-09701-023-0	01	1	0511-		●
83	CLIP; FLEX HOSE EURO2 SPECIFICATION<THN> (C) ID=13 L=32	9-09525-265-0	01	1	0511-0606		●
83	CLIP; FLEX HOSE EURO2 SPECIFICATION<THN> (C) ID=13 L=32	0-95235-265-0	01	1	0607-		●

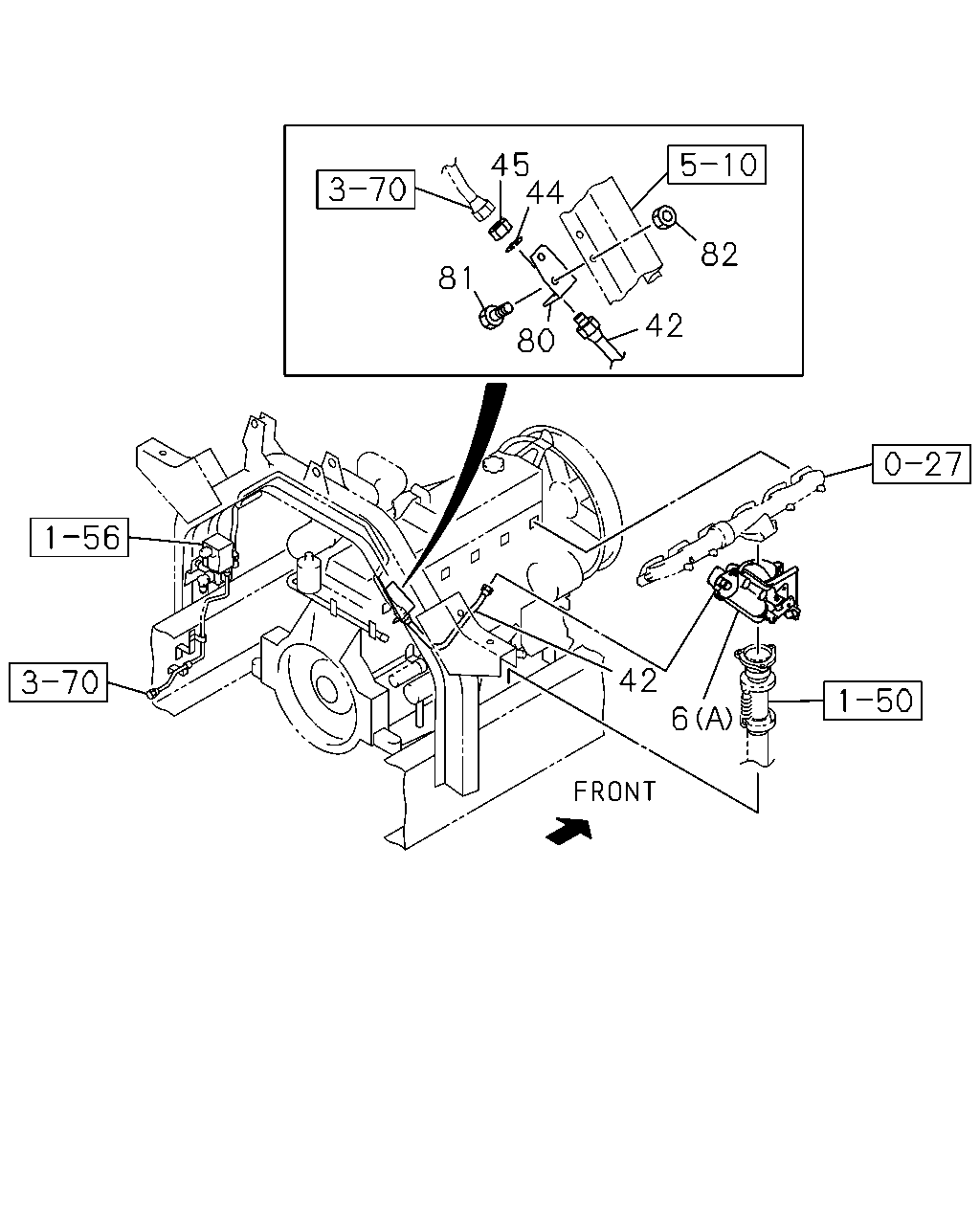

6 111 74 161 7 14 24 23 6 21 20 17 15 16 13 25 105 104 162 163 10 154 135 154 131 153 133 107 132 6 106 35 34 34 35 37 37 34 34 35 133 134 134 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	VALVE; EXH BRAKE (B)	1-22181-158-0	01	1	0110-0211	●
6	VALVE; EXH BRAKE (B)	8-97600-870-0	01	1	0212-	●
6	VALVE; EXH BRAKE (A)	8-94391-043-1	01	1	0110-0211	●
6	VALVE; EXH BRAKE (A)	8-97602-529-0	01	1	0212-	●
6	VALVE; EXH BRAKE EURO2 SPECIFICATION<THN> (C)	8-97602-527-1	01	1	0511-		●
7	CYLINDER ASM; CONT	1-22190-655-0	01	1	0110-0211	●
7	CYLINDER ASM; CONT	1-22190-656-0	01	1	0212-	●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	0110-	●
13	SPRING; CONT CYL	1-09580-517-0	01	1	0110-	●
14	SHAFT; CONT CYL	1-22199-145-0	01	1	0110-	●
15	PLATE; CONT CYL	8-97600-316-0	01	1	0110-	●
16	RING; WEAR,CONT CYL	8-97600-317-0	01	1	0110-	●
17	GASKET; CONT CYL	8-97600-318-0	01	1	0110-	●
20	NUT; CONT CYL M8 FLANGE	0-91150-108-0	01	1	0110-	●
21	GASKET; COVER	1-22199-072-0	01	1	0110-	●
23	COVER; CONT CYL	8-97600-319-0	01	1	0110-	●
24	BOLT; COVER	1-22199-174-0	02	1	0110-	●
25	BOLT; CONT CYL M10X60 FLANGE	1-22199-160-0	02	1	0110-	●
34	RING; SEAL (A) ID=15	8-94397-184-0	02	1	0110-	●
34	RING; SEAL (B) ID=13.7	9-22189-124-0	02	1	0110-	●
35	BOLT; PLATE FIX	1-22199-174-0	05	1	0110-	●
37	COVER; BODY (B)	1-22199-130-0	01	1	0110-	●
37	COVER; BODY (A)	9-22189-160-0	01	1	0110-	●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW MAL	1-09650-430-0	01	1	0212-	●	●
104	RING; RET	9-88510-331-0	01	1	0110-	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	0110-	●
106	BRACKET; CONT CYL	8-97600-313-0	01	1	0110-0211	●
106	BRACKET; CONT CYL	8-97600-869-0	01	1	0212-	●
107	NUT; CONT CYL M10 FLANGE MAL	0-91150-110-0	01	1	0110-	●
111	ELBOW; CONT CYL	1-09650-358-1	01	1	0110-0211	●
131	PLATE; BODY	8-94391-039-0	01	1	0110-	●
132	LEVER; BRK VLV	8-94397-185-0	01	1	0110-	●
133	NUT; LK M8 FLANGE	0-91150-108-0	03	1	0110-	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	0110-	●
135	CLEVIS; CONT CYL	1-22199-053-0	01	1	0110-	●
153	BOLT; CLEVIS,CONT CYL	8-97600-320-0	02	1	0110-	●
154	NUT; CLEVIS,CONT CYL M6	9-09110-406-0	04	1	0110-	●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	0110-	●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	0110-	●
163	WASHER; CONT CYL	1-22199-148-0	01	1	0110-	●

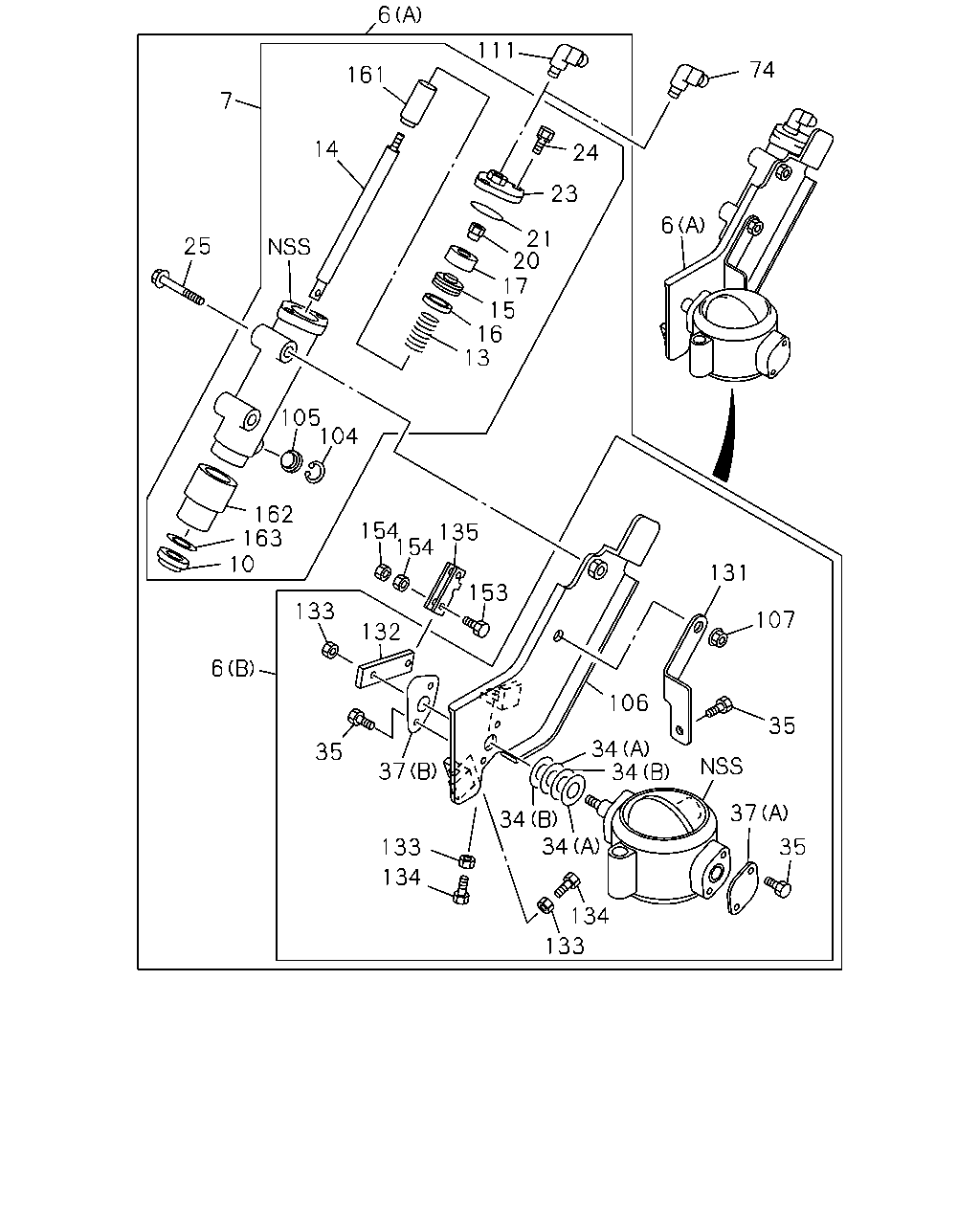

45 44 82 80 81 42 42 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	VALVE; EXH BRAKE (B)	1-22181-158-0	01	1	0110-0211	●
6	VALVE; EXH BRAKE (B)	8-97600-870-0	01	1	0212-	●
6	VALVE; EXH BRAKE (A)	8-94391-043-1	01	1	0110-0211	●
6	VALVE; EXH BRAKE (A)	8-97602-529-0	01	1	0212-	●
6	VALVE; EXH BRAKE EURO2 SPECIFICATION<THN> (C)	8-97602-527-1	01	1	0511-		●
42	HOSE; FLEX,EXH BRK L=300	1-09363-608-0	01	1	0110-	●
42	HOSE; FLEX,EXH BRK EURO2 SPECIFICATION<THN> L=1030	1-09363-568-1	01	1	0511-		●
42	HOSE; FLEX,EXH BRK EXC. EURO2 SPECIFICATION<THN> L=330	1-09363-584-0	01	1	0511-		●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0110-0510	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0511-0603	●
44	WASHER; LK,FLEX HOSE EURO2 SPECIFICATION<THN> ID=12.2	9-09150-512-0	01	1	0511-0603		●
44	WASHER; LK,FLEX HOSE ID=12.2 MAL	0-91510-512-0	01	1	0604-	●
44	WASHER; LK,FLEX HOSE EURO2 SPECIFICATION<THN> ID=12.2 MAL	0-91510-512-0	01	1	0604-		●
44	WASHER; LK,FLEX HOSE EXC. EURO2 SPECIFICATION<THN> ID=12.2	9-09150-512-0	02	1	0511-0603		●
44	WASHER; LK,FLEX HOSE EXC. EURO2 SPECIFICATION<THN> ID=12.2 MAL	0-91510-512-0	02	1	0604-		●
45	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0110-0510	●
45	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0511-	●
45	NUT; FLEX HOSE EURO2 SPECIFICATION<THN> M12	9-09840-280-0	01	1	0511-		●
45	NUT; FLEX HOSE EXC. EURO2 SPECIFICATION<THN> M12	9-09840-280-0	02	1	0511-		●
80	BRACKET; FLEX HOSE	1-47476-355-0	01	1	0110-	●
80	BRACKET; FLEX HOSE	1-47476-880-1	01	1	0511-		●
81	BOLT; HOSE BRKT M8X20 FLANGE MAL	0-28680-820-0	02	1	0110-0510	●
81	BOLT; HOSE BRKT M8X20 FLANGE MAL	0-28680-820-0	02	1	0511-0512	●	●
81	BOLT; HOSE BRKT M8X20 FLANGE MAL	0-28650-820-0	02	1	0601-	●	●
82	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	0110-0510	●
82	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	0511-0602	●	●
82	NUT; HOSE BRKT M8 FLANGE MAL	0-91180-108-0	02	1	0603-	●	●
