◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11360 - FTR(MALAYSIA)W/B6000 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#55396) — 345 parça
çizim 173568
1 476 475 475 476 36 36 34 36 34 1 17 5 36 34
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-22122-930-3 01 1 0511-
1 PIPE; EXH
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> 		1-22122-270-6 01 1 0511-
1 PIPE; EXH
6HH1 STD ENG(65L) MAL 		1-22122-402-1 01 1 0110-
5 PROTECTOR; HEAT 1-33659-182-1 01 1 0110-
17 BOLT; EXH PIPE
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> KD PREPARATORY PACK<6HF> (B) M12X35 FLANGE 		0-28051-235-0 04 1 1204-
17 BOLT; EXH PIPE
6HE1 TC ENG(57L) (A) M12X120 		1-09000-293-0 01 1 0511-
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 0110-0410
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0411-
36 NUT; EXH PIPE
6HE1 TC ENG(57L) M12 		1-09400-010-0 03 1 0511-
36 NUT; EXH PIPE
6HH1 STD ENG(65L) M12 		1-09400-010-0 06 1 0110-
475 BEARING; SEAL,VIBNON,EXH PIPE
6HE1 TC ENG(57L) OD=112 		1-22119-294-1 01 1 0511-
475 BEARING; SEAL,VIBNON,EXH PIPE
6HH1 STD ENG(65L) 		1-22119-277-1 02 1 0110-
476 SPRING; VIBNON,EXH PIPE
6HE1 TC ENG(57L) 		8-94141-851-0 02 1 0511-
476 SPRING; VIBNON,EXH PIPE
6HH1 STD ENG(65L) MAL 		1-09583-298-0 02 1 0110-

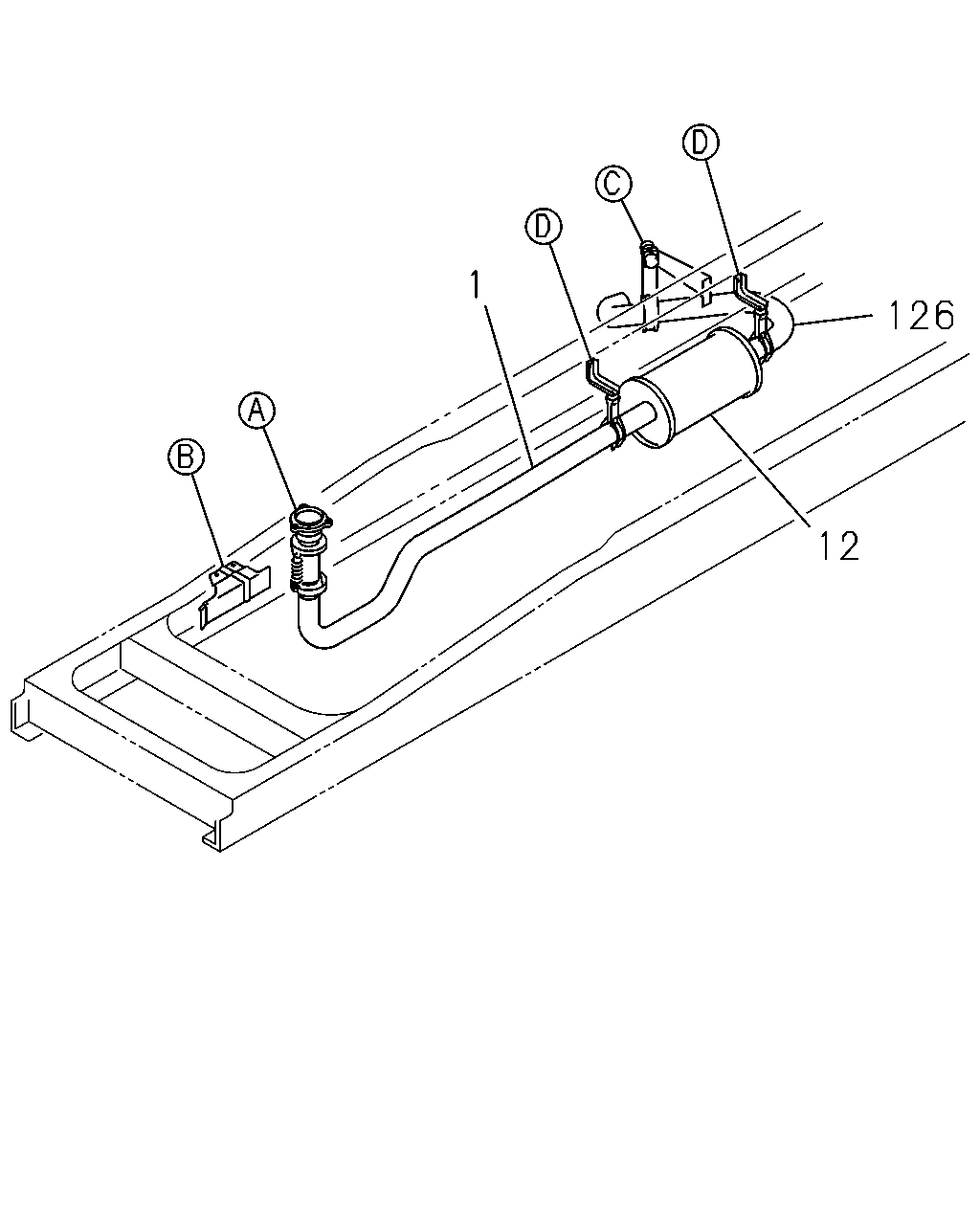

çizim 173571
1 126 12
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-22122-930-3 01 1 0511-
1 PIPE; EXH
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> 		1-22122-270-6 01 1 0511-
1 PIPE; EXH
6HH1 STD ENG(65L) MAL 		1-22122-402-1 01 1 0110-
12 SILENCER ASM; EXH
MAL 		1-22140-873-0 01 1 0110-0205
12 SILENCER ASM; EXH
6HH1 STD ENG(65L) MAL 		1-22140-880-0 01 1 0206-
12 SILENCER ASM; EXH
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-22140-846-4 01 1 0511-
12 SILENCER ASM; EXH
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> 		1-22140-723-2 01 1 0511-
126 PIPE; EXH,RR
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> OD=94 		1-22126-331-0 01 1 0511-
126 PIPE; EXH,RR
6HH1 STD ENG(65L) MAL 		1-22126-030-1 01 1 0110-
çizim 173575
81 107 121 75 75 60 56 121 81 70 12 59 105 94 221 221 97
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH
MAL 		1-22140-873-0 01 1 0110-0205
12 SILENCER ASM; EXH
6HH1 STD ENG(65L) MAL 		1-22140-880-0 01 1 0206-
12 SILENCER ASM; EXH
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-22140-846-4 01 1 0511-
12 SILENCER ASM; EXH
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> 		1-22140-723-2 01 1 0511-
56 BRACKET; CLAMP,EXH PIPE
(A) H=119 		1-22139-060-0 01 1 0110-
56 BRACKET; CLAMP,EXH PIPE
(A) H=112 		1-22139-043-0 01 1 0205-0510
56 BRACKET; CLAMP,EXH PIPE
EXC. EURO2 SPECIFICATION<THN> (A) H=112 		1-22139-043-0 01 1 0511-
56 BRACKET; CLAMP,EXH PIPE
6HE1 TC ENG(57L) (B) 		1-22139-082-0 01 1 0511-
56 BRACKET; CLAMP,EXH PIPE
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (C) 		1-22139-197-0 01 1 0511-
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) (D) L=254 		1-22131-527-1 01 1 0110-
59 BRACKET; EXH SILENCER,FRT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> MAL 		1-22139-098-0 01 1 0511-
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-512-2 01 1 0110-0204
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-512-3 01 1 0205-0510
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-512-3 01 1 0205-0510
60 BRACKET; FRAME TO BRKT
EXC. EURO2 SPECIFICATION<THN> (B) 		1-22151-512-3 01 1 0511-
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-512-3 01 1 0511-
60 BRACKET; FRAME TO BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (C) 		1-22151-747-1 01 1 0511-
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) (A) 		1-22131-514-0 01 1 0110-
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0110-0204
70 BOLT; BRKT
M10X50 		0-10806-050-0 02 1 0205-0210
70 BOLT; BRKT
M10X55 MAL 		0-10806-055-0 01 1 0110-0204
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0205-0210
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0211-0510
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0211-0510
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0211-0510
70 BOLT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X50 		0-10806-050-0 02 1 0511-0512
70 BOLT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X50 MAL 		0-10856-050-0 02 1 0601-
70 BOLT; BRKT
6HH1 STD ENG(65L) M10X50 		0-10806-050-0 01 1 0511-0512
70 BOLT; BRKT
EXC. EURO2 SPECIFICATION<THN> M10X50 		0-10806-050-0 01 1 0511-0512
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0511-0512
70 BOLT; BRKT
6HH1 STD ENG(65L) M10X50 MAL 		0-10856-050-0 01 1 0601-
70 BOLT; BRKT
EXC. EURO2 SPECIFICATION<THN> M10X50 MAL 		0-10856-050-0 01 1 0601-
70 BOLT; BRKT
M10X50 MAL 		0-10856-050-0 01 1 0601-
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0110-0204
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0205-0510
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0205-0510
75 RUBBER; SUPPORT,BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) OD=30 		1-22159-106-1 04 1 0511-
75 RUBBER; SUPPORT,BRKT
EXC. EURO2 SPECIFICATION<THN> (A) OD=30 		1-22159-106-1 02 1 0511-
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0511-
75 RUBBER; SUPPORT,BRKT
6HH1 STD ENG(65L) (B) OD=40 		1-22159-193-0 02 1 0110-
81 NUT; BRKT
(C) M10 LOCK NUT 		9-09131-510-0 01 1 0110-0204
81 NUT; BRKT
(C) M10 LOCK NUT 		9-09131-510-0 01 1 0205-0510
81 NUT; BRKT
(C) M10 LOCK NUT 		9-09131-510-0 01 1 0205-0510
81 NUT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (C) M10 LOCK NUT 		9-09131-510-0 02 1 0511-0603
81 NUT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (C) M10 LOCK NUT MAL 		0-91370-010-0 02 1 0604-
81 NUT; BRKT
EXC. EURO2 SPECIFICATION<THN> (C) M10 LOCK NUT 		9-09131-510-0 01 1 0511-0603
81 NUT; BRKT
(C) M10 LOCK NUT 		9-09131-510-0 01 1 0511-0603
81 NUT; BRKT
EXC. EURO2 SPECIFICATION<THN> (C) M10 LOCK NUT MAL 		0-91370-010-0 01 1 0604-
81 NUT; BRKT
(C) M10 LOCK NUT MAL 		0-91370-010-0 01 1 0604-
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0110-0205
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0206-0206
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0206-0206
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0206-0509
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0510-0510
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0510-0510
81 NUT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) M10 FLANGE 		0-91150-210-0 01 1 0511-0602
81 NUT; BRKT
6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> (B) M10 FLANGE 		0-91150-210-0 01 1 0511-0602
81 NUT; BRKT
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) M10 FLANGE 		0-91150-210-0 01 1 0511-0602
81 NUT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) M10 FLANGE 		0-91150-210-0 01 1 0603-0604
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0110-0602
81 NUT; BRKT
6HH1 STD ENG(65L) (B) M10 FLANGE 		0-91150-210-0 02 1 0110-0602
81 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 02 1 0603-
81 NUT; BRKT
6HH1 STD ENG(65L) (B) M10 FLANGE MAL 		0-91180-210-0 02 1 0603-
81 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 01 1 0603-0604
81 NUT; BRKT
6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> (B) M10 FLANGE MAL 		0-91180-210-0 01 1 0603-0604
81 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 01 1 0605-
81 NUT; BRKT
6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> (B) M10 FLANGE MAL 		0-91180-210-0 01 1 0605-
81 NUT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) M10 FLANGE MAL 		0-91180-210-0 01 1 0605-
81 NUT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M12 FLANGE 		0-91150-212-0 04 1 0511-0601
81 NUT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M12 FLANGE 		0-91150-212-0 08 1 0602-0602
81 NUT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M12 FLANGE MAL 		0-91180-212-0 04 1 0603-
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0110-0210
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0205-0210
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0211-0510
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0211-0510
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0211-0510
94 BOLT; CLAMP
6HH1 STD ENG(65L) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0511-0805
94 BOLT; CLAMP
EXC. EURO2 SPECIFICATION<THN> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0511-0805
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0511-0805
94 BOLT; CLAMP
6HH1 STD ENG(65L) M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806-
94 BOLT; CLAMP
EXC. EURO2 SPECIFICATION<THN> M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806-
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806-
94 BOLT; CLAMP
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X40 FLANGE MAL 		0-28681-040-0 02 1 0511-0512
94 BOLT; CLAMP
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X40 FLANGE MAL 		0-28651-040-0 02 1 0601-
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 08 1 0110-0210
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) ID=10.5 		9-09164-510-0 04 1 0211-0812
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) ID=10.5 		9-09164-510-0 04 1 0211-0812
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) ID=10.5 MAL 		0-91614-510-0 02 1 0901-0907
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) ID=10.5 MAL 		0-91614-510-0 02 1 0901-0907
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0205-0510
97 WASHER; PL,CLAMP
WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> ID=10.5 		9-09164-510-0 02 1 0511-0812
97 WASHER; PL,CLAMP
6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> ID=10.5 		9-09164-510-0 02 1 0511-0812
97 WASHER; PL,CLAMP
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> ID=10.5 		9-09164-510-0 02 1 0511-0812
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) ID=10.5 		9-09164-510-0 02 1 0901-
97 WASHER; PL,CLAMP
EXC. EURO2 SPECIFICATION<THN> ID=10.5 		9-09164-510-0 02 1 0901-
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0901-
105 NUT; CLAMP
(A) M10 		9-09110-510-0 04 1 0110-0210
105 NUT; CLAMP
(A) M10 		9-09110-510-0 02 1 0205-0210
105 NUT; CLAMP
(A) M10 		9-09110-510-0 02 1 0211-0510
105 NUT; CLAMP
(A) M10 		9-09110-510-0 02 1 0211-0510
105 NUT; CLAMP
(A) M10 		9-09110-510-0 02 1 0211-0510
105 NUT; CLAMP
6HH1 STD ENG(65L) (A) M10 		9-09110-510-0 02 1 0511-0512
105 NUT; CLAMP
EXC. EURO2 SPECIFICATION<THN> (A) M10 		9-09110-510-0 02 1 0511-0512
105 NUT; CLAMP
(A) M10 		9-09110-510-0 02 1 0511-0512
105 NUT; CLAMP
6HH1 STD ENG(65L) (A) M10 MAL 		0-91110-510-0 02 1 0601-
105 NUT; CLAMP
EXC. EURO2 SPECIFICATION<THN> (A) M10 MAL 		0-91110-510-0 02 1 0601-
105 NUT; CLAMP
(A) M10 MAL 		0-91110-510-0 02 1 0601-
105 NUT; CLAMP
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) M10 FLANGE 		0-91150-210-0 02 1 0511-0602
105 NUT; CLAMP
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) M10 FLANGE MAL 		0-91180-210-0 02 1 0603-0610
105 NUT; CLAMP
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) M10 FLANGE MAL 		0-91180-210-0 02 1 0611-
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 02 1 0110-0204
107 BOLT; BRKT
6HH1 STD ENG(65L) (B) M10X30 FLANGE 		0-28681-030-0 02 1 0205-0205
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 02 1 0205-0205
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 02 1 0206-0510
107 BOLT; BRKT
EURO2 SPECIFICATION<THN> (B) M10X30 FLANGE 		0-28681-030-0 02 1 0511-0512
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 02 1 0511-0512
107 BOLT; BRKT
EURO2 SPECIFICATION<THN> (B) M10X30 FLANGE 		0-28651-030-0 02 1 0601-
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0601-
107 BOLT; BRKT
6HH1 STD ENG(65L) (A) M10X35 FLANGE MAL 		0-28681-035-0 02 1 0110-0512
107 BOLT; BRKT
6HH1 STD ENG(65L) (A) M10X35 FLANGE MAL 		0-28651-035-0 02 1 0601-
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0110-0204
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0205-0510
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0205-0510
121 WASHER; PL,BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		9-09164-810-0 02 1 0511-0605
121 WASHER; PL,BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> ID=10.5 OD=32 MAL 		0-91614-810-0 02 1 0606-
121 WASHER; PL,BRKT
EXC. EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		9-09164-810-0 01 1 0511-0605
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0511-0605
121 WASHER; PL,BRKT
EXC. EURO2 SPECIFICATION<THN> ID=10.5 OD=32 MAL 		0-91614-810-0 01 1 0606-
121 WASHER; PL,BRKT
ID=10.5 OD=32 MAL 		0-91614-810-0 01 1 0606-
221 CLAMP; EXH SILENCER
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> ID=80-84 MAL 		1-22133-233-0 02 1 0511-

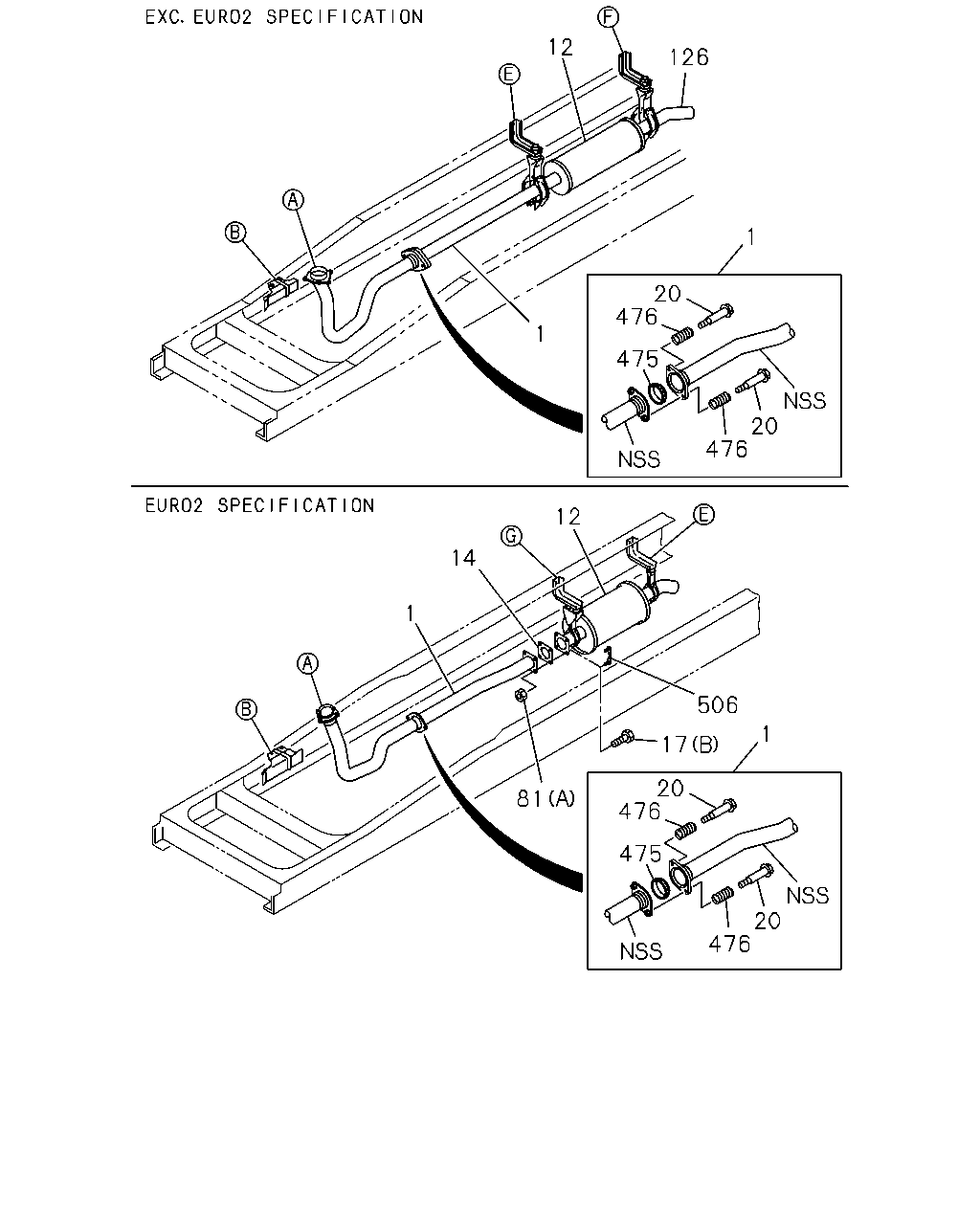

çizim 173582
12 126 1 20 476 475 476 20 12 14 1 81 476 475 476 20 20 1 506 17 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-22122-930-3 01 1 0511-
1 PIPE; EXH
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> 		1-22122-270-6 01 1 0511-
1 PIPE; EXH
6HH1 STD ENG(65L) MAL 		1-22122-402-1 01 1 0110-
12 SILENCER ASM; EXH
MAL 		1-22140-873-0 01 1 0110-0205
12 SILENCER ASM; EXH
6HH1 STD ENG(65L) MAL 		1-22140-880-0 01 1 0206-
12 SILENCER ASM; EXH
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-22140-846-4 01 1 0511-
12 SILENCER ASM; EXH
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> 		1-22140-723-2 01 1 0511-
14 GASKET; SILENCER TO EXH PIPE
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> ID=87 		8-94394-391-0 01 1 0511-
17 BOLT; EXH PIPE
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> KD PREPARATORY PACK<6HF> (B) M12X35 FLANGE 		0-28051-235-0 04 1 1204-
17 BOLT; EXH PIPE
6HE1 TC ENG(57L) (A) M12X120 		1-09000-293-0 01 1 0511-
20 BOLT; FLANGE,EXH PIPE
6HE1 TC ENG(57L) M10X49.8 		8-97039-586-0 02 1 0511-
81 NUT; BRKT
(C) M10 LOCK NUT 		9-09131-510-0 01 1 0110-0204
81 NUT; BRKT
(C) M10 LOCK NUT 		9-09131-510-0 01 1 0205-0510
81 NUT; BRKT
(C) M10 LOCK NUT 		9-09131-510-0 01 1 0205-0510
81 NUT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (C) M10 LOCK NUT 		9-09131-510-0 02 1 0511-0603
81 NUT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (C) M10 LOCK NUT MAL 		0-91370-010-0 02 1 0604-
81 NUT; BRKT
EXC. EURO2 SPECIFICATION<THN> (C) M10 LOCK NUT 		9-09131-510-0 01 1 0511-0603
81 NUT; BRKT
(C) M10 LOCK NUT 		9-09131-510-0 01 1 0511-0603
81 NUT; BRKT
EXC. EURO2 SPECIFICATION<THN> (C) M10 LOCK NUT MAL 		0-91370-010-0 01 1 0604-
81 NUT; BRKT
(C) M10 LOCK NUT MAL 		0-91370-010-0 01 1 0604-
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0110-0205
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0206-0206
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0206-0206
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0206-0509
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0510-0510
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0510-0510
81 NUT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) M10 FLANGE 		0-91150-210-0 01 1 0511-0602
81 NUT; BRKT
6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> (B) M10 FLANGE 		0-91150-210-0 01 1 0511-0602
81 NUT; BRKT
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) M10 FLANGE 		0-91150-210-0 01 1 0511-0602
81 NUT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) M10 FLANGE 		0-91150-210-0 01 1 0603-0604
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0110-0602
81 NUT; BRKT
6HH1 STD ENG(65L) (B) M10 FLANGE 		0-91150-210-0 02 1 0110-0602
81 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 02 1 0603-
81 NUT; BRKT
6HH1 STD ENG(65L) (B) M10 FLANGE MAL 		0-91180-210-0 02 1 0603-
81 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 01 1 0603-0604
81 NUT; BRKT
6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> (B) M10 FLANGE MAL 		0-91180-210-0 01 1 0603-0604
81 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 01 1 0605-
81 NUT; BRKT
6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> (B) M10 FLANGE MAL 		0-91180-210-0 01 1 0605-
81 NUT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) M10 FLANGE MAL 		0-91180-210-0 01 1 0605-
81 NUT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M12 FLANGE 		0-91150-212-0 04 1 0511-0601
81 NUT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M12 FLANGE 		0-91150-212-0 08 1 0602-0602
81 NUT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M12 FLANGE MAL 		0-91180-212-0 04 1 0603-
126 PIPE; EXH,RR
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> OD=94 		1-22126-331-0 01 1 0511-
126 PIPE; EXH,RR
6HH1 STD ENG(65L) MAL 		1-22126-030-1 01 1 0110-
475 BEARING; SEAL,VIBNON,EXH PIPE
6HE1 TC ENG(57L) OD=112 		1-22119-294-1 01 1 0511-
475 BEARING; SEAL,VIBNON,EXH PIPE
6HH1 STD ENG(65L) 		1-22119-277-1 02 1 0110-
476 SPRING; VIBNON,EXH PIPE
6HE1 TC ENG(57L) 		8-94141-851-0 02 1 0511-
476 SPRING; VIBNON,EXH PIPE
6HH1 STD ENG(65L) MAL 		1-09583-298-0 02 1 0110-
506 BRACKET; STUD
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M12X35 		1-22131-963-0 02 1 0511-1203
506 BRACKET; STUD
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> EXC. KD PREPARATORY PACK<6HF> M12X35 		1-22131-963-0 02 1 1204-

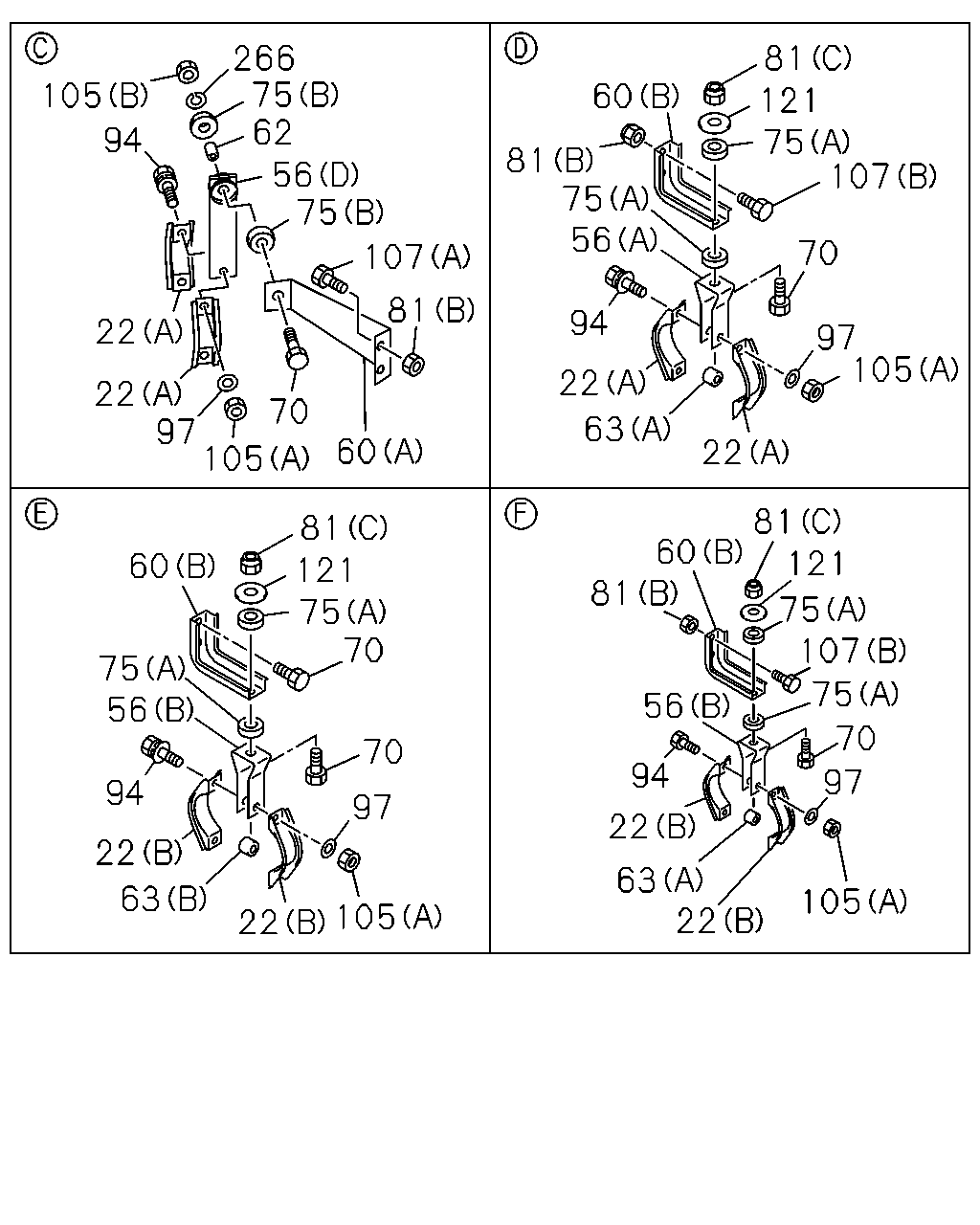

çizim 173588
81 121 75 107 266 75 62 105 60 94 81 75 56 56 75 70 107 81 94 22 97 105 22 22 97 105 70 63 60 22 81 60 121 81 81 121 75 70 60 75 107 75 56 56 75 70 70 94 97 94 97 22 22 63 22 63 105 22 105
BalonParca AdiParca NoAdetTipApplied Date
22 CLAMP; EXH PIPE
(A) ID=80-84 MAL 		1-22133-233-0 04 1 0110-0210
22 CLAMP; EXH PIPE
(A) ID=80-84 MAL 		1-22133-233-0 02 1 0205-0210
22 CLAMP; EXH PIPE
(A) ID=80-84 MAL 		1-22133-233-0 02 1 0211-0510
22 CLAMP; EXH PIPE
(A) ID=80-84 MAL 		1-22133-233-0 02 1 0211-0510
22 CLAMP; EXH PIPE
(A) ID=80-84 MAL 		1-22133-233-0 02 1 0211-0510
22 CLAMP; EXH PIPE
6HH1 STD ENG(65L) (A) ID=80-84 MAL 		1-22133-233-0 02 1 0511-
22 CLAMP; EXH PIPE
WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> (A) ID=80-84 MAL 		1-22133-233-0 02 1 0511-
22 CLAMP; EXH PIPE
6HH1 STD ENG(65L) (A) ID=80-84 MAL 		1-22133-233-0 02 1 0511-
22 CLAMP; EXH PIPE
6HE1 TC ENG(57L) (B) ID=94-98 		1-22133-237-0 02 1 0511-
56 BRACKET; CLAMP,EXH PIPE
(A) H=119 		1-22139-060-0 01 1 0110-
56 BRACKET; CLAMP,EXH PIPE
(A) H=112 		1-22139-043-0 01 1 0205-0510
56 BRACKET; CLAMP,EXH PIPE
EXC. EURO2 SPECIFICATION<THN> (A) H=112 		1-22139-043-0 01 1 0511-
56 BRACKET; CLAMP,EXH PIPE
6HE1 TC ENG(57L) (B) 		1-22139-082-0 01 1 0511-
56 BRACKET; CLAMP,EXH PIPE
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (C) 		1-22139-197-0 01 1 0511-
56 BRACKET; CLAMP,EXH PIPE
6HH1 STD ENG(65L) (D) L=254 		1-22131-527-1 01 1 0110-
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-512-2 01 1 0110-0204
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-512-3 01 1 0205-0510
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-512-3 01 1 0205-0510
60 BRACKET; FRAME TO BRKT
EXC. EURO2 SPECIFICATION<THN> (B) 		1-22151-512-3 01 1 0511-
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-512-3 01 1 0511-
60 BRACKET; FRAME TO BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (C) 		1-22151-747-1 01 1 0511-
60 BRACKET; FRAME TO BRKT
6HH1 STD ENG(65L) (A) 		1-22131-514-0 01 1 0110-
62 TUBE; DIST,BRKT
6HH1 STD ENG(65L) L=22 MAL 		9-22159-024-0 01 1 0110-
63 TUBE; DIST,BRKT
(A) L=11 		1-22139-026-0 01 1 0110-0204
63 TUBE; DIST,BRKT
(A) L=11 		1-22139-026-0 01 1 0205-0510
63 TUBE; DIST,BRKT
(A) L=11 		1-22139-026-0 01 1 0205-0510
63 TUBE; DIST,BRKT
WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> (A) L=11 		1-22139-026-0 01 1 0511-
63 TUBE; DIST,BRKT
6HH1 STD ENG(65L) (A) L=11 		1-22139-026-0 01 1 0511-
63 TUBE; DIST,BRKT
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (A) L=11 		1-22139-026-0 01 1 0511-
63 TUBE; DIST,BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) L=8.5 		1-22139-057-0 01 1 0511-
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0110-0204
70 BOLT; BRKT
M10X50 		0-10806-050-0 02 1 0205-0210
70 BOLT; BRKT
M10X55 MAL 		0-10806-055-0 01 1 0110-0204
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0205-0210
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0211-0510
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0211-0510
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0211-0510
70 BOLT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X50 		0-10806-050-0 02 1 0511-0512
70 BOLT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X50 MAL 		0-10856-050-0 02 1 0601-
70 BOLT; BRKT
6HH1 STD ENG(65L) M10X50 		0-10806-050-0 01 1 0511-0512
70 BOLT; BRKT
EXC. EURO2 SPECIFICATION<THN> M10X50 		0-10806-050-0 01 1 0511-0512
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0511-0512
70 BOLT; BRKT
6HH1 STD ENG(65L) M10X50 MAL 		0-10856-050-0 01 1 0601-
70 BOLT; BRKT
EXC. EURO2 SPECIFICATION<THN> M10X50 MAL 		0-10856-050-0 01 1 0601-
70 BOLT; BRKT
M10X50 MAL 		0-10856-050-0 01 1 0601-
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0110-0204
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0205-0510
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0205-0510
75 RUBBER; SUPPORT,BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) OD=30 		1-22159-106-1 04 1 0511-
75 RUBBER; SUPPORT,BRKT
EXC. EURO2 SPECIFICATION<THN> (A) OD=30 		1-22159-106-1 02 1 0511-
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0511-
75 RUBBER; SUPPORT,BRKT
6HH1 STD ENG(65L) (B) OD=40 		1-22159-193-0 02 1 0110-
81 NUT; BRKT
(C) M10 LOCK NUT 		9-09131-510-0 01 1 0110-0204
81 NUT; BRKT
(C) M10 LOCK NUT 		9-09131-510-0 01 1 0205-0510
81 NUT; BRKT
(C) M10 LOCK NUT 		9-09131-510-0 01 1 0205-0510
81 NUT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (C) M10 LOCK NUT 		9-09131-510-0 02 1 0511-0603
81 NUT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (C) M10 LOCK NUT MAL 		0-91370-010-0 02 1 0604-
81 NUT; BRKT
EXC. EURO2 SPECIFICATION<THN> (C) M10 LOCK NUT 		9-09131-510-0 01 1 0511-0603
81 NUT; BRKT
(C) M10 LOCK NUT 		9-09131-510-0 01 1 0511-0603
81 NUT; BRKT
EXC. EURO2 SPECIFICATION<THN> (C) M10 LOCK NUT MAL 		0-91370-010-0 01 1 0604-
81 NUT; BRKT
(C) M10 LOCK NUT MAL 		0-91370-010-0 01 1 0604-
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0110-0205
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0206-0206
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0206-0206
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0206-0509
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0510-0510
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0510-0510
81 NUT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) M10 FLANGE 		0-91150-210-0 01 1 0511-0602
81 NUT; BRKT
6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> (B) M10 FLANGE 		0-91150-210-0 01 1 0511-0602
81 NUT; BRKT
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) M10 FLANGE 		0-91150-210-0 01 1 0511-0602
81 NUT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) M10 FLANGE 		0-91150-210-0 01 1 0603-0604
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0110-0602
81 NUT; BRKT
6HH1 STD ENG(65L) (B) M10 FLANGE 		0-91150-210-0 02 1 0110-0602
81 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 02 1 0603-
81 NUT; BRKT
6HH1 STD ENG(65L) (B) M10 FLANGE MAL 		0-91180-210-0 02 1 0603-
81 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 01 1 0603-0604
81 NUT; BRKT
6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> (B) M10 FLANGE MAL 		0-91180-210-0 01 1 0603-0604
81 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 01 1 0605-
81 NUT; BRKT
6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> (B) M10 FLANGE MAL 		0-91180-210-0 01 1 0605-
81 NUT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) M10 FLANGE MAL 		0-91180-210-0 01 1 0605-
81 NUT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M12 FLANGE 		0-91150-212-0 04 1 0511-0601
81 NUT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M12 FLANGE 		0-91150-212-0 08 1 0602-0602
81 NUT; BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) M12 FLANGE MAL 		0-91180-212-0 04 1 0603-
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0110-0210
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0205-0210
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0211-0510
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0211-0510
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0211-0510
94 BOLT; CLAMP
6HH1 STD ENG(65L) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0511-0805
94 BOLT; CLAMP
EXC. EURO2 SPECIFICATION<THN> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0511-0805
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0511-0805
94 BOLT; CLAMP
6HH1 STD ENG(65L) M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806-
94 BOLT; CLAMP
EXC. EURO2 SPECIFICATION<THN> M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806-
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806-
94 BOLT; CLAMP
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X40 FLANGE MAL 		0-28681-040-0 02 1 0511-0512
94 BOLT; CLAMP
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X40 FLANGE MAL 		0-28651-040-0 02 1 0601-
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 08 1 0110-0210
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) ID=10.5 		9-09164-510-0 04 1 0211-0812
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) ID=10.5 		9-09164-510-0 04 1 0211-0812
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) ID=10.5 MAL 		0-91614-510-0 02 1 0901-0907
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) ID=10.5 MAL 		0-91614-510-0 02 1 0901-0907
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0205-0510
97 WASHER; PL,CLAMP
WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> ID=10.5 		9-09164-510-0 02 1 0511-0812
97 WASHER; PL,CLAMP
6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> ID=10.5 		9-09164-510-0 02 1 0511-0812
97 WASHER; PL,CLAMP
6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> ID=10.5 		9-09164-510-0 02 1 0511-0812
97 WASHER; PL,CLAMP
6HH1 STD ENG(65L) ID=10.5 		9-09164-510-0 02 1 0901-
97 WASHER; PL,CLAMP
EXC. EURO2 SPECIFICATION<THN> ID=10.5 		9-09164-510-0 02 1 0901-
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0901-
105 NUT; CLAMP
(A) M10 		9-09110-510-0 04 1 0110-0210
105 NUT; CLAMP
(A) M10 		9-09110-510-0 02 1 0205-0210
105 NUT; CLAMP
(A) M10 		9-09110-510-0 02 1 0211-0510
105 NUT; CLAMP
(A) M10 		9-09110-510-0 02 1 0211-0510
105 NUT; CLAMP
(A) M10 		9-09110-510-0 02 1 0211-0510
105 NUT; CLAMP
6HH1 STD ENG(65L) (A) M10 		9-09110-510-0 02 1 0511-0512
105 NUT; CLAMP
EXC. EURO2 SPECIFICATION<THN> (A) M10 		9-09110-510-0 02 1 0511-0512
105 NUT; CLAMP
(A) M10 		9-09110-510-0 02 1 0511-0512
105 NUT; CLAMP
6HH1 STD ENG(65L) (A) M10 MAL 		0-91110-510-0 02 1 0601-
105 NUT; CLAMP
EXC. EURO2 SPECIFICATION<THN> (A) M10 MAL 		0-91110-510-0 02 1 0601-
105 NUT; CLAMP
(A) M10 MAL 		0-91110-510-0 02 1 0601-
105 NUT; CLAMP
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) M10 FLANGE 		0-91150-210-0 02 1 0511-0602
105 NUT; CLAMP
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) M10 FLANGE MAL 		0-91180-210-0 02 1 0603-0610
105 NUT; CLAMP
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) M10 FLANGE MAL 		0-91180-210-0 02 1 0611-
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 02 1 0110-0204
107 BOLT; BRKT
6HH1 STD ENG(65L) (B) M10X30 FLANGE 		0-28681-030-0 02 1 0205-0205
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 02 1 0205-0205
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 02 1 0206-0510
107 BOLT; BRKT
EURO2 SPECIFICATION<THN> (B) M10X30 FLANGE 		0-28681-030-0 02 1 0511-0512
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 02 1 0511-0512
107 BOLT; BRKT
EURO2 SPECIFICATION<THN> (B) M10X30 FLANGE 		0-28651-030-0 02 1 0601-
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0601-
107 BOLT; BRKT
6HH1 STD ENG(65L) (A) M10X35 FLANGE MAL 		0-28681-035-0 02 1 0110-0512
107 BOLT; BRKT
6HH1 STD ENG(65L) (A) M10X35 FLANGE MAL 		0-28651-035-0 02 1 0601-
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0110-0204
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0205-0510
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0205-0510
121 WASHER; PL,BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		9-09164-810-0 02 1 0511-0605
121 WASHER; PL,BRKT
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> ID=10.5 OD=32 MAL 		0-91614-810-0 02 1 0606-
121 WASHER; PL,BRKT
EXC. EURO2 SPECIFICATION<THN> ID=10.5 OD=32 		9-09164-810-0 01 1 0511-0605
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0511-0605
121 WASHER; PL,BRKT
EXC. EURO2 SPECIFICATION<THN> ID=10.5 OD=32 MAL 		0-91614-810-0 01 1 0606-
121 WASHER; PL,BRKT
ID=10.5 OD=32 MAL 		0-91614-810-0 01 1 0606-
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 0110-0204
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
