1-30 — AIR CLEANER (#55390) — 76 parça

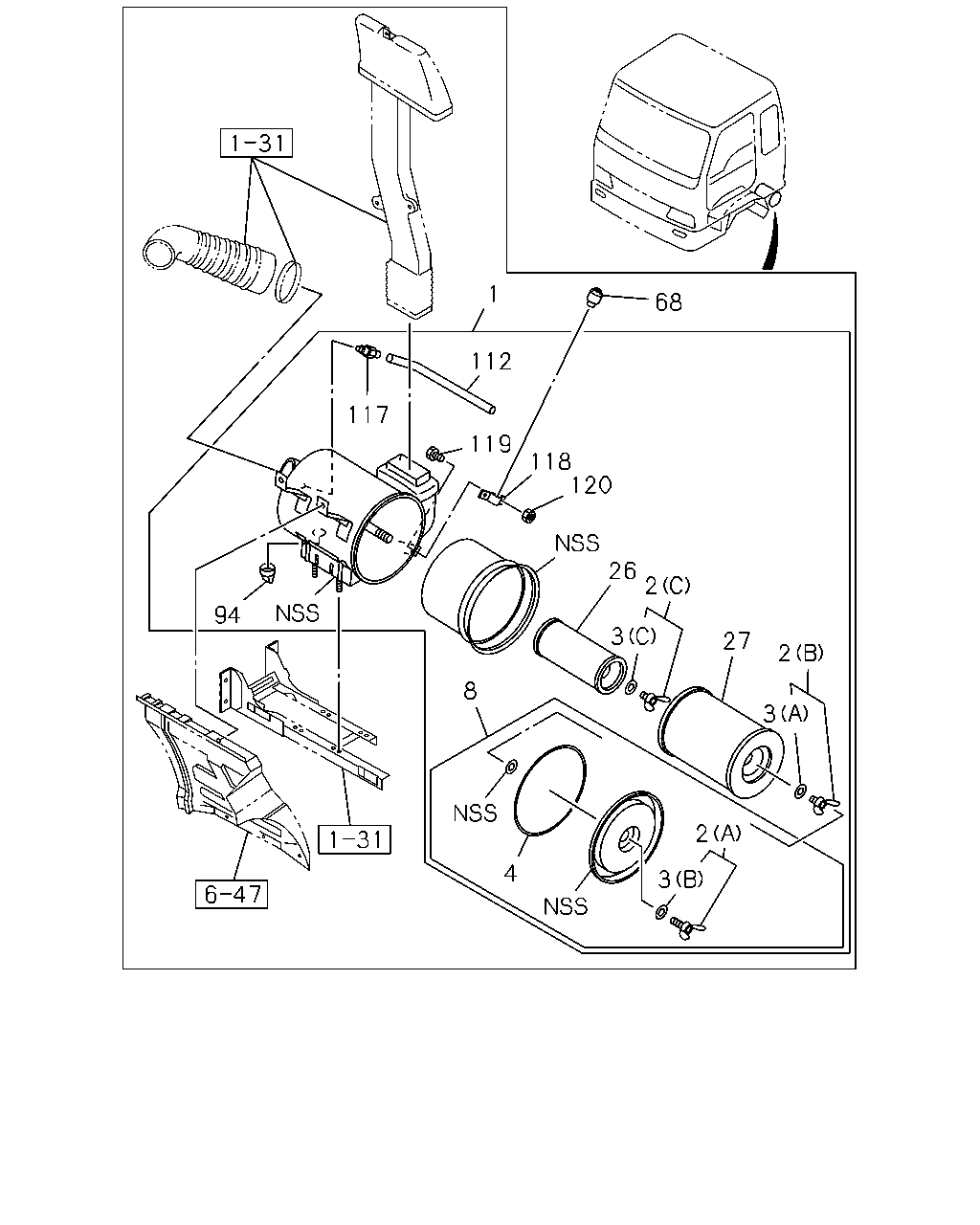

çizim 173567
1 68 112 117 119 118 120 26 2 94 3 27 2 8 3 2 4 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR 1-14210-777-4 01 1 0110- ●
1 CLEANER ASM; AIR 1-14210-830-1 01 1 0511- ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 0110- ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0110-0510 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0511- ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0110-0510 ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0511- ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0511- ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0110-0510 ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0511- ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0110-0510 ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0511- ● ●
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 0110- ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0511- ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 0110- ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 0511- ●
8 COVER ASM; ACL 1-14212-084-0 01 1 0110- ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0511- ●
26 FILTER; ACL,INNER 1-14215-111-0 01 1 0110- ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0511- ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-118-0 01 1 0110- ●
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 0110- ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0511- ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-117-0 01 1 0110- ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-058-0 01 1 0511- ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0110- ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0110- ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 0511- ●
112 HOSE; INDICATOR 1-14219-260-0 01 1 0110- ●
112 HOSE; INDICATOR 1-14219-269-0 01 1 0511- ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0110-0510 ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0511- ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0110-0510 ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0511- ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0110-0510 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0511- ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0110-0510 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0511- ● ●

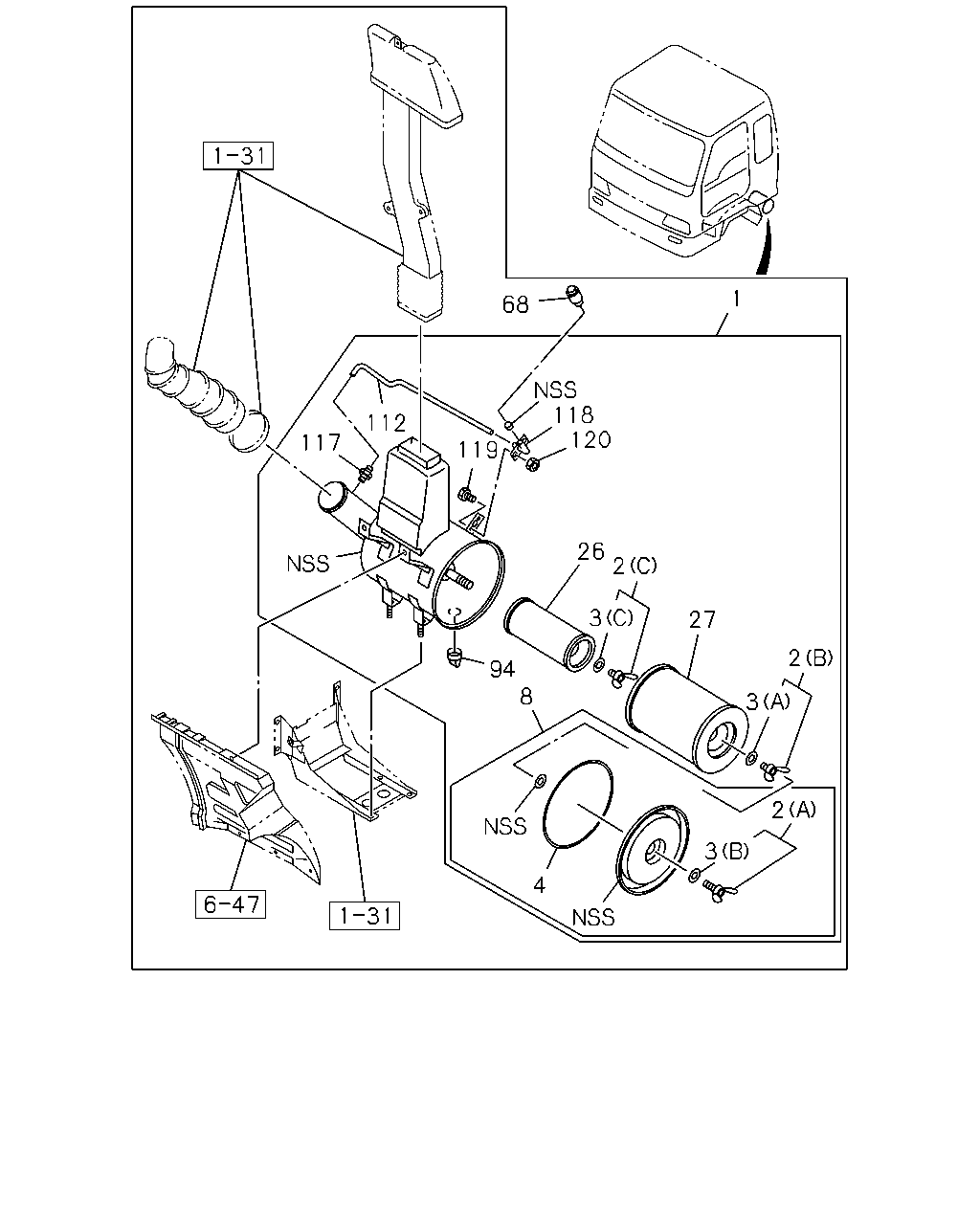

çizim 173574
1 68 118 120 112 117 119 26 2 3 27 2 94 8 3 2 3 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR 1-14210-777-4 01 1 0110- ●
1 CLEANER ASM; AIR 1-14210-830-1 01 1 0511- ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 0110- ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0110-0510 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0511- ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0110-0510 ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0511- ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0511- ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0110-0510 ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0511- ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0110-0510 ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0511- ● ●
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 0110- ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0511- ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 0110- ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 0511- ●
8 COVER ASM; ACL 1-14212-084-0 01 1 0110- ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0511- ●
26 FILTER; ACL,INNER 1-14215-111-0 01 1 0110- ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0511- ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-118-0 01 1 0110- ●
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 0110- ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0511- ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-117-0 01 1 0110- ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-058-0 01 1 0511- ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0110- ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0110- ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 0511- ●
112 HOSE; INDICATOR 1-14219-260-0 01 1 0110- ●
112 HOSE; INDICATOR 1-14219-269-0 01 1 0511- ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0110-0510 ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0511- ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0110-0510 ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0511- ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0110-0510 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0511- ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0110-0510 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0511- ● ●
