◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30A - AIR CLEANER ▶
1-30A — AIR CLEANER (#5539) — 66 parça

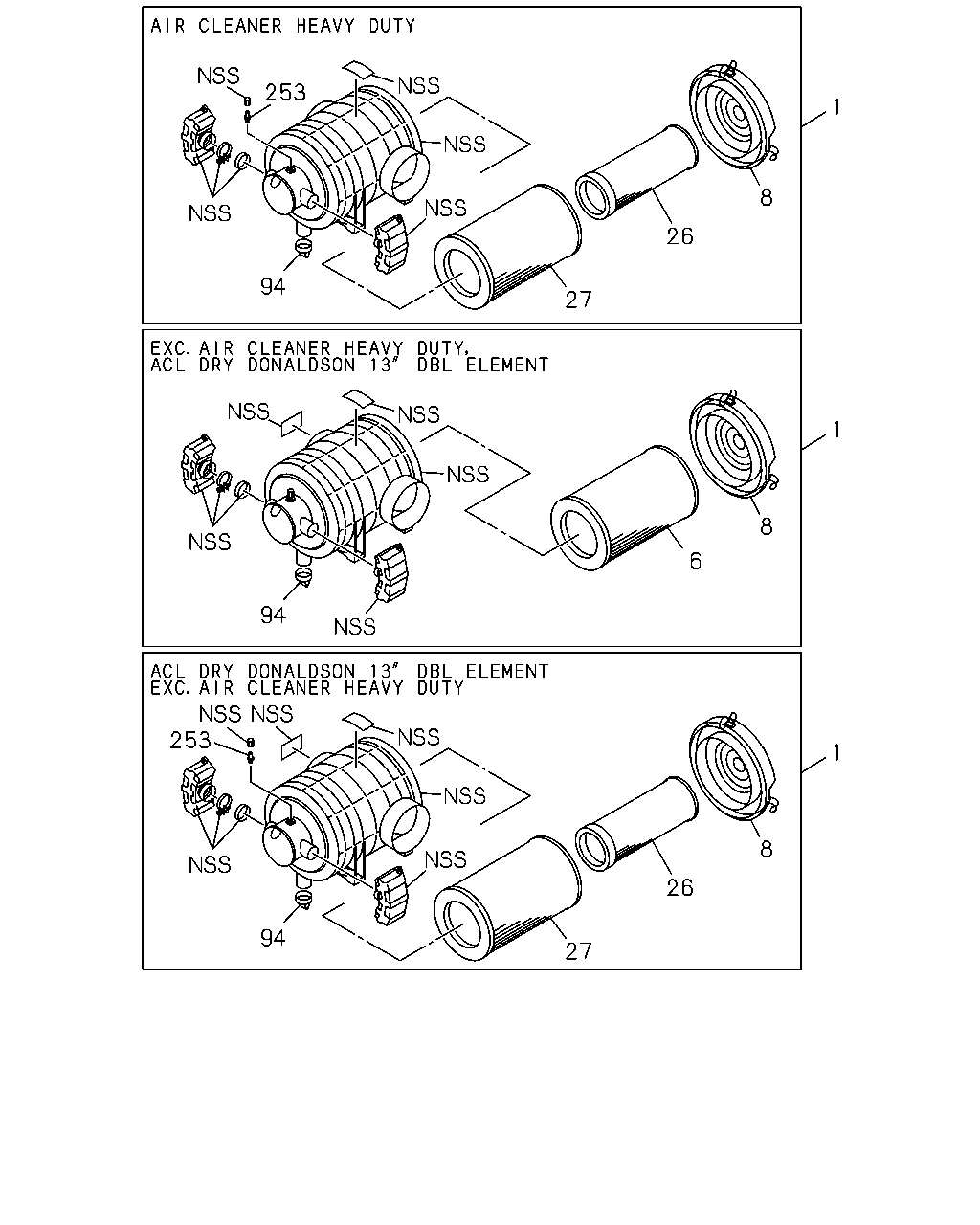

çizim 41094
253 1 8 26 94 27 1 8 6 94 253 1 8 26 94 27
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CLEANER ASM; AIR 1-14210-740-0 01 1 9603-9710 ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 9711-9810 ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 9811-9904 ● ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 9905- ● ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-808-0 01 1 9711-9810 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-808-0 01 1 9811-9904 ● ●
1 CLEANER ASM; AIR
AIR CLEANER HEAVY DUTY<K45> 		1-14210-834-0 01 1 9905- ● ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14210-832-0 01 1 9905- ● ● ●
6 FILTER; ACL 1-14215-203-0 01 1 9603-9710 ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 9711-9810 ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 9811-9904 ● ●
6 FILTER; ACL
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 9905- ● ● ●
8 COVER ASM; ACL 1-14212-129-0 01 1 9603-9810 ●
8 COVER ASM; ACL 1-14212-129-0 01 1 9811-9904 ● ●
8 COVER ASM; ACL 1-14212-129-0 01 1 9905- ● ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-217-0 01 1 9711-9810 ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-217-0 01 1 9811-9904 ● ●
26 FILTER; ACL,INNER
AIR CLEANER HEAVY DUTY<K45> 		1-14215-217-0 01 1 9905- ● ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14215-217-0 01 1 9905- ● ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 9711-9810 ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 9811-9904 ● ●
27 FILTER; ACL,OUTER
AIR CLEANER HEAVY DUTY<K45> 		1-14215-203-0 01 1 9905- ● ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14215-203-0 01 1 9905- ● ● ●
94 VALVE; VACUATOR 1-14219-251-0 01 1 9603-9810 ●
94 VALVE; VACUATOR 1-14219-251-0 01 1 9811-9904 ● ●
94 VALVE; VACUATOR 1-14219-251-0 01 1 9905- ● ● ●
253 NIPPLE 1-14219-252-0 01 1 9905- ● ● ●
çizim 43062
56 1 210 67 210 172 212 66 65 66 66 211 211 64
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CLEANER ASM; AIR 1-14210-740-0 01 1 9603-9710 ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 9711-9810 ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 9811-9904 ● ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 9905- ● ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-808-0 01 1 9711-9810 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-808-0 01 1 9811-9904 ● ●
1 CLEANER ASM; AIR
AIR CLEANER HEAVY DUTY<K45> 		1-14210-834-0 01 1 9905- ● ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14210-832-0 01 1 9905- ● ● ●
56 SWITCH; ACL 1-81530-016-0 01 1 9603-9904 ●
56 SWITCH; ACL 1-81530-016-0 01 1 9905- ● ● ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-110-0 07 1 9603-9606 ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 03 1 9607-9709 ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 06 1 9710-9804 ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 04 1 9805-9904 ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 06 1 9905- ● ● ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 03 1 9603-9709 ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 04 1 9710-9804 ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 03 1 9805-9904 ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 04 1 9905- ● ● ●
66 CLIP; ACL
(A) 		5-09987-033-0 10 1 9603-9801 ●
66 CLIP; ACL
(A) 		5-09987-033-0 09 1 9802-9904 ●
66 CLIP; ACL
(A) 		5-09987-033-0 09 1 9905- ● ● ●
66 CLIP; ACL
(B) 		8-94279-048-0 07 1 9603-9904 ●
66 CLIP; ACL
(B) 		8-94279-048-0 07 1 9905- ● ● ●
67 COVER; ACL 1-53419-281-3 01 1 9603-9904 ●
67 COVER; ACL 1-53419-281-3 01 1 9905- ● ● ●
172 INSULATOR; NOISE 1-53446-780-1 01 1 9603-9904 ●
172 INSULATOR; NOISE 1-53446-780-1 01 1 9905- ● ● ●
210 BRACKET; ACL MTG 1-53419-283-0 02 1 9603-9904 ●
210 BRACKET; ACL MTG 1-53419-283-0 02 1 9905- ● ● ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 9603-9904 ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 9905- ● ● ●
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 9603-9904 ●
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 9905- ● ● ●
212 BOLT; MUD COVER
M10X20 FLANGE 		0-28081-020-0 07 1 9603-9606 ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28681-025-0 03 1 9607-9709 ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28681-025-0 06 1 9710-9804 ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28681-025-0 04 1 9805-9904 ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28681-025-0 06 1 9905- ● ● ●
