◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11360 - FTR(MALAYSIA)W/B6000 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#55388) — 145 parça

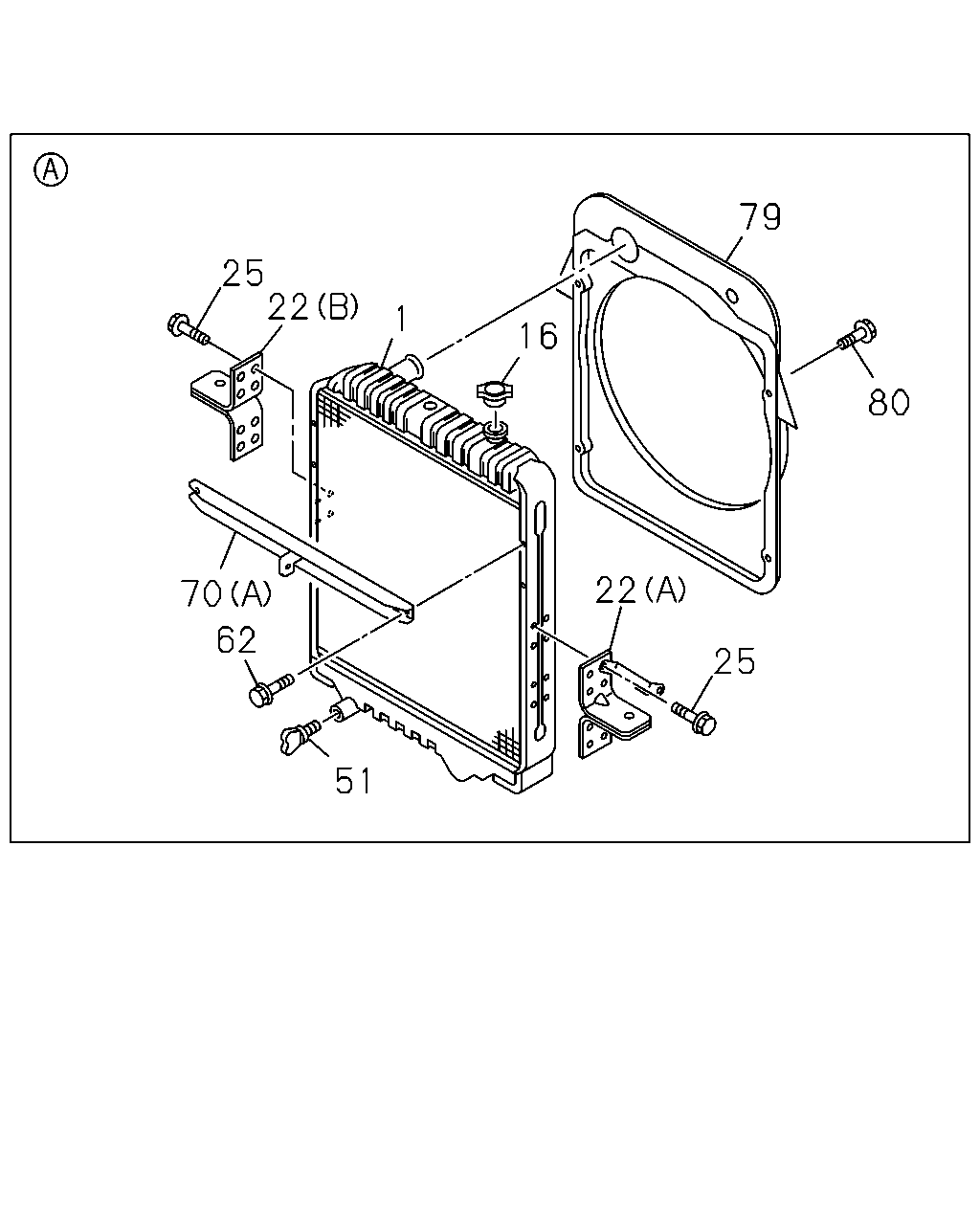

çizim 173557
79 25 22 1 16 80 22 70 62 25 51
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> 		1-21410-675-1 01 1 0110-0510 ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> 		1-21410-675-1 01 1 0511-0511 ●
1 RADIATOR ASM 1-21410-675-1 01 1 0511-0511 ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> 		1-21410-675-1 01 1 0512- ●
1 RADIATOR ASM
EXC. EURO2 SPECIFICATION<THN> 		1-21410-675-1 01 1 0512- ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05> MAL 		1-21410-674-1 01 1 0110- ●
1 RADIATOR ASM
EURO2 SPECIFICATION<THN> 		8-98040-796-0 01 1 0512- ●
16 CAP; RAD
MAL 		1-21450-053-1 01 1 0110-0305 ●
16 CAP; RAD
EXC. CAUTIONS ARABIAN<WJ7> MAL 		1-21450-053-1 01 1 0306-0308 ●
16 CAP; RAD
CAUTIONS ARABIAN<WJ7> MAL 		1-21450-142-0 01 1 0306-0308 ●
16 CAP; RAD
MAL 		1-21450-142-0 01 1 0309-0510 ●
16 CAP; RAD
MAL 		1-21450-142-0 01 1 0511-0511 ●
16 CAP; RAD
EXC. EURO2 SPECIFICATION<THN> MAL 		1-21450-142-0 01 1 0511-0511 ●
16 CAP; RAD
MAL 		1-21450-142-0 01 1 0512- ● ●
16 CAP; RAD
EURO2 SPECIFICATION<THN> MAL 		1-21450-053-1 01 1 0511-0511 ●
22 BRACKET; RAD MTG
(B) MAL 		1-21464-673-0 01 1 0110-0510 ●
22 BRACKET; RAD MTG
(B) MAL 		1-21464-673-0 01 1 0511- ●
22 BRACKET; RAD MTG
EXC. EURO2 SPECIFICATION<THN> (B) MAL 		1-21464-673-0 01 1 0511- ●
22 BRACKET; RAD MTG
RADIATOR HEAVY DUTY<V05> (A) MAL 		1-21464-674-0 01 1 0110- ●
22 BRACKET; RAD MTG
EXC. RADIATOR HEAVY DUTY<V05> (A) MAL 		1-21464-681-0 01 1 0110-0510 ●
22 BRACKET; RAD MTG
EXC. RADIATOR HEAVY DUTY<V05> (A) MAL 		1-21464-681-0 01 1 0511- ●
22 BRACKET; RAD MTG
EXC. EURO2 SPECIFICATION<THN> (A) MAL 		1-21464-681-0 01 1 0511- ●
22 BRACKET; RAD MTG
EURO2 SPECIFICATION<THN> (B) MAL 		1-21464-361-0 01 1 0511- ●
22 BRACKET; RAD MTG
EURO2 SPECIFICATION<THN> (A) MAL 		1-21464-548-0 01 1 0511- ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 0110-0510 ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 0511- ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0110-0510 ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0511- ● ●
51 PLUG; DRAIN
W/GASKET MAL 		1-09609-009-0 01 1 0110-0510 ●
51 PLUG; DRAIN
W/GASKET MAL 		1-09609-009-0 01 1 0511- ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 0110-0510 ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 0511-0511 ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 0512- ●
62 BOLT; STAY
EXC. EURO2 SPECIFICATION<THN> M8X12 FLANGE 		0-28080-812-0 02 1 0512- ●
70 STAY; RAD
(A) MAL 		1-21522-064-0 01 1 0110-0510 ●
70 STAY; RAD
(A) MAL 		1-21522-064-0 01 1 0511-0511 ● ●
70 STAY; RAD
(A) MAL 		1-21522-064-0 01 1 0512- ●
70 STAY; RAD
EXC. EURO2 SPECIFICATION<THN> (A) MAL 		1-21522-064-0 01 1 0512- ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0110-0510 ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0511- ●
70 STAY; RAD
EXC. EURO2 SPECIFICATION<THN> (B) 		1-21522-069-0 01 1 0511- ●
79 GUIDE; FAN,RAD
MAL 		1-21551-374-2 01 1 0110-0510 ●
79 GUIDE; FAN,RAD
MAL 		1-21551-374-4 01 1 0511-0511 ● ●
79 GUIDE; FAN,RAD
MAL 		1-21551-374-4 01 1 0512- ●
79 GUIDE; FAN,RAD
EXC. EURO2 SPECIFICATION<THN> MAL 		1-21551-374-4 01 1 0512- ●
79 GUIDE; FAN,RAD
EURO2 SPECIFICATION<THN> 		8-98040-798-0 01 1 0512- ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0110-0510 ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0511- ● ●

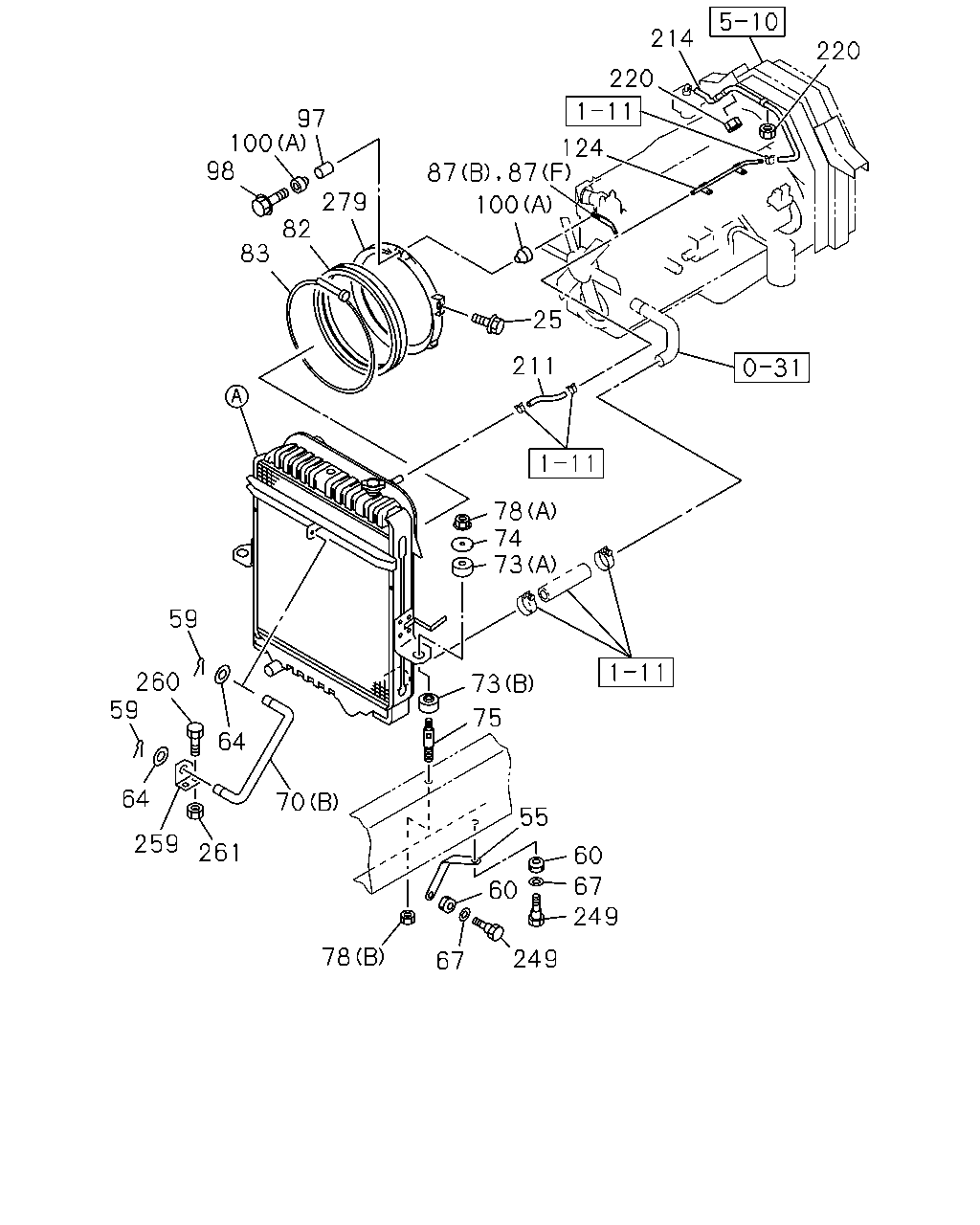

çizim 173566
214 220 220 97 100 98 124 279 100 82 83 25 211 78 74 73 59 260 59 73 75 64 64 70 55 259 261 60 67 249 60 78 249 67 87 87
BalonParca AdiParca NoAdetTipApplied Date A B
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 0110-0510 ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 0511- ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0110-0510 ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0511- ● ●
55 STAY; RAD TO UPR MBR
EURO2 SPECIFICATION<THN> 		1-21464-452-0 01 1 0511- ●
55 STAY; RAD TO UPR MBR
EURO2 SPECIFICATION<THN> 		1-21464-453-0 01 1 0511- ●
59 PIN; SNAP,STAY
MAL 		1-09987-158-1 02 1 0110-0510 ●
59 PIN; SNAP,STAY
MAL 		1-09987-158-1 02 1 0511- ●
59 PIN; SNAP,STAY
EXC. EURO2 SPECIFICATION<THN> MAL 		1-09987-158-1 02 1 0511- ●
60 GROMMET
EURO2 SPECIFICATION<THN> 		1-09332-117-0 04 1 0511- ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 0110-0510 ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 0511-0605 ●
64 WASHER; STAY TO RAD
EXC. EURO2 SPECIFICATION<THN> ID=12.5 		9-09160-512-0 02 1 0511-0605 ●
64 WASHER; STAY TO RAD
ID=12.5 OD=22 MAL 		0-91610-512-0 02 1 0606- ●
64 WASHER; STAY TO RAD
EXC. EURO2 SPECIFICATION<THN> ID=12.5 OD=22 MAL 		0-91610-512-0 02 1 0606- ●
67 WASHER; PL,STAY,RAD MBR
EURO2 SPECIFICATION<THN> ID=12.5 OD=26 		9-09160-612-0 04 1 0511-0605 ●
67 WASHER; PL,STAY,RAD MBR
EURO2 SPECIFICATION<THN> ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ●
70 STAY; RAD
(A) MAL 		1-21522-064-0 01 1 0110-0510 ●
70 STAY; RAD
(A) MAL 		1-21522-064-0 01 1 0511-0511 ● ●
70 STAY; RAD
(A) MAL 		1-21522-064-0 01 1 0512- ●
70 STAY; RAD
EXC. EURO2 SPECIFICATION<THN> (A) MAL 		1-21522-064-0 01 1 0512- ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0110-0510 ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0511- ●
70 STAY; RAD
EXC. EURO2 SPECIFICATION<THN> (B) 		1-21522-069-0 01 1 0511- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0110-0205 ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0206-0510 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0511- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0110- ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0110- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0110- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0110-0602 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE MAL 		0-91180-212-0 02 1 0603- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0110- ● ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 0110- ●
82 COVER; FAN,RAD
EURO2 SPECIFICATION<THN> 		1-21559-321-0 01 1 0511- ●
82 COVER; FAN,RAD
EXC. EURO2 SPECIFICATION<THN> 		1-21559-211-0 01 1 0511- ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0110- ● ●
87 STAY; FAN GUIDE
(E) 		8-94394-775-0 01 1 0110- ●
87 STAY; FAN GUIDE
(F) 		8-94396-496-1 01 1 0110- ●
87 STAY; FAN GUIDE
(D) 		8-94397-395-1 01 1 0110- ●
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 0511- ●
87 STAY; FAN GUIDE
(A) 		8-94393-778-2 01 1 0511- ●
87 STAY; FAN GUIDE
(C) 		8-97601-850-0 01 1 0511- ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0110- ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0110-0512 ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 0110- ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0511-0910 ●
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911- ●
124 PIPE; WATER,TANK TO RAD 8-94394-461-4 01 1 0110- ●
124 PIPE; WATER,TANK TO RAD 8-94395-451-1 01 1 0511- ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 0110-0110 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0510 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03557-300-0 01 1 0511- ● ●
211 HOSE; RAD TO PIPE
L=290 SERVICED BY L=3000 		0-03557-300-0 01 1 0511- ●
214 HOSE; PIPE TO RESERVE TANK
L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0110-0110 ●
214 HOSE; PIPE TO RESERVE TANK
L=1300 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0510 ●
214 HOSE; PIPE TO RESERVE TANK
L=1300 SERVICED BY L=3000 		0-03557-300-0 01 1 0511- ● ●
214 HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000 		0-03557-300-0 01 1 0511- ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 04 1 0110-0602 ● ●
220 NUT; CLIP
M8 FLANGE MAL 		0-91180-108-0 04 1 0603- ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0511-0602 ●
220 NUT; CLIP
M8 FLANGE MAL 		0-91180-108-0 02 1 0603- ●
220 NUT; CLIP
EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 01 1 0511-0602 ●
220 NUT; CLIP
EURO2 SPECIFICATION<THN> M8 FLANGE MAL 		0-91180-108-0 01 1 0603- ●
249 BOLT; STAY,RAD MBR
EURO2 SPECIFICATION<THN> M8X30 		1-09009-020-1 02 1 0511- ●
249 BOLT; STAY,RAD MBR
EURO2 SPECIFICATION<THN> M8X22 		1-09009-123-0 02 1 0511- ●
259 BRACKET; RAD STAY 1-21523-028-0 01 1 0110-0510 ●
259 BRACKET; RAD STAY 1-21523-028-0 01 1 0511- ●
259 BRACKET; RAD STAY
EXC. EURO2 SPECIFICATION<THN> 		1-21523-028-0 01 1 0511- ●
260 BOLT; BRKT
M8X20 FLANGE MAL 		0-28680-820-0 02 1 0110-0510 ●
260 BOLT; BRKT
M8X20 FLANGE MAL 		0-28680-820-0 02 1 0511-0512 ●
260 BOLT; BRKT
EXC. EURO2 SPECIFICATION<THN> M8X20 FLANGE MAL 		0-28680-820-0 02 1 0511-0512 ●
260 BOLT; BRKT
M8X20 FLANGE MAL 		0-28650-820-0 02 1 0601- ●
260 BOLT; BRKT
EXC. EURO2 SPECIFICATION<THN> M8X20 FLANGE MAL 		0-28650-820-0 02 1 0601- ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0110-0510 ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0511-0602 ●
261 NUT; BRKT
EXC. EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 02 1 0511-0602 ●
261 NUT; BRKT
M8 FLANGE MAL 		0-91180-108-0 02 1 0603- ●
261 NUT; BRKT
EXC. EURO2 SPECIFICATION<THN> M8 FLANGE MAL 		0-91180-108-0 02 1 0603- ●
279 BELL MOUTH 8-94394-808-2 01 1 0110- ●
279 BELL MOUTH
EURO2 SPECIFICATION<THN> 		8-94393-779-1 01 1 0511- ●
279 BELL MOUTH
EXC. EURO2 SPECIFICATION<THN> 		8-94394-174-1 01 1 0511- ●

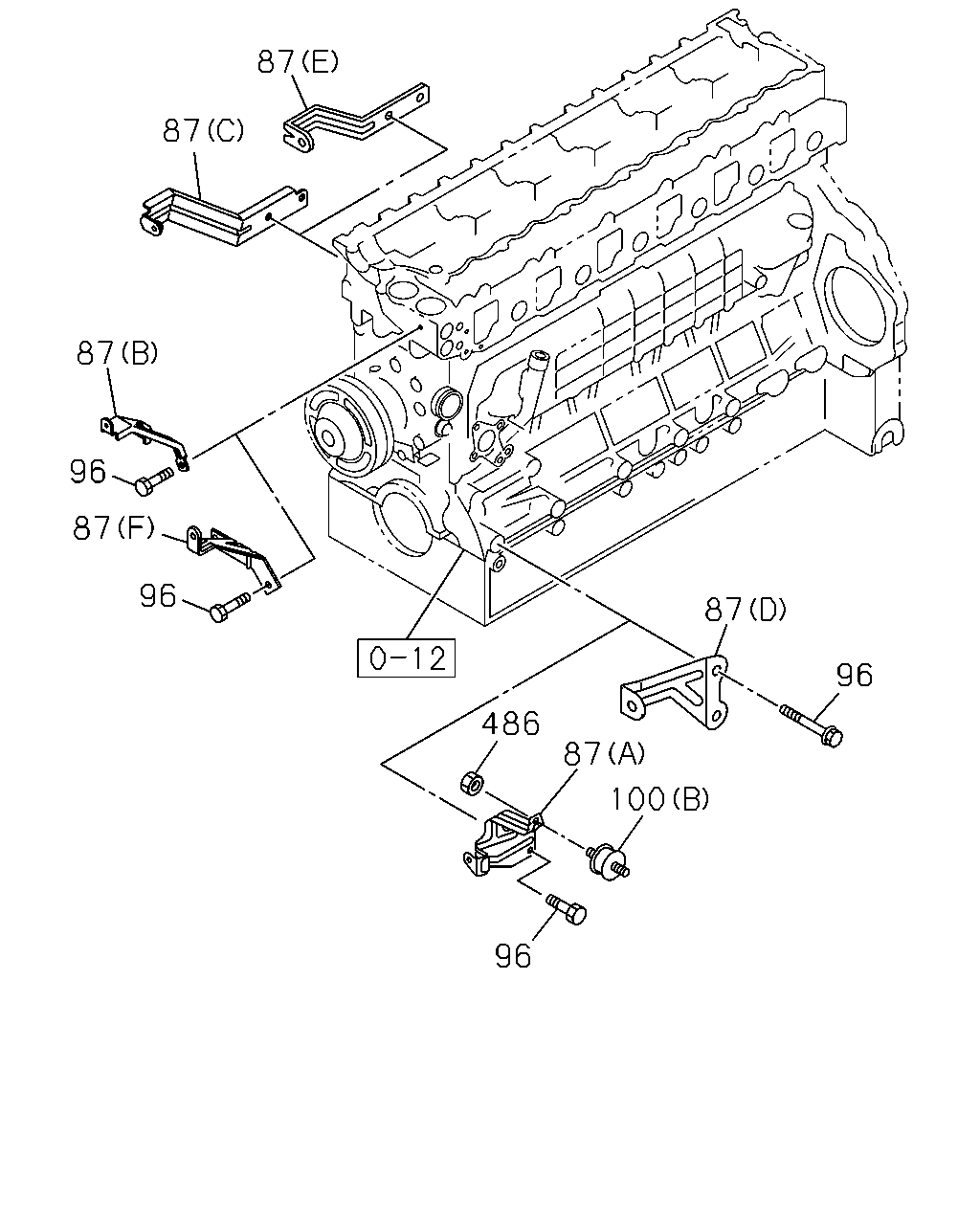

çizim 173573
87 87 87 96 87 96 87 96 486 87 100 96
BalonParca AdiParca NoAdetTipApplied Date A B
87 STAY; FAN GUIDE
(E) 		8-94394-775-0 01 1 0110- ●
87 STAY; FAN GUIDE
(F) 		8-94396-496-1 01 1 0110- ●
87 STAY; FAN GUIDE
(D) 		8-94397-395-1 01 1 0110- ●
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 0511- ●
87 STAY; FAN GUIDE
(A) 		8-94393-778-2 01 1 0511- ●
87 STAY; FAN GUIDE
(C) 		8-97601-850-0 01 1 0511- ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 0110-0510 ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 0511-0512 ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28151-016-0 02 1 0601- ● ●
100 RUBBER; MTG
(A) OD=32 		8-94395-766-0 06 1 0110- ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0511-0910 ●
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911- ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 0511-0602 ●
486 NUT; MTG RUBBER
M8 FLANGE MAL 		0-91180-108-0 01 1 0603- ●
